Gas Pressurized Hot Embossing for Transcription of Micro-features

Gas pressurized hot embossing for transcription of micro-features

Abstract Hot embossing has proven productive for the parallel replication of precision micro-features onto ther-moplastic substrates at low cost. During conventional hot embossing, the substrate and the stamp are brought into contact and are compressed directly by the hot plates of the machine. The accuracy and area of replication are limited due to the inherent non-uniform pressure distri-bution. Si-wafers are too brittle to be used as embossing tools with the conventional hot embossing operation. This paper describes an innovative pressurizing method for hot embossing using gas as pressure media. The film/stamper/ substrate stack is placed in a closed chamber. After heat-ing, the gas is blown in at high pressure to pressurize the stack. Micro patterns in the stamp can be successfully replicated onto the substrate. Perfectly uniform embossing pressure throughout the whole area can be achieved. Glass or wafers with micro-features on their surfaces can be used as stampers directly.

1

Introduction

Hot embossing is a productive method for the parallel replication of precision micro-features at low cost. With a single master or stamp, identical structures can be reproduced onto substrates. This technique is widely ap-plied in microstructure fabrication, for example, in opti-cal-sensor and bio-chip applications. So far, many successful replications of the micro-features of stamps have been reported [Gale (1997); Olsson et al. (1998); Becker et al. (2000)]. There are three basic steps in hot embossing. Firstly, a polymer substrate is heated above a certain temperature. Secondly, a mold (stamp or master) is pressed against the substrate, allowing the pattern to be fully transferred onto the substrate (embossing). Finally,

after a suitable amount of contact time between the mold and substrate, the system is cooled down below Tg, followed by separating the mold from the substrate (de-embossing). Figure 1 shows schematically the apparatus for a typical hot embossing process.

With conventional hot embossing, the substrate is pressed directly by the hot plates of the press machine. One of the moving hot plates is usually driven by pneumatic cylinder [Juang et al. (2002)], hydraulic cyl-inder [Chang and Yang (2002)] or linear screw/motor devices [Heckele et al. (1998)]. Some hot embossing facilities use a cylinder pump with adjustable heating blocks [EVGroup (2002)]. Pressing substrates with hot plates has inherent problems. The distribution of the embossing pressure is not uniform. It was found that the embossing pressure was higher in the intermediate zone and lower in the margin zone under thin-film hot embossing [Chang and Yang (2002)]. Similar results were also obtained by Lin et al. (2002). This influences the uniformity of pattern embossing. Furthermore, the shrinkage that occurs during subsequent cooling is af-fected by the non-uniform pressure distribution, which also greatly limits the replication accuracy and area. Until recently, the maximum wafer size of replication using hot embossing was only 4 inches. The largest working area of a commercial hot embossing machine is limited to 130 mm [Jenoptik Mikrotechnik (2002)]. Larger areas of uniformity would be highly advantageous to increase throughput, especially for applications such as displays. It has, thus, become more and more urgent and impor-tant to solve the problem of non-uniform pressure dis-tribution. In addition, pressing a substrate with hot platens does not allow for the possibility of using stamps made of brittle material. It was reported that silicon molds have the advantage of excellent surface quality and easy mold release [Becker and Heim (2000); Lin et al. (2000), Ong et al. (2002)]. As a result of recent advances in the semiconductor industry, the wafer diameter has increased from 4 to 8 and even 12 inches in just a few years. It would be advantageous to use wafers directly as stamps, but silicon wafers are too brittle to use as stamps in the conventional hot embossing operation. They are easily broken during the embossing stage. This paper reports an innovative method for hot embossing using gas as pressure media. When gas is used as the pres-surizing agent, perfectly uniform embossing pressure throughout a large area can be achieved. Glass stamps or silicon wafers with micro-features on their surfaces can be used as stampers directly.

Microsystem Technologies 10 (2003) 76–80 Ó Springer-Verlag 2003 DOI 10.1007/s00542-003-0311-1

Received: 13 December 2002 / Accepted: 14 January 2003 J.-H. Chang, S.-Y. Yang (&)

Grace Laboratory for Polymer Processing, Department of Mechanical Engineering, National Taiwan University, Taipei, Taiwan 106, Republic of China E-mail: [email protected]

The authors would like to thank National Taiwan University for help with lab set-up, Professor Ping-Hei Chen and Mr. Jian Ying Tsai for providing the embossing stamper, and their coworkers at Grace Laboratory for stimulating discussions and experimental assistance.

2

The gas pressurized hot embossing process

As illustrated in Fig. 2, the gas pressurized hot embossing process consists of four steps: (1) placing the plastic film onto the stamper to form a film/mold stack, which is then placed above a heating/cooling plate; (2) enclosing the film/mold stacker with a covering chamber, and then heating the film/mold stacker; (3) blowing the gas into the chamber to exert gas pressure uniformly over the film,

forcing it into the mold and (4) cooling, and then exhausting the gas and opening the chamber to get the embossed film.

The blown gas can be air or a protective gas, such as nitrogen or argon. In this experiment, nitrogen was used. The gas pressurizing system is composed of a nitrogen tank (120 kgf/cm2 max.), a pressure regulator, valves, and a manual controller. The gas pressure can be regulated with the pressure regulator. Cartridge heaters in the hot plate are used to heat the stamper and polymer substrate, while oil or water is used to cool the system. A vacuum system can be attached to the system if needed.

The embossing master can be a wafer, glass, electro-plated Nickel mold, or other stamper with micro-features. The system also allows double-sided embossing onto thermoplastic plates. An additional seal-film as shown in Fig. 3 is used. The function of the seal-film is to permit the external gas pressure to press the mold into the substrate. During the heating process, low gas pressure is applied to the film to prevent the film from creasing. The ther-moplastic film is heated above the glass transition tem-perature, Tg. After the gas pressure is applied, the film is forced to conform to the micro-features in the surface of the stamper. The temperature, the time of embossing, and the applied gas pressure are chosen such that the polymer completely fills the cavities of the stamp during embossing. Once the polymer has conformed to the shape of the stamp, it is cooled to a temperature below Tg. Then the gas is vented, the chamber is opened, and the embossed film is retrieved.

2.1

Temperature and pressure profiles set-up

Figure 4 shows the temperature and pressure profiles during the gas pressurized hot embossing process. With respect to the temperature profile, the process starts with the heating stage, remains at the certain fixed temperature stage, and then concludes with the cooling stage. The temperatures depend on the polymeric material used. With respect to the gas pressure profile, two steps of compression are involved. During heating, slight pressure (pre-loading) is applied. After the embossing temperature is reached, high embossing pressure is applied during this constant embossing temperature stage. The embossing pressure can be easily set using the regulator valve. The total cycle time is between 20 and 30 min.

Fig. 1. Schematic drawing of the traditional hot embossing apparatus. (Driving unit: hydraulic cylinder, pneumatic cylinder, linear screw/motor.)

Fig. 2. Schematic drawing of the steps of gas pressurized hot embossing process

Fig. 3. Schematic diagram showing the double-sided elements or plate embossing. The thicknesses of the mold and substrate are not drawn to scale. (A – Upper mold, B – Lower mold, S – Substrate.)

3

Test results and discussion

A 4-inch silicon wafer with micro fluid-channels was used as the mold to characterize the thin-film hot embossing process as shown in Fig. 5. The micro-fea-tures of the embossed films were measured using a surface profiler (Alpha-Step 500, TENCOR, USA). Images were also taken using a scanning electronic microscope (Jeol Model 5410, Japan).

3.1

Thin-film hot embossing

Polyvinyl chloride (PVC) film is used in most replication work since it has a lower Tg ( =80 °C) temperature. The experiment was carried out at an embossing temperature of 90 °C with a gas pressure of 40 kgf/cm2. The gas pres-sure was held constant for 15 min. The thickness of the PVC film was 0.20 mm.

The microstructures were precisely reproduced in the polymeric film as shown in Figs. 6 and 7. The micro-fea-tures in the silicon wafer were replicated on the PVC films. No defects due to incomplete filling could be found even with a very low contact gas pressure of 40 kgf/cm2. Gas pressurized hot embossing was proven here to be capable of successfully replicating micro-features in silicon onto thermoplastic films under low gas pressure.

The embossing of thermoplastic films has been reported to be more difficult than that of plates with the conven-tional platen hot embossing process [Chang and Yang (2002)]. Soft cushion pads are needed between the stamper and upper block to ensure continuous close contact be-tween the stamper and the film throughout the embossing

process. Note that the soft cushion pad is not needed when gas is used as the pressure media in gas pressurized hot embossing.

3.2

Substrate hot embossing

For bio- and MEMS- applications, plastic plate substrates are commonly used in the hot embossing process. Poly-methyl methacrylate (PMMA) plates were used in this experiment. The glass transition temperature of the PMMA was around 105 °C. The thickness of the PMMA plates was 2.0 mm. The same 4-inch silicon wafer was used as the embossing tool. The seal-film used was PET film. The test was carried out at an embossing temperature of 155 °C with a gas pressure of 40 kgf/cm2. The gas pressure was held constant for 15 min. The results show good transcripted micro-features of the substrates that were hot embossed using gas as the pressurized media. The micro-features on the silicon could be precisely replicated onto the PMMA plates. Replication of micro-features was suc-cessful throughout the whole area. In addition, double-sided elements were also embossed successfully. 4

Summary and conclusions

This paper has reported an innovative method for hot embossing using direct gas pressure to press the mold and substrate. A gas pressurized hot embossing facility has been constructed and tested. Successful replication of micro-features on a silicon wafer onto plate substrates and films has been achieved. The embossing pressure was uniform over the whole area. This technique has excellent potential for very large size wafers with microstructures, and it can achieve high replication throughput at, poten-tially, low cost. The advantages of the gas pressurized hot embossing process can be summarized as follows:

Fig. 4. Temperature and pressure profiles during gas pressurized hot embossing

Fig. 5. A whole 4-inch silicon wafer stamper with micro fluid-channels

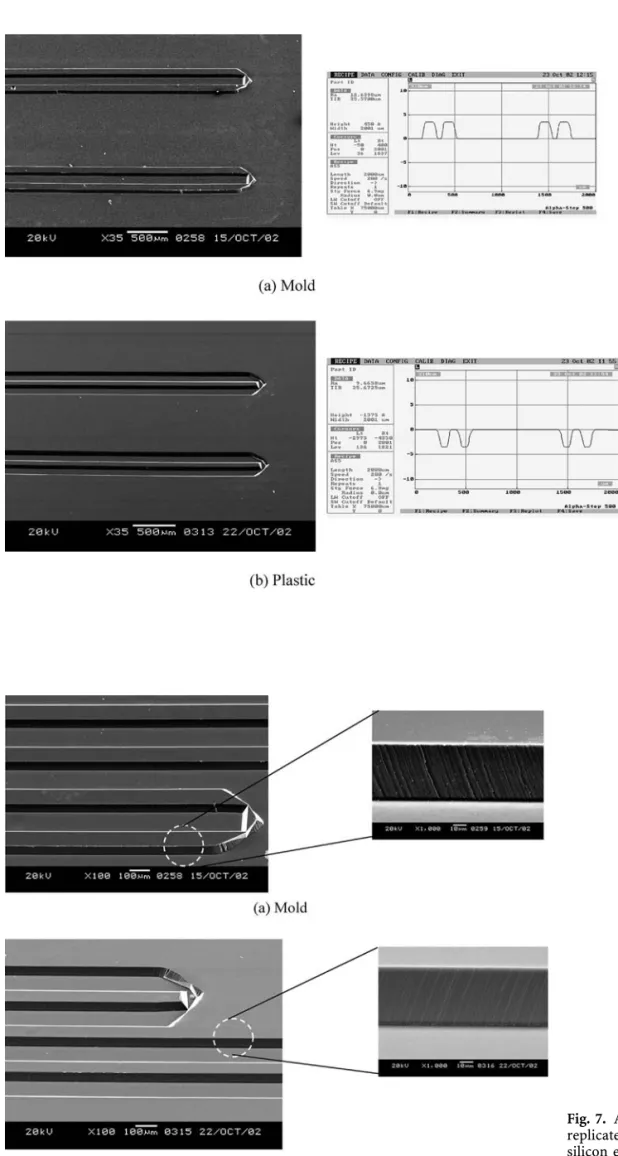

Fig. 6. An SEM microphoto and surface profile showing the stamper and replicated micro fluid-channels

Fig. 7. An SEM microphoto showing the replicated micro fluid-channels. The silicon etching mark in the side-wall is faithfully reproduced in the polymer

 Compared with the conventional hot embossing pro-cess, the new method offers perfectly uniform emboss-ing pressure distribution. This can improve replication accuracy.

 Since the gas is isobaric and isotropic, the embossing area is not limited. Micro-features can be transferred onto large areas (wafers of up to 8 or 12 inches) easily.  Compared with the conventional hot embossing

pro-cess, a silicon wafer can be directly used as the embossing tool. The risk of fracturing the wafer tool can be reduced by using gas as the pressure medium.  The method has also been used to emboss double-sided

elements. It is flexible, simple, practical, and reliable.
