Abstract

Cooperative relaying is a distributed technology that uses relay stations to realize a virtual multiple-input multiple-output (MIMO) system. Motivated by the spatial diversity of MIMO and the temporal diversity of automatic retransmission request (ARQ), in this research project, we first develop cooperative ARQ protocols based on the amplified-and-forward (SAF) relaying method. Analysis shows that the temporal diversity of ARQs can be exploited with AF relaying only if the channel quality to the relay exceeds a threshold that depends on the source data rate requirement. Based on this analysis, an effective ARQ protocol is first developed from the concept of selective relaying to attain the full temporal diversity. Moreover, the notion of SAF relaying is further extended to systems with multiple relays to exploit the spatial and temporal diversities, incorporating the mechanism of opportunistic relaying. Two types of opportunistic-selective AF (OSAF) relaying methods are thus proposed for cooperative ARQs. Analysis shows that both OSAF protocols can offer much higher diversities than ARQ schemes with the typical AF relaying method. And the throughput of ARQs with OSAF is more robust to the variations of channel qualities and is close to their decode-and-forward (DF) counterparts.

In addition to ARQs with AF relaying, we also extend the study on ARQs based on the DF ODSTC. According to the simulation results, allowing the non-active relays to overhear the DSTC signal sent by one or two active relays yields significant advantage on the delay-limited throughput. Besides, the throughput enhancement becomes more pronounced when subject to a lower outage constraint. Nevertheless, in the extremely high or low SNR regimes, simple schemes without overhearing may provide almost the same performance offered by overhearing, despite its inferior diversities. Thus, it can greatly reduce the need for a complex protocol with overhearing.

Keywords

Selective amplified-and-forward, cooperative ARQ, opportunistic relaying, opportunistic DSTC.

I. Introduction

Cooperative communication has emerged as a new paradigm in wireless communications. Since the work of [1, 2], many cooperative ideas have been introduced to enhance the system capacity and/or transmission reliability, either through user cooperation or by signal relaying. They can be roughly categorized into the amplified-and-forward (AF) and decoded-and-forward (DF) methods. In view of the simplicity of AF relaying and its corresponding effect of noise enhancement, selective AF (SAF) relaying method has been considered in [3] to improve the power efficiency of typical AF relaying, or in [4] for multi-hop relaying and in [5] with phase feedbacks.

On the other hand, a host of cooperative schemes have been proposed to exploit the spatial diversity via distributed space-time coding (DSTC), e.g. [2,6]. The diversity order of the outage probability is shown to increase proportionally with the number of cooper-ative relays. Moreover, a full order of the coopercooper-ative diversity can be achieved even by using one out of a set of available relays opportunistically [7]. Motivated by the simplicity and effectiveness of opportunistic relaying, some more recent efforts have been made to investigate the opportunistic distributed beamforming [8] and DSTC [9].

For the AF scheme, to avoid the difficulty of synchronization among all participating relays and to prevent from the complexity of using distributed space-time coding or beam-forming, opportunistic relaying (OR) has been introduced in [10] to exploit the spatial diversity offered by distributed relays. Inspired by the above results, we study herein ef-fective opportunistic and selective AF methods for cooperative automatic retransmission request (ARQ) to exploit the spatial and temporal diversities via cooperative relaying.

According to our analysis, it shows that the temporal diversity of ARQs can be exploited with AF relaying only if the channel quality to the relay exceeds a threshold that depends on the source data rate requirement. Based on this result, an effective ARQ protocol is first proposed to employ the SAF relaying to attain the full temporal diversity. More-over, by incorporating the OR mechanism, this SAF relaying scheme is further extended to exploit the spatial and temporal diversities in systems with multiple relays. Different from the opportunistic AF (OAF) in [10], the opportunistic selection methods studied herein only rely on the channel qualities to the destination, which prevents from the need of extra channel state information at the destination. Based on this opportunistic mech-anism, two types of opportunistic-selective AF (OSAF) relaying methods are developed for cooperative ARQs. Analysis shows that both OSAF protocols can offer much higher diversities than ARQ schemes with the typical AF relaying method if proper thresholds are set for each hop along the relayings. Besides, numerical studies also demonstrate that the throughput of ARQs with OSAF is more robust to the variations of channel qualities and is close to their decode-and-forward counterparts.

Besides, for the DF scheme, in contrast to the rich results in the outage analysis for DSTC, the performance of automatic retransmission request (ARQ) is relatively less

in-vestigated for opportunistic DSTC (ODSTC). The average throughput of a cooperative hybrid-ARQ scheme has been reported in [6] for DSTC only. To study the effectiveness of ODSTC and the extra degrees of freedom via ARQs, in the beginning, the spatial and temporal diversities of cooperative ARQ via decode-and-forward (DF) ODSTC are investigated. Then, we analyze the delay-and outage-limited throughput to examine the effectiveness of each scheme at different SNRs. According to the numerical results, allowing the non-active relays to overhear the DSTC signal sent by one or two active relays yields significant advantage on the delay-limited throughput. Besides, the throughput enhance-ment becomes more pronounced when subject to a lower outage constraint. Nevertheless, in the high or low SNR regimes, simple schemes without overhearing may provide almost the same performance offered by overhearing, despite its inferior diversities. Thus, the need for a complex protocol with overhearing can be greatly reduced.

II. Cooperative ARQ with Selective AF Relaying

We introduce in this section the ARQ schemes with the assistance of SAF relaying evolved from the original AF in [11] and its variation in [4]. For the clearness of presen-tation, we first consider a system that consists of only one source, one destination and a single relay. The result of this system will then be extended to systems with multi-ple relays. Throughout the paper, the channel between any transmit and receive pair is considered flat Rayleigh and, for simplicity of analysis, the channel coefficients remain unchanged within a period of time and change randomly from period to period. This assumption, though rather optimistic in practice, allows us to proceed with the analysis based on the outage probability [12].

A. ARQ with selective AF relaying (ARQ-SAF)

Different from the typical AF relaying, the relay in this ARQ scheme first compares the instantaneous source-to-relay channel quality ρ|hsr|2 against a predetermined threshold,

∆, before retransmission. If ρ|hsr|2 is less than or equal to ∆, then the source will be asked

to do the retransmission by itself, while, in the mean time, the relay keeps overhearing the signal during retransmissions. Once ρ|hsr|2 > ∆, the relay proceeds with the

until it is decoded successfully at the destination or when the maximal number of ARQs is reached, namely no ARQ is further needed. The corresponding received SNR at the destination is given by SNRd= ρ2_|h sr|2|hrd|2 ρ|hsr|2+ ρ|hrd|2 + 1 (1) where hsr, hsd, and hrd stand for the channel coefficients of to-relay (S-R),

source-to-destination (S-D), and relay-source-to-destination (R-D), respectively, and are all complex Gaussian random variables with zero mean and variances equal to β1, β0 and β2, respec-tively. Besides, without the loss of generality, the transmit SNR is assumed to be the same at the source and the relay, and is denoted by ρ , Es

N0.

III. The Outage Probability of ARQ-SAF

In this section, we will show that the threshold ∆ for the selective AF relaying is crucial for ARQ schemes to attain their full diversities. In other words, the ARQ scheme with the simple AF relaying (∆ = 0) is not able to benefit from diversity enhancement via retransmissions. The analysis is mainly based on the outage probability of the form

Pr {log₂(SNR + 1) < R} = Pr©SNR < 2R_{− 1}ª ₍₂₎

where R is the information rate in bits/sec per channel use. For convenience of expression, we define a number of notations for variables to be used frequently in the analysis. Specif-ically, we have a , ρ|hsr|2, b , ρ|hrd|2 and w , ρ|hsd|2, and denote the outage probability

after n rounds of ARQs with scheme A by PA

n, and the maximal number of ARQ rounds

by N . Besides, we also have δ1 , 2R− 1, and redefine ∆ , kδ1 with k ≥ 0. Finally, the diversity order d is defined as [12]

ξ , − lim

ρ→∞

log PA

n(ρ)

log ρ . (3)

Given ∆, the outage probability after n rounds of ARQs with the selective AF relaying can be expressed as PSAF n = Pr{w < δ1} × n X l=0 h (Pr{a ≤ ∆} Pr{w < δ1})n−lF (∆, l) i (4)

0 0.5 1 1.5 2 2.5 6 8 10 12 14 16 18 20 22 24 26 k SNR (dB) Parameter Settings − N=3, β0=(1/2) 3 , β1=β2=1, R=1. P_e=10−2 P_e=10−3 P_e=10−4

Fig. 1. The effect of k = ∆

δ1 v.s. the SNR at a target P

SAF

3 = Pe.

where (Pr{a ≤ ∆} Pr{w < δ1})n−l is the outage probability after n−l consecutive retrans-missions by the source, and F (∆, l) stands for the outage probability of the subsequent l consecutive retransmissions by the relay, which are characterized by the joint probability of the outage events of

F (∆, l) = Pr ½ a > ∆, ab1 a + b1+ 1 < δ1, . . . , abl a + bl+ 1 < δ1 ¾ , for l > 0 (5)

with F (∆, 0) , 1. Since the R-D channel fades independently in each ARQ round, bl is

used to distinguish the corresponding channel quality in each ARQ round.

Apparently, the outage events in F (∆, l) are correlated as the S-R channel quality “a” remains unchanged throughout the ARQs even if bl are statistically independent. With

some mathematical manipulations, it can be shown that the form of F (∆, l) also depends on δ1. For the conciseness of presentation, the result is summarized in the following lemma.

Lemma 1: Given ∆ and R and, hence, δ1, we have F (∆, l) = e−ρβ1∆ +        l P i=1 Cl i(−1)ie −(_ρβ11 +_ρβ2i )δ1_{Γ(1, 0;}i(δ21+δ1) ρ2_β 1β2 ) , ∆ < δ1 l P i=1 Cl i(−1)ie −( 1 ρβ1+ρβ2i )δ1Γ(1,∆−δ1 ρβ1 ; i(δ2 1+δ1) ρ2_β1β2 ) , ∆ ≥ δ1 (6)

where Γ(α, x; b) =R_x∞tα−1_e−t−b_{tdt is the generalized incomplete gamma function [13], and}

Cl

0 5 10 15 20 25 30 10−12 10−10 10−8 10−6 10−4 10−2 100 SNR (dB) Outage Probability Parameter Settings − β₀=(1/2)3_{, β} 1=β2=1, R=1. k=0 k=0.5 k=0.9 k=1.1 k=1.5 Slope=−2 Slope=−4

Fig. 2. Outage probabilities after three rounds of ARQ-SAFs (PSAF

3 ), with thresholds ∆ = kδ1in different

k’s.

Substituting (6) into (4) gives the closed form expression of (4). The relation between ∆ , kδ1 and the outage probability(4) is illustrated in Fig. 1. As can be seen in the figure, the required SNR for PSAF

3 = Pe dramatically reduces around k = 1. This in fact

results from the diversity loss for k < 1 shown in Fig. 2. The dependence of the diversity order on ∆ is characterized in the following lemma. Due to the space limitation, the proof is not presented in the paper.

Lemma 2: If ∆ > δ1, then the diversity order of PnSAF in (4) is equal to (n + 1); whereas,

if ∆ < δ1, it is equal to 2.

Lemma 2 shows that the full temporal diversity of ARQs can be achieved if a basic channel quality of ∆ is met before the AF relaying. This gives an interesting reminiscence of the selective DF relaying in [11], even if the source signal is not decoded here before the AF retransmission.

The result of Lemma 2 also shows that the diversity order of ARQ with direct AF relaying (ARQ-AF) is equal to 2 as it is simply a special case of ARQ-SAF with ∆ = 0, which is always less than δ1 for R ≥ 0. According to Lemma 1, the corresponding outage probability for ARQ-AF is given by

PAF

n = (1 − e

−_ρβ0δ1 _{) × F (0, n). (7)}

IV. Cooperative ARQ with Opportunistic-Selective AF Relaying In this section, we extend the notion of selective AF relaying to systems with multiple relays. Motivated by the opportunistic relay selection method in [10], we will discuss and

analyze three protocols herein based on their outage probabilities. We assume there are

M relays available in the system and denote the channel coefficient between the source

and the relay j by hj,sr and the channel between the relay and the destination by hj,rd.

In addition, the channel coefficient between relay i and relay j is denoted by hi,j. For

simplicity of analysis, all channel coefficients are still assumed complex Gaussian random variables with zero mean. The variances of hj,sr for different j are the same and equal to

β1. Similarly, the variance of hj,rd is β2, ∀j = 1, . . . , M . Furthermore, the variance of hi,j

is β3, ∀i, j = 1, . . . , M.

A. ARQ with opportunistic AF relaying

We first investigate the outage probability of ARQ with the opportunistic AF (ARQ-OAF) relaying method presented in [10]. The ARQ-OAF basically chooses the relay t in each round of ARQ that satisfies

t = arg max j∈{1,...,m} ½ ρ2_|h j,sr|2|hj,rd|2 ρ|hj,sr|2 + ρ|hj,rd|2+ 1 ¾ (8) to directly amplify and forward the signal. Based on the previous results, the outage prob-ability after n rounds of this OAF-based ARQs is provided in the following proposition.

Proposition 1: Given R and M, the outage probability after n rounds of ARQs with

OAF is given by

POAF

n = (1 − e

−_ρβ0δ1 _{) × (F (0, n))}M ₍₉₎

and its diversity order is limited to (M + 1), ∀n = 1, . . . , N .

Proof: : The detailed derivation for the outage probability is omitted here for space

limitation. By Lemma 2, if ∆ < δ1, then F (∆, n) is of the order of ρ−1 at high SNR. Thus, the diversity order of POAF

n is equal to (M + 1).

In fact, the ARQ-OAF scheme offers the full cooperative diversity only for the first ARQ round. In the subsequent ARQs however, aj , ρ|hj,sr|2 remain unchanged in the AF

signal. Similar to the ARQ-AF scheme, this results in the loss of the temporal diversity as shown in Fig. 3. This motivates us to develop another two protocols based on the SAF relaying method in Section II to recover the diversity.

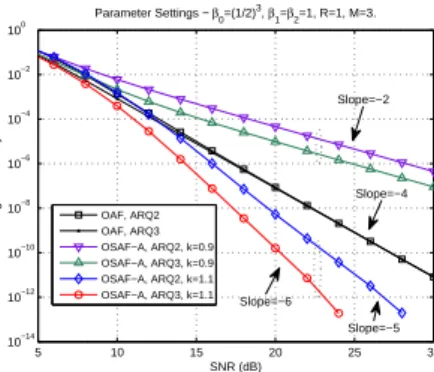

5 10 15 20 25 30 10−14 10−12 10−10 10−8 10−6 10−4 10−2 100 Parameter Settings − β0=(1/2) 3 , β1=β2=1, R=1, M=3. SNR (dB) Outage Probability OAF, ARQ2 OAF, ARQ3 OSAF−A, ARQ2, k=0.9 OSAF−A, ARQ3, k=0.9 OSAF−A, ARQ2, k=1.1 OSAF−A, ARQ3, k=1.1 Slope=−5 Slope=−4 Slope=−2 Slope=−6

Fig. 3. Outage probabilities for ARQs with OAF and OSAF-A relayings. For OSAF-A with ∆ = kδ1≥ δ1,

the diversity orders increase by 1 with each round of ARQ. Otherwise, they are limited to 2.

B. ARQ with opportunistic-selective AF relaying

The essence of ARQ-SAF lies in setting a sufficiently high threshold that the relay is allowed for forwarding only if the S-R link quality, ρ|hsr|2, exceeds the threshold. By

ensuring the quality of the received signal, the channel diversity in the subsequent ARQs can be exploited to reduce the outage probability. Inspired by this result, we define a qualified set Q of the relays whose ρ|hj,sr|2 > ∆ for opportunistic AF relaying. In each

ARQ, the relay in Q with the highest ρ|hj,rd|2 gets selected for AF relaying. In case of

Q = ∅, then the source will do the retransmission until Q 6= ∅ or when no ARQ is further

needed. We note that the relay selection method here is unrelated to the S-R channel quality any more, i.e. hj,sr is not needed at the destination.

Based on this opportunistic-selective AF (OSAF) relaying method, we discuss in the next section two types of ARQ schemes, referred to as the type A and B of ARQ-OSAF, respectively. The type-A scheme forms Q by overhearing the signals from the source only, while type-B continues to enlarge the cardinality of Q by overhearing the transmitted signals from relays in Q as well. Their performance are analyzed in the following two subsections.

B.1 ARQ with the type A of OSAF relaying (OSAF-A)

Under the assumption that all R-D channels have the same statistical property, every relay in Q has equal possibility to be chosen as the active relay for AF. With this simplified setting, the outage probability after n rounds of ARQs with OSAF-A can be expressed in

the following compact form. Proposition 2: POSAF-A n = Pr{w < δ1} × n X l=0 ©£ (Pr{a ≤ ∆})M × Pr{w < δ1}]n−l× G(M, l) o (10) where G(M, l) , 1 for l = 0; in addition, for l > 0, it follows

G(M, l) =

m

X

i=1

CM

M −i(Pr{a ≤ ∆})M −i(

1

i)

l_F(i)_{(∆, l, i) (11)}

in which for i = 1, 2, we have

F(1)_{(∆, l, r) , F (∆, l) (12)} F(2)(∆, l, r) , l X ζ=0 C_ζl(e−ρβ1∆ )q(l,ζ)× F (∆, r · ζ) ×F (∆, r · (l − ζ)) (13)

with q(l, ζ) = δ[l − ζ] + δ[ζ] − δ[l + ζ]. While for i > 2, F(i)_{(∆, l, r) can be expressed as a} recursive form of F(i)_{(∆, l, r) =} l X ζ=0 Cl ζ(e − ∆ ρβ1)q(l,ζ)× F(i−1)(∆, ζ, r) ×F (∆, r · (l − ζ)) (14)

Proof: Due to the space limitation, the proof is not included in the paper. Basically

we make use of the Binomial Theorem and Lemma 1 to complete the proof.

As we have known from Lemma 2, different thresholds for ARQ-SAF will result in different outage probabilities or even diversity losses. For ARQ with OSAF-A, we also have similar results which are summarized in the next proposition.

Proposition 3: If the threshold ∆ for ARQ-OSAF-A is large than δ1, then the diversity order of POSAF-A

n increases with n and is equal to (M + n). However, if ∆ < δ1, then the diversity order of POSAF-A

n is just equal to 2 regardless of the number of relays and the ARQ

!

Fig. 4. An illustration for ARQs with the OSAF-B relaying.

Proof: : By Proposition 2 and Lemma 2, the diversity order of POSAF-A

n could be easily

verified.

The diversity orders of ARQ-OSAF-A can be verified with the outage probabilities presented in Fig. 3. Although only ρ|hj,rd|2 is considered for relay selection in

OSAF-A, the OSAF relaying scheme is able to exploit the temporal diversity through ARQs if ∆ > δ1. Nevertheless, the diversity order only increases by 1 in each round after the first round of ARQ. This limitation is due to the worse case of Q in which only one relay is inside the set.

On the other hand for ∆ < δ1, the diversity order is limited to 2 due to the poor S-R channel qualities and the selection rule of OSAF. In comparison, the diversity order of ARQ-OAF is equal to M + 1 as both ρ|hj,sr|2 and ρ|hj,rd|2 are required for the destination

to choose the best relay according to (8).

B.2 ARQ with the type B of OSAF relaying (OSAF-B)

Based on the previous discussions on OSAF-A relaying, the key to further improve the diversity via ARQs is to increase the cardinality of Q, denoted by |Q|, through ARQs as well. This can be made possible only if the unqualified relays continue to overhear the signals transmitted by relays in Q during the process of ARQs. If conditions can be set on the link qualities, ρ|hi,j|2, between the transmitting and receiving relays to qualify and

bring new relays into Q, then the diversity may no longer be limited to the case of |Q| = 1. This type of OSAF scheme is referred to as the ARQ with the OSAF-B relaying. The functioning of the protocol is illustrated in Fig. 4.

previous ARQ and is currently forwarding the signal to the destination. The relay R6 in the forbidden set, denoted by Q, overhears the signal from R5. If c4 , ρ|h5,6|2 exceeds a threshold, say ∆4 with 4 being the number of hops before reaching the destination, then R6 will be taken out of the forbidden set Q and join the qualified set Q. In the next round of ARQ, if any, the destination still chooses the relay in Q with the highest ρ|hj,d|2 for

forwarding, even if the signal from R6 has accumulated more noise through the hops from the source to R2, R3 and then R5.

In general, for an active relay that forwards a signal already gone through p hops, the received SNR at the destination can be expressed as

SNRd = 1 1 a1 + 1 c2 + · · · + 1 cp + 1 b[q]∗ + (

higher order terms)

(15) where b[q]∗ represents the highest ρ|hj,d|2 in Q with q , |Q|. Since the higher order terms

can be ignored in the high SNR regime, the denominator becomes simplified into the reciprocal sum of all the passed channel qualities. As a result, the corresponding outage probability at high SNR becomes

lim ρ→∞Pout= limρ→∞Pr ½ 1 b[q]∗ > 1 δ1 − µ 1 a1 + · · · + 1 cp ¶¾ . (16)

We next characterize the thresholds for (16) to achieve its full diversity. To this end, we first define a requirement on the reciprocal sum of 1

a1 + · · · +

1

cp.

Requirement 1 : Given a fixed and arbitrarily small positive number ², for an active relay

that forwards a signal already gone through p hops, the corresponding reciprocal sum satisfies 1 a1 + 1 c2 + · · · + 1 cp ≤ τ , 1 δ1 + ².

For ARQ with OSAF-B relaying that satisfies Requirement 1, an upper bound can be obtained on the corresponding outage probability of (16), given by

lim ρ→∞Pout≤ limρ→∞Pr ½ b[q]_∗ < 1 ² ¾ . (17)

Based on this upper bound, we have the next two lemmas.

Lemma 3: If there exists a qualified set Q with q = |Q| and in Q, every relay chosen by

the destination according to the OSAF method satisfies Requirement 1, then the diversity order contributed by the relaying is q.

Lemma 4: Following Lemma 3, if the listening relays to be added into Q also satisfy

Requirement 1, then the maximum diversity order that can be achieved for each ARQ is

M.

Based on the above results, we arrive at a theorem for the diversity order of the ARQ-OSAF-B scheme.

Theorem 1: If all relays chosen according to OSAF-B out of Q satisfy Requirement 1,

then the diversity order of the outage probability after n rounds of ARQ-OSAF-B is given by (M × n + 1).

Proof: By Proposition 3, at the first ARQ round, the OSAF-B scheme achieves a

diversity order of (M +1) as the first ARQ of B is exactly the same to that of OSAF-A. For the subsequent rounds of ARQs, by Lemma 4, the diversity order increases by M with every extra ARQ round. As a result, the overall diversity of the outage probability is equal to (M × n + 1) after n rounds of ARQ-OSAF-B.

B.3 Threshold assignment for ARQ-OSAF-B

Apparently, for ARQ-SAF and ARQ-OSAF-A, the threshold ∆ should be set greater than δ1according to Lemma 2 and Proposition 3, respectively. For ARQ-OSAF-B however, the source signal may go through multiple hops before arriving at the destination. Thus we need to define a threshold for each hop to control the channel quality of the entire relaying path. Since the maximal number of hops is limited to min[M, N ], we therefore define an array of thresholds as [∆1, . . . , ∆i, . . . , ∆min[M,N ]] with ∆i corresponding to the

threshold for the i-th hop.

Fig. 5 demonstrates the outage probabilities for three different assignments of ∆i

with M = 3 and N = 3. The thresholds are [3δ1, 3δ1, 3δ1] + ²/3, [2δ1, 4δ1, 8δ1] and [1.5δ1, 8δ1, 15δ1], respectively, and all satisfy Requirement 1. As characterized by The-orem 1, all lead to the full diversity order at high SNR, while with small offsets among them.

0 2 4 6 8 10 12 14 16 10−8 10−7 10−6 10−5 10−4 10−3 10−2 10−1 100 SNR (dB) Outage Probability Parameter Settings − M=3, β0=(1/2) 3

, β1=β2=β3=1, R=1. (Monte Carlo method)

P1, [3, 3, 3] P2, [3, 3, 3] P3, [3, 3, 3] A3 A6 A9 P1, [2, 4, 8] P2, [2, 4, 8] P3, [2, 4, 8] P1, [1.5 8 15] P2, [1.5 8 15] P3, [1.5 8 15]

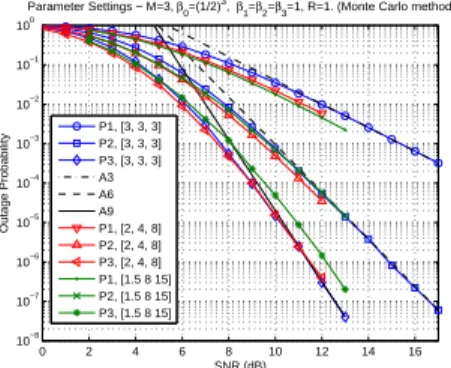

Fig. 5. Outage probabilities of ARQ-OSAF-B. The diversity contributed by Pr{w < δ1} is ignored here.

Therefore, the full diversity becomes (M × i). Pi denotes the outage probability after i rounds of ARQs,

and [a, b, c] stands for the thresholds of δ1× [a, b, c]. Besides, Aj corresponds to the asymptotic line of

diversity order j at high SNR.

V. Numerical Studies for AF relaying

We study herein the performance of the proposed OSAF schemes from the perspective of delay-limited (DL) throughput [14]. The DL throughput is defined as

η = R − N X l=1 R l × (l + 1)Pl−1− R N + 1PN. (18)

According to this metric, we study the performance with the rate assignment obtained with

max

R≥0 η subject to PN ≤ Pe. (19)

Two scenarios are considered in the study to characterize the effects of good and bad S-R channel qualities. The variances of the channel coefficients in Fig. 6 are assigned as

β0 = (1₂)v, β1 = 2v, and β2 = 1, and the variances for Fig. 7 are β0 = (1₂)v, β1 = (1₂)v and β2 = 1. Besides, for opportunistic relayings, the variance β3 for the channels between relays is set to 2v_{. The path loss exponent v and the target outage probability P}

e are set

to 3 and 10−3_{, respectively.}

For comparisons, the results of DF relaying are also presented in the figures, which include those of ARQ-DF and ARQ-OSDF-B of the DF counterparts of ARQ-AF and OSAF-B, respectively. It can be seen from Fig. 6 that the throughput of ARQ-OAF can approach that of the OSAF schemes since the S-R channel qualities are in

4 6 8 10 12 14 16 18 20 22 0 0.5 1 1.5 2 2.5 3

∆=1.5δ₁ for one−relay systems,[∆₁,∆₂,∆₃]=δ₁[1.5, 8, 15] for multiple−relay systems (N=3,M=3)

SNR (dB)

Delay−limited Throughput (bps per channel use)

ARQ−SAF ARQ−AF ARQ−DF ARQ−OSAF−A ARQ−OSAF−B ARQ−OAF ARQ−OSDF−B No relayings

Fig. 6. The throughput of various ARQ schemes with β0= (1₂)3, β1= 23, and β2= 1 to simulate a good

S-R channel condition. 4 6 8 10 12 14 16 18 20 22 0 0.5 1 1.5 2 2.5 3

∆=1.5δ₁ for one−relay systems,[∆₁,∆₂,∆₃]=δ₁[1.5, 8, 15] for multiple−relay systems (N=3,M=3)

SNR (dB)

Delay−limited Throughput (bps per channel use)

ARQ−SAF ARQ−AF ARQ−DF ARQ−OSAF−A ARQ−OSAF−B ARQ−OAF ARQ−OSDF−B No relayings

Fig. 7. The throughput of various ARQ schemes with β0 = (1₂)3, β1 = (1₂)3 and β2 = 1 to simulate a

poor S-R channel condition.

good condition. However, in poor S-R channel conditions as illustrated in Fig. 7, the performance of ARQ-OAF deteriorates significantly. Although the throughput of OSAF-A is slightly worse than that of OSAF-B, its performance is in fact pronounced considering its much simpler mechanism for relaying. In general, the ARQ schemes with OSAF relayings are more robust than the typical AF relaying, and their performance are very close to their DF counterparts.

VI. Cooperative ARQ with DF ODSTC

In this section, we consider a relay network with M relays to help re-transmit signals with DF ODSTC, and set β0 as 1. If the signal is not successfully decoded at the destination, the relays that have decoded successfully will retransmit the data using DSTC, otherwise the source will rebroadcast the signal until either the destination or at least one relay is

able to decode the signal. Throughout the paper, the set of relays that decode successfully is referred to as the decoding set and denoted by DS. Again to focus on effective ARQ protocols for ODSTC, a perfect synchronization is assumed achieved among all relays. Under these assumptions, the channels between the transmitting relays and the destination can be viewed as a multiple-input single-output (MISO) channel, thus the corresponding mutual information follows [15]

Id = log ³ 1 + Prd N0 P j²DS|hj,rd|2 ´ (20) where Prd is the received power at the destination for signals transmitted by relays in DS,

and hj,rd is the channel between the relay j and the destination and is ∼ CN (0, 1).

Similarly, for channels between the transmit and receive relays, the mutual information is given by Ij = log ³ 1 + Prr N0 P i²DS|hi,j|2 ´ , j 6∈ DS. (21)

A. The Outage Probabilities for DF ODSTC

To proceed the analysis for ARQ protocols with ODSTC, we briefly review the ODSTC scheme below and give an exact expression for its outage probability.

Remind that w , ρ|hsd|2 ∼ Exp (λ), the outage probability for the direct source to

destination channel link is given by

PW(δ1) , P {w < δ1} = 1 − exp{−λδ1} (22) In cases of outage events, ODSTC opportunistically chooses at most i relays in DS to perform STC [9]. To distinguish from ordinary DSTC and to signify the use of i relays at most, we denote the protocol by ODSTCi. Define Xj , β2ρ|hj,rd|2 ∼ Exp(λ2), j ∈ DS. Let X , {Xj|j ∈ DS}. As ODSTCi chooses at most i elements of X that yield the

highest capacity in (20), clearly min{i, D}, D , |DS|, of the largest elements in X will be chosen for STC. Therefore, sorting the elements of X in the ascending order into

X0 _{, {X}0

1, . . . , XD0 } such that Xk0 ≥ Xj0 if k > j, the outage probability of ODSTCi

conditioned on D is then given by

where δ = 2εR _{− 1 and εR is the code rate for DSTC. The outage probability (23) can be}

evaluated with a theorem quoted below from [16].

Theorem 2: [16] Let {X₁0 < · · · < X_Q0 } be the order statistics from Q i.i.d. exponential

RVs with parameter ν. Define ZQ,q =

P_Q

j=Q−q+1X

0

j, 1 ≤ q ≤ Q. The complementary

cumulative distributed function (CCDF) of ZQ,q is given by:

P {ZQ,q > z} = Q−q X j=1 aje(− Q−j+1 q νz) 1 (q − 1)! Z _zν 0 e(bjy)_y(q−1)_{dy +} q−1 X k=0 e(−νz)(νz) k k! (24) with aj , _Q−j+11 Q!_q! (−1) Q−q−j (j−1)!(Q−q−j)! and bj , Q−q−j+1 q .

On the other hand, as β1ρ|hj,sr|2 ∼ Exp(λ1), the probability mass function (PMF) of D is given by [2]

PD(d) = CdM(e−δ1λ1)d(1 − e−δ1λ1)M −d. (25)

Based on the above results, for transmission followed by an ARQ using ODSTCi, the outage probability follows

Pi = PW(δ1)2PD(0) + PW(δ1)

M

X

d=1

Pi(δ|d)PD(d). (26)

We note that for ODSTC1, the outage probability degenerates to the case of opportunistic relaying (OR) in [7], while for ODSTCM, it is equal to DSTC in [2].

VII. The Coding Gain of DF ODSTC

In this section, we characterize the relative SNR advantage of ODSTCM against the ODSTCi schemes. To alleviate the complexity of analysis, we investigate this problem in the high SNR regime. Since the diversity gain is defined as

ξ , − lim

ρ→∞

log Pi

log ρ. (27)

Based on the fact that the diversity orders of the ODSTC1 and ODSTCM schemes are both M + 1 [2, 7], the diversity order of any ODSTCi scheme is also M + 1. Thus, the outage probability in the high SNR regime can be expressed as

where G(i) , limρ→∞Pi/ρ−(M +1) and its properties are characterized in the following

theorem.

Theorem 3: For DF-ODSTCi scheme, i ∈ [1, M ], operating at a rate R, we have

G(i) = M X D=1 CM D D! δ₁M −D+1δD βD 2 β1M −D + ∆(i) (29) where ∆(i) = M X D=i δM −D+1 1 δDCDM βD 2 β1M −D · ii−D i! − 1 D! ¸ . (30)

Proof: The proof is omitted for space.

To characterize the SNR loss of the ODSTCi scheme against the SNR for the ODSTCM to achieve the same level of outage probability, P0_{, at high SNR, we have P}0 _{= G(i)ρ}−ξ

i =

G(M)ρ−ξ_M and define the SNR loss of a ODSTCi scheme against the ODSTCM, ∀i ∈ [1, M ], as Li , log{ρi} − log{ρM} = log{G(i)} − log{G(M)} M + 1 = 1 M + 1log ½ 1 + ∆(i) G(M) ¾ . (31)

With some mathematical manipulations, we have two limiting values of Li summarized

in the following corollary.

Corollary 1: For ∀i ∈ [1, M ], Lβ1→∞ i = 1 M + 1 log ½ M! i!i(M −i) ¾ as β1 → ∞. (32)

On the other hand,

Lβ2→∞

i = 0 as β2 → ∞. (33)

Proof: The proof is omitted for space.

This shows that when β1 is large, Libecomes irrelevant of β2and δ and is only a function of i and M. While when β2 becomes large ODSTCi severs as good as ODSTCM does.

Fig. 8 shows the outage probability for i = 1, 2, 3 and ODSTCM, which is denoted by the purple-star curve and always performs best among all the schemes. Nevertheless, in this example, the black-circle curve, which corresponds to the case of i = 3, is almost

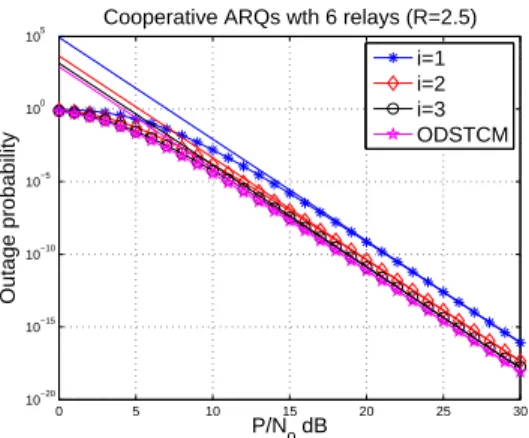

0 5 10 15 20 25 30 10−20 10−15 10−10 10−5 100 105 P/N₀ dB Outage probability

Cooperative ARQs wth 6 relays (R=2.5) i=1 i=2 i=3 ODSTCM

Fig. 8. The outage probabilities of the DF-ODSTCi protocols and their high SNR approximations, with

M=6, R=2.5 and β1= 10, β2= 1. 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 SNR loss of DF−ODSTCi, (M=6, R=2.5) i dB α=8, β=2 α=2, β=8 α=∞, β=1

Fig. 9. The SNR losses of the ODSTCi at high SNR, with i = 1, · · · , M , M=6, R=2.5.

undistinguishable from the purple one, ODSTCM scheme. It shows that the ODSTCi scheme performs closer to ODSTCM scheme with larger i. However, the SNR advantage for every scheme is also correlated with the links between the source, relays and destination. In Fig. 9, the red curve which corresponds to the case of β1 = ∞, β2 = 1 tells the fact that when the link quality between the source and relay is very good, using more relays is better. But to the blue one, β1 = 8, β2 = 2, using 4 relays is good enough in contrast to ODSTCM. Furthermore, for the case of β1 = 2, β2 = 8, the outage performance is limited to the case of i = 2. The reason is that the outage probability is limited by the case of

D = 0 or 1. The energy on the relays that fail to decode the signal are not able to be used

VIII. Cooperative ARQ Protocols using DF ODSTC

Based on ODSTCi presented in the above section, we study in this section the outage probabilities for three types of cooperative ARQ protocols. Each of them requires for different level of coordination between the source, relays and the destination.

A. Type-A Cooperative ARQ

As introduced earlier, whenever DS = ∅, the destination will issue ARQs to the source. Once DS 6= ∅, a straightforward method is to have the destination choose the best i relays for DSTC and then continues to use these relays in the subsequent ARQs if needed.

Therefore, Type-A ARQ essentially involves two kinds of STC schemes: the ODSTCi for ARQs until D ≥ 1 and the ordinary DSTC for the subsequent ARQs. For simplicity of presentation, we denote the n-th rounds of ARQs by ARQn and also refer to the initial direct transmission from the source to the destination as ARQ0. In addition, to facilitate the analysis, we define the probability for the following outage event involved in ARQs.

Definition 1: The outage probability of the DSTC conditioned on D is given by

PST Ci(δ|D) , P ( _i D X µ=1 Xµ< δ, D ≥ 1 ) = 1 − iXD−1 y=1 e−δλ2 y!(δλ2)−y

where iD , min{i, D} and the subscript ST Ci is used to signify the use of iD relays for

opportunistic relaying.

Following the above definitions of (23) and (25), respectively, it can be shown that the outage probability of the Type-A ARQ can be expressed in a closed form summarized in the following proposition.

Proposition 4: Given R, ε and M, the outage probability after n times Type-A ARQs

is given by PA,i(n) = PW(δ1)n+1PDn(0) + PW(δ1) × n X k=1 [PW(δ1)PD(0)]n−k M X d=1 Pi(δ|d)PD(d)PST Cik−1 (δ|d), (34)

∀i ∈ [1, M ] with PA,i(0) , PW(δ1) in (22). Proof: The proof is omitted for space.

B. Type-B Cooperative ARQ

A quick modification to improve the outage probability of the Type-A ARQ is to have the i active relays re-chosen from DS according to the channel strength in each phase of ARQ. Due to the re-selection mechanism, we know that PST Ci(δ|d) in (34) for Type-A

ARQ should be replaced by Pi(δ|d) for all ARQn, n ≥ 1. This gives the outage probability

for the Type-B ARQ protocol, which is summarized in the following corollary.

Corollary 2: Given R, ε and M, the outage probability after n times Type-B ARQs is

given by PB,i(n) = PW(δ1)n+1PDn(0) + PW(δ1) n X k=1 [PW(δ1)PD(0)]n−k M X d=1 Pk i (δ|d)PD(d), (35)

∀i ∈ [1, M ] with PB,i(0) , PW(δ1).

Comparing with Type-A ARQ, apparently, Type-B ARQ requires all relays in DS to keep the decoded data for retransmission before the end of ARQs. However, checking

Pi(δ|d) in (35), one may soon find that the diversity order may often be dominated by

the term Pn

i (δ|1), leaving the overall diversity order remaining to be M + n. This may

cause the Type-B scheme rather ineffective, taking into account the extra efforts for the re-selection of relays in ARQs.

C. Type-C Cooperative ARQ

Checking (34) and (35), one may soon find that the diversity order for Type-A and B ARQ protocols is limited by the worst case of D = 1. Thus, to resolve this diversity shortage problem, DS must be able to grow with ARQs. To this end, we have the relays not in DS continue to overhear the DSTC signals in ARQs and update their status to the destination to allow for being picked in the subsequent ARQs. As the cardinality of DS may increase now with ARQs, we define some parameters below.

Definition 2: Let D0 be the number of relays that are able to decode the signal send by the source.

Definition 3: Let Dn be the number of increasing relays in the n-th subsequent ARQ

after D0 ≥ 1.

Define D_n ,Pn<sub>`=0</sub>D`, ∈ [1, M ] as the total number of relays in the DS. The channels

from the relays in DS, which are particularly chosen to yield the highest mutual informa-tion at the destinainforma-tion, to a relay not in DS are still random. Define Vµ,z , ηρ|hµ,z|2 ∼

Exp(λ3), for µ ∈ DS and z 6∈ DS. The outage probability for a relay z overhearing the ODSTCi signal send by relays in DS is given by

POHi(δ|dn) , P nP_in+1 µ=1Vµ,z < δ, dn≥ 1 o = 1 −Pin+1−1 y=1 e −δλ3 y!(δλ3)−y (36)

where in+1 , min{i, dn}. Besides, as the source stops sending signal once D0 ≥ 1. By (36), we have the outage probability of overhearing conditioned on D_n−1 = d_n−1 as

PDn(dn|dn−1) = C

M −dn−1

dn [1 − POHi(δ|dn−1)]

dn_×

POHi(δ|dn−1)M −dn−1−dn, n = 1, 2, · · · . (37)

By induction, the outage probability for the Type-C ARQ protocol can be shown as follows.

Proposition 5: Given R, ε and M, the outage probability after n times Type-C ARQs

for ODSTCi is given by

PC,i(n) = PW(δ1)n+1PDn0(0)+ PW(δ1) n X k=1 [PW(δ1)PD0(0)] n−k M X d0=1 M −dX0 d1=0 · · · M −dXk−2 dk−1=0 Pi(δ|d0)PD0(d0) k−1 Y `=1 Pi(δ|d`)PD`(d`|d`−1) (38)

with d_k ,Pk_q=0dq and PC,i(0) , PW(δ1).

As we can see from (23) that the diversity order of Pi(δ|d`) is d`, and from (37) that the

diversity order of PD`(d`|d`−1) is (M − d`) × min{i, d`−1}, ` ≥ 1. Considering the dominant

term only, which has minimum diversity order, we may find that (38) is dominated by the second term when k = n, d0 = 1 and d1 = · · · = dn−1 = 0, leading to a diversity order of

the aid of overhearing. Nevertheless, the complexity of this protocol is much higher too as all relays need to serve a user until the end of ARQs. On the other hand, for the Type-A protocol, even if the diversity order is inferior, the active relays are fixed in all subsequent ARQs, thus introducing less control overhead to the the system. It’s a tradeoff between the theoretical performance and practical considerations. Therefore, an investigation on the expected throughput of each protocol will be done in the next section to examine the efficiency of each protocol in different channel conditions.

IX. Throughput analysis for DF ODSTC

To explore the efficiency of the proposed ARQ protocols, we characterize the delay-limited throughput of each protocol based on the outage formulas provided in Section VIII. In this paper, the throughput is denoted by ηT ,i(n), where the subscript T is used

to distinguish from the above ARQ protocols. For example, ηA,i(n) stands for the expected

throughput after n times Type-A ARQs with ODSTCi.

As for ARQ0, it is straightforward to give the expected throughput as R[1 − PW(δ1)]. With 1 round of ARQ, the throughput is given by

ηT ,i(1) = R[1 − PW(δ1)] + R 2PW(δ1)PD(0)[1 − PW(δ1)] + εR 1 + ε ( PW(δ1) M X d=1 PD(d)[1 − Pi(δ|d)] ) . (39)

The second term in (39) denotes the expected throughput for the event that the source broadcasts again since neither the destination nor the relays are able to decode the signal in the first transmission, and the third term in (39) stands for the case that at least one relay is able to decode and forward the signal to the destination with a rate εR. Following the similar analysis, the delay-limited throughput for each type of ARQ protocol can be summarized in the theorem below.

Theorem 4: Given R, ε and M, after n times of ARQs, the expected throughput is given

by ηT ,i(n) , n X p=0 n+1−p_X q=1 εR p + qεPT(p, q) (40)

where PT(p, q) denotes the probability of the event corresponding to the effective rate _p+qεεR

and it is defined as

PT(p, q) , [PW(δ1)PD(0)]q−1PT(p, 1). (41)

For each type of ARQ protocol, PT(p, 1) are listed below

PA(p, 1) , PW(δ1) M X d=1 PD(d)Pi(δ|d)[PST Ci(δ|d)]p−2× [1 − PST Ci(δ|d)], (42) PB(p, 1) , PW(δ1) M X d=1 PD(d)Pi(δ|d)[Pi(δ|d)]p−1× [1 − Pi(δ|d)], (43) PC(p, 1) , PW(δ1) M X d0=1 M −dX0 d1=0 · · · M −d_X(p−2) d(p−1)=0 × PD0(d0)Pi(δ|d0) (_p−2 Y `=1 Pi(δ|d`)PD`(d`|d`−1) ) × PD(p−1)(d(p−1)|d(p−2))[1 − Pi(δ|d(p−1))] (44) with PA(1, 1) , PW(δ1) P_M d=1PD(d)[1 − Pi(δ|d)] and PT(0, 1) , [1 − PW(δ1)]. Proof: The proof is omitted for space.

To examine the delay-limited throughput for different types of ARQ protocol, we adjust the rate according to SNR to achieve the best throughput under an outage constraint Pe,

i.e.

max

ε,R ηT ,i(n) s.t. PT ,i(n) ≤ Pe. (45)

The optimal rate adaptation strategy is found by the following algorithm. Assumed that the SNR for all the relay-destination and source-destination channels can be estimated by the destination without any deviation, and remain unchanged during a block transmission time. Then the transmit nodes adjust the rate according to the feedback SNR. Therefore, we define R , γ log(1 + σρ) and εR , γ log(1 + σβ2ρ), where γ denotes the multiplexing gain, and σ stands for the SNR enhancement. As a result, the cost function in (45) turns

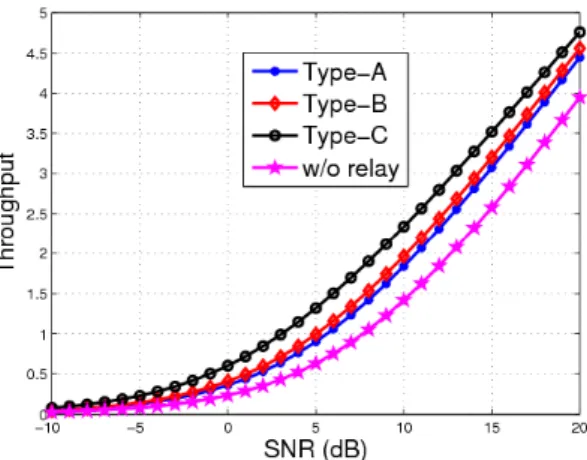

Fig. 10. The throughput for each type of protocol by ODSCT1 with the constraint Pe = 0.001 when

M = 3, β1= 2, β2= 8 and β3= 64.

into

max

γ,σ ηT ,i(n) s.t. PT ,i(n) ≤ Pe. (46)

In the beginning, we set γ = 1 and find the maximum σ to fit the outage constraint. How-ever, the largest rate does not always lead to the maximum throughput. Therefore, given the σ obtained above, we exhaustively search the optimal γ to approach the maximum throughput and the results are shown in the following section.

X. Numerical Simulations for DF ODSTC

In this section, we set the channel condition as β1 = 2 and β2 = 8. This case is meaningful, especially when the direct link between the source and the destination has a poor SNR, e,g, 0 ∼ 10dB. β1 = 2 stands for the case that the SNR for the link between the source and relays has a 3dB-gain in average to the direct link, and β2 = 8 corresponds to an even better channel quality. In other words, when the source is hard to communicate with the destination directly, it needs some help from relays more eagerly.

Conditioned on the delay constraint, n = 3, and the outage constraint Pe= 0.001, Fig.

10 presents the maximum throughput for each type of ARQ protocol with ODSTC1 when

M = 3, β1 = 2, β2 = 8 and β3 = 64. The purple curve denotes the simple ARQs with-out relaying. In Fig. 10, the cooperative ARQ protocols provide significant throughput improvement not only when the link quality between the source and destination has good

−100 −5 0 5 10 15 20 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 SNR (dB) Throughput i=1 i=2 i=3 w/o relay

Fig. 11. The throughput of the Type-C protocol with the constraint PC,i(3) ≤ 10−3 when M = 5, β1= 2,

β2= 8 and β3= 27.

SNR, but also when the quality is poor, e.g. SNR= 0 ∼ 10dB. Especially for Type-C ARQ, it performs the best because of the relay re-selection and overhearing.

However, in the extremely low or extremely high SNR regime, Fig. 10 also shows that the difference between each type of cooperative protocol is getting smaller. The reasons is that all the relays and the destination fail or succeed in decoding in probability. Thus, there is no need to always use the most complicate scheme, although it has superior diversity in outage analysis. Type-A ARQ, the simplest protocol, is also able to serve as good as Type-C ARQ does when the link quality between the source and destination is extremely poor or extremely good.

The effects of i are demonstrated in Fig. 11. As expected from Fig. 8 and Fig. 9, it is not always necessary to use as many relays as possible. In Fig. 11, for Type-C ARQ when

M = 5, the black and red curves, which individually correspond to the case of i = 3 and i = 2, are almost undistinguishable. In other words, ODSTC2 is the relatively effective

scheme under such channel condition.

Fig. 12 shows the effect of M on the throughput of different ARQ protocols by ODSTC1 at SNR= 5dB. In contrast to Type-A ARQ, the advantage of Type-B ARQ increases with

M. This is due to the fact that Type-B ARQ has better coding gain from the re-chosen

mechanism, although they have the same diversity order. Besides, the performance of Type-C ARQ will saturate with M since ultra high diversity order does not give significant improvement in throughput anymore.

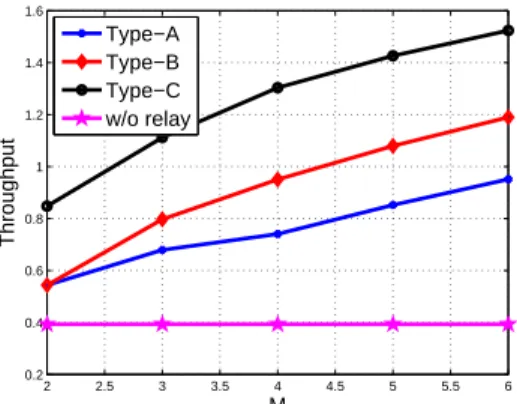

2 2.5 3 3.5 4 4.5 5 5.5 6 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 M Throughput Type−A Type−B Type−C w/o relay

Fig. 12. The throughput for each type of protocol by ODSCT1 for different M when SNR= 5dB, β1= 2,

β2= 8, β3= 64 and Pe= 0.0001.

In addition, compared with Fig. 10 when M = 3, the throughput enhancement against the direct transmission without cooperative relaying is more obvious when Pe = 0.0001.

This also tells that the importance of the cooperative ARQ protocol is more critical if the outage constraint becomes stricter.

XI. Conclusion

A. For AF relaying

In this work, we proposed two types of opportunistic-selection AF relaying protocols to exploit the spatial and temporal diversity. And the numerical results showed that noth protocols can offer much higher diversities and more throughput advantage than ARQ schemes with the typical ARQ relaying method.

B. For DF ODSTC

The numerical results showed that the cooperative ARQ protocols provide significant throughput enhancement in contrast to the direct transmission without relaying. Be-sides, effective schemes can be obtained since it is not always necessary to use the most complicated protocol or as many relays as possible to achieve the best performance.

XII. Self Evaluation

The cooperative ARQ protocols developed throughout this project are quite practical yet effective and can be readily applied to the ARQ protocols for relay-assisted cellular

networks like WiMAX or LTE. We are currently wrapping up the results and preparing two journal papers based on the SAF and ODSTC relaying methods developed in this research.

References

[1] A. Sendonaris, E. Erkip, and B. Aazhang, “User cooperation diversity-part I: System description,” IEEE

Trans. on Communications, vol. 51, no. 11, pp. 1927–1938, 2003.

[2] J. N. Laneman and G. W. Wornell, “Distributed space-time coded protocols for exploiting cooperative diversity in wireless networks,” IEEE Trans. on Information Theory, vol. 49, no. 10, pp. 2415–2525, 2003. [3] W.-J. Huang, Y.-W. Hong, and C.-C. J. Kuo, “Lifetime maximization for amplify-and-forward cooperative

networks,” IEEE Trans. on Wireless Communications, vol. 7, no. 5, pp. 1800–1805, May 2008.

[4] G. Farhadi and N. C. Beaulieu, “On the outage and error probability of amplify-and-forward multi-hop diversity transmission systems,” in Proc. IEEE International Conference on Communications, May 2008, pp. 3748–3754.

[5] D.-W. Lee and J.-H. Lee, “Adaptive amplify-and-forward cooperative diversity using phase feedback,” in

Proc. IEEE Vehicular Technology Conference-Spring, April 2007, pp. 1633–1637.

[6] I. Stanojev, O. Simeone, and Y. Bar-Ness, “Performance of multi-relay collaborative hybrid-ARQ protocols over fading channels,” IEEE Communications Letters, vol. 10, no. 7, pp. 522–524, 2006.

[7] A. Bletssa, H. Shin, and M. Win, “Cooperative communicaions with outage-optimal opportunistic relaying,”

IEEE Trans. on Wireless Communications, vol. 6, no. 9, pp. 3450–3460, 2007.

[8] Z. Ding, Y. Gong, T. Ratnarajah, and C. F. N. Cowan, “Opportunistic cooperative diversity protocols for wireless networks,” in Proc. IEEE ITW. Bergen, Norway, July 2007.

[9] P. Zhang, F. Wang, Z. Xu, S. Diouba, and L. Tu, “Opportunistic distributed space-time coding with semi-distributed relay selection method,” Research Journal of Information Technology, vol. I, pp. 41–50, 2009. [10] A. Bletsas, H. Shin, and M. Z. Win, “Cooperative communications with outage-optimal opportunistic

relay-ing,” IEEE Trans. on Wireless Communications, vol. 6, no. 9, pp. 3450–3460, September 2007.

[11] J. N. Laneman, D. N.C. Tse, and G. W. Wornell, “Coopeative diversity in wireless networks: Efficient protocols and outage behavior,” IEEE Trans. on Information Theory, vol. 50, pp. 3062–3080, 2004.

[12] L. Zheng and D. N.C. Tse, “Diversity and multiplexing: A fundamental tradeoff in multiple antenna channels,”

IEEE Trans. on Information Theory, vol. 49, no. 5, pp. 1073–1096, May 2003.

[13] M. A. Chaudhry, N. M. Temme, and E. J. M. Veling, “Asymptotics and closed form of a generalized incomplete gamma function,” J. Comput. Appl. Math., vol. 67, no. 2.

[14] R. Narasimhan, “Throughput-Delay performance of half-duplex hybrid-ARQ relay channels,” in Proc. IEEE

International Conference on Communications, May 2008, pp. 986–990.

[15] E. Telatar, “Capacity of multi-antenna gaussian channels,” European Trans. on Telecommunications, vol. 10, no. 6, pp. 585–595, 1999.

2009 年 月 日 報告人姓名 伍紹勳 服務機構以 及職稱 交通大學電信工程所 時間 會議 地點 2009.9.13~2009.9.16 日本 東京 本會核定 補助文號 OFDM 無線網路之合作通訊--子計畫三:合 作式正交分頻多工系統之空時編解碼與訊 號處理 (2/2) 會議 名稱 (中文) IEEE 個人、室內以及行動無線通訊會議 2009

(英文) IEEE Personal, Indoor and Mobile Radio Communications 2009 發表

論文 題目

(中文) 利用放大傳遞中繼方式之簡單合作式自動重傳請求協定 (英文) Simple Cooperative ARQ Protocols with Selective

一、參加會議經過

此次IEEE PIMRC於東京的The Westin Tokyo hotel招開，會議時間為9 月13 至16 日，會議 第一天為workshop，第二到四天為technical programs。此次會議將報告場次分為口頭報告(oral section)以及海報報告(poster section)，我們於第二天的海報會場發表我們的論文，主題是 「Simple Cooperative ARQ Protocols with Selective Amplify-and-Forward Relaying」，其 主要議題為探討在AF中繼技術下如何有效率的協助系統進行重傳機制，我們提出三種不同的合作 式協定，分別研究其特性以及效能，最後，我們以模擬系統的吞吐率(throughput)之結果來證明 所提之協定均能提系統供相當的改善。 二、與會心得 綜觀此次會議內容，未來通訊學術研究將著重於以下主題 1. Cooperative network 2. 60GHz communications 3. Network MIMO

4. Cognitive wireless network

三、考察參觀活動(無是項活動者省略)

四、建議

五、攜回資料名稱及內容

PIMRC 2009 會議論文集電子檔案乙份。
