Development of high-performance solar LED lighting system

B.J. Huang

*

_{, M.S. Wu, P.C. Hsu, J.W. Chen, K.Y. Chen}

New Energy Center, Department of Mechanical Engineering, National Taiwan University, Taipei, Taiwan

a r t i c l e

i n f o

Article history:

Available online 28 December 2009 Keywords:

Stand-alone solar system Off-grid solar system Solar-powered lighting LED lighting Solar LED lighting

a b s t r a c t

The present study developed a high-performance charge/discharge controller for stand-alone solar LED lighting system by incorporating an nMPPO system design, a PWM battery charge control, and a PWM battery discharge control to directly drive the LED. The MPPT controller can then be removed from the stand-alone solar system and the charged capacity of the battery increases 9.7%. For LED driven by PWM current directly from battery, a reliability test for the light decay of LED lamps was performed tinuously for 13,200 h. It has shown that the light decay of PWM-driven LED is the same as that of con-stant-current driven LED. The switching energy loss of the MOSFET in the PWM battery discharge control is less than 1%. Three solar-powered LED lighting systems (18 W, 100 W and 150 W LED) were designed and built. The long-term outdoor ﬁeld test results have shown that the system performance is satisfac-tory with the control system developed in the present study. The loss of load probability for the 18 W solar LED system is 14.1% in winter and zero in summer. For the 100 W solar LED system, the loss of load probability is 3.6% in spring.

1. Introduction

Stand-alone-solar-powered system is widely used in remote areas where the grid power cannot reach. Therefore, durability and reliability are the two key issues. The system has to be de-signed with a good matching between the installed capacity of so-lar photovoltaic module and battery capacity, according to a speciﬁc energy load in order to obtain a proper loss of load proba-bility (LLP) in long-term performance[1]. A good charge/discharge control technique is thus needed.

For lighting application using light-emitting diode (LED), the load is employed at night which is not in phase with power gener-ation at daytime. To assure good performance, three important fac-tors have to be considered: (1) high efﬁciency in photovoltaic (PV) power generation; (2) good battery charge control to charge the battery in full capacity to provide enough energy storage and pro-tect the battery from overcharge; (3) good battery discharge con-trol for lighting without damaging the LED and provide a sufﬁcient illumination at night.

In the present study, we adopt a near-maximum-power-point-operation (nMPPO) design of photovoltaic power generation sys-tem[4]to get rid of a maximum-power-point-tracking controller (MPPT) by properly matching the PV module speciﬁcation with the battery voltage in design to obtain a similar performance of MPPT. The additional cost, reliability problem, and energy loss of the MPPT is thus avoided.

To charge the battery in full capacity, a battery charge control system using pulse-width modulation (PWM) technique and feed-back control is developed in the present study.

To eliminate the DC/DC conversion loss of battery discharge, the LED is directly driven by the battery voltage using a PWM tech-nique with constant-power feedback control.

The present study integrates the above three kinds of unique techniques to develop a high-performance stand-alone solar LED lighting system.

2. Development of battery charge control system

2.1. Design of nMPPO for PV power generation

A flat-plate PV module with 2X reflective-type concentrator (Fig. 1) was used in the present study. Huang and Sun[6]have shown the low concentration ratio reflector can increase about 23% PV power generation compared to the flat-plate PV.

In grid-connected or stand-alone solar PV power generation system, a maximum-power-point-tracking controller (MPPT) is usually used to track the operating point of the PV module near its maximum-power-point[2,3]. For the stand-alone PV system, the system design matching between the battery, PV module, and the load becomes much more complicated. It usually needs to add a sophisticated energy management system to properly control the operation of the three components during charging and discharging phases according to the load variation to keep the MPPT performance stable.

*Corresponding author. Tel.: +886 2 23634790; fax: +886 2 23640549. E-mail address:[email protected](B.J. Huang).

Contents lists available atScienceDirect

Energy Conversion and Management

j o u r n a l h o m e p a g e : w w w . e l s e v i e r . c o m / l o c a t e / e n c o n m a n

(3)

The use of MPPT increases the system cost and decrease the reliability. Huang et at.[4] developed a near-maximum-power-point-operation (nMPPO) design of photovoltaic power generation system that does not use a MPPT but just properly matching the PV module speciﬁcation with the battery voltage in design to obtain a similar performance of MPPT.Fig. 2shows the power generation of the PV module at ambient temperature 26 ± 3 °C. The area between the two dash lines depicts the operation voltage range of the lead– acid battery which is widely used for solar LED lighting system[5]

and it shows that the battery will operate near the MPP of the PV since the PV cell temperature is around 50 °C. Therefore, the sys-tem adopts the nMPPO design instead using the MPPT controller.

2.2. Battery charge control system

The battery charge control of a stand-alone PV system is an-other important issue. Usually, the battery is charged only at about 80% state-of-charge (SOC) in order to avoid over-charging. The

storage capacity as well as the system performance is thus reduced.

In the present study, we use the lead–acid battery as the storage device. The battery storage capacity or lifetime can decrease rap-idly due to charging. The way to protect battery from over-charge is to reduce the over-charge current when the battery voltage reaches the overcharge point.

In the present study, a feedback control system has been devel-oped with a PWM technique to reduce the charging current and maintain the battery voltage after overcharge point Vo, as shown

in Fig. 3. A metal–oxide-semiconductor ﬁeld-effect transistor (MOSFET) is used to switch on/off of the charging current from so-lar PV by PWM technique. The mean charge current can be reduced by decreasing the duty-cycle Duty. The controller can be

imple-mented in a micro-processor to feedback the battery voltage and generate the PWM signal to trigger the MOSFET. Therefore, the bat-tery voltage can be maintained at the overcharge point by control-ling the mean charge current.

2.3. Outdoor battery charge test

An outdoor test was then performed to test the real battery charge operation. An 85 Wp ﬂat-plate PV module (Table 1) with 2X reﬂective-type concentrator and a YUASA NP 38-12 (38 A h, 12 V) lead–acid battery[11]were used to test the controller per-formance.Fig. 4shows the daily outdoor performance test of the charge control system. The sampling interval is at 5 min. The bat-tery voltage setting was 14 V. The test results show that the batbat-tery voltage never exceeds 14.1 V (less than the worst-case maximum voltage 14.4 V). This indicates that the control system can protect the battery from overcharge.

After the overcharge point, the charge current is reduced auto-matically till 100% SOC. The charged energy at battery voltage up to Nomenclature

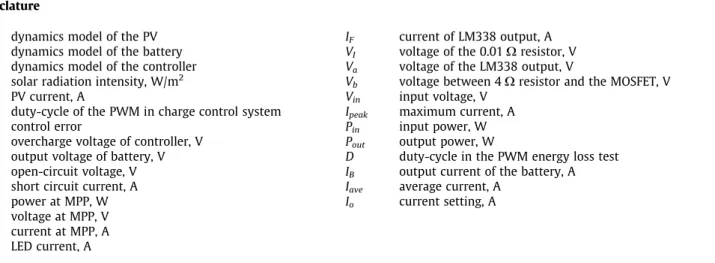

PV(s) dynamics model of the PV

RB(s) dynamics model of the battery

C(s) dynamics model of the controller So solar radiation intensity, W/m2

IPV PV current, A

Duty duty-cycle of the PWM in charge control system

e control error

Vo overcharge voltage of controller, V

VB output voltage of battery, V

VOC open-circuit voltage, V

ISC short circuit current, A

PMAX power at MPP, W

VPM voltage at MPP, V

IPM current at MPP, A

ILED LED current, A

IF current of LM338 output, A

VI voltage of the 0.01Xresistor, V

Va voltage of the LM338 output, V

Vb voltage between 4Xresistor and the MOSFET, V

Vin input voltage, V

Ipeak maximum current, A

Pin input power, W

Pout output power, W

D duty-cycle in the PWM energy loss test IB output current of the battery, A

Iave average current, A

Io current setting, A

Fig. 1. Solar PV module used.

0 10 20 30 40 50 60 70 10 11 12 13 14 15 16 17 18 19 20 PV power (W) PV voltage (V) 13V 14.6V 700 W/m2 600 W/m2 300 W/m2 200 W/m2

Fig. 2. Power generation of the PV module.

PV(s) MOSFET RB(s) C(s) measurement So IPV e Duty IPV*Duty Controller Solar PV Battery VB Vo + -

Fig. 3. Battery charging control system. 1670 B.J. Huang et al. / Energy Conversion and Management 51 (2010) 1669–1675

(4)

14 V is 59.6 W h. The present charge control system can keep the battery voltage at 14 V and continue charging 46.6 W h more, after the overcharge point. In terms of A h, the nominal charge capacity is 4.4 A h at battery voltage below 14 V and 3.3 A h more was charged after 14 V. The battery life time can be inﬂuenced by the depth of discharge (DOD)[9]. A 10% reduction in nominal charge capacity is necessary for ensuring the battery life time. Therefore, the improved charge capacity by the battery charging control sys-tem according toFig. 3can be determined as the increased charge capacity (3.3 A h) divided by the useful battery capacity (38 A h times 90%) which comes up to be 9.7% more charging after the overcharge point.

3. Development of discharge control system for LED lighting

A stand-alone solar-powered LED lighting system generates electrical power which is stored in battery and discharged at night to light the LED. The energy is produced and consumed locally. It can save the costs of grid-power transmission, including local transformers, power line material, and transmission energy loss. It has been shown that the stand-alone solar lighting system utiliz-ing LED can save energy with reasonable payback time in remote area[7]. The use of LED as light source has another advantage of DC-powered characteristics. It seems that LED can be directly dri-ven by the battery used in a stand-alone solar PV system. However, there is a problem in driving the LED directly from the battery. The LED is sensitive to the driving voltage as shown inFig. 5and the

battery voltage will change at different state of charge depending on solar irradiation.

A lead–acid battery usually operates at between 10.5 V and 13 V with SOC from 0% to 100% respectively. The I–V curve of a LED shown inFig. 5indicates that the LED will be easily over driven and damaged. Therefore, the stand-alone solar LED lighting system usually consists of a DC/DC converter to convert the ﬂoating bat-tery voltage into a constant current to drive the LED. A energy loss of the DC/DC converter, about 15%, will then be introduced. The DC/DC converter may also increase the system cost and reduce the system reliability due to additional components.

The LED can be driven by pulse-width modulation (PWM) tech-nique to maintain an average current below its rated value (e.g. 350 mA). The present study develops such a technology for LED lighting directly driven by battery voltage (seeFig. 6).

3.1. Reliability test of PWM-driven LED

Some research has shown that the LED lamps can take instanta-neous high current stress[8–10]. It is still not clear whether LED can be driven by PWM without causing fast light decay. A long-term reliability test for LED lamps was performed to clarify this.

A light decay test for LED lamps using constant current and dif-ferent PWM current driving was carried out.Fig. 7is the test cham-ber for light decay test of LED lamps. Twelve LED lamps are soldered on an aluminium PCB to maintain at the same tempera-ture. The LED lamps are soldered in four parallel rows with three lamps of the same kind LED at each row. The chamber inside tem-perature is controlled at 40 ± 3 °C using two 100 W tungsten bulbs and an on/off controller. A photo sensor (S2387) is used to measure the illumination of LED lamps regularly. Besides, a controller was designed using micro-processor to control the on/off of the differ-ent circuits connecting LED lamps and measure the output of the photo sensor.

A LED driver is designed to simultaneously supply four different power inputs to four rows of LED lamps:

(a) 350 mA constant current (the rated current) as the baseline of the LED lamps life test.

Table 1

Speciﬁcation of 85 Wp PV module under 1000 W/m2

irradiation and 25 °C module temperature.

Module name F-MSN-85W-R02

Open-circuit voltage, VOC 21.34 V

Short circuit current, ISC 5.697 A

MPP power, PMAX 81.7 Wp MPP voltage, VPM 16.43 V MPP current, IPM 4.99 A 0 1 2 3 4 5 6 7 9 10 11 12 13 14 15 5:11 6:51 8:31 10:11 11:51 13:31 Curr ent(A) Battery v oltage (V) Time(Hour:Min.)

Fig. 4. Outdoor performance test of the charge control (2008/06/28).

I

LED

(A)

V

B

(V)

10.5 0.35

rated

current

13 Fig. 5. I–V curve of LED.

LED MOSFET Battery PWM signal Instantaneous PWM current average current Fig. 6. LED driven by PWM technique.

aluminum PCB

Photo sensor

LED lamps

(5)

(b) 700 mA, Duty-Cycle = 50%, PWM–Frequency = 100 Hz. The average current is 350 mA and the current stress is two times greater than Case (a).

(c) 700 mA, Duty-Cycle = 50%, PWM–Frequency = 10 kHz. The average current is 350 mA and the current stress is two times of Case (a) but the PWM–Frequency is 100 times greater than (b). This test intends to study the effect of fre-quency and the pulse stress.

(d) 1050 mA, Duty-Cycle = 33%, PWM–Frequency = 100 Hz. The average current is 350 mA but the current stress is three times of Case (a).

For battery operating at 10.5–13 V, the corresponding duty-cy-cle of the PWM driver is between 40% and 100% which can be pro-vided by the above PWM driver designs. The tests were performed simultaneously to compare the light decay with different driving currents. The LED luminaire is put in the test chamber kept at 40 ± 3 °C to accelerate the light decay of the LED lamps. The PCB temperature is monitored and used to determine the LED junction temperature. The test has been continuously run for more than 15,800 h.Fig. 8is the test results. It is seen from Fig. 8that the LED junction temperature are kept at 70 ± 3 °C, except for a few test points at lower temperature due to the failure of the tungsten bulbs in chamber temperature control. It is seen that the light de-cay for four kinds of driving methods is not distinguishable, within experimental error. This implies that the direct driving by battery using PWM technique will not damage the LED lamps.

3.2. Energy loss of PWM-driven LED

The PWM driver to drive LED directly from the battery uses a MOSFET triggered by a PWM signal from a micro-processor. The DC/DC converter that is usually used in stand-alone system is omitted. However, there is energy loss in MOSFET and it needs to be determined.

We used a digital oscilloscope Tektronix TDS2014B to measure the wave form of the voltage and current across the MOSFET. An ABM 9306 DUAL-TRACKING power supply was used to provide the energy input to MOSFET. A 100 W 4X adjustable resistor was select as the load to simulate a 100 W LED luminaire. A 0.01Xresistor is connected in series to the 100 W 4Xresistor to measure the instantaneous current by the Ohm’s law (Fig. 9). The TDS2014B measuring the Va, Vband VI. The current IFcan be

calcu-lated by the VIand Ohm’s law. The input power Pinis Va IFand the

load power Poutcan be calculated by (Va Vb)IF.

The energy loss was tested at three different PWM driving wave forms described previously. The PWM frequency is set at 125 Hz.

Figs. 10 and 11show test results at Vin= 5.5 V, Ipeak= 4 A,

Duty-Cy-cle D = 60% and Vin= 24.2 V, Ipeak= 8.1 A, Duty-Cycle D = 40%.

Ta-ble 2shows that the energy loss in MOSFET at Duty-Cycle 40– 80% is less than 1%. This is less than the energy loss of a DC/DC

con-verter. The energy loss of MOSFET can be further reduced by using a better MOSFET and new circuit design.

3.3. Discharge control system for LED

The discharge control system for LED lighting is shown in

Fig. 12. The controller is implemented in a micro-processor to out-put a PWM signal to trigger the MOSFET to deliver a PWM current to LED for lighting. The PWM current is measured and analyzed to

0 10 20 30 40 50 60 0 2 4 6 8 10 12 14 16

Instant po

wer(W)

Time(ms)

Fig. 10. Energy loss test of MOSFET at D = 60% (Vin= 5.5 V, Ipeak= 4 A).

20 40 60 80 100 120 140 10 30 50 70 90 110 0 2000 4000 6000 8000 10000 12000 14000 16000 Temperature( C) o Normalized intensity(%) Hours F=10K Hz, D=50% F=100 Hz, D=50% F=100 Hz, D=33% Normal Driving LED Junction Temp. (oC)

Fig. 8. LED reliability test results.

PWM signal IF Va Vb VI 100W, 4 Ohm resistor 0.5 ohm resistor

Fig. 9. Measuring device for energy loss of MOSFET.

0 50 100 150 200 250 0 2 4 6 8 10 12 14 16

Instant po

wer(W)

Time(ms)

Fig. 11. Energy loss test of MOSFET at D = 40% (Vin= 24.2 V, Ipeak= 8.1 A).

Table 2

Energy loss of MOSFET in PWM at 125 Hz.

Ipeak(A) Duty-Cycle (%) Va(V) Pin(W) Pout(W) Loss (W) Loss (%)

4 100 11.8 47 46.9 0.1 0.2 4 80 11.8 37.6 37.4 0.25 0.65 4 60 11.8 28.1 27.9 0.19 0.67 4 40 11.8 18.6 18.5 0.13 0.69 8.1 100 24.2 196.3 196.2 0.08 0.04 8.1 80 24.2 157.3 156.3 1 0.64 8.1 60 24.2 117.5 116.7 0.76 0.65 8.1 40 24.2 80.2 79.6 0.56 0.7

(6)

determine the average current Iavefor feedback control according

to the setting value Io.

3.4. Design of central control system

The central control system can be realized by using a micro-processor (PIC18F252).Fig. 13shows the algorithm of the central control system.Fig. 14is the central control system circuit. The mi-cro-processor has a built-in analog-to-digital converter (ADC) which can be used to detect the time of sun rise (beginning of day-time) or the time of sunset (beginning of night day-time) by measuring the voltage of PV. The ADC is also used to measure the battery volt-age during charge. The current during discharge was measured by a 0.003Xresistor connected to the MOSFET and used to calculate the current by Ohm’s law. An operational ampliﬁer was used to amplify the voltage signal of the 0.003Xresistor for feedback to the ADC. The charge and discharge feedback control system can be realized when the battery voltage and the discharge current are measured by the ADC in PIC micro-processor.

4. Long-term ﬁeld test of solar-powered LED lighting systems

Two stand-alone solar LED lighting systems were built and tested outdoor in the campus of National Taiwan University using the high-performance charge/discharge control technique

described previously. The LED is turned on automatically at sunset when the sky is dark and turned off in the morning when the sky is bright. The open-circuit voltage of the PV module is used to detect the sunrise or sunset using a signal ﬁlter.

4.1. 18 W solar-powered LED lighting system

This system using an 18 W LED luminaire, 80 Wp PV module, a YUASA NP38-12 lead–acid battery, and a controller developed in the present study (Fig. 15). The long-term performance was monitored.

Figs. 16 and 17show the recorded daily lighting hours in 2007 and 2008. The 2007 test data covers the spring and winter seasons measurement MOSFET Battery PWM signal LED Controller PWM current Io Iave IB -+

Fig. 12. Discharge control system for LED lighting.

Program beginning PV voltage check Charge control system Discharge control system

Night time Daytime

Fig. 13. The system control algorithm.

PIC micro-processor ADC Battery Voltage signal Vbat 0.003 Ohm resistor Vbat Current signal Operational amplifier PWM signal MOSFET PV

Fig. 14. The central control system circuit. 0 2 4 7 9 12 14 7/31 8/31 10/1 11/1 12/1 Hours Date(Month/Day)

Fig. 16. Daily lighting hours of the 18 W solar-powered LED in 2007. Fig. 15. 18 W solar-powered LED lighting system.

(7)

which have lower solar radiation. There are 172 recorded days and 28 days cannot provide all-night lighting. The total number of hours losing lighting is 270 h and the loss of load probability (LLP) is (270/1920)100% = 14.1%. The 2008 test data are taken in summer. There are 132 recorded days and the system can provide all-night lighting every day with zero LLP.

The 100 W solar-powered LED lighting system is developed for highway lighting (Fig. 18) and consists of a 100 W LED luminaire, a 400 Wp solar PV module, a 48 V 100 A h lead–acid battery, and a controller developed in the present study.

This system was installed on 2007/12/26. The data logger was installed on 2008/03/21.Fig. 19 shows the lighting hours from 2008/03/21 to 2008/11/19.

There are no recorded data from 5/28 to 6/9, 7/1 to 8/20 and 10/ 2 to 10/21 due to the failure of the data logger. For the 159 re-corded days, only nine days do not provide all-night lighting. The loss of load probability LLP is 3.6% counted by lighting hours. This occurs in spring. No failure occurs so far for the 100 W solar-pow-ered LED lighting system.

To show the application of the present technology for LED with higher power, a 150 W solar-powered LED lighting system is devel-oped for test and comparison, in addition to the 100 W solar-pow-ered LED lighting system. The system consists of a 150 W LED luminaire (Fig. 20), a 720 Wp solar PV module (Fig. 21), a 48 V 100 A h lead–acid battery, and a controller developed in the pres-ent study.

Fig. 22shows the lighting hours from 2009/01/07 to 2009/08/ 10. There are missing data from 3/10 to 5/10 due to the failure of the data logger. For the 152 recorded days, 114 days do not provide all-night lighting. The loss of load probability LLP is 46.8% calcu-0 2 4 7 9 12 14 5/23 6/13 7/4 7/25 8/15 9/5 9/26 Hours Month/Day

Fig. 17. Daily lighting hours of the 18 W solar-powered LED measured in 2008.

Fig. 18. 100 W solar-powered LED roadway lighting system.

0 2 4 7 9 12 14 3/21 4/21 5/21 6/21 7/21 8/21 9/21 10/21 Hours Month/Day

Fig. 19. Test results of 100 W solar-powered lighting system.

Fig. 20. 150 W LED in solar roadway lighting system.

Fig. 21. Solar PV module used in 150 W roadway lighting system.

0 2 4 7 9 12 14 1/8 1/28 2/17 3/9 3/29 4/18 5/8 5/28 6/17 7/7 7/27 Hours Month/Day

Fig. 22. Daily lighting hours at night of 150 W solar-powered LED (2009). 1674 B.J. Huang et al. / Energy Conversion and Management 51 (2010) 1669–1675

(8)

lated by expected lighting hours. The high LLP is caused by the use of a lower battery capacity 100 A h which is the same as 100 W so-lar-powered LED lighting system. The 150 W system has been run from winter to summer and no failure occurs so far. The ﬁeld test shows that the controller can be used for the 150 W solar-powered LED lighting system too. The LLP can be improved easily by using larger battery.

5. Discussion and conclusions

The present study developed a high-efﬁciency charge/discharge controller for stand-alone solar LED lighting system by incorporat-ing an nMPPO (near-maximum-power-point-operation) design, a PWM battery charge control, and a PWM battery discharge control to drive the LED.

The near-maximum-power-point-operation (nMPPO) design of photovoltaic power generation system[5]can get rid of a maxi-mum-power-point-tracking controller MPPT by just properly matching the PV module speciﬁcation with the battery voltage in design to obtain a similar performance of MPPT. The additional cost, reliability, and energy loss of the MPPT is thus avoided.

A battery charge control system using PWM technique with feedback control is developed in the present study to charge the battery in full capacity. The daily outdoor experiment shows the battery capacity can be charged 9.7% more after the overcharge point.

For LED driven by PWM current directly from battery to elimi-nate the DC/DC conversion loss, a reliability test for the light decay of LED lamps was performed continuously for 15,800 h. It has shown that the light decay of PWM-driven LED is the same as that of constant-current driven LED. The energy loss of the MOSFET in the PWM battery discharge control is less than 1%. Further improvement is underway by using better MOSFET or new circuit design.

The conventional DC/DC converter circuit used in solar-pow-ered system consists of capacitor, semiconductor (MOSFET), and inductor. The probability of failure of each component is 72%, 24%, and 3% respectively for capacitor, MOSFET and inductor, due to increase in equivalent series resistance (ESR), thermal stress cracks, and shorting windings respectively[12]. The present solar control system uses no DC/DC, only MOSFET is used for charging and discharging control.

The failure mode of the MOSFET is the thermal stress cracks. It can be reduced by adopting higher voltage system to reduce the charge/discharge current or using a better thermal management device to dissipate the heat of the MOSFET. Thus the system reli-ability can be increased by comparison to the use of conventional DC/DC converter.

Three solar-powered LED lighting systems (18 W, 100 W and 150 W LED) were designed and built according to the developed technology. The long-term outdoor field test results have shown that the system performance is satisfactory with the control sys-tem developed in the present study. The loss of load probability for the 18 W solar LED system is 14.1% in winter and zero in sum-mer. For the 100 W solar LED system, the loss of load probability is 3.6% in spring. The LLP of the 150 W solar LED system is much higher than other two systems and it can be reduced if the battery capacity is increased. The field test of the three solar-powered LED lighting systems is covering winter and summer conditions. No failure happened to the controller except the data logger. The long-term field tests show the controller developed in the present study has good stability in charging the battery and driving the LED luminaire.

Acknowledgments

This publication is based on the work supported in part by Award No. KUK-C1-014-12, made by King Abdullah University of Science and Technology (KAUST) and the Project No. 97-D0137-1 made by Energy Bureau, Ministry of Economic Affairs, Taiwan.

References

[1] Hadj Arab A, Chenlo F, Benghanem M. Loss-of-load probability of photovoltaic water pumping systems. Solar Energy 2004;76:713–23.

[2] Salameh Z, Taylor D. Step-up maximum power point tracker for photovoltaic arrays. Solar Energy 1990;44(1):57–61.

[3] Salameh Z, Dagher F, Lynch WA. Step-down maximum power point tracker for photovoltaic system. Solar Energy 1991;46(1):278–82.

[4] Huang BJ, Sun FS, Ho RW. Near-maximum-power-point-operation (nMPPO) design of photovoltaic power generation system. Solar Energy 2006;80:1003–20.

[5] Koutroulis E, Kalaitzakis K. Novel battery charging regulation system for photovoltaic applications. In: IEE proc-electr power appl, vol. 151 (2); March 2004.

[6] Huang BJ, Sun FS. Feasibility study of one axis three positions tracking solar PV with low concentration ratio reﬂector. Energy Convers Manage 2007;48:1273–80.

[7] Huang BJ, Wu Min-Sheng, Huang HH, Chen JW. Economic analysis of solar-powered LED roadway lighting. In: Solar world congress 2007, September 17– 22; 2007. p. 466–70

[8] Barton Daniel L, Osinski Marek, Perlin Piotr, Eliseev Petr G, Lee Jinhyun. Single-quantum well InGaN green light emitting diode degradation under high electrical stress. Microelectron Reliab 1999;39:1219–27.

[9] Meneghini M, Morelli A, Pintus R, Meneghesso G, Vanzi M, Zanoni E. High brightness GaN LEDs degradation during dc and pulsed stress. Microelectron Reliab 2006;46:1720–4.

[10] Meneghini M, Trevisanello L, Podda S, Buso S, Spiazzi G, Meneghesso G, et al. Stability and performance evaluation of High Brightness Light Emitting Diodes under DC and pulsed bias conditions. In: SPIE, sixth international conference on solid state lighting, vol. 63370R; 2006. p. 63370R-1.

[11] YUASA. NP 38-12 lead–acid battery technical datasheet; March 09. [12] Military handbook 217F. Reliability prediction of electronic equipment; 1995.
