An Interconnecting Technology for RF MEMS
Heterogeneous Chip Integration
Tzu-Yuan Chao, Chun-Hsing Li, Yang Chuan Chen, Hsin-Yu Chen,
Yu-Ting Cheng, Senior Member, IEEE, and Chien-Nan Kuo
Abstract—An interconnecting technology using a Au–Au
ther-mocompressive bond has been successfully developed for micro-electromechanical system (MEMS) heterogeneous chip integration in this paper. The Daisy chain and RF transition structures are both designed and fabricated for the electrical characterization of the interconnect scheme. Measured dc contact resistance is about 14± 5 mΩ for the bonding interface of Ni (1 μm)/Au (0.4 μm)/Au (0.4 μm)/Ni (1 μm) with a pad size of 40 μm in diam-eter. The electrical transition between two chips, which have copla-nar waveguides (CPWs) and microstrip lines, respectively, can be well interconnected with less than−15 dB return loss and −1.8 dB insertion loss up to 50 GHz without implementing complex struc-ture designs and extra impedance matching networks in the transition by employing this technology. Meanwhile, it is found that the mechanical strength for the interconnecting bond can be as large as 100 MPa. A low-power RF low-noise amplifier has been successfully designed, fabricated, and utilized in this paper to demonstrate the feasibility of the interconnecting technology for RF MEMS heterogeneous chip integration by integrating a Taiwan Semiconductor Manufacturing Corporation 0.18-μm RF complimentary metal–oxide–semiconductor chip with a silicon carrier, where high Q MEMS inductors are fabricated and utilized for good circuit performance in terms of excellent impedance matching, power gain, and gain flatness.
Index Terms—Au–Au thermocompressive bonding, bumpless
interconnecting, flip chip (FC), heterogeneous chip integra-tion, high Q microelectromechanical system (MEMS) inductor, low-noise amplifier (LNA).
I. INTRODUCTION
P
ROCESS integration is a critical research topic in the development of micromechanical circuitry for wire-less communication applications [1]–[4]. From surface, bulk, to CMOS-microelectromechanical system (CMOS-MEMS) micromachining processes, the tradeoff among device perfor-mance, material selection, process compatibility, and man-ufacture cost is required in design consideration while the machining techniques are employed for MEMS fabrication. For example, Nguyen and Howe [1] presented the first integrated Manuscript received April 1, 2009; revised December 22, 2009. First pub-lished February 25, 2010; current version pubpub-lished April 2, 2010. This work was supported by the NSC 97-2220-E-009-007 project. The review of this paper was arranged by Editor C. Nguyen.T.-Y. Chao, Y. C. Chen, H.-Y. Chen, Y.-T. Cheng, and C.-N. Kuo are with the Microsystems Integration Laboratory, Department of Electronics Engineering, National Chiao Tung University, Hsinchu 300, Taiwan (e-mail: [email protected]).
C.-H. Li is with the Nanoelectronics Research Lab, Department of Elec-trical and Computer Engineering, University of California, Santa Barbara, CA 93106 USA.
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/TED.2010.2040660
high Q MEMS CMOS oscillator showing the potential of RF MEMS for low-power wireless communication applica-tions. The work must utilize all tungsten interconnects for surviving in a post-CMOS poly-Si surface micromachining process with a processing temperature up to 835 ◦C. The nonstandard CMOS interconnect material with high electrical resistivity makes the approach not practical for the technol-ogy continuation of CMOS scaling. Weigold et al. [2] de-veloped a merged process to integrate thick single-crystal Si resonators with a bipolar CMOS (BiCMOS) circuit for hav-ing high intrinsic Q factor performance. Deep silicon dophav-ing, i.e., 15 μm in depth, which is not an economical BiCMOS process, is required for etching stop in the ethylenediamine pyrochatechol release process. Although Lakdawala et al. [3] and Oz and Fedder [4] demonstrated a series of monolithic RF integrated circuits using MEMS-type passives fabricated by a standard CMOS process, only the backend aluminum and aluminum-oxide layers can be utilized as structural materi-als of RF MEMS components. Inevitable stress compensation and material property limitation would complicate the device design. In comparison with the integration approaches, post-CMOS electroforming techniques [5], [6] might be an ultimate integration solution of RF CMOS-MEMSs with several process advantages, including flexible material choice, low process temperature, and high manufacturing throughput. Mechanical deficiencies of metal-based materials, such as fatigue, aging, and low stiffness, still need to be resolved as the structural material of MEMS devices [7]–[9]. Therefore, it is critical to develop an integration scheme with the least tradeoff design for RF CMOS-MEMS fabrication.
Meanwhile, Si-based system-on-a-package (SOP) schemes have been proposed for microsystem fabrication in recent years [10]–[13]. Instead of building everything on a single chip, discrete components are designed and fabricated on separate chips and then fully integrated onto a silicon substrate to form a microsystem. A compact microsystem can be realized with the design flexibility without having any material and process limits for better performance. In addition, using silicon instead of ceramic or a printed-circuit-board (PCB) material as the packaging substrate can ensure the SOP scheme to be suitable for high-density interconnects due to a perfect coefficient-of-thermal-expansion match, which will not induce thermal stress to cause reliability problems in chip assembly. The contact size of the chip-to-silicon substrate can be reduced to several tens of micrometers in diameter [10]. Thus, a heterogeneous chip integration scheme, as shown in Fig. 1, is presented in this paper by adapting the SOP concept to integrate a CMOS circuit chip 0018-9383/$26.00 © 2010 IEEE

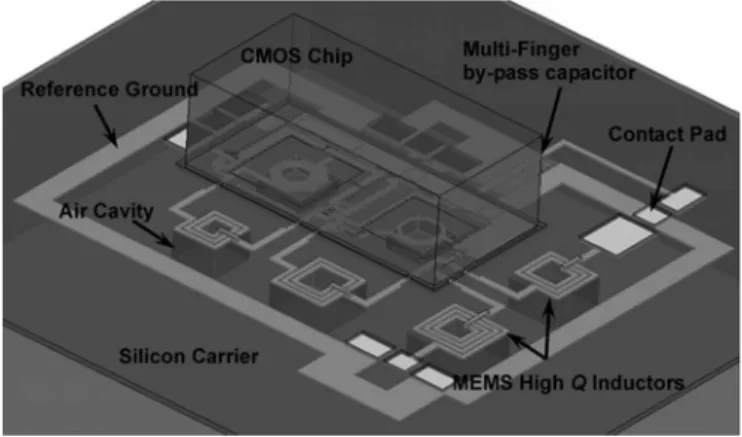

Fig. 1. MEMS heterogeneous chip integration.
with a micromachined silicon carrier, where high-performance RF MEMS components are fabricated.
Previously, Carchon et al. [13] successfully demonstrated a similar silicon-based multi chip module-deposited (MCM-D) technology for the integration of 0/1-level packaged RF-MEMS devices at millimeter-wave frequencies. Although this paper had shown excellent RF characteristics in the integration of a silicon substrate with an RF MEMS chip, most of research works were merely concentrated in the performance study of connected RF passive components without involving in any active CMOS circuit, which is, however, the most critical com-ponent in the development of RF MEMSs for wireless trans-ceiving system applications. In comparison with the MCM-D technology using Au-stub interconnects, better system perfor-mance with more design flexibility can be further expected in the realization of RF CMOS-MEMSs since the scheme proposed here for multiple chip integration is aimed at a system structure with the interconnect configuration similar to that of a system-on-a-chip (SOC). Nevertheless, in the heterogeneous chip integration scheme, a flip-chip (FC) bonding technique is the key to achieve chip assembly with better interconnect per-formance. The conventional FC technology like Carchon et al.’s approach has been widely utilized for microelectronic pack-aging applications because it can enable the electrical inter-connects between chips to have high-density and low parasitic reactance characteristics. However, large solder bumps for the interconnects still exhibit no negligible parasitic effects. While the device size continues to shrink, the parasitic effect can cause large sensitivity reduction of devices. While the frequency of the electrical signal transmitted within chips is greater than 10 GHz or even higher, the parasitic effect will result in the drastic increase in return loss in the interconnecting transition. Therefore, a bumpless bonding technique must be developed and implemented in the proposed integration scheme to further reduce the bump size effects for having an interconnection with low loss, wide bandwidth, high speed, and ultrafine pitch characteristics [16]–[18].
Previously, several bumpless interconnecting and mi-crobumping concepts have been developed and implemented in the FC technology [14]–[18]. Saito et al. [16] utilized the sur-face activated bonding (SAB) [14], [15] to realize high-density bumpless interconnection from a Si chip to a polyimide sub-strate in which a pad loss at 20 GHz will be about 1/20 of that of wire bonding. In 2006, the same group also demonstrated
Si-to-Si bumpless ultrafine pitch interconnects using the Cu SAB technique in which about 0.1-μm bump height and less than 10-μm pitch can be achieved [17]. The mechanism of SAB is based on the adhesive force formed by two atomically clean surfaces with intimate contact. The clean surfaces must be formed by a chemical–mechanical planarization process com-bined with the Ar fast atom beam (Ar-FAB) or Ar plasma ir-radiation treatment in an ultrahigh vacuum environment. Since the SAB has the characteristics of low process uniformity toler-ance, long activation time (∼30 min), and special customized tool requirement, it is difficult to be implemented for mass production. IBM Research demonstrated a controlled collapse chip connection (C4) microbump interconnect technique, which can provide conventional Pb and Pb-free solder bumps with
∼10 μm bump height, 25 μm in diameter, and 50 μm pitch size
at the wafer level (200 mm) by an electroplating method [18]. The contact resistance can be achieved as low as several mil-liohms depending on the type of the solder material used for the microjoint. However, the microsolder bumping process requir-ing electroplatrequir-ing is generally the last process step that could raise the process integration problem for most of MEMS chips. In this paper, a bumpless interconnecting technique is pre-sented based on a self-interlocking design with a Au–Au ther-mocompressive bond for realizing the proposed heterogeneous chip integration scheme. A low-power RF low-noise amplifier (LNA) is designed, fabricated, and utilized to demonstrate the technology feasibility by integrating a TSMC 0.18-μm RF CMOS chip with a silicon carrier where high Q MEMS induc-tors are designed and fabricated in-house. In comparison with the aforementioned interconnecting technologies, a near-zero bump height and a post-CMOS compatible process without solder bumping on the CMOS chip can provide a total solution not only to the characteristic impedance matching problem raised in electromagnetic (EM) signal transmission between RF circuits but also to the heterogeneous chip integration of RF MEMS fabricated by different fabrication processes.
II. BUMPLESSINTERCONNECTDESIGN ANDFABRICATION
A. Bumpless Interconnecting Scheme
Fig. 2 shows a typical FC transition from one interconnect line on a chip to another on a PCB and the corresponding equiv-alent circuit model, respectively [19]–[21]. The lump elements
LS, RS, CM, CC, GM, and GCare the bump inductance, the radiation loss resistance in bump [20], the discontinuity capac-itance at the PCB and the one at the chip, and the substrate loss conductance of the PCB and that of the chip, respectively. In general, series resistance RSand shunt conductance GM (GC) are small enough to be neglected; the effective bump impedance can be calculated as follows:
zbump=
LS
CM + CC
. (1) In the FC transition, the structure geometry and parasitic discontinuity capacitance CM and CCwould lead the transition with a capacitive dominant characteristic, which results in a low bump impedance smaller than the system characteristic
Fig. 2. (a) Typical FC transition structure and (b) corresponding equivalent circuit model.
Fig. 3. Self-interlocking bumpless interconnecting technology proposed for heterogeneous chip integration. (a) CMOS chip after blade dicing. The enlarged view of a diced CMOS chip near bonding pads shows a step height between the top surface of the bonding pad and the passivation. (b) Silicon carrier is fabricated using a standard CMOS backend process and a MEMS process. The backend process is utilized to fabricate interconnect lines and bonding pads for the CMOS chip assembly, and a MEMS process is utilized to etch silicon, which is underneath the inductors for the purpose of substrate loss reduction. The thickness of the exposed metal line should be thicker than the step height on the CMOS chip. (c) CMOS chip is integrated with the carrier using the bumpless interconnecting technology. The inset shows that the concave pad on the chip will be self-interlocked with the metal line on the carrier during the chip integration.
impedance of 50 Ω. Wang and Wu [19] estimated that the effective bump impedance of a typical FC structure with 127 μm in bump height, 160 μm in bump diameter, and 200 μm in pad size is about 32 Ω, where series inductance LS and shunt capacitance CM (CC) are 68.67 pH and 34.91 fF, respectively. To solve the 50-Ω matching problem resulted by the FC transition, several compensation structures like the staggered structure [22], high impedance line [23], and ground retreat [19] have been applied to reduce excessive capacitance of the transition and to make the FC transition with a 50-Ω impedance for lowering return loss. On the other hand, bump-less interconnecting is an alternative approach enabling the
FC transition to have almost zero bump height and tiny bump pad size that can be reduced down to several micrometers.
LS and CM (CC) can be further neglected by the reduction of inductance and fringing capacitance, and the impedance of the FC transition will become negligible in the two connected 50-Ω transmission lines at a low frequency. To minimize the transition impact to the two connected transmission lines, the bumpless interconnecting can also simply reduce the return loss of the transition without adapting the complex compensation structure requiring customized design.
Fig. 3 shows the scheme of the proposed self-interlocking bumpless interconnecting technology. As aforementioned, the
Fig. 4. SEM photograph of the enlarged view on the corner of an Al pad shows a step height between the top surfaces of the Al contact pad and the passivation in a standard CMOS chip. (Inset) Optical micrograph of the TSMC 0.18-μm mixed signal CMOS chip.
silicon carrier can be fabricated using either the same as or different from standard CMOS processes for having good process design flexibility in terms of the performance consid-eration of MEMS devices. For a standard CMOS chip, Si3N4
or polyimide will be deposited last on the top of CMOS cir-cuitry as a passivation layer to prevent possible contamination, damage, and corrosion. For example, a TSMC 0.18-μm mixed signal CMOS chip has a 1-μm altitude difference between the top surfaces of the Al contact pad and the passivation, as shown in Fig. 4. Concave pad structures with the same step height generally form on the top of the chip, and solder balls are, conventionally, put inside the pads and utilized as metallurgical and electrical connection for chip assembly. This paper presents an alternative joint scheme, as shown in Fig. 3, where one end of the concave pad structures is removed first (chip A), the signal line, i.e., the electrical interconnect line, on the other chip (chip B) is opened, and then the electrical joint is achieved by mechanically interlocking and bonding the pads with the lines using a Au–Au thermocompressive bond to make two chips become a “single” chip. The interlocking mechanism can effectively prevent the metal interconnect line from the horizontal shift to be blocked by the edge of the concave pad, particularly when two chips are bonded on an unleveled bonder stage. Thus, the design rule for the interconnect line in a silicon carrier and the contact pad on a CMOS chip is determined based on the alignment accuracy provided by an FC bonder. For instance, the width of the contact pad is larger than the width of the interconnect line by 2 μm, which is two times larger than the maximum misalignment distance of the bonder used in this paper. Because the metal lines on a chip can be directly connected with the contact pads, the characteristics of almost zero bump height and similar signal line width between chips can allow a high-frequency EM signal to directly pass through the metal joint with the lowest power loss due to
Fig. 5. Process flow of maskless metallization to the CMOS chip.
diminutive characteristic impedance mismatch and parasitic effects resulted by the minute structure discontinuity.
Several issues need to be addressed in the proposed bump-less interconnecting technology. First, all contact pads of the CMOS chip should be designed and located on the periphery of the chip. Second, either a blade or laser dicing process must be employed to remove the edge of the chip, so that one end of the contact pads can be opened. Third, because the contact pad and the metal line of a CMOS chip are either made of Cu or Al determined by the process node chosen for the CMOS chip fabrication, a metallization process and related electrical characterization must be developed for the chip assembly. At last, a Au–Au thermocompressive bond and related metallization processes must be developed and utilized as the last processing step in this paper to realize the proposed interconnecting technology.
B. Bonding Metallization and the Carrier Fabrication Process
In this paper, an ultrawideband (UWB) tunable LNA will be demonstrated for verifying the bumpless interconnecting technology for RF MEMS heterogeneous chip integration. The process for the metallization of contact pads is described as shown in Fig. 5. The metallization for the bonding is a maskless process. First, double-zincating processes on the Al pads of the CMOS chip are performed in a 5% diluted zincating-based solution for 30 and 60 s, respectively, at room temperature. Before starting the secondary zincating process, the Al pads should be put into a 10% diluted nitric acid for 30 s to remove the first Zn layer formed on the top of the pads. The purpose of double zincating is to deposit a uniform Zn layer on the Al pad for being a catalytic and adhesion layer for following electroless Ni deposition [24]. After the zincating process, serial electroless plating processes of 0.2 μm Ni and 0.4 μm Au are performed at 80 ◦C and 88 ◦C, respectively. Finally, blade dicing is performed on the CMOS chip to remove the edge of bonding pads. Once the contact pads are opened, the chip is ready for following Au–Au thermocompressive bonding.
It is noted that because several advanced CMOS processes have used Cu instead of Al as the material of metal inter-connects and contact pads, the metallization will be slightly different from the previous one. Instead of double zincating, the chip is firstly put into a Pd catalyst solution for 30 s to activate the surface of Cu pads. In the process step, Pd is deposited on Cu pads as the catalyst seed for following electroless Ni plating.
Fig. 6. SEM photograph of the enlarged view on the diced edges of the CMOS chip.
Fig. 7. Silicon carrier fabrication processes: (a) SiO2/Si3N4/SiO2
mem-brane and Ti/Cu seeding layer deposition, (b) first Cu plating, (c) via pat-terning and air-bridge seeding layer deposition, (d) air bridge and via plating, (e) photoresist and seeding layer removal, (f) membrane patterning by reactive ion etching, and (g) silicon substrate removal using XeF2gas followed by a
photoresist strip.
After seeding, the Ni and Au electroless deposition processes, same as the aforementioned one, are performed for having a layer of 0.2 μm Ni/0.4 μm Au on the Cu pads for the following bonding process. Fig. 6 shows the enlarged view of contact pads on the CMOS chip right after Ni/Au metallization and blade dicing. The SEM picture shows that the contact pads are uniformly coated with a Ni/Au layer and have smooth surface morphology for following bonding.
For the verification of the UWB tunable LNA using the bumpless interconnecting technology, a silicon carrier will be designed and fabricated with high Q MEMS inductors [25], bypass capacitors, reference ground, and signal pads. Fig. 7 illustrates the fabrication processes of the silicon carrier. The fabrication begins with 0.7 μm wet oxidation on a p-type Si wafer, followed by 0.7 μm low-pressure chemical vapor deposition (CVD) Si3N4 and 0.7 μm plasma-enhanced CVD
tetraethoxysilane SiO2 deposition as an electrical insulation
layer. A layer of Ti (10 nm)/Cu (90 nm) is then sputtered onto the silicon substrate as a seeding layer for Cu elec-troplating, as shown in Fig. 7(a). Fig. 7(b) shows that a 6 μm-thick AZ-4620 photoresist is coated and patterned on the top of the electrical insulation layer as a mold structure for
5 μm-thick electroplated Cu to make the coil part of the spiral inductor. After the first layer of Cu plating, a 10 μm AZ-4620 is coated, patterned, and sputtered with another 120 nm Cu seeding layer, as shown in Fig. 7(c), for the air-bridge Cu via filling. Fig. 7(d) shows that another 10 μm AZ-4620 is then utilized to be the mold for 5 μm Cu plating for the air-bridge fabrication of the inductor. The fabrication of the spiral inductor is done after stripping the photoresist and the seeding layer by acetone, CR-7T, and buffered oxide etchant, respectively, as shown in Fig. 7(e). Once the inductor is fabricated, the bonding pads will be metallized by serial electroplating processes of 1 μm Ni and 0.4 μm Au as described in the previous Cu pad metallization for bonding. For high Q performance, the Si under the inductors is removed to reduce eddy current loss. Fig. 7(f) shows that the SiO2/Si3N4/SiO2
membrane in the center of inductors is reactive ion etched to expose Si for following XeF2 isotropic etching. Finally,
the photoresist mask is stripped by acetone, as shown in Fig. 7(g).
III. RESULTS ANDDISCUSSION
A. Bumpless Interconnect Bonding
For most of the RF SOP schemes, it is a common feature to bond a circuit chip with a substrate carrier in which high-performance passives, including capacitors, inductors, and fil-ters, are fabricated [26]–[28]. To electrically bridge the two chips, a transition structure from a CPW to a microstrip line and related RF characteristics are critical to the design of the RF SOP. Therefore, an electrical transition from CPWs to microstrip lines, which are designed and fabricated on a silicon carrier substrate and a TSMC 0.18-μm RF CMOS chip, respectively, is utilized to verify the effectiveness of the proposed bumpless interconnecting technology.
Regarding the substrate carrier part, probing pads and CPWs are designed and fabricated on a silicon substrate using the aforementioned Cu electroplating technique for RF characteri-zation. Here, CPWs and microstrip lines are both designed with the same characteristic impedance and signal line width, which are 50 Ω and 10.5 μm, respectively. The structure design is based on the assumption of 10 S/m substrate conductivity. Fig. 8 shows the micrographs of the CMOS chip before and after being diced and the as-fabricated silicon carrier, respectively. The dashed lines in Fig. 8(a) indicate the dicing traces that are cut for bonding, as shown in Fig. 8(b). The reference plane is defined at the edge of contact pads using thru-reflect-line (TRL) calibration [29] for RF characterization, as shown in Fig. 8(c). The air bridge between two grounds is used to inhibit odd-mode excitation in the CPW. The CMOS chip and the Si carrier, which contain microstrip lines and CPWs, respectively, are bonded together under the conditions of 300 ◦C at the carrier, 180 ◦C at the chip, and 50 MPa applied pressure for 3 min.
Fig. 9 shows the SEM photographs of the chip-to-carrier assembly. An enlarged view of the SEM picture on the bonding interface shows that there is about 2-μm misalignment. The misalignment is caused by the malfunction of interlocking
Fig. 8. Optical micrographs of (a) before, (b) after a blade dicing the CMOS chip, and (c) as-fabricated silicon carrier.

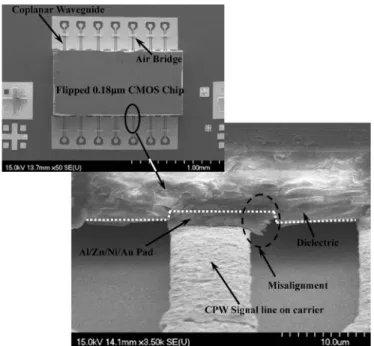

Fig. 9. (Top) SEM photograph of the chip-assembly result and (bottom) an enlarged view at the bonding area.
resulted by the overplating of Zn/Ni/Au layers on the Al pad. Such a malfunction can be further resolved by a better process control. After forcefully pulling the bonded CMOS chip away from the Si carrier, it is found that a cross-alignment mark on the carrier is totally transferred and attached onto the CMOS chip [Fig. 10(a)], or the Cu line deposited on the carrier can be lifted [Fig. 10(b)]. The results indicate that the Au–Au
thermocompressive bond is strong enough to break the interface between Ti and SiO2, which is about 100 MPa [30].
B. Electrical Characterizations of the DC Contact and the RF Transition Structure
The electrical contact resistance of the Au–Au thermocom-pressive bonding is characterized using the test structure, i.e., the Daisy chain, as shown in Fig. 11. The Daisy chain is fab-ricated using the aforementioned Cu-plating and metallization processes. Ten corresponding bonding pads with complemen-tary conducting lines are both designed on two separate chips [Fig. 11(a) and (b)]. Thus, the total contact resistance can be obtained by subtracting the resistance of the line pattern [Fig. 11(c)] from the resistance measured from two contact pads, A and A, once the two chips are bonded. The contact resistance for each bonding pad can be derived by dividing the total contact resistance by the total number of bonding pads. The contact resistance is about 14± 5 mΩ for each circular bonding pad of 0.4 μm Au/1 μm Ni with a radius of 20 μm.
Two-port S-parameters of the transition structure are mea-sured using Agilent E8364B PNA and Cascade Infinity GSG probe in the frequency range from 10 to 50 GHz, as shown in Fig. 12. The measured S-parameters have excluded the parasitic effect from measurement pads and have a reference plane to the edge of the bonding pad via TRL calibration. The assembly technique provides about−1.7 dB insertion loss and −15 dB return loss at 40 GHz, including the transmission loss of the microstrip line. The high-frequency structural simulation at 75 S/m silicon conductivity shows comparable S11 and S21
Fig. 10. Enlarged SEM photographs of (a) alignment mark on the CMOS chip transferred onto the silicon carrier and (b) lifted Cu line on the silicon carrier after forcefully separating the bonded transition structure.
Fig. 11. Optical micrographs of dc contact resistance test structures, i.e., the Daisy chain, including two separate chips (a, b), and a line pattern (c) for de-embedding.
values as compared with the measurement result. The discrep-ancy between the measurement and the simulation could be attributed to the aforementioned bonding misalignment and process variation. Nevertheless, the measurement result has revealed that the low loss and wide bandwidth characteristics of the bumpless interconnecting technology have the potential for RF chip integration.
C. UWB LNA With MEMS Inductors
In the present RF receiver architecture, an LNA is usually the first signal processing circuit right after an antenna receives an RF signal. The implementation of high Q inductors in the LNA can greatly improve the circuit performance like low power, low noise, high gain, and high tuning range [31], [32]. Previous investigations have shown that MEMS inductors can also exhibit high Q characteristics on a silicon substrate using a silicon micromachining technique to effectively reduce
ohmic and eddy current losses [25], [33]. Thus, a low-power RF LNA is designed, fabricated, and utilized to demonstrate the heterogeneous chip integration technology by integrating a TSMC 0.18-μm RF CMOS chip with a silicon carrier, where high Q MEMS inductors are designed and fabricated in-house as aforementioned. The conductivity of the silicon carrier used in the RF LNA is 5 S/m rather than the aforementioned 75 S/m conductivity. Fig. 13 shows the scheme of the LNA circuit where four high Q MEMS inductors, i.e., L1, L2, Lg, and Ld1, are employed to improve the circuit performance. On the input side, the three inductors L1, L2, and Lgare used for broadband input impedance matching to decrease the thermal noise due to small parasitic resistance. Another inductor Ld1at the tunable LC resonator is used to provide high power gain and to maintain good gain flatness as a result of the wideband performance in terms of a high Q factor. Fig. 14 shows the SEM picture of the as-fabricated LNA circuit using the proposed bumpless chip-assembly technique. Circuit simulation shows

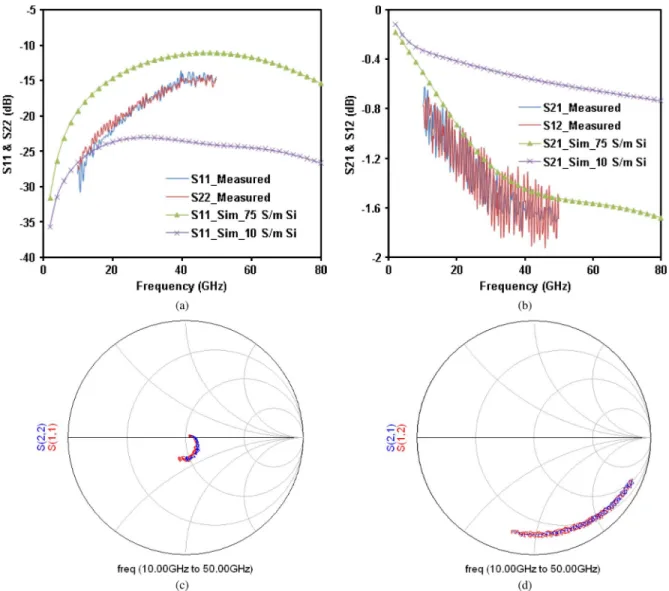

Fig. 12. Simulation and measurement results of (a) return loss and (b) insertion loss of the EM signal propagating through the transition design with the transmission lines, a CPW, and a microstrip line, and corresponding measurement results of (c) return loss and (d) insertion loss shown in Smith charts.
Fig. 13. Tunable LNA circuit. Four high Q MEMS inductors (as shown in dashed lines) are utilized to improve the circuit performance.
that the LNA can have about 50% power savings and 50% tuning range enhancement in comparison with the LNA circuit using the conventional CMOS inductors [34].
Fig. 14. SEM photograph of the UWB tunable LNA with high Q MEMS inductors. The rectangular holes located in the center of inductors provide a path for XeF2vapor isotropic etching.
Fig. 15 shows the comparison between simulated [Fig. 15(a)] and measured [Fig. 15(b)](Table I) S11 and S21 with a different tuning voltage in the LNA circuit. There are discrepancies in
Fig. 15. (a) Simulation and (b) measurement results of the return loss and gain with a different tuning voltage of the UWB LNA circuit. TABLE I
COMPARISON OFAUBUMP, AUSTUDBUMP,ANDNI/AUBUMPLESSPROCESSES[35], [36]
S11 and gain degradation. The bandwidth of measured S11 is narrower than that of the simulation one and varied with the tuning voltage. The discrepancy could be caused by EM field coupling within inductors, which would result in input mismatch. The effect, in fact, can be resolved by adding guard rings around the inductors for the enhancement of EM signal isolation and by removing more Si underneath the inductors for
Q enhancement to realize higher gain performance.
Although the function of self-interlocking was not fully demonstrated in this experiment due to the overplating of the Zn/Ni/Au layer on the CMOS chip, it can be resolved by process optimization. Nevertheless, it is noted that Ni, in the bonding scheme, not only plays a role as a seeding layer for following Au plating but also acts as a diffusion barrier to Au. In this paper, the Au–Au thermocompressive bond is chosen to realize bumpless interconnecting unlike the under-bump metal (UBM) of the packaging, where the Au layer is only used as a wetting layer to the solder for FC bonding. Thus, to effectively prevent Au from diffusing into a CMOS chip, to have a strong Au–Au bond, and to maintain self-interlocking mechanism, fur-ther process characterizations, including the thickness control
of the Ni/Au metallization and related bonding quality and reli-ability investigation, are required for having an optimal process condition for manufacture applications. In fact, in comparison with the other two kinds of Au–Au thermocompressive bonding techniques proposed for FC applications, i.e., the Au bump and the Au stud bump, as listed in Table I [35], [36], the presented Ni/Au bumpless metallization for Au–Au thermocompressive bonding has shown a great potential in chip integration with the characteristics of high throughput, flexible bump geometry and pitch size, low cost without a lithography process, and almost zero bump height for high-frequency signal transition. In addi-tion, the previous study has shown that the electromigration of a typical Pb-free solder using Ni-P/Au UBM is mainly caused by the movements of Sn atoms against the electron flow [37]. Since there is no Sn solder required in the bonding scheme, a better electromigration characteristic can be expected. Nevertheless, the long-term reliability investigation regarding our proposed assembly scheme is still undergoing.
The bumpless interconnecting technology can provide low parasitic capacitance and small contact resistance for chip assembly and make the electrical joint behave like a simple
interconnect line, which can reduce IC design complexity, provide process flexibility, and make the whole system perform like the SOC. Thus, in addition to MEMS inductors, RF MEMS components, such as switches, tunable capacitors, inductors, antennas, and BAW resonators, can be easily implemented for RF microsystem fabrication based on the heterogeneous chip integration scheme with the bumpless interconnecting technol-ogy. Although this paper only demonstrated an integration of a CMOS chip to a silicon carrier, the scheme can be utilized for a CMOS chip to a CMOS chip, a MEMS chip, or a III–V chip integration, and to provide an alternative technique for heterogeneous integration applications without modifying the existed chip design. Owing to the intrinsic characteristic of heterogeneous chip integration, the scheme can further ensure a cost-effective CMOS-MEMS fabrication process without sacri-ficing system performance as the scaling of CMOS technology is down to 90 nm or even further.
IV. CONCLUSION
A bumpless interconnecting scheme has been presented for MEMS heterogeneous chip integration based on the developed Au–Au thermocompressive bonding. The scheme can fully integrate a CMOS chip with another chip, which can be an-other CMOS, MEMS, III-V, or silicon carrier chip. The dc and RF electrical behaviors of the bumpless interconnect have been characterized and have shown good broadband transition performance. A low-power broadband LNA circuit has been realized using the bumpless interconnecting technology to fully integrate a TSMC 0.18 μm RF CMOS chip with a silicon carrier where high Q MEMS inductors and CPWs are fabricated in-house. With a better layout design and process optimization, the technology has shown its great potential for RF MEMS heterogeneous chip integration applications.
ACKNOWLEDGMENT
The authors would like to thank the Chip Implementation Center for the support of circuit fabrication, the National Center for High-Performance Computing for the support of the EM simulator, and Dr. D.-C. Chang for his technical assistance.
REFERENCES
[1] C. T.-C. Nguyen and R. T. Howe, “An integrated CMOS micromechanical resonator high-Q oscillator,” IEEE J. Solid-State Circuits, vol. 34, no. 4, pp. 440–455, Apr. 1999.
[2] J. W. Weigold, A.-C. Wong, C. T.-C. Nguyen, and S. W. Pang, “A merged process for thick single crystal Si resonators and conventional BiCMOS circuitry,” J. Microelectromech. Syst., vol. 8, no. 3, pp. 221–228, Sep. 1999.
[3] H. Lakdawala, X. Zhu, H. Luo, S. Santhanam, L. R. Carley, and G. K. Fedder, “Micromachined high-Q inductors in a 0.18-um Copper in-terconnect low-K dielectric CMOS process,” IEEE J. Solid-State Circuits, vol. 37, no. 3, pp. 394–403, Mar. 2002.
[4] A. Oz and G. K. Fedder, “CMOS-Compatible RF-MEMS tunable ca-pacitors,” in Proc. IEEE Radio Frequency Integr. Circuits Symp., 2003, pp. 611–614.
[5] W.-L. Huang, Z. Ren, Y.-W. Lin, H.-Y. Chen, J. Lahann, and C. T.-C. Nguyen, “Fully monolithic CMOS nickel micromechanical res-onator oscillator,” in Proc. 20th IEEE Int. Conf. MEMS, 2008, pp. 10–13.
[6] J.-B. Yoon, B.-I. Kim, Y.-S. Choi, and E. Yoon, “3-D lithography and metal surface micromachining for RF and microwave MEMS,” in Proc.
15th IEEE Int. Conf. MEMS, 2002, pp. 673–676.
[7] L. Que, L. Otradovec, A. D. Oliver, and Y. B. Gianchandani, “Pulse and DC operation lifetimes of bent-beam electrothermal actuators,” in Proc.
14th IEEE Int. Conf. MEMS, 2002, pp. 570–573.
[8] T. S. Slack, F. Sadeghi, and D. Peroulis, “A phenomenological discrete brittle damage-mechanics model for fatigue of MEMS devices with appli-cation to LIGA Ni,” J. Microelectromech. Syst., vol. 18, no. 1, pp. 119– 128, Feb. 2009.
[9] W.-L. Huang, Z. Ren, and C. T.-C. Nguyen, “Nickel vibrating microme-chanical disk resonator with solid dielectric capacitive-transducer gap,” in
Proc. IEEE Int. Frequency Control Symp., 2006, pp. 839–847.
[10] J. Knickerbocker, P. S. Andry, L. P. Buchwalter, E. G. Colgan, J. Cotte, H. Han, R. R. Horton, S. M. Sri-Jayantha, J. H. Magerlein, D. Manzer, G. McVicker, C. S. Patel, R. J. Polastre, E. S. Sprogis, C. K. Tsang, B. C. Webb, and S. L. Wright, “System-on-Package (SOP) technol-ogy, characterization and applications,” in Proc. IEEE Electron. Technol.
Compon. Conf., 2006, pp. 418–421.
[11] V. Kripesh, S. W. Yoon, V. P. Ganesh, N. Khan, M. D. Rotaru, W. Fang, and M. K. Iyer, “Three-dimensional system-in-package using stacked silicon platform technology,” IEEE Trans. Adv. Packag., vol. 28, no. 3, pp. 377–386, Aug. 2005.
[12] A.-C. Wong, Y. Xie, and C. T.-C. Nguyen, “A bonded-micro-platform technology for modular merging of RF MEMS and transistor circuits,” in Proc. 11th Int. Conf. TRANSDUCERS, 2001, pp. 992–995.
[13] G. J. Carchon, A. Jourdain, O. Vendier, J. Schoebel, and H. A. C. Tilmans, “Integration of 0/1-level packaged RF-MEMS devices on MCM-D at millimeter-wave frequencies,” IEEE Trans. Adv. Packag., vol. 30, no. 3, pp. 369–376, Aug. 2007.
[14] T. Itoh, H. Okad, H. Takagi, R. Maeda, and T. Suga, “Room temperature vacuum sealing using surface activated bonding method,” in Proc. 12th
Int. Conf. TRANSDUCERS, 2003, pp. 1828–1831.
[15] H. Okada, T. Itoh, J. Fromel, T. Gessne, and T. Suga, “Room temperature vacuum sealing using surfaced activated bonding with Au thin films,” in
Proc. 13th Int. Conf. TRANSDUCERS, 2005, pp. 932–935.
[16] K. Saito, T. Fujii, Y. Akiyama, T. Usami, K. Otsuka, and T. Suga, “Study on the electrical performance of 80 μm pitch bumpless bonding for several GHz interconnection,” in Proc. 55th IEEE Electron. Technol. Compon.
Conf., 2005, pp. 1127–1131.
[17] A. Shigetou, T. Itoh, M. Matsuo, N. Hayasaka, K. Okumura, and T. Suga, “Bumpless interconnect through ultrafine Cu electrodes by means of surface-activated bonding (SAB) method,” IEEE Trans. Adv. Packag., vol. 29, no. 2, pp. 218–226, May 2006.
[18] J. U. Knickerbocker, P. S. Andry, L. P. Buchwalter, A. Deutsch, R. R. Horton, K. A. Jenkins, Y. H. Kwark, G. McVicker, C. S. Patel, R. J. Polastre, C. Schuster, A. Sharma, S. M. Sri-Jayantha, C. W. Surovic, C. K. Tsang, B. C. Webb, S. L. Wright, S. R. McKnight, E. J. Sprogis, and B. Dang, “Development of next-generation system-on-package (SOP) technology based on silicon carriers with fine-pitch interconnection,” IBM
J. Res. Devices, vol. 49, no. 4/5, pp. 725–754, 2005.
[19] C.-L. Wang and R.-B. Wu, “Modeling and design for electrical per-formance of wideband flip-chip transition,” IEEE Trans. Adv. Packag., vol. 26, no. 4, pp. 385–391, Nov. 2003.
[20] T. C. Edwards and M. B. Steer, Foundations of Interconnect and
Mi-crostrip Design, 3rd ed. Hoboken, NJ: Wiley, 2000.
[21] H. H. M. Ghouz and E.-B. El-Sharawy, “An accurate equivalent circuit model of flip chip and via interconnects,” IEEE Trans. Microw. Theory
Tech., vol. 44, no. 12, pp. 2543–2554, Dec. 1996.
[22] H. H. M. Ghouz and E.-B. El-Sharawy, “Finite-difference time-domain analysis of flip-chip interconnects with staggered bumps,” IEEE Trans.
Microw. Theory Tech., vol. 44, no. 6, pp. 960–963, Jun. 1996.
[23] A. Jentzsch and W. Heinrich, “Optimization of flip-chip interconnects for millimeter-wave frequencies,” in Proc. IEEE MTT-IMS, 1999, pp. 637–640.
[24] G. Qi, L. G. J. Fokkink, and K. H. Chew, “Zincating morphology of alu-minum bond pad: Its influence on quality of electroless nickel bumping,”
Thin Solid Films, vol. 406, no. 1/2, pp. 219–223, Mar. 2002.
[25] J. W. Lin, C. C. Chen, and Y.-T. Cheng, “A robust high Q microma-chined RF inductor for RFIC applications,” IEEE Trans. Electron Devices, vol. 52, no. 7, pp. 1489–1496, Jul. 2005.
[26] S. Chakraborty, K. Lim, A. Sutono, E. Chen, S. Yoon, A. Obatoyinbo, S.-W. Yoon, M. Maeng, M. F. Davis, S. Pinel, and J. Laskar, “A 2.4-GHz radio front end in RF system-on-package technology,” IEEE
Microw. Mag., vol. 3, no. 2, pp. 94–104, Jun. 2002.
[27] W. Diels, K. Vaesen, P. Wambacq, S. Donnay, W. De Raedt, M. Engels, and I. Bolsens, “Single-package integration of RF blocks for a 5 GHz
WLAN application,” IEEE Trans. Adv. Packag., vol. 24, no. 3, pp. 384– 391, Aug. 2001.
[28] M. F. Davis, A. Sutono, S.-W. Yoon, S. Mandal, N. Bushyager, C. H. Lee, K. Lim, S. Pinel, M. Maeng, A. Obatoyinbo, S. Chakraborty, J. Laskar, E. M. Tentzeris, T. Nonaka, and R. R. Tummala, “Integrated RF architec-tures in fully-organic SOP technology,” IEEE Trans. Adv. Packag., vol. 25, no. 2, pp. 136–142, May 2002.
[29] D. M. Pozar, Microwave Engineering, 3rd ed. Hoboken, NJ: Wiley, 2005.
[30] A. Kinbara, E. Kusano, T. Kamiya, I. Kondo, and O. Takenaka, “Eval-uation of adhesion strength of Ti films on Si(100) by the internal stress method,” Thin Solid Films, vol. 317, no. 1/2, pp. 165–168, Apr. 1998. [31] O. Dupuis, X. Sun, G. Carchon, P. Soussan, M. Ferndahl, S. Decoutere,
and W. De Raedt, “24 GHz LNA in 90 nm RF-CMOS with high-Q above-IC inductors,” in Proc. ESSCIRC, 2005, pp. 89–92.
[32] G. Carchon, K. Vaesen, S. Brebels, W. De Raedt, E. Beyne, and B. Nauwelaers, “Multilayer thin-film MCM-D for the integration of high-performance RF and microwave circuits,” IEEE Trans. Compon. Packag.
Technol., vol. 24, no. 3, pp. 510–519, Sep. 2001.
[33] Y.-S. Choi and J.-B. Yoon, “Experimental analysis of the effect of metal thickness on the quality factor in integrated spiral inductors for RF ICs,”
IEEE Trans. Electron Device Lett., vol. 25, no. 2, pp. 76–79, Feb. 2004.
[34] Y. C. Chen, C.-H. Li, J. K. Huang, C.-N. Kuo, and Y. T. Cheng, “Low power 3∼8 GHz UWB tunable LNA design using SiP technology,” in
Proc. 13th IEEE ICECS, 2006, pp. 1026–1029.
[35] M. Lee, M. Yoo, J. Cho, S. Lee, J. Kim, C. Lee, D. Kang, C. Zwenger, and R. Lanzone, “Study of interconnection process for fine pitch flip chip,” in
Proc. IEEE Electron. Technol. Compon. Conf., 2009, pp. 720–723.
[36] T. A. Min, S. P.-S. Lim, A. Yeo, and C. Lee, “Influence of bump geometry, adhesives and pad finishings on the joint resistance of Au bump and A/NCA flip chip interconnection,” in Proc. 7th EPTC, 2005, pp. 797–801. [37] Y.-M. Kwon and K.-W. Paik, “Electromigration of Pb-free solder flip chip using electroless Ni-P/Au UBM,” in Proc. IEEE Electron. Technol.
Compon. Conf., 2007, pp. 1472–1477.
