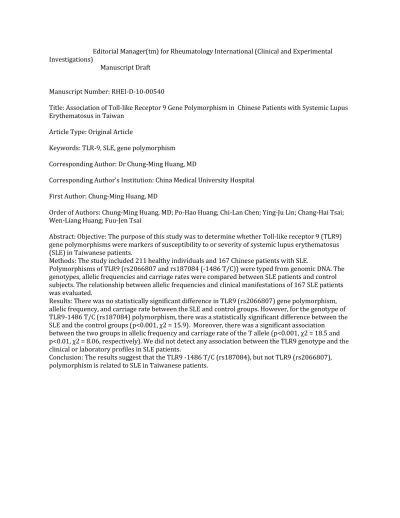

Editorial Manager(tm) for Rheumatology International (Clinical and Experimental Investigations)
Manuscript Draft Manuscript Number: RHEI-D-10-00540
Title: Association of Toll-like Receptor 9 Gene Polymorphism in Chinese Patients with Systemic Lupus Erythematosus in Taiwan
Article Type: Original Article
Keywords: TLR-9, SLE, gene polymorphism Corresponding Author: Dr Chung-Ming Huang, MD
Corresponding Author's Institution: China Medical University Hospital First Author: Chung-Ming Huang, MD
Order of Authors: Chung-Ming Huang, MD; Po-Hao Huang; Chi-Lan Chen; Ying-Ju Lin; Chang-Hai Tsai; Wen-Liang Huang; Fuu-Jen Tsai
Abstract: Objective: The purpose of this study was to determine whether Toll-like receptor 9 (TLR9) gene polymorphisms were markers of susceptibility to or severity of systemic lupus erythematosus (SLE) in Taiwanese patients.
Methods: The study included 211 healthy individuals and 167 Chinese patients with SLE.
Polymorphisms of TLR9 (rs2066807 and rs187084 (-1486 T/C)) were typed from genomic DNA. The genotypes, allelic frequencies and carriage rates were compared between SLE patients and control subjects. The relationship between allelic frequencies and clinical manifestations of 167 SLE patients was evaluated.
Results: There was no statistically significant difference in TLR9 (rs2066807) gene polymorphism, allelic frequency, and carriage rate between the SLE and control groups. However, for the genotype of TLR9-1486 T/C (rs187084) polymorphism, there was a statistically significant difference between the SLE and the control groups (p<0.001, χ2 = 15.9). Moreover, there was a significant association
between the two groups in allelic frequency and carriage rate of the T allele (p<0.001, χ2 = 18.5 and p<0.01, χ2 = 8.06, respectively). We did not detect any association between the TLR9 genotype and the clinical or laboratory profiles in SLE patients.
Conclusion: The results suggest that the TLR9 -1486 T/C (rs187084), but not TLR9 (rs2066807), polymorphism is related to SLE in Taiwanese patients.
Association of Toll-like Receptor 9 Gene Polymorphism in
Chinese Patients with Systemic Lupus Erythematosus in Taiwan
Chung-Ming Huang1,4, Po-hao Huang1,Chi-Lan Chen7, Ying-Ju Lin3 , Chang-Hai Tsai6, Wen-Liang Huang2 , Fuu-Jen Tsai3,5
Division of Immunology and Rheumatology1, Department of Internal Medicine2, and Department of Medicine Genetics3, China Medical University Hospital, Taichung, Taiwan Graduate Institute of Integrated Medicine, College of Chinese Medicine, China Medical University4, Taichung, Taiwan
College of Chinese Medicine, China Medical University5, Taichung, Taiwan Taichung Asia University6, Taichung, Taiwan
Foo Yin Institute of Technology7, Kaohsiung, Taiwan
Address correspondence to: Fuu-Jen Tsai,
Department of Medical Genetics, China Medical University Hospital, No 2 Yuh Der Road, Taichung, Taiwan
TEL: 886-4-22052121 ext. 5061 Fax: 886-4-22034608
E-mail: [email protected]
Running title: Patients with SLE
Key words: TLR-9, SLE, gene polymorphism Manuscript
Objective: The purpose of this study was to determine whether Toll-like receptor 9 (TLR9)
gene polymorphisms were markers of susceptibility to or severity of systemic lupus erythematosus (SLE) in Taiwanese patients.
Methods: The study included 211 healthy individuals and 167 Chinese patients with SLE.
Polymorphisms of TLR9 (rs2066807 and rs187084 (-1486 T/C)) were typed from genomic DNA. The genotypes, allelic frequencies and carriage rates were compared between SLE patients and control subjects. The relationship between allelic frequencies and clinical manifestations of 167 SLE patients was evaluated.
Results: There was no statistically significant difference in TLR9 (rs2066807) gene
polymorphism, allelic frequency, and carriage rate between the SLE and control groups. However, for the genotype of TLR9-1486 T/C (rs187084) polymorphism, there was a statistically significant difference between the SLE and the control groups (p<0.001, χ 2 =
15.9). Moreover, there was a significant association between the two groups in allelic frequency and carriage rate of the T allele (p<0.001, χ 2 = 18.5 and p<0.01, χ 2 = 8.06,
respectively). We did not detect any association between the TLR9 genotype and the clinical or laboratory profiles in SLE patients.
Conclusion: The results suggest that the TLR9 -1486 T/C (rs187084), but not TLR9
Introduction
Systemic lupus erythematosus (SLE) is a prototypic immune complex-mediated disease with a broad spectrum of autoimmune phenomena and clinical symptoms. Many immunologic abnormalities have been found in SLE patients, including impaired T cell responses and dysregulation of B cell activation, leading to B cell hyperactivity and overproduction of auto-antibodies 1.2. Auto-antibodies produced by differentiated B cells play an important role in the pathogenesis of SLE.
Toll-like receptor-9 (TLR-9) recognizes CpG motifs in microbial DNA3. TLR-9 signalling stimulates innate antimicrobial immunity and modulates adaptive immune responses including autoimmunity against chromatin, such as in SLE4,5. TLR-9 has recently been implicated in the activation of auto-reactive B cells in murine models of SLE 6-8. Migita
et al. showed that TLR-9 expression in B lymphocytes was increased in patients with SLE 9. Genetic variations within TLR genes are known to be associated with a variety of
inflammatory and infectious diseases10. Hur et al. presented their observation that four polymorphisms within a 4,334-bp segment of the TLR-9 gene demonstrated no significant association with susceptibility to SLE in a Korean population 11. In addition, De Jager et al. also showed that there is no relationship between the TLR-9 genes and SLE or lupus nephritis in a UK population 12.
In this study, we evaluated the TLR9 (rs2066807 and rs187084 (-1486 T/C)) gene by
comparing allelic and genotypic frequencies between 167 Chinese patients with SLE and 211 healthy individuals living in Central Taiwan. We also studied the association between TLR9 and SLE susceptibility and severity by focusing on single nucleotide polymorphisms (SNPs).
Patients and Methods Patient selection
We enrolled 167 patients (149 women and 18 men) patients with definite SLE according to the 1982 revised American College of Rheumatology criteria 13, and 211 sex-, age- matched healthy individuals living in Central Taiwan. This study was approved by the Institutional Review Board (IRB) at China Medical University Hospital prior to patient enrollment. Informed consent was obtained from each patient and control subject involved.
Polymerase chain reaction
The genomic DNA was prepared from peripheral blood by a genomic DNA isolation reagent kit (Genomaker, Taiwan). Polymerase chain reaction (PCR) was used to identify the genotypes of the TLR9 (rs2066807 and rs187084) polymorphisms. Polymerase chain reaction of the polymorphisms was performed in a total volume of50 μL, containing genomic DNA (2–6pmol of each primer), 1X Taq polymerase buffer (1.5mM MgCl2) and 0.25 units of
AmpliTaq DNA polymerase (Perkin Elmer; Foster City,CA,USA). For the TLR9 (rs2066807) gene promoter region, the primers used were upstream 5’- TGGGCTGTTTCTCCATACAA-3’ and downstream 5’-AAACCAGCTGAGGGATTCAGT-TGGGCTGTTTCTCCATACAA-3’. For the TLR9 -1486 T/C (rs187084), the primers used were upstream 5’-CCCAGCAGCAACAATTCAT-3’ and downstream 5’-TTATTCCCCTGCTGGAATGT-3’. Polymerase chain reaction amplification was performed in a programmable PCR thermal cycler (GeneAmp PCR System 2400, Perkin Elmer). The PCR cycling conditions for TLR9 (rs2066807) and TLR9 (rs187084) gene polymorphisms examination were as follows: 35 cycles at 950 C for 30 seconds, 560 C for 45 seconds, and 720 C for 30 seconds. They were then left to stand at 720 C, then held at 40 C.
The polymorphisms of the respective genes of interest were discerned by digestion with Tth111I and Hpy188III, respectively. The PCR products were mixed separately using the aforementioned enzymes and reaction buffer according to the manufacturer’s instructions. Both reactions were incubated for three hours at 370 C. After this, 10l of each product was loaded into a 3% agarose gel containing ethidium bromide and subjected to electrophoresis. The resultant genotypes were classified into the categories of non-excisable homozygote allele (CC for TLR9 (rs2066807) and TT for TLR9 (rs187084) genes, respectively), excisable homozygote allele (GG for TLR9 (rs2066807) and CC for TLR9 (rs187084) genes,
respectively), and heterozygote allele (CG for TLR9 (rs2066807) and CT for TLR9 (rs187084) genes, respectively).
Statistical analysis
The carriage rate of an allele is the number of individuals carrying at least one copy of the allele relative to the total number of individuals. Allelic frequency was expressed as a
percentage of the total number of alleles. The genotype distributions, allelic frequencies, and carriage rates for the TLR9 (rs2066807) and TLR9 (rs187084) gene polymorphisms for SLE patients and the controls were compared using the chi-square test. Results were considered statistically significant when the probability of findings occurring by chance was less than 5% (p < 0.05). The odds ratios (OR) were calculated from genotypic frequency and allelic frequency with a 95% confidence interval (95% CI) for the TLR9 (rs2066807) and TLR9 (rs187084) gene polymorphisms.
Results
The frequencies of the genotypes of TLR9 (rs2066807) in the SLE and the control groups are shown in Table 1. In the SLE group, 155 patients (94.5 %) had the GG genotype, 9 patients (5.5 %) had the C/G genotype, and no patient (0 %) had the CC genotype. In the
control group, 200 people (96.2 %) had the GG genotype, 8 (3.8 %) had the C/G genotype, and no patient (0 %) had the CC genotype. There were no significant differences in the distribution of the TLR9 (rs2066807) C/G polymorphism between the SLE and the control groups (χ 2= 0.57, p=0.45). We also analyzed the relationship between the two groups in
allelic frequencies and carriage rate of TLR9 (rs2066807) (Table 1). There was no significant association in frequency (p=0.46) and carriage rate (p=0.47) between SLE patients and normal subjects.
Table 2 showed the frequencies of the genotypes of TLR9 (rs187084) in the SLE and the control groups. In the SLE groups, 123 patients (73.6 %) had the TT genotype, 39 patients (23.4 %) had the C/T genotype, and 5 patients (3.0 %) had the CC genotype. In the control group, 119 people (56.4 %) had the TT genotype, 67 (31.8 %) had the C/T genotype, and 25 patients (11.8 %) had the CC genotype. For the genotype of TLR9 (rs187084) polymorphism, there were statistically significant differences between the SLE and the control groups (chi-squared test, p<0.001, χ 2 = 15.9). We also analyzed the relationship between the two groups
in allelic frequencies and carriage rate of TLR9 (rs187084) (Table 2). There was a significant association in the frequency of the T allele between SLE patient and normal subjects (χ 2=
18.5, p<0.001), giving an odds ratio of 2.23 (95% confidence interval 1.45-3.42). Similarly, there was a significant association in the carriage rate of the T allele between SLE patient and normal subjects (χ 2= 8.06, p<0.01), giving an odds ratio of 1.82 (95% confidence
interval 1.14-2.91).
The clinical manifestations and laboratory findings of the SLE patients, given as ACR criteria, are shown in Tables 3 and 4. The association of TLR9 (rs2066807) and TLR9
respectively. We observed increased frequencies of mucosal ulcer among patients with the G allele when compared with patients with the C allele in Table 3. However, the differences did not reach statistical significance (χ 2= 3.05, p=0.08). In Table 4, we found increased
frequencies of photosensitivity among patients with the T allele when compared with patients with the C allele. The differences also did not reach statistical significance (χ 2= 5.17,
p=0.07). Similarly, we did not find any relationship among TLR9 (rs2066807), TLR9
(rs187084), and severity of SLE (i.e., no association with renal or neurologic involvement) in the Chinese patients in this study.
Discussion
Members of the TRL family are type I transmembrane proteins that play a key role in the activation and regulation of both innate and adaptive immune responses. At least 10 different TRL have been cloned from the human genome to date.TLR-9 is an interesting candidate for an SLE susceptibility gene given its costimulatory role in activating murine autoreactive B cells and in activating human dendritic cells. Migita et al.
showed that TLR-9, not TLR-2 or TLR-4, expression in B lymphocytes was increased in patients with SLE 9. The importance of the TLR9-dependent pathways will depend
on the levels of TLR9 expression. The differential expression of TRL9 may correlate with the responsiveness to CpG DNA, and the altered TRL9 expression could
patients with SLE14,15. This upregulated TLR9 expression may activate B
lymphocytes through the interaction between TLR9 and its ligands and may be related to the pathogeneses of lupus.
TLR9 has been mapped to chromosome 3p21.3. It spans approximately 5 kb and has two exons, the second of which is the major coding region16. TLR9– 1237C/T
SNP is located at the 5’ upstream of the gene where it could influence transcription regulation. A few studies about the relationship of such polymorphisms with SLE have been reported. However, the results are conflict. An initial study conducted family-based TDT in 224 Caucasian SLE patients and their parents, and reported that TLR9– 1237C/T variant was associated with protection from SLE and lupus nephritis17. However, Hur et al. 11
reported no association with SLE in four polymorphisms
of the TLR9 gene (-1486 T/C, -1237 C/T, +1174 A/G, and +2848 G/A) in 680 Korean
people (350 SLE patients and 330 controls). The genotype frequencies of the four SNPs in the Koreans studied were similar to those of the Chinese population from Hong Kong.Their study included 799 Hong Kong Chinese healthy blood donors and 467 SLE patients and showed no relationship of TLR9 (1486 T/C (rs187084), -1237 C/T (rs5743836), IVSI-44A/G (rs352139), and +1635 A/G (rs352140) gene
polymorphisms with SLE18.Although no significant association was found, the TT
genotype of TLR9-1486 tended to be over-represented in patients with serositis (61.1%) compared with those without serositis (44.1%) (p= 0.056)
Furthermore, De Jager et al. 12 genotyped 362 SLE-affected subjected/parent
trios for 10 SNP2 covering a 68742-bp genomic segment that contains the TLR-9 and ~60 kb of flanking sequence and demonstrated that there was no association between 362 SLE and 10 TLR9 (including -1486 T/C and -1237 C/T) in the UK population. They also found no evidence of association of susceptibility to lupus nephritis with any of the TLR-9 SNPs or haplotypes. Similarly, Dimirci et al.19 performed a case-control association study and genotyped 409 Caucasian women with SLE and 509 Caucasian healthy female control and revealed no significant association of TLR9 (-1237 C/T,
rs5743836) with SLE in Caucasian-American subjects. In Japan, DNA samples were obtained from 220 Japanese patients with SLE and 203 controls. The genotype of TRL9 +1174 is closely associated with an increased risk of SLE in Japanese people20 (p=0.029), but patients with SLE tend to have C allele at position -1486 (p=0.11).
In contrast, our study examined the TLR9 (rs2066807 and rs187084) gene by
comparing allelic and genotypic frequencies between 167 Chinese patients with SLE and 211 healthy individuals living in Central Taiwan. In surveying this genomic segment, we found that the genotype of TLR9 -1486 T/C (rs187084) (p<0.001, χ 2 = 15.9), but not TLR9
rs187084) gene and severity of SLE (i.e., no association with renal or neurologic involvement) in Chinese patients. Previous studies have not demonstrated any genetic variations of
TLR9 -1486 T/C associated with an increased risk of SLE in UK, Korean, Japanese and Hong Kong Chinese populations. This difference in the distribution of TLR9 observed at position +1486 between these studies may be due to ethnic factors.
To our knowledge, this is the first report of analysis of TLR9 rs2066807 and TLR9– 1486T/C SNP in a Chinese SLE cohort using a case-control study design. Our results indicate a major influence of the TLR9– 1486T/C SNP on susceptibility to SLE. This might suggest that the genetic variations of TLR9 -1486 T/C (rs187084) is specific for Taiwanese SLE population.
Acknowledgment
This study was supported by a grant (DMR-97-022) from the China Medical University Hospital of Taiwan.
References:
1. Horwitz DA, Stohl W, Gray JD.T lymphocytes, natural killer cells, cytokines, and immune regulation. In: Wallace DJ, Hahn BH (eds). Dubois’ lupus erythematosus. Williams and Wilkins: 5th ed. Baltimore,1997, p 155-94.
2. Klinman DM, Steinberg AD. Systemic autoimmune disease arises from polyclonal B cell activation. J Exp Med 1987; 165:1755-60.
3. Hendrich B, Tweedie S. The methyl-CpG binding domain and the evolving role of DNA methylation in animals. Trends Genet 2003; 19: 269–77.
4. Takeda K, Kaisho T, Akira S. Toll-like receptors. Annu Rev Immunol. 2003;21:335-76. 5. Akira S, Takeda K, Kaisho T. Toll-like receptors: critical proteins linking innate and
acquired immunity. Nat Immunol. 2001;2:675-80.
6. Viglianti GA, Lau CM, Hanley TM, et al. Activation of autoreactive B cells by CpG dsDNA. Immunity 2003;19:837– 47.
7. Rui L, Vinuesa CG, Blasioli J, et al. Resistance to CpG DNA-induced autoimmunity through tolerogenic B cell antigenreceptor ERK signaling. Nat Immunol 2003;4:594–
600.
8. Leadbetter EA, Rifkin IR, Hohlbaum AM, et al. Chromatin-IgG complexes activate B cells by dual engagement of IgM and Toll-like receptors. Nature. 2002;416:603-7. 9. Migita K, Miyashita T, Maeda Y, et al. Toll-like receptor expression in lupus
peripheral blood mononuclear cells. J Rheumatol. 2007 ; 34:493-500.
10. Cook DN, Pisetsky DS, Schwartz DA. Toll-like receptors in the pathogenesis of human disease. Nat Immunol. 2004;5:975-9.
11. Hur JW, Shin HD, Park BL, et al. Association study of Toll-like receptor 9 gene polymorphism in Korean patients with systemic lupus erythematosus. Tissue Antigens 2005; 65: 266– 70.
12. De Jager PL, Richardson A, Vyse TJ, et al. Genetic variation in toll-like receptor 9
and susceptibility to systemic lupus erythematosus. Arthritis Rheum. 2006 ; 54 : 1279-82.
13. Tan EM, Cohen AS, Fries JF, et al. 1982. The 1982 revised criteria for the classification of systemic lupus erythematosus. Arthritis Rheum 25: 1271-7.
14. Viglianti GA, Lau CM, Hanley TM, et al. Activation of autoreactive B cells by CpG dsDNA. Immunity. 2003;19:837-47.
15. Leadbetter EA, Rifkin IR, Marshak-Rothstein A. Toll-like receptors and activation of autoreactive B cells. Curr Dir Autoimmun. 2003;6:105-22.
16. Du X, Poltorak A, Wei Y, Beutler B. Three novel mammalian toll-like receptors: gene structure, expression, and evolution. Eur Cytokine Netw. 2000 ;11:362-71. 17. Wu H, Cantor RM, Grossman JM, et al. Toll-like receptor 9 gene polymorphisms
protective for SLE [abstract]. Arthritis Rheum 2004;50 Suppl:S459-60.
18. Ng MW, Lau CS, Chan TM, Wong WH, Lau YL. Polymorphisms of the toll-like receptor 9 (TLR9) gene with systemic lupus erythematosus in Chinese. Rheumatology (Oxford) 2005;44:1456–7.
19. Demirci FY, Manzi S, Ramsey-Goldman R, et al.Association study of Toll-like receptor 5 (TLR5) and Toll-like receptor 9 (TLR9) polymorphisms in systemic lupus
erythematosus. J Rheumatol. 2007;34:1708-11.
20. Tao K, Fujii M, Tsukumo S, et al. Genetic variations of Toll-like receptor 9 predispose to systemic lupus erythematosus in Japanese population. Ann Rheum Dis.2007 ;66:905-9.
Table 1. Comparison of TLR9 (rs2066807) genotype distributions, allelic frequencies, and carriage rates observed in SLE patients and healthy control subjects
SLE patients Controls P OR
TLR9 (rs2066807) n=164 (%) n=208 (%) (95% CI) Genotype GG 155 (94.5) 200 (96.2) 0.45 C/G 9 (5.5) 8 (3.8) CC 0 0 Allelic frequencies
G 319(97.3) 408 (98.1) 0.46 0.69 (0.27~1.82) C 9 (2.7) 8 (1.9) 1.44 (0.56~3.67) Carriage rate C 164 (100) 208 (100) 0.47 0.70 (0.27~1.81) G 9 (5.5) 8 (3.8) 1.43 (0.55~3.68) All p values represent chi-square test results.
Table 2. Comparison of TLR9 (rs187084) genotype distributions, allelic frequencies, and carriage rates observed in SLE patients and healthy control subjects
SLE patients Controls P OR
TLR9 (rs187084) n=167 (%) n=211 (%) (95% CI) Genotype TT 123 (73.6) 119 (56.4) <0.001 C/T 39 (23.4) 67 (31.8) CC 5 (3.0) 25 (11.8) Allelic frequencies
T 285 (85.3) 305 (72.3) <0.001 2.23 (1.45~3.42) C 49 (14.7) 117 (27.7) 0.45 (0.29~0.69) Carriage rate T 162 (97.0) 186 (88.2) <0.01 1.82 (1.14~2.91) C 44 (26.3) 92 (43.6) 0.55 (0.34~0.88) All p values represent chi-square test results.
Table 3. Relationship between the TLR9 (rs2066807) genotype and clinical signs and findings in patients with SLE
GG C/G Total P n=150 (%) n=8 (%) n=158 (%) Malar rash 72 (48.0) 2 (25.0) 74 (46.8) 0.20 Discoid lupus 22 (14.7) 0 (0) 22 (13.9) 0.24 Photosensitivity 60 (40.0) 2 (25.0) 62 (39.2) 0.39 Mucosal ulcer 42 (28.0) 0 (0) 42 (26.2) 0.08 Arthritis 74 (49.3) 3 (37.5) 77 (48.7) 0.51 Serositis 30 (20.0) 0 (0) 30 (18.9) 0.16 Glomerulonephritis 56 (37.3) 4 (50.0) 60 (37.9) 0.47 Neuropsychiatric 18 (12.0) 0 (0) 18 (11.4) 0.29 Hematological 76 (50.7) 2 (25.0) 78 (49.4) 0.16 Immunology 121 (80.7) 6 (75.0) 127 (80.4) 0.69 ANA 144 (96.0) 7 (87.5) 151 (95.6) 0.25
Table 4. Relationship between the TLR9 (rs187084) genotype and clinical signs and findings in patients with SLE
CC C/T TT Total P n=5 (%) n=38 (%) n=117 (%) n=160 (%) Malar rash 1 (20.0) 16 (42.1) 60(51.3) 77 (48.1) 0.27 Discoid lupus 0 (0) 3 (7.8) 21 (17.9) 24 (15.0) 0.20 Photosensitivity 1 (20.0) 10 (26.3) 53 (45.3) 64 (40.0) 0.07 Mucosal ulcer 0 (0) 8 (21.1) 36 (30.8) 44 (27.5) 0.19 Arthritis 4 (80.0) 26 (68.4) 70 (59.8) 100 (62.5) 0.45 Serositis 0 (0) 12 (31.6) 29 (24.8) 41 (25.6) 0.29 Glomerulonephritis 2 (40.0) 18 (47.4) 44 (37.6) 64 (40.0) 0.56 Neuropsychiatric 0 (0) 1 (2.6) 11 (9.4) 12 (7.50) 0.31 Hematological 4 (80.0) 20 (52.6) 58 (49.8) 82 (51.3) 0.40 Immunology 5 (100) 30(78.9) 98 (83.8) 133 (82.1) 0.47 ANA 5 (100) 35 (92.1) 108 (92.3) 148 (92.5) 0.81
