在現在的時代裡，付費電視已經變成一個普遍的訂閱服務。為了防止沒

有付錢的人非授權的存取電視內容，付費電視的供應商通常會對每一個頻

道的內容加密，並把對應的金鑰分配給合法的使用者，如此一來，只有合

法的使用者才可以正確解密。用來維持和分配一個共有的解密金鑰給眾多

的使用者的方法，通稱為群組金鑰管理。

在這篇論文，我們提出了一個很適合付費電視系統且安全有效率的樹狀

架構群組金鑰管理方法。之前的樹狀架構有以下優點，每個使用者只需要

存 O(logN)個密鑰，每一次群組金鑰更新時伺服器只需傳送 O(logN)個訊

息，N 為使用者的總數。除了之前的這些優點外，我們的方法還有另外兩

個特點：(1)當有使用者加入或離開時，其他的使用者只需要計算一次就可

以取得群組金鑰。(2)為了使離線的使用者重新上線時可快速取得最新的金

鑰，伺服器只需要在佈告欄存 O(N)個公開訊息，而一個離線的使用者只需

要解密 O(logN)次就可以更新最新的金鑰和群組金鑰，所需的解密次數與離

線時間有多少次更新無關。在付費電視系統，這些特點不只最小化群組金

鑰更新的延遲時間，並使系統在頻繁的金鑰更新之下更為實際。在最後，

我們有討論如何將我們的群組金鑰管理方法用於多個頻道的服務上。

關鍵字：群組金鑰管理，付費電視，計次付費頻道(Pay-Per-View)

An Efficient and Secure Group Key Management Scheme Supporting

Frequent Key Updates on Pay-TV Systems

student：

Advisors：Dr.

Institute of Network Engineering College of Computer Science

National Chiao Tung University

ABSTRACT

Pay-TV has become a popular subscribed-based service in recent years. To

prevent unauthorized access from non-paid users over a broadcast channel, the

TV server usually encrypts each TV program to a ciphertext such that only the

legal members can decrypt it. The way of maintaining the common decryption

key of a TV program to a dynamic subscription group of members is called the

group key management.

In this paper, we propose a secure and efficient tree-based group key

management scheme that is very suitable for Pay-TV systems. In addition to

possessing the advantages of the former tree-based scheme, such as O(logN)

communication cost for each group key update and O(logN) secret key for each

member, our scheme has two distinct features, where N is the total number of

members. (1) Each member only needs to decrypt one ciphertext or compute one

hash value to get the group key from the rekey messages for each member

leaving/joining. (2) To handle the key update for reconnected members who

have missed the group key updates in the off-line period of time, the server only

needs to store O(N) public tokens on the bulletin and each off-line member only

needs O(logN) decryptions for getting the newest group key, which are

independent of the number of group key updates. In Pay-TV systems, these

features not only minimize the delay time for each group key update, but also let

the system more practical even if the key update frequency is very high, such as,

the Pay-Per-View TV service. Finally, we have a discussion of applying our

GKM scheme to a multi-program service.

誌

謝

首先感謝我的指導教授曾文貴教授，在我碩班的兩年期間，教會我許多密

碼學的知識，並給我許多的建議和指導，使我對密碼學與資訊安全的領域

更加認識，從老師身上學到做研究的嚴謹，報告技巧的磨練，使我受益良

多。另外，我要感謝各位口試委員，清大孫宏民教授、交大謝續平教授與

交大蔡錫鈞教授，在論文上給我許多的建議與指導，讓我的論文能更加完

善。除此之外，我也要感謝博班學姐林孝盈、學長沈宣佐與學長陳毅睿，

在研究上給我很多的幫助。也感謝碩士班的同學們以及學弟們讓我的碩士

班生活充滿歡樂。最後，我要感謝我的家人和朋友們，給予我精神和物質

上的支持，讓我能夠順利完成學業。在此，謹以此文獻給所有我想感謝的

人。

Contents

List of Tables vii

1 Introduction 1

1.1 Related work . . . 3

1.2 Our Contribution . . . 6

2 Preliminaries 10

2.1 The Logical Key Hierarchical (LKH) Scheme . . . 10

2.2 The One-Way Function Tree (OFT) Scheme . . . 12

3 The Proposed GKM scheme 17

3.1 Construction . . . 17

3.2 Security Analysis . . . 23

3.3 Performance Analysis . . . 27

4 Simulation 29

5 GKM for Multiple Programs 35

6 Conclusion 38

List of Figures

2.1 A binary key tree of the LKH/OFT/SKD scheme with 8

mem-bers. . . 12

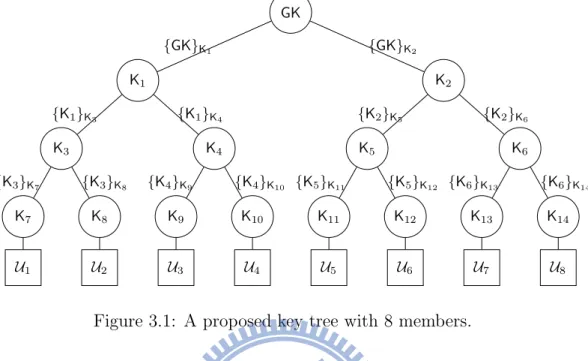

3.1 A proposed key tree with 8 members. . . 18

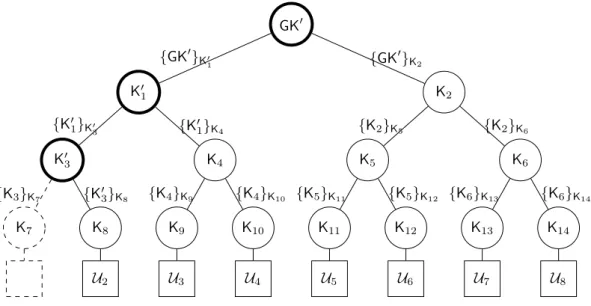

3.2 The updated key tree after _U1 leaves the group in Fig. 3.1. . . 21

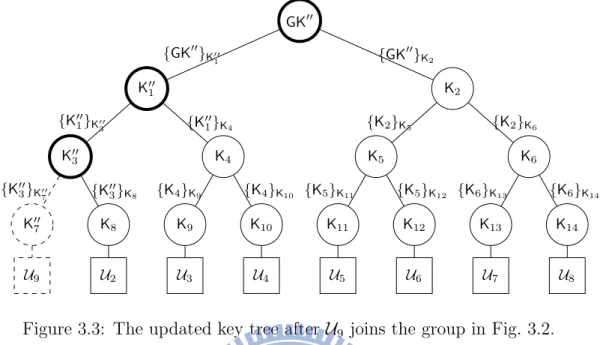

3.3 The updated key tree after _U9 joins the group in Fig. 3.2. . . . 23

4.1 System setup time of the server. . . 30

4.2 The computation time of updating keys for the server. . . 31

4.3 The communication cost. . . 32

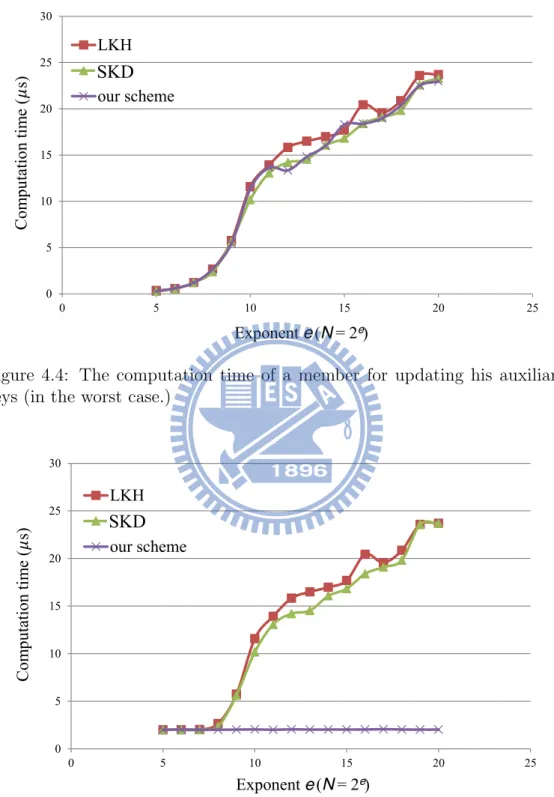

4.4 The computation time of a member for updating his auxiliary

keys (in the worst case.) . . . 33

4.5 The computation time of updating the group key for a member

(in the worst case.) . . . 33

4.6 The computation time of updating keys for a reconnected

member . . . 34

5.1 A multiple key tree with three TV programs . . . 36

List of Tables

Chapter 1

Introduction

Pay television (Pay-TV) has become a popular subscribed-based service in recent years. A TV server can provide its services by broadcasting the TV programs (e.g. sport, news, movie, etc.) via satellites or the Internet. To pre-vent unauthorized access, a common solution is to encrypt the broadcasted programs into ciphertexts such that only the authorized members who have the decryption keys (usually embedded in a set-top box ) can decrypt the ciphertexts. The way of maintaining a common decryption (group) key to a dynamic group of members over a broadcast channel is called the group key management (GKM) [2, 3, 8, 13, 14, 12, 17, 19, 18, 24, 26, 25]. To give consideration of protecting benefits of the server and letting members watch TV programs smoothly, the chosen GKM scheme for Pay-TV systems has to be secure and efficient.

Pay-TV is classified with pay-per-channel (PPC) and pay-per-view (PPV).

In PPC, a user1 _{can subscribe many groups of channels for a period (e.g. a}

month). A member cannot cancel his subscription during the period but can switch to different channels in the subscription group. In PPV, a user can subscribe his favorite channels or programs arbitrary. Note that the users can subscribe or cancel his subscription frequently.

In security, a GKM scheme has to guarantee that each program can only be decrypted by its subscription group of members (group key secrecy.) Since the members are free to add or cancel the subscription of each TV program, the GKM scheme has to satisfy forward secrecy and backward secrecy. The forward secrecy guarantees that a member cannot decrypt the future cipher-texts of a program after he cancels his subscription of the program. The backward secrecy guarantees that after subscribing a new program, a user cannot decrypt the past ciphertexts of the program.

In efficiency, a GKM scheme concerns the communication cost for main-taining the group key, and the storage and computation cost of each member and the server. To satisfy forward/backward secrecy, the server has to up-date the group key and let the remaining/existent members get the new group key via broadcasted rekey messages (or notifications.) While receiving the rekey messages, each member needs to compute the new group key before decrypting the ciphertext of a TV program under the new group key. Since the computation ability of members (set-top boxes) may be weak, delay may occur for each group key update. If the frequency of group key update is very high (especially, in Pay-Per-View services), members cannot watch TV

programs smoothly.

In practicality, a member may disconnected from the network from time to time such that he cannot update each new group key from the rekey messages in time. Thus, in order to let a member update the group key after he gets on-line again, the server needs to keep the whole history of rekey messages on a public bulletin. Each member, after reconnecting, needs to access the bulletin to update his missed group keys one by one till the newest one is obtained. A practical GKM scheme should handle the key update for the reconnected members efficiently.

1.1

Related work

The GKM problem has been studied intensively [2, 3, 8, 13, 14, 12, 17, 19, 18, 24, 26, 25]. Wong, et al. [24] proposed the GKM schemes using key graphs. In a star-based GKM scheme, the server assigns a secret key and common group key to each member of a program such that only the mem-bers can decrypt the broadcasted ciphertexts of the program under the group key. To satisfy the forward/backward secrecy, when a member cancel/add his subscription of a program, the server broadcasts the rekey messages that contain the ciphertexts of a new group key under the secret keys of remain-ing/existent members. In the key star-based scheme, each member only needs to store 2 secret keys and one decryption for updating the group key from the rekey messages. However, the communication cost for each member

leav-ings/joinings grows proportional to the number of members. To solve this problem, a common way is to use the tree-based GKM schemes such as the shared key derivation (SKD) [13], efficient large-group key (ELK) [17], one-way function tree (OFT) [19], and logical key hierarchy (LKH) [24] schemes. By storing O(log N ) secret keys for each member, the size of rekey messages for each member leaving/joining is only O(log N ), where N be the number of members in a subscription of a program. To reduce the rekey overhead of high frequent group key updates, Li, et al [11] proposed the concept of batch rekeying. The server does the rekey procedure for a batch of member leavings and joinings.

To handle the key update for reconnected members in [13, 17, 19, 24], the size of the public bulletin and the computation time of the reconnected members for updating the newest keys grow proportional to the number of group key updates [3]. To solve this problem, Chen, et al. [3] proposed a tree-based GKM scheme using uni-directional proxy re-encryption (PRE) schemes. In Chen, et al.’s scheme, the server only needs to store O(N ) pub-lic tokens on the bulletin and each reconnected member only needs O(log N ) re-encryptions plus one decryption to update the newest group key, which are independent of the number of group key updates. However, the compu-tation time of the constructed RSA-based GKM scheme of Chen, et al. is costly. Note that in the tree-based GKM schemes as above, each member needs O(log N ) computations to get the newest group key for each member

leaving/joining. It causes a delay before decrypting the ciphertext of a TV program.

In Pay-TV systems, a server can provider many TV programs [5, 21, 23]. To satisfy the security considerations for each TV program, a simple solution is to use a GKM scheme to maintain an independent group key of each program. If a member subscribes many TV programs, he has to store the corresponding group keys and secret keys for each subscribed program. If a member cancels his subscription of all programs, the size of the rekey messages for the member leaving is proportional to the number of subscribed TV programs. Sun and Liu [21] proposed a two-level tree-based multi-GKM

scheme that reduces the communication cost to O(d(M2+log_dN )), where d is

the degree of the key tree and M is the number of TV programs. Then, Wang, et al. [23] halves the communication cost in [21] by using a one-way function on the two-level tree-based multi-GKM. Recently, Gu, et al. [5] notices that some of the keys in the two-level tree-based multi-GKM scheme do not need to be changed so that they can further decrease the communication cost.

In additional, conditional access system (CAS) [4, 6, 7, 1, 9, 10, 15, 16, 20, 22, 27] also can be used in Pay-TV. In order to let a member decrypt programs simply, CASs use a control word (CW) to scramble TV programs. But CW is easy to be broken, the server needs to change it for every 5-20 second and broadcast to legal members. To protect CW, many scholars proposed CASs with a four-level key hierarchy [4, 6, 7, 9, 15, 16, 22]. It

consists of four keys, CW, direct entitlement key (DEK), distribution key (DK), and master private key (MPK.) CW is encrypted by DEK. DEK is encrypted by DK and changed for a day. DK is encrypted by MPK and changed for a subscription period of time (may be a month). By using CAS in a Pay-TV system, the decryption cost of a TV program for a member is very efficient. However, a member cannot leave or change his subscription during the subscription period of time and the server needs to broadcast O(N ) rekey messages for each member leaving.

1.2

Our Contribution

In this paper, we propose a secure and efficient tree-based GKM scheme that is very suitable for Pay-TV systems. In addition to possessing the advantages of the tree-based GKM schemes, our scheme is the first GKM scheme having the following two features simultaneously.

• Each member only needs to decrypt one ciphertext or compute one hash value to get the group key from the rekey messages for each member leaving/joining.

• To handle the key update for reconnected members, the server only

needs to store 2N_{−2 public tokens on the bulletin and each reconnected}

member only needs lg N2 _{decryptions for getting the newest group key,}

which are independent of the number of group key updates.

2_{In this paper, we denote lg N =}

In Pay-TV systems, these features not only minimize the delay time for each group key update, but also make the system more practical even if the key update frequency is very high.

Our GKM scheme is efficient since we only use a symmetric encryption scheme Π and a one-way hash function h as our construction primitives. The security of our GKM scheme is based on the semantic security of Π and one-way property of h. To satisfy forward and backward secrecy, our scheme only

needs to broadcast 2 lg N_{−3 rekey messages for each member leaving and one}

notification message for each member joining. For each subscribed program, each member stores the group key and lg N secret (auxiliary) keys. For each member leaving, after updating the group key, each remaining member only

needs lg N _{− 2 decryptions and one hashing (in worst case) to update his}

auxiliary keys. For each member joining, after updating the group key, each

existent member only needs lg N _{− 2 hashings (in worst case) to update his}

auxiliary keys.

Table 1.1 shows a comparison among LKH [24], OFT [19], SKD [13], and our GKM schemes on performance factors of communication, storage, and computation cost. In Table 1.1, ”multicast” means broadcasting messages to all and ”unicast” means sending messages to a designated receiver through a secure channel.

The paper is organized as follows. In Chapter 2, we introduce the re-lated tree-based schemes. In Chpater 3, we demonstrate the proposed GKM

scheme and give security and performance analyses. We then give the simu-lation results of our GKM scheme in Chapter 4 and a discussion of applying our GKM scheme to a multi-program service in Chapter 5.

T able 1.1: An asymptotic comparison of GKM sc hemes Sc heme LKH[24] OFT[19] SKD[13] Ours Comm unication cost Join Multicast 2 lg N lg N 0 0 Unicast 1 lg N + 1 lg N 2 Lea v e Multicast 2 lg N lg N lg N − 1 2 lg N − 3 Storage cost Mem b er secret k ey lg N + 1 lg N + 1 lg N + 1 lg N + 1 Public bulletin 2 lg N · (J all + Lall ) lg N · (J all + Lall ) (lg N − 1) · Lall 2N − 2 Computation cost (mem b ers are alw a ys on-line) Auxiliary k ey Lea v e lg N · tDec 2 lg N · th + tDec (lg N − 1) · tDec + th (lg N − 2) · tDec + th up date Join lg N · tDec 2 lg N · th + tDec lg N · th (lg N − 1) · th Group k ey Lea v e lg N · tDec 2 lg N · th + tDec (lg N − 1) · tDec + th tDec or th up date Join lg N · tDec 2 lg N · th + tDec th th Computation cost (mem b ers ma y b ecome off-line) Reconnected mem b er lg N · (J off tDec + Loff tDec ) lg N · [Joff (tDec + th ) Joff · [(lg N − 1) · tDec lg N · tDec + Loff (tDec + th )] + th ] + Loff (lg N th )] † N : The n um b er of mem b ers in a subscription group of a program † h : A one-w a y hash function † Jall /L all : The n um b er of mem b er joinings/lea vings in the lifetime of the system † Joff /L off : The n um b er of mem b er joinings/lea vings in an off-line p erio d of time of a mem b er. † tf : The computation time of a function f

Chapter 2

Preliminaries

In this chapter, we introduce the LKH, OFT, and SKD schemes in Chap-ter 2.1, 2.2 and 2.3, respectively.

2.1

The Logical Key Hierarchical (LKH) Scheme

The LKH scheme is the most well-know GKM scheme for its efficiency [24]. The LKH scheme is a tree-based GKM scheme using a symmetric key

en-cryption scheme. Let _{M}K denote the ciphertext of a plaintext M under

an encryption key K. The server first builds a tree T with N leaf nodes. The root node of the tree T is assigned the group key. Each node, excepts the root node, is assigned an auxiliary key, and each member is associated with a leaf node. Fig. 2.1 is a binary key tree of the LKH scheme with members

U1, U2, . . ., U8. Each member U is assigned the keys on the path from T ’s

root node to_{U’s associated leaf node. For example, U}1 is assigned the group

key GK, K1, K3, and K7. To encrypt a program P , the server encrypts P into

can decrypt the ciphertexts.

Considering the membership changes, assume that_U1 leaves the

subscrip-tion group of P in Fig. 2.1, the server de-associates _U1 from the leaf node

7 and updates GK, K1, and K3 to GK0, K01, and K

0

3, respectively. Then, the

server broadcasts the rekey messages

C1 =h{GK0}K0 1,{GK 0 }K2,{K 0 1}K0 3,{K 0 1}K4,{K 0 3}K8i

to let the remaining members _U2, U3, . . ., U8 update their keys. Again,

assume that _U9 joins the subscription group of P , the server associates U9

to the leaf node 7 and updates GK0, K0₁, K0₃, and K7 to GK00, K001, K

00

3, and K

00 7,

respectively. Then, the server unicasts K00₇ to _U9 and broadcasts the rekey

messages C2 =h{GK00}GK0 1,{K 00 1}K01,{K 00 3}K03,{GK 00 }K00 7,{K 00 1}K007,{K 00 3}K007i

to let the existent members _U2, U3, . . ., U9 update their keys.

In the LKH scheme, for each key update, the rekey message size is 2 lg N and each member only needs to compute lg N decryptions. Each member only needs to store lg N keys. The LKH scheme is very efficient in almost all the performance factors. However, one of the deficiencies of the LKH scheme

is to handle the key update for the reconnected members [3]. Assume that_U3

misses the rekey messages C1 for U1 leaving and C2 forU9 joining, he has to

compute GK0 and K0₁ from C1 before computing GK00, K001 from C2. Therefore,

GK K1 K3 K7 U1 K8 U2 K4 K9 U3 K10 U4 K2 K5 K11 U5 K12 U6 K6 K13 U7 K14 U8

Figure 2.1: A binary key tree of the LKH/OFT/SKD scheme with 8 mem-bers.

members grow proportional to the number of group key updates. If the frequency of the key updates is very high, it is a great burden for handling the key updates for the reconnected members.

2.2

The One-Way Function Tree (OFT) Scheme

The OFT scheme is an improvement of the LKH scheme using one-way func-tion. In a binary key tree T of the OFT scheme, each auxiliary key including

the group key K0 of T ’s root node Ki is computed as

Ki = f (g(Klchild(i)), g(Krchild(i))),

where g and f are one-way functions and Klchild(i) and Krchild(i) are the

aux-iliary keys of node i’s left child node lchild(i) and right child node rchild(i), respectively. Each member is associated with a leaf node. Fig. 2.1 is a binary

is assigned the secret key of his associated leaf node and the blinded keys

g(Kj), where Kj are the auxiliary keys of the sibling nodes of the nodes on

the path from _{U’s associated leaf node to T ’s root node. For example, U}1 is

assigned the secret key K7 and blind keys g(K8), g(K4), and g(K2). Then, U1

can compute

K3 = f (g(K7), g(K8)),

K1 = f (g(K3), g(K4)),

GK = K0 = f (g(K1), g(K2)).

To encrypt a program P , the server encrypts P into_{{P }}GK and broadcast it.

Then, only the authorized members who hold GK can decrypt the ciphertexts.

Considering the membership changes, assume that_U1 leaves the

subscrip-tion group of P in Fig. 2.1, the server de-associates _U1 from the leaf node 7

and updates K3, K1, and GK to K03, K

0 1, and GK 0 , respectively, where K0₃ = f (g(K0₇), g(K8)), K0₁ = f (g(K0₃), g(K4)), GK0 = K0₀ = f (g(K0₁), g(K2)).

Then, the server broadcasts the rekey messages

C1 =h{g(K07)}K8,{g(K

0

3)}K4,{g(K

0 1)}K2i

to let the remaining members_U2,U3, . . .,U8 update their keys. For example,

updated blind key g(K0₇), he then computes K0₃, K0₁, GK0 = K0₀ accordingly.

The rekey procedure for member _{U joining in the OFT scheme is similar to}

the rekey procedure for member leaving excepts that the server has to unicast

lg N keys (the updated secret key of _{U’s associated leaf node and the blind}

keys) to the new member.

In the OFT scheme, for each key update, the rekey message size is lg N and each member only needs to compute one decryption plus 2 lg N one-way functions (lg N times f and lg N times g.) Each member only needs to store lg N keys. Similar to the LKH scheme, in the OFT scheme, the storage cost of the server and the computation cost of the reconnected members grow proportional to the number of group key updates.

2.3

The Shared Key Derivation (SKD) Scheme

The SKD scheme is an improvement of the OFT scheme. Each member is associated with a leaf node. Fig. 2.1 is a binary key tree of the SKD scheme

with members _U1, U2, . . ., U8. Each member U is assigned the secret key of

the nodes on the path from _{U’s associated leaf node to T ’s root node. For}

example, _U1 is assigned the secret key K7, K3, K1, and GK. To encrypt a

program P , the server encrypts P into _{{P }}GK and broadcast it. Then, only

the authorized members who hold GK can decrypt the ciphertexts.

Considering the membership changes, assume that_U1 leaves the

and updates K3, K1, and GK to K03, K01, and GK 0 , respectively, where K0₃ = f (K3⊕ K8), K0₁ = f (K1⊕ K4), GK0 = K0₀ = f (K0⊕ K2).

Then, the server broadcasts the rekey messages

C1 =h{K01}K03,{GK

0

}K0

1i

to let the remaining members_U2,U3, . . .,U8 update their keys. For example,

after receiving C1, U2 first computes K03 by his secret key K8 and one-way

function f , he then decrypts_{K0_1}K0

3 and{GK

0

}K0

1 in order to get the updated

keys K0₁ and GK0. Again, assume that _U9 joins the subscription group of P

in Fig. 2.1 again, the server associates _U9 to the leaf node 7 and updates K7,

K0₃, K0₁, and GK0 to K₇00, K00₃, K00₁, and GK00, respectively, where

K00₃ = f (K0₃),

K00₁ = f (K0₁),

GK00 = K0₀ = f (K0₀).

Then, the server broadcasts a notification to the remaining members _U2, U3,

. . ., _U8, and unicasts K007, K 00 3, K 00 1, and GK 00

(the updated secret keys) to _U9.

After receiving the notification for _U9 joining, the existent members U2, U3,

. . ., _U8 can update the keys K003, K

00

1, and GK

00

accordingly.

In the SKD scheme, for each member leaving, the rekey message size

decryptions plus an one-way function f . For each member joining, the server only needs to broadcast one notification message and each member needs to compute lg N times one-way function f . Each member only needs to store lg N keys. Similar to the LKH and OFT scheme, in the SKD scheme, the storage cost of the server and the computation cost of the reconnected members grow proportional to the number of group key updates.

Chapter 3

The Proposed GKM scheme

We first demonstrate the construction of the proposed GKM scheme in Chap-ter 3.1. Then, we give the security analysis and performance analysis of our scheme in Chapter 3.2 and 3.3, respectively.

3.1

Construction

Let Π be a symmetric encryption scheme (e.g. AES) with a security

parame-ter τ and _{M}K be the ciphertext of a plaintext M under an encryption key

K. Let h :_{{0, 1}}∗ _{→ {0, 1}}τ _{be an chosen public one-way hash function (e.g.}

MD5.)

System setup. For each TV program with N members, the server

constructs a completed binary tree T with N leaf nodes. The root node of T is labeled by 0 and other nodes from left to right then from top to bottom are

labeled from 1 to 2N _{− 2. The root node is assigned the group key GK = K}0

and each node i is assigned an auxiliary key Ki. Note that the group key

GK K1 K3 K7 U1 {K3}K7 K8 U2 {K3}K8 {K1}K3 K4 K9 U3 {K4}K9 K10 U4 {K4}K10 {K1}K4 {GK}K1 K2 K5 K11 U5 {K5}K11 K12 U6 {K5}K12 {K2}K5 K6 K13 U7 {K6}K13 K14 U8 {K6}K14 {K2}K6 {GK}K2

Figure 3.1: A proposed key tree with 8 members.

each edge from a node i to its parent node j, the server computes the public

token _{Kj}Ki and put it on a public bulletin. For each member, the server

associates him to a leaf node of T . For example, Fig. 3.1 is a constructed key

tree with 8 members _U1, U2, . . ., U8. For each member U, the server assigns

the group key GK and the auxiliary keys on the path from T ’s root node to

U’s associated leaf node. For example, in Fig. 3.1, U1 is assigned GK, K1, K3,

and K7.

Let Key(_{U) be the set of keys on the path from T ’s root node to U’s}

associated leaf node and SibKey(_{U) the set of keys of the sibling nodes of the}

nodes on the path from T ’s root node to _{U’s associated leaf node. We also}

extend the definition of _{M}K to {M}K :={{M}K : K ∈ K}. For example,

in Fig. 3.1, Key(_U1) = {GK = K0, K1, K3, K7}, SibKey(U1) = {K2, K4, K8},

Member leaving. When a member _{U cancels his subscription (leaves} the subscription group) of a TV program, to guarantee the forward secrecy, the server does the following rekey procedures.

1. De-associate_{U from its associated leaf node z and treat z as a dummy}

node.

2. Update each key Ki ∈ Key(U) \ {Kz} to K0i = h(Kj||Ki), where Kj ∈

SibKey(_{U) and j is the child node of node i. The new group key is}

GK0 = K0₀.

3. Update the affected public tokens but_{Kparent(z)}Kz on the public

bul-letin. The affected public tokens are the tokens that one (or both) of the encrypted key and encryption key has been updated.

4. Broadcast the rekey messages

LEAVE(_{U) = hEncryptedGK(U), UpdatedToken(U)i,}

where EncryptedGK(_{U) are the elements of {GK}0_}SibKey(U) but the

ci-phertext of GK0 under the encryption key of the child node of T ’s root

node, and UpdatedToken(_{U) are the updated public tokens on the path}

from T ’s root to z but the encryption of GK0.

After receiving LEAVE(_{U), each remaining member first updates the group}

key from EncryptedGK(_{U) and decrypts the TV program, then updates other}

auxiliary keys by using the function h or from UpdatedToken(_U).

1. De-associate_U1 from the leaf node 7. 2. Update K0, K1, and K3 to K00, K 0 1, and K 0 3, respectively, where K 0 0 =

h(K2||K0), K01 = h(K4||K1), and K03 = h(K8||K3). The new group key is

GK0 = K0₀.

3. Update the public tokens_{GK}K1,{GK}K2,{K1}K3,{K1}K4, and{K3}K8

on the public bulletin to_{GK0_}K0

1,{GK 0 }K2,{K 0 1}K0 3,{K 0 1}K4, and{K 0 3}K8,

respectively. Fig. 3.2 shows the updated key tree after _U1 leaves the

group in Fig. 3.1.

4. Broadcast the rekey messages

LEAVE(_U1) = h{GK0}K4,{GK 0 }K8,{K 0 1}K0 3i.

After receiving LEAVE(_U1), each remaining members update their keys as

follows.

• Group key update. U5, U6, U7, and U8 compute GK0 = h(GK||K2); U3

and _U4 decrypt{GK0}K4 by K4;U2 decrypts {GK

0

}K8 by K8.

• Auxiliary key update. U3 and U4 update K1 to K01 = h(K4||K1); U2

updates K3 to K03 = h(K8||K3) and updates K1 to K01 by decrypting

{K0

1}K0 3.

Member joining. After granting a user_{U (non-subscriber or subscriber)}

to subscribe a new TV program, to guarantee the backward secrecy, the server does the following rekey procedures.

GK0 K01 K03 K7 {K3}K7 K8 U2 {K0 3}K8 {K0 1}K0 3 K4 K9 U3 {K4}K9 K10 U4 {K4}K10 {K0 1}K4 {GK0}K0 1 K2 K5 K11 U5 {K5}K11 K12 U6 {K5}K12 {K2}K5 K6 K13 U7 {K6}K13 K14 U8 {K6}K14 {K2}K6 {GK0}K2

Figure 3.2: The updated key tree after_U1 leaves the group in Fig. 3.1.

1. Associate_{U to a dummy node z.}

2. Update each key Ki ∈ Key(U) \ Kz to K0i = h(Ki) and generate a new

secret key of z randomly. The new group key GK0 = K0₀.

3. Update the affected public tokens on the public bulletin.

4. Unicast_{U the auxiliary key K}z and the newest group GK0. AfterU gets

on-line at the first time, he has to access to the public bulletin then computes his other auxiliary keys by the public tokens on the path from T ’s root node to z.

5. Broadcast a notification message of _{U joining to the old members.}

After receiving the notification message of_{U joining, the old members update}

each key Ki from T ’s root node to U’s associated leaf node to K0i = h(Ki).

1. Associate_U9 to the leaf node 7.

2. Update K0₀, K0₁, and K0₃ to K00₀, K00₁, and K00₃, respectively and generate K00₇

to node 7, where K00₀ = h(K0₀), K00₁ = h(K0₁), K00₃ = h(K0₃). The new group

key is GK00 = K00₀.

3. Update the public tokens _{GK0_}K0

1, {GK 0 }K2, {K 0 1}K03, {K 0 1}K4, {K3}K7,

and_{K0_3}K8 on the public bulletin to{GK

00 }K00 1,{GK 00 }K2,{K 00 1}K00 3,{K 00 1}K4, {K00 3}K007, and{K 00

3}K8, respectively. Figure 4 shows the updated key tree

after _U9 joins the group in Fig. 3.2.

4. Unicast_U9 the K007 and GK

00

. After _U9 gets on-line at the first time, he

has to access the public bulletin then decrypts K00₃ from _{K00_3}K00

7 by K 00 7 and K00₁ from_{K00_1}K00 3 by K 00 3.

5. Broadcast a notification message of _U9 joining to the old members.

After receiving the notification message of _U9 joining, the old members

up-date each key K0_i to K00_i = h(K0_i) for i = 0, 1, 3.

Key update for reconnected members. To let an off-line member_U

update his keys after he gets on-line again (becoming a reconnected member ), the server only needs to maintain the newest public tokens on the public bulletin. Each reconnected member only needs to access to the bulletin then updates his secret keys by the public tokens on the path from T ’s root node

to _{U’s associated leaf node. For example, assume that U}3 misses the rekey

GK00 K00 1 K003 K007 U9 {K00 3}K00 7 K8 U2 {K00 3}K8 {K00 1}K00 3 K4 K9 U3 {K4}K9 K10 U4 {K4}K10 {K00 1}K4 {GK00}K00 1 K2 K5 K11 U5 {K5}K11 K12 U6 {K5}K12 {K2}K5 K6 K13 U7 {K6}K13 K14 U8 {K6}K14 {K2}K6 {GK00}K2

Figure 3.3: The updated key tree after _U9 joins the group in Fig. 3.2.

needs to get _{K00_1}K4 and {GK

00

}K00

1 from the bulletin and update K1, GK to

K00₁, GK00 by decrypting _{K00_1}K4 by K4 then decrypting {GK

00 }K00 1 by K 00 1.

3.2

Security Analysis

The security of our scheme is based on the use of the chosen symmetric encryption scheme Π and one-way hash function h.

Definition 1 (Semantic Secuity). A symmetric encryption scheme Π is

se-mantically secure if for every polynomial-time adversary _{A, Adv}SS_Π,A is a

neg-ligible function of τ , where

AdvSS_Π,A :=_{| Pr[A({m}∗_}K) = 1]_{− Pr[A({R}K}) = 1]_|,

R, chosen by a challenger, is a random string with the same length of the

We show that a set of collude members cannot compute any key that are

not assigned to them. Let SK(T ) be the set of keys in a key tree T and Tv a

subtree of T with root node v.

Theorem 1 (Collusion Attack). Consider the key tree of our GKM scheme. If Π is a semantically secure encryption scheme, any polynomial-time

adver-sary cannot compute key Kv from public tokens on the bulletin and SK(T )\

SK(Tv)1.

Proof. Assume that there exists a polynomial-time adversary _{A who can}

compute a target Kv with a non-negligible probability  > 0 from public

tokens on the bulletin and SK(T )_{\ SK(T}v). We can construct a

polynomial-time algorithm_{B for breaking the semantic security of Π with a non-negligible}

advantage as follows.

At beginning, the challenger randomly generates a secret key K_{∈ {0, 1}}τ

and chooses a message set _{M = {0, 1}}τ_{. B randomly chooses a message}

m∗ _{∈ M to the challenger. The challenger randomly picks b ∈ {0, 1}. Then,}

the challenger set c∗ = _{m∗_}K if b = 1 and c∗ = {R}K if b = 0, where R is

a random string with the same length of the message m∗. The challenger

returns c∗ to _{B and B does the following.}

1. Build a key tree T with N members according to our system setup. Select a target leaf node z in T and let ξ be the parent node of z.

1_{Consider a set of collude members}

C ⊂ {U1, U2, . . ., UN}. If Ui does not associated

Replace the auxiliary key Kξ with m∗ and public token {Kξ}Kz with c

∗

to form a new key tree ¯T .

2. Call _{A with the input of the public tokens and SK( ¯}T )_{\ SK( ¯}Tz) in ¯T .

A returns a guess ˆKz for Kz.

3. Decrypt c∗ by ˆKz to get ˆm. If ˆm = m∗, output ˆb = 1. Otherwise,

output ˆb = 0.

When b = 1, _{B implicitly sets K}z = K in step 1. It does not matter

that _{B does not know K since the target K}z is not given to A. The public

tokens and keys given to _{A in step 2 are set as the way of our system setup.}

Thus, _{A can compute ˆK}z = Kz correctly with a non-negligible probability

by assumption. In step 3, since ˆKz = Kz implies that ˆm = m∗, B guesses

ˆ

b = b correctly with probability .

When b = 0, the public tokens and keys given to _{A in step 2 are not}

set as the way of our system setup. In fact, it is randomly assigned and Kz

is random. Thus, the probability for _{A to compute ˆK}z is 1/2τ, a random

guessing.

Therefore,_{B outputs the guess for b with success advantage}

AdvSS_Π,A=_{| Pr[A({m}∗_}K) = 1]− Pr[A({R}K) = 1]|

=_{| − 1/2}τ_|.

Since AdvSS_Π,A is non-negligible, _{B breaks the semantic security of Π. This is}

For group key secrecy, from Theorem 1, our GKM scheme is secure against a non-member who knows the public tokens on the bulletin but does not know

GK = K0and any other auxiliary key. For forward/backward secrecy, we show

that after the rekey procedure for member leaving/joining, the left/joined member cannot decrypt future/past ciphertexts of TV programs. The proofs are similar to Theorem 1, here we just give brief illustrations.

Forward secrecy. For each member _{U leaving, the server de-associates}

U from his associated leaf node z, updates each key Ki ∈ Key(U) \ {Kz}

to K0_i = h(Kj||Ki) with Kj ∈ SibKey(U), and updates the affected public

tokens but _{Kparent(z)}Kz. Since U does not hold any Kj ∈ SibKey(U) and

{Kparent(z)}Kz is not updated, U cannot update his Ki ∈ Key(U) \ {Kz} to

K0_i. Since _{U cannot know K}0_i, he cannot decrypt the updated keys from

the updated public tokens _{K0_parent(i)}K0

i and cannot decrypt the updated

GK0 = K0₀ from the EncryptGK(_{U) of the broadcasted rekey messages for U}

leaving. Therefore, our GKM scheme guarantees the forward secrecy.

Backward secrecy. For each member _{U joining, the server associates U}

to a dummy leaf node z, updates each key Ki from T ’s root node to U’s

associated leaf node to K0_i = h(Ki), and updates the affected public tokens.

The server unicasts _{U the updated group key and K}0_z such that after _{U gets}

on-line again, he can get the updated group key GK0 = K0₀ and auxiliary keys

K0_{i ∈ Key(U). However, since the one-way property of h, U cannot compute}

GKM scheme guarantees the backward secrecy.

Theorem 2 (Forward/Backward Secrecy). Consider the key tree of our GKM scheme. If Π is a semantically secure encryption scheme and h is a one-way hash function, the rekey procedure for member leaving/joining guarantees forward/backward secrecy.

3.3

Performance Analysis

In this chapter, we illustrate the communication, storage, and computational cost of our GKM scheme as follows.

Communication cost. When a member _{U leaves the subscription group}

of a program, the server needs to broadcast LEAVE(_{U) = hEncryptedGK(U),}

UpdatedToken(_{U)i as the rekey message for U leaving. The size of LEAVE(U)}

is _{|EncryptedGK(U)| + |UpdatedToken(U)| = (|SibKey(U)| − 1) + (|Key(U)| −}

2) = 2 lg N _{− 3. The communication cost for each member joining is very}

efficient since the server does not need to broadcast any rekey messages (but

a notification message) for_{U joining and only needs to unicast two keys (GK}

and Kz) to U.

Storage cost. For each program, the server needs to store 2N _{− 1 secret}

keys that consist of the group key and the auxiliary keys in a key tree T . Each member associated with the leaf node z is assigned lg N secret keys that are on the path from T ’s root node to z. To handle the key update for reconnected members, the storage cost of the bulletin is independent of

the number of group key updates since the bulletin only needs to keep the newest public token for each edge of T . Thus, the number of stored public

tokens of the bulletin is only 2N _{− 2.}

Computation cost. For each member leaving, an remaining member _U

decrypts the new group key from EncryptedGK(_{U) or computes the new group}

key by h. Thus, _{U only needs one decryption or one hash computation to}

update the group key. Then, _{U updates other auxiliary keys by using the}

function h or from the UpdatedToken(_{U). In worst cast, U needs to compute}

one hash value and _{|UpdatedToken(U)| = lg N − 2 decryptions. For each}

member joining, an old member only needs one hash computation to update the group key. To update the other auxiliary keys, an old member needs to

Chapter 4

Simulation

In this chapter, we simulate LKH [24], SKD [13], and our GKM scheme and compare their communication and computation cost in Fig. ??. In these three schemes, we use crypto++ library to implement the encryption schemes as AES with 128-bit secret key and the hash functions as MD5 with 128-bit output. To simulate the real environment, we use boost library to implement the Poisson distribution with rate λ and Normal distribution with mean µ

and variance σ2_{. We simulate the number of joining requests by the Poisson}

distribution with rate λ. That is, in average, there are λ users join to a sub-scription group of a TV program in a unit time. For each joining user, the subscription time of a TV program is according to the Normal distribution

with mean µ1 and variance σ12. To simulate key update for the reconnected

members, for each on-line member, he may become an off-line member with probability α and his off-line period of time is according to the Normal

dis-tribution with mean µ2and variance σ22. We set the parameters (λ, µ1, σ1, α,

µ2, σ2) as (10, 100, 30, 0.3, 10, 3) and our simulations are implemented with

!"#$#%&'$#()'*+,'-.-$)(-'

Figure 4.1: System setup time of the server.

GHz), and 3 GB memory. Fig. 4.1 shows the initial time for systems. The

performances of these three schemes are almost the same. When N = 220,

the computation time is about 28 s.

Fig. 4.2 shows the computation time of updating keys for the server. The

performances of these three schemes are almost the same. When N = 22_0,

the computation time is about 1,750 ms.

Fig. 4.3 shows the communication cost in our simulation. The commu-nication cost of the SKD scheme is about half of the commucommu-nication cost of

our scheme and the LKH scheme. In our scheme, when N = 220, there are

about 38, 000 tokens (ciphertexts) in a unit time over the Internet and each

token is 128-bit. That means, the server only needs 38, 000_{× 128 bit ≈ 0.58}

MB bandwidth cost for maintaing a common group key to the dynamic sub-scription group of members.

!"#$%&'()*+*,&-+.$%&/*$0&1$*"#$/#12#1$

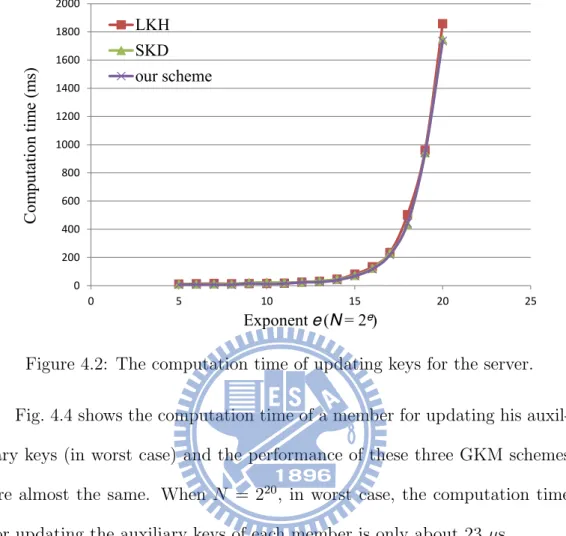

Figure 4.2: The computation time of updating keys for the server. Fig. 4.4 shows the computation time of a member for updating his auxil-iary keys (in worst case) and the performance of these three GKM schemes

are almost the same. When N = 220_{, in worst case, the computation time}

for updating the auxiliary keys of each member is only about 23 µs.

Fig. 4.5 shows the computation time of updating the group key for each member in the worst case. It is easy to see that the computation time of a member for updating the group key in our scheme is the lowest (about 2 µs) and is independent of the number of members. In our GKM scheme, each member only needs to decrypt one ciphertext or compute a hash value for updating the group key for each group key update. However, in the LKH and SKD schemes, since each member has to decrypt the auxiliary keys from his associated leaf node to the key tree root, the computation time of updating

!"##$%&'()&"%*'"+)*

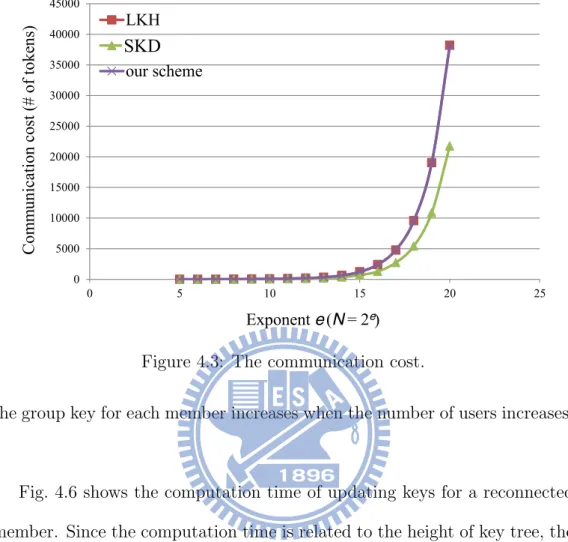

Figure 4.3: The communication cost.

the group key for each member increases when the number of users increases.

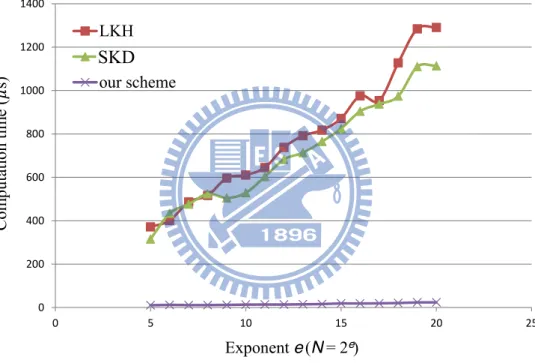

Fig. 4.6 shows the computation time of updating keys for a reconnected member. Since the computation time is related to the height of key tree, the computation time of these three schemes increases as N increases. However, our scheme is the most efficient one since the computation time of updating keys for a reconnected member is independent of the number of group key

updates in his off-line period of time. Thus, even if N = 220_{, the computation}

!"#$%&'&(")'*+,"-&+".+%$/'&()0+&12+

324-+")+$'&1+."5+'+%-25+

Figure 4.4: The computation time of a member for updating his auxiliary keys (in the worst case.)

!"#$%&'&(")'*+,"-&+".+/0&&()/+&10+

/2"%$+304+."2+'+%-02+

Figure 4.5: The computation time of updating the group key for a member (in the worst case.)

!"#$%&'&(")'*+,"-&+./0)+')+"112*()0+

%-03+30,"))0,&-+

Chapter 5

GKM for Multiple Programs

In this chapter, we discuss the case of applying our GKM scheme to provide multiple programs by the server. Suppose that there are M TV programs provided by the server and users can subscribe them according to their in-terest. To satisfy the security requirements, a simple solution is to associate a group key to each program and maintain each group key by our GKM scheme such that only the members who subscribe the program can get the corresponding group key and auxiliary keys. Fig. 5.1 shows a multiple key

tree with three TV programs P1, P2, and P3. Each memberU who subscribes

program Pi is assigned GKi and the auxiliary keys from the key tree root of

Pi to U’s associated leaf node in the key tree of Pi . Thus, each member

holds M lg N secret keys in the worst case (if each member subscribes all the programs.) In the worst case, if a member who subscribes all TV pro-grams cancels all of his subscribed propro-grams, the server needs to broadcast

2M lg N _{− 6 rekey messages and the existent members need to do the rekey}

procedure as described in Chapter 3.1 for the member leaving.

GK₁

P

P

P

Figure 5.1: A multiple key tree with three TV programs

tree proposed by Sun and Liu [21]. The lower level consists of TSGi, the key

trees of service groups (SGs) with roots SGi and the higher level consists of

TPi, the key trees of TV programs with roots Pi. A service group is a subset

of the set of all TV programs. If there are M TV programs, the number

of service groups is 2M _{− 1 at most. In the lower level key trees, members}

who associate with the leaf nodes of a TSG have the same subscribed TV

programs. In the higher level key trees, the root node of a TSG is a leaf node

of a TP if P ∈ SG. Fig. 5.2 shows a two-level key tree of Sun and Liu [21]

with three TV programs P1, P2, P3 and four service groups SG1 ={P1, P2},

SG2 = {P1, P2, P3}, SG3 = {P2, P3}, SG4 = {P3}. Since the height of a

TSG is at most lg N and the height of a TP is at most lg(2M − 1) ≈ M, each

member who subscribes all TV programs holds at most M2+lg N secret keys.

In the worst case, if a member who subscribes all TV programs cancels all of

his subscribed programs, the server needs to broadcast (M + 1)(M2+ lg N )

rekey messages and the existent members need to do the rekey procedure as described in Chapter 3.1 for the member leaving.

GK₁   P₁ GK₂   P₂ GK₃   P₃ SG₂ SG₃ SG₄ SG₁

Figure 5.2: A two-level tree of Sun and Liu [21] with three TV programs multi-GKM schemes are as follows. (1) Each member only needs to decrypt one ciphertext or compute one hash value to get the group key for each group key update. (2) To handle the key update for reconnect members, the storage size of the public bulletin and the computation time of reconnected members are independent of the number of group key updates. Thus, the result multi-GKM schemes minimize the delay time before decrypting a TV program and can be used in Pay-TV systems practically even if the frequency of group key update is very high (e.g. Pay-Per-View TV service.)

Chapter 6

Conclusion

We propose an efficient and secure GKM scheme that is very suitable for Pay-TV systems. The simulation results confirm the usability of our scheme and the theoretical comparisons with former schemes. In the future works, we can try to improve the efficiency factors of our GKM scheme or find more applications for our GKM scheme.

Bibliography

[1] Conditional-access broadcasting systems. International Telecommuni-cation Union (ITU), 1992.

[2] Isabella Chang, Robert Engel, Dilip D. Kandlur, Dimitrios E. Pen-darakis, and Debanjan Saha. Key management for secure internet mul-ticast using boolean function minimization techniques. In Proceedings of the IEEE International Conference on Computer Communications (INFOCOM), pages 689–698, 1999.

[3] Yi-Ruei Chen, J. D. Tygar, and Wen-Guey Tzeng. Secure group key management using uni-directional proxy re-encryption schemes. In Pro-ceedings of the IEEE International Conference on Computer Communi-cations (INFOCOM), pages 1322–1330, 2011.

[4] E. Cruselles, J. L. Melus, and M. Soriano. An overview of security

in eurocrypt conditional access system. In Proceedings of the IEEE

International Conference on Global Communications (GLOBECOM), pages 188–193, 1993.

[5] Qijun Gu, Peng Liu, Wang-Chien Lee, and Chao-Hsien Chu. Ktr: An efficient key management scheme for secure data access control in wire-less broadcast services. IEEE Transactions on Dependable and Secure Computing, 6(3):188–201, 2009.

[6] Yu-Lun Huang, Shiuh-Pyng Shieh, Fu-Shen Ho, and Jian-Chyuan Wang. Efficient key distribution schemes for secure media delivery in pay-tv systems. IEEE Transactions on Multimedia, 6(5):760–769, 2004.

[7] Yu-Lun Huang, Shiuh-Pyng Winston Shieh, and Jian-Chyuan Wang. Practical key distribution schemes for channel protection. In Proceedings of the International Computer Software and Applications Conference (COMPSAC), pages 569–574, 2000.

[8] Junbeom Hur and Hyunsoo Yoon. A decentralized multi-group key man-agement scheme. IEICE Transactions, 92-B(2):632–635, 2009.

[9] Tianpu Jiang, Shibao Zheng, and Baofeng Liu. Key distribution based on hierarchical access control for conditional access system in dtv broad-cast. IEEE Transactions on Consumer Electronics, 50(1):225–230, 2004. [10] Jung-Yoon Kim and Hyoung-Kee Choi. Improvements on sun ’s condi-tional access system in pay-tv broadcasting systems. IEEE Transactions on Multimedia, 12(4):337–340, 2010.

[11] Xiaozhou (Steve) Li, Yang Richard Yang, Mohamed G. Gouda, and Si-mon S. Lam. Batch rekeying for secure group communications. In

Pro-ceedings of International World Wide Web Conference (WWW), pages 525–534, 2001.

[12] Iuon-Chang Lin, Shih-Shan Tang, and Chung-Ming Wang. Multicast key management without rekeying processes. Computer Journal, 53(7):939– 950, 2010.

[13] Jen-Chiun Lin, Kuo-Hsuan Huang, Feipei Lai, and Hung-Chang Lee. Secure and efficient group key management with shared key derivation. Computer Standards & Interfaces, 31(1):192–208, 2009.

[14] Jen-Chiun Lin, Feipei Lai, and Hung-Chang Lee. Efficient group key management protocol with one-way key derivation. In Proceedings of the IEEE Conference on Local Computer Networks (LCN), pages 336– 343, 2005.

[15] Baofeng Liu, Wenjun Zhang, and Tianpu Jiang. A scalable key distri-bution scheme for conditional access system in digital pay-tv system. IEEE Transactions on Consumer Electronics, 50(2):632–637, 2004.

[16] B.M. Macq and J.-J. Quisquater. Cryptology for digital tv broadcasting. Proceedings of the IEEE, 83(6):944–957, 1995.

[17] Adrian Perrig, Dawn Xiaodong Song, and J. D. Tygar. Elk, a new pro-tocol for efficient large-group key distribution. In Proceedings of IEEE Symposium on Security and Privacy, pages 247–262, 2001.

[18] Ali Aydin Sel¸cuk and Deepinder P. Sidhu. Probabilistic methods in mul-ticast key management. In Proceedings of the International Workshop on Information Security (ISW), pages 179–193, 2000.

[19] Alan T. Sherman and David A. McGrew. Key establishment in large dynamic groups using one-way function trees. IEEE Transactions on Software Engineering, 29(5):444–458, 2003.

[20] Hung-Min Sun, Chien-Ming Chen, and Cheng-Zong Shieh. Flexible-pay-per-channel: A new model for content access control in pay-tv broad-casting systems. IEEE Transactions on Multimedia, 10(6):1109–1120, 2008.

[21] Yan Sun and K. J. Ray Liu. Hierarchical group access control for secure multicast communications. IEEE/ACM Transactions on Networking, 15(6):1514–1526, 2007.

[22] Fu-Kuan Tu, Chi-Sung Laih, and Hsu-Hung Tung. On key distribution

management for conditional access system on pay-tv system. IEEE

Transactions on Consumer Electronics, 45(1):151–158, 1999.

[23] Guojun Wang, Jie Ouyang, Hsiao-Hwa Chen, and Minyi Guo. Efficient group key management for multi-privileged groups. Computer Commu-nications, 30(11-12):2497–2509, 2007.

[24] Chung Kei Wong, Mohamed G. Gouda, and Simon S. Lam. Secure group communications using key graphs. IEEE/ACM Transactions on Networking, 8(1):16–30, 2000.

[25] Junqi Zhang, Vijay Varadharajan, and Yi Mu. A scalable multi-service group key management scheme. In Proceedings of the Advanced Interna-tional Conference on Telecommunications and InternaInterna-tional Conference on Internet and Web Applications and Services (AICT/ICIW), page 172, 2006.

[26] Zhibin Zhou and Dijiang Huang. An optimal key distribution scheme for secure multicast group communication. In Proceedings of the IEEE International Conference on Computer Communications (INFOCOM), pages 331–335, 2010.

[27] Wen Tao Zhu and Robert H. Deng. On group key management for secure multicast employing the inverse element. In Proceedings of the International Conference on Multimedia Information Networking and Security, pages 337–341, 2009.
