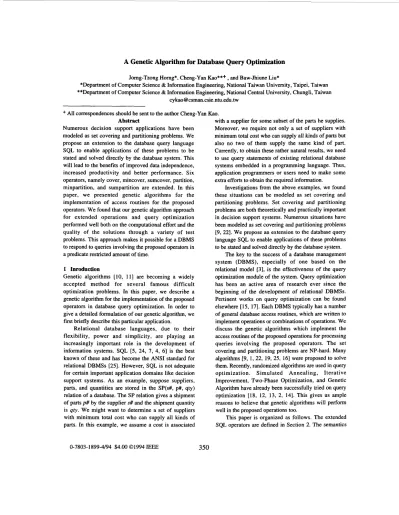

A Genetic Algorithm
for Database Query Optimization
Jomg-Tzong Horng*, Cheng-Yan Kao**+ , and Baw-Jhiune Liu**Department of Computer Science & Information Engineering, National Taiwan University, Taipei, Taiwan **Department of Computer Science & Information Engineering, National Central University, Chungli, Taiwan
+ All correspondences should be sent to the author Cheng-Yan Kao. Abstract
Numerous decision support applications have been modeled as set covering and partitioning problems. We propose an extension to the database query language SQL to enable applications of these problems to be stated and solved directly by the database system. This will lead to the benefits of improved data independence, increased productivity and better performance. Six operators, namely cover, mincover, sumcover, partition, minpartition, and sumpartition are extended. In this paper, we presented genetic algorithms for the implementation of access routines for the proposed operators. We found that our genetic algorithm approach for extended operations and query optimization performed well both on the computational effort and the quality of the solutions through a variety of test problems. This approach makes it possible for a DBMS to respond to queries involving the proposed operators in a predicate restricted amount of time.
1 Inroduction
Genetic algorithms [lo, 111 are becoming a widely accepted method for several famous difficult optimization problems. In' this paper, we describe a genetic algorithm for the implementation of the proposed operators in database query optimization. In order to give a detailed formulation of our genetic algorithm, we first briefly describe this particular application.
Relational database languages, due to their flexibility, power and simplicity, are playing an increasingly important role in the development of information systems. SQL [5, 24, 7, 4, 61 is the best known of these and has become the ANSI standard for relational DBMSs [25]. However, SQL is not adequate for certain important application domains like decision support systems. As an example, suppose suppliers, parts, and quantities are stored in the SP(s#, p#, qty) relation of a database. The SP relation gives a shipment of parts p# by the supplier s# and the shipment quantity
is qty. We might want to determine a set of suppliers
with minimum total cost who can supply all kinds of parts. In this example, we assume a cost is associated
with a supplier for some subset of the parts he supplies. Moreover, we require not only a set of suppliers with minimum total cost who can supply all kinds of parts but also no two of them supply the same kind of part. Currently, to obtain these rather natural results, we need to use query statements of existing relational database systems embedded in a programming language. Thus, application programmers or users need to make some extra efforts to obtain the required information.
Investigations from the above examples, we found these situations can be modeled as set covering and partitioning problems. Set covering and partitioning problems are both theoretically and practically important in decision support systems. Numerous situations have been modeled as set covering and partitioning problems [9, 221. We propose an extension to the database query language SQL to enable applications of these problems to be stated and solved directly by the database system.
The key to the success of a database management system (DBMS), especially of one based on the relational model [3], is the effectiveness of the query optimization module of the system. Query optimization has been an active area of research ever since the beginning of the development of relational DBMSs. Pertinent works on query optimization can be found elsewhere [15, 171. Each DBMS typically has a number of general database access routines, which are written to implement operations or combinations of operations. We discuss the genetic algorithms which implement the access routines of the proposed operations for processing queries involving the proposed operators. The set covering and partitioning problems are NP-hard. Many algorithms [9, 1, 22, 19, 25, 161 were proposed to solve them. Recently, randomized algorithms are used in query optimization. Simulated Annealing, Iterative Improvement, Two-Phase Optimization, and Genetic Algorithm have already been successfully tried on query optimization [18, 12, 13, 2, 141. This gives us ample reasons to believe that genetic algorithms will perform well in the proposed operations too.
This paper is organized as follows. The extended SQL operators are defined in Section 2. The semantics
and syntax of the extended operators are described. The genetic algorithms used by access routines to implement the proposed operators are described in Section 3. A summary is given in Section 4.
2 Database Operators for Set Covering and
In this section, we described formulation of set covering and partitioning problems in
SQL.
We define special operators for the “WHERE” clause ofSQL
expressions to give a shorthand notation of such problems. Six constructs, namely, cover, mincover, sumcover, partition, minpartition, and sumpartition are defined. The semantics and syntax of the extended operators are described.Partitioning Problems
2.1 Definition of the Extended Operators in SQL
We sometimes want to obtain specific objects of an attribute in a relation that relate to the objects of an attribute in another relation. We can formulate this query in
SQL
by means of a special construct. The syntax of the construct is defined as follows:SELECT attribute-list
FROM R1,R2
WHERE
COVER((Ri.X, R1.Y1), R2.Y2) Where attributes Y1 in R1 and Y2 in R2 are defined on the same domain. Relation R1 describes the relationship between the instances of attributes X and Y1. The relationship between them is that each instance of X is related to a set of instances of Y 1 and each instance of Y 1 is also related to a set of instances of X. Each distinct instance of Y1 in R1 has a corresponding instance of Y2 in R2. The semantics of this construct is formally defined as finding a cover of a set.The COVER operation of relation R1 on attributes X and Y and relation R2 on attribute Z-
R I , R2 WHERE COVER((R1 .X, R1 .Y), R2.Z)
-is a relation with the heading (X) and the body is a smallest subset of R1 so that the tuples (X:x, Y:y) appears in R1 for all tuples (Z:z) appearing in R;?.
The PARTITION operation is similar to the COVER operation.
The cover operator is an efficient way of determining a minimum cover (the smallest number of sets) of a set, if one exists. However, one may, in addition, wish to take into account the cost of a cover. In this case, one is interested in a cover that minimizes the total cost of the cover. The MINCOVER operator is to find a cover of minimum cost. Finding an optimum
solution of this operation is an NP-hard problem. It may take a very long time to find such a solution even for a small size problem. Hence, we provide an alternative operator for users. The alternative operator is to find sub- optimal feasible solutions instead of optimal solutions. The syntax of the construct is defined as follows:
SELECT attribute-list FROM RI, R2, R3
WHERE MINCOVER((R1 .X, R1
.Y),
R2.Y, R3.Z), or SUMCOVERconst((Ri.X, R1.Y), R2.Y,Where const in the SUMCOVER operator is a constant value. Every distinct instance of X in R1 has a corresponding instance of Z in R3 and is used as a cost of the former instance. The semantics of the MINCOVER operation is formally defined as finding a cover of minimum cost, and that of the SUMCOVER operation is formally defined as finding a cover whose cost is less than the given constant value.
The MINPARTITION and SUMPARTITION operations are similar to the MINCOVER and SUMCOVER operations.
R3.Z)
3 Access Routines for Query Processing
Finding a solution of the COVER, MINCOVER, PARTITION, or MINPARTITION operation is NP-hard. To get a near-optimal solution instead of an optimal solution and reduce query evaluation time, we adopt genetic algorithms in our query processing algorithm.
3.1 Genetic Algorithms for the COVER and MINCOVER(SUMC0VER) Operators
A solution of the set covering problem can be easily encoded as a binary chromosome (0, 1, 1, 0, ...) which would be interpreted as the second and third columns are included in the solution, but the first and fourth are not. The fitness function F(x) is a large number MAX minus the sum of the cost of the columns used (i.e., the original objective function value) and a penalty for a failure to cover. Therefore, the fitness function is
W,X,
-
P(x)q(x)n
F(x) = MAX -
i=l
where xi and are binary with q(x) = 0 if the solution x is a cover and q(x) = 1 otherwise. P ( x ) is the penalty function procedure for the covering. The latter term
2
w,x,
+
P(x)q(x)i=l
The penaltyfunction procedure P3 of 1191 is stated as follows:
~ 3 : If
s
is a cover, cost =C
Wi
i s SIf S fails to be a cover, let R be the rows that remain uncovered. For each i E R, let Si be the columns that cover i. Let W*i = min {Wj} for j €Si. Then cost =
C W i + C W * i
i s Si E R
In order to find a cover with lower cost, the above penalty function procedure P3 is simply modified to become P3' as follows:
~ 3 ' : If
s
is a cover, cost =Wi
i s S
If S fails to be a cover, let R be the rows that remain uncovered. For each j E S , strike column j and the rows covered by j. For some i € R, let Si be the unused columns that cover i. For each j € S i , calculate the cost-ratioU)(wj / number-of- l's- uncovered in j). Let j* = min { cost-ratiou) } for j E S i . Append to S the column j*. The process is repeated until S becomes a cover.
Where cost-ratio(i) is the cost of column j over the number of 1's in the column j. The greedy crossover in [ 191 is used in our genetic algorithm.
3.2 Genetic Algorithms for the PARTITION and M I N P A R T I T I O N ( SUMPARTITION) Operations
The genetic algorithm starts by checking whether an individual violates the definition of partition. That is to say, no element is covered by more than one set. If an individual violates the definition of set partitioning problem, then a mutation operator is repeatedly applied until no individual violates the definition of set partitioning problem. Then the algorithm computes the fitness of all valid individuals by using the given penalty function procdure PP and uses the greedy crossover of [ 191 to generate the offspring. Finally, the algorithm examines whether the partition solution covers all elements. If the partition solution does not cover all elements, then it attempts to improve the partition solution obtained. The penalty function procedure PP is described below:
PP: if
s
is a partition, cost =C
wi
id
If S fails to be a partition , let R be the rows that remain uncovered. For each j E S, strike column j and the rows covered by j. In addition, for each j E S ,
every column k # j such that aij=aik=l (i=l,
...,
m) must be deleted. For some i E R, let Si be the unused column that cover i. If Si is an empty set, let cost= 00.Otherwise, for each j E Si, calculate the cost- ratio(i)(wj / number-of-l's-uncovered in j). Let j * = min { cost-ratioCj) } for j E Si. Append to S the column j*. The process is repeated until S is a partition or the cost is 00.
The penalty function procedure PP is used for fitness evaluation. The genetic algorithm for partition, sumpartition, and minpartition is described below.
1. If any row r of A has all 0's , there is no solution since constraint r cannot be satisfied.
2. Choose a desired population size n and initialize the starting population P randomly.
3. Check whether a chromosome of the population P violates the definition of set partitioning problem. If any chromosome violates the definition, mutate a randomly chosen bit of 1's of this chromosome. The step is repeated until no chromosomes of population P violate the definition of set partitioning problem.
4. Evaluate fitness of each individual according to the penalty function procedure PP.
5. If the fitness of all individuals is equal to 0, there is no partition solution. The algorithm returns "No Partition.So1ution" and terminates.
6. If termination-condition held, go to Step 7; else probabilistically select a pair of individuals ( according to their fitness determined by the penalty function procedure PP) to generate the offspring using greedy crossover. The step is repeated until n offspring are generated. Return to step 3.
7. If the resultant solution, say S, contains a partition solution, the algorithm terminates. If S fails to be a partition, let R be the rows that remain uncovered. For each j € S , strike column j and the rows covered by j. In addition, for each j€S, every column k f j such that aij=aik=l ( k l ,
...,
m) must be deleted. For some i E R , let Si be the unused columns that cover i. If Si contains only one column, append to S the column ( say column c). Strike column c and the rows covered by c. Otherwise, for each j € S i , calculate the cost- ratioCj) (wj / number-of-l's-uncovered in j). Let j* = min{cost-ratioCj)} for jESi. Append to S the column j*. The step is repeated until S is a partition.Step 7 in the algorithm attempts to improve the partition solution obtained in step 6 by applying the procedure like the penalty function procedure. After applying this
local fix-up procedure of step 7, feasible solutions have been always produced.
3.3 Experiments and Results
Simulations have been performed for the set covering problem on 18 test problems, and for the set partitioning problem on 15 test problems. The problem size of set covering problems was obtained from the work [21]. The problem size of set partitioning problems 1-5 was obtained from [l]. The reamining problem sizes were designed by the authors. The examined instances have been generated as follows. The A matrix for all set covering and set partitioning problems was obtained from a matrix generator. All the test problems have coefficient matrices whose density varies from 1% to 20%. If a row or a column of A does not contain 1 in the row or the column then one 1 is added in any entry of the row or column. That is, each row or column must at least contain one 1. Following the work of [l], the coefficient of the objective function was equal to the number of ones in the corresponding column plus a random variable between 0 and 1. Information on these test problems, as well as on the computational results, is presented in Tables I and 11. The genetic algorithms were programmed in C and run on a DEC station 5000/200.
Computational Results with Genetic Algorithm for TABLE I
Se? Covering Problems
No. m n CPU time* cost rate**(%)
1 15 2 30 3 30 4 30 5 30 6 30 7 30 8 30 9 200 10 200 11 50 12 36 13 104 14 200 15 46 16 26 17 50 18 134 32 0.060 22.132 47.5 30 0.156 48.089 60.2 40 0.218 43.152 43.8 50 0.316 40.230 34.1 60 0.339 46.789 55.9 70 0.476 44.121 47.0 80 0.546 44.265 47.5 90 0.437 40.984 36.6 300 17.281 375.320 87.6 413 24.580 367.645 83.8 450 4.402 66.269 32.5 455 3.706 41.410 15.0 498 10.731 161.914 55.6 500 23.350 396.976 98.4 683 7.921 54.867 19.2 777 4.890 28.910 11.1 905 12.041 58.920 17.8 1642 62.554 211.726 58.0
*DEC station 5000/200 (Seconds),
**
rate=Im
- cost1
m
, the rate of worst case error estimate. Also, we compared the genetic algorithms with the interior point algorithm of linear programming 1161 on two set covering problems: A27, A45 whose optimal solutions are known. Problems A27 and A45 are taken from [8]. These two problems are difficult set covering problems [16]. Table 111 shows the test problems, the size of the best known cover for each, and the size of the cover obtained from the proposed genetic algorithms.For most examples, we can see that the rate of worst case error estimate is poor even when the solution is optimal. This is because the optimal solution is not known and the value of the number of constraints is used in the error estimate instead.
Computational Results with Genetic Algorithm for TABLE I1
Set Partitioning Problems
NO. m n cputime* cost rate**(%) 1 13 87 0.269 15.854 21.9 2 13 63 0.191 16.755 28.8 3 14 71 0.246 17.848 27.4 4 12 75 0.292 15.894 32.4 5 13 88 0.312 15.879 22.1 6 50 200 20.049 62.940 25.8 7 100 300 102.908 126.060 26.0 8 100 400 108.020 130.235 30.2 9 100 500 127.571 127.814 27.8 10 100 600 159.875 129.429 29.4 11 150 700 696.775 183.920 22.6 12 200 800 773.126 241.176 20.5 13 200 900 830.743 245.133 22.5 14 100 loo0 476.942 113.852 13.8 15 200 lo00 1996.273 242.022 21.0 Note:m=Number of constraints, n=Number of variables
*,
**
have the same meaning as in Table I TABLE 111Problem Set
Problem Integer program IPA* GA** Optimal variables/constraints
A27 2711 16 18 18 Yes
A45 45/330 30 31 yes
Note: *IPA=interior point algorithm [ 161
*
*GA=genetic algorithms Note: m=Number of constraints, n=Number of variablesThe processing time of these test problems is presented in Figure 1, where the x-axis represents the product of the number of constraints and the number of variables, and the y-axis represents the processing time in seconds. The results show that the CPU time is nearly proportional to the product of the number of constraints and the number of variables for the set covering problems. The CPU time for set partitioning problems is larger than that for the set covering problems. This is to be expected since the penalty function of set partitioning problems is much more complicated than that of set covering problems. We are currently working on the problem of reducing the processing time of the set partitioning problems, possibly by adopting the Annealing Genetic algorithm of Lin, Kao, and Hsu [20].
n C 0
$
7 0
o
60
Q)50
’
40
30
E
=
20
310
0
P0
t0
100000 200000300000
m * n n$
2000
$
1500
’
1000
E
500
a P 00
e
0 Q).-
0
100000 200000
m * n
Figure 1: Average Processing time: (a) for set covering problems and (b) for set partitioning problems
As can be expected, if the product of the number of constraints and the number of variables is small, the
execution time is small too. Therefore, to reduce execution time in query processing, algebraic operations should be performed as early as possible.
4 CONCLUSIONS
We described formulation of set covering and partitioning problems in SQL. We define special operators for the “WHERE” clause of SQL expressions to give a shorthand notation of such problems. We have presented genetic algorithms for the implementation of the access routines for the proposed operators. At present, our major works are centered in the extension of DBMS operators and the derivation of the penalty function procedures for the proposed extended DBMS operators. We found that our genetic algorithm approach performed quite well both on the computational effort and the solution quality through a variety of test problems. These algorithms are bounded by a polynomial time. Therefore, this approach makes it possible for a DBMS to respond to queries involving the proposed operators in a restricted amount of time in real- time applications. In the future, we plan to adopt annealing genetic approach [20] to implement the access routines for the proposed operators in query optimization. In addition, we plan to modify the greedy crossover for better performance.
References
[ 11 E. Balas and C.H. Martin, “Pivot and Complement
-
A Heuristic for 0-1 Programming,” Management Science 26(1), pp. 86-96, January 1980.[2] K. Bennett, M. C. Ferris, and Y. E. Ioannidis, “A Genetic Algorithm for Database Query Optimization,” Proceedings of the Fifth International Conference on Genetic Algorithms,
1991.
[3] E.F. Codd, A Relational Model of Data for Large Shared Data Banks, CACM, 13(6):377-387, 1970. [4] E.F. Codd, The Relational Model for Database
Management, Version 2. Reading, MA: Addison- Wesley, 1990.
[5] C. J. Date, A Guide to the SQL Standard, Addison- Wesley, Reading, Mass., 1987.
[6] C. J. Date, “An Introduction to Database Systems,” Volume I, Fifth Edition, Reading, MA: Addison- Wesley, 1990.
[7] R. Elmasri and S.B. Navathe, “Fundamentals of Database Systems,” The BenjaminKummings
Publishing Company, Inc., 390 Bridge Parkway, Redwood City, California, 1989.
[8] D. R. Fulkerson, G. L. Nemhauser and L. E. Trotter Jr., "Two Computationally Difficult Set Covering Problems that Arise in Computing the l-Width of Incidence Matrices of Steiner Triple Systems," Mathmatical Programming Study 2 (1 974) 72-8 1. [9] R. S. Garfinkel and G. L. Nemhauser, "Integer
Programming," John Wiley & Sons, 1972.
[lo] D. E. Goldberg, "Genetic Algorithms in Search, Optimization, and Machine Learning," Addison- Wesley, 1989.
[ l 11 J. H. Holland, "Adaption in Natural and Artificial Systems," Ann Arbor: The University of Michigan Press, 1975.
[12] Y. E. Ioannidis and E. Wong, "Query Optimization by Simulated Annealing," in Proc. of the 1987 ACM-SIGMOD Conference on the Management of Data, San Francisco, CA, May 1987, pp. 9-22. [13] Y. E. Ioannidis and Y. C. Kang, "Randomized
Algorithms for Optimizing large Join Queries," in Proc. of the 1987 ACM-SIGMOD Conference on the Management of Data, Allantic City, NJ, May [14] Y. E. Ioannidis and Y. C. Kang, "Left-Deep vs. Bushy Trees: An Analysis of Strategy Spaces and Its Implications for Query Optimization," in Proc. of the 1991 ACM-SIGMOD Conference on the Management of Data, May 1991, pp. 168-177. [15] M. Jarke and J. Koch, "Query Optimization in
Database Systems," ACM Computing Surveys, 16(2):111-152, June 1984.
[16] N. Karmarker, M.G.C. Resende and K.G. Ramakrishnan, "An Interior Point Algorithm to Solve Computationally Difficult Set Covering Problems," Mathmatical Programming 52 (199 1) [17] W. Kim, D. Reiner, and D. Batory, Query Processing in Database Systems. Springer Verlag, N. Y., 1986.
[ 181 S. Kirkpatrick, C. D. Gelatt, Jr., and M. P. Vecchi,
"Optimization by Simulated Annealing," Science 220,4598 (May 1983), pp. 671-680.
[19] G.E. Liepins, M.R. Hilliard, J. Richardson, and M. Palmer, "Genetic Algorithms Applications to Set Covering and Traveling Salesman Problems," in Operations Research and Artificial Intelligence: The Integration of Problem-Solving Strategies, 1990, pp. 312-321.
597-618.
edited by D.E. Brown, C. White, 111, Kluwer Academic Publishers, 1990.
[20] F.T. Lin, C.Y. Kao, and C.C. Hsu, "Applying the Genetic Approach to Simulated Annealing in Solving Some NP-Hard Problems," To Appear in IEEE Trans. on Systems, Man, Cybernetics, 23(3), May 1993.
[21] H.M. Salkin and R.D. Koncal, "Set Covering by an All Integer Algorithm: Computational Experience," Journal of ACM, 20(2): 189-193, April 1973.
[22] H.M. Salkin and K. Mathur, Foundations of Integer Programming, Elsevier Science Publishing Co., Inc., 1989.
[23] A. Swami and A. Gupta, "Optimization of Large Join Queries," In Proc. of the 1988 ACM- SIGMOD Conference on the Management of Data, pp. 8-17, Chicago, IL, June 1988.
[24] R.F. van de Lans, "Introduction to SQL," Addison- Wesley, 1988.
[25] V. Zissimopoulos, V. Th. Paschos, and F. Pekergin, "On the Approximation of NP-complete Problems by Using the Boltzmann Machine Method: the Cases of Some Covering and Packing Problems," IEEE Trans. on Computers, 40(12):1413-1418, December 199 1.
