Research Article

Sensing of Tooth Microleakage Based on Dental Optical

Coherence Tomography

Chia-Wei Sun,

1

Yi-Ching Ho,

2,3

and Shyh-Yuan Lee

2,4

1_{Biomedical Optical Imaging Lab, Department of Photonics, National Chiao Tung University, Hsinchu, Taiwan} 2_{School of Dentistry, National Yang-Ming University, Taipei, Taiwan}

3_{Department of Dentistry, National Yang-Ming University Hospital, Yilan, Taiwan} 4_{Department of Stomatology, Taipei Veterans General Hospital, Taipei, Taiwan}

Correspondence should be addressed to Chia-Wei Sun; [email protected] Received 29 July 2014; Accepted 7 November 2014

Academic Editor: Jui-che Tsai

Copyright © 2015 Chia-Wei Sun et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. This study describes microleakage sensing based on swept-source optical coherence tomography (SS-OCT). With a handheld scanning probe, the SS-OCT system can provide portable real-time imaging for clinical diagnosis. Radiography is the traditional clinical imaging instrument used for dentistry; however, it does not provide good contrast images between filling material and the enamel of treated teeth with microleakage. The results of this study show that microleakage can be detected with oral probing using SS-OCT in vivo. The calculated microleakage length was 401𝜇m and the width is 148 𝜇m, which is consistent with the related histological biopsy measurements. The diagnosis of microleakage in teeth could be useful for prevention of secondary caries in the clinical treatment plans developed in the field of oral medicine.

1. Introduction

The oral cavity consists of three main parts: (1) hard tissue, including tooth and alveolar bone, (2) soft tissue, including mucosa and gingiva tissues, and (3) periodontal tissues. Caries might be the most frequently encountered problem because of its high prevalence and wide distribution among all ages. The World Health Organization (WHO) reported that dental caries continues to be a major public health problem globally and a major public health problem in most high-income countries; in 2009, this disease affected 60–90%

of school aged children and the vast majority of adults [1].

In addition, dental caries has shown certain correlations with a variety of systemic diseases such as systemic infections,

kidney inflammation, and septicemia [2–5]. For treating

carious tooth, dentists remove sections with a lesion and fill the area with restoration materials. Root canal treatment is needed for teeth that have deep caries involving pulp and irreversible pulpitis. However, no matter what treatment is used, patients are at risk for secondary caries. The Federation Dentaire Internationale defines secondary caries as positively diagnosed carious lesions that occur at the margins of an

existing restoration [6]. This is an important clinical problem;

it reduces the lifetime of dental restorations, alters dental

hard tissue, and endangers tooth survival [7]. It is difficult

to diagnose secondary caries during the early stages where survival of the tooth and crown restoration is most likely.

One of the main causes of secondary caries is microleak-age. Microleakage means the “gap” between tooth and

restorative materials [8–10]. Rodrigues et al. demonstrated

the microleakage beneath composite resin restorative

mate-rial [10].

Food debris and dental plaque may stick to these undersized gaps and consequently lead to secondary caries. In general, patients cannot adequately clean these tiny sites. In addition, the detection of microleakage is very difficult for the dentist in most clinical settings. Traditionally, the diagnosis of these problems has been based on clinical examination with dental probes and radiographs. The poor reliability and reproducibility of dental probes may cause misdiagnosis because of the difficulty with localization of gaps. For microleakage, most of bonding agents are not radiopaque and there would be no distinction between the adhesive resin and the microleakage in an X-ray radiograph/tomogram.

Volume 2015, Article ID 984627, 6 pages http://dx.doi.org/10.1155/2015/984627

(2)

leakages are compared to cracks. Furthermore, radiography measurements are accompanied by radiation exposure. Although there are many new methods for diagnosis under

development in the laboratory [11–13], these methods are

only applied when secondary caries already exists.

Optical coherence tomography (OCT) may provide a

good tool for the diagnosis of microleakage [14]. OCT was

first reported by Huang et al. [11] in 1991 and has been

widely used in numerous clinical applications, including

gastroenterology [16], ophthalmology [17], dermatology [18],

and dentistry [19,20]. In dental science, OCT detects

quali-tative and quantiquali-tative morphological changes of dental hard and soft tissues in vivo. Furthermore, OCT can also be used for early diagnosis of dental diseases, including caries, periodontal disease, and oral cancer, because of the excellent spatial resolution. The first in vitro images of dental hard and soft tissues in a porcine model were reported in 1998

[21]. Later, the in vivo imaging of human dental tissue was

presented [9]. Early detection and treatment can increase

the survival rates of teeth and patients. Three-dimensional imaging ability is another advantage of dental OCT. It helps clinicians to locate problems in soft and hard tissues more

accurately and rapidly. Table 1 shows a comparison of the

methods used in general dentistry for diagnosis currently. Compared with these methods, OCT can provide effective information because it is noninvasive and nondestructive and does not expose patients to radiation; in addition, it provides a real-time monitoring method. The swept-source optical coherence tomography (SS-OCT) has more benefits compared to conventional time domain (TD) and Fourier domain (FD) OCT including imaging speed, detection effi-ciency, sensitivity, simpler system setup, and better

signal-to-noise ratio (SNR) with suitable filter [22–24]. The

SS-OCT has high axial resolution of about 10𝜇m [22]; this

allows sufficient information for dental clinical applications such as the diagnosis of crack and microleakage detection. The aim of this study was to provide preliminary informa-tion for the diagnosis of microleakage to prevent advanced secondary caries based on SS-OCT in vivo using a fiber optic handheld scanning probe. The microleakage identified, between composite resin and enamel, was quantified using the OCT image. Clinicians can provide more appropriate dental treatment that prevents secondary caries with the diagnosis made according to the information provided by handheld probe SS-OCT.

2. Materials and Methods

2.1. System Setup. An SS-OCT system with a handheld scan-ner probe is built with a 1310 nm swept-source laser

(Santec, HSL-2100) as a broadband light source. Figure 1

shows the OCT scheme. The main passive components are integrated into a metal case. The fiber-based Mach-Zehnder interferometer includes couplers and two optical circulators. The balance detector is used for interference detection, and the data acquisition card (DAQ card, NI-PCI 5122) provides computer-photodetector interfacing. The

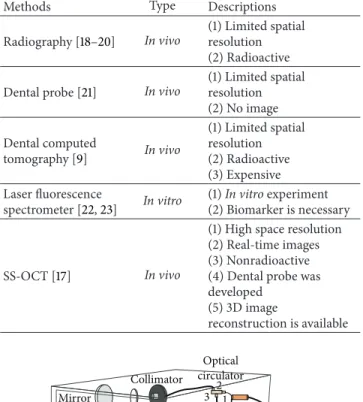

Methods Type Descriptions

Radiography [18–20] In vivo

(1) Limited spatial resolution (2) Radioactive Dental probe [21] In vivo

(1) Limited spatial resolution (2) No image Dental computed tomography [9] In vivo (1) Limited spatial resolution (2) Radioactive (3) Expensive Laser fluorescence spectrometer [22,23] In vitro (1) In vitro experiment (2) Biomarker is necessary SS-OCT [17] In vivo

(1) High space resolution (2) Real-time images (3) Nonradioactive (4) Dental probe was developed (5) 3D image reconstruction is available Mirror Scanning path Scanner controller Computer Balance detector SS-laser Coupler Optical circulator Collimator 1 1 2 2 3 3

Figure 1: Setup of the dental OCT. The incident light separates into two arms (reference arm and sampling arm) and is recoupled in another optical coupler for interference. A balance detector is used for the reduction of noise and then a DAQ card receives the signal.

wavelength-scanning rate is 20 kHz. The frame rate is 20 Hz (1000 A-scans/frame). The electric signal acquisition rate is 100 MS/s by NI-PCI 5122. Experimental data were collected and analyzed using LabVIEW (National Instrument)

soft-ware.Figure 2shows the handheld probe used with a 3 mm

outer diameter. The probe was connected to the sampling arm of the OCT with fiber and driven by individual mechanics. The weight of this probe is less than 150 grams. A reflection mirror is placed on the shaft of the turbine which provides the optical scanning. The quartz glass is used as the optical window. Gas is injected from the needle which is inserted to hole of the shaft bearing. An optical focuser is mounted in the center of the tube. The body of the catheter is made from polytetrafluoroethylene (PTFE) tube. Including the glue used in the catheter, the entire sheath is made from biocompatible material. The integrated SS-OCT system offers excellent portability and is easy to operate for patients with

(3)

Fiber Scanning mechanism

Input light Collimator

Output light

Figure 2: The portable dental OCT probe. The light inputs a fiber-based probe and is focused by a collimator. An electoral scanning mechanism changes the output light angle and a scanning path is realized.

disabilities, the elderly, and children. For good infection control, a disposable PTFE cover is attached to this intraoral probe for clinical experiments.

2.2. In Vivo Measurement. A volunteer that had maxillary right lateral incisor and maxillary right first premolar treated for caries and four artificial temporary composite resin crowns of maxillary right central incisor and maxillary left

central incisor was enrolled in the study.Figure 3(a)shows

an intraoral photograph. The distal caries of maxillary right first premolar was treated and restored with composite resin two days before the study. The teeth were brushed before the experiment to avoid the effects of debris. Using a similar color scheme, the composite resin is difficult to distinguish from

sound tissue in the photograph,Figure 3(a).Figure 3(b)is a

radiograph of sample teeth. The radiopaque images of the treated area with composite resin can be seen in the graph. Because of the space resolution limitation of the radio-graph, the microstructures, including the treated tooth sur-face, cannot be observed in this image. It is difficult to diag-nose a microleakage using a dental probe and radiographs. The institutional review board (IRB) permission number is 100104 from National Yang-Ming University, Taipei, Taiwan. 2.3. Experimental Method. Using radiographs and clinical examination, the regions of interest were chosen and marked for OCT imaging. The scanning probe acquired images on the marked tooth. A metal marker was placed on the probe to ensure complete image acquisition at each rotating scan the metal has high reflection on the OCT image. The detected light is stable for good image quality with a range of angle. In addition to the treated tooth, the sound tooth and the artificial composite resin crown, of the same patient, were also measured to obtain a standard sample. The results are shown

in Figures4,5, and7, at 6 mm× 4 mm. The tooth location

numbers are marked in the brackets under each figure.

3. OCT Imaging Results

Figure 4 shows the OCT images of a sound tooth. The tooth structure and gingiva are noted and identified in these images. The tooth cervical area under the gingiva can also be observed. These findings indicated that the OCT system worked with regard to tooth imaging. The probe marker

5 7 8 Treated area (a) Treated area 5 6 7 ₈ (b)

Figure 3: (a) A photograph and (b) the radiograph of the volunteer’s tooth 8: maxillary right central incisor; 7: maxillary right lateral incisor; 6: impacted maxillary right canine; 5: maxillary right first premolar. The distal caries of maxillary right first premolar (5) was treated and restored with composite resin two days before the study.

image can be seen at the top of the image. The side effects were removed and compensated for in follow-up images. Figures

4(b) and 4(c) show the treated tooth with and without a

gap between the composite resin and enamel. InFigure 4(b),

the composite resin was completely attached to the enamel sides and there was no microleakage observed. These findings suggest that the treated teeth had almost no risk of secondary

caries.Figure 4(c)shows the same treatment condition with

microleakage between the composite resin and enamel on the left side. This microleakage was less than 1 mm and difficult to see by photography and radiography. When dental plaque is stuck in such a gap, there is a very high risk of secondary caries. Such conditions reduce the lifetime of

artificial crowns.Figure 5shows the artificial composite resin

crown and a sound tooth by OCT related toFigure 4after all

imaging.

4. Microleakage Detection

Although Figures 4(c) and 5(c) show the locations of

microleakage, further information, such as calculation of the

dimensions, is important for the clinical diagnosis.Figure 6

is a flowchart of the imaging process. The first step was removal of the unnecessary image with the top probe marker. Compensating for distortion that came from the scanning

vibration was the next step. As illustrated in Figure 4, this

(4)

Temporary crown Nature tooth (a) Treated area (b) Microleakage (c)

Figure 4: The treated tooth, OCT images: (a) composite resin and natural tooth; (b) treated tooth without microleakage; (c) treated tooth with microleakage.

when calculating the microleakage dimensions. An average line for the marker image was used for compensation. After observing the difference between this line and the OCT image, the necessary calculation for the pixel number of each column was obtained. Hence, the compensation images could be redrawn. Then, image binarization and the filtered edges were used to calculate the dimension of the microleakage.

Different from the human tooth, dentin porosity prop-erties were observed in the organic tubules. Composite resin is a compound with ultraviolet characteristics. It was inseparable from and indicated by a bright area next to a natural tooth in the processed OCT images. A dentist can examine the composite resin areas of treated enamel on these images. The OCT image can help clinicians locate and assess the treated part rapidly. For a detailed diagnosis, the area of interest on the OCT image can be evaluated, for example, the microleakage, for advanced calculation.

Figure 7(a) shows an enlarged microleakage area chosen from Figure 5(c). The area of interest was chosen and resized. An edge filter was then used for observation of the image boundary. The width and depth of the microleakage

Temporary crown Nature tooth (a) Treated area (b) Microleakage (c)

Figure 5: The treated tooth OCT images ofFigure 4 after image processing: (a) composite resin and natural.

could be calculated using a very simple formula, shown in 𝑤 = 6𝑛𝑥 𝑚_𝑥, 𝑑 = 2𝑛_𝑚𝑦 𝑦, (1)

where 𝑤 and 𝑑 were the calculated width and depth and

𝑛 and 𝑚 were the counted 𝑡 pixel numbers and the pixel

numbers for the whole OCT image on the 𝑥-axis (width)

and the𝑦-axis (depth). The constant coefficients, 6 and 2,

showed the physical dimensions of the measurement area to

be 6 mm× 2 mm. In this study, the pixel numbers of each

image were 960× 500. Therefore, the calculated microleakage

length was 401𝜇m and the width was 148 𝜇m. This result was

very close to the clinical results and indicated that the system used had good spatial resolution when compared to tradi-tional tools. For clinical diagnosis, the OCT image provides accurate information for the assessment of microleakage. The microleakage region can be assessed with this processing.

(5)

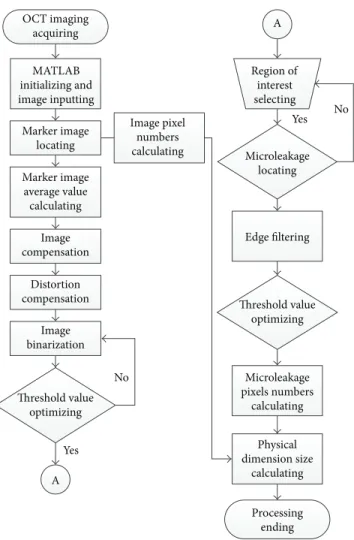

OCT imaging acquiring MATLAB initializing and image inputting Marker image locating Marker image average value calculating Image compensation Distortion compensation Image binarization Threshold value optimizing A Image pixel numbers calculating Region of interest selecting Microleakage locating Edge filtering Threshold value optimizing Microleakage pixels numbers calculating Physical dimension size calculating Processing ending A Yes Yes No No

Figure 6: Flowchart of the OCT imaging process.

As referenced in a prior report [16], the boundary of the

microleakage can be marked in red for clinician focus.

5. Discussions

In this study, we observed the treated area several times and similar results were obtained. Therefore, we believe the results are still significant because of the consistency of OCT images. Of course, some issues still should be considered in follow-on works.

First, the microleakage between tooth and composite resin was obtained by OCT system. However, there are many dental filling materials such as amalgam and glass ionomer (GI) that were also widely used in endodontics. Therefore, experiments with different filling materials should be carried out because of those different image properties such as penetration depth and image distortion and the minimum detectable gap size will be obtained. Second, variety of tooth surfaces such as buccal, lingual surfaces, and interproximal should also be measured. The restorations measurement at the gingival margins is also necessary because of the fact that microleakage and secondary caries are especially problematic at these areas. These issues will be considered in the future works.

(a) (b)

Figure 7: Processed gap part for gap detection: (a) binarization processed tooth gap image and (b) gap boundary.

6. Conclusion

The results of this research showed that SS-OCT could be used for the detection of cracks in the enamel of teeth

[24]. SS-OCT was very reliable for the diagnosis of cracks.

However, this study provided ex vivo information for large crack detection only. Different to microleakage, the crack raises a rare chance for secondary caries. As mentioned in previous section, the main reason of secondary caries is the accumulated bacteria from food debris or plaque stuck in microleakages. In our study, the diagnosis of in vivo microleakage can be achieved by using a portable SS-OCT with dental probe measurement. A handheld scanning probe was integrated into a portable SS-OCT system. Clinicians can detect the microleakages in vivo, and extracting tooth for histological analysis is no more necessary. With very high spatial resolution (∼15 𝜇m), OCT can increase the accuracy of diagnosis and the implementation of effective therapy to prevent secondary caries in dental clinics. The OCT images can reliably detect the location and dimension of microleakage. The calculated microleakage length was

401𝜇m and the width is 148 𝜇m, which is consistent with the

related histological biopsy measurements.
