Nonlinear Dynamics of Semiconductor Lasers Under
Repetitive Optical Pulse Injection
Fan-Yi Lin, Member, IEEE, Shiou-Yuan Tu, Chien-Chih Huang, and Shu-Ming Chang
Abstract—In this paper, nonlinear dynamics of semiconductor
lasers under repetitive optical pulse injection are studied numer-ically. Different dynamical states, including pulsation and oscilla-tion states, are found by varying the intensity and the repetioscilla-tion rate of the injection pulses. The laser is found to enter the chaotic pulsation (CP) states and chaotic oscillation (CO) states through individual period-doubling routes. Mapping and corresponding Lyapunov exponents of these dynamical states are plotted and ex-amined in the parameter space. Moreover, the bandwidths of the chaos states found are investigated, where the bandwidths of the CP states observed at the strong injection regime are two to four times broader than the bandwidths of the CO states found at the weak injection regime. In this paper, frequency-locked states with different winding numbers, the ratio of the oscillation frequency, and the repetition frequency of the injection pulses are also studied. Both the cases for repetition frequency above and below the relax-ation oscillrelax-ation frequency are examined. The winding numbers of the frequency-locked states reveal a Devil’s staircase structure, where a Farey tree showing the relations between the neighboring states is constructed.
Index Terms—Chaos, nonlinear systems, semiconductor lasers.
I. INTRODUCTION
N
ONLINEAR dynamical characteristics of semiconductor lasers have been studied intensively in recent years. Di-verse dynamical states found have been proposed to be uti-lized in various applications such as radar [1], lidar [2], [3], radio-over-fiber communications [4], and chaotic communica-tions [5]–[8]. For an optically injected laser with a master–slave configuration, bandwidth enhancement [9], [10], linewidth re-duction [11], [12], and noise suppression [13] phenomena have been observed. By controlling the injection strength and the frequency detuning between the master and the slave lasers, in-duced periodic oscillations and chaotic oscillations (COs) have been obtained [14], [15]. Both period doubling [16] and breakup of two tori [17] routes to chaos have been reported. However, although many efforts have been made to understand the char-acteristics of an optically injected semiconductor laser [18], re-searches are limited to the condition where the laser is injectedManuscript received November 3, 2008; revised November 27, 2008. Current version published June 5, 2009. This work was supported by the National Science Council of Taiwan under Contract NSC 97-2112-M-007-017-MY3.
F.-Y. Lin and S.-Y. Tu are with the Department of Electrical Engineering, Institute of Photonics Technologies, National Tsing Hua University, Hsinchu 300, Taiwan (e-mail: fylin@ee.nthu.edu.tw).
C.-C. Huang is with the Department of Mathematics, National Tsing Hua University, Hsinchu 300, Taiwan.
S.-M. Chang is with the Department of Applied Mathematics, National Chiao Tung University, Hsinchu 300, Taiwan (e-mail: smchang@math.nctu.edu.tw).
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/JSTQE.2008.2010558
Fig. 1. Schematic setup of a semiconductor laser under repetitive optical pulse injection. The variable attenuator is used to adjust the injection strength and the optical isolator is used to prevent the unwanted feedback.
with an optical signal of constant intensity. Few studies have been done on the nonlinear dynamics of a semiconductor laser subject to a nonconstant optical injection.
Nonconstant optical injection is important when a transmitter–receiver or a cascaded laser system is considered, in which the dynamical output of a transmitter laser can opti-cally inject into a receiver laser inevitably or even intentionally. With a chaotic optical injection, high-frequency broadband sig-nal generation has been demonstrated [19]. By injecting optical pulses at a subharmonic of the cavity round-trip frequency, a long-cavity-multisection semiconductor laser oscillating at its resonant frequency has been observed [20]. Repetitive pulses with twice the period have been observed in a Fabry–Perot laser subject to optical pulse injection [21]. Mode locking in broad-area semiconductor lasers by injecting optical pulses repeated at subharmonics of the lateral mode separation has been demon-strated [22]. In this paper, we study the complex dynamics of a semiconductor laser induced by optical pulses. By injecting a laser with a train of repetitive pulses, various dynamical states are shown and routes to chaos are identified. The dynamical mapping of the states is plotted and the bandwidths of the chaos states are investigated. Moreover, frequency locking phenomena driven by the pulse injection are also examined.
II. SIMULATIONMODEL
The schematic setup of an optical-pulse-injected semicon-ductor laser is shown in Fig. 1. The laser is injected by a train of optical pulses, where the repetition rate and the intensity of the pulse train are varied as the controllable parameters. The dynamics of the injected laser are simulated using the model described in [23] with the following normalized dimensionless rate equations: da dt = 1 2 γcγn γsJ˜ ˜ n− γp(2a + a2) (1 + a) + ξi(t)γccos(Ωt + φ) 1077-260X/$25.00 © 2009 IEEE
LIN et al.: NONLINEAR DYNAMICS OF SEMICONDUCTOR LASERS UNDER REPETITIVE OPTICAL PULSE INJECTION 605 dφ dt =− b 2 γcγn γsJ˜ ˜ n− γp(2a + a2) −ξi(t)γc 1 + a sin(Ωt + φ) d˜n dt =−γsn˜− γn(1 + a) 2n˜− γ sJ (2a + a˜ 2) +γsγp γc ˜ J (2a + a2)(1 + a)2
where a is the normalized field, φ is the optical phase, ˜n is the normalized carrier density, b is the linewidth enhancement factor, γc is the cavity decay rate, γsis the spontaneous carrier
decay rate, γn is the differential carrier relaxation rate, γp is
the nonlinear carrier relaxation rate, and ˜J is the normalized dimensionless injection current parameter. The dimensionless injection parameter ξi(t) = η|Ai(t)|/(γc|A0|) is the normalized
strength of the injection field received by the injected laser, where η is the coupling rate, Ai(t) is the complex amplitude of
the injection field, and A0is the complex field amplitude of the
injected laser at free running. The frequency detuning Ω is the frequency difference between the pulsed laser and the injected laser at free running.
For the repetitive injection pulse train, a Gaussian shape of ξi(t) with a peak injection strength ξp, a repetition
fre-quency frep, and a pulsewidth of 75 ps are considered.
Fol-lowing experimentally measured intrinsic dynamical parame-ters of a high-speed semiconductor laser [24] are used in the simulation: γc= 2.4× 1011s−1, γs= 1.458× 109s−1, γn =
3 ˜J× 109s−1, γ
p = 3.6 ˜J× 109s−1, and b = 4, while zero
de-tuning (Ω = 0) is assumed. The lasers are biased at a value of ˜J = 1/3, and the relaxation oscillation frequency [fr =
(γcγn + γsγp)1/2/2π] of the laser is about 2.5 GHz with
the aforementioned parameters. Second-order Runge–Kutta method with a sampling time of 2.38 ps is used to solve the coupled rate equations.
III. RESULTS
A. Nonlinear Dynamical States
When a laser is injected by a single optical pulse, induced oscillations in the laser output field are expected and the laser tends to relax back to its free-running state gradually if no successive pulse is further injected. However, if a train of optical pulses is injected into the laser with the time separation between each successive pulse being shorter than the relaxation time of the laser, the relaxed oscillation will be interrupted while the injected pulses perturb the optical field and phase abruptly. Hence, the nonlinear dynamics of an optical pulse injection system is expected to be strongly influenced by the intensity and the repetition frequency of the injected pulses.
Fig. 2 shows the time series, phase portraits, and power spec-tra of the dynamical states found in the optical pulse injection system. The dashed curves in the time series are the corre-sponding waveforms of the injected pulses showing the timing of injection, which are scaled for clarity. The phase diagrams in the second column are constructed by plotting the peak
values of intensities of the N th peak [P (N )] to the (N + 1)th peak [P (N + 1)] taken from the time series shown in the first column, which reveals the complex attractors of the states as time evolves. As can be seen in Fig. 2(a), for peak injection strength ξp and repetition frequency frep (in gigahertz) of
(ξp, frep) = (0.01, 3.0), a period-1 oscillation (P1O) state is
found and a single dot is shown in the phase diagram. The laser oscillates at the same frequency (3 GHz) as the repetition frequency frep of the injected pulses. Compared to the
oscilla-tion frequencies of the similar P1O states found in a laser with constant continuous-wave (CW) injection that increases as the injection strength increases, the oscillation frequencies of the P1O states found in our study are not affected by the injection strength (before the laser enters into another state) but are locked to the repetition frequency of the pulse injected. When ξp and
frepare both increased to (ξp, frep) = (0.02, 3.5), as shown in
Fig. 2(b), a period-2 oscillation (P2O) state is obtained and two dots are observed in the phase diagram. As can be seen, the laser now oscillates at about 2.33 GHz and an envelope in the time se-ries with a subharmonic frequency of the oscillation frequency is found. Further increases in ξp and frepdrive the laser into a
period-4 oscillation (P4O) and CO states, as shown in Fig. 2(c) and (d), respectively. Clearly, the laser follows a period-doubling route into chaos when the parameters of the injected pulses are varied.
While these oscillation states have also been observed in an injected laser subject to constant injection, pulsation states are also found in this pulse-injected laser system. Fig. 3 shows the time series, phase portraits, and power spectra of the pul-sation states observed. The dashed curves in the time series are the corresponding waveforms of the injected pulses show-ing the timshow-ing of injection, which are scaled for clarity. With (ξp, frep) = (0.13, 3.0), Fig. 3(a) shows the regular pulsing
[period-2 pulsation (P1P)] state, in which the laser pulses repet-itively at the frequency of frep. When frepdecreases, a period-2
pulsation (P2P) state that has a subharmonic envelope in the time series is observed. Further reducing frep drives the laser
pulses with the fourth harmonic frequency [period-4 pulsation (P4P)] and goes into chaotic pulsing state [chaotic pulsation (CP)] eventually through a similar period-doubling route as in the oscillation counterpart. These pulsation states are clearly distinguishable from the oscillation states such that the peak intensity of the pulsation states is higher and it drops to zero between each subsequent pulse. Note that with repetitive pulse injection, these states, shown in Figs. 2 and 3, are not tran-sient states but states with dynamical stability. Moreover, while all the spectral harmonics of the injected pulses inevitably affect the laser dynamics implicitly, the lower harmonics, especially the first harmonic frequency frep, predominate due to both their
larger amplitudes and higher responses near the relaxation os-cillation frequency of the laser.
To show the regions of different dynamical states (as shown in Figs. 2 and 3) occupied in the parameter space, a mapping is plotted in Fig. 4(a). As can be seen, regions of different dynam-ical states are identified, while the period-doubling routes for the oscillation states and the pulsation states can be traced. As shown in the mapping, the oscillation states are generally found

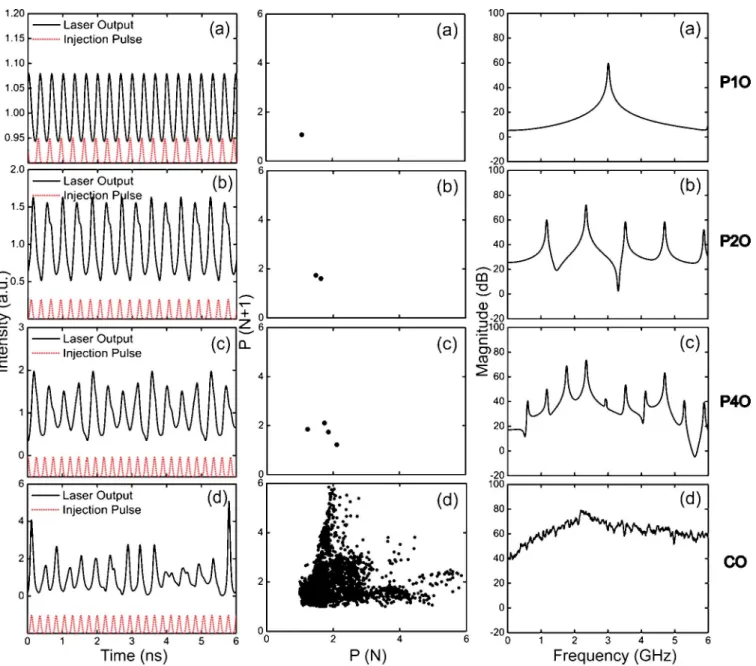

Fig. 2. Time series, phase portraits, and power spectra of different oscillation states with (ξp, fre p). (a) P1O (0.01, 3.0). (b) P2O (0.02, 3.5). (c) P4O (0.03, 3.8).
(d) CO (0.04, 4.0). The dashed curves in the time series are the corresponding waveforms of the injected pulses showing the timing of injection, which are scaled for clarity.
in the weak injection regime (ξp < 0.1), while the pulsation
states are observed in the stronger injection regime (ξp > 0.1).
As ξp increases, the laser output gradually transforms from
os-cillations into pulsations as the duty cycle of the waveforms decreases. Note that a belt of complex dynamical states, namely the CO and the CP states, is found stretching from the regime of weak injection–high repetition rate (>2.5 GHz) to the regime of strong injection–low repetition rate (<2.5 GHz). Within the belt, the CO states gradually transform into the CP states as ξp
increases. To quantify the complexity of these states, Fig. 4(b) plots the corresponding largest Lyapunov exponents. As can be seen, while the P1P states in the upper right corner have negative Lyapunov exponents, positive Lyapunov exponents are found for the states showing complex dynamics seen in Fig. 4(a). Within the belt, CO states found in the upper left corner have the
largest Lyapunov exponents and thus reveal their high complex-ities. While the behaviors and nonlinear dynamical character-istics for different frequency detunings are generally different, for simplicity, we show only the dynamical states and the cor-responding mapping obtained with a single frequency detuning Ω = 0, and emphasize the effects of the repetition frequency and the injection strength of the injected pulses. In all aspects, however, frequency detuning is, no doubt, a significant param-eter affecting the laser dynamics as one would expect in a CW optical injection case. Detailed investigation on the effect of frequency detuning in a pulse-injected laser will be reported separately.
While some applications utilize chaos states to take the ad-vantages of their high complexities for security reasons [5], [6], other applications, such as CLIDAR [2] and CRADAR [1],
LIN et al.: NONLINEAR DYNAMICS OF SEMICONDUCTOR LASERS UNDER REPETITIVE OPTICAL PULSE INJECTION 607

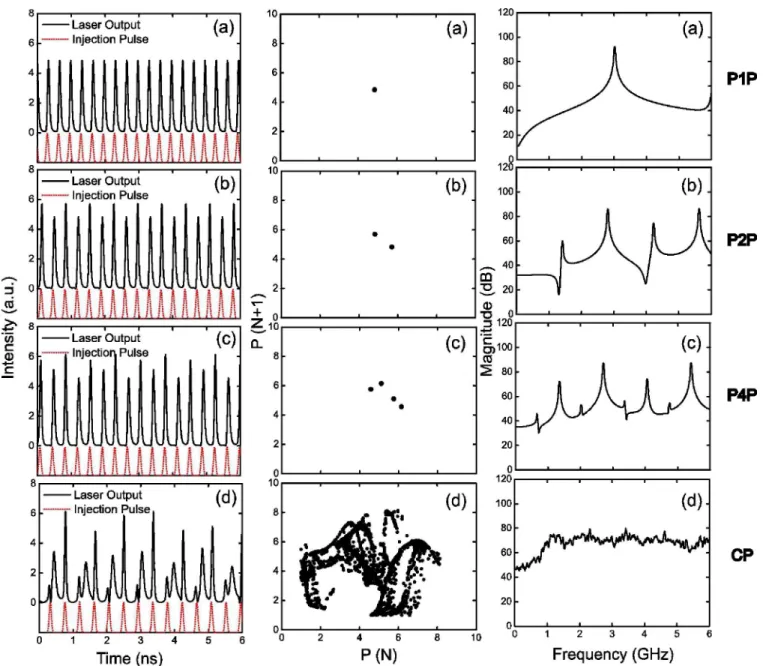

Fig. 3. Time series, phase portraits, and power spectra of different pulsation states with (ξp, fre p). (a) P1P (0.13, 3.0). (b) P2P (0.15, 2.8). (c) P4P (0.16, 2.7).
(d) CP (0.17, 2.3). The dashed curves in the time series are the corresponding waveforms of the injected pulses showing the timing of injection, which are scaled for clarity.
solely demand large-amplitude random signals with continu-ous broad bandwidths. As can be seen in Figs. 2(d) and 3(d), chaotic signals with continuous broad bandwidths can be in-duced through optical pulse injection. The bandwidths of these chaos states, CO and CP, found in the dynamical mapping are therefore examined. Fig. 5 plots the bandwidths of the chaos states with different parameters of the injected pulses. Due to the noise-like nature of the chaos states, the bandwidth of a chaos state is defined as the frequency span such that 80% of the energy is contained within. As can be seen, the bandwidths of the chaos states increase as ξpincreases. Compared with the
CO states found at the weak injection regime, the bandwidths of the CP states observed at the strong injection regime have bandwidths that are two to four times broader. For ξp = 0.3,
chaos states with bandwidths as high as 14 GHz can be obtained for the laser with fr= 2.5 GHz.
B. Frequency Locking Phenomenon
Frequency locking can occur in nonlinear systems when a driving frequency is an integer multiple or submultiple of an intrinsic frequency. If the two competing frequencies are, how-ever, incommensurate, quasi-periodic oscillations are present instead. For semiconductor lasers, frequency locking has been found in dc-modulated self-pulsing lasers [25] and external cav-ity lasers [26], where the pulsation frequency and the resonant frequency of the external cavity are locked to an RF modula-tion frequency, respectively. By feeding back the laser output optoelectronically through the bias current, harmonic frequency locking phenomenon has also been observed [27].
While all these previous studies involve electronic modula-tions through the bias current of the lasers, the phenomenon of semiconductor lasers subject to optical pulse injection is
Fig. 4. (a) Mapping and corresponding (b) Lyapunov exponents of the dy-namical states in the parameter space.

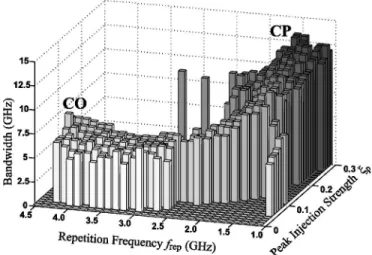

Fig. 5. Bandwidths of the CO states and CP states.
explored the first time. Instead of locking a laser by sending a modulation frequency through the bias current electronically, frequency locking driven by injecting optical pulses is inves-tigated. Without the limitation of electronic bandwidths, the regions where the repetition frequency of the optical pulses is below and above the relaxation oscillation frequency of the laser are both examined.
Fig. 6. Time series and power spectra of the frequency-locked states with ξp=
0.02 and fre p= (a) 1 GHz (ρ = 3/1), (b) 1.5 GHz (ρ = 2/1), (c) 1.65 GHz
(ρ = 3/2), and (d) 3 GHz (ρ = 1/1), respectively. The dashed curves in the time series are the injection pulse train, which are scaled for clarity. The arrows in the power spectra indicate fre p.
Fig. 6 shows the time series and power spectra of the output of a semiconductor laser under repetitive optical pulse injec-tion with the normalized peak injecinjec-tion strength ξp fixed at
0.02, while the repetition frequency frep is varied from 1 to
3 GHz. Here, fo is determined both from the highest peak
seen in the power spectrum and the oscillation time inter-val shown in the time series. For frep= 1 GHz, as shown in
Fig. 6(a), a frequency-locked oscillation with an oscillation fre-quency fo = 3 GHz is observed. The winding number, defined
as ρ = fo/frep, has a rational value p/q = 3/1 meaning that
the oscillation frequency (fo) of the laser output locks to the
third harmonic of the repetition frequency (3frep) of the
in-jected pulses. The variables p and q are, respectively, integer numbers defining the order of harmonics of foand frepin terms
of the integer multiples of the lowest frequency peak seen in the spectrum. By increasing frep to 1.5 and 1.65 GHz,
frequency-locked oscillations with ρ = 2/1 and 3/2, as shown in Fig. 6(b) and (c), are found. Further increasing frep to 3 GHz drives the
laser into a P1O state with ρ = 1/1, as shown in Fig. 6(d), in which the laser oscillates sinusoidally at frep. In this system,
the repetition frequency is interacting and competing with the intrinsic relaxation oscillation frequency of the laser through the injected pulses. While the repetition frequency is a hard fixed
LIN et al.: NONLINEAR DYNAMICS OF SEMICONDUCTOR LASERS UNDER REPETITIVE OPTICAL PULSE INJECTION 609
Fig. 7. Time series and power spectra of the frequency-locked states with
ξp= 0.02 and fre p= (a) 3.5 GHz (ρ = 2/3), (b) 3.85 GHz (ρ = 3/5),
(c) 4.4 GHz (ρ = 1/2), and (d) 7 GHz (ρ = 1/3), respectively. The dashed curves in the time series are the injection pulse train, which are scaled for clarity. The arrows in the power spectra indicate fre p.
value determined by the external injected pulses, the oscillation frequency of the laser is rather flexible. In a frequency-locked condition, fo can be either pulled or pushed away from the
intrinsic relaxation oscillation frequency frof the free-running
condition and maintains commensurate to frepwith a Farey
frac-tion within a certain tuning range. Nonetheless, the laser shows the tendency to oscillate in a frequency near fr(2.5 GHz in our
case). As a result, for different frep, frequency-locked states of
different winding numbers are observed where fotends to lock
to the harmonics of frep while staying close to fr at the same
time.
Unlike the modulation frequency of a current-modulated semiconductor laser, which is inevitably limited by the mod-ulation bandwidth, the repetition frequency of the injected op-tical pulses can exceed the relaxation oscillation frequency of the laser without the constraint. Fig. 7 shows that the time series and power spectra of the frequency-locked oscillations found for frep vary from 3 to 7 GHz. For frep = 3.5 GHz, a
frequency-locked state with ρ = 2/3 is observed. Frequency-frequency-locked states of ρ = 3/5, 1/2, and 2/6 (1/3) are also shown in Fig. 7(b)–(d), respectively, where fo is the subharmonic of frep. As can be
seen in Fig. 7(c), a P1O is observed where fo is exactly
one-half of frep for the injected pulses. For frepas high as 7 GHz,
Fig. 8. (a) Order of harmonics of fre p(opened circle) and fo (closed circle)
and (b) winding numbers of the frequency-locked oscillation states found for different repetition frequencies, where the widths of the intervals represent the ranges of locking. The upper right corner of (b) shows the Farey tree constructed by the Farey fractions of the corresponding frequency-locked states observed.
frequency-locked state can still be found where the oscillation frequency is locked to the repetition frequency with ρ = 2/6 (=1/3). Different from a pure ρ = 1/3 state, the ρ = 2/6 state shown in Fig. 7(d) has a subharmonic at 1 GHz, which doubles the period of the oscillation cycle. Note that as the repetition frequency of the injection pulses becomes higher, the behavior of the injected laser gradually becomes similar to a laser injected by high-frequency sinusoidal excitation. However, unlike small-signal modulations, the laser is, in fact, under a high-frequency modulation with a very large modulation depth, where the injec-tion strength goes to almost zero between each successive pulse. To the best of our knowledge, this is the first study on frequency locking of semiconductor lasers with an external frequency ex-ceeding the relaxation oscillation frequency. For these states, the laser output still oscillates around the relaxation oscillation frequency as that in the low-repetition-frequency cases shown in Fig. 6.
To investigate the relation between each of these frequency-locked states, Fig. 8(a) plots the order of harmonics of frep
(opened circle) and fo (closed circle) for the frequency-locked
states observed. In the low-repetition-frequency regime, the or-der of foexceeds the order of frep. As can be seen, when frep
exceeds about 3 GHz, the order of frepexceeds the order of fo.
Orders as high as 8 for frep and 5 for fo are obtained in our
study. For frequency-locked states with even higher orders, the ranges of locking become very narrow. While the orders of frep
and fo do not show a clear trend, their ratio (winding number
ρ) reveals the relation between each of the neighboring states. Fig. 8(b) plots the winding number of the frequency-locked states found for different repetition frequencies, where the widths of the intervals represent the ranges of locking. As can be seen, the locking states show a Devil’s staircase struc-ture [28], [29], i.e., ρ decreases monotonically as frepincreases.

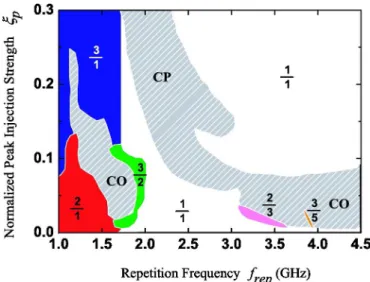

Fig. 9. Regions of frequency-locked states of different ξp and fre p. The
shaded areas are the nonfrequency-locked regions (CO and CP).
A Farey tree containing the observed Farey fractions [26] is also plotted in the upper right corner showing the relation be-tween each state. For frepbelow the relaxation oscillation
fre-quency of the laser, ρ = n + p/q with n = 1, 2, and 3 are found. For frep above the relaxation oscillation frequency,
frequency-locked states with pure Farey fractions (n = 0) are obtained. Note that while frequency-locked states with various orders are widely found in the weak injection condition considered (ξp = 0.02), finding frequency-locked states with higher order
becomes difficult when the injection is stronger. Fig. 9 shows the regions occupied by the frequency-locked states of different ρ with different ξp and frep for stronger injection (up to ξp =
0.30). As can be seen, with stronger injection, the laser tends to lock directly with the injected pulses so that the locking states of ρ = 1/1 (fo = frep) dominate. High-order frequency-locked
states are hardly seen when ξp > 0.1.
IV. CONCLUSION
We have numerically studied the nonlinear dynamics of a semiconductor laser under repetitive optical pulse injection. With the injection of a train of repetitive optical pulses, a semi-conductor laser exhibits complex dynamics and it follows a period-doubling route to chaos. Both CO states and CP states are found, among which the CP states have broader bandwidths. Bandwidths as high as 14 GHz have been obtained for the CP states with ξp = 0.30. By varying the repetition frequency of the
injected pulses, frequency-locked states with different winding numbers have also been investigated. The winding numbers re-veal a Devil’s staircase structure, and the Farey tree constructed by the Farey fractions shows the relation between each neighbor-ing frequency-locked state. For a wide range of repetition fre-quency spanning from 1 to 7 GHz, the oscillation frequencies of the frequency-locked states are found to remain bounded close to the relaxation oscillation frequency of the laser. In the strong injection region, the laser tends to synchronize with the injected pulses and the frequency-locked states of ρ = 1/1 dominate.
For the states found in this pulse-injected laser, the chaos states can be used in applications demanding broad bandwidths such as ultra-wideband communications and precise range finding, while the periodic oscillation states and the frequency locking states can be used in applications such as clock generation and recovery, wavelength conversion, and frequency stabilization.
REFERENCES
[1] F. Y. Lin and J. M. Liu, “Chaotic radar using nonlinear laser dynamics,”
IEEE J. Quantum Electron., vol. 40, no. 6, pp. 815–820, Jun. 2004.
[2] F. Y. Lin and J. M. Liu, “Chaotic lidar,” IEEE J. Sel. Topics Quantum
Electron., vol. 10, no. 5, pp. 991–997, Oct. 2004.
[3] R. Diaz, S. C. Chan, and J. M. Liu, “Lidar detection using a dual-frequency source,” Opt. Lett., vol. 31, pp. 3600–3602, 2006.
[4] S. C. Chan, S. K. Hwang, and J. M. Liu, “Radio-over-fiber AM-to-FM upconversion using an optically injected semiconductor laser,” Opt. Lett., vol. 31, pp. 2254–2256, 2006.
[5] C. R. Mirasso, P. Colet, and P. Garcia-Fernandez, “Synchronization of chaotic semiconductor lasers: Application to encoded communications,”
IEEE Photon. Technol. Lett., vol. 8, no. 2, pp. 299–301, Feb. 1996.
[6] I. Fischer, Y. Liu, and P. Davis, “Synchronization of chaotic semiconductor laser dynamics on subnanosecond time scales and its potential for chaos communication,” Phys. Rev. A, vol. 62, pp. 011801-1–011801-4, 2000. [7] A. Argyris, D. Syvridis, L. Larger, V. Annovazzi-Lodi, P. Colet,
I. Fischer, J. Garcia-Ojalvo, C. R. Mirrasso, L. Pesquera, and K. A. Shore, “Chaos-based communications at high bit rates using commercial fibre-optic links,” Nature, vol. 438, pp. 343–346, 2005.
[8] F. Y. Lin and M. C. Tsai, “Chaotic communication in radio-over-fiber transmission based on optoelectronic feedback semiconductor lasers,”
Opt. Exp., vol. 15, pp. 302–311, 2007.
[9] J. Wang, M. K. Haldar, L. Li, and F. V. C. Mendis, “Enhancement of modulation bandwidth of laser diodes by injection locking,” IEEE Photon.
Technol. Lett., vol. 8, no. 1, pp. 34–36, Jan. 1996.
[10] X. J. Meng, T. Chau, and M. C. Wu, “Experimental demonstration of modulation bandwidth enhancement in distributed feedback lasers with external light injection,” Electron. Lett., vol. 34, pp. 2031–2032, 1998. [11] A. Takada and W. Imajuku, “Linewidth narrowing and optical phase
con-trol of mode locked semiconductor ring laser employing optical injection locking,” IEEE Photon. Technol. Lett., vol. 9, no. 10, pp. 1328–1330, Oct. 1997.
[12] F. Mogensen, H. Olesen, and G. X. Jacobsen, “FM noise suppression and linewidth reduction in an injection-locked semicondcutor-laser,”
Elec-tron. Lett., vol. 21, pp. 696–697, 1985.
[13] K. Inoue and K. Oda, “Noise suppression in wavelength conversion using a light-injected laser-diode,” IEEE Photon. Technol. Lett., vol. 7, no. 5, pp. 500–501, May 1995.
[14] S. Eriksson and A. M. Lindberg, “Periodic oscillation within the chaotic region in a semiconductor laser subjected to external optical injection,”
Opt. Lett., vol. 26, pp. 142–144, 2001.
[15] T. B. Simpson, “Mapping the nonlinear dynamics of a distributed feedback semiconductor laser subject to external optical injection,” Opt. Commun., vol. 215, pp. 135–151, 2003.
[16] T. B. Simpson, J. M. Liu, A. Gavrielides, V. Kovanis, and P. M. Alsing, “Period-doubling route to chaos in a semiconductor-laser subject to optical-injection,” Appl. Phys. Lett., vol. 64, pp. 3539–3541, 1994. [17] B. Krauskopf, S. Wieczorek, and D. Lenstra, “Different types of chaos
in an optically injected semiconductor laser,” Appl. Phys. Lett., vol. 77, pp. 1611–1613, 2000.
[18] S. Wieczorek, B. Krauskopf, T. B. Simpson, and D. Lenstra, “The dynam-ical complexity of optdynam-ically injected semiconductor lasers,” Phys. Rep., vol. 416, pp. 1–128, 2005.
[19] A. Uchida, T. Heil, Y. Liu, P. Davis, and T. Aida, “High-frequency broad-band signal generation using a semiconductor laser with a chaotic optical injection,” IEEE J. Quantum Electron., vol. 39, no. 11, pp. 1462–1467, Nov. 2003.
[20] Y. J. Wen, H. F. Liu, and D. Novak, “Optical signal generation at millimeter-wave repetition rate using semiconductor lasers with pulsed subharmonic optical injection,” IEEE J. Quantum Electron., vol. 37, no. 9, pp. 1183–1193, Sep. 2001.
[21] Y. P. Zhao, Y. C. Wang, M. J. Zhang, Y. An, and J. L. Wang, “Period doubling in a Fabry–Perot laser diode subject to optical pulse injection,”
LIN et al.: NONLINEAR DYNAMICS OF SEMICONDUCTOR LASERS UNDER REPETITIVE OPTICAL PULSE INJECTION 611
[22] J. Kaiser, I. Fischer, and W. Elsasser, “Mode locking of lateral modes in broad-area semiconductor lasers by subharmonic optical pulse injection,”
Appl. Phys. Lett., vol. 88, pp. 101110-1–101110-3, 2006.
[23] F. Y. Lin and J. M. Liu, “Diverse waveform generation using semicon-ductor lasers for radar and microwave applications,” IEEE J. Quantum
Electron., vol. 40, no. 6, pp. 682–689, Jun. 2004.
[24] J. M. Liu and T. B. Simpson, “Four-wave mixing and optical modulation in a semiconductor laser,” IEEE J. Quantum Electron., vol. 30, no. 4, pp. 957–965, Apr. 1994.
[25] H. G. Winful, Y. C. Chen, and J. M. Liu, “Frequency locking, quasiperi-odicity, and chaos in modulated self-pulsing semiconductor lasers,” Appl.
Phys. Lett., vol. 48, pp. 616–618, 1986.
[26] D. Baums, W. Els¨asser, and E. O. G¨obel, “Farey tree and Devil’s staircase of a modulated external-cavity semiconductor laser,” Phys. Rev. Lett., vol. 63, pp. 155–158, 1989.
[27] F. Y. Lin and J. M. Liu, “Harmonic frequency locking in a semiconductor laser with delayed negative optoelectronic feedback,” Appl. Phys. Lett., vol. 81, pp. 3128–3130, 2002.
[28] T. Gilbert and R. Gammon, “Stable oscillations and Devil’s staircase in the Van der Pol oscillator,” Int. J. Bifurcation Chaos, vol. 10, pp. 155–164, 2000.
[29] M. Jensen, P. Bak, and T. Bohr, “Complete Devils staricase, fractal di-mension, and universality of mode locking structure in the circle map,”
Phys. Rev. Lett., vol. 50, pp. 1637–1639, 1983.
Fan-Yi Lin (M’08) was born in Hsinchu, Taiwan. He
received the B.S. degree in electrophysics from the National Chiao Tung University, Hsinchu, in 1997, and the M.S. and Ph.D. degrees in electrical engineer-ing from the University of California, Los Angeles, in 2001 and 2004, respectively.
He is currently an Assistant Professor in the De-partment of Electrical Engineering, Institute of Pho-tonics Technologies, National Tsing Hua University, Hsinchu. His current research interests include non-linear laser dynamics, optoelectronics, and lidar and radar systems.
Shiou-Yuan Tu was born in Taipei, Taiwan. He
re-ceived the B.S. degree in physics from the National Changhua University of Education, Changhua, Tai-wan, in 2005, and the M.S. degree from the Institute of Photonics Technologies, National Tsing Hua Uni-versity, Hsinchu, Taiwan, in 2007.
He is currently with the Department of Electri-cal Engineering, Institute of Photonics Technologies, National Tsing Hua University. His current research interests include semiconductor lasers and communi-cation systems.
Chien-Chih Huang was born in Taipei, Taiwan.
He received the B.S. degree in mathematics from Tamkang University, Taipei, Taiwan, in 1998, and the M.S. degree in mathematics in 2000 from the Na-tional Tsing Hua University, Hsinchu, Taiwan, where he is currently working toward the Ph.D. degree at the Department of Mathematics.
His current research interests include chaotic dy-namical systems and chaotic cryptosystems.
Shu-Ming Chang received the Ph.D. degree in
math-ematics from the National Tsing Hua University, Hsinchu, Taiwan, in 2003.
He is currently an Assistant Professor in the De-partment of Applied Mathematics, National Chiao Tung University, Hsinchu. His current research inter-ests include numerical analysis and scientific compu-tation.
