Opening an Electrical Band Gap of
Bilayer Graphene with Molecular
Doping
Wenjing Zhang,†,)Cheng-Te Lin,†,)Keng-Ku Liu,†Teddy Tite,†Ching-Yuan Su,†Chung-Huai Chang,‡ Yi-Hsien Lee,†Chih-Wei Chu,†Kung-Hwa Wei,§Jer-Lai Kuo,‡and Lain-Jong Li†,^,*
†Research Center for Applied Sciences, Academia Sinica, Taipei, 11529, Taiwan,‡Institute of Atomic and Molecular Sciences, Academia Sinica, Taipei, 106, Taiwan, §
Department of Material Science and Engineering, National Chiao Tung University, Hsinchu 300, Taiwan, and^Department of Photonics, National Chiao Tung University, HsinChu 300, Taiwan. )These authors contributed equally.
T
he existence of monolayer graphene was discovered recently through me-chanical exfoliation of graphite.1 Itsunique electrical, physical, and optical prop-erties attract a variety of fundamental stud-ies and promise many applications.24As the valence and conduction bands are de-generate at the K point of the Brillouin zone (named the Dirac point), graphene is known as a gapless semiconductor. The “lack of energy gap” in its electronic structure di-rectly leads to its low onoff current ratio in transfer curves, typically <10 at room temperature.5Thus, the opening of an elec-trical bandgap in graphene is crucial for its application for logic circuits and photonic devices.6,7To break the energy degeneracy of the two electronic bands at the K points, various graphene superstructures with a strong quantum confinement effect, such as graphene nanoribben,810 graphene quan-tum dots,11,12 and graphene nanomesh13 have been proposed. In other words, the band gap opening is expected if the gra-phene sheets are patterned into tens of nanometer size. It is also observed that the energy gap depends on the width and crys-tallographic orientation of the graphene superstructures.14However, reliable top-down fabrication of such small structures (<10 nm) is not possible even with state-of-the art nanolithography tools. Anostate-of-ther possi-bility to induce the band gap is to break the translational symmetry of the graphene lattice.15Several groups have reported the pres-ence of a band gap in monolayer graphene by using suitable underlying substrates,16 electrical gating,17 hydrogenation,1820 or putting molecules on graphene.2125 Op-tical method, angle-resolved photoemission spectroscopy (ARPES) has been used to reveal the band gap induced by molecular doping
on expitaxial graphene grown on SiC sub-strates.2629Yavari et al. have also indirectly observed the band gap of monolayer gra-phene by extracting the activation energy in temperature-variation transport for the gra-phene adsorbed with water molecules.30The band gap opening in these studies has been speculated to be a result of breaking sublattice and molecular symmetry of graphene by sub-strates as well as the molecular arrangement on top of graphene. Although various mol-ecules have been used to open the band gap of monolayer graphene from 3027to 200 meV,30 the on/off current ratio enhancement of the monolayer device is barely seen in the literature. It is believed that the electrical gaps obtained from the graphene layers are often smaller than their optical band gaps, suggesting that interband trapping
* Address correspondence to [email protected]. Received for review July 4, 2011 and accepted August 6, 2011. Published online
10.1021/nn202463g
ABSTRACT The opening of an electrical band gap in graphene is crucial for its application for logic circuits. Recent studies have shown that an energy gap in Bernal-stacked bilayer graphene can be generated by applying an electric displacementfield. Molecular doping has also been proposed to open the electrical gap of bilayer graphene by breaking either in-plane symmetry or inversion symmetry; however, no direct observation of an electrical gap has been reported. Here we discover that the organic molecule triazine is able to form a uniform thin coating on the top surface of a bilayer graphene, which efficiently blocks the accessible doping sites and prevents ambient p-doping on the top layer. The charge distribution asymmetry between the top and bottom layers can then be enhanced simply by increasing the p-doping from oxygen/moisture to the bottom layer. The on/off current ratio for a bottom-gated bilayer transistor operated in ambient condition is improved by at least 1 order of magnitude. The estimated electrical band gap is up to∼111 meV at room temperature. The observed electrical band gap dependence on the hole-carrier density increase agrees well with the recent density-functional theory calculations. This research provides a simple method to obtain a graphene bilayer transistor with a moderate on/off current ratio, which can be stably operated in air without the need to use an additional top gate.
KEYWORDS: bilayer graphene . band gap opening . transistor . Raman spectroscopy . doping . on/off current ratio . triazine
states may exist, which leads to the degradation of on/off characteristics.31
On the other hand, although the band structure of an ideal bilayer graphene is gapless, an energy gap can be developed in the presence of an on-site energy difference between the top and bottom layers. It has been shown that the energy gap can be generated and controlled by applying an electric displacementfield using an additional gate electrode.3238Similarly, an interlayer electric field can also be induced by the charge redistribution or by placing charges on the top and bottom layers, which yields the charge asym-metry between the top and bottom layers.29Although theoretical calculations have predicted that the band gap of a bilayer graphene can be tuned by altering the doping charge,39only ARPES experimental results are available.29 Also, this doping experiment was per-formed in a high vacuum with an aggressive potassium dopant. In this contribution, we demonstrate that the stable organic molecule triazine can be thermally evaporated onto the top surfaces of a bilayer gra-phene, where the triazine molecules occupy the ac-cessible doping on the top layer. Thus, the charge distribution asymmetry between top and bottom layers can be enhanced simply by increasing the p-doping from oxygen/moisture to the bottom layer. The on/off current ratio for a bottom-gated bilayer transistor operated in ambient conditions can be im-proved by at least 1 order of magnitude with triazine decoration. The estimated electrical band gap is up to ∼111 meV. The observed relation between band gap and hole-carrier increase agrees with the recent den-sity-functional theory (DFT) calculations as well as the early ARPES experiment on bilayer graphene using aggressive potassium doping.29
RESULTS AND DISCUSSION
Monolayer and bilayer graphenes were mechani-cally exfoliated from natural graphiteflakes (purchased from NGS) and then transferred to 300 nm SiO2on
highly doped Si substrates. We verified the graphene layers using Raman spectroscopy and atomic force microscopy (AFM) as previously described.40,41 The field effect transistors were prepared by directly eva-porating 1 nm of Cr and 50 nm of Au as the source and drain electrodes on top of the graphenefilms using hard masks. Figure 1a shows the photo of a bilayer graphene device. An organic molecule such as 1,3, 5-triazine (abbreviated as triazine here) or tetracyano-quinodimethane (TCNQ) was thermally evaporated onto graphenefilms at 150 and 200 C, respectively. Figure 1b schematically illustrates the setup for the evaporation process, where the molecules are placed in a vessel that is connected to another vessel for hosting graphene samples. These two vessels were initially isolated by a valve and separately pumped to
vacuum for 0.5 h to remove the air in the vessels. The setup was then sealed and placed in a preheated oven. Molecules were then allowed to diffuse onto graphene surfaces after switching on the isolation valve. The evaporation period was around 8 h. Figure 1c and d show the AFM images and cross-section profiles of height for a bilayer graphene edge before and after triazine evaporation for 8 h. The increase in graphene thickness from AFM measurement demonstrates that the triazine forms a uniform thinfilm on graphene, and it is at least 1.25 nm thick. Note that after evaporation, some sparsely distributed triazine particles and islands are formed on the SiO2surfaces. To further understand
the effect of molecular decoration on graphene sur-face, we measure the contact angle for freshly cleaved highly oriented pyrolytic graphite (HOPG) and those decorated with triazine and TCNQ, as shown in Figure 1e. The increase of hydrophobicity (increase in contact angle from 71.9 to 93.4 or 95.4) evidences the success of molecular decoration on graphene.
Figure 2a shows the transfer characteristics (drain current Idvs gate voltage Vg) for a bilayer graphene
device before and after decorating with triazine. The on/off current ratio for the pristine bilayer is 10.8 in air, and it slightly increases to 12.4 when the measurement is performed in a vacuum of 2 105Torr. It is noted that the on current increases but the off current decreases after decoration. This indicates that the change in grapheneelectrode contact resistance, which typically results in simultaneous decrease or increase in on and off currents, is not the dominating factor. Meanwhile, the gate voltage corresponding to the charge neutrality point (VCNP), the valley point in
the transfer curve, is 13 V in a vacuum and it increases to 28 V in air, suggesting that the device becomes slightly more p-doped in air.4245It is noted that hole (p) doping in ambient has been well explained by intrinsic graphene screening of charge at the gra-phene/SiO2substrate interface.46,47Moreover, Ryu et
al. have done careful experiments and suggested that oxygen moieties withdraw electrons from graphene. Water vapor does not dope graphene noticeably, but it greatly promotes the hole doping caused by oxygen.42
After decoration with triazine, the on/off current ratio increases to 55 measured in air, suggesting that the electrical gap is opened. Interestingly, the on/off cur-rent ratio is maximum in air (∼55), and it decreases with the decreasing pressure of electrical measure-ment, i.e., on/off ∼30 at 2 105Torr and∼20 at 3.4 106Torr. It seems that a higher on/off current ratio is associated with a more positive VCNP. Also, we observe
that the increasing exposure time in pure oxygen and ambient air results in the right shifts of VCNPand the
enhancements of on/off current ratio (supporting Fig-ure S2 and S3), indicating that the ambient doping from oxygen or water plays a key role in enhancing the on/off current ratio of bilayer graphene. Another

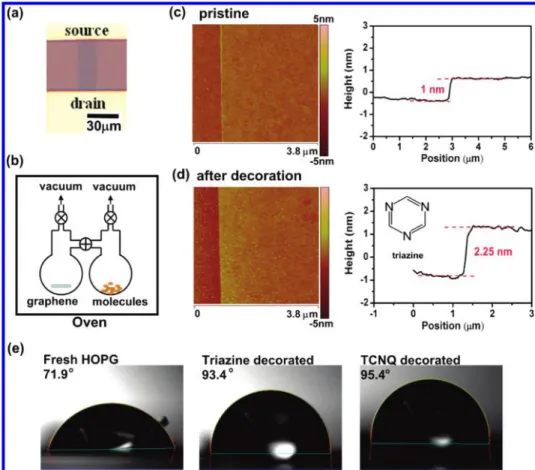

Figure 1. (a) Photo of a bilayer graphene device. (b) Schematic illustration of the setup for the evaporation process, where the molecules and graphene are placed in separate vessels connected by a valve. These vessels are placed in a preheated oven (c, d) AFM images and cross-section profiles of height for a bilayer graphene device edge (c) before and (d) after triazine evaporation at 150C for 8 h. (e) Contact angle results for freshly cleaved highly oriented pyrolytic graphite (HOPG) and those decorated with triazine and TCNQ.
Figure 2. (a, b) Transfer characteristics (drain currentIdvs gate voltageVg) for a bilayer graphene device before and after
decorating with triazine (measured at different conditions). (c, d) Transfer characteristics for a monolayer graphene device before and after decorating with triazine.
noticeable change in transfer characteristics after tria-zine decoration is the decrease of field-effect hole mobility. Figure 2b replots the curves of Figure 2a to a linear scale. The field-effect mobility of holes was extracted on the basis of the slopeΔId/ΔVgfitted to
the linear regime of the transfer curves using the equation μ = (L/WCoxVd)(ΔId/ΔVg), where L and W
are the channel length and width and Coxthe gate
capacitance.48As expected by the impurity scattering model,48,49the hole mobility in air was decreased from 4128 to 3109 cm2/(V s) after decoration, which is likely due to charge scattering effects from the organic molecules, oxygen/moisture, and the enhanced inter-action between graphene and the SiO2 substrate
caused by the thermal heating42 in the evaporation
process. Note that the values offield-effect mobility could be higher than those obtained by Hall effect measurements. Due to that, the fabrication of a Hall bar on exfoliated bilayer graphene requires the use of lithographic processes, which unavoidably introduces photoresist residues on graphene, disrupting the mo-lecular decoration. Hence, Hall mobility measurements for the devices were not performed.
In addition, we address the fact that moisture should be present at the graphene/SiO2interface. Supporting
Table S1 shows that the hysteresis in the transfer curves, where we define it as the gate voltage differ-ence between the forward and reverse scans when the drain current equals (on currentþ off current)/2, as shown in supporting Figure S4., increases with the pressure of the electrical measurement. Shi et al. have reported that the oxygen adsorption does not result in hysteresis change but moisture does.43Thus, the hys-teresis increase with doping shown in supporting Table S1 agrees well with moisture being present in the interface between bottom layer graphene and the SiO2substrate, as suggested by Ryu et al.42
Before we discuss the origin of the on/off current ratio increase for bilayer graphene, it is informative to see how triazine molecules affect the monolayer gra-phene device. For comparison, Figure 2c and d, re-spectively, show the logarithmic and linear scale transfer curves for a monolayer graphene device be-fore and after triazine decoration. The on/off current ratio for the pristine monolayer device is∼10 in air, and it is∼17.4 in a vacuum of 2 105Torr. Similar to bilayer graphene devices, the VCNPfor the monolayer
device after triazine decoration positively shifts with the exposure to air. However, its on/off current ratio is still at around 15.917.4, not showing a significant enhancement. Meanwhile, the carrier mobility de-creases with the triazine decoration, similar to the bilayer graphene. Note that we have performed tria-zine decoration on four separate monolayer graphene devices, and it is concluded that triazine decoration shows unpronounced on/off current ratio enhance-ment for monolayer graphene devices. Although
various molecules have been used to open the band gap of monolayer graphene,27,30the significant on/off current ratio enhancement of the monolayer device is barely seen in the literature. DFT calculations are used to evaluate the effect of triazine decoration on in-plane symmetry breaking of graphene. Our DFT calculations show that the band gap for the triazine-decorated monolayer graphene varies from 0.4 to 63 meV, mean-ing that the gap may or may not open, dependmean-ing on the triazine/graphene stacking configuration (supporting Figure S5 for details). The very limited on/off current ratio increase in Figure 2c indicates that the triazine arrangement on graphene is perhaps not in a preferred stacking configuration for gap opening. Our results also suggest that the gap opening in bilayer graphene may not be from the direct in-plane sym-metry breaking caused by molecular adsorption. An alternative cause is therefore taken into considera-tion; that is, the interlayer electricfield, built up by the charge asymmetry on the top and bottom layers, can also generate an energy gap.39Tian et al. have per-formed detailed calculations for F4-TCNQ decoration on bilayer graphene, and they conclude that the doping effect from F4-TCNQ molecules produces a built-in electric field between the two graphene layers.50This interfacial electricfield yields the asym-metry between the two graphene layers and results in a significant band gap opening. Hence, molecular doping effects are considered in the following paragraphs.
To further verify the role of triazine molecules on the observed electrical gap opening for bilayer graphene shown in Figure 2a, it is necessary to discuss the pure thermal heating effect because in our process the bilayer samples were heated to 150C during the triazine evaporation. The effect of thermal annealing on graphene has been reported.42,51Ryu et al. suggest that the effect of annealing is to clean the SiO2surface
and to allow close coupling of graphene to the SiO2
surface, which promotes the adsorption of oxygen and moisture to the SiO2 surface during the subsequent
exposure to air,42resulting in p-doping of graphene.

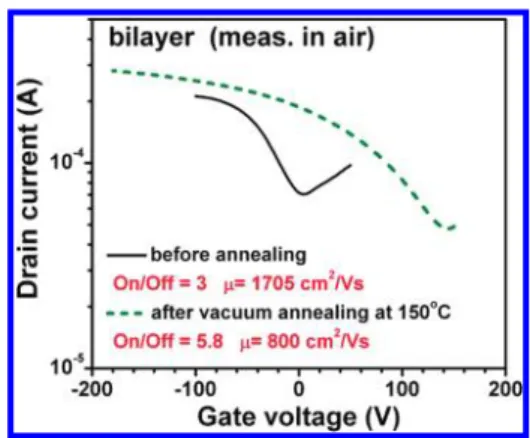

Figure 3. Ambient transfer characteristics of a bilayer gra-phene device before and after 150C thermal annealing in a vacuum of 2 105Torr.
Figure 3 shows the ambient transfer characteristics of the bilayer graphene device before and after 150C thermal annealing in a vacuum of 2 105 Torr (without triazine decoration). The VCNP significantly
shifts to a more positive value, suggesting that the oxygen/moisture species are adsorbed at the bottom layer graphene/SiO2interface. The on/off current ratio
of the device is also slightly increased with thermal heating, but it is not as significant as the case with triazine decoration. Figure 4a compiles the on/off current ratios for the bilayer devices before and after various treatments including triazine decoration, TCNQ decoration, and 150C thermal annealing in a vacuum. Supporting Figure S6 provides the typical transfer characteristics for a bilayer graphene before and after TCNQ decoration. It is clearly observed that the triazine decoration is the most promising approach for prepar-ing higher on/off current ratio devices. By contrast, we have tested more than eight bilayer devices for TCNQ decoration. However, due to its strong p-doping nature the VCNPfor most of the devices is higher than 210 V,
the highest gate voltage we can apply in our electrical measurement system. By considering the heavy p-dop-ing nature of TCNQ as well as the two available TCNQ data points in Figure 4, showing a lower on/off current ratio compared with triazine, we believe that triazine is a better choice than TCNQ for enhancing on/off current ratio. Figure 4b schematically illustrates the charge distribution differences after triazine and after TCNQ decoration on the top surface of a bilayer graphene. Triazine is an electron-rich aromatic molecule due to the incorporation of N atoms in the aromatic ring, and some negative charges are expected to transfer onto the top layer graphene, while the adsorption of oxy-gen/moisture at the bottom layer graphene/SiO2
inter-face imposes p-doping to the bottom layer graphene. Although the right shifts of VCNPafter triazine
decora-tion (Figure 2) may signify p-doping, we believe the electronic doping of triazine to graphene has been overcome by the strong p-doping from oxygen/moist-ure caused by thermal heating in our process. To further verify the n-doping nature of triazine, we show in supporting Table S2 the Hall effect measurement results for a large monolayer graphene (size 1 cm 1 cm; prepared by chemical vapor deposition) before and after triazine decoration, where the p-carrier con-centration is decreased immediately after triazine dec-oration. The oxygen/moisture adsorption at the graphene/SiO2 interface of large area graphene is
slower than small exfoliated graphene; therefore, the n-doping nature of triazine is easy to observe and verify. A recent report by Wang et al. has used Kelvin probe force microscopy and theoretical calculations to verify that the electricalfield built between top and bottom layer graphene is determined by the charge redistribution in top and bottom layer graphene.52In our case, the bottom layer graphene remains p-doped
due to the effect of oxygen/moisture and SiO2
sub-strates. Triazine and TCNQ decoration respectively imposes n- and p-doping on top layer graphene. Hence, the net electricfield built after triazine decora-tion is large due to the doping polarity being opposite in the top and bottom layer. However, the p-doping caused by TCNQ on top layer graphene makes the bilayer device more p-doped, but the net interlayer electricfield produced is smaller.
Figure 5a and b respectively show the typical Raman spectra for monolayer and bilayer graphene devices before and after triazine decoration. The position of G and 2D bands for both monolayer and bilayer gra-phene shifts to a higher wavenumber after decoration. Also, the intensity ratio between 2D and G bands decreases after decoration. These observations corro-borate the p-doping51concluded from transfer curve measurements (Figure 2a and b). Figure 5c and d show the magnified G band profiles for a bilayer graphene device before and after triazine decoration, where the G band before decoration can be fitted with one Lorenzian peak, but it has to befitted with at least two Lorenzian peaks after decoration. The observation of two G band frequencies likely suggests that the top layer and bottom graphene layers are different after decoration, i.e., inversion symmetry breaking.53 For reference, the typical Raman spectra for monlayer and bilayer graphene devices before and after TCNQ decoration are shown in supporting Figure S7.
Finally, we estimate the band gap of the decorated bilayer graphene based on the on/off characteristics using Xia's method.54In brief, if an appreciable band gap exists, the off current of graphene transistors would be dominated by the thermionic emission.
Figure 4. (a) On/off current ratios for bilayer graphene devices before and after various treatments including tria-zine decoration, TCNQ decoration, and 150C thermal annealing in a vacuum. (b) Schematic illustration for the charge distribution differences after triazine and after TCNQ decoration on the top surface of a bilayer graphene.
Therefore, the off current, Ioff, would be proportional to
exp(q Φbarrier/kBT), where q is the electron charge,
Φbarrieris the Schottky barrier height at the interface
between the bilayer graphene and metallic electrodes, k is the Boltzmann constant, and T is the temperature. Assuming that the band gap is E0gas the sample is
prepared, at the charge neutral point, the Fermi level is in the middle of the energy band gap, and the in-creased band gap is described by
ΔEg ¼ Eg E0g ¼ 2(Φbarrier Φ0barrier)
where Φ0barrieris the Schottky barrier height as the
sample is prepared, and Eg is the band gap after
molecular decoration. SoΔEg= 2(Φbarrier Φ0barrier)
= (2kBT/q) ln(I 0
off/Ioff), where I0offis the off current as the
sample is prepared. The on/off current ratio for the bilayer graphene devices after triazine decoration ranges from 30 to 65, depending on the oxygen/ moisture doping condition after exposure to the am-bient air. The estimated band gap ranges from 36 to 111 meV based on Xia's method. As shown in Figure 2a, the on/off current ratio of the transfer curves increases with the increasing VCNP. For each triazine-decorated
device with a transfer curve measured under a certain doping condition, we can obtain an electrical band gap. Meanwhile, the corresponding charge impurity concentration is also obtained as nimp= (cg/e)(VCNP),
48
where e is the electron charge and cg= 1.15 108
F cm2 is the gate capacitance per unit area for
300 nm thick SiO2. Figure 6 plots the relation between
the electrical band gap andΔnimpfor each
triazine-decorated bilayer device, whereΔnimp= (cg/e)(VCNP
VCNP(pristine)) is the charge impurity concentration
dif-ference between the triazine-decorated and its pristine form. Note that theΔnimp calculated here is mainly
caused by the oxygen/moisture doping to the bottom layer graphene. The data points in Figure 6 demon-strate that the band gap linearly scales with the charge impurity concentration caused by ambient doping. The slope is around 70 meV/1013cm2, and this result is consistent with the value∼80 meV/1013cm2from
the early ARPES measurement for bilayer graphene

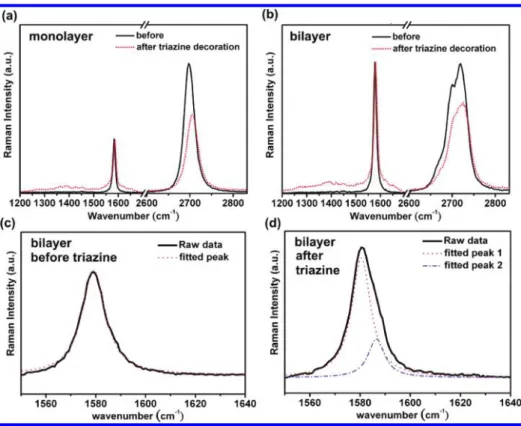

Figure 5. Typical Raman spectra for (a) monolayer and (b) bilayer graphene devices before and after triazine decoration. Magnified Raman G band profiles and corresponding Lorenzian fitting for a bilayer graphene (c) before and (d) after triazine decoration.
Figure 6. Estimated electrical band gap for triazine-deco-rated bilayer devices as a function ofΔnimp, where theΔnimp
is the charge impurity concentration difference between the triazine-decorated and its pristine form.
using K as a dopant.29A recent DFT calculation39also predicts that the band gap of bilayer graphene can be modified by the electronic doping with ∼80 meV increase per 1013cm2increase in doping. The sloping line in Figure 6 intercepts with the y-axis at around 14 meV, which value is an experimental estimation for the small energy gap for the pristine bilayer graphene. CONCLUSIONS
We have shown that the stable organic molecule triazine can be thermally evaporated and form a very uniform layer on the surface of graphene. The on/off current ratio for the bilayer graphene increases from around 10 to 3065, and the electrical band gap is up to∼111 meV, depending on the doping concentration. The G band splitting of a bilayer graphene after triazine decoration indicates that the inversion symmetry be-tween the top and bottom layers could be broken by the asymmetrical doping,53where the top layer is
domi-nated by the triazine and the bottom layer is p-doped by ambient air. The estimated band gap linearly scales with increased charge impurity concentration. The addition of concentrationΔnimp≈ 1013cm2can yield a band gap of
∼70 meV, which is consistent with the value ∼80 meV of the potassium doping experiments29 and theoretical
calculation.39Comparing with the molecular decoration method, the band gap opening using an additional gate electrode may result in a larger electrical gap due to the ease of applying gate voltage. However, the fabrication of dual gate devices is not as easy as conventional single gate devices. Our proposed doping method with molec-ular decoration is using the same idea of breaking inversion symmetry between the top and bottom layers of bilayer graphene. The doping method is simple and the gap linearly scales with doping charge concentration. However, the gap opening is limited by the doping concentration. Thus, the selection of dopants is crucial for achieving a band gap opening.
