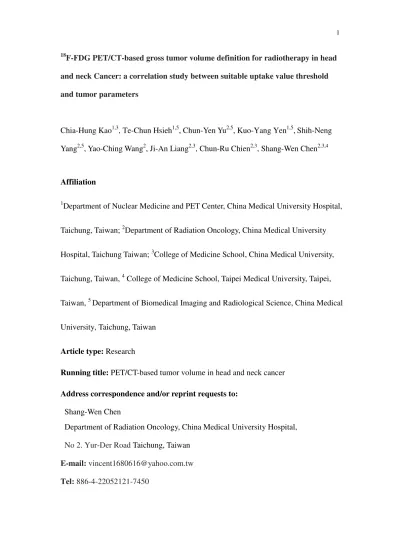

18
F-FDG PET/CT-based gross tumor volume definition for radiotherapy in head and neck Cancer: a correlation study between suitable uptake value threshold and tumor parameters
Chia-Hung Kao1,3, Te-Chun Hsieh1,5, Chun-Yen Yu2,5, Kuo-Yang Yen1,5,Shih-Neng
Yang2,5, Yao-Ching Wang2, Ji-An Liang2,3, Chun-Ru Chien2,3, Shang-Wen Chen2,3,4
Affiliation 1
Department of Nuclear Medicine and PET Center, China Medical University Hospital,
Taichung, Taiwan; 2Department of Radiation Oncology, China Medical University
Hospital, Taichung Taiwan; 3College of Medicine School, China Medical University,
Taichung, Taiwan, 4 College of Medicine School, Taipei Medical University, Taipei,
Taiwan, 5 Department of Biomedical Imaging and Radiological Science, China Medical
University, Taichung, Taiwan
Article type: Research
Running title: PET/CT-based tumor volume in head and neck cancer Address correspondence and/or reprint requests to:
Shang-Wen Chen
Department of Radiation Oncology, China Medical University Hospital,
No 2. Yur-Der Road Taichung, Taiwan
E-mail: [email protected] Tel: 886-4-22052121-7450
Abstract
Background: To define a suitable threshold setting for gross tumor volume (GTV)
when using 18Fluoro-deoxyglucose positron emission tomography and computed
tomogram (PET/CT) for radiotherapy planning in head and neck cancer (HNC).
Methods: Fifteen HNC patients prospectively received PET/CT simulation for their radiation treatment planning. Biological target volume (BTV) was derived from PET/CT-based GTV of the primary tumor. The BTVs were defined as the isodensity volumes when adjusting different percentage of the maximal standardized uptake value (SUVmax), excluding any artifact from surrounding normal tissues. CT-based primary GTV (C-pGTV) that had been previously defined by radiation oncologists was compared with the BTV. Suitable threshold level (sTL) could be determined when BTV value and its morphology using a certain threshold level was observed to be the best fitness of the C-pGTV. Suitable standardized uptake value (sSUV) was calculated as the sTL multiplied by the SUVmax.
Result: Our result demonstrated no single sTL or sSUV method could achieve an optimized volumetric match with the C-pGTV. The sTL was 13% to 27% (mean, 19%), whereas the sSUV was 1.64 to 3.98 (mean, 2.46). The sTL was inversely
correlated with the SUVmax [sTL = -0.1004 Ln (SUVmax) + 0.4464; R2 = 0.81]. The
sSUV showed a linear correlation with the SUVmax (sSUV = 0.0842 SUVmax +
1.248; R2 = 0.89). The sTL was not associated with the value of C-pGTVs.
Conclusion: In PET/CT-based BTV for HNC, a suitable threshold or SUV level can be established by correlating with SUVmax rather than using a fixed threshold.
Keywords: 18Fluoro-deoxyglucose PET/CT; gross tumor volume; head and neck cancer; biological target volume; threshold.
Introduction
18
Fluoro-deoxyglucose positron emission tomography (18F-FDG PET) has been
shown to improve the staging of head and neck cancer (HNC) [1–5]. 18F-FDG PET
after definitive radiotherapy (RT) has also been shown to have a good negative
predictive value in patients with HNC [6, 7]. The use of 18F-FDG PET in RT
represents an expansion of this already interdisciplinary process to include
information on the biologic status of tumors, which is complementary to conventional
computed tomogram (CT) images and may result in target volumes that contain
proliferating tumor burden. Several institutions have investigated the value of
18
F-FDG PET in tumor target delineation for HNC [8-12]. While CT remains the gold
standard for delineation of tumor volumes for RT planning, these studies reported
PET overlay on CT has shown to have some impact the gross target volume (GTV),
decrease interobserver variability and change the treatment planning. However, when
a radiation oncologist contours the GTVs on fused PET and CT images at the radiation treatment planning (RTP) workstation, a problem is emerged in setting the threshold for the PET images. The volume of the GTVs on the PET images can be easily altered by simply adjusting the threshold setting. Despites several
investigations declared PET-based target delineation results in a change in the gross
tumor volume (GTV) compared to CT-based GTV [13-17], some standards should be
followed for 18F-FDG–based delineation of tumor boundaries when comparing
PET-based target volume with conventional CT-based tumor volume [18]. One study
used phantoms of a known size in an attempt to define a standard threshold cutoff in
18
F-FDG PET voxel values [19]. This study suggested that the threshold can be set at
42% of the maximum uptake, though the study considered only lesions in the size
range of 0.4 to 5.5 mL, a range in which threshold levels are extremely sensitive.
maximal standardized uptake value (SUVmax) have used values ranging from 15% to 50% for lung cancer [13-17, 20-23]. In HNC series, there was a great variation of validated standardized methods for setting this threshold in HNC [5, 8-12]; these include using the absolute standardized uptake value (SUV) (i.e., GTV = SUV of > 2.5), using percentages of the SUVmax (i.e., GTV = volume encompassed by > 50% the SUVmax), or ignoring the threshold setting and simply contouring the CT volume corresponding to the visually identified lesion. Three studies reported the optimal threshold by different method in target delineation [24-26], but their results were not
consistent. To reduce intraobserver or interobserver variability in GTV delineation
using PET, there is a need to conduct another study to clarify this issue.
We hypothesized that a suitable threshold level of 18F-FDG PET can be
obtained by certain tumor-related parameters when defining GTV in HNC. Thus, this
prospective study was conducted to evaluate the appropriateness of the percentage
threshold method or other approaches by using PET/CT simulation in determining the
suitable threshold level for the best volumetric match for GTV in HNC. The PET data
of the PET/CT image was only used for CT-based GTV comparison but not for
seeking metastatic disease or for changing the radiation treatment strategy.
Methods
Patient population
After approval by local institutional review board (number: DMR98-IRB-067), a cohort of 15 fresh HNC patients with a histological proof of squamous cell carcinoma,
who would undergo definitive concurrent chemoradiotherapy with an
intensity-modulated radiotherapy technique (IMRT) at China Medical University Hospital, were enrolled in this prospective study to investigate a suitable threshold
Thirteen patients were men and two were women. They received a pretreatment PET/CT for RT planning. No patient was known to have a history of diabetes and all had a normal serum glucose level before taking the PET/CT image. The characteristics of the 15 patients are listed in Tables 1.
PET-CT image acquisition
All patients were asked to fast for at least 4 hours before 18F-FDG PET/CT
imaging. Approximately 60 minutes after the administration of 370 MBq of 18F-FDG,
simulation images were taken by PET/CT scanner(PET/CT-16 slice, Discovery STE,
GE Medical System, Milwaukee, Wisconsin USA).During the uptake period, patients
were seated in a comfortable chair and asked to rest. Whole body PET/CT images
were taken first. The procedure did not required immobilization device and take
approximately 30 minutes to position the patient and to acquire both the CT and PET
data in total. CT images were obtained at 120 kVp and variable mA (AutomA
technique) with 3.75-mm slice. The PET data were reconstructed by application of the
CT-based attenuation correction and iterative reconstruction algorithm. Immediately
after whole body PET/CT images, patients were simulated in a RT set-up position on
the PET/CT scanner table with a head and neck immobilization device. An allocated
PET/CT imaging field was taken from the base of the skull to upper thorax. The
images were electronically transferred from the PET/CT workstation via DICOM3 to
the RTP (Eclipse version 8.1, Varian Medical System Inc, CA, USA) in the
department of radiation oncology. The workstation provided the quantification of
FDG uptake in terms of SUV. Nuclear medicine physicians identified the locations
and values of SUVmax of all the primary tumors. This procedure is routinely used on
the PET/CT workstation for diagnostic readings, and it allows for definition of
threshold level and reproducible contouring of hypermetabolic areas.
On the basis of axial CT images, contouring of the tumor volume and normal and critical structures was performed without knowledge of the PET results in an effort to reduce bias. Radiation oncologists then delineated the primary gross tumor volume (pGTV) and the metastatic lymph node volume (nGTV). Neck lymph nodes were considered pathological when their smallest axis diameter was > 1 cm. The volumes of all tumors were measured by outlining the lesion on each image if it was visible. No attempts were made to differentiate the tumors from any related edema. The tumor volumes were contoured and the volumes calculated using the same planning system. To reduce interobserver variations, at least 2 different radiation oncologists carried out the contouring of the tumors for each patient. When the calculated values for any volume varied by more than 10%, an average of the readings was used as the measured volume. When the variation exceeded 10%, contouring and measurement
were repeated by 3rd radiation oncologist to correct any bias. In brief, the CT-based
primary gross tumor volume would be finally confirmed by at least two radiation oncologists, and abbreviated as C-pGTV. This procedure was addressed in our previous report [27].
Volumetric match between PET-CT-based GTV and CT-based GTV
After the completion of the C-pGTV contouring in RTP system, the radiation
oncologists reviewed the consistency of PET/CT images with nuclear medicine
physicians. They also reconfirmed the allocated point of the SUVmax within the
tumors.
Biological target volume (BTV) was derived from PET/CT-based GTV of the primary tumor. The BTVs were defined as the isodensity volumes when adjusting different percentage of the maximal threshold levels, excluding any noise or artifact from surrounding normal tissues, including brain, extracting teeth pocket, or pharyngeal constrictors. The percentage threshold was adjusted from 10% to 50%
with interval of 5%, and the BTVs were determined for each threshold. The interval of threshold change could be further reduced to 1 % for achieving the best fitness of the defined C-pGTV from both the tumor volume and the morphology. To simplify the volume analysis, only signals overlying the pGTV, and not nGTV were chosen. The volumetric data of the different BTVs were automatically measured by the RTP, and this volume excluded any nGTVs. By this way, a suitable threshold level (sTL) could be defined when the morphology and the calculated BTV value using a certain threshold level was observed to be the best fitness of the volumetric data from the C-pGTV (Figure 1, 2, 3). In addition, a suitable SUV (sSUV) values were calculated as the sTL multiplied by individual SUVmax values.
Results
Volumetric and SUVmax data
Volumetric and SUVmax data for the 15 primary tumors are listed in Table 1. The volumetric data and related SUV information for the metastatic lymph nodes
were excluded for simplification of the study. The mean C-pGTV was 36.9 ± 26.4 mL,
and the range was 9.6 to 110.2 mL, whereas the mean maximum tumor diameter in
any direction on CT was 4.33 ± 1.01cm, and the range was 3.2 to 6.3 cm. The mean
SUVmax was 13.98 ± 6.4 with the range of 7.8 to 30.6. As listed in Table 1, the BTV
values at different threshold level showed an inverse correlation with increasing threshold level. In addition, there was no obvious association between the SUVmax and the C-pGTV values in our patient cohort (Figure 4). Also, there was no correlation between the maximum tumor diameter and the SUVmax.
Correlation of sTL with C-pGTV and SUVmax
Table 1 also showed there was no demonstrated single sTL or sSUV method for achieving optimized volumetric match with C-pGTV. For all patients, the sTL for the
best match was 13% to 27% (mean, 19%; standard deviation, 4.7%). The sSUV was 1.64 to 3.98 (mean, 2.46; standard deviation, 0.58). The sSUV method of applying an isodensity volume of SUV > 2.5 failed to provide successful delineation in 60% of cases. The relation between the sTL and the SUVmax is illustrated in Figure 5. The plot illustrated an inverse hyperbolic curve with increasing SUVmax [sTL = -0.1004
Ln (SUVmax) + 0.4464; R2 = 0.81]. In constrast, the sTLs were not associated with
the C-pGTVs using different correlation models as depicted in Figure 6. Furthermore, the sSUVs showed a direct proportion to the SUVmax (Figure 7, sSUV = 0.0842
SUVmax + 1.248; R2 = 0.89).
When excluding 4 tumors with SUVmax < 10 or eliminating 4 cases with C-pGTV < 20 mL, both the sTLs and the sSUVs were found to have a similar pattern of correlation with the SUVmax. There was no apparent association between the sTLs and the tumor volume through stratification of different SUVmax or C-pGTV levels in our studied cohort.
Mismatch analysis
Two direction mismatch analysis was carried out as the method described by
El-Bassiouni et al. [25]. When the BTVs were determined by using their sTL, the
mean value for the mismatch BTVs / C-pGTV was 15.3 ± 10.3% (range, 2.4 ~ 37.5%).
In contrast, the mean value for the mismatch C-pGTV / BTV was 16.2 ± 14.3%
(range, 1.9 ~ 48.7%). There was no significant difference between two mismatch comparison using paired t test (p = 0.72).
Discussion
Rothschild et al. reported a matched-pair comparison study that PET/CT staging
followed by IMRT improved treatment outcome of locally advanced pharyngeal
delineating tumor tissue more precisely, particularly in IMRT era. Various methods
for incorporating PET into the RT plan have been reported; including visual comparisons, image overlays, fusion of PET and CT images, and PET/CT simulation.
Since there is less co-registration error between PET and CT using the same DICOM
coordinates, PET/CT simulation is a promising modality to improve contouring
accuracy for reducing the risk of geographic misses in RT planning [29, 30]. However,
care must be taken in implementing this new technology as many physicians concern
the standard of threshold setting in 18F-FDG PET. This study provides an applicable
way of volumetric match when selecting a suitable threshold level for CT-based
GTVs which had been previously delineated by radiation oncologists. Because these
tumors would be treated by RT rather than surgical resection, our methods did not
reflect a technique of determining real tumor margin or volume. Although the patient
number was small, the result demonstrated a suitable threshold levels can be derived
from individual SUVmax values, which might correspond to an intrinsic biological
nature of a tumor. Different from those investigators that suggested using a fixed
threshold for contouring in HNC [10, 11, 24], our results showed no distinctive value
for sSUV or sTL. In addition, no obvious correlation between SUVmax and C-pGTV was found and this might imply that a large tumor is not always associated with an aggressive metabolic activity within a tumor.
There are many known factors responsible for SUV measurements and therefore
tumor contours: the metabolic activity, tumor heterogeneity, and tumor motion [21]. Despites the effect of tumor motion can be neglected in RT set-up for HNC patients,
Poisson distribution of pixel intensity does make the use of SUVmax a less reliable
starting point for tumor delineation [31]. Nonetheless, SUVmax is important biologic
parameter and can be easily obtained from routine 18F-FDG PET image. On the other
algorithm in patients focused on larynx tumors [32]. In the chest, mean 18F-FDG
uptake in normal tissues may vary between a SUV of <1 (lung) up to a SUV of >3
(liver) [20]. In the head and neck region, higher SUV area can be observed in adjacent
brain, Waldeyer’s ring, extracted teeth pocket, pharyngeal constrictors, and vocal cord
region. Thus, it is required to carefully subtract any tumor-unrelated artifacts from
these areas when delineating the BTV.
Black et al. reported the results of a phantom experiment designed to evaluate the
role of mean target SUVs in conditions of various target-to background 18F-FDG
activities [31]. They showed that the threshold SUV was linearly correlated with the mean target SUV [threshold SUV = 0.307 x (mean target SUV + 0.588)]. Theoretically, it might be more ideal to use mean target SUV instead of SUVmax for threshold analysis since mean target SUV could characterize an average uptake value
of certain tumors. However, the volume of the GTV must be identified first to obtain
a mean target SUV. This method may be feasible for a known-sized phantom but not
for real tumors whose contours are susceptible to the inter-observer variances.
El-Bassiouni et al. reported a pilot study to define the best threshold of 18F-FDG
uptake for tumor volume delineation of HNC [25]. By using the
background-subtracted tumor maximum (THR) uptake for PET signal segmentation,
they found an inverse correlation between the threshold of THR and the tumor
maximum uptake (S), but no correlation between the threshold of THR and the ratio
of tumor maximum uptake to the background uptake (S/G). They also suggested a
threshold of THR of 20% in tumors with S > 30% kBq/ml and 40% with S < 30%
kBq/ml. Despites the correlation between the threshold of THR and the S was a novel
finding, an issues need to be clarified further. In their study, all patients were injected
with a fixed activity (370 MBq of 18F-FDG) irrespective of their body weight. As a
in patient’s body weight. Thus, for those PET centers using SUV for counting
FDG-avid tumor uptake, direct measurement of the maximum uptake values might be
not always practicable.
Schinagl et al. compared five methods for determining the BTV using
coregistered CT and FDG-PET in HNC patients [26], including visual GTV, 40% and
50% of SUVmax, an absolute SUV of 2.5, and an adaptive threshold based on the
signal-to-background ratio. The clinical implications from their studies were two folds.
First, an isodensity volume of SUV > 2.5 failed to provide delineation in 45 % of
cases, which was similar with our finding. Second, PET frequently detected
substantial tumor extension outside the CT-based GTV (15-34% of PET volume). The
rate was also comparable with our result that the mean value for the mismatch BTV /
C-pGTV was 15.3 ± 10.3%. Theoretically, the mismatch is somewhat attributed to the
limitation of voxel density or a partial volume effect. In practice, it is hard to exactly
define the real tumor volume outside CT-based GTV from PET image without
surgical intervention. However, contouring accuracy can be improved further if
radiation oncologists evaluate accordingly the change of BTV by adjusting different
threshold levels during contouring.
Our study failed to show an inverse correlation between sTLs and C-pGTVs as
the threshold study reported by Biehl et al. in lung cancer [21]. Using the similar method, they found optimal threshold was inversely correlated with CT-based GTV
(R2 = 0.79). Also, the optimal threshold level in their study was 24 ± 13%, compared
to 19 ± 4.7% in our study. This discrepancy might be attributed to two explanations.
First, the SUVmax in their data was in direct proportion to the increase of maximum tumor diameter, which was not observed in our result. Probably, reduction of optimal threshold could be anticipated following the increase of tumor volume or Smax. Second, the measured tumor volumes in their study were far larger than those of our
data (mean tumor volume: 198 ± 277 mL vs. 36.9 ± 26.4 mL). The difference might
not only represent the dissimilar clinical situation when irradiating two types of cancers, but perhaps contribute to the diverse experimental findings. Of course, more investigations are required to elucidate the biological difference of the two cancers in
18
F-FDG PET/CT image.
In another study described by Nestle et al., they analyzed various modalities for determining the BTV for lung cancer, including visual GTV, 40% of SUVmax, an absolute SUV of 2.5, and tumor-to-background ratio [20]. They found substantial differences of up to 41% among these 4 different methods. They concluded that the 40% threshold method was not suitable for target volume delineation. Based on the results of our study and other reports [20, 21, 24, 25], a fixed threshold model is questionable in tumor volume delineation because it relies mainly on the uniformity of SUVs within the tumor. Theoretically, a unique threshold setting may fail to
adequately model the lack of uniformity of 18F-FDG uptake because of factors such as
hypoxia and necrosis, which are more likely to occur in large tumors or tumor with a
higher SUVmax. For other BTVs with higher threshold than sTL, these metabolically
active areas might be useful in assigning dose intensification during IMRT. Of course,
the medical significance of including these additional data in the original treatment
plan on final patient outcome is yet to be determined.
There are several limitations in our study. First, there was no reason that the
metabolic activity should be definitely related to the real tumor volume. Undoubtedly,
a surgical study must be done to answer the question. Also, the C-pGTV, used as
reference image in the present study, could identify areas not strictly related to tumor
tissue. Third, it is imperative to clarify whether the results could be reproducible when
the same patients were scanned at different time even if their serum glucose levels
HNC patients to see how well the correlation equations were working. Certainly, a
validation study is ongoing to reconfirm our preliminary finding.
In conclusion, a suitable threshold or SUV level can be established by correlating with SUVmax rather than using a fixed value. It will be a subject of our future work to correlate the threshold with more tumor-related factors, such as hypoxia, proliferation and histological difference. In PET-based RT planning for HNC, careful selection of a suitable threshold is imperative because this value is required to adequately encompass tumor without compromising adjacent normal tissues.
Competing Interests
All authors declare there were no actual or potential conflicts of interest in this study.
Author’s Contribution
CHK and SWC are responsible for the study design, coordination and drafted the
manuscript. TCH, YCY and KYY collected the PET/CT data and performed analysis.
SWC, SNY, YCW and JAL were responsible for the evaluation of the patients and the
collection of clinical data. CRC provided some intellectual recommendation and
reviewed the manuscript. CHK and SWC wrote the final version of the manuscript.
All authors read and approved the final manuscript.
Acknowledgements
We want to thank the grant support (CMU98-C-13) in China Medical University and the grant support (DOH99-TD-C-111-005) from department of health in Taiwan.
References
[1] Laubenbacher C, Saumweber D, Wagner-Manslau C, Kau RJ, Herz M, Avril N,
Ziegler S, Kruschke C, Arnold W, Schwaiger M: Comparison of
fluorine-18-fluorodeoxyglucose PET, MRI and endoscopy for staging head and
neck squamous-cell carcinomas. J Nucl Med 1995;36:1747-1757.
[2] Veit-Haibach P, Luczak C, Wanke I, Fischer M, Egelhof T, Beyer T, Dahmen G,
Bockisch A, Rosenbaum S, Antoch G: TNM staging with FDG-PET/CT in
patients with primary head and neck cancer. Eur J Nucl Med Mol Imaging
2007;34:1953-1962.
[3] Kao CH, ChangLai SP, Chieng PU, Yen RF, Yen TC: Detection of recurrent or
persistent nasopharyngeal carcinomas after radiotherapy with
18-fluoro-2-deoxyglucose positron emission tomography and comparison with
computed tomography. J Clin Oncol 1998;16:3550-3555.
[4] Wong RJ, Lin DT, Schoder H, Patel SG, Gonen M, Wolden S, Pfister DG, Shah
JP, Larson SM, Kraus DH: Diagnostic and prognostic value of
[(18)F]fluorodeoxyglucose positron emission tomography for recurrent head and
neck squamous cell carcinoma. J Clin Oncol 2002;20:4199-4208.
[5] Deantonio L, Beldì D, Gambaro G,Loi G, Brambilla M, Inglese E, Krengl M:
FDG-PET/CT imaging for staging and radiotherapy treatment planning of head
and neck carcinoma. Radiat Oncol 2008; 3:29.
[6] Moeller BJ, Rana V, Cannon BA, Williams MD, Sturgis EM, Ginsberg LE,
Macapinlac HA, Lee JJ, Ang KK, Chao KS, Chronowski GM, Frank SJ,
Morrison WH, Rosenthal DI, Weber RS, Garden AS, Lippman SM, Schwartz DL:
Prospective risk-adjusted [18F]Fluorodeoxyglucose positron emission
tomography and computed tomography assessment of radiation response in head
[7] Yao M, Smith RB, Hoffman HT, Funk GF, Lu M, Menda Y, Graham MM, Buatti
JM: Clinical significance of postradiotherapy [18F]-fluorodeoxyglucose positron
emission tomography imaging in management of head-and-neck cancer: a
long-term outcome report. Int J Radiat Oncol Biol Phys 2009;74:9-14.
[8] Ciernik IF, Dizendorf E, Baumert BG, Reiner B, Burger C, Davis JB, Lutolf UM,
Steinert HC, Von Schulthess GK: Radiation treatment planning with an
integrated positron emission and computer tomography (PET/CT): a feasibility
study. Int J Radiat Oncol Biol Phys 2003;57:853-863.
[9] Heron DE, Andrade RS, Flickinger J, Johnson J, Agarwala SS, Wu A, Kalnicki S,
Avril N: Hybrid PET-CT simulation for radiation treatment planning in
head-and-neck cancers: a brief technical report. Int J Radiat Oncol Biol Phys
2004;60:1419-1424.
[10] Paulino AC, Koshy M, Howell R, Schuster D Davis LW: Comparison of CT- and
FDG-PET-defined gross tumor volume in intensity-modulated radiotherapy for
head-and-neck cancer. Int J Radiat Oncol Biol Phys 2005;61:1385-1392.
[11] Wang D, Schultz CJ, Jursinic PA, Bialkowski M, Zhu XR, Brown WD, Rand SD,
Michel MA, Campbell BH, Wong S, Li XA, Wilson JF: Initial experience of
FDG-PET/CT guided IMRT of head-and-neck carcinoma. Int J Radiat Oncol
Biol Phys 2006;65:143-151.
[12] Guido A, Fuccio L, Rombi B, Castellucci P, Cecconi A, Bunkheila F, Fuccio C,
Spezi E, Angelini AL, Barbieri E: Combined 18F-FDG-PET/CT imaging in
radiotherapy target delineation for head-and-neck cancer. Int J Radiat Oncol Biol
Phys 2009;73:759-763.
[13] Bradley J, Thorstad WL, Mutic S, Miller TR, Dehdashti F, Siegel BA, Bosch W,
Bertrand RJ: Impact of FDG-PET on radiation therapy volume delineation in
[14] Erdi YE, Rosenzweig K, Erdi AK, Macapinlac HA, Hu YC, Braban LE, Humm
JL, Squire OD, Chui CS, Larson SM, Yorke EDL: Radiotherapy treatment
planning for patients with non-small cell lung cancer using positron emission
tomography (PET). Radiother Oncol 2002;62:51-60.
[15] Kalff V, Hicks RJ, MacManus MP, Binns DS, McKenzie AF, Ware RE, Hogg A,
Ball DL: Clinical impact of (18)F fluorodeoxyglucose positron emission
tomography in patients with non-small-cell lung cancer: a prospective study. J
Clin Oncol 2001;19:111-118.
[16] Mah K, Caldwell CB, Ung YC, Danjoux CE, Balogh JM, Ganguli SN, Ehrlich
LE, Tirona R. The impact of (18)FDG-PET on target and critical organs in
CT-based treatment planning of patients with poorly defined non-small-cell lung
carcinoma: a prospective study. Int J Radiat Oncol Biol Phys 2002;52:339-350.
[17] Vanuytsel LJ, Vansteenkiste JF, Stroobants SG, De Leyn PR, De Wever W,
Verbeken EK, Gatti GG, Huyskens DP, Kutcher GJ: The impact of
(18)F-fluoro-2-deoxy-D-glucose positron emission tomography (FDG-PET)
lymph node staging on the radiation treatment volumes in patients with
non-small cell lung cancer. Radiother Oncol 2000;55:317-324.
[18] Ford EC, Herman J, Yorke E Wahl RL: 18F-FDG PET/CT for image-guided and
intensity-modulated radiotherapy. J Nucl Med 2009;50:1655-1665.
[19] Erdi YE, Mawlawi O, Larson SM, Imbriaco M, Yeung H, Finn R, Humm JL:
Segmentation of lung lesion volume by adaptive positron emission tomography
image thresholding. Cancer 1997;80:2505-2509.
[20] Nestle U, Kremp S, Schaefer-Schuler A, Sebastian-Welsch C, Hellwig D, Rube
C, Kirsch CM: Comparison of different methods for delineation of 18F-FDG
PET-positive tissue for target volume definition in radiotherapy of patients with
[21] Biehl KJ, Kong FM, Dehdashti F, Jin JY, Mutic S, El Naqa I, Siegel BA, Bradley
JD: 18F-FDG PET definition of gross tumor volume for radiotherapy of
non-small cell lung cancer: is a single standardized uptake value threshold
approach appropriate? J Nucl Med 2006;47:1808-1812.
[22] Ashamalla H, Rafla S, Parikh K, Mokhtar B, Goswami G, Kambam S,
Abdel-Dayem H, Guirguis A, Ross P, Evola A: The contribution of integrated
PET/CT to the evolving definition of treatment volumes in radiation treatment
planning in lung cancer. Int J Radiat Oncol Biol Phys 2005;63:1016-1023.
[23] Brianzoni E, Rossi G, Ancidei S, Berbellini A, Capoccetti F, Cidda C, D'Avenia P,
Fattori S, Montini GC, Valentini G, Proietti A, Algranati C: Radiotherapy
planning: PET/CT scanner performances in the definition of gross tumour
volume and clinical target volume. Eur J Nucl Med Mol Imaging
2005;32:1392-1399.
[24] Baek CH, Chung MK, Son YI, Choi JY, Kim HJ, Yim YJ, Ko YH, Choi J, Cho K,
Jeong HS: Tumor volume assessment by 18F-FDG PET/CT in patients with oral
cavity cancer with dental artifacts on CT or MR images. J Nucl Med 2008;49:
1422-1428.
[25] El-Bassiouni M, Ciernik IF, Davis JB, El-Attar I, Reiner B, Burger C, Goerres
GW, Studer GM: [18FDG] PET-CT-based intensity-modulated radiotherapy
treatment planning of head and neck cancer. Int J Radiat Oncol Biol Phys
2007;69:286-293.
[26] Schinagl DA, Vogel WV, Hoffmann AL, van Dalen JA, Oyen WJ, Kaanders JH:
Comparison of five segmentation tools for 18F-fluoro-deoxy-glucose-positron
emission tomography-based target volume definition in head and neck cancer. Int
J Radiat Oncol Biol Phys 2007;69:1282-1289.
volume in patients with stage III-IVA hypopharyngeal cancer without bulky
lymph nodes treated with definitive concurrent chemoradiotherapy. Head Neck
2009;31:709-716.
[28] Rothschild S, Studer G, Seifert B, Huguenin P, Glanzmann C, Davis JB, Lütolf
UM, Hany TF, Ciernik IF: PET/CT staging followed by Intensity-Modulated
Radiotherapy (IMRT) improves treatment outcome of locally advanced
pharyngeal carcinoma: a matched-pair comparison. Radiat Oncol 2007;2:22.
[29] Breen SL, Publicover J, De Silva S, Pond G, Brock K, O'Sullivan B, Cummings
B, Dawson L, Keller A, Kim J, Ringash J, Yu E, Hendler A, Waldron J:
Intraobserver and interobserver variability in GTV delineation on FDG-PET-CT
images of head and neck cancers. Int J Radiat Oncol Biol Phys 2007;68:763-770.
[30] Riegel AC, Berson AM, Destian S, Ng T, Tena LB, Mitnick RJ, Wong PS:
Variability of gross tumor volume delineation in head-and-neck cancer using CT
and PET/CT fusion. Int J Radiat Oncol Biol Phys 2006;65:726-732.
[31] Black QC, Grills IS, Kestin LL, Wong CY, Wong JW, Martinez AA: Defining a
radiotherapy target with positron emission tomography. Int J Radiat Oncol Biol
Phys 2004;60:1272-1282.
[32] Geets X, Daisne JF, Gregoire V, Hamoir M, Lonneux M: Role of
11-C-methionine positron emission tomography for the delineation of the tumor
volume in pharyngo-laryngeal squamous cell carcinoma: comparison with
Figure Legends
Figure 1. The biological target volume (BTV) of the primary tumor was determined
when using 10 % isodensity volumes (yellow line). CT-based GTV was
outlined by red line.
Figure 2. The BTV of the primary tumor was determined when using 15 % isodensity
volumes (green line). CT-based GTV was outlined by red line.
Figure 3. The BTV of the primary tumor was determined when using 20 % isodensity
volumes (pink line). CT-based GTV was outlined by red line.
Figure 4. The association between the SUVmax and the CT-based pGTV.
Figure 5. The correlation curve between the suitable threshold level and the SUVmax.
Figure 6. The association between the suitable threshold level and the CT-based GTV.
Table
Table 1. Patient’s characteristics and their volumetric and PET/CT data
Patient Tumor type (AJCC stage) C-pGTV (mL) SUVmax BTV (mL) 10 % TL BTV (mL) 20% TL BTV (mL) 30% TL BTV (mL) 40% TL BTV (mL) 50% TL sTL sSUV 1 HPC (T2N2) 43.3 30.6 47.9 35.5 30 25.4 19.2 13% 3.98 2 OPC (T4N1) 75.4 17.2 92.1 42.8 31.6 24.8 18.2 16% 2.75 3 NPC (T4N2) 110.2 17 139.2 77.3 59.3 47 37.5 15% 2.55 4 NPC (T3N1) 30.4 14.6 40.7 22.7 14.6 8.3 2.8 15% 2.19 5 NPC (T1N1) 14.8 15.7 36.6 12 7.2 5.4 4.2 17% 2.21 6 OPC (T3N1) 47.7 24.1 75.8 33.3 21.1 14.1 9.9 14% 3.37 7 NPC (T4N2) 38.7 8.0 - 60 30.8 17.4 12.3 27% 2.16 8 NPC (T3N2) 44.6 17.0 64.7 33.6 24.5 17.5 13.6 15% 2.55 9 NPC (T2N1) 12.8 7.8 39.6 13 5.6 4 2.4 21% 1.64 10 NPC (T4N1) 35.5 8.2 80.7 44 21.9 10 5.6 23% 1.89 11 NPC (T1N1) 9.6 9.0 37.6 13.8 4.9 2.2 1.2 23% 2.07 12 NPC (T3N3) 27.8 17.5 49.9 13.7 9.2 5.3 3.2 14% 2.45 13 NPC (T3N2) 37.1 12.9 67.4 37.9 20.6 12 9.5 20% 2.57 14 NPC (T2N2) 22.4 8.1 - 35.6 14.8 9.2 5.9 27 % 2.19 15 HPC (T2N1) 14.3 12.2 46.8 14.5 5.2 3.1 2.3 20% 2.44
Abbreviation: NPC: nasopharyngeal cancer; OPC: oropharyngeal cancer; HPC: hypopharyngeal cancer; C-pGTV: CT-base primary gross tumor volume; BTV: biological target volume from PET/CT-base primary gross tumor volume; TL: threshold level; sTL: suitable threshold; sSUV: suitable SUV.
° ＄ ′° ′＄ ″° ″＄ ℃° ° ″° ￥° ￠° ％° ′°° ′″° CT-base d GTV (mL) S U V m a x Figure 4
°÷ ＄÷ ′°÷ ′＄÷ ″°÷ ″＄÷ ° ＄ ′° ′＄ ″° ″＄ ℃° ℃＄ SUVmax S u it a b le T h r e sh o ld L e v e l y = -1.004Ln (X) + 0.4464 R2 = 0.81 Figure 5
°÷ ＄÷ ′°÷ ′＄÷ ″°÷ ″＄÷ ° ″° ￥° ￠° ％° ′°° ′″° CT-base d GTV (mL) S u it a b le T h r e sh o ld L e v e l Figure 6
