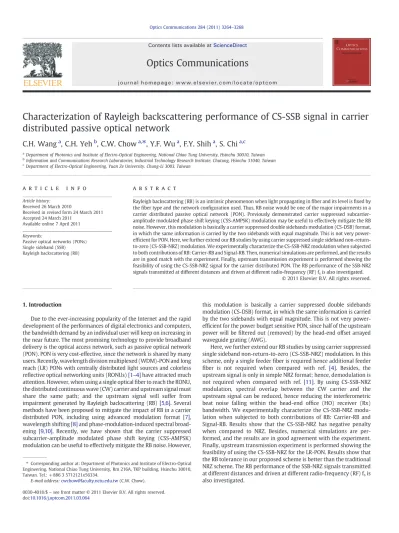

Characterization of Rayleigh backscattering performance of CS-SSB signal in carrier distributed passive optical network

(1)

distributed passive optical network

C.H. Wang

a

, C.H. Yeh

b

, C.W. Chow

a,

⁎

, Y.F. Wu

a

, F.Y. Shih

a

, S. Chi

a,c a

Department of Photonics and Institute of Electro-Optical Engineering, National Chiao Tung University, Hsinchu 30010, Taiwan b_{Information and Communications Research Laboratories, Industrial Technology Research Institute, Chutung, Hsinchu 31040, Taiwan} c

Department of Electro-Optical Engineering, Yuan Ze University, Chung-Li 3003, Taiwan

a b s t r a c t

a r t i c l e i n f o

Article history: Received 26 March 2010

Received in revised form 24 March 2011 Accepted 24 March 2011

Available online 7 April 2011 Keywords:

Passive optical networks (PONs) Single sideband (SSB) Rayleigh backscattering (RB)

Rayleigh backscattering (RB) is an intrinsic phenomenon when light propagating infiber and its level is fixed by thefiber type and the network configuration used. Thus, RB noise would be one of the major impairments in a carrier distributed passive optical network (PON). Previously demonstrated carrier suppressed subcarrier-amplitude modulated phase shift keying (CSS-AMPSK) modulation may be useful to effectively mitigate the RB noise. However, this modulation is basically a carrier suppressed double sidebands modulation (CS-DSB) format, in which the same information is carried by the two sidebands with equal magnitude. This is not very power-efficient for PON. Here, we further extend our RB studies by using carrier suppressed single sideband non-return-to-zero (CS-SSB-NRZ) modulation. We experimentally characterize the CS-SSB-NRZ modulation when subjected to both contributions of RB: Carrier-RB and Signal-RB. Then, numerical simulations are performed, and the results are in good match with the experiment. Finally, upstream transmission experiment is performed showing the feasibility of using the CS-SSB-NRZ signal for the carrier distributed PON. The RB performance of the SSB-NRZ signals transmitted at different distances and driven at different radio-frequency (RF) fsis also investigated.

1. Introduction

Due to the ever-increasing popularity of the Internet and the rapid development of the performances of digital electronics and computers, the bandwidth demand by an individual user will keep on increasing in the near future. The most promising technology to provide broadband delivery is the optical access network, such as passive optical network (PON). PON is very cost-effective, since the network is shared by many users. Recently, wavelength division multiplexed (WDM)-PON and long reach (LR) PONs with centrally distributed light sources and colorless reﬂective optical networking units (RONUs)[1–4]have attracted much attention. However, when using a single opticalﬁber to reach the RONU, the distributed continuous wave (CW) carrier and upstream signal must share the same path; and the upstream signal will suffer from impairment generated by Rayleigh backscattering (RB)[5,6]. Several methods have been proposed to mitigate the impact of RB in a carrier distributed PON, including using advanced modulation format [7], wavelength shifting[8]and phase-modulation-induced spectral broad-ening[9,10]. Recently, we have shown that the carrier suppressed subcarrier-amplitude modulated phase shift keying (CSS-AMPSK) modulation can be useful to effectively mitigate the RB noise. However,

this modulation is basically a carrier suppressed double sidebands modulation (CS-DSB) format, in which the same information is carried by the two sidebands with equal magnitude. This is not very power-efﬁcient for the power budget sensitive PON, since half of the upstream power will beﬁltered out (removed) by the head-end offset arrayed waveguide grating (AWG).

Here, we further extend our RB studies by using carrier suppressed single sideband non-return-to-zero (CS-SSB-NRZ) modulation. In this scheme, only a single feederfiber is required hence additional feeder fiber is not required when compared with ref. [4]. Besides, the upstream signal is only in simple NRZ format; hence, demodulation is not required when compared with ref.[11]. By using CS-SSB-NRZ modulation, spectral overlap between the CW carrier and the upstream signal can be reduced, hence reducing the interferometric beat noise falling within the head-end office (HO) receiver (Rx) bandwidth. We experimentally characterize the CS-SSB-NRZ modu-lation when subjected to both contributions of RB: Carrier-RB and Signal-RB. Results show that the CS-SSB-NRZ has negative penalty when compared to NRZ. Besides, numerical simulations are per-formed, and the results are in good agreement with the experiment. Finally, upstream transmission experiment is performed showing the feasibility of using the CS-SSB-NRZ for the LR-PON. Results show that the RB tolerance in our proposed scheme is better than the traditional NRZ scheme. The RB performance of the SSB-NRZ signals transmitted at different distances and driven at different radio-frequency (RF) fsis

also investigated.

⁎ Corresponding author at: Department of Photonics and Institute of Electro-Optical Engineering, National Chiao Tung University, Rm 216A, TKP building, Hsinchu 30010, Taiwan. Tel.: + 886 3 5712121x56334.

(2)

2. Analysis of Rayleigh backscattering

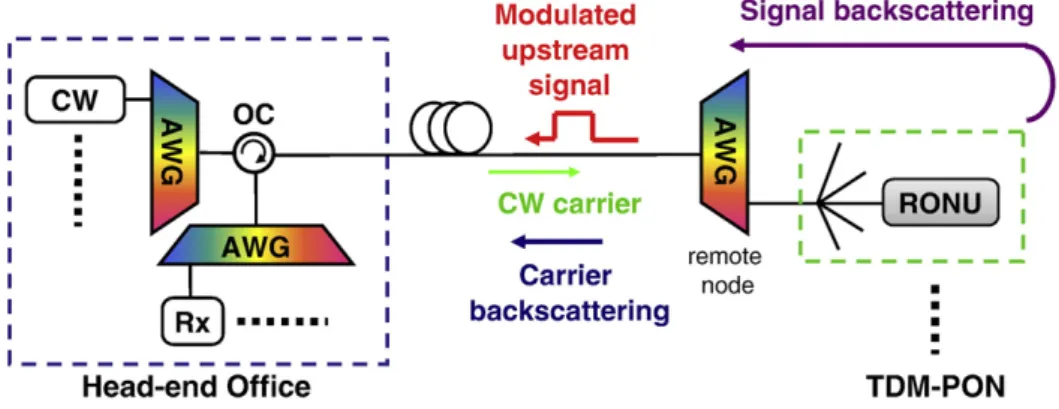

Fig. 1shows a schematic diagram of a carrier distributed PON. The

CW source distributed from the HO and pass through a single drop fiber towards the RONU. The CW source is used as the seeding light for the reflective modulator to generate the upstream signal in the RONU. Due to the intrinsic phenomenon infiber propagation, there are two contributions to RB which beat with the upstream signals to generate interferometric noise at the Rx inside the HO. The Carrier-RB is generated by the CW carrier sending to the RONU. The Signal-RB is generated by the upstream modulated data signals, remodulated by the RONU and transmitted upwards together with the upstream signals to the Rx at the HO. The two interferometric RB noises are different due to the different optical spectra of the Carrier-RB and the double modulated Signal-RB.

Fig. 2shows the experimental setups used to investigate the RB

tolerance of the CS-SSB-NRZ signal in our proposed scheme, which emulates the impairment of a real PON architecture by producing two interfering signals in the two paths of an interferometer. The left inset of

Fig. 2shows the structure of CS-SSB modulator. In the proof-of-concept

experiment, we used a dual-arm Mach–Zehnder modulator (MZM) (MOD1) to produce the CS-SSB optical signal, and we used a single-arm

MZM (MOD2) to encode the NRZ data. In implementation, using

polarization insensitive semiconductor-based MZM [12] or using a single dual-parallel modulator to generate the CS-SSB-NRZ signal[13] can be practical. The MOD1was driven in-phase and quadrature-phase

by an electrical sinusoidal signal at frequency fs= 8 GHz (with power

of +22 dBm) generated by a radio frequency (RF) signal synthesizer. The dual-arm MZM was driven in-phase and quadrature-phase to its two electrodes to cancel the frequency components of one of the

Fig. 1. Schematic diagram of RB contributions in a carrier distributed PON.

Fig. 2. Experimental setup to emulate (a) Carrier-RB and (b) Signal-RB. CW: continuous wave, VOA: variable optical attenuator, CP: optical coupler, PC: polarization controller, PM: power meter. Insets: (left) CS-SSB modulator; MOD1: dual-drive MZM, MOD2: single-drive MZM, PS: phase shifter, (right) Rx architecture; AWG: arrayed waveguide grating.

(3)

was produced in the lower arm by the CS-SSB modulator. In the lower arm, a variable optical attenuator (VOA) was used to change the signal power; this then changed the power ratios between the optical data signal and Rayleigh noise. We de_{fined this figure of merit as optical} signal to Rayleigh noise ratio (OSRNR), which is defined as the ratio of total signal power to the total RB power at the input to the HO (point “A”). To produce the worst case of signal beating, the polarization controllers (PC1 and PC2) were used to make the two signals

co-polarized before being combined in the CP. A power meter (PM) was used to monitor the two signals at the output port of the CP. In another port of the CP, Carrier-RB and the upstream signal were both launched into an optically pre-ampliﬁed receiver (Rx) as shown in right inset of

Fig. 2. The Rx consists of an erbium dopedﬁber ampliﬁer (EDFA), a

tuneable bandpass ﬁlter (TBF) (3-dB width of 50 GHz) and a PIN

OSRNR of 25 dB were also shown as the insets. The RB performance depends on the interferometric beat noise falling within the Rx bandwidth. For NRZ signal, even relatively low levels of RB can degrade the BER due to the complete spectral overlap between upstream signal and RB components. The CS-SSB-NRZ modulation improves the OSRNR by 6 and 3.5-dB in the Carrier-RB and Signal-RB cases, respectively, at 1-dB power penalty when compare to the conventional NRZ signal. Besides, the result also shows that the Carrier-RB performance of the CS-SSB-NRZ modulation is better than its Signal-RB performance. Numerical simulation results are also given. The performance difference between the simulation and exper-imental results is due to the fact that the response of the receiver used in simulation was an ideal 3rd order Bessel function; but the receiver used in experiment was not ideal. This accounts for the difference between the simulation and experimental results, particularly at low OSRNR cases. However, the trend of the simulation result agrees with the experimental results.

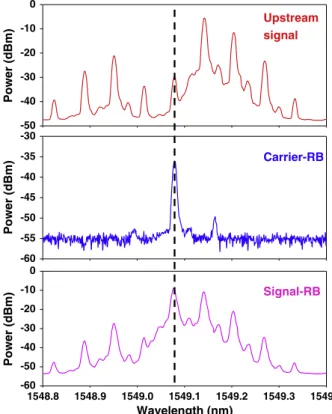

Fig. 4shows the experimental optical spectra of the Carrier-RB,

upstream data and Signal-RB. The power levels of the three optical spectra are not the same, since their relative powers depend on the OSRNR used. We are interested to observe at the center wavelength, where the spectrum overlap between Carrier-RB and the upstream signal is obviously reduced due to the CS-SSB modulation. Since

Fig. 3. (a) Carrier-RB (CB) (b) Signal-RB (SB) performance at different OSRNRs of CS-SSB-NRZ modulation when compared to conventional NRZ format performed by experiment and simulation. Insets are the corresponding eye diagrams at OSRNR=25 dB.

Power (dBm) -60 -55 -50 -45 -40 -35 -30 Power (dBm) -50 -40 -30 -20 -10 0 Wavelength (nm) 1548.8 1548.9 1549.0 1549.1 1549.2 1549.3 1549.4 Power (dBm) -60 -50 -40 -30 -20 -10 0 Signal-RB Upstream signal Carrier-RB

(4)

we are measured using an optically pre-ampliﬁed Rx, the higher harmonics in the upstream and Signal-RB signals are_{ﬁltered by the} AWG. The interferometric noise was dramatically improved due to the reduced spectrum overlap. The optical spectrum of the Signal-RB is broadened due to the double modulation. We can observe that the center wavelength component rise in the Signal-RB, hence producing higher beat noise than that of the Carrier-RB.

3. Transmission performances

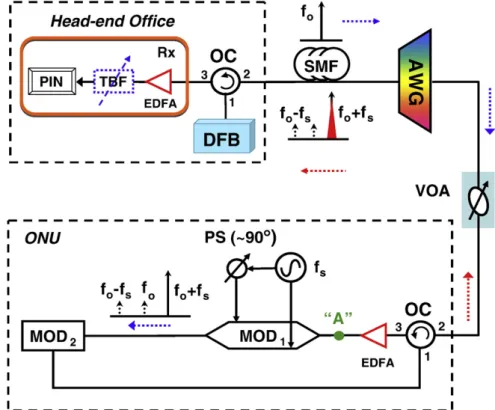

Fig. 5shows the experimental setup of the fully passive LR-PON

using CS-SSB-NRZ modulation. A DFB laser set at 1549.8 nm (f0) was used as a CW source. The CW carrier was transmitted through a SMF towards the CS-SSB-NRZ modulator inside the ONU, via an AWG (Gaussian shaped, 3-dB width of 50 GHz). There is no active component between the HO and the ONU, and the LR-PON is fully passive. In the colorless ONU, a loop-back conﬁguration was achieved by an OC. Our proposed SSB-NRZ modulation consisted of a dual-arm MZM (MOD1) and a single-arm MZM (MOD2). The dual-arm MZM

was driven in-phase and quadrature-phase by an electrical sinusoidal signal at frequency fsgenerated by a RF signal synthesizer. An EDFA

(Saturated power = 23 dBm, noiseﬁgure=5 dB) were used in the ONU to compensate the losses of the ﬁber transmission and the modulators. The generated CS-SSB-NRZ carrier was then encoded by the MOD2 with a 2.5 Gb/s NRZ data at PRBS 231_{-1. The uplink signal}

was then sent back to the HO through the same SMF. An optically pre-ampliﬁed Rx at the HO, consisted of an EDFA, a TBF (3-dB width of 50 GHz) and a PIN photodiode (bandwidth of 3 GHz), was used to detect the uplink signal. No dispersion compensation was used in the experiment.

Fig. 6shows the optical spectra measured by an optical spectrum

analyzer with resolution of 0.01 nm at transmission of 30 km SMF. Dashed line is the distributed CW carrier at wavelength of 1548.79 nm measured at the input of the dual-arm MZM (point“A”). Solid line is the CS-SSB-NRZ modulated uplink signal RF driven at fs= 8 GHz measured

at the Rx at the HO. The power ratios between the upper sideband and

the lower sideband and the center wavelength are ~25 dB. Since the RB tolerance depends on the interferometric beat noise falling within the Rx bandwidth, the RB tolerance of the CS-SSB-NRZ modulation can be improved due to the reduced spectral overlap between the uplink signal and the CW carrier.

Fig. 7 shows the bit error rate (BER) measurements of uplink

CS-SSB-NRZ with fs= 8 GHz (case 1) and the NRZ signals (case 2,

without the SSB modulator MOD1) at back-to-back (B2B) and

trans-mission of 30 km, 90 km, respectively, without dispersion compen-sation. The corresponding eye diagrams are shown in the insets. The results show that the power penalties between the NRZ and the CS-SSB-NRZ signals increased when the transmission distance increased. We observed 3 dB power penalties improvement at the transmission of 30 km. For LR transmission (90 km), an error-ﬂoor appears for the NRZ case while error-free operation can still be achieved in CS-SSB-NRZ case, showing the proposed scheme can effectively mitigate RB noise in carrier-distributed networks, particularly in LR-PON.

Fig. 5. Proposed LR-PON using CS-SSB-NRZ modulation. TBF: tuneable bandpassﬁlter, VOA: variable optical attenuator, OC: optical circulator, PS: phase shifter, MOD1: dual-arm MZM, MOD2: single-arm MZM.

Fig. 6. Optical spectra. Solid line is for uplink CS-SSB-NRZ signal. Dashed line is for CW carrier.

(5)

Fig. 8shows the BER performances of the CS-SSB-NRZ signals at different fs versus Rx received powers (30 km transmission case). We also tested at fs= 9 GHz, and its performance is nearly the same as that

of fs= 8 GHz. The result shows that the RB performance of the

CS-SSB-NRZ improves when fsincreases (due to the reduced spectral overlap

between the CW carrier and the uplink signal), and saturates at about fs= 8 GHz. This is limited by the bandwidth of the dual-arm MZM

(10 GHz). We believe that the data rate and the BER performance can be further improved if larger bandwidth modulator is available.

4. Conclusion

RB is identi_{fied as one of the most critical impairments in a carrier} distributed PON. Previously we proposed and demonstrated that using CSS-AMPSK modulation may be useful to mitigate the RB noise. However, this modulation is basically a CS-DSB format, in which half of the power is wasted in one of the sideband. This is not very power-efficient for PON. Here, we further extended our RB studies by using CS-SSB-NRZ modulation. We experimentally characterized the CS-CS-SSB-NRZ modulation when subjected to both contributions of RB: Carrier-RB and Signal-RB. Results showed that the CS-SSB-NRZ modulation had 6 dB and 3.5 dB OSRNR improvement in Carrier-RB and Signal-RB respec-tively over conventional NRZ signal. Numerical simulations were performed with good match. Finally, an upstream transmission experiment was performed using CS-SSB-NRZ modulation. We ob-served 3 dB power penalties improvement after 30 km of SMF transmission. For LR transmission (90 km), an error-floor appeared at the conventional NRZ case while error-free operation can still be achieved in CS-SSB-NRZ signal, showing the proposed scheme can effectively mitigate RB noise in carrier-distributed PON. The RB performance of the SSB-NRZ signals transmitted at different distances and driven at different radio-frequency (RF) fsis also investigated.

Acknowledgement

This work was supported by the National Science Council, Taiwan, under Contracts NSC 98-2221-E-009-017-MY3 and 97-2221-E-009-038-MY3.

References

[1] L.Y. Chan, C.K. Chan, D.T.K. Tong, F. Tong, L.K. Chen, Upstream trafﬁc transmitter using injection-locked Fabry-Perot laser diode as modulator for WDM access networks, Electron. Lett. 38 (2002) 43–45.

[2] W. Hung, C.K. Chan, L.K. Chen, F. Tong, An optical network unit for WDM access networks with downstream DPSK and upstream remodulated OOK data using injection-locked FP laser, IEEE Photon. Technol. Lett. 15 (2003) 1476–1478. [3] C.W. Chow, Wavelength remodulation using DPSK down-and-upstream with high

extinction ratio for 10-Gb/s DWDM-passive optical networks, IEEE Photon. Technol. Lett. 20 (2008) 12–14.

[4] G. Talli, C.W. Chow, E.K. MacHale, P.D. Townsend, Long reach hybrid DWDM-TDM PON with high split ratio employing centralized light source, J. Opt. Networking 6 (2007) 765–776.

[5] S.-K. Liaw, S.-L. Tzeng, Y.-J. Hung, Power penalty induced by Rayleigh backscattering in a bidirectional wavelength-reuse lightwave system, Proc. CLEO, 2001, CThL54, 2001. [6] G. Talli, D. Cotter, P.D. Townsend, Rayleigh backscattering impairments in access

networks with centralised light source, Electron. Lett. 42 (2006) 877–878. [7] Z. Li, Y. Dong, Y. Wang, C. Lu, A novel PSK—Manchester modulation format in

10-Gb/s passive optical network system with high tolerance to beat interference noise, IEEE Photon. Technol. Lett. 17 (2005) 1118–1120.

[8] J. Prat, M. Omella, V. Polo, Wavelength shifting for colorless ONUs in single-ﬁber WDM-PONs, Proc. OFC (2007), Anaheim, CA, OFE1, 2007.

[9] C.W. Chow, G. Talli, P.D. Townsend, Rayleigh noise reduction in 10-Gb/s DWDM-PONs by wavelength detuning and phase-modulation-induced spectral broaden-ing, IEEE Photon. Technol. Lett. 19 (2007) 423–425.

[10] C.W. Chow, G. Talli, A.D. Ellis, P.D. Townsend, Rayleigh noise mitigation in DWDM LR-PONs using carrier suppressed subcarrier-amplitude modulated phase shift keying, Opt. Express 16 (2008) 1860–1866.

[11] J. Xu, L.K. Chen, C.K. Chan, Phase-modulation-based loopback scheme for Rayleigh noise suppression in 10-Gb/s carrier-distributed WDM-PONs, IEEE Photon. Technol. Lett. 22 (2010) 1343–1345.

[12] O. Leclerc, P. Brindel, D. Rouvillain, E. Pincemin, B. Dany, E. Desurvire, C. Duchet, E. Boucherez, S. Bouchoule, 40 Gbit/s polarization-insensitive and wavelength-independent InP Mach-Zehnder modulator for all-optical regeneration, Electron. Lett. 35 (1999) 730–732.

[13] S. Shimotsu, S. Oikawa, T. Saitou, N. Mitsugi, K. Kubodera, T. Kawanishi, M. Izutsu, Single side-band modulation performance of a LiNbO3integrated modulator consisting of four-phase modulator waveguides, IEEE Photon. Technol. Lett. 13 (2001) 364–366.

Received Power (dBm)

-44 -43 -42 -41 -40 -39 -38 -37 1e-10

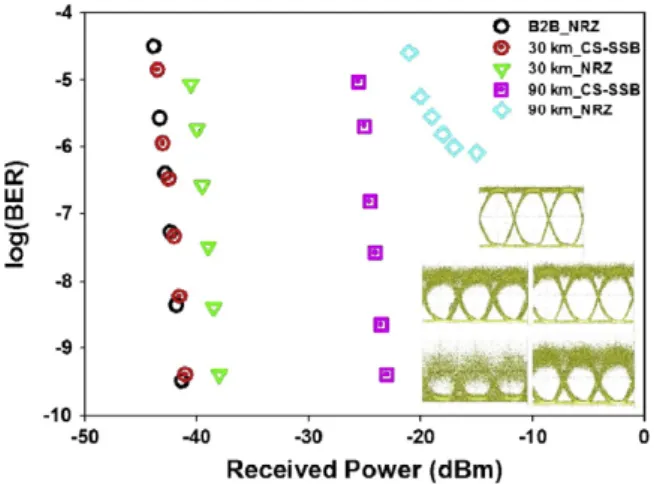

Fig. 8. BER performances of different RF frequency fsversus Rx received power at transmission of 30 km.

Fig. 7. BER measurements of the upstream traditional NRZ (case 1) and CS-SSB-NRZ (case 2) signals. Insets: eye diagrams of (a) case 1 at back-to-back (B2B) transmission, (b) case 1 after 30 km transmission, (c) case 1 after 90 km transmission, (d) case 2 after 30 km transmission, (e) case 2 after 90 km transmission.
