A Periodic Microstrip Radial Antenna Array
With a Conical Beam
Kuo-Cheng Chen, Yongxi Qian, Senior Member, IEEE, Ching-Kuang C. Tzuang, Fellow, IEEE, and
Tatsuo Itoh, Life Fellow, IEEE
Abstract—The analysis and design of a microstrip antenna array with a conical beam are presented. The antenna array employs a periodic structure derived from the microstrip on a perforated ground plane. The microstrip antenna array consists of eight leaky lines evenly distributed around a circle. Each line radiates mainly a pair of forward and backward beams, forming a conical beam. The new leaky line design employs the concept of space-harmonic modulation on theEH0 mode launched at the common joint of the antenna array. The scattering and dispersion characteristics of the leaky line are thoroughly investigated. The fact that the per-turbation of the antisymmetric holes made by photolithographic etching excites the leakyEH1 mode is theoretically and experi-mentally validated. Scattering analyses of the surface currents on the microstrip, however, reveal in detail the physical operation of the leaky line. The dispersion characteristics are, thus, established and shown in a Brillouin diagram, indicating the role of each space harmonic, denoted by its complex propagation constant
represents a traveling-wave component of the th higher-order spatial component in association with theEH mode: the superscript,+( ), signifies a forward (backward) traveling wave. For the particular leaky line design, 0+ 1 and 1 0+ space har-monics, both showing odd-symmetric field polarization, and both outside the triangular Brillouin region, form the backward and forward leaky waves, respectively. When the leaky lines are evenly and collinearly tied, an 11.5-GHz radial antenna array prototype is formed, and emits a conical beam, showing a 3-dB beamwidth of 24 at the flare angle of 31 .
Index Terms—Conical beam, leaky waves, periodic structures, radial antenna array.
I. INTRODUCTION
P
ERIODIC structures have recently been extensively studied and developed for use in microwave circuit design [1], [2]. Qian and Itoh reported the propagation characteristics of a uniform microstrip could be altered with noticeable in-crease in slow-wave factor and a fairly large stopband by simply substituting a ground plane of periodic pattern into a uniform ground plane [2]. The forbidden frequency band is a familiar guiding property of such a periodic structure, and prohibits wave propagation for a certain frequency band. ModifyingManuscript received October 11, 2000; revised March 11, 2002. This work was supported by the Ministry of Education of Taiwan under Grant 89-E-FA06-2-4.
K.-C. Chen and C.-K. C. Tzuang are with the Institute of Electrical Commu-nication Engineering, National Chiao Tung University, Hsinchu, Taiwan R.O.C. (e-mail: [email protected]).
Y. Qian is with the Microsemi Corporation, Irvine, CA 92614 USA (e-mail: [email protected]).
T. Itoh is with the Electrical Engineering Department, University of Cali-fornia, Los Angeles, CA 90095 USA (e-mail: [email protected]; [email protected]. edu).
Digital Object Identifier 10.1109/TAP.2003.811064
the ground plane symmetry from even to odd and choosing the appropriate microstrip dimension allows the resultant microstrip to emit leaky waves when launched by a bound, dominant mode [3]. By radially arranging the leaky line as shown in Fig. 1, a low-profile conical-beam antenna array is presented, manifesting a new alternative approach [4], [5], which is commensurate with common printed-circuit technology. Converting the bound mode into leaky waves requires no transition to excite the higher order leaky mode since the leaky line is essentially a distributed mode converter. The inherent mode conversion feature greatly simplifies the power divider/combiner circuit block in Fig. 1. The proposed leaky structure bypasses several transition circuits reported to excite or mode. These transition circuits include the asymmetric microstrip step junction with mode suppressor [6], the slotline feed to the micro-slotline [7]–[9], the aperture-cou-pled feed [10], the broadband microstrip-to-CPS (coplanar strips) transition [11], the micro-CPW line [12], and others.
The rest of this paper is organized as follows. Section II dis-cusses the theory and design of a single leaky line. Section III presents a dispersive Brillouin diagram (k- plot) of the corre-sponding leaky line. Theoretical data also show that the space harmonics of the Brillouin diagram are a valid approximation of the rigorous electromagnetic field solutions obtained by the full-wave integral equation method. Section IV specifies the complete design of the leaky antenna array, together with mea-sured data. Conclusions are finally made in Section V.
II. MICROSTRIP ON ANANTISYMMETRICALLYPERFORATED GROUNDPLANE
Contrary to exciting microstrip leaky modes at higher order by directly connecting certain transition circuits [6]–[12], a distributed mode converter made of a uniform microstrip on a periodically perforated ground plane as shown in Fig. 2 has been developed. The ground plane is patterned by holes etched photolithographically and positioned antisymmetrically with respect to the central cut in the middle of the microstrip. These holes, not necessarily square, are positioned with peri-odicity . With a perimeter of , they are small enough to ensure weak modulation on the ground-return currents of the microstrip mode, which may be of type or . Furthermore, the microstrip is properly designed such that the ideal microstrip (with uniform ground plane) will support the leaky mode. When a single well-defined microstrip bound mode is launched at port 1 of Fig. 2, it propa-gates through the tapered microstrip. The tapering facilitates the necessary impedance transformation from the feed point 0018-926X/03$17.00 © 2003 IEEE

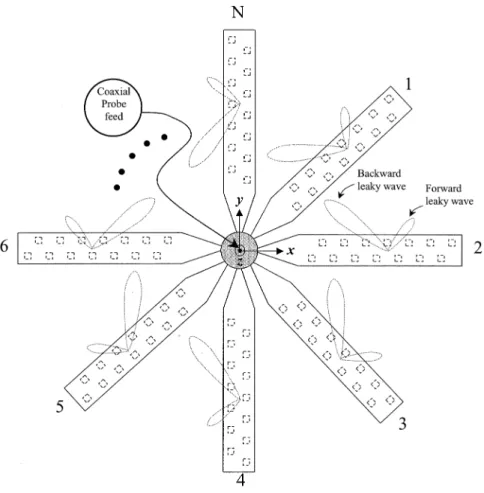

Fig. 1. A generic N-element radial microstrip conical-beam antenna array with periodic perturbations using etched holes on the ground plane.
Fig. 2. The structure and spherical coordinates of the leaky line with one or two port(s) attached for evaluation.L = 153:8 mm, L = 14:2 mm, L =
182:2 mm, d = 3:0 mm, d = 12:0 mm, d = 3:0 mm, W = 9:0 mm, W = 2:0 mm, h = 0:762 mm, and " = 2:55.
to each leaky line of lower impedance. At this stage, the prop-agating mode is still the mode. When the mode enters the microstrip (leaky line) with a perforated ground plane that contains antisymmetric holes, it experiences the so-called space-harmonic modulation due to the periodic
per-turbations on the modal currents that flow on the ground plane. Section III will present the mathematical details and theoretical results concerning the effects of such periodic modulation on the modal currents. The leaky mode can be excited because the microstrip structure supports both
758 IEEE TRANSACTIONS ON ANTENNAS AND PROPAGATION, VOL. 51, NO. 4, APRIL 2003
and modes and the space-harmonic modulation is of an-tisymmetric type.
The mode also experiences the same space-harmonic modulation as that experienced by the launched mode. The space-harmonic modulations of the and modes are carried out simultaneously in a distributed fashion that causes mode conversions, which involve the complicated generation of a variety of space harmonics. These space harmonics are gen-erated in the wider microstrip section of length , which in turn behaves like a distributed mode converter. Two tapered mi-crostrip sections are added to the input and output ports to in-vestigate the two-port scattering characteristics and thus explore the guiding characteristics of the mode converter. The length of the linear microstrip taper is sufficient to reduce reflections. Thus, no phasing and matching circuit in the central feeding block is required in Fig. 1. Only the N-way, radial, microstrip combiner/divider [13] is necessary to feed the antenna array.
Following the aforementioned design considerations, the wide microstrip section is 9.0 mm wide and 153.8 mm long , as depicted in Fig. 2. It is printed on an ULTRALAM 2000 substrate of thickness 0.762 mm (h) and relative permit-tivity 2.55 . Each of the two columns of the etched square holes on the ground plane has 14 periods. The periodicity of the etched holes is 12.0 mm . The tapered microstrip section is relatively long with 14.2 mm . The total length, , of the microstrip is 182.2 mm, and is comprised of two tapered sections of length , and a wide microstrip of length . The width of the feeding microstrip is 2.0 mm. Removing the output taper at port 2 of Fig. 2 forms an open-ended (one-port) leaky line. The coordinate system of Fig. 2 illustrates the leaky line’s being positioned along the axis. The center of the hole to the symmetrical plane is 3.0 mm . The length of the sides of each square hole is 3.0 mm . The size and periodicity of the holes are thus 0.125 and 0.5 , respectively, where is the free-space wavelength of the onset frequency of the mode at 12.5 GHz. The etched pattern on the ground plane of the guiding structure produces weak, periodic perturbations on the modes that propagate alongside the guiding structure.
The inset of Fig. 3 illustrates a uniform microstrip of width 9.0 mm (w) printed on the same substrate as that mentioned earlier, with thickness 0.762 mm (h) and relative permittivity 2.55 . The normalized dispersion characteristics of the dominant mode and the leaky mode of the ideal microstrip are plotted in Fig. 3. The dispersion characteristics of Fig. 3 are obtained by the two-dimensional (2-D) full-wave integral equation method [7]. The onset frequency of the mode, at which , is around 12.5 GHz. The grayed frequency band, as shown in the abscissa of Fig. 3, highlights the leaky region from 9.4 to 12.5 GHz. Notably, at 9.4 GHz, two curves defined by and intersect [14]. and are the normalized phase and attenuation constants, respectively. The normalized phase constant of the dominant mode , a bound mode, is nearly constant and close to 1.55 across the 8- to 14-GHz band. By contrast, the leaky mode shows typical dispersion characteristics: a fast wave of less than unity with noticeable attenuation in the leaky region.
Fig. 3. The dispersion curves of a uniform microstrip line of strip width w. (w = 9:0 mm, h = 0:762 mm, " = 2:55).
Fig. 4. Measured and theoreticaljS j (one-port line) of the single leaky line as shown in Fig. 2.
Fig. 4 indicates that the measured input reflection coefficient (in solid line) closely agree with the theoretical data (in square symbols) applying the full-wave method [15]. is less than 5 dB in the leaky region (9.4–12.5 GHz) and be-yond, implying that the potentially strong radiating zone covers the entire leaky region of interest and goes beyond the onset fre-quency of the mode at 12.5 GHz.
Continuing with the two-port measurement of the guiding structure, allows the total losses to be assessed using the rela-tive power absorbed (RPA) value ( ). Fig. 5 presents the pertinent measurements. The figure clearly shows three zones of interest. The first is below 9.4 GHz, where the proposed structure shows relatively low loss and the value of RPA is between 2% and 30% and increases as frequency rises. Most electromagnetic energy propagates through the guiding structure without experiencing large reflections or losses. The second zone lies between 9.4 and 12.5 GHz, that is, in the leaky region defined by the mode in which the RPA value rises sharply from 30% to 90%, fluctuates, and declines to approxi-mately 60%. Here, the transmission coefficient, , drops dra-matically to about 40 dB and shows good input matching to 50 with between 6.2 dB and 11.8 dB. The third zone
Fig. 5. MeasuredjS j, jS j and RPA (relative power absorbed, 10jS j 0
jS j ) of the two-port leaky line as shown in Fig. 2.
is above 12.5 GHz, where the RPA value fluctuates around 50%. This zone also represents high losses, although the transmission coefficient rises sharply from about 40 dB to 5 dB. The radiation in the third zone is not from the leaky mode of the uniform microstrip line. The next section will demon-strate how the extended radiation region can be related to the space harmonics.
III. SPACEHARMONICS ANDBRILLOUINDIAGRAM Waves that travel along an axially periodic structure are es-sentially subject to the electromagnetic field, represented by Flo-quet’s theorem [16], [17]. Given that the proposed guiding struc-ture is periodic, Floquet’s theorem can approximate the excited surface currents on the periodic structure by summing an infinite number of traveling-wave components (space harmonics). Since the antisymmetric holes on the ground plane of Fig. 2 spatially modulate the ground-return currents, the space harmonics of the mode and the higher-order mode should be included. Therefore, providing the time-harmonic factor is assumed, the surface current on the strip can be represented as
(1) and
(2)
where is the complex propagation constant of the th space harmonic of the dominant (higher-order ) mode, propagating along the longitudinal direction, and is the periodicity of the leaky line. (See Fig. 2.) In (2),
and , respectively, denote the phase and at-tenuation constants of the th-order space harmonic for
. The phase constant of the th space harmonic is displaced by from the fundamental space har-monic of order zero. and denote the phase constants of the corresponding forward and backward traveling unperturbed mode and mode of the guiding struc-ture. In (1), and components denote the current am-plitudes of the fundamental dominant and higher order forward traveling waves (both with positive phase ve-locity) of order zero, respectively. denotes the cur-rent amplitude of the th higher order space harmonic that is associated with the fundamental dominant (higher order ) forward traveling wave. Contrarily, the current amplitudes with
negative superscripts represent the th higher order space
har-monic that is subject to the fundamental dominant or higher order backward traveling wave.
The matrix-pencil method [18] can be applied to analyze the surface currents on the periodic structure as (1) assumes that the current distributions along the leaky line are of the exponential waveforms along the longitudinal axis (the direction). There-fore, the following expression is a valid approximation to the surface current :
(3) where is a known quantity and is obtained by solving the periodic structure as shown in Fig. 2 [15]. is the extracted complex propagation constant of the traveling wave compo-nent without prior knowledge of the dominant mode , the higher-order mode , their space harmonics, or other expo-nential waveforms. The integer in (3) represents the number of traveling waves applied to approximate the currents on the periodic structure. is the extracted current amplitude of the th traveling wave component at location in the transverse plane. The matrix-pencil analyses of , sampled by taking suf-ficient points per wavelength along the axis, should yield (al-most) the same propagation constant at various transverse loca-tions of . Extensive numerical studies of the particular guiding structure show that 12 sampling points per guided wavelength
in the y direction, nine equally spaced locations in the direction, and 10 traveling components will yield a reasonably accurate estimate of the waves extracted from the periodic structure. The values of the complex propagation con-stants, , are nearly identical to within 1% accuracy, regardless of which of the nine transverse locations is considered.
The dispersion curves of the and modes displayed in Fig. 3 can be expressed in another form, with the phase con-stants as the abscissa and the free-space wavenumber as the ordinate, and multiplying both by a constant, . The plot is the familiar Brillouin diagram [16], [17], which is useful for un-derstanding the propagation characteristics of the periodic struc-tures. The dominant mode, for instance, has a normalized phase constant very close to 1.55 in the entire frequency band.
760 IEEE TRANSACTIONS ON ANTENNAS AND PROPAGATION, VOL. 51, NO. 4, APRIL 2003
Fig. 6. Extracted phase constants ( =k ) of the single leaky line, employing the matrix-pencil method with ten traveling components (M = 10) and superimposed onto the Brillouin diagram. The grayed frequency region is the leaky region of the first higher-order mode (EH ) from 9.4 GHz
(k d =2 = 0:376) to 12.5 GHz (k d =2 = 0:5).
Thus, the dispersion curve of the mode, when displayed in the Brillouin diagram, will be an almost straight line, begin-ning from the origin of the abscissa with a slope 0.645 (1/1.55), as the solid, black curve labeled in Fig. 6. How-ever, the normalized phase constant of the higher-order mode, as depicted in Fig. 3, is a dashed, black curve, , in the Brillouin diagram (Fig. 6). The dispersion curve of the th space harmonic is displaced by from the fundamental space harmonic in the Brillouin diagram. The top of Fig. 6 is labeled as the appropriate representations of the space harmonics and derived from the dominant and first higher-order
modes of order , respectively. The propagation characteristics of space harmonics, ,
, , and are specified as [19].
Forward traveling waves (FTW, ): , , if , and , , if .
Backward traveling waves (BTW, ): , , if , and , , if .
Forward waves (FW, ): , , ,
and , if .
Backward waves (BW, ): , ,
, and , if .
Following the previous notion, a family of curves, , are plotted at distance from in the Brillouin diagram. Similarly is shifted by from
for the th-order space harmonic. The dispersion curves
of the space harmonics of the unloaded air-filled TEM lines is plotted to complete the background information on various types of space harmonics. Straight lines of slope are plotted in red (green) and labeled as where .. Notably, the points of intersection of the red and green lines are at . The intersects of these straight lines form an infinite array of (yellow) trian-gles. The waves are bound inside the triangles; however, out-side the triangles is the radiation region. The space harmonics in the radiation region are leaky waves. At the onset frequency (12.5 GHz) of the higher-order mode, the curve must cross the straight line defined by . Therefore, in the Brillouin diagram, the space harmonics of (or ) inter-sect the TEM lines. The points of interinter-section must be at 0.5 of the ordinate since the periodicity, (12.0 mm), of the perturbations is chosen to be one half of the free-space wavelength (24.0 mm) at the onset frequency.
The aforementioned space harmonics and triangles, thus, constitute a template for understanding the propagation char-acteristics of the periodic leaky line. The phase constants (real parts) of the extracted in (3) are also represented in the Brillouin diagram as the dotted symbols in Fig. 6. Fig. 6 reveals that the extracted complex propagation constants in the Brillouin diagram fall near the solid and dashed curves of the template except at a few locations. That is, the extracted solutions nearly coincide with the theoretical space harmonics and verifying the assumption in (1) and (2), that the
TABLE I

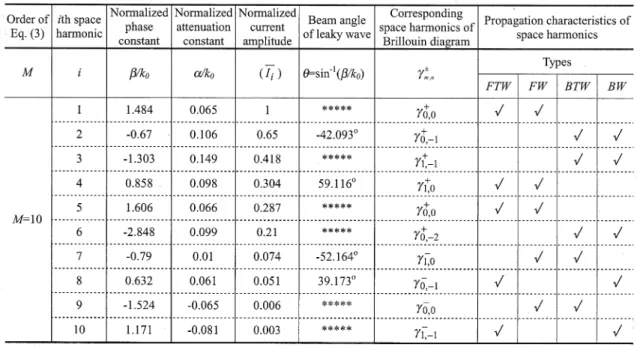

EXTRACTEDCOMPONENTS OFVARIOUSWAVES OFFIG. 2AT11.5 GHz(k d =2 = 0:46)
and modes and their higher-order space harmonics approximate closely the current distributions of the leaky line.
Table I specifies the extracted traveling components at 11.5 GHz, assuming , determined by the matrix-pencil method, to supplement the loss of information about the am-plitudes of the space harmonics. The third and fourth columns of Table I list the extracted normalized phase constant and attenuation constant, and the fifth column gives the relative current amplitudes. The normalized current amplitude is the ratio of the magnitude of the total current of the th traveling wave component to the largest total current magnitude. There-fore, the normalized current amplitude in the matrix-pencil method can be given by
(4a)
(4b) equals nine as explained earlier. Table I specifies the th trav-eling wave component, according to the descending normalized current amplitude. The smallest relative current amplitude is ap-proximately 0.3% of the largest component, in contrast to 2.5%, 17.4%, and 22.6% for 8, 6, and 4, respectively. Clearly, the series representation of the surface current, , as in (3), quickly converges as increases; appear to be a good ap-proximation for extracting the traveling wave components in the particular case study. A traveling wave with below unity, must be outside the triangles of the Brillouin diagram and thus is a leaky wave. The beam angle of this leaky wave points to the
positive (negative) axis if .
The beam angle of the leaky wave from the broadside is approx-imately
for (5)
The seventh column of Table I denotes the corresponding space harmonics as seen in the Brillouin diagram of Fig. 6. The types of the space harmonics are identified in the right-most (eighth) column of Table I. The fundamental has the largest current component ( in Table I). The backward
leaky waves and have the second
and third largest current components, respectively. makes the fourth largest contribution to the excited currents of the leaky line , and so on. The beam angles in the sixth column were determined by (5). Importantly, two leaky space waves contribute primarily radiation, and . Furthermore, as stated earlier, the radiation region is outside the triangles bounded by the air-filled TEM waves (red and green lines in Fig. 6). Consequently, the space harmonics beyond the onset frequency, 12.5 GHz, of the mode are in the radiation region, thus producing radiation loss beyond 12.5 GHz as the significant return loss with and RPA values as predicted in Figs. 4 and 5, respectively. Subsequently, most space harmonics in the frequency band from 9.4 to 12.5 GHz (leaky region of the mode) also fall into the radiation region (outside the tri-angles) and thus radiate energy. These radiation characteristics explain why the frequency band above 9.4 GHz dominates the radiation losses, as discussed in Section II. However, in the fre-quency band below 9.4 GHz, almost all space harmonics fall inside the triangles and are bound.
Further investigating the current distribution in the transverse plane of the various space harmonics reveals that the symmetry of a specific wave will be altered by the presence of antisymmetric perturbations. For example, the longitudinal cur-rent component of is evenly symmetric; however, the longi-tudinal current component of the higher-order space harmonic of order is oddly symmetric. Similarly, the longi-tudinal current component of is oddly symmetric but its space harmonic shows an evenly symmetric current dis-tribution. The oddly symmetric and components are
762 IEEE TRANSACTIONS ON ANTENNAS AND PROPAGATION, VOL. 51, NO. 4, APRIL 2003
Fig. 7. Measured far-field radiation contour(E ) of the single leaky-line prototype (Fig. 2) at 11.5 GHz (contour step = 1 dB).
outside the triangles and lie in the backward and forward leaky regions, respectively. Accordingly, both of these two forward and backward leaky waves of a single leaky line have the same polarization but differ in amplitude (see Fig. 1).
IV. RADIATIONCHARACTERISTICS OF THESINGLELEAKYLINE ANDRADIALANTENNAARRAY
A. Single Leaky Line
This section relates the radiation beam angles predicted by the space harmonics, as listed in Table I, to those obtained by measurement. The far-field radiation patterns, obtained by the near-field measurement system, are expressed by and [20] (6) (7) and , in (6) and (7), are the angle parameters in spherical coordinates. In the near-field measurement system, and are the horizontal and depth components in the K-space domain, respectively. is the vertical component. , , and can be defined in a spherical coordinate system
(8) (9) (10) When measuring an antenna in the near-field measurement system, we set the axis of the antenna in the vertical direc-tion. The axis and axis are in the horizontal and depth direc-tions, respectively. Therefore, corresponds to ( and ). The polarization of the
Fig. 8. Measured return loss(jS j) of the proposed microstrip radial antenna array.
waveguide probe at the scanner should coincide with the polar-ization of the antenna under test (AUT) for copolarpolar-ization mea-surement. A positive (negative) of the radiation beam rep-resents forward (backward) radiation in the direction. The theoretical results in Table I indicate that, with amplitudes in descending order, the first and second beams point at equal to and at , respectively. The main beam at is associated with the backward leaky wave, , and the second beam with the forward leaky wave . However, the sidelobes contributed by the space harmonics and are not obvious because they have small amplitudes, as extracted by the matrix-pencil method. An open-ended leaky-line prototype is built and tested according with the dimensions and material constant given in Fig. 2. The predominant component of the leaky line manifests the horizontal polarization in the near-field measurement system. Thus, – plane is the H plane. Fig. 7
Fig. 9. Measured conical beam (in dB) of the proposed microstrip radial antenna array at 11.5 GHz.(contour step = 1 dB).
plots the measured radiation contours, which show that the main beam points to and the second beam to in (at ). Accordingly, the theory presented in the preceding section agrees closely with the experimental results. The mea-sured directivity is 15.88 dBi and its 3-dB (half-power) contour spans 64 in and 15 in . (See the lower part of Fig. 7.) Such an advantageous radiation pattern is applied for a low-profile microstrip antenna array to construct a conical beam, since the main beam is thin in and wide in .
B. Radial Antenna Array
In view of the requirement for a conical-beam antenna, eight leaky lines are applied to synthesize an antenna array with this feature. Fig. 1 illustrates the basic operational principle of the radial antenna array: each leaky line radiates a main beam in the backward direction and a second beam in the forward direc-tion. Both beams have approximately equal 3-dB beamwidths in , as depicted in Fig. 7. Although both beams have different angles, maintaining the colinear arrangement of the two op-posite leaky lines, as indicated in Fig. 1, ensures that the conical beam is obtained and its 3-dB beamwidth widened. In practice, a shorter leaky line than that described in the previous section is used to shrink the antenna array, while maintaining the conical beam. Therefore, a leaky line, possessing seven periods instead of the fourteen periods of the leaky-line prototype with antisym-metric square holes on the ground plane, is employed to form an eight-element radial antenna array. The eight elements are equally spaced around a circle, as depicted in Fig. 1. An SMA connector is directly mounted on the backside of the antenna array and its central pin is soldered to the center of the front side. Fig. 8 shows that the measured input return losses are 15.3, 16.5, and 38.3 dB at 9.68, 11.38, and 12.30 GHz, respec-tively, indicating good 50- input matching. The return loss is
Fig. 10. The vertical cut (V-cut,8 = 0 ) of the measured conical beam in Fig. 9.
14.3 dB at the 11.5-GHz operating frequency, also showing good matching characteristics. The bandwidth as defined by dB, is from 11.17 to 11.95 GHz, or approximately 6.8%. The polarization of Fig. 7 (single leaky line) is horizontal and thus the radial antenna array has vertical and horizontal po-larizations simultaneously. Accordingly, we should measure the radial antenna array twice for the two different polarizations and then superpose the two far-field results to obtain the total field pattern. Fig. 9 depicts the measured radiation pattern of the ra-dial antenna array at 11.5 GHz, approximately showing a cir-cular fashion in plane. The circular pattern in Fig. 9 indi-cates a conical beam in spherical coordinates with a flare angle approximately equal to the radius of the circle. Thus the flare angle of the conical beam shown in Fig. 9 is 31 . The detailed
764 IEEE TRANSACTIONS ON ANTENNAS AND PROPAGATION, VOL. 51, NO. 4, APRIL 2003
or if rad or with (A1)
(A2)
expressions are in the Appendix. The relative power level at the center of the conical beam is about 18 dB. Fig. 10 shows the vertical cut (V-cut) of the conical beam at for clearer illustration of radius . As seen in Fig. 10, the main beam of the conical beam has a flare angle of 31 and has a 3-dB beamwidth of 24 . The microstrip radial antenna array with a conical beam can be applied for an indoor WLAN, mobile, and satellite ap-plications.
V. CONCLUSION
This paper shows the controllability of leaky waves in the form of space harmonics, by introducing perturbations of the ground plane—namely, antisymmetric etched holes. The orig-inal and modes supported by the otherwise ideal mi-crostrip experience the space-harmonic modulations by the per-turbations from the ground plane. The space harmonics and of the leaky-line prototype are shown to contribute the main beam and second beam, respectively. The tilt angles of the measured main beam and second beam closely corre-spond to the theoretical prediction derived from the Brillouin diagram of the leaky line. Measurement of an eight-element radial antenna array formed by four pairs of identical, colinear leaky lines shows a conical beam. The conical beam has a flare angle of 31 and a 3-dB beamwidth of 24 at 11.5 GHz. Such a pattern can be used for indoor WLAN, mobile, and satellite communications.
APPENDIX
By (6) and (7), numerical studies show that conical beams in spherical coordinates with smaller flare angles ( (rad) or ) nearly maps to circles with radii in plane with maximum discrepancies less than 2.3%. That is (see (A1) and (A2) at the top of the page).
The radii in (A1) and (A2) are presented by radians and are converted to degrees shown in Fig. 9. Therefore, the pattern shown in Fig. 9 is a conical beam with a flare angle equal to
.
ACKNOWLEDGMENT
Authors wish to extend their appreciations to Prof. Tapan Kumar Sarkar for his kind supervisions of matrix-pencil codes as well as to Mr. Yu-Chiao Chen for assisting data presentations.
REFERENCES
[1] “Mini-special issue on electromagnetic crystal structures, design, syn-thesis and applications,” IEEE Trans. Microwave Theory Tech., vol. 47, pp. 2059–2166, Nov. 1999.
[2] V. Radisic, Y. Qian, R. Coccioli, and T. Itoh, “Novel 2-D photonic bandgap structure for microstrip lines,” IEEE Microwave Guided Wave Lett., vol. 8, pp. 69–71, Feb. 1998.
[3] K. C. Chen, C. K. C. Tzuang, Y. Qian, and T. Itoh, “Leaky properties of microstrip above a perforated ground plane,” in IEEE MTT-S Int. Mi-crowave Symp. Dig., 1999, pp. 69–72.
[4] A. Petosa and J. S. Wight, “Analysis of a low profile slotted microstrip antenna for cellular mobile radio,” IEEE Trans. Veh. Technol., vol. 41, pp. 363–368, Nov. 1992.
[5] K. Fujimoto, T. Hori, S. Nishimura, and K. Hirasawa, “Applications in mobile and satellite systems,” in Handbook of Microstrip Antennas, Inst. Elect. Eng. Electromagnetic Waves Series 28, J. R. James and P. S. Hall, Eds., 1989, vol. 2, ch. 19, pp. 1127–1132.
[6] W. Menzel, “A new travelling-wave antenna in microstrip,” AEÜ 33, pp. 137–140, Apr. 1979.
[7] G. J. Chou and C. K. C. Tzuang, “An integrated quasiplanar leaky-wave antenna,” IEEE Trans. Antennas Propagat., vol. 44, pp. 1078–1085, Aug. 1996.
[8] Y. D. Lin, J. W. Sheen, and C. K. C. Tzuang, “Analysis and design of feeding structures for microstrip leaky wave antenna,” IEEE Trans. Mi-crowave Theory Tech., vol. 44, pp. 1540–1547, Sept. 1996.
[9] C. N. Hu and C. K. C. Tzuang, “Microstrip leaky-mode antenna array,” IEEE Trans. Antennas Propagat., vol. 45, pp. 1698–1699, Nov. 1997. [10] T. L. Chen and Y. D. Lin, “Aperture-coupled microstrip line leaky
wave antenna with broadside mainbeam,” Electron. Lett., vol. 34, pp. 1366–1367, July 1998.
[11] Y. Qian, B. C. C. Chang, T. Itoh, K. C. Chen, and C. K. C. Tzuang, “High efficiency and broadband excitation of leaky mode in microstrip structures,” in IEEE MTT-S Int. Microwave Symp. Dig., 1999, pp. 1419–1422.
[12] C. C. Lin and C. K. C. Tzuang, “A dual-beam micro-CPW leaky-mode antenna,” IEEE Trans. Antennas Propagat., pp. 310–316, Feb. 2000. [13] M. Cohn, B. D. Geller, and J. M. Schellenberg, “A 10 watt broadband
FET combiner/amplifier,” in IEEE MTT-S Int. Microwave Symp. Dig., 1979, pp. 292–297.
[14] K. S. Lee, “Microstrip line leaky wave antenna,” Ph.D. dissertation, Rensselaer Polytech. Inst. New York, June 1986.
[15] Zeland IE3D Version 8.0, Zeland Software, Inc..
[16] A. A. Oliner, Radiating periodic structures: analysis in terms ofk vs. diagrams, in SHORT COURSE on Microwave Field and Network Tech-niques, June 4, 1963.
[17] R. E. Collin and F. J. Zucker, Antenna Theory. New York: McGraw-Hill, 1969, pt. 2, ch. 19.
[18] R. S. Adve, T. K. Sarkar, O. M. C. Pereira-Filho, and S. M. Rao, “Extrap-olation of time-domain responses from three-dimensional conducting objects utilizing the matrix pencil technique,” IEEE Trans. Antennas Propagat., vol. 45, pp. 147–156, Jan. 1997.
[19] C. K. C. Tzuang and J. M. Lin, “On the mode-coupling formation of complex modes in a nonreciprocal finline,” IEEE Trans. Microwave Theory Tech., vol. 41, pp. 1400–1408, Aug. 1993.
[20] D. Slater, Near-Field Antenna Measurements. Norwood, MA: Artech House, 1991, ch. 3, pp. 50–51.
