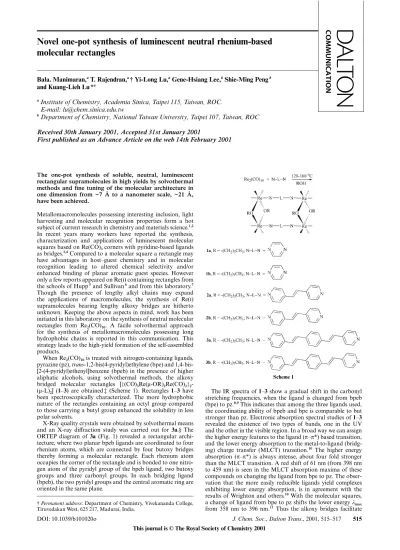

Novel one-pot synthesis of luminescent neutral rhenium-based

molecular rectangles

Bala. Manimaran,

T. Rajendran,

† Yi-Long Lu,

Gene-Hsiang Lee,

Shie-Ming Peng

and Kuang-Lieh Lu *

Institute of Chemistry, Academia Sinica, Taipei 115, Taiwan, ROC.

E-mail: [email protected]

b

Department of Chemistry, National Taiwan University, Taipei 107, Taiwan, ROC

Received 30th January 2001, Accepted 31st January 2001

First published as an Advance Article on the web 14th February 2001

The one-pot synthesis of soluble, neutral, luminescent rectangular supramolecules in high yields by solvothermal methods and fine tuning of the molecular architecture in one dimension from ~7 Å to a nanometer scale, ~21 Å, have been achieved.

Metallomacromolecules possessing interesting inclusion, light harvesting and molecular recognition properties form a hot subject of current research in chemistry and materials science.1,2 In recent years many workers have reported the synthesis, characterization and applications of luminescent molecular squares based on Re(CO)3 corners with pyridine-based ligands as bridges.3,4 _{Compared to a molecular square a rectangle may} have advantages in host–guest chemistry and in molecular recognition leading to altered chemical selectivity and/or enhanced binding of planar aromatic guest species. However only a few reports appeared on Re() containing rectangles from the schools of Hupp5 _{and Sullivan}6 _{and from this laboratory.}7 Though the presence of lengthy alkyl chains may expand the applications of macromolecules, the synthesis of Re() supramolecules bearing lengthy alkoxy bridges are hitherto unknown. Keeping the above aspects in mind, work has been initiated in this laboratory on the synthesis of neutral molecular rectangles from Re2(CO)10. A facile solvothermal approach for the synthesis of metallomacromolecules possessing long hydrophobic chains is reported in this communication. This strategy leads to the high-yield formation of the self-assembled products.

When Re2(CO)10 is treated with nitrogen-containing ligands, pyrazine (pz), trans-1,2-bis(4-pyridyl)ethylene (bpe) and

1,4-bis-[2-(4-pyridyl)ethenyl]benzene (bpeb) in the presence of higher aliphatic alcohols, using solvothermal methods, the alkoxy bridged molecular rectangles [{(CO)3Re(µ-OR)2Re(CO)3}2 -(µ-L)2] (1–3) are obtained ‡ (Scheme 1). Rectangles 1–3 have been spectroscopically characterized. The more hydrophobic nature of the rectangles containing an octyl group compared to those carrying a butyl group enhanced the solubility in less polar solvents.

X-Ray quality crystals were obtained by solvothermal means and an X-ray diffraction study was carried out for 3a.§ The ORTEP diagram of 3a (Fig. 1) revealed a rectangular archi-tecture, where two planar bpeb ligands are coordinated to four rhenium atoms, which are connected by four butoxy bridges thereby forming a molecular rectangle. Each rhenium atom occupies the corner of the rectangle and is bonded to one nitro-gen atom of the pyridyl group of the bpeb ligand, two butoxy groups and three carbonyl groups. In each bridging ligand (bpeb), the two pyridyl groups and the central aromatic ring are oriented in the same plane.

† Permanent address: Department of Chemistry, Vivekananda College, Tiruvedakan West, 625 217, Madurai, India.

The IR spectra of 1–3 show a gradual shift in the carbonyl stretching frequencies, when the ligand is changed from bpeb (bpe) to pz.8,9 _{This indicates that among the three ligands used,} the coordinating ability of bpeb and bpe is comparable to but stronger than pz. Electronic absorption spectral studies of 1–3 revealed the existence of two types of bands, one in the UV and the other in the visible region. In a broad way we can assign the higher energy features to the ligand (π–π*) based transition, and the lower energy absorption to the metal-to-ligand (bridg-ing) charge transfer (MLCT) transition.10 _{The higher energy} absorption (π–π*) is always intense, about four fold stronger than the MLCT transition. A red shift of 61 nm (from 398 nm to 459 nm) is seen in the MLCT absorption maxima of these compounds on changing the ligand from bpe to pz. The obser-vation that the more easily reducible ligands yield complexes exhibiting lower energy absorption, is in agreement with the results of Wrighton and others.10 _{With the molecular squares,} a change of ligand from bpe to pz shifts the lower energy λmax from 358 nm to 396 nm.11 _{Thus the alkoxy bridges facilitate}

516 J. Chem. Soc., Dalton Trans., 2001, 515–517

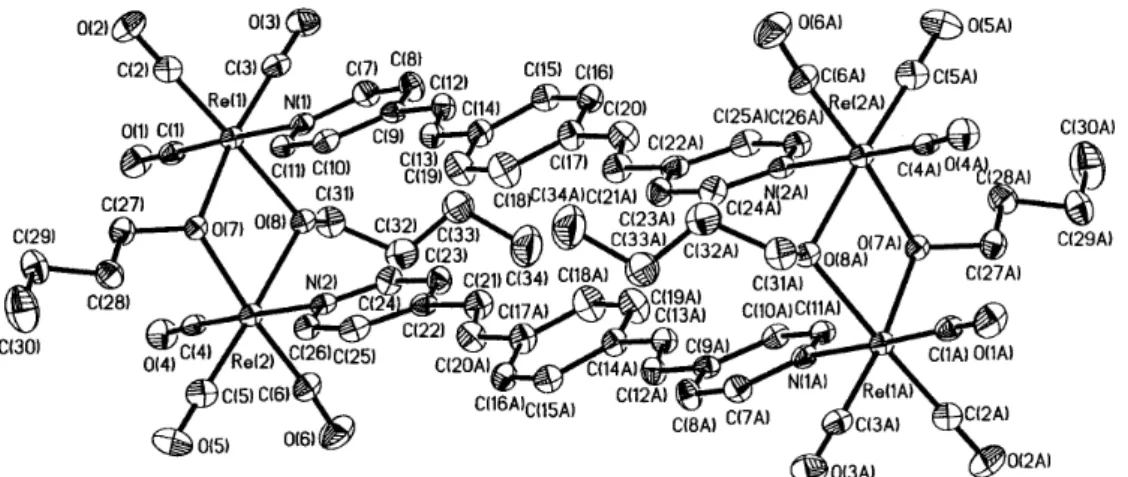

Fig. 1 ORTEP16 _{diagram of [{(CO)}

3Re(µ-OC4H9)2Re(CO)3}2(µ-bpeb)2] (3a). Selected bond distances (Å) and angles (⬚): Re(1)–N(1) 2.219(4),

Re(1)–O(7) 2.154(3), Re(1)–O(8) 2.161(3), Re(1)–C(1) 1.923(5), Re(1)–C(2) 1.905(6), Re(1)–C(3) 1.912(6), O(7)–C(27) 1.447(6), O(8)–C(31) 1.451(6); O(7)–Re(1)–N(1) 82.36(14), O(8)–Re(1)–N(1) 83.29(13), Re(1)–O(7)–Re(2) 104.06(14), Re(1)–O(8)–Re(2) 103.49(14), O(7)–Re(1)–O(8) 74.68(13), O(7)–Re(2)–O(8) 74.53(13), C(27)–O(7)–Re(1) 118.1(3), C(27)–O(7)–Re(2) 123.3(3), C(31)–O(8)–Re(1) 117.0(3), C(31)–O(8)–Re(2) 118.2(3). Re→ L charge transfer. It is interesting to note that the

(MLCT) bands of 1a and 1b are highly sensitive to a change in the polarity of the solvent and exhibit solvatochromism, having a shift in λmax to the tune of 100 nm when the solvent is varied from DMSO to CCl4. Excitation of the complexes near the MLCT absorption wavelength results in moderate emission in the range 440 to 490 nm in CH3CN and CH2Cl2. However, the free ligands also show emission in the above region. Since both the free ligands and rectangles exhibit emissions around the same region, the observed emission for the complexes may therefore originate from the MLCT band involving primarily the bridging ligands. The excited state lifetimes of these rectangles have been measured and are in the range of 10 to 15 ns at room temperature.

The measured cyclic voltammetric data show that each of the complexes studied here displays two or three reduction waves and one to four oxidation waves. The first reduction wave in the range ⫺0.73 to ⫺1.28 V can be assigned to the first reduction of the bridging ligand, L/L⫺.12–15 _{The second reduction observed} with the complexes containing bpe and bpeb at ⫺1.26 V and ⫺1.28 V may be assigned to the second reduction of the ligand, L⫺/L2⫺_{. The reduction wave observed in the range ⫺1.35 to}

⫺1.50 V in the case of complexes containing bpe and pz can be assigned to the reduction of the metal, Re⫹/Re0_.13,15 _The oxidation peaks observed in the range 1.00–1.65 V may be attributed to the oxidation of the four metal centers present in the rectangle. As the alkoxy bridge remains as a good electron donor in the present system it is not able to show any redox reaction in the potential range ⫺2.00 to 2.00 V.

In conclusion, we have demonstrated that a novel class of molecular rectangles bearing octahedral Re centers can be prepared by a one-pot synthesis in high yield by solvothermal methods. The solubility of these neutral rectangles can be tuned by tailoring the length of the alkyl chain of the alkoxy group. The luminescence and the solvatochromic properties make these molecular rectangles interesting species. Further work is in progress to tune the luminescence properties of these molecular rectangles in order to expand their applications.

We thank Academia Sinica and the National Science Council of Taiwan for financial support. We are also grateful to Professor S. Rajagopal for valuable discussions.

Notes and references

‡ General synthetic procedure for 1–3: In a typical preparation, a

suspension containing a mixture of Re2(CO)10 and the appropriate

N-ligand in 10 ml aliphatic alcohol in a 30 ml Teflon flask was placed

in an oven maintained at 120–160⬚C for 48 h and then cooled to 25 ⬚C.

The crystals were separated by filtration and the solvent was removed

from the filtrate under vacuum, the residue was then redissolved in the

minimum quantity of CH2Cl2 and passed through a short silica gel

column to obtain the pure product. Yield: 1a, 71%; 1b, 73%; 2a, 76%;

2b, 82%; 3a, 78%; 3b, 84%. Compound 1a: IR (CH2Cl2): νCO 2024 (s), 2017 (sh, m), 1925 (m), 1903 (vs) cm⫺1; 1_{H NMR [300 MHz, (CD} 3)2CO]: δ 8.83 (s, 8 H, H2), 4.44 (m, 8 H), 2.17 (m, 8 H), 1.48 (m, 8 H), 1.07 (t, 3_{J 7.4 Hz, 12 H);} 13_C NMR [75 MHz, (CD3)2CO]: δ 199.0, 198.2 (1:2, CO), 150.1 (C2, pyr-azine), 82.9 (CH2), 36.5 (CH2), 19.0 (CH2), 14.5 (CH3); UV-VIS

(CH3CN): λmax (nm) 452 (MLCT), 255, 261, 268 (LIG). Anal. for

C36H44N4O16Re4, found (calc.): C, 28.09 (28.19); H, 2.85 (2.89); N, 3.73

(3.65)%. Mass (FAB, 187_{Re): m/z 1536 (M}⫹_).

Compound 1b: IR (CH2Cl2): νCO 2024 (s), 2018 (sh, m), 1924 (m), 1903 (vs) cm⫺1; 1_{H NMR [300 MHz, (CD} 3)2CO]: δ 8.83 (s, 8 H, H2), 4.42 (m, 8 H), 2.20 (m, 8 H), 1.46 (m, 24 H), 1.35 (m, 16 H), 0.91 (t, 3_{J 6.9 Hz, 12 H);} 13_{C NMR [75 MHz, (CD} 3)2CO]: δ 198.7, 197.1 (1:2, CO), 150.0 (C2_{, pyrazine), 83.1 (CH} 2), 34.2 (CH2), 32.5 (CH2), 30.2 (CH2), 29.9 (CH2), 25.7 (CH2), 23.3 (CH2), 14.3 (CH3); UV-VIS

(CH3CN): λmax (nm) 459 (MLCT), 255, 261 (LIG); emission: λmax (nm)

470. Anal. for C52H76N4O16Re4, found (calc.): C, 35.97 (35.53); H, 4.30

(4.36); N, 3.08 (3.18)%. Mass (FAB, 187_{Re): m/z 1760 (M}⫹_).

Compound 2a: IR (CH2Cl2): νCO 2020 (s), 2008 (m), 1909 (m), 1888 (vs) cm⫺1; 1_{H NMR [300 MHz, (CD} 3)2CO]: δ 8.46 (d, 3_{J 5.3 Hz, 8 H,} H3_{), 7.63 (s, 4 H, vinyl), 7.59 (d,} 3_{J 5.3 Hz, 8 H, H}2_{), 4.41 (m, 8 H), 2.13} (m, 8 H), 1.49 (m, 8 H), 1.08 (t, 3_{J 7.4 Hz, 12 H);} 13_{C NMR [125 MHz;} (CD3)2CO]: δ 198.9, 198.5 (1:2, CO), 152.8 (C3), 146.4 (C1), 132.6 (vinyl), 124.0 (C2_{), 82.5 (CH} 2), 36.5 (CH2), 19.1 (CH2), 14.5 (CH3);

UV-VIS (CH3CN): λmax (nm) 398 (MLCT), 289 (LIG); emission: λmax (nm)

440, 454. Anal. for C52H56N4O16Re4, found (calc.): C, 35.98 (35.94);

H, 3.27 (3.25); N, 3.33 (3.22)%. Mass (FAB, 187_{Re): m/z 1740 (M}⫹_).

Compound 2b: IR (CH2Cl2): νCO 2020 (s), 2008 (m), 1909 (m), 1886 (vs) cm⫺1; 1_{H NMR [300 MHz, (CD} 3)2CO]: δ 8.46 (d, 3J 6.6 Hz, 8 H, H3_{), 7.62 [s, 4 H, (vinyl)], 7.57 (d,} 3_{J 6.6 Hz, 8 H, H}2_{), 4.39 (m, 8 H), 2.16} (m, 8 H), 1.47 (m, 24 H), 1.36 (m, 16 H), 0.92 (t, 3_{J 6.8 Hz, 12 H);} 13_C NMR [75 MHz; (CD3)2CO]: δ 199.0, 198.6 (1:2, CO), 152.1 (C 3_{), 146.4} (C1_{), 132.7 (vinyl), 124.1 (C}3_{), 82.8 (CH} 2), 34.4 (CH2), 32.6 (CH2), 30.4 (CH2), 30.0 (CH2), 26.0 (CH2), 23.3 (CH2), 14.4 (CH3); UV-VIS

(CH3CN): λmax (nm) 398 (MLCT), 289 (LIG); emission: λmax (nm) 460.

Anal. for C68H88N4O16Re4, found (calc.): C, 41.58 (41.62); H, 4.47

(4.52); N, 2.85 (2.86)%. Mass (FAB, 187_{Re): m/z 1964 (M}⫹_).

Compound 3a: IR (CH2Cl2): νCO 2019 (s), 2005 (m), 1905 (m), 1884

(vs) cm⫺1; 1_{H NMR [300 MHz, (CD}

3)2CO]: δ 8.36 [d, 3J 6.5 Hz, 8 H,

(pyridyl) H3_{], 7.54 [d,} 3_{J 16.4 Hz, 4 H, (vinyl) H}2_{], 7.47 [d,} 3_{J 6.5 Hz, 8 H,}

(pyridyl) H2_{], 7.38 [s, 8 H (phenyl)], 7.18 [d,} 3_{J 16.4 Hz, 4 H (vinyl) H}1_],

4.40 (m, 8 H), 2.13 (m, 8 H), 1.49 (m, 8 H), 1.08 (t, 3_{J 7.3 Hz, 12 H);}

UV-VIS (CH3CN): λmax (nm) 423 (MLCT), 269, 364 (LIG); emission:

λmax (nm) 474. Anal. for C68H68N4O16Re4, found (calc.): C, 42.37

(42.05); H, 3.42 (3.53); N, 2.92 (2.88)%. Mass (FAB, 187_{Re): m/z 1944}

(M⫹). Compound 3b: IR (CH2Cl2): νCO 2020 (s), 2006 (m), 1906 (m), 1883 (vs) cm⫺1; 1_{H NMR [300 MHz, (CD} 3)2CO]: δ 8.36 [d, 3_{J 6.6 Hz, 8 H,} (pyridyl) H3_{], 7.53 [d,} 3_{J 16.4 Hz, 4 H, (vinyl) H}2_{], 7.46 [d,} 3_{J 6.6 Hz, 8 H,}

(pyridyl) H2_{], 7.38 [s, 8 H, (phenyl)], 7.18 [d,} 3_{J 16.4 Hz, 4 H, (vinyl) H}1_],

4.39 (m, 8 H), 2.15 (m, 8 H), 1.47 (m, 24 H), 1.37 (m, 16 H), 0.92 (t,

3_{J 6.8 Hz, 12 H);} 13_{C NMR [75 MHz, (CD}

3)2CO]: δ 199.1, 198.7 (1:2,

CO), 152.4 (pyridyl) C3_{, 148.0 (pyridyl) C}1_{, 137.3 (phenyl) C}1_{, 136.0}

(vinyl) C2_{, 128.5 (phenyl) C}2_{, 125.9 (vinyl) C}1_{, 123.2 (pyridyl) C}2_{, 82.8}

(CH2), 34.4 (CH2), 32.6 (CH2), 26.0 (CH2), 23.3 (CH2), 14.4 (CH3);

UV-VIS (CH3CN): λmax (nm) 422 (MLCT), 235, 285, 370 (LIG);

emission: λmax (nm) 474, 490. Anal. for C84H100N4O16Re4, found (calc.):

C, 46.07 (46.57); H, 4.42 (4.65); N, 1.89 (2.59)%. Mass (FAB, 187_{Re): m/z}

J. Chem. Soc., Dalton Trans., 2001, 515–517 517

§ Crystallographic data: [C68H68N4O16Re4] 3a: M= 1942.06, T = 150(1)

K, monoclinic, space group= P21/n, a= 9.2304(1), b = 23.5898(1),

c= 15.9339(2) Å, β = 98.796(1)⬚, V = 3428.69(6) Å3_{, Z= 2, D}

c= 1.881 g

cm⫺3, µ = 7.106 mm⫺1, 24951 reflections collected, 7796 independent

reflections (Rint= 0.0420), refinement method: full-matrix least-squares

on F2_{. Final R indices [I > 2σ(I)]: R}

1= 0.0379, wR2= 0.0658, R indices

(all data): R1= 0.0512, wR2= 0.0699, Largest diff. peak and hole: 1.187

and ⫺0.786 e Å⫺3. CCDC reference numbers 156620–156622. See

http://www.rsc.org/suppdata/dt/b1/b101020o/ for crystallographic data in CIF or other electronic format.

1 S. Leininger, B. Olenyuk and P. J. Stang, Chem. Rev., 2000, 100, 853 and references therein; P. N. W. Baxter, J.-M. Lehn, G. Baum and D. Fenske, Chem. Eur. J., 1999, 5, 102; P. N. W. Baxter, J.-M. Lehn, B. O. Kneisel, G. Baum and D. Fenske, Chem. Eur. J., 1999, 5, 113; D. L. Caulder and K. N. Raymond, J. Chem. Soc., Dalton Trans., 1999, 1185 and references therein; D. L. Caulder and K. N. Raymond, Acc. Chem. Res., 1999, 32, 975; M. Fujita, Acc. Chem.

Res., 1999, 32, 53; M. Fujita, Chem. Soc. Rev., 1998, 27, 417 and

references therein; M. H. Keefe, K. D. Benkstein and J. T. Hupp,

Coord. Chem. Rev., 2000, 205, 201; F. M. Dixon, A. D. Eisenberg,

J. R. Farrell, C. A. Mirkin, L. M. Liable-Sands and A. L. Rheingold,

Inorg. Chem., 2000, 39, 3432.

2 T. Imamura and K. Fukushima, Coord. Chem. Rev., 2000, 198, 133; see, for example: Comprehensive Supramolecular Chemistry, eds. J. L. Atwood, J. E. D. Davies, D. D. MacNicol, F. Vogtle and J.-M. Lehn, Pergamon, Oxford, 1996, vols. 6 and 9; L. R. MacGillivray and J. L. Atwood, Angew. Chem., Int. Ed., 1999,

38, 1018; E. C. Constable and E. Schofield, Chem. Commun., 1998,

403.

3 S. Belanger, J. T. Hupp, C. L. Stern, R. V. Slone, D. F. Watson and T. G. Carrell, J. Am. Chem. Soc., 1999, 121, 557; R. V. Slone, K. D. Benkstein, S. Belanger, J. T. Hupp, I. A. Guzei and A. L. Rheingold,

Coord. Chem. Rev., 1998, 171, 221; R. V. Slone, D. I. Yoon, R. M.

Calhoun and J. T. Hupp, J. Am. Chem. Soc., 1995, 117, 11813; C. A. B. Brennan, D. I. Yoon, R. V. Slone, A. P. Kazala and J. T. Hupp, Inorg. Chem., 1996, 35, 2032.

4 S.-S. Sun and A. J. Lees, J. Am. Chem. Soc., 2000, 122, 8956. 5 K. D. Benkstein, J. T. Hupp and C. L. Stern, Angew. Chem., Int. Ed.,

2000, 39, 2891; K. D. Benkstein, J. T. Hupp and C. L. Stern, J. Am.

Chem. Soc., 1998, 120, 12982; K. D. Benkstein, J. T. Hupp and C. L.

Stern, Inorg. Chem., 1998, 37, 5404.

6 S. M. Woessner, J. B. Helms, Y. Shen and B. P. Sullivan, Inorg.

Chem., 1998, 37, 5406.

7 T. Rajendran, B. Manimaran, F.-Y. Lee, G.-H. Lee, S.-M. Peng, C. M. Wang and K.-L. Lu, Inorg. Chem., 2000, 39, 2016.

8 M. A. El-Sayed and H. D. Kaesz, Inorg. Chem., 1963, 2, 158. 9 C. Jiang, Y.-S. Wen, L.-K. Liu, T. S. A. Hor and Y. K. Yan,

Organo-metallics, 1998, 17, 173.

10 P. J. Giordano and M. S. Wrighton, J. Am. Chem. Soc., 1979, 101, 2888; K. Kalyanasundaram, Photochemistry of Polypyridine and

Porphyrin Complexes, Academic Press, London, 1992; T. J. Meyer, Pure Appl. Chem., 1986, 58, 1193.

11 R. V. Slone, J. T. Hupp, C. L. Stern and T. E. A. Schmitt, Inorg.

Chem., 1996, 35, 4096.

12 L. A Worl, R. Duesing, P. Chen, L. D. Ciana and T. J. Meyer,

J. Chem. Soc., Dalton Trans., 1991, 849.

13 R. Lin, Y. Fu, C. P. Brock and T. F. Guarr, Inorg. Chem., 1992, 31, 4346.

14 G. J. Stor, F. Hartl, J. W. M. van Outersterp and D. J. Stufkens,

Organometallics, 1995, 14, 1115.

15 S. A. Moya, J. Guerrero, R. Pastene, R. Schmidt, R. Sariego, R. Sartori, J. S. Aparicio, I. Fonseca and M. M. Ripoll, Inorg.

Chem., 1994, 33, 2341.

16 C. K. Johnson, ORTEP, Report ORNL-5138, Oak Ridge National Laboratory, Oak Ridge, TN, 1976.
