IEEE ELECTRON DEVICE LETTERS, VOL. 32, NO. 7, JULY 2011 847
On the Origin of Gate-Induced Floating-Body
Effect in PD SOI p-MOSFETs
Chih-Hao Dai, Ting-Chang Chang, An-Kuo Chu, Yuan-Jui Kuo, Fu-Yen Jian, Wen-Hung Lo, Szu-Han Ho,
Ching-En Chen, Wan-Lin Chung, Jou-Miao Shih, Guangrui Xia, Osbert Cheng, and Cheng-Tung Huang
Abstract—This letter systematically investigates the origin of gate-induced floating-body effect (GIFBE) in partially depleted silicon-on-insulator p-type MOSFETs. The experimental results indicate that GIFBE causes a reduction in the electrical oxide field, leading to an underestimate of negative-bias temperature instability degradation. This can be partially attributed to the electrons tunneling from the process-induced partial n+polygate.
However, based on different operation conditions, we found that the dominant origin of electrons was strongly dependent on holes in the inversion layer under source/drain grounding. This suggests that the mechanism of GIFBE at higher voltages is dominated by the proposed anode electron injection model, rather than the electron valence band tunneling widely accepted as the mechanism for n-MOSFETs.
Index Terms—EVB tunneling, gate-induced floating-body ef-fect (GIFBE), negative-bias temperature instability (NBTI), silicon-on-insulator (SOI).
I. INTRODUCTION
S
ILICON-ON-INSULATOR (SOI) CMOS devices are at-tractive since they provide high current drivability and reduced junction capacitance when compared to bulk-Si de-vices [1]. However, for partially depleted (PD) SOI dede-vices, due to their relatively thick thin films, the impact-ionization mechanism near the drain will cause the ionization charges to accumulate in the neutral region, leading to the instability of body potential [2]. With aggressive scaling of the gate oxide, the floating-body (FB) potential is controlled not only by well-known impact-ionization mechanisms but also by a gradual increase of the tunneling current. This new FB effect, called gate-induced FB effect (GIFBE), has been observed in bothManuscript received March 27, 2011; accepted April 8, 2011. Date of publication May 19, 2011; date of current version June 29, 2011. This work was supported by the National Science Council under Contracts NSC99-2120-M-110-001 and NSC-97-2112-M-110-009-MY3. The review of this letter was arranged by Editor X. Zhou.
C.-H. Dai, A.-K. Chu, and Y.-J. Kuo are with the Department of Photonics, National Sun Yat-Sen University, Kaohsiung 80424, Taiwan.
T.-C. Chang is with the Department of Photonics, National Sun Yat-Sen Uni-versity, Kaohsiung 80424, Taiwan. He is also with the Department of Physics, National Sun Yat-Sen University, Kaohsiung 80424, Taiwan, and also with the Center for Nanoscience and Nanotechnology, National Sun Yat-Sen University, Kaohsiung 80424, Taiwan (e-mail: [email protected]).
F.-Y. Jian, S.-H. Ho, and C.-E. Chen are with the Department of Electronics Engineering, National Chiao Tung University, Hsinchu 300, Taiwan.
W.-H. Lo, W.-L. Chung, and J.-M. Shih are with the Department of Physics, National Sun Yat-Sen University, Kaohsiung 80424, Taiwan.
G. Xia is with the Department of Materials Engineering, The University of British Columbia, Vancouver, BC V6T 1Z4, Canada.
O. Cheng and C.-T. Huang are with the Device Department, United Micro-electronics Corporation, Tainan 744, Taiwan.
Color versions of one or more of the figures in this letter are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/LED.2011.2142412
PD SOI MOSFETs [3], [4] and fully depleted transistors [5]. Although this FB effect can be used in digital designs to enhance the drain current, owing to the reduction in threshold voltage, analog designs are restricted when the operation point is near the kink region. Therefore, to prevent GIFBE, body-tied-with-T-gate configurations for PD SOI devices have been used widely [6]–[8]. However, due to the disappearance of the FB effect, the promotion of drain current is strongly limited in digital designs. Therefore, the body-tied devices are usually operated in FB or ground-body (GB) situations for analog and digital designs, respectively.
In addition, GIFBE has been reported to reduce negative-bias temperature instability (NBTI) degradation for PD SOI p-MOSFETs with FB condition [9], [10]. The electrons gen-erated by NBTI stress accumulate in the body, resulting in a decrease in electrical oxide field, owing to the increase of the body potential. However, the origin of these electrons is not clear yet due to the fact that the electron concentration is insufficient in the p+polygate of p-MOSFETs. To the best of our knowledge, several studies consider that the model of electron valence band (EVB) tunneling should be responsible for the GIFBE in SOI n-MOSFETs [3]–[5]. However, there are a few studies confirming the validity of this mechanism for p-MOSFETs. Therefore, the aim of this work is to clarify the origin of electrons on the GIFBE in PD SOI p-MOSFETs by adopting systematical operation conditions. The experimental results reveal that the GIFBE in p-MOSFETs can be partially attributed to the process-induced partial n+ polygate of body-tied devices. However, the major electron source generated by NBTI stress is significantly related to the inversion channel supplied from the source and drain. Therefore, we propose the anode electron injection (AEI) model, which is similar to the anode hole injection (AHI) model [11], to explain how this main electron origin is generated during NBTI.
II. EXPERIMENT
Using 65-nm SOI CMOS technology, PD SOI p-MOSFETs with p+ polygate are employed in a T-gate structure to inves-tigate the GIFBE mechanism. The top view of the body-tied device is shown in the inset of Fig. 1. The distance from the body contact to the active region is 0.35 μm. The silicon film and buried oxide thicknesses for the devices are 75 and 145 nm, respectively. The gate oxide with a thickness of 12 Å was grown by in situ steam generation, with the channel doping concentration about 3× 1018cm−3. The channel current flows in the 110 direction on the (100) substrate. In this work, devices with channel lengths (L) and widths (W ) both in the range of 1 μm–65 nm were selected. To confirm the FB effect on NBTI degradation, the body-tied devices were subject to
848 IEEE ELECTRON DEVICE LETTERS, VOL. 32, NO. 7, JULY 2011

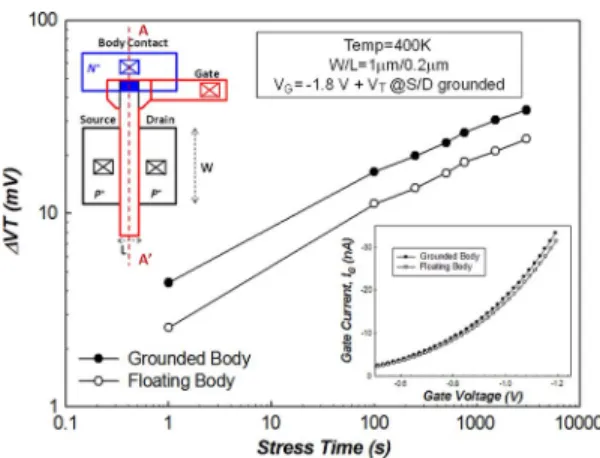

Fig. 1. NBTI-induced threshold voltage shift versus stress time for SOI p-MOSFETs under GB and FB operations. The inset shows the top view of the T-gate structure and the gate current comparison of GB and FB devices.
NBTI test under FB and GB conditions. A gate voltage of
−1.8 V + VT was applied to the gate electrode at 400 K during
NBTI, while the source and drain electrodes were grounded. The threshold voltage (VT) was defined as the gate voltage for
which the drain current is equal to 70 nA× (W/L) in the linear region. All electrical characteristics were measured using an Agilent B1500 semiconductor parameter analyzer.
III. RESULTS ANDDISCUSSION
Fig. 1 shows the NBTI-induced VT shift for the PD SOI
p-MOSFETs under FB and GB operations. It can be clearly observed that the NBTI degradation under the FB condition is less than that under the GB condition. This can be attributed to the electron accumulation in the body, which effectively lowers the oxide field for FB devices during stress, thereby reducing NBTI degradation. That the lowering of the electrical oxide field is induced by electron accumulation can be supported by the reduction in the gate leakage current (IG) under FB
condition, as shown in the inset of Fig. 1.
To examine these additional carriers (electrons), Fig. 2 shows
IG and the body current (IB) versus the gate voltage (VG) for
different p+polygate areas (1–0.2 μm2), while the source/drain (S/D) and body are grounded. It can be seen that IB has a
significant enhancement as IGincreases, which means that the
source of IBis strongly dependent on IG. In addition,
regard-less of the different polygate areas, IB always shows a linear
increase until about VG=−1 V and then shows an exponential
increase beyond that point. This phenomenon implies that the two mechanisms closely related to the gate leakage current should be responsible for these two respective IBstages. It has
been reported that IGconsists of the following components as
shown in the inset of Fig. 2: 1) hole tunneling from the valence band (HVB); 2) electron tunneling from the valence band (EVB); and 3) electron tunneling from the conduction band (ECB) [12], [13]. Both ECB and EVB tunneling components can be observed from the body terminal. The two stages of increase in IB seem to be contributions from these respective
tunneling currents. The ECB tunneling first occurs as a gate bias is applied. Then, when the gate bias is large enough, the EVB tunneling induces additional electrons, leading to the second increase of IB. However, due to the negligible electron
concentration in the p+ polygate, it is impossible for ECB tunneling to occur from this region and result in the pronounced
Fig. 2. IG–VGand IB–VGcurves for different p+polygate areas. The inset
shows the schematic diagrams of the different gate tunneling components in an ultrathin-gate-oxide p-MOSFET.
Fig. 3. IBfor various W and L dimensions. IBis obtained from the gate
voltage of−0.5 V while S/D is grounded. The inset shows the cross-sectional view taken from line A−Ain the top view of the T-gate structure, illustrating the p+polygate, the partial n+polygate, and the n−substrate.
IB increase as the gate bias is applied. The possible region
providing sufficient electrons can be attributed to the partial n+ polygate area of body-tied devices.
By cutting the T-gate structure along A–A as shown in Fig. 1, a cross-sectional structure can be obtained and is shown in the inset of Fig. 3. It can be observed that part of the polygate area near the body contact has been covered by an n+ implant to produce the extra body terminal. Therefore, the ECB tunneling current becomes significant between the n+ portion of the polygate and the n-substrate, resulting in the gradual increase of IBas the gate bias is applied. This can be confirmed
by examining devices of various widths and lengths, as shown in Fig. 3. The result indicates that the first stage of IB has
only linear dependence with length, rather than width, which verifies that these electrons are tunneling from a partial area of the polygate, corresponding to the blue region in the top view of the T-gate structure.
However, the exponential increase of IBbeyond VGof−1 V
indicates that the larger number of electrons induces the FB effect to become more pronounced. According to the IG
tunnel-ing model, this would seem to be caused by the EVB tunneltunnel-ing mechanism, as shown in the inset of Fig. 2. Under a sufficiently large vertical electric field, electrons tunnel from the valence band of the polygate Si to the Si substrate conduction band. However, it has been reported that EVB tunneling current only occurs when the gate bias is larger than−1.1 V in order to make
DAI et al.: ON THE ORIGIN OF GATE-INDUCED FLOATING-BODY EFFECT IN PD SOI p-MOSFETs 849
Fig. 4. (a) Schematic diagram of the AEI model for an ultrathin gate oxide in PD SOI p-MOSFETs. (b) IG–VGand IB–VGcharacteristics for PD SOI
p-MOSFETs under S/D floating and grounded operations. The inset shows the linear relationship between ΔIBand IS+ IDfrom the different p+polygate
areas. ISand IDare measured under the grounded S/D condition while VG= −1.2 V. ΔIBis obtained by subtracting the ECB component from the second increase of IB.
the valence band energy level in the Si substrate align with the gate conduction band [12]. Therefore, we propose another possible mechanism that is similar to the AHI model, i.e., that of AEI, shown in Fig. 4(a), to explain this exponential increase of IB. In AEI, if the gate oxide is thin enough, holes can still
tunnel from the inversion layer to the polygate (anode) and generate hot electrons by impact ionization in the polydepletion region. Then, these hot electrons can inject over or through the anode/oxide interface energy barrier and traverse the oxide layer to the body (cathode).
To further confirm the validity of this mechanism, two op-eration conditions are performed to distinguish the different sources of IGthat result in electron accumulation. We measured IGand IBversus VGof the device under floating and grounded S/D operations. The result under S/D floating operation is
shown in Fig. 4(b), where it can be clearly observed that the gate leakage current becomes insignificant because the S/D cannot supply sufficient minority carriers (holes) to the inversion layer. In addition, under this operation, IB exhibits only the linear
component of the ECB tunneling as discussed earlier. On the contrary, under grounded S/D operation, IG shows a very
pronounced increase, as well as the appearance of the second increase of IB. This proves that the exponential increase of IB
can be attributed to the holes in the inversion layer supplied from the S/D rather than the electron–hole pair separated in the valence band of the p+polygate. In addition, our experimental results from the different p+ polygate areas indicate that the AEI-induced electron current has a linear dependence on the hole current tunneling from the inversion layer, as shown in the inset of Fig. 4(b). IS+ ID depicts the hole tunneling
current from the inversion layer. ΔIB is the pure AEI-induced
electron current, which is obtained by subtracting the ECB component from the second increase of IB. This relationship
is consistent with that in the AHI model [11], which means that AEI indeed exists and is the dominant mechanism responsible for the GIFBE in PD SOI p-MOSFETs.
IV. CONCLUSION
This letter has investigated the origin of electron accumula-tion on the GIFBE in PD SOI p-MOSFETs. These addiaccumula-tional electrons induce oxide field lowering and cause a reduction of NBTI degradation. They can be attributed to two mechanisms corresponding to the stages of the increase in IB. The first
stage is induced by ECB tunneling from the partial n+polygate area of the body-tied device. Based on systematic operation conditions, the exponential increase in IB has been found to
be due to the holes of the inversion layer supplied from the S/D. This demonstrates that the GIFBE in p-MOSFETs is dominated by the AEI model at higher voltages, rather than the EVB tunneling which is widely accepted for n-MOSFETs.
ACKNOWLEDGMENT
Part of this work was performed at United Microelectronics Corporation.
REFERENCES
[1] J. C. Sturm, K. Tokunaga, and J. P. Colinge, “Increased drain saturation current in ultra-thin silicon-on-insulator (SOI) MOS transistors,” IEEE
Electron Device Lett., vol. 9, no. 9, pp. 460–463, Sep. 1988.
[2] S. Abo, M. Mizutani, K. Nakayama, T. Takaoka, T. Iwamatsu, Y. Yamaguchi, S. Maegawa, T. Nishimura, A. Kunomura, Y. Horino, and M. Takai, “Instability study of partially depleted SOI-MOSFET due to floating body effect using high energy nuclear microprobes,” in Proc.
Conf. Ion Implantation Technol., 2000, pp. 285–288.
[3] A. Mercha, J. M. Rafi, E. Simoen, E. Augendre, and C. Claeys, ““Linear kink effect” induced by electron valence band tunneling in ultrathin gate oxide bulk and SOI MOSFETs,” IEEE Trans. Electron Devices, vol. 50, no. 7, pp. 1675–1682, Jul. 2003.
[4] J. Pretet, T. Matsumoto, T. Poiroux, S. Cristoloveanu, R. Gwoziecki, C. Raynaud, A. Roveda, and H. Brut, “New mechanism of body charging in partially depleted SOI-MOSFETs with ultra-thin gate oxides,” in Proc.
ESSDERC, 2002, pp. 515–518.
[5] M. Casse, J. Pretet, S. Cristoloveanu, T. Poiroux, C. Fenouillet-Beranger, F. Fmleux, C. Raynaud, and G. Reimbold, “Gate-induced floating-body effect in fully depleted SOI MOSFETs with tunneling gate oxide and back-gate biasing,” Solid State Electron., vol. 48, no. 7, pp. 1243–1247, Jul. 2004.
[6] H. Lin, J. Lin, and R. C. Chang, “Inversion-layer induced body current in SOI MOSFETs with body contacts,” IEEE Electron Device Lett., vol. 24, no. 2, pp. 111–113, Feb. 2003.
[7] W. C. Lo, S. J. Chang, C. Y. Chang, and T. S. Chao, “Impacts of gate structure on dynamic threshold SOI nMOSFETs,” IEEE Electron Device
Lett., vol. 23, no. 8, pp. 497–499, Aug. 2002.
[8] C. Y. Chang, S. J. Chang, T. S. Chao, S. D. Wu, and T. Y. Huang, “Reduced reverse narrow channel effect in thin SOI nMOSFETs,” IEEE Electron
Device Lett., vol. 21, no. 9, pp. 460–462, Sep. 2000.
[9] R. Mishra, D. E. Ioannou, S. Mitra, and R. Gauthier, “Effect of floating-body and stress bias on NBTI and HCI on 65-nm SOI pMOSFETs,” IEEE
Electron Device Lett., vol. 29, no. 3, pp. 262–264, Mar. 2008.
[10] G. Nayereh, A. K. Ali, and A. S. Ebrahim, “Modeling of floating-body effect on negative bias temperature instability degradation of double-gate MOSFETs,” in Proc. ICEE, 2010, pp. 356–361.
[11] K. F. Schuegraf and C. Hu, “Hole injection SiO2breakdown model for
very low voltage lifetime extrapolation,” IEEE Trans. Electron Devices, vol. 41, no. 5, pp. 761–767, May 1994.
[12] W. C. Lee and C. Hu, “Modeling CMOS tunneling currents through ultrathin gate oxide due to conduction- and valence-band electron and hole tunneling,” IEEE Trans. Electron Devices, vol. 48, no. 7, pp. 1366–1373, Jul. 2001.
[13] J. W. Yang, J. G. Fossum, G. O. Workman, and C. L. Huang, “A physical model for gate-to-body tunneling current and its effects on floating-body PD/SOI CMOS devices and circuits,” Solid-State Electron., vol. 48, no. 2, pp. 259–270, Feb. 2004.
