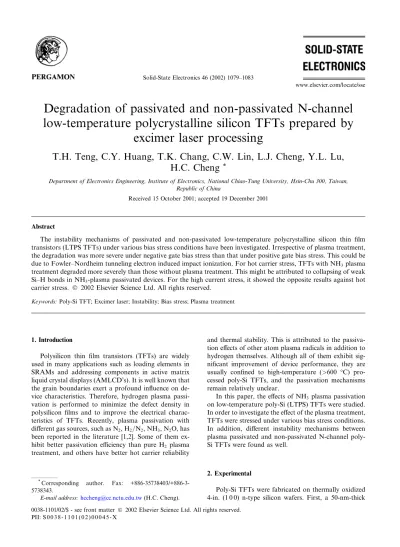

Degradation of passivated and non-passivated N-channel low-temperature polycrystalline silicon TFTs prepared by excimer laser processing

(1)

Degradation of passivated and non-passivated N-channel

low-temperature polycrystalline silicon TFTs prepared by

excimer laser processing

T.H. Teng, C.Y. Huang, T.K. Chang, C.W. Lin, L.J. Cheng, Y.L. Lu,

H.C. Cheng

*

Department of Electronics Engineering, Institute of Electronics, National Chiao-Tung University, Hsin-Chu 300, Taiwan, Republic of China

Received 15 October 2001; accepted 19 December 2001

Abstract

The instability mechanisms of passivated and non-passivated low-temperature polycrystalline silicon thin ﬁlm transistors (LTPS TFTs) under various bias stress conditions have been investigated. Irrespective of plasma treatment, the degradation was more severe under negative gate bias stress than that under positive gate bias stress. This could be due to Fowler–Nordheim tunneling electron induced impact ionization. For hot carrier stress, TFTs with NH3plasma treatment degraded more severely than those without plasma treatment. This might be attributed to collapsing of weak Si–H bonds in NH3-plasma passivated devices. For the high current stress, it showed the opposite results against hot carrier stress. Ó 2002 Elsevier Science Ltd. All rights reserved.

Keywords: Poly-Si TFT; Excimer laser; Instability; Bias stress; Plasma treatment

1. Introduction

Polysilicon thin film transistors (TFTs) are widely used in many applications such as loading elements in SRAMs and addressing components in active matrix liquid crystal displays (AMLCD’s). It is well known that the grain boundaries exert a profound influence on de-vice characteristics. Therefore, hydrogen plasma passi-vation is performed to minimize the defect density in polysilicon films and to improve the electrical charac-teristics of TFTs. Recently, plasma passivation with different gas sources, such as N2, H2=N2, NH3, N2O, has been reported in the literature [1,2]. Some of them ex-hibit better passivation efficiency than pure H2 plasma treatment, and others have better hot carrier reliability

and thermal stability. This is attributed to the passiva-tion effects of other atom plasma radicals in addipassiva-tion to hydrogen themselves. Although all of them exhibit sig-nificant improvement of device performance, they are usually confined to high-temperature (>600 °C) pro-cessed poly-Si TFTs, and the passivation mechanisms remain relatively unclear.

In this paper, the effects of NH3 plasma passivation on low-temperature poly-Si (LTPS) TFTs were studied. In order to investigate the effect of the plasma treatment, TFTs were stressed under various bias stress conditions. In addition, different instability mechanisms between plasma passivated and non-passivated N-channel poly-Si TFTs were found as well.

2. Experimental

Poly-Si TFTs were fabricated on thermally oxidized 4-in. (1 0 0) n-type silicon wafers. First, a 50-nm-thick

www.elsevier.com/locate/sse

*

Corresponding author. Fax: +886-35738403/+886-3-5738343.

E-mail address:[email protected](H.C. Cheng).

(2)

amorphous silicon (a-Si) was initially deposited at 550 °C by low-pressure chemical vapor deposition (LPCVD). Then, the amorphous thin ﬁlm were irradiated at opti-mum energy density by using a KrF excimer laser with approximately 25-ns pulse duration. A homogenizer was used to produce a 1:8 23:1 mm2 _{laser spot onto the} sample. The laser beam scanned over the surface of the sample with 95% overlap between successive shots in order to compensate for the lack of pulse-to-pulse re-producibility.

After definition of the active regions, a 50-nm-thick gate dielectric was deposited by using PECVD with TEOS/O2 mixture at 300 °C. Another 250-nm-thick amorphous silicon film was deposited by LPCVD at 550 °C, and patterned to form the gate electrode. A self-aligned phosphorus ion implantation at 40 keV with a dose of 5 1015 _cm2 _{was used to dope the drain,} source, and gate areas simultaneously and then activated by a 20 h annealing at 600°C in N2ambient in furnace. Next, some of the samples were then subjected to 4 h NH3plasma treatment in a parallel-plate plasma reactor at 300°C with a power density of 0.7 W/cm2_{. The plasma} condition for NH3 plasma treatment was optimized for device performance. After a 500-nm-thick SiO2 was de-posited by PECVD, contact holes for drain/source and gate electrode were formed. Finally, Al was deposited and defined for probing pads and the completed devices were sintering at 350°C. The process flow of the device fabrication was shown in Fig. 1.

I–V characteristics of the polysilicon TFTs were measured by using a HP 4156 semiconductor parameter analyzer. The subthreshold swing SS and field effect mobility lFEwere calculated at Vd¼ 0:1 V. The thresh-old voltage Vt was defined at a fixed drain current Id¼ Idn W =L, where Idnwas a normalized drain current, 10 nA. Imin was the minimum value of the drain current measured at Vd¼ 5 V. The on-state drain current Ionwas defined as the drain current at Vg¼ 15 V and Vd¼ 5 V.

3. Results and discussion

Table 1 shows the all stress conditions for instability testing of the TFTs. For the positive and negative gate bias stresses, the 20 and20 V of gate bias voltages with common grounded S/D electrode were applied for 10,000 s. For hot carrier stress, 10 V gate bias and 20 V drain-to-source bias were applied. As for high current

Fig. 1. The process ﬂow of the top gate polysilicon thin ﬁlm transistors used in our measurement. Table 1

Various stress conditions used in the experiments Positive bias stress Negative bias stress Hot carrier stress High current stress Vg¼ 20 V Vg¼ 20 V Vg¼ 10 V Vg¼ 20 V Vd¼ Vs¼ 0 V Vd¼ Vs¼ 0 V Vds¼ 20 V Vds¼ 10 V 104_s ₁₀4_s ₁₀3_s ₁₀3_s

(3)

stress, 20 V gate bias and 10 V drain-to-source bias were applied. Both hot carrier stress and high current stress were treated for 1000 s. Fig. 2(a) and (b) present the transfer curves of TFTs without plasma passivation and with NH3-passivation under positive gate bias stress for diﬀerent stress time. The TFTs with NH3-passivation exhibit superior device characteristics to TFTs with no passivation. For positive gate bias stress, both passi-vated and non-passipassi-vated curves show that the on cur-rent decreases with increase of the stress time. This can be attributed to negative oxide charges and bulk states creation [3]. For positive gate bias stress, F–N tunneling electron induced impact ionization occurs near the gate region away from the channel. Positive oxide traps in-duced by stressing are near poly-Si gate electrode while negative oxide traps are near channel region. As a result, the threshold voltage shift is dominated by the negative oxide charges. Channel states are also created by posi-tive gate bias stress, but are much fewer than those created by negative gate bias stress because most impact

ionization induced by high energy electrons occurs at poly-Si gate electrode. In addition, depassivation in-duced hydrogen positive ions may diﬀuse into the chan-nel and passivate chanchan-nel states [4]. This is the reason that the NH3-passivated TFTs have better performance. Fig. 3(a) and (b) show the transfer curves of TFTs without plasma passivation and with NH3-passivation under negative gate bias stress for diﬀerent stress time. Compared to positive gate bias stress devices, TFTs under negative gate bias stress show severe degradation. This can be explained from F–N tunneling electron in-duced impact ionization. Under negative gate bias stress, the electrons in poly-Si gate electrode will tunnel to channel region and generate electron-hole pairs accom-panied with states at channel region. The generated hot holes at the channel region may be trapped into the oxide near the channel region, while some electrons may be trapped in the oxide near the poly-Si gate electrode. For NH3-passivated TFTs under negative gate bias

Fig. 2. (a) Transfer characteristics of non-passivated TFTs for Vd¼ 0:1 V measured at diﬀerent times of 20 V gate bias stress,

(b) transfer characteristics of NH3-passivated TFTs for Vd¼ 0:1

V measured at diﬀerent times of 20 V gate bias stress.

Fig. 3. (a) Transfer characteristics of non-passivated TFTs for Vd¼ 0:1 V measured at diﬀerent times of 20 V gate bias stress,

(b) transfer characteristics of NH3-passivated TFTs for Vd¼ 0:1

(4)

stress, the degradation can also be due to the abundance of weak Si–H bonds in NH3 plasma-treated devices [5]. The instability of poly-Si TFTs under the hot carrier stress and the high current stress is shown in Figs. 4 and 5. For the hot carrier stress, the characteristics of plasma passivated TFTs are degraded more severely than the non-passivated ones. The degradation is caused by holes trapped in oxide and state creation in the bulk or at the poly-Si/SiO2 interface, as weak Si–H or Si–Si bonds are broken by ‘‘hot’’ electrons. For NH3-passivated poly-Si films, it could also be the trap state creation due to the bond breaking of Si–N. For the high current stress, the results are different from TFTs under hot carrier stress. The degradation of NH3 plasma treatment is slighter because the conducting electrons have lower energy in the high current stress mode than electrons in the hot carrier stress mode. Only the Si–Si weak bonds are broken so this makes less created states in the channel. Another possible reason is that states created by high current flow are passivated by Hþand Nþion drifting from oxide to poly-Si channel due to the favor of the

electric ﬁeld. These results are summarized in Table 2. This is the result of the instability of poly-Si TFTs under the hot carrier stress and the high current stress. Under hot carrier stress, TFTs with NH3-passivation were de-graded severely both in threshold voltage shift and subthreshold swing. However, under hot current stress, TFTs with NH3-passivation shows less degradation than non-passivated TFTs.

Fig. 4. Transfer characteristics of (a) non-passivated TFTs, (b) NH3-passivated TFTs, before and after 1000 s hot carrier stress.

Fig. 5. Transfer characteristics of (a) non-passivated TFTs, (b) NH3-passivated TFTs, before and after 1000 s high current

stress.

Table 2

Instability of poly-Si TFTs stressed at hot carrier and high current stress

Plasma treatment

DVth(V) DS(V/dec) Dgm(nS)

Non NH3 Non NH3 Non NH3

Hot carrier stress 0.703 1.457 0.23 1.107 768 681 High current stress 0.814 0.032 0.231 0.005 195 14

(5)

4. Conclusions

The instability mechanisms of passivated and non-passivated LTPS TFTs under various bias stress condi-tions have been investigated. TFTs with NH3passivation exhibit superior electrical characteristics to their coun-terparts with no passivation. For positive and negative gate bias stresses, the on current decreases with increase of the stress time. The degradation was more severe under negative gate bias stress than that under positive gate bias stress. This could be due to Fowler–Nordheim tunneling electron induced impact ionization. Under hot carrier stress, TFTs with NH3plasma treatment exhibits inferior stress endurance compared to those with non-treated TFTs despite better initial electrical characteris-tics. For the high current stress, the degradation of NH3 plasma treatment is slighter because the conducting electrons have lower energy compared to electrons under hot carrier stress. The NH3-passivation process is of potential use for the fabrication of TFT/LCDs.

Acknowledgements

The authors would like to acknowledge the ﬁnan-cial support by the National Science Council, Taiwan,

R.O.C., under contract NSC-89-2215-E-009-108. Tech-nical supports from the Semiconductor Research Center in National Chiao Tung University and the National Nano Device Laboratory were also acknowledged.

References

[1] Tsai MJ, Wang FS, Cheng KL, Wang SY, Feng MS, Cheng HC. Characterization of H2/N2plasma passivation process

for poly-Si thin-ﬁlm transistors (TFT’s). Solid State Electron 1995;38:1233–8.

[2] Cheng HC, Wang FS, Huang CY. Eﬀect of NH3

plasma passivation on n-channel polycrystalline silicon thin-ﬁlm transistors. IEEE Trans Electron Dev 1997;44: 64–8.

[3] Young ND, Ayres JR. Negative gate bias instability in polycrystalline silicon TFT’s. IEEE Trans Electron Dev 1995;42:1623–7.

[4] Dinitriadis CA, Coxon PA, Lowe AJ, Stoemenos J, Econo-mou NA. Control of performance of polysilicon thin-ﬁlm transistor by high-gate voltage stress. IEEE Electron Dev Lett 1991;12:676–8.

[5] Wu I-W, Jackson WB, Huang T-Y, Lewis AG, Chiang A. Mechanism of device degradation in n- and p-channel polysilicon TFT’s by electrical stressing. IEEE Electron Dev Lett 1990;11:167–70.
