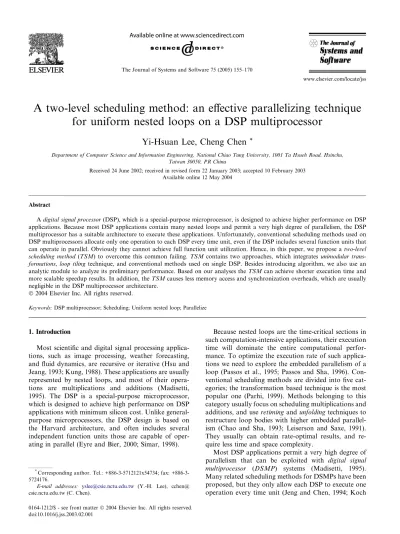

A two-level scheduling method: an effective parallelizing technique
for uniform nested loops on a DSP multiprocessor
Yi-Hsuan Lee,Cheng Chen
*Department of Computer Science and Information Engineering, National Chiao Tung University, 1001 Ta Hsueh Road, Hsinchu, Taiwan 30050, PRChina
Received 24 June 2002; received in revised form 22 January 2003; accepted 10 February 2003 Available online 12 May 2004
Abstract
A digital signal processor (DSP),which is a special-purpose microprocessor,is designed to achieve higher performance on DSP applications. Because most DSP applications contain many nested loops and permit a very high degree of parallelism,the DSP multiprocessor has a suitable architecture to execute these applications. Unfortunately,conventional scheduling methods used on DSP multiprocessors allocate only one operation to each DSP every time unit,even if the DSP includes several function units that can operate in parallel. Obviously they cannot achieve full function unit utilization. Hence,in this paper,we propose a two-level scheduling method (TSM) to overcome this common failing. TSM contains two approaches,which integrates unimodular trans-formations, loop tiling technique,and conventional methods used on single DSP. Besides introducing algorithm,we also use an analytic module to analyze its preliminary performance. Based on our analyses the TSM can achieve shorter execution time and more scalable speedup results. In addition,the TSM causes less memory access and synchronization overheads,which are usually negligible in the DSP multiprocessor architecture.
2004 Elsevier Inc. All rights reserved.
Keywords: DSP multiprocessor; Scheduling; Uniform nested loop; Parallelize
1. Introduction
Most scientific and digital signal processing applica-tions,such as image processing,weather forecasting, and fluid dynamics,are recursive or iterative (Hsu and Jeang,1993; Kung,1988). These applications are usually represented by nested loops,and most of their opera-tions are multiplicaopera-tions and addiopera-tions (Madisetti, 1995). The DSP is a special-purpose microprocessor, which is designed to achieve high performance on DSP applications with minimum silicon cost. Unlike general-purpose microprocessors,the DSP design is based on the Harvard architecture,and often includes several independent function units those are capable of oper-ating in parallel (Eyre and Bier,2000; Simar,1998).
Because nested loops are the time-critical sections in such computation-intensive applications,their execution time will dominate the entire computational perfor-mance. To optimize the execution rate of such applica-tions we need to explore the embedded parallelism of a loop (Passos et al.,1995; Passos and Sha,1996). Con-ventional scheduling methods are divided into five cat-egories; the transformation based technique is the most popular one (Parhi,1999). Methods belonging to this category usually focus on scheduling multiplications and additions,and use retiming and unfolding techniques to restructure loop bodies with higher embedded parallel-ism (Chao and Sha,1993; Leiserson and Saxe,1991). They usually can obtain rate-optimal results,and re-quire less time and space complexity.
Most DSP applications permit a very high degree of parallelism that can be exploited with digital signal multiprocessor (DSMP) systems (Madisetti,1995). Many related scheduling methods for DSMPs have been proposed,but they only allow each DSP to execute one operation every time unit (Jeng and Chen,1994; Koch
*
Corresponding author. Tel.: 5712121x54734; fax: +886-3-5724176.
E-mail addresses: [email protected] (Y.-H. Lee),cchen@ csie.nctu.edu.tw (C. Chen).
0164-1212/$ - see front matter 2004 Elsevier Inc. All rights reserved. doi:10.1016/j.jss.2003.02.001
et al.,1997; Shatnawi et al.,1999). However,because a DSP often can execute several operations in parallel, these methods obviously cannot achieve full function unit utilization. In this paper,we propose a scheduling method that allocates more than one operation to a DSP in each time unit,thereby overcoming this limitation.
Our method,named two-level scheduling method (TSM),is motivated by the skewed single instruction multiple data (SSIMD) method (Barnwell et al.,1978). It contains two approaches. The first,directly called the two-level scheduling method (TSM),is integrated with unimodular transformations (Wolf and Lam,1991) and the conventional single DSP scheduling method. The second is extended from TSM by adding loop tiling technique (Wolfe,1996),which we name two-level scheduling method with loop tiling (TSMLT). Besides intro-ducing the algorithm and principles,we use an analytical model to analyze their preliminary performances. From our analyses,both TSM and TSMLT can achieve higher functional unit utilization and shorter execution times than conventional methods. Their speedup results are also more scalable when the number of processing envi-ronments increases. Moreover,our methods cause less synchronization and memory access overheads,although they seem minor in DSMP architecture.
The remainder of this paper is organized as follows. Section 2 surveys the fundamentals and the background. Design issues,analytical modules and preliminary per-formance analyses of TSM and TSMLT are described in Sections 3 and 4,respectively. Finally,the conclusions and future work are presented in Section 5.
2. Fundamentals and background
In this section,we will model our scheduling problem and briefly survey some fundamentals. Loop transfor-mation technique will be also introduced.
2.1. Modeling the problem (Passos and Sha, 1996, 1998) Because DSP applications usually contain repetitive groups of operations,they can be easily represented by
nested loops. Edwin Sha et al. model the nested loop as a multi-dimensional data-flow graph (MDFG) (Passos and Sha,1996; Passos and Sha,1998). An MDFG is defined as follows.
Definition 2.1. An MDFG G¼ ðV ; E; d; tÞ is a node-weighted and edge-node-weighted directed graph,where V is the set of computation nodes, E is the set of dependency edges, d is a function from E to Zn representing the
multi-dimensional delays between the two nodes,where n is the number of dimensions,and t is a function from V to the positive integers,representing the computation time of each node.

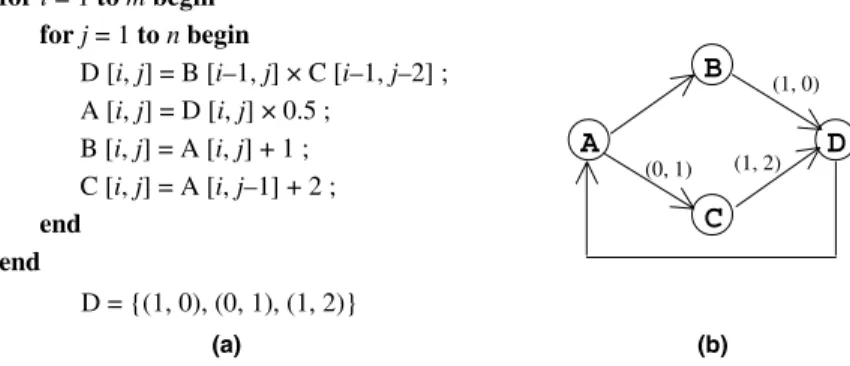

Fig. 1 shows a simple nested loop and its corre-sponding MDFG. An MDFG is realizable if there exists a schedule vector s such that s d P 0,where d are loop-carried dependencies in G. A schedule vector s is the normal vector for a set of parallel equitemporal hyper-planes that define a sequence of execution (Lamport, 1974). An iteration is equivalent to the execution of each node in V exactly once. The period during which all nodes in an iteration are executed,according to data dependencies and without resource constraints,is called a cycle period. Cycle period is the maximum computa-tional time among paths that have no delay (Passos and Sha,1996; Passos and Sha,1998). It is shown that the cycle period dominates the entire execution time of a nested loop. Notices that many MDFGs can represent a signal processing algorithm,depending on how we rep-resent it by nested loops.
2.2. Retiming an MDFG (Leiserson and Saxe, 1991) Retiming is a popular technique that reassigns delays to enhance the execution performance (Leiserson and Saxe,1991). A multi-dimensional retiming r is a function from V to Zn that redistributes nodes in consecutive
iterations. A new MDFG Gr¼ ðV ; E; dr; tÞ is created
after applying r such that each iteration still has one execution of each node. The retiming vector rðuÞ of node urepresents the offset between the original iteration and that after retiming. The delay vectors change
accord-for i = 1 to m begin for j = 1 to n begin
D [i, j] = B [i–1, j] × C [i–1, j–2] ; A [i, j] = D [i, j] × 0.5 ; B [i, j] = A [i, j] + 1 ; C [i, j] = A [i, j–1] + 2 ; end end (0, 1) (1, 0) (1, 2)
D
A
C
B
D = {(1, 0), (0, 1), (1, 2)} (a) (b)ingly to preserve dependencies. Definitions and proper-ties of retiming are shown below.
Definition 2.2. Given any MDFG G¼ ðV ; E; d; tÞ,reti-ming function r,and retimed MDFG Gr¼ ðV ; E; dr; tÞ,
we define the retimed delay vector for every edge,path, and cycle,respectively,by
ðaÞ drðeÞ ¼ dðeÞ þ rðuÞ rðvÞ for every edge
u!e v; u; v2 V and e 2 E:
ðbÞ drðpÞ ¼ dðpÞ þ rðuÞ rðvÞ for every path
u!p; u; v2 V and p 2 G: ðcÞ drðlÞ ¼ dðlÞ for any cycle l 2 G:

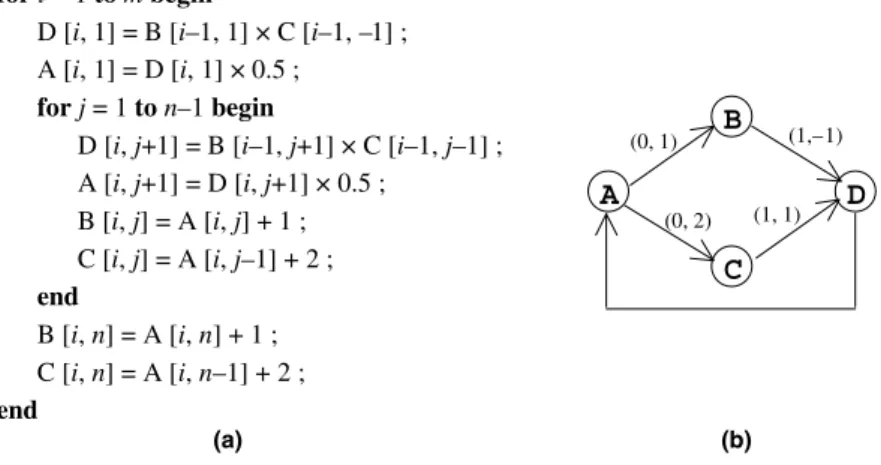

Fig. 2 shows the retimed nested loop and MDFG in Fig. 1. A prologue is the set of instructions moved in each dimension that must be executed to provide nec-essary data for the iterative process. An epilogue is the complementary instruction set that will be executed to complete the process. If the nested loop contains suffi-cient iterations,the time required to run prologue and epilogue are negligible.
2.3. Loop transformations (Wolf and Lam, 1991; Wolfe, 1996)
Loop transformation is one of the basic techniques for parallel compiler design. It changes the execution sequence of the iterations to achieve the maximum de-gree of parallel operation for the program’s execution in the multi-processor system. Many transformation tech-niques have been proposed. Among these,the unimod-ular transformations technique is one of the most important techniques (Wolf and Lam,1991). In its model,a nested loop of depth n is represented as a finite convex polyhedron in the iteration space Znbounded by
the loop bounds. Each iteration in the loop corresponds to a node in the polyhedron,and is identified by its index vector [p1p2 pTn]. The loop-carried data dependency
can be succinctly represented by the dependency vector [d1d2 dnT].
Loop tiling is a technique that decomposes a single loop into two nested loops; the outer loop steps between strips of consecutive iterations,and the inner loop steps between single iterations within a strip (Wolfe,1996). Because this technique changes the execution sequence of the iterations,it can be used to increase data locality if the nested loop contains many iterations.
3. Two-level scheduling method
TSM contains two individual approaches that will be described in this and next sections. Because nested loops used in DSP applications are usually with depth of two, we use it as an example to explain our method. Never-theless, TSM can be easily extended to cover nested loops with depths greater than two.
3.1. Problem definition
At first,the scheduling problem and system archi-tecture are defined. We use a two-dimensional MDFG to model a nested loop with depth two,and execute it on DSMP architecture. Scheduling goals are to reduce the entire execution time and fully utilize function units. We also inherit architectural constraints from DSMP sys-tems,and use these features to analyze our approaches (Madisetti,1995).
3.2. Main stages of two-level scheduling method
The first approach is named the two-level scheduling method (TSM). Given a nested loop with depth two,the process of TSM contains two main stages. The first
for i = 1 to m begin
D [i, 1] = B [i–1, 1] × C [i–1, –1] ; A [i, 1] = D [i, 1] × 0.5 ;
for j = 1 to n–1 begin
D [i, j+1] = B [i–1, j+1] × C [i–1, j–1] ; A [i, j+1] = D [i, j+1] × 0.5 ; B [i, j] = A [i, j] + 1 ; C [i, j] = A [i, j–1] + 2 ; end B [i, n] = A [i, n] + 1 ; C [i, n] = A [i, n–1] + 2 ; end (0, 1) (0, 2) (1,–1) (1, 1)
D
A
C
B
(a) (b)stage is to parallelize and allocate iterations to every DSP,and the second stage is to achieve the scheduling goals for each DSP. We explain these stages as follows. In the first stage,we use unimodular transformations to parallelize the inner loop. Since this technique does not explain how to use its transformations,we design a simple algorithm LP listed in Fig. 3 to parallelize a uniform nested loop of depth two. WLOG,we only consider flow-dependencies. Notices that the transfor-mation matrix to parallelize a nested loop is not unique, and algorithm LP can obtain one with minimum skew factor. Fig. 4 shows the parallelizing results in Fig. 1.
Then,iterations should be allocated to every DSP. Because the inner loop is parallelizable,iterations can be divided into barrier sections,where iterations within the same barrier section are independent. Clearly barrier
sections must be executed in sequence to preserve dependencies. For reducing the entire execution time, iterations in a barrier section are evenly allocated. Suppose there are four DSPs and variables (m; n) equal (8,7); Fig. 5 shows the allocation result of loop in Fig. 4(a).
In the second stage,we want to reduce the entire execution time and fully utilize function units. Since iterations inside each barrier section are independent, any conventional single DSP scheduling method can be applied for each DSP separately. In this paper we choose the multi-dimensional rotation method (Passos and Sha,1998),because it can be directly applied on DSMP architecture and compared with our TSM (Tongsima et al.,1997). Fig. 6 shows the entire algo-rithm TSM.
Fig. 3. Pseudo codes of algorithm LP.
for l = 2 to m+n begin
dopar k = max (1, l–n) to min (m, l–1) begin
D [k, l–k] = B [k–1, l–k] × C [k–1, l–k–2] ; A [k, l–k] = D [k, l–k] × 0.5 ; B [k, l–k] = A [k, l–k] + 1 ; C [k, l–k] = A [k, l–k–1] + 2 ; end end D = {(1, 1), (1, 0), (3, 1)} (1, 0) (1, 1) (3, 1)
D
A
C
B
(a) (b)3.3. Preliminary performance analysis
In the following,we use an analytical model to ana-lyze TSM and conventional methods used in DSMP. Based on the constraints of DSMP,we only consider the execution time and ignore both synchronization and memory access overheads.
3.3.1. Basic principles
Because retiming technique is widely used,we focus on its features to analyze execution performance. Scheduling result after applying retiming technique contains three main phases: prologue,repetitive pat-terns,and epilogue. If the given program is sufficiently large,the repetitive patterns will dominate the execution time.
Some variables are used in our analyses. PrologueðnÞ, lengthðnÞ,and epilogueðnÞ represent corresponding exe-cution lengths,where n is the number of resources. ListðnÞ is the execution length of a single repetitive pattern produced by the list scheduling method (Man et al.,1986),which is a simple scheduling method without the retiming technique and usually cannot obtain the optimum result. R retiming depth, dðnÞ,is the number of
iterations that must be moved into the prologue and epilogue.
The following are our assumptions. The input nested loop is depth two with loop bounds of the outer and inner loops of m and n,respectively. The system archi-tecture contains N identical DSPs, DSP1 DSPN,and each DSP contains k function units. Within each barrier section,if the iterations cannot be allocated equally,we simply allow DSP1 to execute the additional iterations.
3.3.2. Preliminary analysis
From our observations,conventional multiple-DSP scheduling methods based on a retiming technique allocate an operation to every DSP in each time unit and never change the execution sequence of the iterations. Therefore,their execution time is the same in our ana-lytical model,which is described in Lemma 3.1. Lemma 3.1. After applying any conventional multiple-DSP scheduling methods, their execution time is
prologueðN Þ þ ðmn dðN ÞÞ lengthðN Þ þ epilogueðN Þ ð3:1Þ barrier DSP 1 (10, 3) (10, 7) (11, 4) (11, 8) (12, 5) (13, 6) (14, 7) (15, 8) DSP 2 (10, 4) (10, 8) (11, 5) (12, 6) (13, 7) (14, 8) DSP 3 (10, 5) (11, 6) (12, 7) (13, 8) DSP 4 (10, 6) (11, 7) (12, 8) barrier section DSP 1 (2, 1) (3, 1) (4, 1) (5, 1) (6, 1) (6, 5) (7, 1) (7, 5) (8, 1) (8, 5) (9, 2) (9, 6) DSP 2 (3, 2) (4, 2) (5, 2) (6, 2) (7, 2) (7, 6) (8, 2) (8, 6) (9, 3) (9, 7) DSP 3 (4, 3) (5, 3) (6, 3) (7, 3) (8, 3) (8, 7) (9, 4) (9, 8) DSP 4 (5, 4) (6, 4) (7, 4) (8, 4) (9, 5)
Fig. 5. Allocation results of nested loop in Fig. 1(a) withðm; nÞ ¼ ð8; 7Þ.
end begin ) ( for ; ); , ( ); ( ) , ' ( ); ( : input 8 it to allocated iterations execute to method 7 allocation and scheduling e appropriat any apply can DSP Each 6 section barrier each 5 DSP every to iterations Allocate 4 3 2 depth two with loop nested 1 T L tions transforma ular mod uni L G LP T G L convert G L p
/* Convert the nested loop to its corresponding MDFG */
Proof. This formula is trivial for the retiming process. We classify TSM into two cases,named TSM 1 and TSM2,based on whether the nested loop can be par-allelized directly or not. In other words,transformation matrices T obtained from algorithm LP are identity and
w 1
1 0
, w P 0,for TSM 1 and TSM2,respectively. Lemmas 3.2–3.4 describe their execution time. h Lemma 3.2. After applying TSM and the transformation matrix T is identity, its execution time is
m ðprologueðkÞ þ ðn=N dðkÞÞ lengthðkÞ
þ epilogueðkÞÞ ð3:2Þ
Proof. Because the inner loop can be executed in parallel directly,the iteration space remains square as shown in Fig. 7(a). It can be divided into m equal barrier sections with n independent iterations. Hence,formula (3.2) can be obtained directly. h
Lemma 3.3. After applying TSM and the transformation matrix T is w 1
1 0
, w P 0, the number of iterations executed by DSP1 is
where variables ðA; B; C; DÞ are equal to ðmw w n; n=w
b c; ðn þ 1Þmod w; Amod wÞ.
Proof. After loop transformations,the iteration space is as shown in Fig. 7(b) or (c) based on the relationships of variables w, m,and n. It can be divided into wmþ n w barrier sections,but each contains unequal iterations. Hence,we calculate the number of iterations allocated to DSP1 for the longest execution time. The result can be obtained from formula (3.3),and the detailed calcu-lations are omitted here. h
Lemma 3.4. After applying TSM and the transformation matrix T is w 1
1 0
, w P 0, its execution time is ListðkÞ B þ ðprologueðkÞ þ epilogueðkÞÞ C
þ lengthðkÞ ðA B dðkÞCÞ ð3:4Þ
where variables ðB; CÞ equal ðdðkÞNwð1 þ dðkÞÞ, wmþ n w 2dðkÞNwÞ, and A is the number of itera-tions executed by DSP1 calculated from formula (3.3). Proof. Similarly to Lemma 3.3,the entire execution time is dominated by DSP1. Iterations allocated to DSP1 are divided into wmþ n w unequal barrier sections with independent iterations. We can only apply the retiming technique if the barrier section contains more than dðkÞ iterations. Otherwise,it must be simply scheduled using the List scheduling method. The execution time of this case is given by formula (3.4),and the detailed calcula-tions are also omitted. h
3.3.3. Experimental results
In this section,six DSP applications selected from (Passos and Sha,1998; Lee et al.,2001; Yu et al.,1997) are used to compare conventional methods and TSM. As before,the multi-dimensional rotation method is applied to the conventional scheduling method and the
second stage of TSM. Based on characters in each application,we use DSPs that contain different numbers of multipliers and adders listed in Table 1 to balance their utilization.
Fig. 8 shows scheduling results of each example. It is clear that TSM can obtain much shorter execution time, because TSM allocates more than one operation to a DSP in each time unit to increase the function unit utilization. Besides,as shown in Fig. 9,speedup results of TSM are usually more scalable. The reason is that the conventional method uses all the DSPs to execute a wm + 1≤ w + n barrier (wm+1, m) (wm+n, m) j (wm+n, m) (wm+1, m) j (1, n) (m, n) (1, 1) i (m, 1) i (w+1, 1) (w+n, 1) i (a) (b) (c) (w+1, 1) (w+n, 1) j wm + 1 > w + n

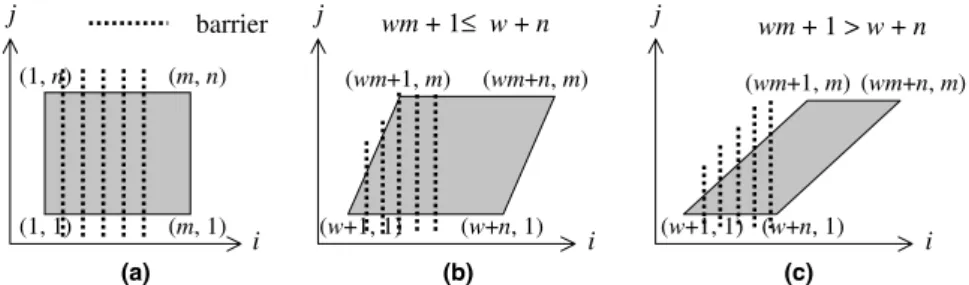

Fig. 7. Three kinds of parallelized iteration space.
1þ m1 N m1 N Nw þ m1 N ððmw wÞmod NwÞ 2 þ m N ðw þ n mwÞ if wmþ 1 6 w þ n 1þ n Nw n Nw Nw þ n Nw ðnmod NwÞ 2 þ A Bþ1 N C A w þ minðC; DÞ Bþ1 N B N if wmþ 1 > w þ n 8 > > < > > : ð3:3Þ
single iteration,its speedup will be restricted by the essential parallelism of the application. However, TSM
allocates iterations to every DSP instead of operations, and its speedup will not be restricted. Therefore,
Table 1
Characters and resource constraints for each DSP application
No. of multiplications No. of additions No. of multipliers No. of adders
Transmission lines [19] 4 8 1 2
Model B 8 4 2 1
Wave digital filter [9] 2 2 1 1
Model A [24] 3 4 1 1
Infinite impulse filter [9] 8 8 1 1
Floyd–Steinberg algorithm [25] 4 13 1 2 0 1000 2000 3000 4000 5000 6000 7000 8000 10×10 20×15 20×25 25×25 25×30 35×35 35×40 40×40 45×40 50×50 No. of iterations ex ecu tio n time ( cy cles ) Conventional TSM 1 0 2000 4000 6000 8000 10000 12000 10×10 20×15 20×25 25×25 25×30 35×35 35×40 40×40 45×40 50×50 No. of iterations ex ecu tio n time ( cy cles ) Conventional TSM 2 0 500 1000 1500 2000 2500 3000 10×10 20×15 20×25 25×25 25×30 35×35 35×40 40×40 45×40 50×50 No. of iterations ex ecu tio n time ( cy cles ) Conventional TSM 1 0 5000 10000 15000 20000 25000 10×10 20×15 20×25 25×25 25×30 35×35 35×40 40×40 45×40 50×50 No. of iterations ex ecu tio n time ( cy cles ) Conventional TSM 2 0 1000 2000 3000 4000 5000 6000 10×10 20×15 20×25 25×25 25×30 35×35 35×40 40×40 45×40 50×50 No. of iterations ex ecu tio n time ( cy cles ) Conventional TSM 2 0 1000 2000 3000 4000 5000 6000 7000 8000 10×10 20×15 20×25 25×25 25×30 35×35 35×40 40×40 45×40 50×50 No. of iterations ex ecu tio n time ( cy cles ) Conventional TSM 2 (b) (a) (c) (d) (e) (f)

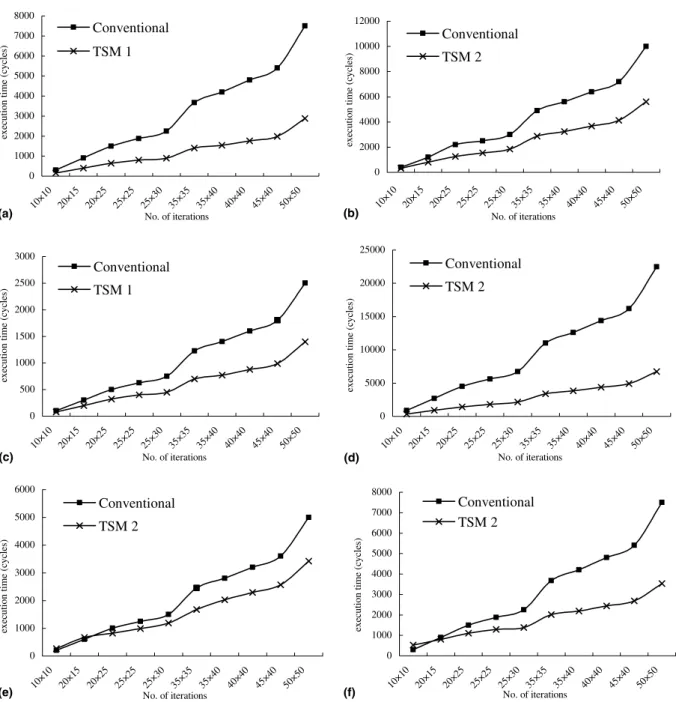

Fig. 8. Sheduling results. (a) Transmission lines,(b) infinite impulse filter,(c) wave digital filter,(d) Floyd–Steinberg algorithm,(e) model A,(f) model B.
although the exact speedup value of TSM may be smaller,it can achieve better speedup performance for larger system sizes.
3.3.4. Formal evaluation
In the following,we analyze formulas (3.1)–(3.3) using a formal approach. In total there are 15 variables, and we partition them into two groups by considering their features. The first group contains variables ðN ; k; w; m; nÞ,which can be obtained directly once the input problem and system architecture have been spec-ified. Others belong to the second group,which are calculated based on the behavior of the problem,the applied scheduling method,and the first group vari-ables. We add a new variable Ops to represent the number of operations in a single iteration,and list the approximate values of these 16 variables in Table 2.
We rewrite formulas (3.1),(3.2),and (3.4) as follows using Table 2:
execution time of conventional methods
¼ mn Ops=Nd e ð3:5Þ
execution time of TSM1¼ mn=N Ops=kd e ð3:6Þ execution time of TSM2¼ ðA B þ C2BÞ Ops=kd e
ð3:7Þ where variable A is the result calculated from formula (3.3),and variable B equals to dðkÞNwð1 þ dðkÞÞ
For a specific system architecture,results calculated from formulas (3.6) and (3.7) are,in general,smaller than (3.5). It means that TSM can usually achieve shorter execution times for a given architecture. As 0 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 No. of DSPs speedup Conventional TSM 1 0 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 No. of DSPs sp eedup Conventional TSM 2 0 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 No. of DSPs sp eedup Conventional TSM 1 0 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 No. of DSPs sp eedup Conventional TSM 2 0 2 4 6 8 1 2 3 4 5 6 7 8 No. of DSPs speedup Conventional TSM 2 0 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 No. of DSPs speedup Conventional TSM 2 (a) (b) (c) (d) (e) (f)
Fig. 9. Speedup results. (a) Transmission lines,(b) infinite impulse filter,(c) wave digital filter,(d) Floyd–Steinberg algorithm,(e) model A,(f) model B.
variable N increases,because formulas (3.6) and (3.7) will not be restricted by variable Ops, TSM could achieve scalable speedup results. Finally,if variable k increases,the execution time with conventional methods cannot be decreased,but with TSM,it can be. The reason is conventional methods always allocate only one operation to a DSP for each time unit,but TSM allo-cates more. This analysis is consistent with evaluation results in Section 3.3.3.
3.4. Summary
We briefly summarize advantages and disadvantages of TSM. Obviously TSM can achieve better function unit utilization and performance in terms of execution time and speedup. Furthermore,since TSM uses both unimodular transformations and conventional single DSP scheduling,it can simultaneously exploit the degree to which the program can be made parallel and instruction-level parallelism.
But TSM still has some potential problems. From the definition of retiming technique,it requires several consecutive iterations to redistribute operations. In TSM,however,if the nested loop is transformed,barrier sections at the beginning and end cannot apply retiming technique because they will not contain enough itera-tions.
In view of this problem,loop tiling technique seems useful. Given a nested loop,this technique will divide its iteration space into tiles contained consecutive
itera-tions. Therefore,if we allocate tiles to a DSP instead of iterations,the retiming technique can always be applied in TSM.
4. Two-level scheduling method with loop tiling
The second approach of TSM is the two-level sched-uling method with loop tiling (TSMLT). We still use a nested loop of depth two and the architecture features defined above to explain and analyze TSMLT. Similarly to TSM, TSMLT also can be easily extended to cover nested loops with depths greater than two.
4.1. Loop tiling steps
Notice that not any nested loop can be tiled. If two iterations A and B contains dependency with distance (a;b) for a; b > 0,Fig. 10 shows the dependency will be violated after loop tiling. Algorithm LT listed in Fig. 11 is designed to remove such dependencies.
We also need to select the appropriate tile size. The tile size can be obtained by any one of proposed method, and we simply assume it is P Q,where P and Q are positive integers. WLOG,we let P Q P d because d is usually smaller. After loop tiling,algorithm TD listed in Fig. 12 is used to transfer intra-tile (original) depen-dencies to inter-tile dependepen-dencies. The tiled nested loop and iteration space with tile size 4· 3 are shown in Fig. 13.
Table 2
Variables and their approximate values
Variable Approximate value Comments
N, k, w, m, n N, k, w, m, n Obtains directly from the input problem and system architecture
List(N ) C1 lengthðN Þ C1; C2are constantsðC1; C2P1Þ
List(k) C2 lengthðkÞ
Length(N ) Ceiling (Ops/N) Assumes that all resources are fully utilized
Length(k) Ceiling (Ops/k)
dðN Þ dðN Þ Unpredictable from the input problem and system architecture
dðkÞ dðkÞ
Prologue(N ) 0:5 dðN ÞlengthðN Þ dðN Þ iterations are moved into prologue and epilogue Epilogue(N ) 0:5 dðN ÞlengthðN Þ ) prologueðN Þ þ epilogueðN Þ P dðN ÞlengthðN Þ Prologue(k) 0:5 dðkÞlengthðkÞ dðkÞ iterations are moved into prologue and epilogue Epilogue(k) 0:5 dðkÞlengthðkÞ ) prologueðkÞ þ epilogueðkÞ P dðkÞlengthðkÞ
(a) (b)
4.2. Main stages of two-level scheduling method with loop tiling
Given a nested loop with depth two,the process of TSMLT contains three main stages. The first stage is to tile the nested loop. The second stage is to parallelize and allocate tiles to every DSP,and the final stage is to achieve the scheduling goals for each DSP. All steps of
the first stage are shown in Section 4.1,and we explain other two stages in detail as follows.
Essentially,the process of second and third stages of TSMLT is the same as for TSM,using the tile instead of the iteration. In the second stage,although algorithm LP can be applied directly to parallelize tiles,it can be simplified to algorithm TP listed in Fig. 14 by ignoring dependency with distanceða; bÞ, a; b > 0.
Fig. 12. Pseudo codes of algorithm TD. Fig. 11. Pseudo codes of algorithm LT.
for k = 1 to m by 4 begin
for i = k to min (m, k+4–1) begin for l = 1 to n by 3 begin
for j = l to min (n, l+3–1) begin
D [i, j] = B [i–1, j] × C [i–1, j–2] ; A [i, j] = D [i, j] × 0.5 ; B [i, j] = A [i, j] + 1 ; C [i, j] = A [i, j–1] + 2 ; end end end (a) (b) 4, 4 4, 3 4, 2 4, 1 3, 4 3, 3 3, 2 3, 1 2, 4 2, 3 2, 2 2, 1 1, 4 1, 3 1, 2 1, 1 end l k
For convenience,we use the same mechanism as TSM to allocate tiles to every DSP in TSMLT. Simi-larly,tiles inside each barrier section are independent and any appropriate single DSP scheduling method can be applied. We still use the nested loop in Fig. 1(a),with variables ðm; n; P ; QÞ equal (8,7,4,3),as an example. Suppose that there are four DSPs,Fig. 15 shows its parallelized iteration space and allocation result. Fig. 16 contains the entire algorithm TSMLT.
4.3. Preliminary performance analysis
In the following,we analyze TSMLT using the same analytical model as above. Variable definitions,input nested loop,and system architecture are all as in Section 3.3. After tiling a nested loop with tile size P Q,it is clear that not all tiles contain exactly P Q iterations. Although some tiles may be smaller,for convenience we assume all contain P Q iterations. Hence,analysis result in this section can be treated as the worst case,and the actual execution time is not greater to it.
4.3.1. Preliminary analysis
Basically, TSMLT can be classified into four cases according to whether the nested loop is directly tiled or not and the tiles parallelized or not. However,generally the intra-tile dependency distance is smaller than the tile size in each dimension,so inter-tile dependencies with distances (1,0) and (0,1) are always be generated. Therefore,we classify TSMLT into two cases just based on whether the nested loop is tiled directly or not,and assume the result of algorithm TP is always 1 1
1 0
. TSMLT1 means that the nested loop can be tiled directly. This case is similar to TSM2,but using tiles instead of iterations. Use of Lemmas 4.1 and 4.2 gives the execution time of TMLT1.
Lemma 4.1. After applying TSMLT and the transforma-tion matrix T obtained from algorithm LT is identity, the number of tiles executed by DSP1 is
Fig. 15. (a) Parallelized iteration space,(b) allocation result of tiles. Fig. 14. Pseudo codes of algorithm TP.
1þ m01 N j k m01 N j k N þ m01 N l m ððm0 1Þmod N Þ 2 þ m0 N l m ðn0 m0þ 1Þ if m06n0 1þ n0 N j k n0 N j k N þ n0 N l m ðn0mod NÞ 2 þ ðm0 n0 1Þ n0þ1 N l m ðn0þ 1Þ ðm0 n0 1Þ n0þ1 N l m n0 N l m if m0> n0 8 > > > < > > > : ð4:1Þ
where variablesðm0; n0Þ equal ð m=Pd e; n=Qd eÞ.
Proof. After loop tiling it will contains m=Pd e n=Qd e tiles. Because the transformation matrix T0 obtained
from algorithm TP is always 1 1
1 0
and we use similar allocating mechanism as TSM,this situation is similar to Lemma 3.3. Hence,we inherit the result from formula (3.3) and use variablesðm0; n0; wÞ instead of ðm; n; 1Þ. h
Lemma 4.2. After applying TSMLT and the transfor-mation matrix T obtained from algorithm LT is identity, its execution time is
ðprologueðkÞ þ epilogueðkÞÞ ðm0þ n01Þ
þ lengthðkÞ ½APQ dðkÞðm0þ n0 1Þ ð4:2Þ
where variables ðm0; n0Þ equal ð m=Pd e, n=Qd eÞ, and A is
the number of tiles executed by DSP1 calculated from formula (4.1).
Proof. As in Lemma 3.4,the number of tiles allocated to DSP1 are obtained from formula (4.2) and represented by A. These tiles are partitioned into m0þ n0 1 barrier
sections with unequal numbers of independent tiles. Since we assume that P Q P dðkÞ,the retiming
tech-nique can be applied in every barrier section. Clearly therefore,the entire execution time of this case can be calculated by formula (4.2). h
TSMLT2 is the most complex because the nested loop must be skewed twice and permutated. Unfortu-nately,as shown in Fig. 17(a),tiles may not form a regular parallelogram after the first skewing and tiling. In other words,its slope (skew factor) is not a constant, so we cannot calculate exactly the number of tiles allo-cated to DSP1. For this problem,we must determine a constant skew factor to estimate this irregular tiling re-sult. If we can obtain this constant skew factor,this case will be reduced to the previous case and results of Lemmas 4.1 and 4.2 can be used immediately.
We have tried two methods. First we intuitively set the final skew factor equal to the maximum slope value,but the estimated tiling result was very different from the real iteration space as shown in Fig. 17(b). Second we selected the average slope value even if it was fractional. As shown in Fig. 17(c),this estimated tiling result is much more realistic. Notice that we simply use this average skew factor to represent an irregular parallelogram; the original tiling result is not changed. We choose the later method and use Lemma 4.3 to calculate the average skew factor.
Fig. 17. Irregular tiling results. Fig. 16. Pseudo codes of algorithm TSMLT.
Lemma 4.3. Applying TSMLT and supposing that the nested loop must be skewed with factor w, w > 0, before tiling. After allocating tiles to every DSP, the average skew factor of the irregular tiling result is dmwþ 1 w=Qe 2= m=pd e 1.
Proof. We select iterations (1,1) and (m,1) in the ori-ginal nested loop to calculate the average skew factor. After loop tiling,these two iterations will reside in tiles (1,1) andðdm=Pe; mw þ 1 w=Qd eÞ. Then,after paral-lelizing tiles,they are shifted to tiles (1,2) and
m=P
d e; mw þ 1 w=Qd e þ m=Pd e
ð Þ. Hence,the average
skew factor is mwd þ 1 w=Qe þ m=Pd e 2= m=Pd e 1, which is calculated from the distance between these two tiles.
Using the constant skew factor from Lemma 4.3,we can analyze TSMLT2 by a similar method to the pre-vious one. Although this result is not exact,its inaccu-racy may be tolerated because the estimated tiling result is realistic enough. Lemmas 4.4 and 4.5 give the execu-tion time of TSMLT2. h
Lemma 4.4. Applying TSMLT and the transformation matrix T obtained from algorithm LT is w 1
1 0
, w P 0, the number of tiles executed by DSP1 is
where variables ðm0; n0; w0; A; B; C; DÞ equal ðdm=Pe;
n=Q
d e; mw þ 1 w=Qd e þ m=Pd e 2= m=Pd e 1; m0w0
w0 n0; nb 0=w0c; ðn0þ 1Þmod w0; Amod w0Þ.
Proof. As in Lemma 4.1,we obtain formula (4.3) from formula (3.3) and use the variables ðm0; n0; w0Þ defined
above in place ofðm; n; wÞ. h
Lemma 4.5. Applying TSMLT and the transformation matrix T obtained from algorithm LT is w 1
1 0
, w P 0, its execution time is
ðprologueðkÞ þ epilogueðkÞÞ ðm0þ n0 w0Þ
þ lengthðkÞ ½APQ dðkÞðm0þ n0 w0Þ ð4:4Þ
where variables ðm0; n0; w0Þ equal ðdm=Pe; n=Qd e;
mwþ 1 w=Q
d e þ m=Pd e 2= m=Pd e 1Þ, and A is the
number of tiles executed by DSP1 calculated from for-mula (4.3).
Proof. This proof is the same as for Lemma 4.2. h 4.3.2. Experimental results
In the following,we use the same examples and architectures as in Section 3.3.3 to compare conven-tional methods, TSM,and TSMLT. From Fig. 18, TSMLT outperforms conventional method but not so clear-cut with TSM. The main reason is that although retiming technique can always be applied in TSMLT, more iterations will be allocated to DSP1. This situation will lower the function unit utilization and lengthen the execution time. Due to this tradeoff,performance improvement between TSM and TSMLT becomes uncertain. Based on our observations,if both dðkÞ and the skewing factor from algorithm LP are large, TSMLT performs better.
In Fig. 18,we also consider results for different tile sizes. Usually,smaller tile sizes achieve better perfor-mance. It is consistent with the tradeoff mentioned above,because smaller tile size allows more even allo-cation of tiles (iterations). Speedup results of TSMLT shown in Fig. 19 are similar to those shown in Fig. 12.
4.3.3. Formal evaluation
We analyze TSMLT in the same manner as in Section 3.3.4. Formulas (4.2) and (4.4) can be rewritten using the approximate values of variables listed in Table 2: execution time of TSMLT1¼ APQ Ops=kd e ð4:5Þ where variable A is the result calculated from formula (4.1).
execution time of TSMLT2¼ APQ Ops=kd e ð4:6Þ where variable A is the result calculated from formula (4.3).
It is interesting that formulas (4.5) and (4.6) are similar. Comparing to formula (3.5), TSMLT usually can obtain shorter execution time with specific archi-tecture. Speedup results of TSMLT are also more scal-able for similar reasons as for TSM,no matter how much we increase N or k. The comparison between TSM 1þ m01 N j k m01 N j k Nw0þ m01 N l m ððm0w0 w0Þmod Nw0Þ 2 þ m0 N l m ðw0þ n0 m0w0Þ if w0m0þ 1 6 w0þ n0 1þ n0 Nw0 j k n0 Nw0 j k Nw0þ n0 Nw0 l m ðn0mod Nw0Þ 2 þ A Bþ1 N C A w0 j k þ minðC; DÞ Bþ1 N B N if w0m0þ 1 > w0þ n0 8 > > > > > < > > > > > : ð4:3Þ
and TSMLT is uncertain,because the number of itera-tions (tiles) allocated to DSP1 cannot be easily obtained from above formulas. Usually,if a nested loop can be scheduled using TSM 1,it can achieve shorter execution time no matter it belongs to which case of TSMLT. On the other hand,if a nested loop must be scheduled using TSM2,and both dðkÞ and the skewing factor from
algorithm LP are large, TSMLT may have better results. This analysis is also consistent with above evaluations. 4.4. Summary
We summarize advantages and disadvantages of TSMLT briefly. Similar to TSM, TSMLT can achieve
0 1000 2000 3000 4000 5000 6000 7000 8000 10×10 20×15 20×25 25×25 25×30 35×35 35×40 40×40 45×40 50×50 No. of iterations
execution time (cycles)
Conventional TSM 1 TSMLT 2 (7 × 7) TSMLT 2 (5 × 5) TSMLT 2 (3 × 3) 0 2000 4000 6000 8000 10000 12000 10×10 20×15 20×25 25×25 25×30 35×35 35×40 40×40 45×40 50×50 No. of iterations ex ecu tio n time (cy cles) Conventional TSM 2 TSMLT 1 (7 × 7) TSMLT 1 (5 × 5) TSMLT 1 (3 × 3) 0 500 1000 1500 2000 2500 3000 10×10 20×15 20×25 25×25 25×30 35×35 35×4 0 40×4 0 45×4050×50 No. of iterations ex ecu tio n time (cy cles) Conventional TSM 1 TSMLT 2 (7 × 7) TSMLT 2 (5 × 5) TSMLT 2 (3 × 3) 0 5000 10000 15000 20000 25000 10×10 20×15 20×25 25×25 25×30 35×35 35×4 0 40×4 0 45×4050×50 No. of iterations ex ecu tio n time (cy cles) Conventional TSM 2 TSMLT 2 (7 × 7) TSMLT 2 (5 × 5) TSMLT 2 (3 × 3) 0 1000 2000 3000 4000 5000 6000 10×1 0 20×15 20×2 5 25×2 5 25×30 35×35 35×4 0 40×4 0 45×4050×50 No. of iterations ex ecu tio n time (cy cles) Conventional TSM 2 TSMLT 2 (7 × 7) TSMLT 2 (5 × 5) TSMLT 2 (3 × 3) 0 1000 2000 3000 4000 5000 6000 7000 8000 10×10 20×15 20×2 5 25×2 5 25×30 35×35 35×4 0 40×4 0 45×40 50×50 No. of iterations ex ecu tio n time (cy cles) Conventional TSM 2 TSMLT 2 (7 × 7) TSMLT 2 (5 × 5) TSMLT 2 (3 × 3) (a) (b) (c) (d) (e) (f)
Fig. 18. Scheduling results. (a) Transmission lines,(b) infinite impulse filter,(c) wave digital filter,(d) Floyd–Steinberg algorithm,(e) model A,(f) model B.
higher function unit utilization,shorter execution time, and more scalable speedup results. Parallel degree and instruction level parallelism are also exploited. More-over, TSMLT can takes advantage of data locality be-cause it applies the loop tiling technique. Compared with TSM,its performance is uncertain and may depend on the input nested loop.
In order to simplify above analyses,we employ an ideal model,which ignores both memory access and synchronization overheads. However,they cannot be entirely eliminated in real system. Thus,decreasing the demands of synchronization and memory access are design issues for any scheduling method.
TSM and TSMLT both predominate in synchroni-zation overheads. It needs synchronisynchroni-zations after every time unit in conventional methods,but only after every barrier section in our methods. Since the number of barrier sections is much less than execution time units, our methods will cause less synchronization overheads.
As for memory access overheads our methods also have advantages. Generally,fetching an operand from adjacent DSPs or remote memory is much slower than local storage. In DSP applications,we find that a vari-able is usually defined and used in the same iteration. In this situation,conventional methods will cause many inter-DSP communications or remote memory accesses, because they separate operations in the same iteration into all DSPs. However,in TSM and TSMLT,data transference is unnecessary within barrier section,be-cause those iterations and tiles are independent. Thus, our methods also can cause less memory access over-heads.
5. Conclusions and future work
In this paper,we have proposed a two-level sched-uling method to schedule a nested loop on DSMP,and 0 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 No. of DSPs sp eedup Conventional TSM 1 TSMLT 2 (5 × 5) 0 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 No. of DSPs sp eedup Conventional TSM 2 TSMLT 1 (5 × 5) 0 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 No. of DSPs sp eedup Conventional TSM 1 TSMLT 2 (5 × 5) 0 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 No. of DSPs sp eedup Conventional TSM 2 TSMLT 2 (5 × 5) 0 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 No. of DSPs sp eedup Conventional TSM 2 TSMLT 2 (5 × 5) 0 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 No. of DSPs sp eedup Conventional TSM 2 TSMLT 2 (5 × 5) (a) (b) (c) (d) (e) (f)
Fig. 19. Speedup results. (a) Transmission lines,(b) infinite impulse filter,(c) wave digital filter,(d) Floyd–Steinberg algorithm,(e) model A,(f) model B.
use an analytical model to analyze the preliminary per-formance. Our method contains two approaches TSM and TSMLT,which integrate unimodular transforma-tions,conventional scheduling method used on single DSP,and loop tiling technique. From our analyses,both can achieve shorter execution times,higher function unit utilization,and more scalable speedup,and TSMLT also advantageously use data locality. Comparing TSM and TSMLT show that neither is always better than the other,which may depends on the input nested loop.
Besides previously listed features,there are still sev-eral promising issues for future research. First is the construction of a simulation and evaluation environ-ment. We already have an environment that can sche-dule MDFG using some conventional methods on DSMP. After integrating unimodular transformations and loop tiling techniques,it will help us evaluate TSM and TSMLT more accurately. Second is the reorgani-zation of our methods. TSM and TSMLT combine three methods but leave essential algorithms unchanged. In the future,we propose designing other scheduling methods,which preserve features but would not directly integrate these methods.
Acknowledgements
This research was supported by the National Science Council of the Republic of China under contract num-ber: NSC 89-2213-E009-200.
References
Barnwell III,T.P.,Gaglio,S.,Price,R.M.,1978. A multi-micropro-cessor architecture for digital signal processing. In: Proceedings of International Conference on Parallel Processing,August. Chao,L.F.,Sha,E.H.-M.,1993. Static scheduling of uniform nested
loops. In: Proceedings of 7th International Parallel Processing Symposium,Newport,CA,USA,April,pp. 1421–1424.
Eyre,J.,Bier,J.,2000. The evolution of DSP processors. IEEE Signal Processing Magazine 17 (2),43–51.
Hsu,Y.C.,Jeang,Y.L.,1993. Pipeline scheduling techniques in high-level synthesis. In: Proceedings of 6th Annual IEEE International ASIC Conference and Exhibition,Rochester,NY,USA,pp. 396– 403.
Jeng,L.G.,Chen,L.G.,1994. Rate-optimal DSP synthesis by pipeline and minimum unfolding. IEEE Transactions on Very Large Scale Integration (VLSI) Systems 2 (1),81–88.
Koch,P.,Larsen,N.,Bauer,T.,Ejlersen,O.,1997. GENETICAS: A multi-DSP scheduling technique based on genetic algorithms. In: Proceedings of 30th Asilomar Conference on Signals,Systems and Computers,Pacific Grove,CA,USA,vol. 2. pp. 1391–1395. Kung,S.Y.,1988. VLSI Array Processors. Prentice Hall,Englewood,
NJ.
Lamport,L.,1974. The parallel execution of DO loops. Commun. ACM SIGPLAN 17 (2),82–93.
Lee,Y.H.,Tsai,M.L.,Chen,C.,2001. RPUSM: An effective instruction scheduling method for nested loops. In: Proceedings of National Computer Symposium,Workshop on Computer Architecture and Parallel Systems,Taiwan,December,pp. C025– C036.
Leiserson,C.E.,Saxe,J.B.,1991. Retiming synchronous circuitry. Algorithmica 6 (1),5–35.
Madisetti,V.K.,1995. VLSI Digital Signal Processors: An Introduc-tion to Rapid Prototyping and Design Synthesis. Butterworth-Heinemann,Boston.
Man,H.,Rabaey,J.,Six,P.,Claesen,L.J.,1986. Cathedral-II: a silicon compiler for digital signal processing. IEEE Design and Test 3 (6),13–25.
Parhi,K.K.,1999. VLSI Digital Signal Processing Systems: Design and Implementation. Wiley Inter-Science,New York.
Passos,N.L.,Sha,E.H.-M.,1996. Achieving full parallelism using multi-dimensional retiming. IEEE Transactions on Parallel and Distributed Systems 7 (11),1150–1163.
Passos,N.L.,Sha,E.H.-M.,1998. Scheduling of uniform multi-dimensional systems under resource constraints. IEEE Transac-tions on VLSI Systems 6 (4),719–730.
Passos,N.L.,Sha,E.H.-M.,Chao,L.F.,1995. Optimizing synchro-nous systems for multi-dimensional applications. In: Proceedings of European Design and Test Conference,pp. 54–58.
Shatnawi,A.,Ahmad,M.O.,Swamy,M.N.S.,1999. Scheduling of DSP data flow graphs onto multiprocessors for maximum throughput. In: Proceedings of IEEE International Symposium on Circuits and Systems,Orlando,FL,USA,vol. 6. pp. 386–389. Simar,R. Jr.,1998. Codevelopment of the TMS320C6x VelociTI architecture and compiler. In: Proceedings of IEEE International Conference on Acoustics,Speech,and Signal Processing,Seattle, WA,USA,vol. 5. pp. 3145–3148.
Tongsima,S.,Sha,E.H.-M.,Passos,N.L.,1997. Communication-sensitive loop scheduling for DSP applications. IEEE Transactions on Signal Processing 45 (5),1309–1322.
Wolf,M.E.,Lam,M.S.,1991. A loop transformation theory and an algorithm to maximize parallelism. IEEE Transactions on Parallel and Distributed Systems 2 (4),452–471.
Wolfe,M.,1996. High Performance Compilers for Parallel Comput-ing. Addison-Wesley,Redwood City,CA,USA.
Yu,T.Z.,Sha,E.H.-M.,Passos,N.L.,Ju,R.,1997. Algorithm and hardware support for branch anticipation. In: Proceedings of IEEE Great Lakes Symposium on VLSI,pp. 163–168.
Cheng Chen is a professor in the Department of Computer Science and Information Engineering at National Chiao Tung University,Taiwan, ROC. He received his B.S. degree from the Tatung Institute of Tech-nology,Taiwan,ROC in 1969 and M.S. degree from the National Chiao Tung University,Taiwan,ROC in 1971,both in electrical engineering. Since 1972,he has been on the faculty of National Chiao Tung University,Taiwan,ROC. From 1980 to 1987,he was a visiting scholar at the University of Illinois at Urbana Champaign. During 1987 and 1988,he served as the chairman of the Department of Computer Science and Information Engineering at the National Chiao Tung University. From 1988 to 1989,he was a visiting scholar of the Carnegie Mellon University (CMU). Between 1990 and 1994,he served as the deputy director of the Microelectronics and Information Sys-tems Research Center (MISC) in National Chiao Tung University. His current research interests include computer architecture,parallel pro-cessing system design,parallelizing compiler techniques,and high performance video server design.
Yi-Hsuan Lee is a Ph.D. candidate in Computer Science and Infor-mation Engineering at National Chiao Tung University,Taiwan, ROC. She received her B.S. degree in Computer Science and Infor-mation Engineering at National Chiao Tung University,Taiwan,ROC in 1999. Her current research interests include computer architecture, parallelizing compiler techniques,multi-processor scheduling problem, task scheduling for heterogeneous systems,and scheduling problem in DSP architecture.
