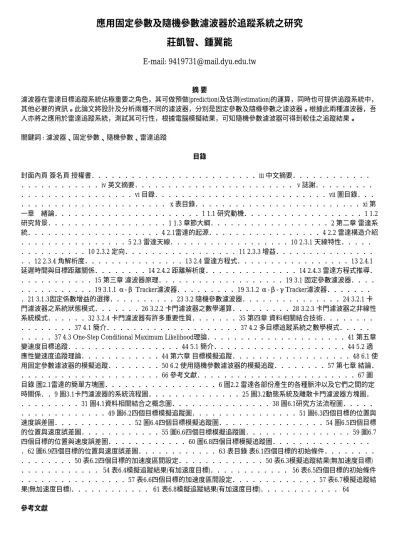

應用固定參數及隨機參數濾波器於追蹤系統之研究 莊凱智、鍾翼能
E-mail: [email protected]
摘 要
濾波器在雷達目標追蹤系統佔極重要之角色，其可做預做(prediction)及估測(estimation)的運算，同時也可提供追蹤系統中，
其他必要的資訊。此論文將設計及分析兩種不同的濾波器，分別是固定參數及隨機參數之濾波器。根據此兩種濾波器，吾 人亦將之應用於雷達追蹤系統，測試其可行性，根據電腦模擬結果，可知隨機參數濾波器可得到較佳之追蹤結果。
關鍵詞 : 濾波器、固定參數、隨機參數、雷達追蹤
目錄
封面內頁 簽名頁 授權書．．．．．．．．．．．．．．．．．．．．．．．．．iii 中文摘要．．．．．．．．．．．．
．．．．．．．．．．．．iv 英文摘要．．．．．．．．．．．．．．．．．．．．．．．． v 誌謝．．．．．．．．．
．．．．．．．．．．．．．．．．．vi 目錄．．．．．．．．．．．．．．．．．．．．．．．．．．vii 圖目錄．．．
．．．．．．．．．．．．．．．．．．．．．． x 表目錄．．．．．．．．．．．．．．．．．．．．．．．．．xi 第 一章 緒論．．．．．．．．．．．．．．．．．．．．．．1 1.1 研究動機．．．．．．．．．．．．．．．．．．1 1.2 研究背景．．．．．．．．．．．．．．．．．．1 1.3 章節大綱．．．．．．．．．．．．．．．．．．2 第二章 雷達系 統．．．．．．．．．．．．．．．．．．．．4 2.1雷達的起源．．．．．．．．．．．．．．．．．4 2.2 雷達構造介紹
．．．．．．．．．．．．．．．．5 2.3 雷達天線．．．．．．．．．．．．．．．．．．10 2.3.1 天線特性．．．．．
．．．．．．．．．．10 2.3.2 定向．．．．．．．．．．．．．．．．．11 2.3.3 增益．．．．．．．．．．．．．．．
．．12 2.3.4 角解析度．．．．．．．．．．．．．．．13 2.4 雷達方程式．．．．．．．．．．．．．．．．．13 2.4.1 延遲時間與目標距離關係．．．．．．．．14 2.4.2 距離解析度．．．．．．．．．．．．．．14 2.4.3 雷達方程式推導．
．．．．．．．．．．．15 第三章 濾波器原理．．．．．．．．．．．．．．．．．．．19 3.1 固定參數濾波器．．．．
．．．．．．．．．．．19 3.1.1 α-β Tracker濾波器．．．．．．．．．19 3.1.2 α-β-γTracker濾波器．．．．．．．
．21 3.1.3固定係數增益的選擇．．．．．．．．．．23 3.2 隨機參數濾波器．．．．．．．．．．．．．．．24 3.2.1 卡 門濾波器之系統狀態模式．．．．．．．26 3.2.2 卡門濾波器之數學運算．．．．．．．．．28 3.2.3 卡門濾波器之非線性 系統模式．．．．．．32 3.2.4 卡門濾波器有許多重要性質．．．．．．．35 第四章 資料相關結合技術．．．．．．．．
．．．．．．．．37 4.1 簡介．．．．．．．．．．．．．．．．．．．．37 4.2 多目標追蹤系統之數學模式．．．．．
．．．．．37 4.3 One-Step Conditional Maximum Likelihood理論．．．．．．．．．．．．．．．．．．．．．41 第五章 變速度目標追蹤．．．．．．．．．．．．．．．．．44 5.1 簡介．．．．．．．．．．．．．．．．．．．．44 5.2 適 應性變速度追蹤理論．．．．．．．．．．．．44 第六章 目標模擬追蹤．．．．．．．．．．．．．．．．．．48 6.1 使 用固定參數濾波器的模擬追蹤．．．．．．．．50 6.2 使用隨機參數濾波器的模擬追蹤．．．．．．．．57 第七章 結論．
．．．．．．．．．．．．．．．．．．．．．66 參考文獻．．．．．．．．．．．．．．．．．．．．．．．．67 圖 目錄 圖2.1雷達的簡單方塊圖．．．．．．．．．．．．．．．．．6 圖2.2 雷達各部份產生的各種脈沖以及它們之間的定 時關係．．9 圖3.1卡門濾波器的系統流程圖．．．．．．．．．．．．．．25 圖3.2動態系統及離散卡門濾波器方塊圖．
．．．．．．．．．31 圖4.1資料相關結合之概念圖．．．．．．．．．．．．．．．38 圖6.1研究方法流程圖．．．．．
．．．．．．．．．．．．．49 圖6.2四個目標模擬追蹤圖．．．．．．．．．．．．．．．．51 圖6.3四個目標的位置與 速度誤差圖．．．．．．．．．．．．52 圖6.4四個目標模擬追蹤圖．．．．．．．．．．．．．．．．54 圖6.5四個目標 的位置與速度誤差圖．．．．．．．．．．．．55 圖6.6四個目標模擬追蹤圖．．．．．．．．．．．．．．．．59 圖6.7 四個目標的位置與速度誤差圖．．．．．．．．．．．．60 圖6.8四個目標模擬追蹤圖．．．．．．．．．．．．．．．
．62 圖6.9四個目標的位置與速度誤差圖．．．．．．．．．．．．63 表目錄 表6.1四個目標的初始條件．．．．．．．．
．．．．．．．．50 表6.2四個目標的加速度區間設定．．．．．．．．．．．．．50 表6.3模擬追蹤結果(無加速度目標)
．．．．．．．．．．．． 54 表6.4模擬追蹤結果(有加速度目標)．．．．．．．．．．．． 56 表6.5四個目標的初始條件
．．．．．．．．．．．．．．．．57 表6.6四個目標的加速度區間設定．．．．．．．．．．．．．57 表6.7模擬追蹤結 果(無加速度目標)．．．．．．．．．．．． 61 表6.8模擬追蹤結果(有加速度目標)．．．．．．．．．．．． 64
