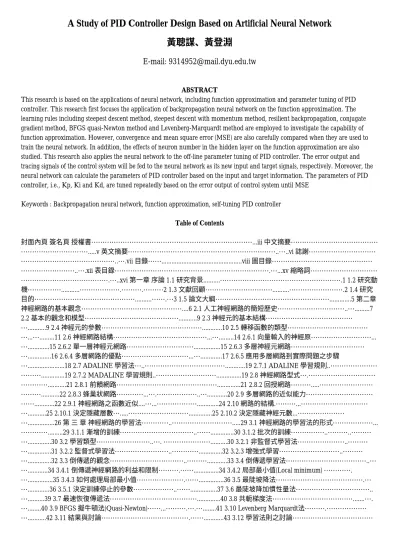

A Study of PID Controller Design Based on Artificial Neural Network 黃聰謀、黃登淵
E-mail: [email protected]
ABSTRACT
This research is based on the applications of neural network, including function approximation and parameter tuning of PID controller. This research first focuses the application of backpropagation neural network on the function approximation. The learning rules including steepest descent method, steepest descent with momentum method, resilient backpropagation, conjugate gradient method, BFGS quasi-Newton method and Levenberg-Marquardt method are employed to investigate the capability of function approximation. However, convergence and mean square error (MSE) are also carefully compared when they are used to train the neural network. In addition, the effects of neuron number in the hidden layer on the function approximation are also studied. This research also applies the neural network to the off-line parameter tuning of PID controller. The error output and tracing signals of the control system will be fed to the neural network as its new input and target signals, respectively. Moreover, the neural network can calculate the parameters of PID controller based on the input and target information. The parameters of PID controller, i.e., Kp, Ki and Kd, are tuned repeatedly based on the error output of control system until MSE
Keywords : Backpropagation neural network, function approximation, self-tuning PID controller Table of Contents
封面內頁 簽名頁 授權書………...iii 中文摘要………
………...v 英文摘要………..…..vi 誌謝………
………..….vii 目錄……...viii 圖目錄………
………..….xii 表目錄……….…...xv 縮略詞………
……….…..xvi 第一章 序論 1.1 研究背景...……….1 1.2 研究動 機………...……….……….………2 1.3 文獻回顧………...……….2 1.4 研究 目的………...…….…3 1.5 論文大綱………...5 第二章 神經網路的基本觀念………....6 2.1 人工神經網路的簡短歷史………..…...7 2.2 基本的觀念和模型………...9 2.3 神經元的基本結構………
…...9 2.4 神經元的參數………...10 2.5 轉移函數的類型………
…...…...11 2.6 神經網路結構………...…...14 2.6.1 向量輸入的神經原………...
…...15 2.6.2 單一層神經元網路………...15 2.6.3 多層神經元網路………
…...16 2.6.4 多層網路的優點………...…...17 2.6.5 應用多層網路到實際問題之步驟
…...18 2.7 ADALINE 學習法…..………...19 2.7.1 ADALINE 學習規則..………
………...19 2.7.2 MADALINE 學習規則..………...19 2.8 神經網路型式….………
…………...21 2.8.1 前饋網路………...21 2.8.2 回授網路………...………
………...22 2.8.3 蜂巢狀網路…………...….………..…...20 2.9 多層網路的近似能力………
……...22 2.9.1 神經網路之函數近似....…...………...24 2.10 網路的結構.………...………
…...25 2.10.1 決定隱藏層數…...………...25 2.10.2 決定隱藏神經元數...………
…...26 第 三 章 神經網路的學習法…………..………...29 3.1 神經網路的學習法的形式………...
…………...29 3.1.1 漸增的訓練………..……...30 3.1.2 批次的訓練………..………..………
…...30 3.2 學習類型………..…. ………...30 3.2.1 非監督式學習法………..………
…...31 3.2.2 監督式學習法………..…………...32 3.2.3 增強式學習………..………
…...32 3.3 倒傳遞的觀念………..………...33 3.4 倒傳遞學習法………..…
…...34 3.4.1 倒傳遞神經網路的利益和限制……….……...34 3.4.2 局部最小值(Local minimum) ………….
…...35 3.4.3 如何處理局部最小值……….……...36 3.5 最陡坡降法……….…
…...36 3.5.1 決定訓練停止的參數………..……...37 3.6 最陡坡降加慣性量法………..
…...39 3.7 最速恢復傳遞法………...40 3.8 共軛梯度法………...….
…...40 3.9 BFGS 擬牛頓法(Quasi-Newton)……...……….….…...41 3.10 Levenberg Marquardt法……….………
…...42 3.11 結果與討論……….……...43 3.12 學習法則之討論………
…...46 第四章 神經網路的應用………...49 4.1 歸納推演(Generalization)………
…………...49 4.1.1 改良歸納推演的過度配適.……….…...49 4.2 類神經網路之應用實例(一)………
……...50 4.2.1 類神經網路之應用實例(二)……….…………...51 第五章 控制系統………..………
……….………..52 5.1 控制系統的歷史檢討……….……...52 5.2 PID 控制器的觀念………
……….……...53 5.2.1 PD 控制器設計.………...55 5.2.2 PI 控制器的設計………
……...55 5.2.3 PID 控制器的設計……….…...56 5.3 PID 控制器參數調整法………
…….…...56 5.4 Zigler-Nichols 參數調整法………...59 5.4.1 Ziegler-Nichols第一法 ( First method.)…….
…...59 5.4.2 Ziegler-Nichols 第二法( Second method.)...61 5.5 類神經網路控制架構……….……
…...61 5.5.1 離散化(Discretization)………..…...64 5.6 電腦模擬結果(Computer simulated result)…..
…...65 第六章 結論……….…....72 6.1 未來展望………
……….…...73 參考文獻(References)………....74 REFERENCES
