Unipolar Resistive Switching in ZrO2 Thin Films
View the table of contents for this issue, or go to the journal homepage for more 2013 Jpn. J. Appl. Phys. 52 041101
(http://iopscience.iop.org/1347-4065/52/4R/041101)
Unipolar Resistive Switching in ZrO
2Thin Films
Guo-Yong Zhang1, Dai-Ying Lee1, I-Chuan Yao2, Chung-Jung Hung2, Sheng-Yu Wang1, Tai-Yuen Huang1, Jia-Woei Wu1, and Tseung-Yuen Tseng1
1Department of Electronics Engineering and Institute of Electronics, National Chiao Tung University, Hsinchu 300, Taiwan 2Department of Materials Science and Engineering, National Chiao Tung University, Hsinchu 300, Taiwan
E-mail: [email protected]
Received November 26, 2012; accepted January 21, 2013; published online March 14, 2013
Unipolar resistive switching behaviors including bistable memory switching and monostable threshold switching were found in ZrO2thin films fabricated by a simple sol–gel method with the Ti/ZrO2/Pt structure. The multilevel resistive switching behaviors were also revealed by varying the compliance current from 9 to 38 mA. Physical mechanisms based on a conductive filament model were proposed to explain the resistive switching phenomena and the device breakdown. A figure of meritZ ¼a=fwas defined as a criterion for evaluating OFF/ON resistance ratio,
wherefandarepresent the resistivities of the conductive filament and the fracture region of the filament, respectively. The advantages such as
unipolar resistive switching, multilevel resistive switching, good scalability, low operation voltage (<5 V), high OFF/ON resistance ratio (>103),
nondestructive readout, long retention (>104s), and simple fabrication method make the ZrO
2-based resistive switching device a promising
candidate for next-generation nonvolatile memory applications. # 2013 The Japan Society of Applied Physics
1. Introduction
Nonvolatile memories (NVMs) have become a key part of modern information technology devices since they were invented by Kahng and Sze at Bell Labs in 1967.1,2) Nowadays, they are widely used in portable devices such as cell phones, digital cameras, tablet personal computers, and notebook computers. However, conventional NVMs such as the charge-storage-based FLASH memories will meet their physical limitations as the devices are scaling down.3–5) To overcome this bottleneck, several emerging memories including magnetic random access memory (MRAM), ferroelectric random access memory (FRAM), phase-change random access memory (PRAM), and resistive random access memory (RRAM), have been proposed as candidates for next-generation memories.6,7)Among these novel devices, the RRAM that is composed of a simple metal–insulator–metal (M–I–M) capacitor structure has been intensively studied because of its merits of low power consumption, low-voltage and high-speed operation, high endurance, long retention, high packing density, nondestruc-tive readout, and low cost.3–5)
Resistive switching is a universal phenomenon arising in conductor/nonconductor/conductor system upon applica-tion of proper electrical voltage or current signals.6,8–10) Resistive switching can be either bistable memory switching or monostable threshold switching.11,12) On the basis of polarity, it can be classified into three modes: unipolar, bipolar, and nonpolar switching.7,13–15) Unipolar (or non-polar) memory switching has special importance because it can be used to design high-density cross-bar RRAM devices by employing the one diode and one resistor (1D1R) architecture, which is believed to be a promising memory concept.16,17) Nonconducting materials including both or-ganic and inoror-ganic materials have demonstrated good switching properties,6)such as organic materials (small or-ganic semiconducting molecules, polymers and composites containing nanoparticles),18) perovskite oxides (La0:7Ca0:3 -MnO3,19) Sm0:7Ca0:3MnO3,20) and Pr0:7Ca0:3MnO321)) and binary oxides (ZrO2,15,22–32) CeO2,33) CuxO,34) Ga2O3,35) EuxOy,36)NiO,11,37)TaOx,38)Al2O3,39,40)AlxOy,41)MnO2,42) HfO2,43–45) TiO2,46,47) ZnO,48) and Nb2O549)). Among these
materials, binary oxides have great advantages because they have the superior merits of simple component, require low-temperature process, have thermal robustness, and are fully compatible with complementary metal oxide semiconductor (CMOS) technology.24,50) Therefore, the unipolar resistive switching in binary oxides is more attractive and valuable for developing high-performance RRAM devices.
Research on RRAM mainly focuses on six aspects: 1) switching mechanisms, 2) switching materials, 3) switch-ing characteristics, 4) electrodes, 5) device structures, and 6) fabrication methods. Up to now, magnetron sputtering,3–5,13,15,22–38,50–55) pulsed laser deposition (PLD),19–21,43,49) plasma oxidation,41) atomic layer deposi-tion (ALD),44) metallorganic chemical vapor deposition (MOCVD),45) thermal oxidation,47) laser molecular beam epitaxy (laser MBE),56)physical vapor deposition (PVD),57) and sol–gel58,59) methods have been used to fabricate switching materials in RRAM devices. Among these techniques the sol–gel method has some advantages: simple fabrication, low cost, and low-temperature process. Re-cently, both unipolar and bipolar switching behaviors have been observed and studied in ZrO2-thin-film-based RRAM devices. However, the ZrO2thin films were mostly deposited by a radio-frequency (RF) magnetron sputtering. In this work, the unipolar resistive switching of a Ti/sol–gel ZrO2/ Pt structure was investigated for RRAM applications. A conductive filament (CF) model was proposed to explain the switching mechanism. The multilevel resistive switching behaviors were observed by varying compliance current. The CFs had two different behaviors in the low- and high-compliance-current ranges, respectively. Furthermore, the formation of a CF network was proposed to explain the breakdown mechanism.
2. Experimental Procedure
80-nm-thick ZrO2 thin films were deposited on Pt/Ti/ SiO2/Si substrates by a simple poly(vinyl alcohol) (PVA) sol–gel route. The starting materials were zirconium acetate [Zr(CH3COO)4] in dilute acetic acid (Aldrich 413801), PVA (average molecular weight, 2000), and distilled water. PVA is used because it is an environmentally friendly material. The typical procedure is shown in Fig. 1. For electrical
measurements, disk-shaped Ti electrodes were fabricated on the top of the ZrO2 thin films using e-gun at the same thickness of 100 nm and three different diameters (150, 250, and 350m). Unless otherwise specifically stated, all the top electrodes of the devices used in the experiments have a diameter of 350m. Current–voltage (I–V) curves were measured using an Agilent 4155C semiconductor parameter analyzer at room temperature. The Ti top electrode was grounded and a positive bias voltageVs was applied on the Pt bottom electrode.
3. Results and Discussion
X-ray diffraction patterns show that the ZrO2thin film has a polycrystalline structure (Fig. 2). The as-deposited ZrO2thin film is an insulator; however, during the forming process, when a forming voltage,Vform of 10.5 V was applied, there was a sudden increase in current [Fig. 3(a)], indicating that a conducting path was created in it. During the forming process, a compliance current (Icomp) of 3 mA was applied to prevent the device from breaking down. After the forming process, the device was switched from the high-resistance state (HRS or ‘‘OFF’’ state) to the low-resistance state (LRS or ‘‘ON’’ state), which can also be called the first SET process. Thereafter, as Vs swept again in the same positive direction, the RESET process happened at 2.8 V (RESET voltage, Vreset) with Ireset¼ 40 mA (RESET current) where the ON state was switched to the OFF state. During the subsequent cycles, the switching between the OFF and ON states occurred alternatively by applying Vset(SET voltage) andVreset. It should be noted that only the SET process needs compliance current. In the RESET process, compliance current is never applied. Because both the OFF and ON states can be maintained without any bias, they are both nonvolatile memory states. During the switching processes the bias direction keeps unchanged; therefore, the switching
is unipolar. The ratior ¼ Roff=Ron is as high as2:19 103 at 0.3 V read voltage (Vread), whereRoff andRonare the OFF and ON state resistances, respectively. The inset in Fig. 3(a) shows the top electrode area dependence ofRoff,Ron, andr. Roff decreases as the area increases, while Ron is nearly independent of the area, indicating that the conducting path is localized rather than uniform, which can be called CF. Owing to the CF mechanism, r increases with decreasing area. In fact, under a high electrical field applied to ZrO2 thin films, the oxygen ions will migrate towards the bottom electrode13)and oxygen vacancies will connect to each other to form the CF, which is the micromechanism of the forming (SET) process [Fig. 3(b)]. For the RESET process, it is the Joule heating that provides the energy for oxygen ions to recombine with oxygen vacancies, as a result the CF ruptures [Fig. 3(b)]. Here, although the CF usually has an irregular shape, we study the CF assuming a line shape for simplicity. Besides such size-dependent properties, other switching properties of RRAM can also be enhanced as the area decreases, such as increased stability and decreased working current and variation, which make the Mole law still effective; however, for conventional memory devices such as DRAM and FLASH, the Mole law will not work because they are approaching their physical limitations.60)
Figure 4 shows typical stress test results. During the stress test, a small 10 mVVreadwas applied every 10 s for a total of 1:08 104s. It can be seen from the figure that bothRoffand Ronare stable, and between them a clear ratio window exists. Initially, as t increases, Roff increases steadily owing to a slow recombination of oxygen ions and oxygen vacancies. At 10,340 s, there is a sudden increase inRoff, indicating the occurrence of an obvious recombination; although thereafter Roff decreases owing to the migration of oxygen vacancies, it remains high, which ensures the high OFF/ON resistance ratio. ForRonon the other hand, at the beginning it is stable, but immediately after, it shows a small but sudden increase at 140 s owing to an obvious recombination, and then it remains nearly unvaried, showing a high stability. Taken together, although there are some variations, both Roff and Ronmaintain a clear ratio window (rw¼ 24) for more than 104s, which demonstrated that their nondestructive readout properties are stable against read operation.
Another interesting phenomenon is that in some samples a monostable threshold switching can be observed besides the PVA dissolved in distilled water
85 °C heating (3 h reflux) Zirconium acetate [Zr(CH3COO)4] in
dilute acetic acid (Aldrich 413801)
Spin coating (850/3300 rpm for 15 s/20 s)
Drying (120 °C, 8 min)
Heat treatment (320 °C, 30 min; 700 °C, 30 min)
ZrO2 thin film
Repeated for multilayer thin film
Fig. 1. Sol–gel route for preparation of ZrO2thin films.
20 30 40 50 60 70 80 ZrO 2 (111) Pt (220) ZrO 2 (200) Pt (111) ZrO 2 (220) Pt (200) ZrO 2 (311) ZrO 2 (222) ZrO 2 (400) Intensity (arb . unit) 2θ(deg.)
Fig. 2. XRD spectra of a ZrO2film on Pt.
G.-Y. Zhang et al. Jpn. J. Appl. Phys. 52 (2013) 041101
bistable unipolar memory switching [Fig. 3(c)]. Firstly, a reproducible bistable memory switching was measured [inset in Fig. 3(c)]. Secondly, the ON state was subjected to a stress test at a low 50 mVVreadapplied every 10 s for a total of1:08 104s. Thereafter, it was found that the device only shows a monostable threshold switching in the first four cycles (labeled as 1st–4th). In the 1st cycle the device was switched ON with Icomp ¼ 6 mA; however, the ON state could not be maintained when the power was turned off and the 2nd cycle started in the OFF state. It was the same for the 3rd and 4th cycles. This is the monostable threshold switching: the ON state is not stable and always switches to
the OFF state when the power is turned off. It is suggested that oxygen vacancy concentration could play a key role in determining the switching behaviors. If the concentration is high, the CF will be thick and the ON state will be stable; however, the RESET process will consume more electrical energy. On the other hand, at a low concentration, the CF will become weak and can rupture easily; therefore, bistable switching can become monostable switching or even non-switching. We assume that in such a sample there is a relatively low oxygen vacancy concentration, and at a low Vread the recombination between oxygen ions and oxygen vacancies occurs and the CF ruptures. Since the fracture region is very thin, even a lowVreadcan generate a relatively high electrical field to drive the oxygen ions to migrate from the Ti top electrode towards the thin fracture region and accumulate; eventually, a fracture region with a high oxygen ion concentration forms [Fig. 3(d)]. Afterwards, as the electrical field increases, in the fracture region there is a competition between the separation and recombination of oxygen ions and oxygen vacancies, which leads to some fluctuations in the ‘‘A’’ part of the 1st cycle. As the electrical field is reasonably high, the recombination is dominant and a flat level (‘‘B’’ part) appears; as the electrical field is higher then, because now the oxygen ion concentration in the sink (interface layer) is low, oxygen ion migration becomes slow, and soft breakdown occurs in the fracture region, and the ON state is achieved finally. That is, oxygen ion concentration decreases to some degree during each switching cycle owing to the migration of oxygen ions, which decreases Vset as

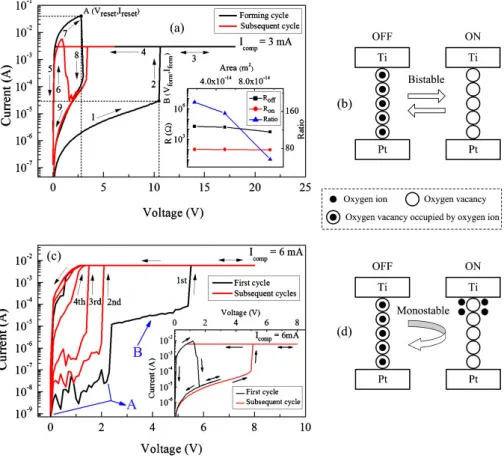

Fig. 3. (Color online) (a) Bistable memory switching. The inset shows the Ti top electrode area dependence ofRoff,Ron, and OFF/ON resistance ratio.
(b) CF model for bistable memory switching. (c) Monostable threshold switching. The inset shows the bistable memory switching. The bistable memory switching was turned into the monostable threshold switching in a stress test. (d) CF model for monostable threshold switching. In the ON state near the CF, the oxygen ion concentration is higher than that in bistable memory switching.
Fig. 4. (Color online) Typical stress test results forRoffandRon with
the number of switching cycles increases; therefore, the monostable threshold switching behavior is maintained.
The influence of Icomp on the switching properties was investigated by measuring I–V curves. Figure 5(a) shows that as Icomp increases the Ti/ZrO2/Pt device demonstrates multilevel resistive switching behaviors. The multilevel re-sistive switching works well in a broad range of compliance currents from 8 to 38 mA, indicating that the device has a high stability against high currents. The device breaks down above 38 mA. Figure 5(b) shows that both Ron and Roff decrease as Icomp increases. However, Roff decreases much faster than Ron: Roff decreases more than two orders of magnitude (from 1:38 105 to 1:12 103), while Ron only decreases from 153 to 60. As a result, r decreases as Icomp increases. Ron,Roff, and r all demonstrate multilevel properties. The CF model can be used to explain the phenomena caused by Icomp. Figure 6 shows the equivalent resistances of Roff and Ron. Rf is the resistance of the CF, andRr is the resistance of the remaining part except the CF in the ZrO2 thin film. If we ignore Rr and only consider the CF, we obtain r ¼ ðRaþ RbÞ=Rf ¼ ðala=S þ flb=SÞ= ðfl=SÞ ¼ ðalaÞ=ðflÞ þ lb=l, where aðlaÞ, f,lb,l, and S are the resistivity (length) of the fracture region of the CF, the resistivity of the CF, the length of the residual CF, and the length and cross-sectional area of the CF, respectively. Using l ¼ laþ lb and 0 lb< l, we obtain 0 lb=l < 1. The fracture region is located immediately under the Ti top electrode. Because the concentration of oxygen vacancies
in the Ti/ZrO2interface layer and the top layer of the ZrO2 thin film is high, the oxidation can occur easily. Note that usually r is much higher than 1; therefore, by ignoring lb=l we obtain
r ¼alafl : ð1Þ
As Icomp increases, the diameter of the CF increases; therefore, both Roff and Ron will decrease. However, from Eq. (1) it can be seen that r is independent of S. Furthermore, since 0 < la=l 1, r is mainly attributed to a=f. Considering the important status ofa=f, we define a new parameter, Z ¼ a=f, as the figure of merit for evaluatingr, and Eq. (1) can be written as r ¼ Zla=l. Z > r, Z can be estimated by measuring r. For the ZrO2-based switching device, Z is higher than 103. Table I shows a summary of Z-values of different switching materials. As Icomp increases further, more oxygen vacancies will exist in the fracture region; thusawill decrease. On the other hand, the thicker CF is not easily broken; therefore, the residual CF will become longer in the OFF state, i.e.,lawill decrease. During the switching processes, bothf andl are constants; therefore, decreasing a and/or la can decrease r. Further-more, as Icomp increases, Rr will decrease because more oxygen vacancies will be created in the thin film by the high-Joule heating, which can be another important factor that increases the conductivity of the device. Figure 7 shows the relationship between Roff and Ron at various Icomp values, i.e., the figure shows a phase diagram ofRoff,Ron, andIcomp. It can be seen that Roff decreases monotonically with Ron, which can be divided into three regions on the basis of Icomp ¼ 15 and 38 mA (note that as Icomp increases, Ron decreases): linear region (Icomp< 15 mA), nonlinear region (15 Icomp 38 mA), and breakdown region (Icomp> 38 mA). The relationship between the OFF and ON state electrical conductances (Goff and Gon) demonstrates the linear and nonlinear regions more clearly, as shown in the inset of Fig. 7. Furthermore, the inset of Fig. 5(b) shows that the Ireset–Icomp relationship is also divided into two regions on the basis of Icomp¼ 15 mA. These findings reflect the key role of Icomp in switching characteristics. The above discussion is mainly limited to the CF, and now we consider the whole thin film. WhenIcompis small (<15 mA), there are few CFs (or only one single CF). Because the number of
0 1 2 3 4 5 6 0.00 0.01 0.02 0.03 0.04 0.05 Icomp= 8 mA Icomp= 9 mA Icomp= 15 mA Icomp= 20 mA Icomp= 25 mA 8 mA 9 mA 15 mA 20 mA 25 mA 38 mA I (A) Vs(V) Icomp= 38 mA (a) 0.01 0.02 0.03 0.04 102 103 104 105 106 (b) Roff Ron Ratio R( Ω ) Icomp(A) 101 102 103 104 105 Ratio 0.02 0.04 0.00 0.02 0.04 0.06 Icomp= 15 mA Ireset (A) Icomp(A)
Fig. 5. (Color online) (a)I–V curves under various current compliances during SET process. (b) Compliance current dependence ofRoff,Ron, and
OFF/ON resistance ratio. The inset shows thatIresetincreases withIcomp.
Ti
Pt OFF
Oxygen ion Oxygen vacancy
Oxygen vacancy occupied by oxygen ion Ti Pt ON la lb l S Roff Ron Ra Rb Rr Rf Rr
Fig. 6. Equivalent resistances ofRoffandRon.
G.-Y. Zhang et al. Jpn. J. Appl. Phys. 52 (2013) 041101
CFs is small, the CFs are separated from each other, so the switching properties are only determined by the CFs rather than the remaining part of the thin film, that is the linear region [Fig. 8(a)]; for Icomp ¼ 15 mA, the number of the oxygen vacancies increases and more CFs form, as a result, some CFs begin to connect with each other, which makes the transport behavior of the film start to show an essential change [Fig. 8(b)]; for Icomp> 15 mA, high-Joule heating generates large quantities of CFs, which connect to each other to form a complex-connected CF network, and even-tually a new different transport behavior is achieved — that is, the nonlinear region [Fig. 8(c)]; for Icomp> 38 mA, the CF network becomes more conductive and generates more Joule heat at such a high current, and eventually the device
breaks down. Compared with the nonlinear region, the linear region is more suitable for memory device applications owing to its low current (low power) and high OFF/ON resistance ratio, and being far from hard breakdown region, which are very important for designing highly sable and reproducible devices. Consequently, it is very important to control and adjust the critical linear–nonlinear transition point of Icomp to obtain a proper working range of Icomp values. The influence ofIcomp can also be understood from the inset of Fig. 7. It shows that Goff increases nearly linearly withGon, which can be denoted asGoff ¼ kGonþ c, where both k and c are constants. However, k has two different values, k1¼ 1:15 102 and k2¼ 1:96 101, forIcomp < 15 mA and Icomp > 15 mA, respectively. k2=k1¼ 17 indicates Goffdepends strongly onGonat highIcompsince large quantities of CFs are created, and a rapid increase in Goff occurs, which finally leads to the device breakdown. For low Icomp, because of a small number of CFs, Goff depends weakly on Gon. It should be noted that although device breakdown is harmful for bistable memory switching, it may have some useful applications, e.g., it can be used to design read-only memory (ROM).
4. Summary and Conclusions
We successfully fabricated the Ti/ZrO2/Pt resistive switch-ing devices by a simple sol–gel process. In the ZrO2-based resistive switching devices, unipolar resistive switching behaviors including bistable memory and monostable threshold switching were measured. The device exhibiting a multilevel resistive switching under different current compliances was studied. As the compliance current increases, the relationship betweenRoff andRonshows three successively regions — the linear, nonlinear, and breakdown regions. To achieve stable switching properties, the resistive switching devices should work in the linear region. Physical mechanisms based on the CF model are responsible for the resistive switching phenomena and the device breakdown. The figure of meritZ of the ZrO2-based switching device is higher than103. In this study, the memory device with good properties such as unipolar resistive switching, multilevel resistive switching (at least six levels), good scalability, low operation voltage (<5 V), high OFF/ON resistance ratio (>103), nondestructive readout, long retention (>104s), and simple fabrication method is fabricated. Such a ZrO2-based switching device has promising applications in next-genera-tion nonvolatile memory.
Fig. 7. (Color online) Relationship betweenRoffandRonshows three
successive regions asIcompincreases: linear region (Icomp< 15 mA),
nonlinear region (15 Icomp 38 mA), and breakdown region
(Icomp> 38 mA). The solid line, solid curve, and extension dash curve are
guide for the eyes. The inset showsGoffincreases withGon.
Fig. 8. (a) Few separate CFs (Icomp< 15 mA). (b) Many CFs begin to
connect to each other (Icomp¼ 15 mA). (c) Many CFs connect to each other
to form a CF network (Icomp> 15 mA).

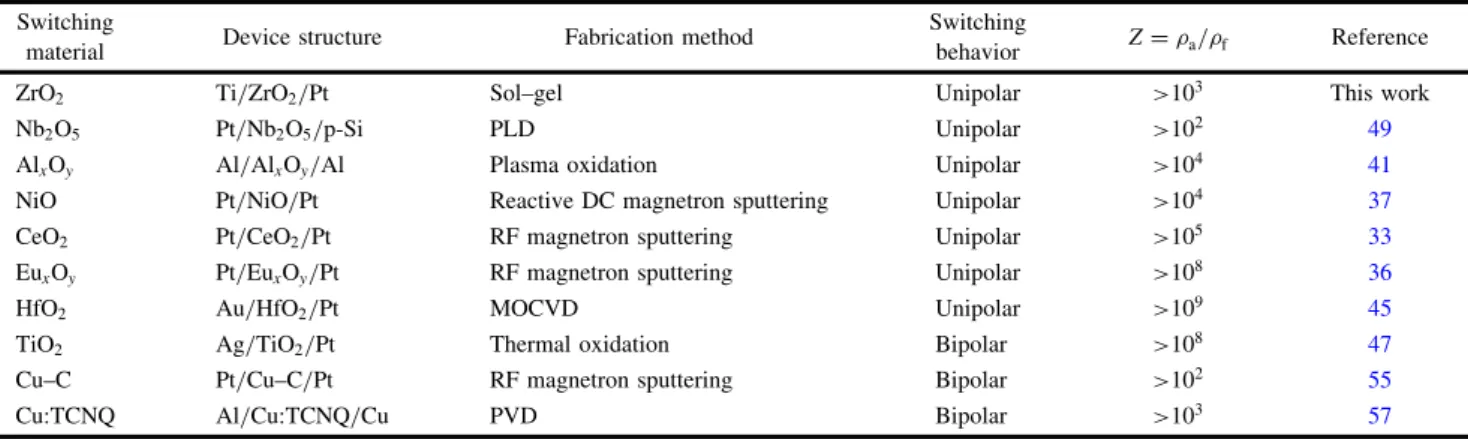

Table I. Summary ofZ-values of different resistive switching devices. Switching
material Device structure Fabrication method
Switching
behavior Z ¼ a=f Reference
ZrO2 Ti/ZrO2/Pt Sol–gel Unipolar >103 This work
Nb2O5 Pt/Nb2O5/p-Si PLD Unipolar >102 49
AlxOy Al/AlxOy/Al Plasma oxidation Unipolar >104 41
NiO Pt/NiO/Pt Reactive DC magnetron sputtering Unipolar >104 37
CeO2 Pt/CeO2/Pt RF magnetron sputtering Unipolar >105 33
EuxOy Pt/EuxOy/Pt RF magnetron sputtering Unipolar >108 36
HfO2 Au/HfO2/Pt MOCVD Unipolar >109 45
TiO2 Ag/TiO2/Pt Thermal oxidation Bipolar >108 47
Cu–C Pt/Cu–C/Pt RF magnetron sputtering Bipolar >102 55
Acknowledgments
The authors thank Mr. Jun-Sheng Hsu for his help in fabricating Ti top electrodes. This work was supported by the National Science Council (NSC), Taiwan, under project NSC 96-2628-E009-166-MY3. Guo-Yong Zhang would like to express thanks to the postdoctoral fellowship sponsored by NSC of Taiwan. The authors would like to thank the Nano Facility Center at National Chiao Tung University and National Nano Device Laboratories, where some experi-ments in this study were performed.
