A Practical Foveation-Based Rate-Shaping
Mechanism for MPEG Videos
Chia-Chiang Ho, Member, IEEE, Ja-Ling Wu, Senior Member, IEEE, and Wen-Huang Cheng, Student Member, IEEE
Abstract—Foveation is one of the nonuniform resolution
prop-erties of the human visual system. Recently, different foveation models are proposed and utilized for image and video coding, for the sake of bit-rate saving with no or minor perceptual quality distortion. In the first part of this paper, we propose an efficient and practical DCT-domain foveation model, which is deduced from existing experimental results. In the second part, we present a foveation-based rate-shaping mechanism for MPEG bitstreams, as an application example of the proposed foveation model. The rate shaper is based on eliminating DCT coefficients embedded in MPEG bitstreams. An efficient rate-shaping mechanism is developed to meet various bit-rate requirements. Our simulation confirmed that the proposed foveation model and the rate-shaping mechanism are practical for real-world usage.
Index Terms—Foveated image processing, foveation model,
human visual system (HVS), MPEG, rate shaping.
I. INTRODUCTION
M
ODERN lossy image and video compression techniques try to discard perceptually unimportant or insensible in-formation based on some predefined models of the human visual system (HVS) [1]–[4]. For example, the sensitivity of chromatic signals is found less than that of luminance signals; so typical image or video coding schemes will often compress chromatic signals with a down-sampled resolution. Another example is the design of quantization matrixes for transform domain coeffi-cients. By noticing that the sensitivity of HVS varies for dif-ferent spatial frequencies, coarser quantizers are applied to co-efficients of higher frequency and vice versa. It is also found that, in the HVS, spatial resolution depends on the distribution of photoreceptors on the retina. Foveation, yet another HVS model, is thus proposed to describe this phenomenon. The fovea refers to the region with the densest photoreceptors. Specifi-cally, the sampling density and contrast sensibility decrease dra-matically with increasing eccentricity (i.e., the viewing angle with respect to the fovea). With the foveation model in mind, foveated image and video processing preserve the quality of the region that a user gazed at and discards insensible signals out-side that region. This helps to reduce the required bit rate and, thus, achieves the purpose of compression. In this paper, we willManuscript received December 6, 2002; revised May 25, 2005. This work was supported in part by the CIET-NTU (MOE) and the National Science Council of R.O.C. under Contract NSC93-2622-E-002-033, Contract NSC93-2752-E-002-006-PAE, and Contract NSC93-2213-002-006. This paper was recommended by Associate Editor Q. Tian.
C.-C. Ho is with the CyberLink Corporation, Taipei Hsien 231, Taiwan, R.O.C. (e-mail: [email protected]).
J.-L. Wu and W.-H. Cheng are with the Communication and Multimedia Lab-oratory and the Graduate Institute of Networking and Multimedia, National Taiwan University, Taipei 10617, Taiwan, R.O.C. (e-mail: [email protected]; [email protected]).
Digital Object Identifier 10.1109/TCSVT.2005.856929
deduce a DCT-domain foveation model from experimental re-sults presented in previous works and envision its applicability for popular DCT-based image and video coding standards.
With rapid progress of broad-band networks and computa-tion power of general CPUs, more and more applicacomputa-tions de-pend on transporting videos over networks are developed. How-ever, the infrastructure of today’s largest network, the Internet, is still insufficient to support guaranteed quality of service (QoS) for real-time multimedia data. While the terminology “video streaming” appears frequently and many researchers are de-voted to its realization, there is still a large space for improving its quality and efficiency. The most vital obstacle to achieve real-time video streaming is the heterogeneity problem, which comes from both network and user perspectives. First, different networks have different channel behaviors, and these behaviors are mostly time-varying. Second, different users (or computa-tion environments) also have different QoS requirements. All of these heterogeneities require that video bitstreams be avail-able on a continuum of bit rates such that the availavail-able band-width can be efficiently utilized. This raises a new challenge for the design of video coding schemes. In recent years, scalable coding schemes have been proposed to deal with such hetero-geneous situations, in which one video is coded into base-layer and enhancement-layer bitstreams [5], [6]. However, the usage of scalable coding has its limitations. If one video is coded into a bitstream with a few layers, it cannot satisfy the prementioned bit-rate continuum demand; on the contrary, if many layers are generated, the coding efficiency of the bitstream appears to be a serious issue [7].
An alternative approach other than scalable coding is to encode the video with higher bit rate and provide some rate reduction mechanism for dynamically adapting the video bitstream to channel condition when actual transmission is required. Another reason to develop rate reduction mechanisms is that there are already many compressed videos in the world, coded by traditional nonscalable coding schemes. In the liter-ature, mechanisms proposed for rate reduction can be divided into two categories: transcoding and rate shaping. Transcoding refers to some kind of reencoding, but with less complexity as compared to a complete encoding process, by wisely making use of available coding information embedded in the original bitstream. Typically, video transcoders reduce video bit rate by requantization, possibly with lowered spatial or temporal resolution. These operations may demand large computation power [8], [9]. Rate shaping, on the other hand, constitutes a lightweight solution for rate reduction. In a nutshell, rate shaping discards some information (generally high-frequency DCT coefficients) residing in the original bitstream and leaves other parts unchanged. When computation complexity is con-cerned, rate shaping is more suitable for real-time applications.
In this paper, we present a foveation-based rate-shaping mech-anism for MPEG bitstreams, as an application example of the proposed foveation model.
This paper is organized as follows. In Section II, we detail the DCT-domain foveation model deduced in our work. With such a model in mind, we introduce two foveation-based rate-shaping methods in Section III. Implementation issues of ap-plying the rate-shaping mechanism to MPEG bitstreams are dis-cussed thereafter. Experimental results are then presented in Section IV. Finally, conclusion remarks are given in Section V.
II. FOVEATIONMODEL
Foveated images can be obtained through pixel-domain approaches [10]–[12]. However, transform-domain approaches have the advantage of applicability for both live-encoded and precompressed bitstreams. In [13], an experimental-proven foveation model was presented associated with a proprietary multiresolution video coding scheme. This model was later applited to wavelet image coding in [14]. Our work adopts the same model but acts on DCT coefficients.
Concerning about the contrast sensitivity of human eyes, ref-erence [13] proposed a model that fits psychological experiment data, as shown in
(1) where is the spatial frequency (in cycles/degree), is the ec-centricity (in degrees), is the minimal contrast threshold, is the spatial frequency decay constant, and is the half-resolu-tion eccentricity constant (in degrees). The best fitting
parame-ters reported in [13] are , , and .
It was also reported that the same and provide a good fit to the data in [15] and a proper fit to the data in [16], where equals 1/75 and 1/76, respectively.
The Foveation point refers to the point at which a human ob-server gazes in an image. For any given points in that image, the corresponding eccentricity with respect to the foveation point can be calculated as
(2)
where is the viewing distance measured in the unit of the image width (pixels). Note that this calculation is still valid even when the image is displayed with scaling, provided that the scaling ratio is the same for both horizontal and vertical direc-tions.
Now let us consider the visibility of the DCT basis functions. For an DCT kernel, the th basis function can be written as
(3) where is the normalization constant.
For single-oriented ( or , but not both), the corresponding spatial frequency is [17]
and (4)
where and are the horizontal width and the vertical height of one pixel in degrees of visual angle, respectively. In this paper, we approximate and by using
(5) assuming that pixels are horizontally and vertically displayed with the same spacing distance. Note that repre-sents the visual angle of half the image width .
Double-orientated can be viewed as a sum of two fre-quency components with the same spatial frefre-quency [17]
(6) but with different orientations. Also, the angle between these two components is
(7) Moreover, a multiplicative factor
should be applied to the minimum contrast threshold [17] to account for the imperfect summation of the two frequency components and the reduced sensitivity due to the obliqueness of the two components [18], [19]. Note that can be derived from (4), (6), and (7) as
(8) The value of was suggested to be set as 0.6, based on a fourth power summation rule for the two frequency components [17]. Introducing the multiplicative factor and integrating (6) into (1) yields the following equation:
(9) The critical amplitude is found by multiplying the maximal value of the th coefficient to the right-hand side of (9), that is,
(10) This means that, if the th DCT coefficient of one block with eccentricity is smaller than , for human eyes, it is indistinguishable from zero.
Taking another point of view, we can deduce the critical ec-centricity for a fixed by setting the left side of (9) to 1.0 (the maximum contrast) and solving for
(11) For one block with center point , we can thus have the following critical condition for each th DCT coefficient: (12) That is, if (12) is true, no matter how large the th DCT coefficient is, for human eyes, it is indistinguishable from zero. A final note is that the contrast sensitivity of dc values is not included in the above model. In fact, we do not consider al-tering dc values in the following rate-shaping mechanism, be-cause doing that demands much more computation since dc is predicted-coded and the corresponding coded block pattern may change.
III. FOVEATION-BASEDRATESHAPING
Rate shaping was first proposed in [20] and [21], with two schemes for DCT coefficient elimination, and was known as the constrained and general dynamic rate shaping (DRS). An iterative approach, based on Lagrange multipliers, was pro-posed to optimize the corresponding rate-distortion tradeoff. It is intuitive that low-frequency coefficients are considered to be more important so high-frequency coefficients are dropped first. Later on, combined with a TCP congestion control al-gorithm, an online implementation was proposed and tested in [23]. Integration of rate shaping and error concealment can improve the quality of rate-shaped bitstream, and this idea was addressed in [24], where selective block dropping is treated as another rate-shaping choice on the condition that the adopted error concealment scheme can interpolate dropped blocks well. This work was later extended by considering perceptual-oriented image features, specifically, removing the blocking effect by preserving coefficients of edge blocks [25]. Recently, discarding slices (group of blocks) of bidirectional predicted pictures was proposed, together with the constrained DRS, for transmission MPEG-2 videos over satellite channels [26]. The concept of joint source-channel coding was brought up for rate shaping in [27], in which channel error conditions were taken into consideration. However, the work in [27] is more likely a selection scheme for protection and transmission of layer-coded videos and thus is far from previous works mentioned here.
In general, the prescribed schemes try to minimize the overall distortion for a specific video unit, e.g., a frame or a group of pic-tures (GOP). However, in some applications, users focus more on some regions of images and expect better quality in those regions. For example, in a videoconference environment, more user attention is paid to the face region of the speaker than other regions [28]. Yet another example is in the remote education ap-plications, where students focus mostly on the teacher or some specific region of the blackboard or the lecture slide. These sce-narios call for developing a new rate-shaping scheme adaptive to the content and user preference. This motivates us to propose a foveation-based rate-shaping mechanism.
Fig. 1. System architecture of the foveated rate-shaping scheme.
The work presented in [29] explored a similar idea. Each image was divided into the fovea (foreground) region and the periphery (background) region, and reduction of both temporal and spatial resolutions was considered. An associated rate con-trol scheme was presented in [30] to make the proposed archi-tecture more practical. However, this work relied on heuristic rules which are determined empirically, without any religious model for foveation.
Once the relationship between the foveation model and the sensitivity of DCT coefficients has been established, as described in the previous section, we are now ready to apply it to shape the rate of MPEG videos. Fig. 1 shows the system model adopted in this paper. When one precompressed video is requested for transmission, it is sent to the foveation-based rate shaper for downsizing to meet the available bit-rate constraint. The rate shaper may be located in the bottleneck of the network, or be colocated with the video source. The available bandwidth can be estimated either by sender-based, receiver-based, or hybrid methods [31], and the choice among them is beyond the scope of this paper. However, we do propose a rate control algorithm to meet the estimated available bandwidth. A back channel is assumed in between the rate shaper and the receiver to transmit control signal (most important of all, the foveation point) between them. In our experiments, the foveation point is specified explicitly by the mouse click activated by the user. Collaboration with other kind of user interfaces, such as an eye tracker, has no contradiction to the fundamental idea proposed here.
A. Foveation-Based Rate Shaping by Coefficient Elimination Since our foveation filter is block-based, the actual foveation point used is the center of the block at which the user-specified point is located, and we denote the block as the foveation block. We then consider two rate reduction methods in this paper, and both methods are based on the elimination of DCT coefficients. Method 1—Amplitude Threshold-Based Elimination: This method is based on (10). Each DCT coefficients (except dc) in each coded block is compared to its corresponding critical amplitude calculated from (10). Those coefficients smaller than their corresponding critical amplitudes are eliminated, i.e., set to zero. This method is somewhat similar to the concept of general DRS [20], [21]. It was observed that one block of more zero coefficients requires fewer bits to code statistically [32], [33], so this method does perform the rate reduction task, though not intuitively.
Method 2—Breakpoint-Based Elimination: This method is based on the critical condition (12) and borrows the concept of breakpoint proposed for the constrained DRS problem [20], [21]. The bit rate of one coded block is reduced by eliminating a series of DCT coefficients at the end of that block, in zigzag scanning order. The number of DCT coefficients kept is called the breakpoint, corresponding to the first pair (in reverse zigzag order) that does not satisfy the critical condition (12).
Computation complexity is always an issue for real-time rate reduction mechanisms. To ease heavy computation incurred by (10) or (11), we can calculate critical amplitudes (or critical ec-centricities) in advance and generate amplitude threshold maps (or breakpoint maps) for different viewing distances. In this way, the required computation at runtime can be reduced largely. 1) Amplitude Threshold Maps: The image width is de-rived from parsing the sequence header of the input bitstream. The viewing distance is restricted to be of integer values, for
example, for normal viewing
dis-tances. The foveation block is set to be the most upper-left block in one frame. Based on these settings, we can calculate critical amplitudes of all coefficients in all blocks, for all viewing dis-tances considered. These values are stored in array form, i.e., , where represents the location of one particular block and is the index of one particular coefficient, in zigzag order. We call critical tude values for different viewing distances as different ampli-tude threshold maps.
By this way, at runtime, the required amplitude thresholds can be retrieved simply by a look-up table, with some index shifting. It can be observed that the critical amplitudes are symmetric horizontally and vertically with respect to the foveation point. Thus, assuming that the foveation block is specified at location in the runtime, the critical amplitude of one coefficient in the block located at is just
.
2) Breakpoint Maps: The idea used in previous subsection can also be used for calculating breakpoints. First, ’s of all pairs are calculated, for each viewing distance . Then, by setting the foveation block as the top-left block, the breakpoints of every block are found by comparing the corre-sponding eccentricity to ’s. These breakpoints are also stored in array form, i.e., , and we call break-points for different viewing distances as different breakpoint maps. At runtime, assuming that the foveation block is spec-ified at , the breakpoint of one block at is
. B. Foveation Mismatch Problem
The foveation methods described above make no difference between blocks with different coding types. Thus, for predicted blocks (i.e., those blocks in P- or B-type macroblocks), we are actually foveating the prediction error. This possibly leads to the foveation mismatch problem discussed as follows. In the orig-inal video, assume one block with location is used to predict another block with location , where represents the prediction error. For simplicity, we as-sume that is coded in the intramode and the breakpoint-based method is applied. In our work, the block will be foveation filtered with its corresponding breakpoint value . Let us denote the filtered data as . Now consider foveation filtering of the block . For an ideal foveation, we expect to recon-struct , that is, foveation filtered with its break-point value . However, in our work, we actually reconstruct . If is not the same as , the foveation mis-match problem occurs. Fortunately, we found that this is not a big issue according to two observations of MPEG compressed videos. First, most motion vectors are very small [22]—this is confirmed by many researches and is due to the signal nature of
typical videos. Second, due to the complexity issue of typical video encoders, the motion vector is limited within a small re-gion, for example, not exceeding two macroblocks wide ( 32 pixel). Thus, for most predicted blocks, the difference between
and is zero or negligible. C. Rate Shaping
Rate shaping is required to generate a bitstream with suit-able bit rate to fit the estimated availsuit-able bandwidth. The rate-shaping scheme needed here is different from typical rate con-trol schemes proposed for raw video compression in two ways. First, the input of rate control is an already compressed bit-stream, whose intrinsic information may reveal useful clues for good bit reallocation. Second, owing to limited computation power or the need of serving many video streams, the rate-shaping scheme should be as simple as possible to ease the burden of the device.
In our work, rate shaping is achieved by properly increasing the minimum contrast threshold . We restrict the modified
, denoted as , to be some fixed values, that is,
(13) where is a fixed step size. Adding an additional dimen-sion to , amplitude threshold maps and breakpoint maps can be represented in the forms of and
, respectively.
Successful rate shaping requires an underlying rate model. Here we choose the -domain rate model proposed in [32] and [33], for its simplicity, efficiency, and ease of integration with the rate-shaping mechanism proposed here. Typical rate models try to model the relationship between the coding bit rate and the value of quantization scale [34], [35]. Taking another view-point, based on the insight that the number of zeros plays an im-portant role in transform coding of images and videos, it was observed in [32], [33] that a linear relation existed between and (the percentage of zeros among the quantized transform coefficients). This linear relation can be modeled as
(14) where is a frame-dependent constant. Note that the bit rate discussed here excludes all header information other than DCT coefficients. In our work, since the input is a compressed MPEG bitstream, the value of for each coded frame can be easily found by partial decoding.
Let us come back to our foveation model. For a particular viewing distance and a specified foveation point, we can figure out a one-to-one relationship between and . In this way, we relate the foveation model with the rate model. Before pre-senting the rate-shaping scheme used in our work, we define necessary variables and list them in Table I.
The proposed mechanism of applying foveation-based rate shaping to one frame is briefed as follows. (Notice that this mechanism is general enough for applying to the prescribed two rate shaping algorithms.)
Step 0) (Initialization): Set , and all ’s to zero. Step 1) Decode one coded block into DCT coefficients and increase , , and each accord-ingly (with amplitude threshold maps or breakpoint

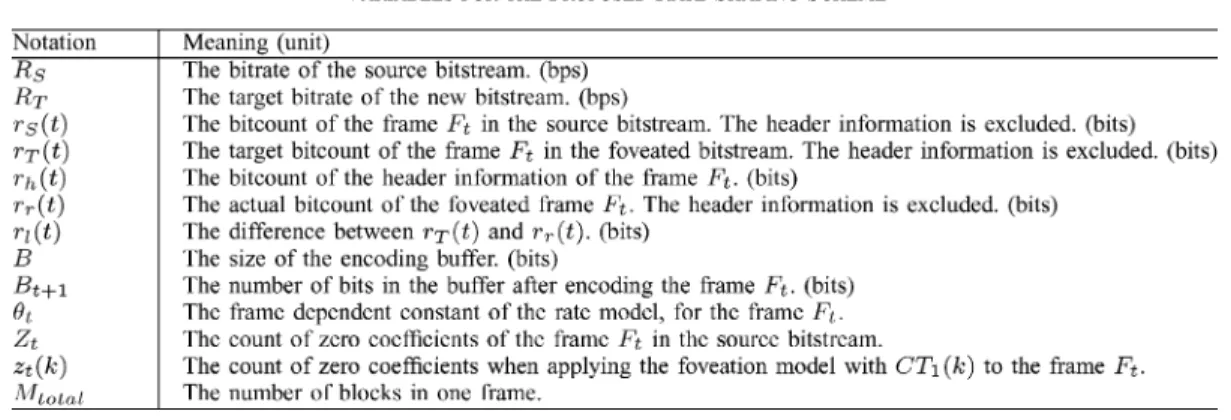

TABLE I
VARIABLES FOR THEPROPOSEDRATE-SHAPINGSCHEME
maps). Iteratively perform this step until all blocks are processed.
Step 2) The frame-dependent constant is found as , and the target bitcount is calculated proportionally to the ratio of the target bit rate to the source bit rate, with adjustment according to the current buffer fullness
(15) Step 3) The target percentage of zero is derived as
(16) and the intended value of is found by
(17) Step 4) The frame is foveation-rate-shaped with the ampli-tude threshold map (or the breakpoint map) corre-sponding to , and the bitcount of all coefficients are collected as .
Step 5) (Housekeeping): The difference between and is calculated as
(18) The encoding buffer fullness is initially set to half the buffer size and updated as
(19) It should be noted that this rate-shaping scheme achieves a minimal one-frame delay, which is irrelative to most applica-tions.
IV. EXPERIMENTALRESULTS
Two foveation-based methods have been proposed in the pre-vious section. For simplicity and without loss of generality, ex-periments focused on the breakpoint-based method only. The amplitude threshold-based method may not be easily used for intercoded frames and macroblocks, and this will be illustrated in the following. For one coefficient of value in one intercoded block and its amplitude threshold , we should check if , where is the value of the same coefficient in the
Fig. 2. Relationships betweenCT and BSR’s, for the four different video sequences. The stepsizeS used here is 0.03, i.e., CT = CT + 0:03k. The bit rate is 800 kb/s, and the viewing distanceD is set to 1.
predicted block of (denoted as ). However, usually is not readily available, unless is intracoded. If is inter-coded, we can get by performing DCT on the reconstructed ; however, this requires much more computation and hinders the amplitude threshold method from being applied to shape the rate of predictive coded videos.
In our experiments, the first 60 frames of four well-known test sequences, namely football, garden, tennis, and mobile, were compressed in MPEG-1 format. The frame size is 352 240 and the frame rate is 24. The size of the GOP is 12, and the distance between two anchor frames is 3 (i.e., two B-frames in between). Two different bit rates are considered: 800 and 1125 kb/s. The adopted parameters of the foveation model are , , and . For the sake of fair comparison, the foveation block was set as the center block of one frame.
Let us define the bit-rate saving ratio BSR (percentage) as
BSR (20)
Figs. 2–5 show the relationships between and BSR under the combinations of two source bit rates and two normal viewing distances ( and ). It is found that the bit-rate saving of the sequence football is lower than that of other se-quences. This is because football is a sequence of large mo-tion, and most bits are spent on coefficients of lower frequency when coding intercoded blocks. These coefficients are harder to be foveation-eliminated. In fact, we can expect that BSR will
Fig. 3. Same settings as that of Fig. 2, but withD = 6.
Fig. 4. Same settings as that of Fig. 2, but the bit rate is 1125 kb/s.
Fig. 5. Same settings as that of Fig. 3, but withD = 6.
be influenced by factors of both the video source and the en-coder (specifically, encoding parameters) used. Another inter-esting insight is the near linear relationship between and . We can foresee that the computation complexity of the proposed rate-shaping method can be further reduced, if fewer values are tested and the most suitable value is generated through proper interpolation.
Figs. 6 and 7 show some example snapshots of foveated videos. For low-value ’s, the distortion of the foveated (with respect to the original) frame is almost invisible. This is illustrated by the two second pictures of both figures. In these two figures, the foveated football bitstream (with ) reduces 7% of the bit rate of the original 1125-kb/s bitstream, while the foveated mobile bitstream (with ) reduces 11% of the bit rate of the original 800-kb/s bitstream. When increases, periphery regions are gradually blurred and more visible block effects appear, while the quality of the center area
Fig. 6. Snapshots of the foveated football video. The bit rate is 1125 kb/s. The first (upper-left) image comes from the 35th frame (an I-frame) of the original bitstream. The second, third, and fourth (upper-right, bottom-left, and bottom-right) images come from the same frame of foveated bitstreams with k = 2, 4 and 8, respectively, where CT = CT + 0:03k.
Fig. 7. Snapshots of the foveated mobile video. The bit rate is 800 kb/s. The upper-left image comes from the 30th frame (an B-frame) of the original bitstream. The second, third, and fourth (upper-right, bottom-left, and bottom-right) images come from the same frame of foveated bitstreams with k = 0, 4 and 8, respectively, where CT = CT + 0:03k.
Fig. 8. Sample breakpoint maps for images of size 3522 240. The value of D is set to 1 and 6 for the upper and the lower rows, respectively. The value of CT increases from left to right. Note that breakpoint values are linearly scaled up into the range [0,255] for display purposes.
(near the foveation block) is comparably preserved, as shown in the third and the fourth pictures of both figures.
As mentioned previously, the proposed rate shaper is of low complexity because breakpoints for each block are calculated in advance. Fig. 8 shows examples of calculated breakpoint maps with the foveation center in the most upper-left block. It is shown that the breakpoint values of are larger than those of . This illustrates that a larger rate reduction can be obtained with , as compared with that of , as shown in Figs. 2–5.
V. DISCUSSION ANDCONCLUSION
In this paper, a DCT-domain foveation model is derived based on existed experimental results. With such a model in mind, we present a foveation-based rate-shaping mechanism for MPEG bitstreams. Two different rate-shaping methods, the critical amplitude-based method and the breakpoint-based method, are then proposed. By restricting ranges of model parameters, we can greatly reduce the computation requirement in the runtime by precalculating and storing critical amplitudes or breakpoints for different viewing settings. To meet various bit-rate requirement, an efficient rate-shaping mechanism has been developed. All of these new developments together with their implementation and experimental results show the ap-plicability of the proposed foveation model and rate-shaping mechanism for real-world usage. While more attention is paid to user-oriented applications nowadays, our work reveals the value of considering user needs.
It is worth remarking that, with respect to the specific problem of rate shaping, the foveation block is fixedly set as the center block as described in Section IV. To obtain better perceived vi-sual quality, the foveation block should be carefully selected. In the literature, a visual attention model [36] has been proven to be affective and accurate to detect the viewer’s visual focus for still images. Therefore, we have investigated the extension of vi-sual attention model to video sequences [36] and its possibility to be integrated with the proposed rate-shaping method [37]. However, we think this subject is beyond the scope of this paper and needs further investigation in the future. On the other hand, The authors of [38] have done a complete survey regarding the statistical distribution of visual focus and confirmed that human eyes are mostly attracted to the central portion of an observed image. Therefore, current settings of the foveation block may be inappropriate but would be highly acceptable for rate-shaping purposes.
Besides, to resolve the difficulty of using the amplitude threshold-based method, as mentioned in Section IV, we think the following two possible research directions may be useful.
1) Utilize all kinds of available information. For example, the relationship between temporal information (such as motion vectors) and spatial foveation coefficients can be investigated to improve the coding performance, as shown in [39].
2) Explore the visual attention model [36] further to en-hance the effectiveness of the amplitude threshold-based method. As prescribed, the fixed setting scheme of foveation blocks is reasonable but lacks flexibility; there-fore, the knowledge of accurate visual focuses is expected to improve the overall performance and be beneficial for reducing the needed computational efforts.
Consideration of multiple foveation points may be another re-markable future work for the rate-shaping mechanism. This is useful for some application scenarios. For example, when more than one user are interacting with the same video through a mul-ticast network environment, they may have different focuses on the video content. Rate shaping with multiple foveation points yields a bitstream which compromising the needs of different users.
As far as MPEG-4 video is concerned, the new standardized fine-granularity-scalable (FGS) coding scheme has drawn
con-siderable attentions. The FGS coding scheme has the advantage of providing a continuous spectrum of applicable bit rate. Per-forming the proposed foveation-based rate-shaping mechanism on FGS-coded bitstreams gives another dimension of scalability, without any foveation mismatch problem since the enhancement layer data are coded frame by frame.
