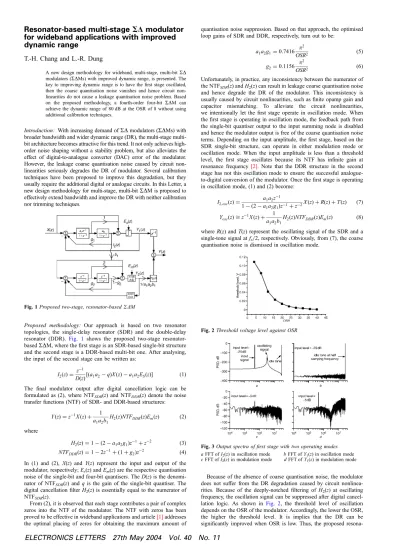

Resonator-based multi-stage SD modulator
for wideband applications with improved
dynamic range
T.-H. Chang and L.-R. Dung
A new design methodology for wideband, multi-stage, multi-bit SD modulators (SDMs) with improved dynamic range, is presented. The key to improving dynamic range is to have the first stage oscillated, then the coarse quantisation noise vanishes and hence circuit non-linearities do not cause a leakage quantisation noise problem. Based on the proposed methodology, a fourth-order four-bit SDM can achieve the dynamic range of 80 dB at the OSR of 8 without using additional calibration techniques.
Introduction: With increasing demand of SD modulators (SDMs) with broader bandwidth and wider dynamic range (DR), the stage multi-bit architecture becomes attractive for this trend. It not only achieves high-order noise shaping without a stability problem, but also alleviates the effect of digital-to-analogue converter (DAC) error of the modulator. However, the leakage coarse quantisation noise caused by circuit non-linearities seriously degrades the DR of modulator. Several calibration techniques have been proposed to improve this degradation, but they usually require the additional digital or analogue circuits. In this Letter, a new design methodology for multi-stage, multi-bit SDM is proposed to effectively extend bandwidth and improve the DR with neither calibration nor trimming techniques.
Fig. 1 Proposed two-stage, resonator-based SDM
Proposed methodology: Our approach is based on two resonator topologies, the single-delay resonator (SDR) and the double-delay resonator (DDR). Fig. 1 shows the proposed two-stage resonator-based SDM, where the first stage is an SDR-resonator-based single-bit structure and the second stage is a DDR-based multi-bit one. After analysing, the input of the second stage can be written as:
I2ðzÞ ¼
z1
DðzÞ½ða1a2qÞX ðzÞ a1a2ESðzÞ ð1Þ The final modulator output after digital cancellation logic can be formulated as (2), where NTFSDR(z) and NTFDDR(z) denote the noise
transfer functions (NTF) of SDR- and DDR-based structures: Y ðzÞ ¼ z1X ðzÞ þ 1 a1a2b1 H2ðzÞNTFDDRðzÞEmðzÞ ð2Þ where H2ðzÞ ¼ 1 ð2 a1a2g1Þz1þz2 ð3Þ NTFDDRðzÞ ¼ 1 2z 1 þ ð1 þ g2Þz 2 ð4Þ In (1) and (2), X(z) and Y(z) represent the input and output of the modulator, respectively; Es(z) and Em(z) are the respective quantisation
noise of the single-bit and four-bit quantisers. The D(z) is the denomi-nator of NTFSDR(z) and q is the gain of the single-bit quantiser. The
digital cancellation filter H2(z) is essentially equal to the numerator of
NTFSDR(z).
From (2), it is observed that each stage contributes a pair of complex zeros into the NTF of the modulator. The NTF with zeros has been proved to be effective in wideband applications and article[1]addresses the optimal placing of zeros for obtaining the maximum amount of
quantisation noise suppression. Based on that approach, the optimised loop gains of SDR and DDR, respectively, turn out to be:
a1a2g1¼0:7416 p2 OSR2 ð5Þ g2¼0:1156 p2 OSR2 ð6Þ
Unfortunately, in practice, any inconsistency between the numerator of the NTFSDR(z) and H2(z) can result in leakage coarse quantisation noise
and hence degrade the DR of the modulator. This inconsistency is usually caused by circuit nonlinearities, such as finite opamp gain and capacitor mismatching. To alleviate the circuit nonlinearities, we intentionally let the first stage operate in oscillation mode. When the first stage is operating in oscillation mode, the feedback path from the single-bit quantiser output to the input summing node is disabled and hence the modulator output is free of the coarse quantisation noise terms. Depending on the input amplitude, the first stage, based on the SDR single-bit structure, can operate in either modulation mode or oscillation mode. When the input amplitude is less than a threshold level, the first stage oscillates because its NTF has infinite gain at resonance frequency [2]. Note that the DDR structure in the second stage has not this oscillation mode to ensure the successful analogue-to-digital conversion of the modulator. Once the first stage is operating in oscillation mode, (1) and (2) become:
I2;oscðzÞ ¼ a1a2z1 1 ð2 a1a2g1Þz1þz2 X ðzÞ þ RðzÞ þ T ðzÞ ð7Þ YoscðzÞ ffi z1X ðzÞ þ 1 a1a2b1 H2ðzÞNTFDDRðzÞEmðzÞ ð8Þ
where R(z) and T(z) represent the oscillating signal of the SDR and a single-tone signal at fs=2, respectively. Obviously, from (7), the coarse
quantisation noise is dismissed in oscillation mode.
Fig. 2 Threshold voltage level against OSR
Fig. 3 Output spectra of first stage with two operating modes a FFT of I2(z) in oscillation mode b FFT of Y1(z) in oscillation mode
c FFT of I2(z) in modulation mode d FFT of Y1(z) in modulation mode
Because of the absence of coarse quantisation noise, the modulator does not suffer from the DR degradation caused by circuit nonlinea-rities. Because of the deeply-notched filtering of H2(z) at oscillating
frequency, the oscillation signal can be suppressed after digital cancel-lation logic. As shown in Fig. 2, the threshold level of oscillation depends on the OSR of the modulator. Accordingly, the lower the OSR, the higher the threshold level. It is implies that the DR can be significantly improved when OSR is low. Thus, the proposed
tor-based modulator is quite suitable for wideband applications. Yet, when the first stage operates in modulation mode, the leakage coarse quantisation noise occurs and limits the achievable peak signal-to-noise (SNR) of the modulator. Because of the NTF with additional zeros, the proposed modulator still has higher peak SNR compared to the conventional multi-stage one.
Fig. 4 Output spectra of proposed SDM with circuit nonlinearities a FFT of modulator output in modulation mode; ideal case, SNDR ¼ 80 dB b FFT of modulator output in modulation mode; ideal non-ideal case, SNDR ¼ 67 dB
c FFT of modulator output in oscillation mode; ideal case, SNDR ¼ 63 dB d FFT of modulator output in oscillation mode; non-ideal case, SNDR ¼ 63 dB
Simulation results and discussion: Given a sampling rate of 60 MHz and a fixed OSR of 8, we employ Matlab1to perform simulation on a fourth-order, four-bit resonator-based SDM with a practical integrator model proposed in [3]. In the simulation, the DC gain, slew rate, unity-gain bandwidth, and saturation voltage of opamp are set to 50 dB, 150 V=ms, 300 MHz, and 1 V, respectively. The capacitor mismatching of the modulator is set to 1%. The conventional fourth-order, four-order SDM[4]with the same circuit specifications is also simulated for comparison. The output spectra of the first stage with two operating modes are shown inFig. 3. Based on these two modes of operation,Fig. 4shows the output spectra of the proposed two-stage SDM with circuit nonlinearities. It can be observed that the
SNR of the modulator in oscillation mode is insensitive to circuit nonlinearities.Fig. 5illustrates the SNR curves against input ampli-tude. As the simulation result shows, the proposed fourth-order, four-bit SDM can achieve the dynamic range of 80 dB at the OSR of 8 without using additional calibration techniques. Therefore, the proposed modulator does significantly improve DR for wideband application. Also, this novel design methodology can be applied to a bandpass SDM by replacing the second stage with the bandstop-NTF structure. 100 80 60 40 20 0 -20 -40 SNR, dB input level, dB -90 -80 -70 -60 -50 -40 -30 -20 -10 0
ideal case (proposed) with nonideality (0.2%) with nonideality (1%) ideal case (conventional) with nonideality (1%)
oscillation mode
modulation mode
Fig. 5 SNR curves against input amplitude in proposed SDM (OSR ¼ 8)
#IEE 2004 21 February 2004 Electronics Letters online no: 20040450
doi: 10.1049/el:20040450
T.-H. Chang and L.-R. Dung (Department of Electrical and Control Engineering, National Chiao Tung University, 1001 TA Hsueh Road, Hsinchu 30050, Taiwan, Republic of China)
References
1 Schreier, R.: ‘An empirical study of high-order single-bit delta-sigma modulators’, IEEE Trans. Circuits Syst. II, 1993, 40, pp. 461–466 2 Lee, W.L., and Sodini, C.G.: ‘A topology for higher order interpolative
coders’. Proc. IEEE Int. Symp. Circuits and Systems, Philadelphia, PA, USA, May 1987, pp. 459–462
3 Malcovati, P., et al.: ‘Behavior modeling of switched-capacitor sigma-delta modulators’, IEEE Trans. Circuits Syst. I, 2003, 50, pp. 352–364 4 Medeiro, F., et al.: ‘Fourth-order cascade SC SD modulators: a
comparative study’, IEEE Trans. Circuits Syst. I, 1998, 45, pp. 1041–1051
