Intramolecular Donor–Acceptor Regioregular
Poly(hexylphenanthrenyl-imidazole thiophene) Exhibits
Enhanced Hole Mobility for Heterojunction Solar Cell
Applications
By
Yao-Te Chang, So-Lin Hsu, Ming-Hsin Su, and Kung-Hwa Wei*
Conjugated polymers possessing extended arrays of delocalized p
electrons are being investigated intensively for their potential use
in organic optoelectronic devices, with some studies focused on
solar-cell devices incorporating bulk heterojunctions using
conjugated polymers.
[1–7]Polythiophene derivatives are at present
among the most promising materials for solar-cell applications
because of their high light absorption and electronic conductivity.
For example, polymer solar cells containing blends of
poly(3-hexylthiophene) (P3HT) and [6,6]-phenyl-C
61-butyric acid methyl
ester (PCBM) have recently reached power conversion
efficien-cies of 4–5% under standard solar conditions (AM 1.5G,
100 mW cm
2, 25 8C).
[8–13]If the power-conversion efficiency of
these devices is to be improved further, the light absorption of the
active polymer must be improved, because P3HT absorbed only
20% of sunlight, that is, the band-gap of P3HT must be reduced
to meet the maximum photon flux of sunlight. Research into
conjugated polymers containing electron donor–acceptor (D–A)
pairs in the polymeric main chain has recently become quite
active
[14]because such materials exhibit narrow band-gaps.
Alternatively, the introduction of an electron-acceptor unit—
usually a conjugated species that can absorb a different
wavelength of sunlight—onto the side chain of a conjugated
polymer can increase the breadth of wavelengths of light
absorbed, and can also lower the band-gap to some extent.
[15]Additionally, the generated excitons can be readily dissociated
into electrons and holes in this type of conjugated polymer,
because of the internal field produced by the dipole moment built
on its D–A molecular structure and subsequent charge transfer to
nearby n-type nanoparticles (for example, PCBM). Therefore,
conjugated polymers that contain side-chain-tethered conjugated
acceptor moieties not only absorb light more effectively (multiple
absorption) but also exhibit enhanced charge-transfer ability—
two desirable properties for photovoltaics applications.
[16]In a
heterojunction polymer solar cell, however, the photocurrent
depends not only on the rate of photogeneration of free electrons
and holes but also on the transport properties of the electrons and
holes in the acceptor and donor, respectively. In fact, the overall
performance of bulk-heterojunction solar cells is directly limited
by the ambipolar carrier transport.
[17,18]In the P3HT/PCBM
system, the slower rate of hole transport governs the
recombina-tion process;
[19]increasing the carrier mobilities results in both
increased extraction of the charge carriers and increased
bimolecular recombination.
[20]Therefore, the incorporation of
electron-withdrawing moieties as side chains that are conjugated
with the polymeric main chains should also alleviate the
recombination problem, because such a molecular architecture
has the advantage in a heterojunction device of allowing charge
separation through sequential transfer of electrons from the main
chains to the side chains and then to PCBM. Hence, in this
present study, we synthesized a new kind of intramolecular D–A
thiophene-type
homopolymer
presenting
phenanthrenyl-imidazole moieties. Scheme 1 displays our synthetic approach
toward the planar phenanthrenyl-imidazole moiety-tethered
thiophene monomer and its polymerization. We expected that
the presence of the hexylphenanthrenyl-imidazole moieties
conjugated to the thiophene units would reduce the band-gap
of the polythiophene, and that the hexyl substituents would
improve the solubility of the polymer. The extent of reduction of
the band-gap of our synthesized polymer would, however, depend
on the effective conjugation length of the system, which is
sometimes reduced by steric hindrance.
[21]We polymerized the
2-(2,5-dibromothiophen-3-yl)-6,9-dihexyl-1-(4-hexylphenyl)-1H-phenanthro-[9,10-d]-imidazole
(HPIT)
monomer
using
a
Grignard metathesis approach. The presence of the bulky
hexylphenanthrenyl-imidazole unit appended to the thiophene
monomer led to very high selectivity during the Grignard
reaction, resulting in highly regioregular
poly(hexylphenanthre-nyl-imidazole thiophene) (PHPIT). The number molecular
weight (M
n) of PHPIT was 15.3 kg mol
1, and the polydispersity
index (PDI) was 1.35, indicating that PHPIT possessed 20
repeating units. The 5% thermal degradation temperature of this
polymer was 355 8C.
Figure 1 displays the UV–vis spectra of PHPIT/PCBM (1:1, w/w)
and the P3HT/PCBM (1:1, w/w) solid film obtained after
annealing at 120 8C for 30 min, as well as cyclic voltammogram
(CV) band-gap data for PHPIT, PEDOT, PCBM, Al, and ITO. The
peak at 305 nm was caused by the presence of conjugated
phenanthrenyl-imidazole moieties that were not fully coplanar
with the polythiophene chain due to steric hindrance. The
maximum absorption (l
max) at 12 nm for the P3HT/PCBM thin
film resulted from p–p* transitions. The annealed PHPIT/PCBM
COMMUNICA
TION
[*] Prof. K. H. Wei, Y. T. Chang, S. L. Hsu, M. H. Su Department of Materials Science and Engineering National Chiao Tung University
1001 Ta Hsueh Road
Hsinchu, 30049 Taiwan (R.O.C.) E-mail: khwei@mail.nctu.edu.tw
COMMUNICA
TION
film exhibits a red-shift p–p* transition peak at 552 nm and two
additional absorption peaks at 596 and 641 nm, indicating that a
phase-separated structure developed after annealing at 120 8C.
The area under the spectrum in the visible absorption range
(400–750 nm) for PHPIT/PCBM after annealing at 120 8C for
30 min was 11% higher than that of the annealed P3HT/PCBM.
The optical band-gap of PHPIT was 1.85 eV, which is close to the
cyclic voltammogram (CV) band-gap (1.80 eV), with the highest
occupied molecular orbital (HOMO) at 4.70 eV and the lowest
unoccupied molecular orbital (LUMO) at 2.90 eV. We detected
no photoluminescence from the PHPIT film, suggesting that
charge transfer from the photoexcited polythiophene backbone to
the electron-withdrawing phenanthrenyl-imidazole side chains
was sufficiently rapid to compete with radiative recombination of
the excitons.
[15,22]Figure 2 displays the photocurrents of diodes with the
structure ITO/PEDOT:PSS/polymer: PCBM (1:1, w/w)/Ca/Al
that were illuminated at 100 mW cm
2under AM 1.5G and their
dark currents. Table 1 lists the short-circuit current densities (J
sc),
open-circuit voltages, and power conversion efficiencies of these
heterojunction polymer solar cells. The value of J
scfor the device
incorporating
the
PHPIT/PCBM
blend
improved
to
11.3 mA cm
2from 8.3 mA cm
2after the annealing time at
120 8C was increased from 20 to 30 min, probably because of
improved ordering of the blend structure. However, the value of
J
scof the device decreased to 7.8 mA cm
2when the blend
underwent thermal treatment at 120 8C for 45 min, probably
because of decomposition of the polymer structure. Figure S2
(Supporting Information (SI)) presents the device characteristics
of the blends that we subjected to annealing at temperatures of
130 and 150 8C. Among all of the systems we studied, the PHPIT/
PCBM blend thermally treated at 120 8C for 30 min exhibited the
highest power-conversion efficiency. From atomic force
micro-scopy images (Fig. S3, SI), we found that the root-mean-square
roughness of the PHPIT/PCBM film (2.27 nm) annealed at
120 8C for 30 min was larger than those (1.94 and 1.76 nm) of the
films annealed at 120 8C for 20 and 45 min. Hence, we suspect
that the rough surface effectively reduced the charge-transport
distance while providing a nanoscale texture that further
enhanced internal light absorption.
[11b,23,24b]The
power-conversion efficiency of the device incorporating PHPIT/PCBM
Scheme 1. Synthesis of the monomer and polymer; NBS: N-bromosuccinimide; THF: tetrahydrofuran; dppp: 1,3-bis(diphenylphosphino) propane.

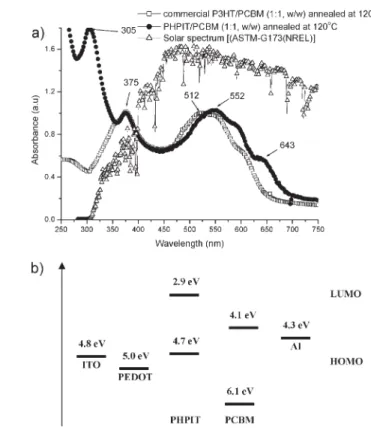

Figure 1. a) UV–vis spectra of P3HT/PCBM as cast and PHPIT/PCBM annealed at 120 8C in the solid state, and the solar spectrum. b) CV band-gap data for PHPIT, PEDOT, PCBM, Al, and ITO.
Figure 2. Current–voltage characteristics of illuminated (AM 1.5G, 100 mW cm2) polymer/PCBM (1:1, w/w) solar cells.
COMMUNICA
TION
increased dramatically to 4.1% from 3.1% when the annealed
time at 120 8C was increased from 30 to 20 min, but it decreased
to 2.7% when annealed for 45 min, presumably because of
decomposition of the polymer.
[12c,24]We performed a control
experiment in which we subjected commercially available
high-molecular-weight P3HT (M
n¼ 33 000, about 200
repeat-ing units) to the same annealrepeat-ing conditions as those experienced
by PHPIT. The power-conversion efficiency of the device
incorporating commercially available P3HT and PCBM was
2.9% (Fig. 2). Thus, although thermal treatment at 120 8C for
30 min is optimal for PHPIT/PCBM, that is not necessarily the
case for commercial P3HT/PCBM.
We investigated the photophysics of the devices incorporating
the synthesized copolymers by determining their external
quantum efficiencies (EQEs). Figure 3 displays the EQEs of
the PHPIT/PCBM devices in which the blends were annealed at
120 8C for various annealing times. At wavelengths from 400 to
650 nm, the absolute EQEs of the device prepared from PHPIT/
PCBM annealed at 120 8C for 30 min were 20% higher than
those of the corresponding blends annealed for 20 and 45 min.
For example, the EQE at an incident wavelength of 400 nm for the
device incorporating PHPIT/PCBM annealed at 120 8C for 30 min
improved from 53% to 79% for the corresponding device
annealed for 20 min—an increase of 50%. The maximum EQEs
at 460 nm for the devices containing PHPIT annealed at 120 8C
for 30 and 20 min device were 80 and 52%, respectively—a 53%
increase for the former over the latter; at a much longer
wavelength of 620 nm, the corresponding values were 48 and
30%, respectively—almost a 60% increase.
Figure 4 displays the dark J–V curves for electron- and
hole-dominated carrier devices. The electron and hole mobilities
were determined by fitting the dark J–V curves into the
space-charge-limited current (SCLC) model for electron- and
hole-dominated carrier devices based on the equation
J ¼
9"o"r
m
hðeÞV
28L
3(1)
where e
ois the permittivity of free space, e
ris the dielectric
constant of the polymer, m
h(e)is the hole (electron) mobility, V is
the voltage drop across the device, and L is the polymer
Table 1. Photovoltaic properties of polymer solar cells annealed at 120 8C for various lengths of time and of P3HT/PCBM annealed at 120 8C for 30 min.
Blend annealing at 120 8C Voc[V] Jsc[mA cm2] Fill Factor [%] PCE [%]
PHPIT/PCBM (1:1, w/w) for 20 min 0.6 8.3 62 3.1
PHPIT/PCBM (1:1, w/w) for 30 min 0.61 11.3 60 4.1
PHPIT/PCBM (1:1, w/w) for 45 min 0.61 7.8 58 2.7
P3HT/PCBM (1:1, w/w) for 30 min 0.58 7.6 66 2.9
Figure 3. EQEs of devices containing polythiophene side-chain-tethered hexylphenanthrenyl-imidazole/PCBM blends (1:1, w/w) annealed at 120 8C for various times.
Figure 4. DarkJ–V curves for a) electron- and b) hole-dominated carrier devices incorporating PHPIT/PCBM (1:1, w/w) annealed at 120 8C for various times.
COMMUNICA
TION
thickness.
[25]Table 2 lists the hole mobilities, electron mobilities,
and the ratio of hole and electron mobilities that are
determined from Figure 4 and Equation (1). We obtained hole
mobilities for the PHPIT/PCBM system (from 6.5 10
6to
1.9 10
5cm
2V
1s
1) that were three to ten times greater
than that of the P3HT/PCBM system (1.8 10
6cm
2V
1s
1)
when both blends experienced the same thermal treatment. The
device containing the PHPIT/PCBM blend annealed at 120 8C for
30 min exhibited the highest mobility, indicating that
mor-e-ordered PHPIT/PCBM films facilitate hole transport. Thus, the
lowest electron-to-hole mobility ratio for the PHPIT/PCBM blend
results in the highest photocurrent.
[11b]In summary, we have synthesized PHPIT, a new kind of
intramolecular D–A side-chain-tethered
hexylphenanthreny-l-imidazole polythiophene. The visible-light absorption of the
PHPIT/PCBM blend is enhanced by the presence of the
electron-withdrawing hexylphenanthrenyl-imidazole. The EQE
of the device was maximized when the PHPIT/PCBM blend
experienced annealing at 120 8C for 30 min. The more-balanced
electron and hole mobilities and the enhanced visible- and
internal-light absorptions in the devices consisting of annealed
PHPIT/PCBM blends both contributed to a much higher
short-circuit current density, which in turn led to a
power-conversion efficiency as high as 4.1%, despite the fact that PHPIT
is only comprised of 20 repeating units.
Experimental
Materials: Chemicals were purchased from Aldrich, TCI, or Lancaster. PCBM was purchased from Nano-C.
Preparation of Monomers: Scheme 1 illustrates the synthetic route followed for the preparation of the monomer HPIT. 6,9-Dihexyl-1-(4-hexylphenyl)-3a,11b-dihydro-2-(thiophen-3-yl)-1H-phenanthro[9,10-d] imidazole (2) was isolated in 80% yield from the reaction of compound (1) with hexylmagnesium bromide and Ni(dppp)Cl2under reflux. HPIT was
isolated in 93% yield from the reaction between 2 and NBS [15]. Detailed synthetic procedures and characterization data are provided in the Supporting Information.
Preparation of Polythiophene Derivatives [26]: The Grignard metathesis polymerization of 2-(2,5-dibromothiophen-3-yl)-1-phenyl-1H-phenanthro [9,10-d]-imidazole is illustrated in Scheme 1. Detailed synthetic procedures and characterization data are provided in the Supporting Information.
Characterization: 1H and 13C NMR spectra were recorded using a
Varian Unity-300 NMR spectrometer. Infrared spectra were recorded from KBr disks using a Nicolet Prote´ge´-460 FTIR spectrophotometer. Elemental analyses (EA) of the polymers were performed using a Heraeus CHN-OS Rapid instrument. Thermogravimetric analyses of the polythiophene derivatives were performed using a DuPont TGA 2950 instrument operated at a heating rate of 10 8C min1 under a nitrogen purge. Differential scanning calorimetry (DSC) was performed using a DuPont DSC 2010
instrument operated at a heating rate of 10 8C min1 under a nitrogen
purge. Samples were heated from 30 to 200 8C, cooled to 20 8C, and then heated again from 30 to 200 8C; the glass-transition temperatures (Tg) were
determined from the second heating scans. The redox behavior of each polymer was investigated through cyclic voltammetry using a BAS 100 electrochemical analyzer operated at a potential scan rate of 40 mV s1and
an electrolyte of 0.1 M tetrabutylammonium hexafluorophosphate (n-Bu4NPF6) in acetonitrile. In each case, a glassy disk carbon electrode
coated with a thin layer of the polymer was used as the working electrode, a platinum wire was used as the counter electrode, and a silver wire was used as the quasi-reference electrode. All potentials quoted herein are referenced to the Ag wire as the quasi-reference electrode; the electrochemical potential of Ag is 0.02 V versus SCE. The HOMO and LUMO energy levels were determined using the equations EHOMO¼ Eox 4.4 eV and ELUMO¼ Ered 4.4 eV, where Eoxand Ered
are the onset potentials of the oxidation and reduction peaks (vs. saturated calomel electrode (SCE)), respectively, and the value of 4.4 eV relates the SCE reference to a vacuum[15a,19a]. UV–vis spectra were measured using an HP 8453 diode array spectrophotometer. The molecular weights of the polythiophene derivatives were measured through gel-permeation chro-matography (GPC) using a Waters chrochro-matography unit interfaced to a Waters 2414 differential refractometer. Three 5 mm Waters styragel columns were connected in series in decreasing order of pore size (104, 103, and 102A˚); tetrahydrofuran (THF) was the eluent, and standard
polystyrene samples were used for calibration. AFM samples were prepared by spin-coating solutions of polymer/PCBM blends in dichloro-benzene onto ITO glass substrates, followed by annealing in an oven at 120 8C for 20, 30, or 45 min.
Device Fabrication: The current density–voltage (J–V) characteristics of the polymers were measured using devices with a sandwich structure (ITO/ PEDOT:PSS/polymer:PCBM (1:1, w/w)/Ca/Al). The ITO-coated glass substrate was precleaned and treated with oxygen plasma prior to use. The polymer/PCBM layer was spin-coated at 700 rpm from a dichlor-obenzene solution (20 mg mL1). Dichlorobenzene was a better solvent for
these polymers than were toluene, chloroform, and THF. The thickness of the polymer/PCBM layer was 100 nm. The active layers of our devices were thermally annealed at 120 8C for 30 min prior to electrode deposition. Using a base pressure below 1 106torr (1 torr ¼ 133.32 Pa), a layer of Ca (30 nm) was vacuum-deposited as the cathode and then a thick layer of Al (100 nm) was deposited as the protecting layer; the effective area of one cell was 0.04 cm2. Testing of the devices was performed under simulated AM 1.5G irradiation (100 mW cm2) using a xenon lamp-based Newport 66902 150W solar simulator. A xenon lamp equipped with an AM1.5 filter was used as the white-light source; the optical power at the sample was 100 mW cm2, detected using an OPHIR thermopile 71964. The J–V
characteristics were measured using a Keithley 236 electrometer. The spectrum of the solar simulator had a mismatch of less than 25%; it was calibrated using a PV-measurement (PVM-154) mono-Si solar cell (NREL calibrated), and a Si photodiode (Hamamatsu S1133) was employed to check the uniformity of the exposed area. AM 1.5G (ASTM G173) [27] light intensity was calibrated through thermopile and PV-measurements. The mismatch factor (M) of 1.34 was obtained by taking the PVM-154 as the reference cell. The PVM-154 combined with a KG-5 filter (350–700 nm passed, Newport) was used to simulate a reference solar cell exhibiting spectral responsivity from 350 to 700 nm. Reported efficiencies are the averages obtained from four devices prepared on each substrate. The external quantum efficiency (EQE) was measured using a Keithley 236 Table 2. Hole mobilities, electron mobilities, and hole-to-electron-mobility ratios of P3HT/PCBM annealed at 120 8C for 30 min and PHPIT/PCBM annealed at 120 8C for various lengths of time.
Blend annealing at 120 8C Hole mobility [mh, cm2Vs1] Electron mobility [me, cm2Vs1] [me/mh]
P3HT/PCBM (1:1, w/w) for 30 min 1.8 0.1 106 1.8 0.1 105 10
PHPIT/PCBM (1:1, w/w) for 20 min 9.0 0.3 106 2.6 0.1 105 2.9
PHPIT/PCBM (1:1, w/w) for 30 min 1.9 0.1 105 4.2 0.1 105 2.2
COMMUNICA
TION
electrometer coupled with an Oriel Cornerstone 130 monochromator. The light intensity at each wavelength was calibrated using an OPHIR 71580 diode. Hole-only devices, used to investigate the hole transport in polymer/ PCBM, were fabricated following the same procedure presented above, except that the top electrode was replaced with gold (Au, 100 nm). Electron-only devices were fabricated by spin-coating the active layer on top of glass/Ag (100 nm) followed by evaporation of the Al (100 nm) top electrode. TheJ–V curve was measured using a Keithley 236 electrometer under inert condition.
Acknowledgements
We are grateful for the financial support provided by the National Science Council through Project NSC 96-2120-M-009-005. We thank H.-S. Wang for assisting in the synthesis of the polymers and C.-C. Chen for assisting in the study of devices of this paper. Supporting Information is available online from Wiley InterScience or from the author.
Received: August 15, 2008 Revised: January 16, 2009 Published online: March 2, 2009
[1] a) C. Ego, D. Marsitzky, S. Becker, J. Zhang, A. C. Grimsdale, K. Mu¨llen, J. D. MacKenzie, C. Silva, R. H. Friend,J. Am. Chem. Soc. 2003, 125, 437. b) J. Pei, W. Yu, J. Ni, Y. Lai, W. Huang, A. J. Heeger,Macromolecules 2001, 34, 7241. c) F. Zhang, E. Perzon, X. J. Wang, W. Mammo, M. R. Andersson, O. Ingana¨s, Adv. Funct. Mater. 2005, 15, 745. d) O. Ingana¨s, M. Svensson, F. Zhang, A. Gadisa, N. K. Persson, X. Wang, M. R. Andersson,Appl. Phys. A: Mater. Sci. Process. 2004, 79, 31. e) F. Zhang, M. Svensson, M. R. Andersson, M. Maggini, S. Bucella, E. Menna, O. Ingana¨s, Adv. Mater. 2001,13, 1871. f) A. Marcos Ramos, M. T. Rispens, J. K. J. Van Duren, J. C. Hummelen, R. A. J. Janssen,J. Am. Chem. Soc. 2001, 123, 6714. g) F. Giacalone, N. Martin,Chem. Rev. 2006, 106, 5136. h) X. Wang, E. Perzon, F. Oswald, F. Langa, S. Admassie, M. R. Andersson, O. Ingana¨s,Adv. Funct. Mater. 2005, 15, 1665. i) X. J. Wang, E. Perzon, J. L. Delgado, P. de la Cruz, F. Zhang, F. Langa, M. R. Andersson, O. Ingana¨s,Appl. Phys. Lett. 2004, 85, 5081. j) M. Y. Chiu, U. S. Jeng, C. H. Su, K. S. Liang, K. H. Wei,Adv. Mater. 2008,20, 2573. k) J. Huang, G. Li, Y. Yang, Adv. Mater. 2008, 20, 415. l) R. J. Tseng, R. Chan, V. C. Tung, Y. Yang,Adv. Mater. 2008, 20, 435. [2] J. H. A. Smits, S. C. J. Meskers, R. A. J. Janssen, A. W. Marsman, D. M. D.
Leeuw,Adv. Mater. 2005, 17, 1169.
[3] G. Yu, J. Gao, J. C. Hummelen, F. Wudl, A. J. Heeger,Science 1995, 270, 1789.
[4] a) W. U. Huynh, J. J. Dittmer, A. P. Alivisatos,Science 2002, 295, 2425. b) J. Liu, E. N. Kadnikova, Y. Liu, M. D. McGehee, J. M. J. Fre´chet, J. Am. Chem. Soc. 2004, 126, 9486. c) J. Liu, T. Tanaka, K. Sivula, A. P. Alivisatos, J. M. J. Fre´chet, J. Am. Chem. Soc. 2004, 126, 6550.
[5] K. M. Coakley, M. D. McGehee,Chem. Mater. 2004, 16, 4533. [6] T. J. Savenije, J. E. Kroeze, X. Yang, J. Loos,Adv. Funct. Mater. 2005, 15,
1260.
[7] Y. Liu, M. A. Summers, C. Edder, J. M. J. Fre´chet, M. D. McGehee, Adv. Mater. 2005, 17, 2960.
[8] V. D. Mihaiketchi, H. Xie, B. D. Boer, L. J. A. Koster, P. W. M. Blom,Adv. Funct. Mater. 2006, 16, 699.
[9] J. Hou, Z. Tan, Y. Yan, Y. He, C. Yang, Y. F. Li,J. Am. Chem. Soc. 2006, 128, 4911.
[10] K. Sivula, Z. T. Ball, N. Watanabe, J. M. J. Fre´chet, Adv. Mater. 2006, 18, 206. [11] a) G. Li, V. Shrotriya, Y. Yao, Y. Yang,J. Appl. Phys. 2005, 98, 043704. b) G. Li, V. Shrotriya, J. Huang, Y. Yao, T. Moriarty, K. Emery, Y. Yang,Nat. Mater. 2005,4, 864. c) G. Li, Y. Yao, H. Yang, V. Shrotriya, G. Yang, Y. Yang, Adv. Funct. Mater. 2007, 17, 1636.
[12] a) T. Erb, U. Zhokhavets, G. Gobsch, S. Raleva, B. Stu¨hn, P. Schilinsky, C. Waldauf, C. J. Brabec,Adv. Funct. Mater 2005, 15, 1193. b) J. Y. Kim, K. Lee, N. E. Coates, D. Moses, T.-Q. Nguyen, M. Dante, A. J. Heeger,Science 2007, 317, 222. c) W. Ma, C. Yang, X. Gong, K. Lee, A. J. Heeger, Adv. Funct. Mater. 2005,15, 1617. d) M. Reyes-Reyes, K. Kim, D. L. Carrolla, Appl. Phys. Lett. 2005,87, 83506.
[13] I. Riedel, E. V. Hauff, J. Parisi, N. Martin, F. Giacalone, V. Dyakonov,Adv. Funct. Mater. 2005, 15, 1979.
[14] a) C. J. Brabec, N. S. Sariciftci, J. C. Hummelen,Adv. Funct. Mater. 2001, 11, 15. b) S. C. Ng, H.-F. Lu, H. S. O. Chan, A. Fujii, T. Laga, K. Yoshino,Adv. Mater. 2000, 12, 1122. c) Z. Bao, Z. Peng, M. E. Galvin, E. A. Chandross, Chem. Mater. 1998, 10, 1201.
[15] a) Y.-T. Chang, S.-L. Hsu, M.-H. Su, K.-H. Wei,Adv. Funct. Mater. 2007, 17, 3326. b) Y.-T. Chang, S.-L. Hsu, M.-H. Su, K.-H. Wei, T.-A. Singh, E. W.-G. Diao,Adv. Funct. Mater. 2008, 20, 2573.
[16] Z. Zhu, D. Waller, R. Gaudiana, M. Morana, D. Mu¨lhbacher, M. Scharber, C. J. Brabec,Macromolecules 2007, 40, 1981.
[17] J. I. Nakamura, K. Murata, K. Takahashi,Appl. Phys. Lett. 2005, 87, 132105. [18] A. C. Arango, L. R. Johnson, V. N. Bliznyuk, Z. Schlesinger, S. A. Carter,
H.-H. Ho¨rhold, Adv. Mater. 2000, 12, 1689.
[19] M. M. Mandoc, L. J. A. Koster, P. W. M. Blom,Appl. Phys. Lett. 2007, 90, 133504.
[20] B. C. Thompson, J. M. J. Fre´chet, Angew. Chem. Int. Ed. 2008, 47, 58. [21] a) E. H. A. Beckers, S. C. J. Meskers, A. P. H. J. Schenning, Z. Chen, F.
Wu¨rthner, P. Marsal, D. Beljonne, J. Cornil, R. A. J. Janssen, J. Am. Chem. Soc. 2006, 128, 649. b) A. M. Ramos, S. C. J. Meskers, E. H. A. Beckers, R. B. Prince, L. Brunsveld, R. A. J. Janssen,J. Am. Chem. Soc. 2004, 126, 9630. [22] F. Giacalone, J. L. Segura, N. Martin, M. Catellani, S. Luzzati, N. Lupsac,
Org. Lett. 2003, 5, 1669.
[23] S. Berson, R. D. Bettignies, S. Bailly, S. Guillerez,Adv. Funct. Mater. 2007, 17, 1377.
[24] a) F. Padinger, R. S. Rittberger, N. S. Sariciftci,Adv. Funct. Mater. 2003, 13, 85. b) L. H. Nguyen, H. Hoppe, T. Erb, S. Gu¨nes, G. Gobsch, N. S. Sariciftci, Adv. Funct. Mater. 2007, 17, 1071.
[25] a) P. W. M. Blom, M. J. M. de Jong, M. G. van Munster,Phys. Rev. B 1997, 55, R656. b) C. Goh, R. J. Kline, M. D. McGehee, Appl. Phys. Lett. 2005, 86, 122110. c) C. Melzer, E. J. Koop, V. D. Mihailetchi, P. W. M. Blom,Adv. Funct. Mater. 2004, 14, 865. d) V. R. Nikitenko, H. Heli, H. V. Seggern, J. Appl. Phys. 2003, 94, 2480. e) P. W. M. Blom, M. J. M. D. Jong, J. J. M. Vleggaar,Appl. Phys. Lett. 1996, 68, 3308. f) V. D. Mihailetchi, J. Wildeman, P. W. M. Blom,Phys. Rev. Lett. 2005, 94, 126602.
[26] a) R. D. McCullough, R. D. Lowe, M. Jayaraman, D. L. Anderson,J. Org. Chem. 1993, 58, 904. b) M. C. Iovu, E. E. Sheina, R. R. Gil, R. D. McCullough, Macromolecules 2005, 38, 8649. c) E. E. Sheina, S. M. Khersonsky, E. G. Jones, R. D. McCullough,Chem. Mater. 2005, 17, 3317. [27] American Society for Testing and Materials (ASTM) standard G173, Standard Tables for Reference Solar Spectrum Irradiance: Direct Normal and Hemispherical on 378 Tilted Surface.
