鈦上電極對濺鍍法製備之氧化鋯薄膜於電阻式轉換記憶元件之研究

(1)

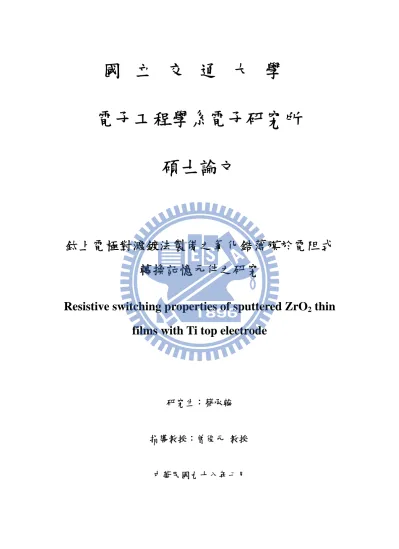

國立交通大學

電子工程學系電子研究所

碩士論文

鈦上電極對濺鍍法製備之氧化鋯薄膜於電阻式

轉換記憶元件之研究

Resistive switching properties of sputtered ZrO

2

thin

films with Ti top electrode

研究生：蔡承翰

指導教授：曾俊元教授

(2)

鈦上電極對濺鍍法製備之氧化鋯薄膜於電阻式

轉換記憶元件之研究

碩士論文

學生：蔡承翰指導教授：曾俊元教授

國立交通大學電子工程學系電子研究所碩士班

摘要

隨著科技越來越進步，各種消費性電子產品的發展快速，各種產品所需要的記憶體容量越來越大，而其中不需要電源供應仍能儲存資料的非揮發性記憶體，也漸漸受到矚目。其中，電阻式非揮發性記憶體具有高密度、高操作速度、低功率消耗、高耐久性、可微縮化、非破壞性讀取資料、能符合現在 CMOS 製程以及結構簡單等特性，因此有機會取代flash memory，使其成為次世代非揮發性記憶體的熱門選擇。在這篇論文中，電阻轉換特性研究是著重在鈦/氧化鋯/鉑的結構，包含製程條件可以分為大兩部份，第一部份是氧化鋯製程溫度的選擇，第二是部分氧化鋯製程結構的改變。在氧化鋯製程溫度的選擇中，其成長溫度從25oC，100 oC，150 oC，200 oC，

(3)

250 oC 中，而成長厚度均為 30 奈米，其中 200 oC 有最好的特性，其電性分析為: 持久性可以達到 10000 次;動態脈衝可以以快速的 50 奈米寬的脈衝波轉態 1000 次;非破壞性讀取可以在 0.3V 下維持 106秒而沒有資料的破壞。接著以最佳的 200 oC 製程溫度為主，另外作氧化鋯結構的改變，目的為分析轉態機制的探討，分為氧化鋯薄膜厚度的改變以及改變鈦上電極面積兩部分。首先藉由改變厚度，可以探討介面轉態的部份是發生元件的何處，因為鈦上電極的強吸氧性，形成一層介面轉態層，利用這層介面轉態層，跟元件的高良率、穩定的特性，轉態的極性有關，而改變厚度更可以證實利用介面轉態的機制。第二部份為鈦上電極面積的改變，利用改變面積的微影製程，結合改變厚度所得到的結論，來探討導電絲斷裂所形成的電阻大小。而電極面積越小,電阻會越大,在低阻態時電流不會下降，但高阻態時電流會下降，使鈦/氧化鋯/鉑的轉態機制能夠更加明瞭。

(4)

Resistive switching properties of sputtered ZrO

₂

thin films with Ti top electrode

Student: Chen-Han Tsai Advisor: Prof. Tseung-Yuen Tseng

Department of Electronics Engineering and Institute of Electronics

National Chiao Tung University

Abstract

Many kinds of consumer electrical commercial products are becoming more and more popular following with the development of the technology. All kinds of products need the memory, especially non-volatile memory, which can store data without power. The resistive switching random access memory (RRAM) is one of the next generational memories that have the chance to become the mainstream. It has the advantages of high cell density, high operation speed, low power consumption, high endurance, lower scale limit, non-destructive readout, and easy processing that can fit in the CMOS process, so it is one of the potential substitutions for flash memories.

In this thesis, the resistive switching characteristics are investigated based on the Ti/ZrO2/Pt structure, and the research focus on two parts. First, the process

temperature of ZrO2 is changed. Second, the thickness of ZrO2 and the area of the top

electrode are changed.

In the first part, the process temperature of the ZrO2 is changed to five

(5)

so the following research of the mechanism will use this temperature. The performance of 200oC is good. DC sweep cycle times can achieve 10000 times; high speed 50ns pulse width can be switched at least 1000 cycle times; retention test is 106s; and there is no data loss at the nondestructive readout test for over 10000 seconds.

In the second part, the purpose is to know the mechanism of the RRAM, so the structure is changed by various thicknesses of the ZrO2 and the various area of the top

electrode. First, we can use the various thicknesses of the ZrO2 to find where the

switching part in the filament is. Because Ti is a strong absorption metal, so there is an interface layer to be formed. The high yield, steady performance, and the polarities of the switching is related with the interface layer, and we can use the various thicknesses of ZrO2 to improve this mechanism. Second, the area of the top electrode

is changed by the lithography. The resistance of the filament can be affected by this factor. At on-state, the current is not related with the area of the top electrode, but at off-state, the current is decreasing following the scale down of the top electrode. It is combined with the various thicknesses of ZrO2, so the mechanism of Ti-ZrO2-Pt is

(6)

Acknowledgement

首先感謝曾俊元教授在研究上的指導，並提供良好完善的實驗設施，使我能夠順利完成此篇論文。也要感謝胡振國博士及侯拓宏教授的提醒與指點，使本篇論文內容更加完整。其次，我還要感謝各個博班學長的幫忙，包括：林志洋學長、林群傑學長、王聖裕學長、李岱螢學長、姚奕全學長、林孟漢學長、吳明錡學長的提攜，沒有你們的指導跟幫忙，這本論文絕對不可能完成。此外也要感謝莊文仁、顏宏全、黃毅函、詹世偉、翁啟翔碩班學長的指教，讓我能在這間實驗更快上手。另外陪伴我渡過兩年來的研究生活，包括葉昱廷、李盈賢、黃志文、孫淑炫，這兩年的生活甘苦，是我碩班美好的回憶。還有碩二加入的北科同學嘿嘿跟大頭，你們的加入讓實驗室更加美好。以及碩一的學弟，包括黃泰源、洪政漢、藺以煒，你們的加入使實驗室帶來歡笑，謝謝你們。最後，經過兩年的研究生活洗禮、磨練，未來進入職場之時定能展現所學，不枉各位提攜指教。

(7)

Table captions

Table 1-1 List of preparation methods of resistance switching layer...18

Table. 3-1 The performance of all kinds of ZrO2 process temperature...53

Table. 3-2 The turn-on voltage and turn-off voltage...53

(12)

Figure captions

Fig. 1-1The basic structure of DRAM ...18

Fig. 1-2The basic structure of SRAM ...19

Fig. 1-3The basic structure of ABO3...19

Fig. 1-4 The polarization hysteresis curve. ...20

Fig. 1-5 MFSFET structure of FeRAM...20

Fig. 1-6 Parallel is off-state and anti-parallel is on-state of MRAM...21

Fig. 1-7 (a) Temperature pulses required to switch a phase change material and (b) Simplified cross section of PCRAM [59] ...21

Fig. 1-8 Simple structure of RRAM [28]...22

Fig. 1-9 1D1R structure of RRAM [86]...22

Fig. 1-10 1T1R structure of RRAM [86] ...23

Fig. 1-11 (a) Generalized cross-point structure with memory and switching elements. (b) Reading interference without switch elements. (c) Rectified reading operation with switch elements. [81]...23

Fig. 1-12 Typical linear I-V curve of RRAM ...24

Fig. 1-13 Non-polar sweeping mode of RRAM...24

Fig. 1-14 Interface layer at the structure of Ti-ZrO2-Pt. [28]...25

Fig. 1-15 Various top electrodes on the RRAM structure...25

(13)

Fig. 1-16 Variation of various top electrodes on the RRAM structure...26

Fig. 1-17 Forming process of RRAM. ...26

Fig. 1-18 Schematic of the filament in an oxide. [63] ...27

Fig. 1-19 Conductivity mapping results of the (a) on- and (b) off-state TiO2 films, using conductive AFM (CAFM). The bright spots represent the conducting spots. [2]..27

Fig. 1-20 Schematic pictures of ON-state and OFF-state of the specimen[12] ...28

Fig. 1-21 Infrared thermal micrograph of the memory cell with a current of 5 mA at a voltage of ~30 V applied. In the color scale, blue and red represent room and elevated temperatures, respectively. [67] ...28

Fig. 1-22 Band diagram with the conditions of interface states for on state (LRS) and off state (HRS), respectively. [63] ...29

Fig. 1-23 Schematic of the switching mechanism in solid-state electrolytes. (a) On state: Redox reaction drives Ag ions in chalcogenide, resulting in a conductive bridge; (b) off state: Size and number of Ag-rich clusters is reduced, breaking the bridge. [77] ...29

Fig. 2-1 The illustration of Radio-frequency magnetron sputter system ...39

Fig. 2-2The basic structure of the Ti-ZrO2-Pt RRAM ...39

Fig. 2-3 The process flow of making the Ti-ZrO2-Pt RRAM...40

Fig. 2-4 The process flow of lithography on top electrode...41

Fig. 2-5 The TEM of ZrO2 (60mins,200oC)...41

Fig. 3-1 Forming voltage of Ti/ZrO2/ Pt structure with process temperature of 25oC...54

(14)

Fig. 3-6 Forming voltage of various ZrO2 process temperature ...57

Fig. 3-7 Initial resistance of all kinds of temperature ...57

Fig. 3-8 I-V curve of Ti/ZrO2/ Pt structure with process temperature of 25oC...58

Fig. 3-13 On-state and off-state current of various process temperature ...60

Fig. 3-14 Endurance of Ti/ZrO2/ Pt structure with process temperature of 25oC ...61

Fig. 3-16 Endurance of Ti/ZrO2/ Pt structure width process temperature of 150oC...62

Fig. 3-19 The pulse is read at 0.3V for continuous 5 times ...63

Fig. 3-20 Pulse width with 10ns of Ti/ZrO2/ Pt structure with process temperature of 200oC ...64

Fig. 3-21 Pulse width with 20ns of Ti/ZrO2/ Pt structure with process temperature of 200oC ...64

(15)

Fig. 3-22 Pulse width with 50ns of Ti/ZrO2/ Pt structure with process temperature of 200oC

...65

Fig. 3-23 Switching after pulse width with 50ns of Ti/ZrO2/ Pt structure with process temperature of 200oC...65

Fig. 3-24 Stress test of Ti/ZrO2/ Pt structure with process temperature of 200oC...66

Fig. 3-25 Retention test of Ti/ZrO2/ Pt structure with process temperature of 200oC...66

Fig. 3-26 The series resistance of Ti top electrode on the ZrO2 film...67

Fig. 3-27 Forming voltage of Ti/ZrO2/ Pt structure with process thickness of 30mins ...67

Fig. 3-32 Forming voltage of Ti/ZrO2/ Pt structure with various process thicknesses...70

Fig. 3-33 I-V curve in all kinds of different ZrO2 process thickness...70

Fig. 3-34 The current of on-state and off-state at various thicknesses with span of-2.5V~+1.5V...71

Fig. 3-35 The switching part is major in the rupture layer during the switching with different ZrO2 thickness ...71

Fig. 3-36 Three kinds of spans of Ti/ZrO2/ Pt structure with process thickness of 60mins .72

Fig. 3-37 Three kinds of spans of Ti/ZrO2/ Pt structure with process thickness of 90mins .72

(16)

Fig. 3-40 On-state and off-state current of Ti/ZrO2/ Pt structure with process thickness of

60mins ...74

Fig. 3-41 Turn on and turn off voltage of Ti/ZrO2/ Pt structure with process thickness of 60mins ...74

Fig. 3-42 The span of -2.5V~+1.5V, -2.5V~+2.0V is compared by I-V curve...75

Fig. 3-43 The span of -2.5V~+2.0V, -3.0V~+2.0V is compared by I-V curve...75

Fig. 3-44 The Von and Voff will be affected by the different span for the switching part is at rupture layer ...76

Fig. 3-47 The characteristic of the filament will be decided by the forming compliance...77

Fig. 3-48 The mechanism is supposed to be the filament-like faucet shape or trap-detrap at the interface state ...78

Fig. 3-49 The I-V curve in all kinds of diameters ...78

Fig. 3-50 The endurance of size effect ...79

Fig. 3-51 The on-state and off-state current in all kinds of diameters...79

Fig. 3-52 The Von in all kinds of diameters ...80

Fig. 3-53 The Ioff current at different diameter condition ...80

Fig. 3-54 The power at Ioff with different diameter condition...81

(17)

Fig. 3-56 The same characteristic of the filament at on-state before off-state. ...82

(18)

Chapter 1 Introduction

1.1 Introduction to random access memory

Random access memory (RAM) is a kind of memory that can store the data, the random means that any piece of data can be returned in a constant time, regardless of its physical location and whether or not it is related to the previous piece of data. It can be classified into two groups according to whether their data can keep when the power turn on or off. The first group is called the volatile memory, which is that the storage data will lose directly as soon as the power is turned off. The second group is called the non-volatile memory, which is that the data can retain for a long period of time without the power supply. Theses two groups are discussed as the following description.

1.1.1 Volatile memory

There are two main kinds of volatile memory. The dynamic random access memory (DRAM) and static random access memory (SRAM) separately. First, Fig. 1-1 show the basic cell of the DRAM, which is consisted of one access transistor and one capacitor (1T1R) per bit. Although its advantage is for the high density (6-12F2), but the leakage current from the capacitor makes the data lose within milliseconds, so it is needed to refresh the capacitor to retain the date. Next, the Fig. 1-2 shows the SRAM, it is not like the DRAM, it dose not need to periodically refresh the data for its combination is six transistor, and its merits is for the high speed write/erase than

(19)

the DRAM, but its disadvantage is for its bigger size (50-80F2_).

1.1.2 Non-volatile memory

Due to the popularity of the 3C products, like cell phone, mp3 player, and pc parts, the requirement of the non-volatile memory is increased dramatically in recent years. The ideal specs for the non-volatile memory is consisted with low operation voltage, low power consumption, high operation speed, high endurance, long retention time, nondestructive readout, simple structure, small size, low cost, etc[ ]. But the ideal non-volatile memory that suit for all the properties above is still not in this word for the real commercial products.

The mainstream non-volatile memory nowadays is flash, included NOR flash and NAND flash. The NOR flash has high operation speed, and the NAND flash has higher density for the larger data storage. A primary structure of flash memory is MOSFET-like transistor with a floating gate, which was invented by Sze, which is shown in Fig. 1-3. The charge stored in the floating gate can affect the threshold voltage, so we can use the different Vth to operate the logic of high or low.

However, the flash has some issues like high operation voltage, low operation speed, poor retention time, and coupling interface effect during scaling down [83]. Hence, some modified flash memory, such as charge-trapping flash (SONOS) is going to replace traditional flash. But researcher still want to find the next-generation non-volatile memory, it can combined with the advantages of DRAM, SRAM, Flash with the high write/erase speed. There are four possible candidates, including ferroelectric random access memory (FeRAM) [84v], magnetroresistive random

(20)

access memory (MRAM) [80], phase change random access memory (PCRAM) or ovonic unified memory (OUM) [76], and resistive random access memory, which are discussed as following.

1.1.3 Next-generation non-volatile memory

1.1.3.1 FeRAM

Ferroelectric random access memory material can be applied with a electric field to change it polarization, and its structure is the ABO3 as shown in Fig. 1-3. The A, B,

and O atoms are located at corner, body center, and face center of the cubic respectively. When a electric field is applied to the atom, the atom location will be decided by the polarity of the electrical field. The polarization hysteresis curve is shown in the Fig. 1-4. FeRAM can be subdivided into two groups; the first is called the metal-ferroelectric-semiconductor (MFSFET) as shown in Fig. 1-5. The structure is similar to the MOSFET except the oxide film is replaced by the ferroelectric film. The polarization (+Pr or -Pr) of the ferroelectric film will affect the drain current, hence it is non-volatile with nondestructive readout property. The second type is the DRAM-like (1T1C) similar with the Fig. 1-1, where the dielectric of the capacitor is replaced by the ferroelectric film, and this kinds of DRAM-like is destructive readout and need to re-write process.

1.1.3.2 MRAM

The basic cell of magnetroresistive random access memory is the magnetic junction that consist of one thin tunneling layer in the middle of two magnetic material layers as in Fig. 1-6 The magnetization of one magnetic layer (reference

(21)

layer) is fixed and kept in a specific direction. The other layer can be switched to parallel or anti-parallel to the reference layer by applying a specific magnetic field.. The logic of high or low is determined by the resistance of the parallel or anti-parallel. To read the state, a small current go through the tunneling layer and to detect the resistance. The issue of MRAM is that its scaling ability and it limit its further development.

1.1.3.3 PCRAM (OUM)

Phase change memory or called ovonic unified memory (OUM) is a promising technology for the ideal non-volatile memory. Its structure is shown in Fig. 1-7 [59], where the GeSbTe (GST) chalcogenide alloy material is an important material for PCRAM. The logic of high or low is determined by the phase of the amorphous or polycrystalline. In the off process, a high magnitude pulse with a short tailing edge is applied on the programmable phase change material. The temperature will exceed the melting point to eliminate the polycrystalline phase, and the device is cooled to freeze to the amorphous structure. In on process, a moderate magnitude pulse with sufficient duration is applied to ensure the phase has time for crystal growth. To read it, a low magnitude with long duration time is applied to read the amorphous (off-high) or polycrystalline (on-state). The issue of the PCRAM is that its consume high power during its switching for the high temperature it used.

1.1.3.4 RRAM

Resistive random access memory (RRAM) is another candidate for the next generation nonvolatile memory devices. In this thesis, the discussion is about RRAM,

(22)

so the complete introduction on RRAM is in the next section.

1.2 RRAM

Resistive random access memory can change its state by the electrical field or current effect, the conductive of the RRAM can be switched between on-state or off-state. As in Fig. 1-8 shows that on-state is the high conductive or low resistance; and the off-state is the low conductive or high resistance. The strengths of RRAM are the high cell density array, high operation speed, low power consumption, high endurance, simple structure, lower scale limit, long retention time, and non-destructive readout. In this section, the properties are discussed in view of the structure, fabrication, material classification, operation and circuit realization.

1.2.1 Structure

1.2.1.1 Basic structure

The basic structure of RRAM is made up of metal-insulator-metal (MIM) in Fig. 1-8 [28]. The top and bottom electrodes could be used by the metal or conducting transition metal oxides, the difference of the material is according to the crystalline, work functions and the ability of oxygen absorption. In the other hand, the adhesion layer should be also considered as well, and the main character of resistive switching is determined by the insulator layer that sandwiched between the electrodes.

1.2.1.2 1D1R and 1T1R

(23)

(a transistor and a resistor) structures in Fig. 1-10 [86]. These structures must be used to prevent misreading as shown in Fig. 1-11. I. G. Baek et al. [28] shows that if a cell is at off-state and its neighboring cells are at on-state, it will be misread as on-state because of the leakage current path around its neighboring cells. So the reading value is not the correct logic we want to know. Therefore a rectifying element is required for each cell in an array to confine the current paths. The minimum sizes for 1D1R and 1T1R structures are 4F2_{and 6F}2_{respectively, which meet the requirement for high}

density arrays.

1.2.2 Fabrication method

The insulator layer is called “resistance switching layer” in the following sections, and the deposition methods are many kinds, including radio-frequency (RF) magnetron sputtering, reactive sputtering, e-beam evaporation, spin coating (sol-gel), thermal oxidation, metal-organic chemical vapor deposition (MOCVD), pulsed laser deposition (PLD), atomic layer deposition (ALD), plasma-enhanced atomic layer deposition (PEALD), and melt-grown by FZ method, as listed in Table 1-1. The RF magnetron sputtering has lower cost and wide application but poor film uniformity; e-beam evaporation and spin coating has low process cost but poor film quality as well; thermal oxidation is suitable for high reactive metal like Ni, Ti or Cu to form metal oxides and the low process cost; MOCVD, PLD, ALD, and PEALD are able to produce high quality film with good step coverage but expensive; the FZ method is able to fabricate perfect crystals with exact component proportion but not practical in semiconductor fabrication process. The different methods has related with the resistive switching characteristics for the different quality of the deposition layer.

(24)

1.2.3 Material classification

The resistive switching phenomena have been found in many materials. The research mainstream is focused on several groups, including binary oxides, perovskite oxides, manganites, and other alloy or polymers.

1.2.3.1 Binary material

The binary oxides adopted in RRAM application, such as TiO2 [1-16], , NiO

[27-38], Al2O3 [4,65], CuxO [39-43], Fe2O3 [44], ZnO [45,46], HfO2 [47], SiO2 [48,49]

and MoOx [50]. In this thesis, the ZrO2 [17-26] is used a major material. These

candidates have been widely used in other field of CMOS device, hence the compatibility with modern CMOS process would be suitable. Moreover, this material group of binary oxides has simpler element components for it is easier to control the proportion of metal and oxygen elements.

1.2.3.2 Other materials

Another extensively studied material group is (Ba,Sr)(Zr,Ti)O3, BSZT. It has

been studied as a role of the high-k dielectric for a long time [51]. Many BSZT in RRAM are doped with V [52], Cr [66,67,70], etc. Dopants are prone to occupy sites of intrinsic oxygen vacancies, and thus restrain the formation of them [52]. Because of the more complicated chemical components, the control of the materials is not as easy as binary oxides. Besides, there are still problems in the CMOS etching process [27]. Hence, it is not the optimistic for this material to be the future RRAM material.

(25)

perovskite structure, R1-xAxMnO3, where R and A are rare-earth and alkaline-earth

ions, respectively [53-58]. They are not classified in the above perovskite system here because of their unique characteristics of conducting ferromagnets below a Curie temperature [53]. The magnitude of the manganites with perovskite structures exhibit a magnetoresistive response that is many orders of larger than that found for other materials, beside the electrical resistive switching behaviors. It is the epitaxial sample that are generally prepared by PLD [55,57] or floating-zone melt-growth method [53] to obtain the precise element proportion and physical properties. For the same reason of perovskite oxides, the future for manganites in RRAM is not so promising.

The other materials such as chalcogenide (GeSbTe) [59], sulfides (e.g. Cd1-xZnxS

[60]), and organic materials including Rose Bengal sodium salt (RB) [61], copperphthalocyanine (CuPc) [62], 2-amino-4,5-imidazole dicarbonitrile (AIDCN) [62] and so on, have been investigated for RRAM application. The chalcogenide material has been drawing many attentions recently due to Intel’s support, while the others are newly introduced to semiconductor processes. Besides, many organic polymers tend to degrade easily. Chalcogenide seems a more practical candidate in this group of materials.

1.3 Operation mode

Basic operation of resistive switching in a single cell can be achieved by DC sweep or pulse switching methods. Fig. 1-12 shows a typical I-V plot under DC sweep operation. Assuming the resistance state is first held in off-state, the current will suddenly increases as the DC bias sweeps toward positive direction and become on-state, which is defined as “on process” of “turn on” as indicated in the figure. The

(26)

voltage where the current suddenly increase is the Von and the current is Ion. Then a

negative voltage bias is applied to switch back to off-state with a current drop at the Voff and the current isIon, as indicated by the “off process” or “turn off” in the figure.

1.3.1 Bipolar mode

If the switching method is required the different polarities, like the Fig. 1-12 shows, it is need the positive voltage to turn on and the negative voltage to turn off, and another situation is apply the positive voltage to turn off and negative voltage to turn on, it is called the bipolar mode.

1.3.2 Non-polar mode

If the switching is not need the specific polarities to turn on or turn off, it is called the non-polar as Fig. 1-13 shown. In other word, it can use the positive voltage to turn on or turn off, or using the negative voltage to turn on or turn off.

1.3.3 Forming process

Before the switching process, most materials need this process. It is a process that make the switching layer to soft breakdown, leading to the filament can be formed, it is usually needed a bigger voltage than the switching voltage as shown in Fig. 1-17, and it is also need a current compliance during forming process to avoid it totally breakdown.

(27)

1.4.1 Ti top electrode

If the top electrode is Ti, and the switching layer is metal oxide, because Ti is a strong absorption oxygen metal, there is an interface layer to form as shown in Fig. 1-14. The interface layer usually dominate the switching to bipolar, because the interface layer can be a series resistance and oxygen sink, the oxygen ions can let the resistive layer to turn on or turn off according to different polarities as shown in Fig. 1-15. Besides, Fig. 1-16 shows that the variation of the Ti top electrode at Von, Voff,

and current of on-state and off-state is smaller compared with other top electrode metal, so this is one of the important reason that using the Ti to the further research in this thesis.

1.4.2 Other top electrode metal

If the top electrode is the weak absorption oxygen metal, the interface layer will not formed between the top electrode metal and switching layer, like Pt, Cu, Ni, Ag, hence the bulk layer will dominate the switching mechanism as shown in Fig. 1-15.

1.5 Carrier conduction mechanisms

There are two states that presented the logic high or low of RRAM, and the both logic state will follow the different carrier conduction mechanisms. The on-state mostly involved is Ohmic conduction, and off-state is mostly related with space charge limited current, Schottky emission, and Frenkel-Poole emission.

(28)

Ohmic conduction takes place when the injected carrier density is far less than the thermally-generated carrier density. Generally, it applies to the condition of low electric field region in which thermally-generated carriers are dominant in conduction. The current-voltage characteristics follow Ohm’s law that the current passing through a resistor from one terminal to the other is proportional to the voltage drop across the two points. In addition, the temperature effect is also described in Ohmic conduction behavior. Due to the electron and phonon scattering effects, the conductivity rises with increasing temperature for conduction in semiconductor, while with decreasing temperature for metal conduction. The following is the expression for Ohmic conduction: J aVexp -c T ⎛ ⎞ = _⎜ _⎟ ⎝ ⎠

where a and c are constants respectively, T is the temperature, and V the applied voltage.

1.4.2 Space charge limited current

The mechanism of space charge limited current (SCLC) is attributed to defects and usually exists in the dielectric stressed by high electric fields. After charge injection from the electrodes, the space charge may form if the charge carriers are trapped and distributed over a region of area without being neutralized. The further flow of charge carriers would be impeded by this space charge region. It should be noted that the injected carriers are mostly electrons. As for conductive media, the trapped carriers are able to be neutralized or screened rapidly; therefore the space charge region would not form.

(29)

[24], trap-unfilled SCLC and trap-filled SCLC, both can be written as the following expression: 2 0 3 9 1 8 r V J L θ _{ε ε μ} θ ⎛ ⎞ = ⎜_⎝ ₊ ⎟_⎠

where J is the current density, is the ratio of free electron to trapped electron, N　 C is

the effective density of states in the conductive band, Nt is the number of emptied

electron traps, 　 is the permittivity of free space, 　r is the static dielectric constant,

is the electron mobility, V is the applied voltage and L is the film thickness. At first 　

stage, the traps are not filled with charges and the formula can be rewritten with 　 <<1 as the following: 9 ₀ ₃2 8 r V J L θ ε ε μ =

As the voltage increases, the majority of traps are occupied by the injected carriers, and the current-voltage characteristics can be again rewritten with >>1: 　

9 ₀ ₃2 8 r V J L ε ε μ =

1.4.3 Schottky emission

Schottky emission is mainly attributed to the Schottky contact of the metal-insulator interface. For the carriers to transport, they must jump across the barrier height of one of the interfaces, travel through the dielectric film, and eventually reach the other side. It is the thermionic emission that enables the carriers (mostly electrons) to overcome the interface barrier height. Therefore temperature is the key factor that energetic carriers (hot carriers) are easier to jump across the barrier. The formula of Schottky emission is expressed as below:

2_exp - ( -q b qV/ 4 r 0d J A T kT φ πε ε ∗ ⎛ ⎞ = ⎜_⎜ ⎟_⎟ ⎝ ⎠

(30)

where A*_{denotes Richardson constant,}

b the Schottky barrier height, 　the

permittivity of free space, 　r the dynamic dielectric constant, V the external applied

voltage and d the insulator thickness.

1.4.4 Frenkel-Poole emission

Frenkel-Poole emission is pretty much similar to Schottky emission mechanism. The main differences are that Frenkel-Poole emission describes the process for carriers to overcome the barriers resulted from the defect states in the dielectric material, and the barrier lowering is twice as large as that in Schottky emission mechanism. Temperature is also crucial for this carrier transportation process, while electric field plays a more important role in this mechanism than in Schottky emission, which suggests that field effects have greater impact on defect-related behavior. The current-voltage relationship can be written as the following formula:

_exp - ( -q t qV / 4 r 0d J BV kT φ πε ε ⎛ ⎞ = ⎜_⎜ ⎟_⎟ ⎝ ⎠

where B is a material-related constant, 　t the trap level, and other parameters are the

same as those in Schottky emission.

1.5 Switching mechanisms of RRAM

The major possible models in RRAM having been proposed by other research groups; however, the resistive switching mechanisms are still under debate for not fully explained. These models including filamentary model, oxygen migration, charge trap-detrap, and cation migration. Each model may be applied for some combinations of electrodes and oxide materials.

(31)

1.5.1 Filament model

The filamentary model comes from the nature of oxide breakdown and integrity that the defects existing in an oxide bulk such as the interstitials and vacancies of oxygen and metals constitute the leakage current path, as depicted in Fig 1-18 [63]. This model has been proposed since 1970’s and is one of the earliest models in resistive switching [64,65]. Recently, since nonvolatile memories have acquired a lot of attention, the further and more detailed studies have been carried out to investigate the possible resistive switching mechanisms. Among all these proposed models, it is the filamentary model that prevails in many of binary oxide films, such as TiO2

[1,7,8,10,11,15], ZrO2 [22,26], NiO [28,31,33] and CuxO [39,43], and some of the

perovskite oxides such as V:SrZrO3 [52], Cr:SrZrO3 [66] and Cr:SrTiO3 [67]. The

most obvious evidences for the filamentary model are conductive atomic force microscopy (CAFM) mapping results and the cell-area-insensitivity of on-state. CAFM is one of the best tools to investigate the local conductivity throughout the film. B. J. Choi reported that by scanning the entire film surface with CAFM, only several conductive spots exist and account for the current conduction, as shown in Fig. 1-19 [2]. In addition, the on-state resistance is more insensitive to cell area due to the local conduction through the filaments instead of global conduction throughout a cell [28].

1.5.2 Oxygen migration

There are many switching behavior are attributed to the oxygen migration near electrode and resistive layer, this kind of layer cause Schottky barrier [15], Mott

(32)

transition [12], and the schematic diagram depicts the O2-_{migration according to the}

voltage bias as shown in Fig, 1-20.

1.5.3 Charge trapping and detrapping model

The charge trapping and detraping model is wide-spreading especially in the material system of manganites [54-58] and perovskite oxides [70-73]. It is also applied to some binary oxides such as ZrO2 [21,23,24] and CuxO [40,42]. This model

can be further classified into two types in accordance with the distribution of traps, the interface-controlled and the bulk-controlled. The schematics for both mechanisms are illustrated in Fig. 1-21 and Fig. 1-22 respectively [63].

For interface-controlled trapping and detraping model, the Schottky barrier and the interface state at the interface of the electrodes and the oxide are prerequisite. A Schottky contact is formed at the interface of low work function metal and p-type semiconductor, and high work function metal and n-type semiconductor, respectively. The barrier height determines the conductivity in these systems and can be modulated by interface states, which are charged (discharged) after the injection (ejection) of electrons. It is this interface state pinning effect that modifies the Fermi level position and the barrier height, and consequently controls the resistive switching properties.

On the other hand, the bulk-controlled trapping and detraping model is ruled by the defect states playing a role of trapping centers in the oxide bulk. When the defect states are empty, the carriers are captured by these trapping centers and make little contribution to current conduction. After all the states are occupied, the carriers would be free to drift through the oxide. Besides, the occupied defect states create an internal

(33)

field that increases the bend banding (voltage drop) across the film, and further reduces the barrier height near the interface. Hence the resistance change is dominated in the bulk defect states. Generally the resistance ratio in samples of the bulk-controlled model is usually larger than that of interface-models because of greater conductivity difference between conducting (on) and insulating (off) states.

One of the major differences between trap and filamentary models is observed in current-voltage characteristics. Empirically, the change of current magnitude is relatively smooth at Von and Voff in the trap-model predominant samples compared to

those of filamentary models. This would be attributed to the different nature of gradual trapping/detraping and abrupt conducting path formation/rupture processes respectively. It should be noted that even the similar materials have different possible mechanisms because of the slight difference in the preparation process or chemical and physical properties, such as Cr:SrZrO3 reported in [66] (filament) and [70] (trap),

and ZrO2 in [26] (filament) and [21] (trap), etc.

1.5.4 Cation migration

Solid-state electrolyte (SSE) is an emerging technology in RRAM technology. As implied by the name, the solid-state electrolyte provides a medium for ions to flow without being involved with any oxide breakdowns or the change in the medium structure. The basic structure for SSE RRAM is also metal-insulator-metal, MIM, with the top electrode of a more reactive metal, the insulator of an SSE, and the bottom electrode of a stable inert metal. As shown in Fig. 1-17, with a positive bias applied on the top metal, the oxidized reactive ions would penetrate into the SSE film, forming a conducting bridge and reach low resistance on-state. In the switching off

(34)

process, the same or reverse bias polarity can be applied by the mechanism of Joule heating or electrochemical reaction, depending on the magnitude of switching voltages and currents and the strength of conducting bridge [49]. Due to the nature of ion diffusion, many of the concepts are common as mentioned in the filamentary model.

(35)

Preparation method References

RF magnetron sputter ZrO2[22], NiO[33,38], CuxO[41], Fe2O3[44], RAMO[54],

Reactive sputter TiO2[9], ZrO2[18,21], NiO[27,34,36]

E-beam evaporator ZrO2[23,24], NiO[37]

Spin-coating TiO2[14,16]

Thermal oxidation TiO2[11-13], NiO[31,32], CuxO[39,40,42,43]

MOCVD TiO2[1]

ALD TiO2[4]

PEALD TiO2[5,7,8]

PLD ZrO2[20], RAMO[55,57,58], BSZT[70-73]

Melt-grown (FZ) RAMO[53,56]

BSZT: (Ba,Sr)(Zr,Ti)O3, RAMO: R1-xAxMnO3

Table 1-1 List of preparation methods of resistance switching layer.

Capacitor BL WL Transistor DRAM cell Capacitor BL WL Transistor DRAM cell

(36)

Fig. 1-2The basic structure of SRAM

: A

: B

: O

Perovskite structure

: A

: B

: O

: A

: B

: O

Perovskite structure

(37)

Fig. 1-4 The polarization hysteresis curve.

Control gate

p-Si

n

+

n

+

Ferroelectric film

(38)

Off-state

_On-state

tunneling layer

magnetic layer

Fig. 1-6 Parallel is off-state and anti-parallel is on-state of MRAM.

Fig. 1-7 (a) Temperature pulses required to switch a phase change material and (b) Simplified cross section of PCRAM [59]

(39)

2003 IEDM Sezi et al. Infineon

Fig. 1-8 Simple structure of RRAM [28]

2003 IEDM Sezi et al. Sharp

(40)

2004 IEDM Baek et al. Samsung

2005 IEDM Chen et al. Spansion

2007 VLSI-DT Ho et al. MXIC

Fig. 1-10 1T1R structure of RRAM [86]

Fig. 1-11 (a) Generalized cross-point structure with memory and switching elements. (b) Reading interference without switch elements. (c) Rectified reading

(41)

-1.5 -1.0 -0.5 0.0 0.5 1.0 10-8 10-7 10-6 10-5 10-4 10-3 10-2 Curr ent (A) Voltage (V) Off-state current On-state current I_off, Voff I_on, Von On process Off process

Fig. 1-12 Typical linear I-V curve of RRAM

(42)

Fig. 1-14 Interface layer at the structure of Ti-ZrO2-Pt. [28]

Fig. 1-15 Various top electrodes on the RRAM structure. (a) Ti top electrode (b) Other top electrode

(43)

Fig. 1-16 Variation of various top electrodes on the RRAM structure.

(44)

Fig. 1-18 Schematic of the filament in an oxide. [63]

Fig. 1-19 Conductivity mapping results of the (a) on- and (b) off-state TiO2 films,

(45)

Fig. 1-20 Schematic pictures of ON-state and OFF-state of the specimen[12]

Fig. 1-21 Infrared thermal micrograph of the memory cell with a current of 5 mA at a voltage of ~30 V applied. In the color scale, blue and red represent room and

(46)

Fig. 1-22 Band diagram with the conditions of interface states for on state (LRS) and off state (HRS), respectively. [63]

Fig. 1-23 Schematic of the switching mechanism in solid-state electrolytes. (a) On state: Redox reaction drives Ag ions in chalcogenide, resulting in a conductive

bridge; (b) off state: Size and number of Ag-rich clusters is reduced, breaking the bridge. [77]

(47)

Chapter 2 Experiment details

2.1 Radio-frequency magnetron sputtering system

Sputtering system is widely used to make the thin film like metal, semiconductor, and dielectric for its characteristic of simple construction, easy operation and low cost. The ions can be used by the plasma bombard to deposit on the target, so we can use the sample to do the research of RRAM. The illustration of the RF sputtering system is shown in the Fig. 2-1, and the related main components are in the following description as below.

2.1.1 Main chamber system

The main chamber is consisted with a 3-inch sputtering magnetron gun with a shutter that can cover the ions bombard when the system operated at pre-sputter; a rotation holder that can set the sample to let the ions deposited on the sample, and the speed of the holder can be controlled by the DC motor; a heater that can control the temperature of the process.

2.1.2 Pressure control system

There are two kinds gauges are used in the sputter system, working in different pressure ranges. One is a low-vacuum gauges with a display range from 780 Torr to 0.1 mTorr, it can be used at the first step of vacuuming process. The second one is an

(48)

ion gauge with an analog display ranging from 10-3_to10-7_{mTorr and used in}

high-vacuum to check if the base pressure of 1x10-5 mTorr is achieved. The high-vacuum ion gauge has to be turned off under low-vacuum to protect the functionality.

2.1.3 Vacuum system

There are two pumps in the sputtering process. The first is a rough pump that can be reach the vacuum from 760mTorr to 20mTorr, and the second is a turbo pump that will be used with the rough pump, and it can reach the high-vacuum of 1x10-5 mTorr,

2.1.4 Gas flow system

Mass flow controller (MFC) is used to control the gas flow delivered into the chamber and accurately controls the ratio among different gas ingredients. In this thesis, only Ar and O2 are used in film deposition. Ar is the main gas for plasma

generation, and O2 has great influence on oxide film deposition.

2.1.5 Heating system

The temperature control system is made up of two thermal couples, a set of four quartz lamps and a temperature controller. One thermal couple is directly connected with the quartz lamps, and the other one is used to correct the temperature before sputtering, because the quartz lamps is set located above the sample holder, so the temperature is a little different between the quartz lamp and the sample holder. During heating process, the signal sensed by the thermal couple next to the lamp set would feedback to the controller to adjust the output power to the lamps.

(49)

2.1.6 RF plasma system

The power generator (13.56MHz) with one matching box, and the matching is used to adjust the impedance of the total network system for the minimum reflecting power.

2.2 Sample fabrication

The research of the RRAM is based on the Ti-ZrO2-Pt MIM structure, but there are

various processes to fulfill the investigation purpose at several research topic, including different process temperature, different thickness of the ZrO2, different top

electrode size. The fabrication processes would be described below respectively.

2.2.1 Basic structure

The structure of the sample with different processes of the ZrO2 is illustrated in

Fig. 2-2. Fig. 2-3 shows the process flow of the following steps. At first, the sample is cleaned by the RCA procedure, and then a 250-nm-thick SiO2 is grown on 4-inch

silicon wafer. The bottom electrode is deposited by a 20-nm Ti and 80-nm Pt, using the e-beam evaporation on SiO2. After that, the oxidation layer is deposited by the

radio-frequency sputter on the various processes. Finally, the top electrode layer is deposited by using the e-beam evaporation by the shadow mask pattern and the lithography.

2.2.2 RCA Clean

(50)

process steps. The purpose is for removing the contaminants from wafer, and the main steps are as followed. First, the wafer is submerged in the solution of 3:1 H2SO4:H2O2,

for 10 min at around 80o_{C to remove organic contaminants from the surface of wafer,}

then in 1:100 HF:H2O to etch chemical oxide produced in the previous step. It should

be noted that each step was separated by DI water rinse for 5 min.

2.2.3 Growth of SiO

2

After RCA clean, 4-inch silicon wafers are sent into a furnace immediately for thermal oxidation, the surrounding environment is at 950oC for 30 min in O2 and H2

atmosphere. The wet oxidation is used by its high growth advantage, for the SiO2

layer is only the role of the insulator layer, which is blocked the leakage current to the silicon base, and the thickness is to be expected around 250nm.

2.2.4 Deposition of bottom electrode

the bottom electrode is deposited by using the dual e-beam evaporation. First, a 20-nm Ti is deposited to be a adhesion layer, and then a 80-nm Pt is deposited on the in-situ Ti layer.

2.2.5 Deposition of resistive switching layer

A structure of ZrO2 for resistive switching layer is fabricated. First, the ZrO2 film

is deposited by radio-frequency (RF) magnetron sputter system. During film deposition, each particular parameters of the working pressure, RF power, and gas flow were 10 mTorr, 150 W, and 2:1 Ar:O2 with a total flow rate of 18 sccm. There

(51)

purpose we want to research, the description is as the following section.

2.2.5.1 Process temperature of resistive switching layer

First, the process temperature is considered, it is various from the room temperature (25oC) to 300oC based on the process deposition time is 60mins, and there are six different temperatures, 25o_{C, 100}o_{C, 150}o_{C, 200}o_{C and 250}o_C

respectively.

2.2.5.2 Process thickness of resistive switching layer

Second, the process deposition time is various from 30mins to 150mins based on the process temperature is 200o_{C, there are six different deposition time, 30mins,}

60mins, 90mins, 120mins, 150mins respectively. The characteristics of these samples are investigated and discussed in chapter 3.

2.2.6 Deposition of top electrode

After the fabrication of resistance switching layer, the Ti top electrodes were prepared to form the structure of metal/resistive switching layer/metal. The Ti layer is deposited by the e-beam evaporation on ZrO2 layer for 150nm, the top electrode is

pattern by the shadow mask and the lithography.

2.2.6.1 Shadow mask

(52)

the dot-shaped holes with diameters of 350, 250 and 150um, i.e. areas of 9.26x10-4_,

4.91x10-4 and 1.77x10-4 cm2, respectively.

2.2.6.2 Lithography

For the purpose of minus the size of the top electrode, it is used photo resistance to be the mask. The characteristic of this sample is used 60mins and 200o_{C. The}

process flow of the lithography is as following description in Fig 2-4. First, the positive photo resistance AZ4620 is used on the Photo Resist Spinner, the 1200rps for 5 seconds and 4000rps for 25 seconds. After that, the sample is put on the hot plate at 90o_{C and 5mins for soft bake. And then the mask that having the 10um x 10um square}

is exposed using the intense light for 45 seconds, this step is that the pattern can be print on the ZrO2 layer. Finally, the sample is put in the AZ300 for 200 seconds to

develop the pattern, and then rinse into the DI-water for 1 min. The thickness of the photo resistance should be around 2.1 um, and the next step is ready to deposit the top electrode.

The sample that has pattern is also deposited by Ti using the e-beam evaporation for 150nm, and then put it in the acetone for 1 min and rinse in the DI-water for 1 min. The purpose of this step is to lift-off for removing the photo resistance, so the top electrode is Ti can be sustained on the ZrO2 layer, and the top electrode is 10um x

10um square.

(53)

The analyses and measurement is used to do the research of this thesis, the description is following as next.

2.3.1 Transmission electron microscopy (TEM)

Transmission electron microscopy (TEM) is a microscopy technique that a beam of electrons is transmitted through an ultra thin specimen, interacting with the specimen as it passes through it. An image is formed from the electrons transmitted through the specimen, magnified and focused by an objective lens and appears on an imaging screen, a fluorescent screen in most TEMs, plus a monitor, or on a layer of photographic film, or to be detected by a sensor such as a CCD camera.

In material science/metallurgy the specimens tend to be naturally resistant to vacuum, but must be prepared as a thin foil, or etched so some portion of the specimen is thin enough for the beam to penetrate. Preparation techniques to obtain an electron transparent region include ion beam milling and wedge polishing. The focused ion beam (FIB) is a relatively new technique to prepare thin samples for TEM examination from larger specimens. Because the FIB can be used to micro-machine samples very precisely, it is possible to mill very thin membranes from a specific area of a sample, such as a semiconductor or metal. The

2.3.2 Electrical measurements

The electrical properties are measured, Agilent 4155C semiconductor parameter analyzer, E5250A low leakage switch and Agilent 81110A pulse/pattern generator, they are all controlled by a desktop computer with the Agilent VEE software.

(54)

The electrical measurements in this thesis were divided into several parts, consisting with endurance, pulse, retention, and stress. Those are for the purpose of memory device application and the fundamental switching properties.

2.3.2.1 Endurance test

Endurance is the key performance that memory devices must endure a large number of switching cycles to meet the operation requirements in many applications such as random access memory (RAM) and solid state disk (SSD) which both need many data write-in operation without any failures. In other words, this factor is the sample that whether it will be steady or not.

The tests of endurance are carried out by the Agilent 81110A, and the environment is at room temperature.

2.3.2.2 Pulse test

Although the Endurance test is important, but it is only statistic test, in a real commercial product, the switching is operated by the pulse. The shorter pulse width, the quicker write/erase speed can be operated, so the product is more attractive to the costumers.

The pulse is generated by the Agilent 81110A, which pulse width can be operated from the 6.65ns to 999ms.

2.3.2.3 Retention test

(55)

for the capability of retaining memory data for a long period without any data loss. For a commercially available nonvolatile memory product, the performance of retention is requested at least 10 years.

The retention test is carried out by the following description. First, the memory device is switched into on-state or off-state at room temperature r by DC bias. Next, the data state is read by applying a 0.3 V reading bias that small enough in order not to change the memory state, the sample will be read every once in a period of time.

2.3.2.4 Stress test

The stress test or non-destructive readout test is also an important factor for nonvolatile memory devices, in which memory data could not be changed in data reading process, and it is also a basic demand for nonvolatile memories. On the other hand, if random access memories have the property of non-destructive readout, the control circuit will not have to refresh which takes additional clock cycles to write the data back, giving rise to the increase in the operation speed.

The stress test is implemented by Agilent 4155C. After switched to on-state or off-state, the device is applied with 0.3 V bias for a long period to observe if the state would keep the same. If it can last for a long time, it can be said that the sample would not be disrupted by the other circuit when it is combine with other circuit in the commercial products.

(56)

Fig. 2-1 The illustration of Radio-frequency magnetron sputter system

ZrO

₂₂

SiO

₂₂

(200nm)

Ti

Ti (20nm)

Pt (80nm)

p

-

si

substrate

p

-

si

substrate

(57)

SiO₂: wet oxidation Pt/Ti : E-beam evaporator

ZrO

₂ (RF sputter, Ar:O₂=12:6 , working pressure=10mtorr) Ti : E-beam evaporator with

shadow mask(350um,250um.150um) Process temperature: 25o_C,100o_C,150o_C,200o_C,250o_C Deposition time at 200o_C_: 30mins,60mins,90mins, 120mins,150mins Cleaned Si substrate (100)

Fig. 2-3 The process flow of making the Ti-ZrO2-Pt RRAM

Photoresistance:AZ4620

1200rps for 5s and 4000rps for 25s

Soft bake : 90o_{C for 5mins}

Exposure on mask : 45s

Rinse in DI-water : 2mins Sputter Ti :150nm

Lift-off : Acetone for 1 min and DI-water for 1 min

Lithography: 10um diameter

Develop the pattern : AZ300 for 200s

(58)

(59)

Chapter 3 Results and discussion

3.1 Various ZrO

2

process temperatures

In this section, the temperature of the process will be changed when the ZrO2 is

sputtered on the Ti/Pt bottom electrode, and the most suitable temperature for the experiment will be determined. The performance of the RRAM will also be described, including high speed switching pulse, high reliability endurance, stress and the retention.

3.1.1 Temperature effect

The resistive switching behavior is found in all kinds of temperature process that sputter ZrO2, including room temperature (25oC) to the high temperature that RF

sputter machine can stand (300o_{C). Although all of the temperature can be switched,}

there are still some different performances between the different temperatures. As the following description, the forming voltage、current of on-state and off-state、 endurance、dynamic pulse switch will be showed some different.

At first, the ZrO2-base RRAM is showed good characteristic [19][26], but the

temperature effect is not described, so the purpose is to know what temperature is the most suitable for the experiment in the future. The ZrO2 is based on the 60mins

sputtering time, so the thickness is the same, and the changing factor is the process temperature. It can be seen that all the temperature (25o_{C, 100}o_{C, 150}o_{C, 200}o_C,

(60)

250o_{C) has the forming voltage as shown in Fig. 3-1~ Fig. 3-6 , and the initial}

resistance in Fig. 3-7 that pick up the point at 0.3V can be known that (100oC, 150oC, 200o_{C, 250}o_{C) is almost not changed, and the 25}o_{C, 300}o_{C are much lower, because}

the thickness is the same, so the difference of this characteristic is major at the point of the process temperature, although the XRD cannot show too much different of the sample for the lattice factor is all amorphous, but we still can find the most suitable temperature as the following description by checking the electrical property.

First, all the sample is given a high voltage as high as 5V and the 5mA compliance current to forming the sample, this purpose is to turn on the filament that included interface layer and bulk layer. After that, the sample is given a negative 2.5V to turn the state into the off-state, and then given a positive 1.5V to turn the state into the on-state, there is no need to limit the current for the interface layer can be a good compliance current resistance [26], it called self-compliance when switching the device, it’s one of a big advantage that RRAM using the structure of Ti top electrode on the ZrO2.

3.1.2 I-V curve

The I-V curve of the different temperature is shown in Fig. 3-8~ Fig. 3-12, and the on-state and off-state current is also shown in Fig. 3-13. As the plot shown, the on-state current is almost the same, the value is around 1mA. But at the condition of 200oC, the current is steadier for its variation is smaller compared with other condition, and the off-state current is a little bit smaller than other condition. It’s a advantage of this condition for the ratio will be bigger, and the smaller current, the better process for the RRAM when it is made on the smaller scale process as small as

(61)

the current 45nm process.

3.1.3 Statistic endurance test

The more cycles sample can operate, the more stability the sample can operate, for the DC sweep is the basic electrical property. Because all of the conditions can be successfully switch at bipolar mode ( positive turn on and negative turn off), and the next step is to know what kinds of condition can have the best stability, the sample is to be test on the statistic endurance test, which is continuous switching until the sample is almost breakdown. The test method is at the first cycle to the 100th _cycle,

the data will be record, and after the 100th , all the data will be record the last 10 cycles in every 100 cycles. As the endurance plots shown in Fig. 3-14~ Fig. 3-18, the results show that the 200oC also has the best endurance ability in the table 3-1, and it can be achieved over 10000 cycle times, the performance is much better than other conditions, in other words, its stability is the best.

3.1.4 Dynamic pulse test

After the statistic endurance test, it should be know that whether the dynamic pulse test is as good as the statistic test, because the real device is operated in the pulse mode. The dynamic pulse test is operated in the Aiglent 81110A, the measure method is that after the sample is given a pulse, the read voltage is at 0.3V, and continuous read 5 times in the Fig. 3-19. The sample is focus on the condition of 200o_{C for its DC sweep is better among all the conditions. The test is operated at 10ns,}

(62)

us level [78][79].

All of the sample is on the situation of +6V and -3V for the turn on and turn off voltage, the only changing factor is the pulse width. At first, the sample is test at the 10ns in the Fig. 3-20, the soft error can be seen during the switching, for the shorter pulse width, the shorter reaction time the device can be operated, so the turn-on and turn-off mechanism in the filament is not operated completely, that is the reason the performance of the shorter pulse width is not as good as the longer pulse width as following description.

The sample is operated at 20ns, but its performance is also showed that the soft error also appears in the window in the Fig. 3-21 After that, the sample is operated at the 50ns in the Fig. 3-22, and it can shown that at this speed, the window is clean during the 1000 cycle times, there is no soft error during the window, it’s an improvement [74][75], on the other hand, the DC state will keep the same during the pulse test in Fig. 3-23. It showed that the Ti-ZrO2-Pt RRAM structure is a potential

next generation non-volatile memory, which is much faster than the flash memory.

3.1.5 Stress test

The 200o_{C, 60mins–base ZrO}

2 is measured its stress ability, and the state is not

change during the stress test that using the 0.3V to read the data. The on and off state are not changed during the 10000s stress test in Fig. 3-24. On the other hand, after the pulse test 1000 cycle times, the on-state and off-state will be lifted compared with the original stress test, for it stand the pulse voltage, but the state can still be keep the same.

(63)

3.1.6 Retention

Fig. 3-25 is the test for the retention, and it shows that the on-state and off-state can be kept until 106_{s at room temperature environment.}

3.2 Different process thickness of ZrO

2

3.2.1 The motivation of different thickness

The mechanism of Ti-ZrO2-Pt structure is bases on the Rrupture layer is the major

part of the filament that switching the on-state and off-state [19][26]. The Fig. 3-26 is showed that after depositing Ti top electrode, there will be a series resistance of interface layer that consist of TiOx and ZrOy, the thickness of this layer is determined by the thickness of the Ti top electrode, it should not related with what the thickness of the ZrO2, and after forming process, the bulk layer is always conductivity no matter

what the situation is on-state or off-state. During the off-state condition, the rupture layer will be appeared for the joule-heating effect caused by the oxygen ions, let the ZrOy become ZrO2, and its resistance is much higher than the bilk layer for the bulk

is meta-like, and the rupture layer will be insulator-like during the off-state condition, so the voltage of all the filament should be mostly drop at the rupture layer during the off-state. Even if the thickness is changed, because the resistance of the rupture layer i is much bigger than the bulk layer and interface layer, so the voltage drop should still be drop at the rupture layer, hence the off-state current should still be maintain the same or the difference is very few. If the state is on-state, the on-state current should also maintain the same for the bulk is metal-like, its resistance is much smaller compared with interface layer in the filament, so the resistance of the filament is not

鈦上電極對濺鍍法製備之氧化鋯薄膜於電阻式轉換記憶元件之研究

國 立 交 通 大 學

電子工程學系電子研究所

碩士論文

鈦上電極對濺鍍法製備之氧化鋯薄膜於電阻式

轉換記憶元件之研究

Resistive switching properties of sputtered ZrO

thin

films with Ti top electrode

研究生：蔡承翰

指導教授：曾俊元 教授

鈦上電極對濺鍍法製備之氧化鋯薄膜於電阻式

轉換記憶元件之研究

碩士論文

學生：蔡承翰 指導教授：曾俊元 教授

國立交通大學電子工程學系電子研究所碩士班

摘要

Resistive switching properties of sputtered ZrO

thin films with Ti top electrode

Student: Chen-Han Tsai Advisor: Prof. Tseung-Yuen Tseng

Department of Electronics Engineering and Institute of Electronics

National Chiao Tung University

Abstract

Acknowledgement

Contents

Table captions

Figure captions

Chapter 1

Introduction

1.1 Introduction to random access memory

1.1.1 Volatile memory

1.1.2 Non-volatile memory

1.1.3 Next-generation non-volatile memory

1.2 RRAM

1.2.1 Structure

1.2.2 Fabrication method

1.3 Operation mode

1.3.1 Bipolar mode

1.3.2 Non-polar mode

1.3.3 Forming process

1.4.1 Ti top electrode

1.4.2 Other top electrode metal

1.5 Carrier conduction mechanisms

1.4.2 Space charge limited current

1.4.3 Schottky emission

1.4.4 Frenkel-Poole emission

1.5 Switching mechanisms of RRAM

1.5.1 Filament model

1.5.2 Oxygen migration

1.5.3 Charge trapping and detrapping model

1.5.4 Cation migration

: A

: B

: O



Perovskite structure

: A

: B

: O

: A

: B

: O



Perovskite structure

Control gate

p-Si

n

+

n

+

Ferroelectric film

Off-state

On-state

tunneling layer

magnetic layer

magnetic layer

Chapter 2

Experiment details

2.1 Radio-frequency magnetron sputtering system

2.1.1 Main chamber system

國立交通大學

指導教授：曾俊元教授

學生：蔡承翰指導教授：曾俊元教授

_On-state
