Forecasting of CO

₂

emissions, energy consumption and economic growth in China

using an improved grey model

Hsiao-Tien Pao

a,*

_{, Hsin-Chia Fu}

b

_{, Cheng-Lung Tseng}

c a_{Department of Management Science, National Chiao Tung University, Hsinchu, Taiwan} b_{College of Engineering, Huaqiao University, Quanzhou, China}

c_{Department of computer science, National Chiao-Tung University, Taiwan}

a r t i c l e i n f o

Article history: Received 28 July 2011 Received in revised form 4 December 2011 Accepted 19 January 2012 Available online 28 February 2012 Keywords:

Grey prediction model Nonlinear grey Bernoulli model Co-integration technique CO2emissions

China

a b s t r a c t

Analyses and forecasts of carbon emissions, energy consumption and real outputs are key requirements for clean energy economy and climate change in rapid growth market such as China. This paper employs the nonlinear grey Bernoulli model (NGBM) to predict these three indicators and proposes a numerical iterative method to optimize the parameter of NGBM. The forecasting ability of NGBM with optimal parameter model, namely NGBMOP has remarkably improved, compared to the GM and ARIMA. The MAPEs of NGBMOP for out-of-sample (2004e2009) are ranging from 1.10 to 6.26. The prediction results show that China’s compound annual emissions, energy consumption and real GDP growth is set to 4.47%,0.06% and 6.67%, respectively between 2011 and 2020. The co-integration results show that the long-run equilibrium relationship exists among these three indicators and emissions appear to be real output inelastic and energy consumption elastic. The estimated values cannot support an EKC hypothesis, and real output is signiﬁcantly negative impact on emissions. In order to promote economic and envi-ronmental quality, the results suggest that China should adopt the dual strategy of increasing energy efﬁciency, reducing the loss in power transmission and distribution and stepping up energy conservation policies to reduce any unnecessary wastage of energy.

1. Introduction

“Climate Change 2007”, the Fourth Assessment Report of the United Nations Intergovernmental Panel on Climate Change (IPCC), predicts that by 2100 global average temperature could rise 2e4.2_.

Most experts have attributed the root causes of global warming to the rapid growth of the global economy, human consumption of large amounts of energy, and the greenhouse effect from emissions of six gases affecting Earth’s climate changes. The 1997 Kyoto Protocol had the objective of reducing greenhouse gases (GHG), which cause climate change. It demanded a 5.2% reduction of GHG emissions compared to the 1990 level, between 2008 and 2012. The Protocol went into effect in 2005. Amongst several environmental pollutants that can cause climate change, carbon dioxide (CO2) is

responsible for 58.8% of all GHGs[1]. The combustion of fossil fuels is the largest single contributor to CO2and total GHG emissions,

and of all the major sources, their impact has grown the most rapidly since 1970 because of the world’s recent economic growth.

Therefore, the analyses and forecasts of CO2 emissions, energy

consumption and economic growth constitute a vital part of clean energy economy.

In emerging markets such as China, although she signed the Kyoto protocol to curb emission, environmental concerns are still there, because of the country_{’s large population, strong capital} investment and urbanisation, and heavy reliance on coal. China is the biggest coal consumer in Asian region. For the trend of CO2

emissions, increasing coal consumption brought China to overtake the United States in 2006 as the world’s biggest emitter of carbon dioxide; China’s CO2emissions were 25.43% of the world total in

2009 (EIA, Energy Information Administration). But the country’s carbon dioxide emissions per capita are also relatively low compared to developed countries, and China has not contributed much to climate change because of its short history as an industrial nation. Figure for 2009 (EIA), per capita emissions were 5.82 tons in China, which is lower than 8.22 tons of the 15 nations in European Union, or 17.67 tons in United States, but it is larger than the world average_{ﬁgure of 4.47 tons. As shown in}[2], in order to actively respond climate change and to develop clean energy economy, China has an ambitious goal to reduce carbon intensity by 40e45% by 2020, from 2005 levels.

* Corresponding author. Tel.: þ886 3 5131578; fax: þ886 3 5710102. E-mail address:htpao@mail.nctu.edu.tw(H.-T. Pao).

Contents lists available atSciVerse ScienceDirect

Energy

j o u r n a l h o me p a g e : w w w . e l s e v i e r . c o m/ l o ca t e / e n e r g y

(2)

For the trend of energy consumption, in 2009, China became the world’s largest energy consumer. In 2010, the country consumed 5.3% more coal, 12.9% more crude oil, 18.2% more natural gas and 13.1% more electricity than in 2009; however its energy intensity fell 4.01%. Based on data from 2008 (EIA), China’s energy intensity was 11,086.80 Btu, which is higher than the 5278.14 Btu of the 15 nations in European Union, the 7602.96 Btu in USA or the 9798.42 Btu of the world average. China aims to reduce its energy intensity by as much as 17% by 2015 from current level, by closing enterprises that are heavy energy users. In the nextﬁve years, China aims to generate 11.4% of energy from non-fossil fuels, and to raise smart grid market from $22.3 billion to $61.4 billion[2]. The country’s massive smart grid plans is to address issues in its power industry and to develop a lower-carbon economy. The plan will largely change the generation and the use of energy in China. In addition, Chinese government efforts to control inﬂation and restructure the economy will slow economic growth, which should also reduce the growth in energy use.

For the trend of economic growth, China ranks since 2010 as the world’s second largest economy after the USA. It has been the world’s fastest-growing major economy, with consistent growth rates of around 10.98% over the past 30 years. China is also the largest exporter and second importer of goods in the world. As China_{’s economic importance has grown, so should be concerned} about the economy’s structure and health. Due to constantly pursuing rapid economic expansion in past years, China has brought unbalanced economic and social development. Therefore, the official target for average GDP growth over the next five years is set to 7% annually, which is 0.5% down from the pastfive years[3]. It reflects the government’s determination to shift the economic focus from speed to quality.

The relationship between emissions and economic growth, as well as economic growth and energy consumption, has been intensively analysed over the past two decades. Recently, a combi-nation of these two approaches has emerged, which facilitates the examination of the long-run relationship among economic growth, energy consumption and environmental pollutants. China’s carbon dioxide emissions, energy consumption and economic growth rose sharply, the historical data for each series usually differ signiﬁcantly from the actual growth. Therefore, an intelligent model with good adaptability and high forecasting accuracy to predict these time series is important for clean energy economy. This paper uses recent years’ data in the grey prediction models for the multi-step forecasting of each series, with a forecast period between 2009 and 2020. The grey prediction model has good forecasting ability even if there are only four original data[4,5]. The co-integration technique is employed to examine the long-term relationship among emis-sions, energy consumption and economic growth.

The remainder of this paper is organised as follows: Section2 presents a review of the literature; Section3outlines the models and both the GM and NGBM approaches are presented; Section4 presents the data used and empiricalﬁndings. Section5discusses the prediction results. The last section summarises and concludes the paper.

2. Brief literature review

The relationship between economic growth and environmental pollution, as well as economic growth and energy consumption, has been intensively analysed over the past two decades. However, the empirical evidence remains controversial and ambiguous to date. Theﬁrst nexus is closely related to testing the validity of the Environmental Kuznets Curve (EKC) hypothesis. The EKC hypoth-esis postulates that the relationship between economic develop-ment and the environdevelop-ment resembles an inverted U-shaped curve.

That is, environmental pollution levels increase as a country develops, but started to decrease as rising incomes pass a turning point. This hypothesis wasﬁrst proposed and tested by Grossman and Krueger [6]; recent examples are illustrated in articles[7,8]. However, a higher national income does not necessarily warrant greater efforts to contain the emissions of pollutants.

The second strand is related to energy use and the real output nexus. This nexus suggests that higher economic growth requires more energy consumption. Likewise, more efﬁcient energy use requires a higher level of economic development. Following the study by Kraft and Kraft[9], an increasing number of studies have assessed the empirical evidence by employing co-integration techniques and the Granger causality[10,11].

A recent and emerging line of literature has analysed both nexuses in the same framework. This approach facilitates the examination of the dynamic relationship between economic growth, energy consumption and environmental pollutants combined. Ang[12]and Soytas et al.[13]initiated this combined line of research. Recent work on this issue includes articles[14e19]. A sound forecasting technique is essential for accurate invest-ment planning for energy production and distribution, environ-mental protection and economic development. Current forecasting methods can be divided into three categories: multivariate analysis, univariate time-series analysis, and non-linear intelligent models. Multivariate modelling and co-integrated techniques or regression analysis have been used in a number of studies to analyse and forecast energy consumption[20_e22]. One limitation of multivar-iate models is that they depend on the availability and reliability of data on independent variables over the forecasting period, which requires further efforts in data collection and estimation. Univariate time-series analysis provides another modelling approach, which only requires the historical data for the variable of interest to forecast its future behaviour. The univariate BoxeJenkins ARIMA [23]analysis has been widely used for modelling and forecasting in many energy, environmental, financial, and engineering applica-tions[24,25]. However, the need for a large number of observations to produce accurate forecasting results has usually been required. Due tofluctuations in energy consumption, some intelligent non-linear forecasting methods, namely artificial neural network (ANN)[26e28], fuzzy regression[29,30], and some hybrid models [31,32], have been employed to predict energy demand more ef fi-ciently. However, the forecasting results depend on the number of training data and their representativeness, and these limitations have not yet been overcome. In all of the above methods, the key element that affects the forecasting performance is the sample size, which limits their applicability to certain forecasting situations. Forecasting the energy demand, emissions and real GDP in rapidly developing countries are an example of this because the trend of each series may be changing rapidly over time. Therefore, the grey prediction model is an alternative forecasting tool for systems with complex, uncertain and chaotic structures because of their low data requirements to build forecasting models.

Grey theory wasﬁrst proposed by Deng in 1989[33]and has over 20 years of history. This theory does not rely on statistical methods to consider a grey quantity, but it uses, indirectly, original data and tries to identify its intrinsic regularity. Accumulated generating operation (AGO) is the main idea of Grey theory and originates from the cumulative distribution in elementary statis-tics. The aims of AGO are to reduce the randomness of raw data to a monotonically increasing series. Grey theory has been widely used in forecasting studies because of its higher forecasting accu-racy when compared with other forecasting techniques[34,35]. For a time sequence that can be approximated by the exponential function curve, the forecasting accuracy can be improved to some degree using GM (1, 1), because the traditional grey model is

(3)

constructed with an exponential function. However, the time sequence of the actual system will vary in waves, which do not always satisfy the above increasing rule. Therefore, many models have been proposed to increase this accuracy, such as the taguchi-grey [36], grey-fuzzy [37], trigonometric-grey [38], and other models [39e42]. These hybrid models include complex mathe-matics and are difﬁcult to apply.

The nonlinear grey Bernoulli model (NGBM) was named by Chen et al.[43]andfirst appeared in the book by Liu et al.[44]. It is a simple modification of GM (1, 1) combined with the Bernoulli differential equation[45]. The advantage of this model is that the curvature of the solution curve can be adjusted tofit the result of the AGO of the raw data by adjusting variable parameters[46]. This paper proposes a numerical iterative method for choosing optimal parameter of NGBM to improve model accuracy, the improved NGBM with optimal parameter model is named NGBM-OP. The proposed iterative method is simple, easy to implement and has fast convergence.

3. Methodology

This section describes four prediction models: the Autoregressive Integrated Moving Average (ARIMA) linear model, the nonlinear grey prediction model (GM (1, 1)), NGBMi and the proposed NGBM OP. All models are employed to forecast CO2emissions,

energy consumption and real GDP for China from 2009 to 2020. The multi-step forecasting abilities of the NGBM_{OP are compared with} the GM and ARIMA models using actual data from the out-of-sample period between 2003 and 2008 for energy consumption, and 2004e2009 for both real GDP and emissions, where the in-sample period is 1980e2002 or 2003 for the ARIMA model, and 1997e2002 or 1998e2003 for the GM and the NGBMOP, respec-tively. The co-integration technique is employed to analyse the long-run equilibrium relationship between the variables. If a co-integration relationship exists, predict all of them are an important part of the clean energy economy.

3.1. Model

Following the empirical literature in environmental economics, it is plausible to form a long-run relationship between CO2

emis-sions, energy consumption, and economic growth in linear, loga-rithmic quadratic form to test the validity of the EKC hypothesis as follows:

LCOt ¼

b

b

1/2

b

2(in logarithms)

[17]. That is, environmental pollution levels increase as a country develops but started to decrease as rising incomes pass this turning point.

To avoid both a spurious regression result and overestimating the importance of the independent variables, the nested linear models, with their R2, adjusted R2, and Jarque and Bera (JB) statis-tics[47], are used to evaluate how well the LEC, LGDP and LGDP2 work together to accurately describe the LCO variable as follows:

LCOt ¼ a1þ b1LGDPtþ ut (2-a)

LCOt ¼ a2þ b2LGDPtþ c2LGDP2t þ ut (2-b)

LCOt ¼ a3þ b3LGDPtþ c3LECtþ ut (2-c)

LCOt ¼ a4þ b4LGDPtþ c4LECtþ d4LGDP2t þ ut (2-d)

If adding LGDP2provides an adjusted R2that is slightly larger (_{<0.01), we might decide that including LGDP}2is not desirable. In Eq.(2-d), if LGDP2is not included, it indicates a monotonic rela-tionship between emissions and income, when energy use does not change. Eq.(2) provides estimates of the long-run elasticities of energy use and income impacts on emissions.

The co-integration test is performed in two steps. First, we verify the order of the integration of the variables, since various co-integration tests are only valid if the variables have the same order of integration. Three different unit root tests, including the Augmented DickeyeFuller (ADF), the PhillipsePerron (PP) and the KwiatkowskiePhillipseSchmidteShin (KPSS) [48e50] tests, are used to investigate the stationarity and the order of the integra-tion of the variables. In terms of the literature, tests designed on the basis of the null hypothesis that a series is I (1) have a low power of rejecting the null. Therefore, KPSS is sometimes used to complement the widely used ADF and PP tests to obtain robust results.

In the second step, when all of the series of the same order are integrated, the Johansen maximum likelihood method[51,52] is used to test the co-integration relationship between the variables in Eq.(1) or (2). If co-integration exists among the variables, OLS that is applied to the estimates from Eq.(1) or (2)does not lead to a spurious regression result. Furthermore, the parameters esti-mated by OLS are super-consistent. The existence of co-integration indicates that there are long-run equilibrium relationships among the variables. Therefore, the forecasts of CO2 emissions, energy

p(B) and

q

q(B) are polynomials in B of order p

and q, respectively. The roots of

f

p(B)¼ 0 and

q

q(B)¼ 0 should lie

(4)

3.3. Grey prediction model

The Grey theory was proposed by Deng[33]. A system is called “white” if all of the information about the system is known. On the other hand, a system is called“black” if nothing is known about it. Therefore, a grey system is one which is partially known. Grey prediction power comes from its ability to predict the future value with only a limited amount of data.

The grey prediction based on the grey model (GM) has three basic operations: accumulated generating operation (AGO), inverse accumulated generating operation (IAGO) and grey modelling. The GM (1, 1) model is the most commonly used model. Theﬁrst ‘1’ in GM (1, 1) indicates that there is only one variable, and the next‘1’ means that the_{ﬁrst order grey differential equation is used to} construct the model. The algorithm of the GM (1, 1) grey prediction model can be summarised as follows[35]:

Consider the non-negative time-sequence data;

uð0Þ¼uð0Þð0Þ;uð0Þ_ð1Þ;/;uð0Þ_ðiÞ;/;uð0Þ_ðnÞ_{: where n 3:} ₍₄₎ Then, the GM (1, 1) is as follows:

uð0ÞðkÞ þ aZð1ÞðkÞ ¼ b; k ¼ 1; 2; .; n; (5)

where“a” is called “develop parameter” and “b” is called “grey input”. The following procedures are then instituted:

1. Take AGO on u(0); uð1ÞðkÞ ¼ AGOuð0ÞðkÞ¼ Xk i¼ 0 uð0ÞðiÞ; k ¼ 1; 2; /; n; (6) where u(1)(0)¼ u(0)_(0). 2. Find Z(1)(k); Zð1ÞðkÞ ¼ 0:5uð1ÞðkÞ þ uð1Þ_{ðk 1Þ}_{; k ¼ 1; 2; /; n :} ₍₇₎

3. Using the least square method, the parameters [a b]Tin Eq.(4) can be estimated as ½a; bT_¼ h_BT_Bi1_BT_y n; where B¼ 2 6 6 4 Zð1Þ_{ð1Þ 1} Zð1Þ_{ð2Þ 1} . . Zð1Þ_{ðnÞ 1} 3 7 7 5 and yn ¼ 2 6 6 4 uð0Þð1Þ uð0Þð2Þ . uð0ÞðnÞ 3 7 7 5: (8)

4. Find the response equation;

^uð1Þ_{ðkÞ ¼}_uð1Þ_ð0Þb a eakþb a¼ uð0Þð0Þb a eakþb a; k ¼ 0;1;. (9)

5. By performing IAGO on u_ð1Þðk þ 1Þ, the predicted value of ^uð0Þ_{ðk þ 1Þ is} u _ð0Þ ðk þ 1Þ ¼ u_ð1Þðk þ 1Þ u_ð1ÞðkÞ or u _ð0Þ ðk þ 1Þ ¼ ð1 ea_Þ uð0Þð0Þ b_a eaðkþ1Þ; k ¼ 0;1;.; (10)

where u_ð0Þð1Þ; u_ð0Þð2Þ;.; u_ð0ÞðnÞ are called the GM (1, 1) ﬁtted sequence, while u_ð0Þðn þ 1Þ; u_ð0Þðn þ 2Þ;.; are called the GM (1, 1) out-of-sample forecast values. The results of the grey prediction model are compared with the results of the ARIMA and NGBM-OP models.

3.4. NGBMOP model

The forecasting model NGBM (1, 1) was named by Chen[43]and ﬁrst appeared in the book by Liu et al.[44]. Based on the ordinary nonlinear differential Bernoulli equation[45], the NGBMi(1, 1) is as follows[53]:

where uð0ÞðkÞ þ aZð1ÞðkÞ ¼ b

Zð1ÞðkÞi; i˛R;

Zð1ÞðkÞ ¼ 0:5uð1ÞðkÞ þ uð1Þ_{ðk 1Þ}_{; k ¼ 1; 2;.;n} (11)

The optimal value of power i is determined by the minimum mean absolute percentage error (MAPE) of the forecasting model. The solution of Eq.(11)reduces to Eq.(5)when i¼ 0, and it reduces to the GreyeVerhust equation when i ¼ 2 [44]. The parameters a and b can be estimated as follows:

where ½a;bT_¼_BT_B1_BT_y n B¼ 2 6 6 6 4 Zð1Þ_ð1Þ _Zð1Þ_ð1Þi Zð1Þ_ð2Þ _Zð1Þ_ð2Þi « « Zð1Þ_ðnÞ _Zð1Þ_ðnÞi 3 7 7 7 5 and yn¼ 2 6 6 4 uð0Þð1Þ uð0Þð2Þ uð0ÞðnÞ 3 7 7 5; i˛R (12)

The alternative form of parameters a and b are shown below:

" a b # ¼ 2 6 6 6 6 4 Pn k¼ 1 Zð1ÞðkÞiþ1Pn k¼ 1 n uð0ÞðkÞZð1ÞðkÞioPn k¼ 1 Zð1ÞðkÞ2iPn k¼ 1uð0ÞðkÞZð1ÞðkÞ P_n k¼ 1 n uð0ÞðkÞZð1ÞðkÞio Pn k¼ 1 Zð1ÞðkÞ2Pn k¼ 1 uð0ÞðkÞZð1Þ_ðkÞ Pn k¼ 1 Zð1ÞðkÞiþ1 3 7 7 7 7 5 Pn k¼ 1 Zð1ÞðkÞ2iPn k¼ 1 Zð1ÞðkÞ2 Pn k¼ 1 Zð1ÞðkÞiþ1 !2 (13)

(5)

The response equation is the following: u _ð1Þ ðkÞ ¼ uð0Þð0Þð1iÞb a eað1iÞkþb a 1=ð1iÞ ; is1 and k ¼ 0; 1; /; (14)

By performing IAGO on u_ð1Þðk þ 1Þ, the predicted value of ^uð0Þ_{ðk þ 1Þ is}

u _ð0Þ

ðk þ 1Þ ¼ u_ð1Þðk þ 1Þ u_ð1ÞðkÞ; k ¼ 0; 1; .; (15)

where u_ð0Þð1Þ; u_ð0Þð2Þ; .; u_ð0ÞðnÞ are called the NGBMi_{(1, 1)}_ﬁtted

sequence, and u_ð0Þðn þ 1Þ; u_ð0Þðn þ 2Þ; .; are called the NGBMi_(1,

1) out-of-sample forecast values.

The parameter i in NGBM serves as the adjustable parameter, this paper proposes a numerical iterative method with MAPE value to optimize this parameter. In the next section, the iterative results will show parameter i is efﬁcient in improving the model precision, and the prediction results of NGBM with optimal parameter i model (NGBMOP) are compared with the results of the ARIMA and GM (1, 1) models.

For the purpose of evaluating the out-of-sample forecast capa-bility, the forecasting accuracy is examined by calculating three different evaluation statistics: the root mean square error (RMSE), the mean absolute error (MAE) and the mean absolute percentage error (MAPE). These are expressed as follows:

RMSE ¼ ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi Pn i¼ 1ðPi AiÞ 2 n s ; MAE ¼ Pn i¼ 1jPi Aij n; MAPE ¼ Pn i¼ 1jðPi AiÞ=Aij n*100; (16)

where Piand Aiare the ith forecasting and actual values,

respec-tively, and n is the total number of predictions. Lewis[54]interprets the MAPE results as way to judge the accuracy of the forecast, where less than 10% is a highly accurate forecast; 10%e20% is a good forecast; 20%e50% is a reasonable forecast; and more than 50% is an inaccurate forecast.

4. Data and forecasts 4.1. Data analysis

This study collected annual data on energy consumption for 1980e2008, and the CO2emissions, energy intensity and carbon

intensity for 1980_{e2009, from the EIA. The real GDP from 1980 to} 2009 was collected from the World Development Indicators (WDI). CO2emissions are measured in metric tons of carbon dioxide based

on the energy consumption and_{ﬂaring of fossil fuels. Real GDP is} measured in US dollars at 2000 prices. Total energy consumption is measured in quadrillion Btu (British thermal unit). The energy intensity in Btu is measured by the total primary energy consumption per dollar of GDP. The carbon intensity in metric tons

is measured by the total carbon dioxide emissions from the consumption of energy per dollar of GDP. Table 1 displays the summary statistics associated with theﬁve variables.

Fig. 1shows the change trend of each series for China. All vari-ables increased over time, with real GDP exhibiting the most related variation (defined by the coefficient of variation (CV)), and emissions the least related variation (Table 1).Table 2 shows the annual average percentage growth rates in the years to 2008 of each variable. Fifteen-, ten-, and five-year growth rates were calculated as the growth between 1993 and 2008, 1998e2008, and 2003e2008, respectively. In the most recent five years Table 1

Summary statistics for China, 1980e2008. CO2emissions (billion metric tons) Energy consumption (quadrillion Btu) Real GDP (constant 2000 US$ billion) Mean S.D. CV (%) Mean S.D. CV (%) Mean S.D. CV (%)

3.04 1.48 48.68 37.32 18.89 50.62 927.89 713.18 76.86 1 2 3 4 5 6 7 1980 1985 1990 1995 2000 2005

CO2 (Billion Metric Tons)

10 20 30 40 50 60 70 80 90 1980 1985 1990 1995 2000 2005 EC (Quadrillion Btu) 0 500 1,000 1,500 2,000 2,500 3,000 1980 1985 1990 1995 2000 2005 GDP (US$ Billion)

Fig. 1. Time series plots of the emissions, energy consumption and real GDP, 1980e2008.

(6)

(2003e2008), the average growth rate in real GDP was 11.57%, which is almost 3.4 times higher than the world growth rate of 3.43%; the growth rate in energy consumption was 10.71%, which is almost 3.6 times higher than the world growth rate of 2.97%; and the emissions growth rate was 10.82%, which is almost 3.3 times higher than the world growth rate of 3.26%. These indicate that China is a very fast growing market. Thefive-year growth rate in emissions is almost 1.7 times higher than the_{fifteen-year growth} rate, but it is only 1.1 times higher than thefifteen-year growth rate in real GDP. For the ten-year andfifteen-year growth rates, energy consumption was greater than emissions, but emissions were greater than energy consumption for the five-year growth rate. These results show that China has no intention of capping its emissions, even as authorities are committed to realising the nation’s target to reduce carbon intensity through new policies and measures. Additionally, the fifteen-year decline rate of carbon intensity and energy intensity shown inTable 2were 3.26% and 2.68%, respectively, which is almost 4.0 and 3.8 times higher than the world decline rate of 0.81% and 0.71%, respectively. These numbers show that China has made significant gains in reducing

carbon intensity and energy intensity in the ﬁfteen-year period, despite an increase in both emissions and energy consumption; however, developing countries have a long way to go to improve people’s lives and eliminate poverty. Despite these challenges, China has pledged to reach their goal of cutting carbon intensity per GDP unit by 40e45% by 2020[2].

4.2. Co-integration test

The annual data from 1980 to 2008 were used to estimate Eqs. (1,2), and the time series properties of the variables were checked using three different unit root tests, including the ADF, PP, and KPSS. The coefﬁcients of Eq.(2-b)shown inTable 3indicate that the relationship between income and emissions resembles a U-shape; therefore, the estimates cannot support an EKC hypothesis. The turning point of the U-shape occurs at an income level of 3.95 (¼0.79/(2*0.10), in logarithm). Because the value of the turning point (3.95) is less than the minimum value (5.21) of the LGDP in China for the period 1980e2008, the relationship between income and emissions shown inFig. 2presents a monotonic increase. The values of the R2, adjusted R2and JB-statistic from Eq.(2)shown in Table 3 indicate that Eq. (2-d) is inappropriate because adding LGDP2results in an adjusted R2that is slightly larger (<0.001), and the p-value of the JB-statistic is less than 0.01. The comprehensive results of Eq.(2-b)with turning point and Eq.(2-d)imply that Eq. (2-c)is appropriate to describe the relationship among variables.

All of the series in Eq.(2-c)appear to contain a unit root in their levels but are stationary in theirﬁrst difference, indicating that they are integrated at order one, i.e., I (1). The results are displayed in Table 3

Coefﬁcients of Eq.(2)for CO2emissions.

Independent variables

LGDP LGDP2 _LEC _Intercept _Adj-R2 _R2 _JB _{p val.}

Eq.(2-a) 0.520*** (19.046) 2.385*** (13.264) 0.9282 0.9307 1.877 0.391 Eq.(2-b) 0.790* (1.853) 0.100*** (3.079) 1.827 (1.327) 0.9453 0.9492 4.085 0.130 Eq.(2-c) 0.081*** (75.10) 1.095*** (1186.64) 2.308*** (312.59) 0.9983 0.9985 0.233 0.890 Eq.(2-d) 0.193*** (52.69) 0.026*** (28.69) 1.196*** (99.71) 3.338*** (115.72) 0.9991 0.9992 139.584 0.000 Figures in parentheses indicate t-statistics.

* and *** indicate the rejection of a null hypothesis at 10% and 1% level of signiﬁcance, respectively. Table 2

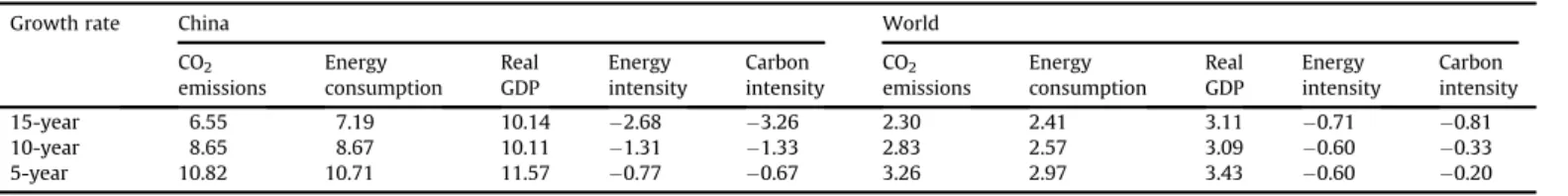

Average growth rates in percentages to 2008 for each variable.

Growth rate China World

CO2 emissions Energy consumption Real GDP Energy intensity Carbon intensity CO2 emissions Energy consumption Real GDP Energy intensity Carbon intensity 15-year 6.55 7.19 10.14 2.68 3.26 2.30 2.41 3.11 0.71 0.81 10-year 8.65 8.67 10.11 1.31 1.33 2.83 2.57 3.09 0.60 0.33 5-year 10.82 10.71 11.57 0.77 0.67 3.26 2.97 3.43 0.60 0.20 0.0 0.4 0.8 1.2 1.6 2.0 5.0 5.5 6.0 6.5 7.0 7.5 8.0 LGDP LCO2

Fig. 2. The ln(CO2emissions)eln(GDP) plot for China, 1980e2008.

Table 4

Results of the unit roots tests.

ADF PP KPSS

Level 1st diff. Level 1st diff. Level 1st diff.

LCO 0.07 2.64* 0.96 2.72* 0.67** 0.20

LEC 0.30 2.93* 1.25 2.96* 0.68** 0.24

LGDP 0.48 3.92*** 0.30 3.29** 0.70** 0.06

All unit roots (except the KPSS) have a null hypothesis in that the series has a unit root against the alternative of being stationary. The null of KPSS states that the variable is stationary. Individual intercepts are included in test regressions. *, ** and *** mean that the null of the unit root test is rejected at a 10%, 5% and 1% level. The lag lengths are selected using AIC.

(7)

Table 4. The next step is to test whether the variables in Eq.(2-c)are co-integrated; therefore,Table 5shows the results of the Johansen test. The trace and eigenvalue tests reject the hypothesis of no co-integrating equation at a 5% or better level of signi_{ficance and} indicate at least one co-integration equation with no lags. There-fore, there is a long-run equilibrium relationship between emis-sions, energy consumption and real GDP, and the OLS applied to the estimated Eq.(2-c)does not lead to a spurious regression result. The results of Eq.(2-c)indicate that a 1% increase in energy usage increases emissions by 1.095% when the real GDP does not change, and a 1% increase in real output decreases emissions by 0.081% when energy consumption does not change. Therefore, emissions appear to be real output inelastic and energy consumption elastic, and energy consumption is a more important determinant of emissions than real output in China. In addition, results indicate that when the energy consumption does not change, real output is signi_{ficantly negative impact on emissions. In order to enhance} economic growth and reduce emissions, it is suggested that China should increase both energy supply investment and energy ef fi-ciency, and step up energy conservation policies to reduce unnec-essary wastage of energy. Based on long-run equilibrium relationship, forecasts of CO2emissions, energy consumption and

economic growth are a vital part of green energy policy. 4.3. Forecasting results

The multi-step forecasting abilities of the NGBM-OP models were compared with the ARIMA and GM (1, 1) models using actual data over the six-year, out-of-sample period between 2003 and 2008 for energy consumption, and 2004e2009 for the CO2

emissions and the real GDP variables. For each variable, the GM models used six-year (GM-6, 1997e2002 or 1998e2003), ﬁve-year (GM-5, 1998e2002 or 1999e2003) and four-year (GM-4, 1999e2002 or 2000e2003) data as the in-sample period, and the ARIMAs used only one in-sample period from 1980 to 2002 or 1980e2003. This in-sample period was used to build the models, and the out-of-sample period was used to evaluate the prediction accuracy by using the RMSE, MAE and MAPE statistics. For each variable, the best GM model was determined by the smallest MAPE value. The original data set for the best GM-k (k¼ 6, 5 or 4) model was employed to build the NGBMOP model, where the parameter i was determined using the numerical iterative method with the MAPE value.Figs. 3e5show the impact on the results of the MAPE in the NGBM when the parameters i are set to0.2 to 0.2, with 0.01 increments, for emissions, energy consumption and output, respectively. They show that the numerical iterative method is an effective optimisation algorithm that is suitable for the parameter i selection of the NGBM. In particular, for all tested i, 0.1, 0.1 and0.08 resulted in the smallest MAPE values in the NGBMi_model

for emissions, energy consumption and real GDP, respectively. Table 5

Results of the Johansen co-integration test. Panel C: Eq.(4)

Variable: LCO, LEC and LGDP; lag¼ 1 Eigenvalue Trace Stat. 5% critical value Max Eigen. Statistic 5% critical value Number of co-integrations 0.941 92.10* 35.19 79.33* 22.30 None 0.286 12.78 20.26 9.44 15.89 At most 1 0.113 3.34 9.17 3.34 9.17 At most 2

The optimal lag lengths are selected using AIC.

* indicates the rejection of a null hypothesis at a 5% level of signiﬁcance.

-0.2 -0.15 -0.1 -0.05 0 0.05 0.1 0.15 0.2 4 6 8 10 12 14 16 18

Fig. 3. The results of the MAPE with different power i in the NGBMi_{(1,1) for emissions}

over the out-of-sample period between 2004 and 2009.

-0.26 -0.15 -0.1 -0.05 0 0.05 0.1 0.15 0.2 8 10 12 14 16 18 20 22 24

Fig. 4. The results of the MAPE with different power i in the NGBMi_{(1, 1) for energy}

consumption over the out-of-sample period between 2003 and 2008.

-0.2 -0.15 -0.1 -0.05 0 0.05 0.1 0.15 0.2 0 2 4 6 8 10 12 14 16 18 20

Fig. 5. The results of the MAPE with different power i in the NGBMi_{(1, 1) for real GDP}

(8)

Five observations can be made. First, the NGBMOP have a strong forecasting performance because all of the MAPE values are ranging from 1.10% to 6.26%, while the ARIMA and GM models have a good or reasonable forecasting performance[54]. The results are shown inTable 6. Second, the optimal GM (1, 1) models for

emissions, energy consumption and real GDP are GM-5

(MAPE ¼ 7.84%), GM-4 (MAPE ¼ 11.42%) and GM-4

(MAPE¼ 5.65%), respectively, which have the smallest values of MAPE among the GM-k models. The estimated values of parame-ters a and b for each GM are shown inTable 7. Third,Figs. 3e5show that the proposed numerical iterative method is an effective opti-mization algorithm for choosing optimal parameters i in the NGBM to improve the accuracy of the model. Fourth, the NGBMOP for emissions, energy consumption and real GDP are NGBM-0.1 (MAPE ¼ 4.72%), NGBM-0.1 (MAPE ¼ 6.26%) and NGBM-0.08 (MAPE¼ 1.10%), respectively. The estimated values of parameters a and b for each NGBMOP are shown inTable 7. Finally, this study uses the proposed NGBMOP models to forecast three variables for China from 2009 to 2020. The forecast data, together with the actual data, are presented inTable 8. The prediction results show that China’s emissions, energy consumption and real GDP will grow at a compound annual growth rates (CAGRs) of 4.47%,0.06% and 6.67%, respectively in the next decade to 2020.

5. Discussion

This study employs univariate multi-period forecasting approach to predict variables about the green energy system for China. The employed approach includes three models, namely, ARIMA, GM and NGBMOP. For the out-of-sample period 2004e2009, the MAPE values of NGBMOP are ranging from 1.10% to 6.26%. The results are compared with leading research in the areas of energy forecasting, e.g., Wang et al.[39], Lee and Tong[40] and Pi et al.[41]for China, and Kumar and Jain[42]for India. Wang et al. used three univariate models, namely, discrete grey model (DGM), rolling DGM (RDGM) and p value RDGM to forecast coal production in China. During the out-of-sample period 2006e2010, the MAPE values of Wang et al. range from 1.28% to 14.52%, and their p value RDGM model has the best forecasting performance, e.g., MAPE ¼ 1.28%. Lee and Tong proposed an improved grey forecasting model that combines residual modiﬁcation with genetic

programming sign estimation to forecast energy consumption in China. For the out-of-sample period 2004e2007, Lee and Tong’s MAPE value is 20.23%. Pi et al. used three univariate models, namely, GM, Remnant GM and improved GM to forecast China’s electricity demand and energy production. For the out-of-sample period 1990e2006, the MAPE values of Pi et al. are ranging from 2.7% to 8.6%, where the improved GM shows the best forecasting performance, e.g., the MAPE values are 2.7% and 4.6% for electricity and energy production, respectively. Additionally, Kumar and Jain applied three univariate models, namely, Markov, Grey-Model with rolling mechanism and singular spectrum analysis to forecast consumption of conventional energy (petroleum, coal, electricity and nature gas) in India. For two out-of-sample forecasts (2006e2007), the MAPE values of Kumar and Jain’s models are ranging from 1.6% to 3.4%.

According to Lewis’s criteria[54]and the above discussion, the proposed NGBMOP presents a highly accurate forecast for clean energy economy (emissions, energy consumption and real GDP) in rapid growth market such as China. As we can see that the pre-dicted MAPE values are lesser than or equal to 6.26%, which is much Table 6

Out-of-sample comparisons among the NGBMOP, GM and ARIMA models.

ARIMA GM-4 GM-5 GM-6 NGBMOP

Forecasts of CO2emissions (billion metric tons) (2004e2009) i¼ 0.1, n ¼ 5

RMSE 1.53 1.55 0.57 0.68 0.35

MAE 1.68 1.21 0.50 0.67 0.26

MAPE 23.74% 17.91% 7.84% 11.08% 4.72%

Forecasts of energy consumption (Quadrillion Btu) (2003e2008) i¼ 0.1, n ¼ 4

RMSE 21.45 8.30 16.87 22.47 4.97

MAE 19.57 7.96 16.04 21.20 4.17

MAPE 26.64% 11.42% 22.33% 29.36% 6.26%

Forecasts of real GDP (Constant 2000 US$ Billion) (2004e2009) i¼ 0.08, n ¼ 4

RMSE 331.18 172.05 209.12 230.97 40.15

MAE 264.08 143.59 176.66 196.31 27.45

MAPE 10.18% 5.65% 6.98% 7.78% 1.10%

Table 7

The parameters a and b in both the GM and NGBMOP models.

Parameter Emissions Energy consumption Real GDP Emissions Energy consumption Real GDP

GM-5 GM-4 GM-4 NGBMOP NGBMOP NGBMOP

a 0.1277 0.0969 0.0914 0.0994 0.1279 0.1186

b 2.1837 30.5185 1127.1 1.9728 43.1760 1971.5

Table 8

Forecasts of emissions, energy consumption and GDP for China, 2009e2020. Year Emissions (billion

metric tons)

Energy consumption (quadrillion Btu)

GDP (constant 2000 US$ billion) Actual NGBMOP Actual NGBMOP Actual NGBMOP

2005 5.51 5.51 68.25 68.25 2006 5.82 5.59 72.89 71.58 2007 6.26 6.36 78.00 79.29 2456.68 2456.68 2008 6.80 6.98 85.06 84.26 2692.53 2668.87 2009 7.71 7.54 87.62 2940.23 2961.37 2010 8.05 89.93 3243.07 3226.91 2011 8.53 91.46 3484.94 2012 9.00 92.42 3743.48 2013 9.45 92.93 4006.85 2014 9.89 93.08 4277.81 2015 10.32 92.95 4558.36 2016 10.75 92.57 4850.08 2017 11.18 92.00 5154.33 2018 11.61 91.27 5472.36 2019 12.03 90.41 5805.33 2020 12.46 89.43 6154.37

(9)

lesser than Lewis’s criteria, 10%. However, due to the recent uncertain global economics, high-tech progresses and changing social structures in a country, for eachﬁve year period, it is strictly recommended revising the results using NGBMOP to obtain more accurate outcomes.

6. Conclusions

In this paper, it is attempted to model and forecast CO2

emis-sions, energy consumption and real GDP for China based on co-integration technique and intelligent grey prediction model. Using recent four- to six-year historical data, the proposed univariate NGBMOP obtained robust results in terms of MAPE, RMSE and MAE, when compared with both ARIMA and GM models. All of the MAPEs of NGBMOP for out-of-sample are ranging from 1.10% to 6.26%. Performance evaluation results clearly show that NGBMOP can be used safely for future projection of these indi-cators in clean energy economy. Future projections have also been carried out for these indicators using NGBMOP for the period between 2009 and 2020. The prediction results show that China’s emissions, energy consumption and real GDP will grow at a compound annual growth rates (CAGRs) of 4.47%, 0.06% and 6.67%, respectively in the next decade to 2020. The CAGRs over the next decade (2011e2020) are lower than the CAGRs (8.65%, 8.67% and 10.11%, respectively) over the past decade. It indicates that China will effectively conserve resources, protect the environment and respond actively to climate change.

Based on co-integration technique, the estimated values showed that there was a long-run equilibrium relationship between emis-sions, energy consumption and real GDP, and emissions appeared to be real output inelastic and energy consumption elastic over the period 1980e2008 in China. Therefore, energy consumption was a more important determinant of emissions than real output, and the estimates did not support an EKC hypothesis. In addition, estimated results indicate that when energy consumption does not change, real output is significantly negative impact on emissions. During the period 1980e2008, the correlation coefficient between carbon emissions and energy efficiency (GDP/Energy ratio, PPP $ per kg of oil equivalent)[55]is91.67%, and the correlation coef-ficient between energy efficiency and real GDP is 96.52%. Therefore, economic growth has a negative impact on emissions in China. Figure for 2008 shows that China’s GDP/Energy ratio is 3.88, which is lower than 6.26 in USA or 5.54 in India. However, the ten-year average growth rate in GDP/Energy ratio is 11.27%, which is higher than the 9.05% in USA or 9.46% in Germany. Additionally, China’s energy intensity fell 19.1% over the past five years[2]. The results indicate that the government made vast gains in increasing energy efficiency, although China has relatively low energy effi-ciency. Therefore, we suggest that China should adopt the dual strategy of increasing investment in energy infrastructure, reducing the loss in power transmission and distribution and stepping up energy conservation policies to reduce any unnecessary wastage of energy. In other words, energy conservation is expected to increase the efficient use of energy, thus promoting economic growth and environmental quality.

References

[1] CO2emissions from fuel combustion. IEA Statistics 2011.

[2] China accelerates energy efﬁciency goal. Environmental Leader 2011. [3] Xinhua. China prepares to end GDP obsession. ChinaDaily; 2011.

[4] Deng JL. The primary methods of grey system theory. 2nd ed. Wuhan, China: Huazhong University of Science and Technology Press; 2005.

[5] Wang J, Yan R, Hollister K, Zhu D. A historic review of management science research in China, Omega. International Journal of Management Science 2008; 36:919e32.

[6] Grossman GM, Krueger AB. Environmental impacts of a North American free trade agreement. NBER working paper 3914. Cambridge, MA: National Bureau of Economic Research; 1991.

[7] Coondoo D, Dinda S. The carbon dioxide emission and income: a temporal analysis of cross-country distributional patterns. Ecological Economics 2008;65:375e85. [8] Akbostanci E, Turut-Asik S, Tunc GI. The relationship between income and environment in Turkey: is there an environmental Kuznets curve? Energy Policy 2009;37:861e7.

[9] Kraft J, Kraft A. On the relationship between energy and GNP. Journal of Energy Development 1978;3:401e3.

[10] Belloumi M. Energy consumption and GDP in Tunisia: co-integration and causality analysis. Energy Policy 2009;37:2745e53.

[11] Pao HT. Forecast of electricity consumption and economic growth in Taiwan by state space modeling. Energy 2009;34:1779e91.

[12] Ang JB. CO2emissions, energy consumption, and output in France. Energy

Policy 2007;35:4772e8.

[13] Soytas U, Sari R, Ewing BT. Energy consumption, income, and carbon emis-sions in the United States. Ecological Economics 2007;62:482e9.

[14] Zhang XP, Cheng XM. Energy consumption, carbon emissions, and economic growth in China. Ecological Economics 2009;68:2706e12.

[15] Acaravci A, Ozturk I. On the relationship between energy consumption, CO2

emissions and economic growth in Europe. Energy 2010;35:5412e20. [16] Apergis N, Payne JE. CO2emissions, energy usage, and output in Central

America. Energy Policy 2009;37:3282e6.

[17] Pao HT, Tsai CM. CO2emissions, energy consumption and economic growth in

BRIC countries. Energy Policy 2010;38:7850e60.

[18] Pao HT, Tsai CM. Multivariate Granger causality between CO2 emissions,

energy consumption, FDI (foreign direct investment) and GDP (gross domestic product): evidence from a panel of BRIC (Brazil, Russian Federation, India, and China) countries. Energy 2011;36(1):685e93.

[19] Pao HT, Yu HC, Yang YH. Modeling the CO2 emissions, energy use, and

economic growth in Russia. Energy 2011;36:5094e100.

[20] Amarawickrama HA, Hunt LC. Electricity demand for Sri Lanka: a time series analysis. Energy 2008;33:724e39.

[21] Pao HT. Comparing linear and nonlinear forecasts for Taiwan’s electricity consumption. Energy 2006;31:2129e41.

[22] Bianco V, Manca O, Nardini S. Electricity consumption forecasting in Italy using linear regression models. Energy 2009;34(9):1413e21.

[23] Box GEP, Jenkins GM. Time series analysis: forecasting and control. San Francisco: Holden-Day; 1976.

[24] Bowden N, Payne JE. Short term forecasting of electricity prices for MISO hubs: evidence from ARIMA-EGARCH models. Energy Economics 2008;30(6): 3186e97.

[25] Pappas SS, Ekonomou L, karamousantas DC, Chatzarakis GE, Katsikas SK, Liatsis P. Electricity demand loads modeling using Auto Regressive moving average (ARMA) models. Energy 2008;33(9):1353e60.

[26] Azadeh A, Ghaderi SF, Sohrabkhani S. A simulated-based neural network algorithm for forecasting electrical energy consumption in Iran. Energy Policy 2008;38:2637e44.

[27] Pao HT. Forecasting electricity market pricing using artiﬁcial neural networks. Energy Conversion and Management 2007;48:907e12.

[28] Kaynar O, Yilmaz I, Demirkoparan F. Forecasting of natural gas consumption with neural network and neuro fuzzy system. Energy Education Science and Technology Part A-Energy Science and Research 2011;26:221e38. [29] Mamlook R, Badran O, Abdulhadi E. A fuzzy inference model for short-term

load forecasting. Energy Policy 2009;37(4):1239e48.

[30] Azadeh A, Khakestani M, Saberi M. Aﬂexible fuzzy regression algorithm for forecasting oil consumption estimation. Energy Policy 2009;37:5567e79. [31] Pao HT. Forecasting energy consumption in Taiwan using hybrid nonlinear

models. Energy 2009;34:1438e46.

[32] Li K, Su H. Forecasting building energy consumption with hybrid genetic algorithm-hierarchical adaptive network-based fuzzy inference system. Energy and Buildings 2010;42:2070e6.

[33] Deng J. Introduction of grey system. Journal of Grey System 1989;1:1e24. [34] Akay D, Atak M. Grey prediction with rolling mechanism for electricity

demand forecasting of Turkey. Energy 2007;32:1670e5.

[35] Pao HT, Tsai CM. Modeling and forecasting the CO2 emissions, energy

consumption, and economic growth in Brazil. Energy 2011;36:2450e8. [36] Yao AWL, Chi SC. Analysis and design of a taguchi-grey based electricity

demand predictor for energy management systems. Energy Conversion and Management 2004;45:1205e17.

[37] Yao AWL, Chi SC, Chen CK. Development of an integrated grey-fuzzy-based electricity management system for enterprises. Energy 2005;30:2759e71. [38] Zhou P, Ang BW, Poh KL. A trigonometric grey prediction approach to

fore-casting electricity demand. Energy 2006;31:2839e47.

[39] Wang J, Dong Y, Wu J, Mu R, Jiang H. Coal production forecast and low carbon policies in China. Energy Policy 2011;39:5970e9.

[40] Lee YS, Tong LI. Forecasting energy consumption using a grey model improved by incorporating genetic programming. Energy Conversion and Management 2011;52:147e52.

[41] Pi D, Liu J, Qin X. A grey prediction approach to forecasting energy demand in China. Energy Sources, Part A 2010;32:1517e28.

[42] Kumar U, Jain VK. Time series models (Grey-Markov, Grey Model with rolling mechanism and singular spectrum analysis) to forecast energy consumption in India. Energy 2010;35:1709e16.

(10)

[43] Chen CI, Chen HL, Chen SP. Forecasting of foreign exchange rates of Taiwan’s major trading partners by novel nonlinear grey Bernoulli model, NGBM(1,1). Communications in Nonlinear Science and Numerical Simulation 2008;13(6): 1194e204.

[44] Liu SF, Dang YG, Fang ZG. The theory of grey system and its applications. Beijing: Science Press; 2004 (in Chinese).

[45] Zill DG, Cullen MR. Advanced engineering mathematics. 2nd ed. Massachu-setts: Jones and Bartlett; 2000.

[46] Zhou J, Fang R, Li Y, Zhang Y, Peng B. Parameter optimization of nonlinear grey Bernoulli model using particle swarm optimization. Applied Mathematics and Computation 2009;207:292e9.

[47] Jarque CM, Bera AK. Efﬁcient tests for normality, homoskedasticity and serial independence of regression residuals. Economics Letters 1980;6: 255e9.

[48] Dickey DA, Fuller WA. Likelihood ratio statistics for autoregressive time series with a unit root. Econometrica 1981;49:1057e72.

[49] Phillips PC, Perron P. Testing for a unit root in time series regression. Bio-metrika 1988;75:335e46.

[50] Kwiatkowski D, Phillips P, Schmidt P, Shin Y. Testing the null hypothesis of stationarity against the alternative of a unit root: how sure are we that economic time series have a unit root? Journal of Econometrics 1992;54: 159e78.

[51] Johansen S. Statistical analysis of co-integrating vectors. Journal of Economic Dynamics and Control 1988;12:231e54.

[52] Johansen S, Juselius K. Maximum likelihood estimation and inferences on co-integration with approach. Oxford Bulletin of Economics and Statistics 1990; 52:169e209.

[53] Chen CI. Application of the novel nonlinear grey Bernoulli model for fore-casting unemployment rate. Chaos Solitons & Fractals 2008;37:278e87. [54] Lewis CD. Industrial and Business forecasting method. London:

Butter-wortheHeinemann; 1982.
