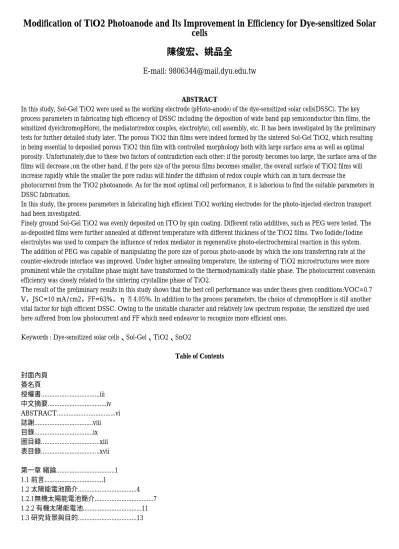

Modification of TiO2 Photoanode and Its Improvement in Efficiency for Dye-sensitized Solar cells
陳俊宏、姚品全
E-mail: [email protected]
ABSTRACT
In this study, Sol-Gel TiO2 were used as the working electrode (pHoto-anode) of the dye-sensitized solar cells(DSSC). The key process parameters in fabricating high efficiency of DSSC including the deposition of wide band gap semiconductor thin films, the sensitized dye(chromopHore), the mediator(redox couples, electrolyte), cell assembly, etc. It has been investigated by the preliminary tests for further detailed study later. The porous TiO2 thin films were indeed formed by the sintered Sol-Gel TiO2, which resulting in being essential to deposited porous TiO2 thin film with controlled morphology both with large surface area as well as optimal porosity. Unfortunately,due to these two factors of contradiction each other: if the porosity becomes too large, the surface area of the films will decrease.;on the other hand, if the pore size of the porous films becomes smaller, the overall surface of TiO2 films will increase rapidly while the smaller the pore radius will hinder the diffusion of redox couple which can in turn decrease the
photocurrent from the TiO2 photoanode. As for the most optimal cell performance, it is laborious to find the suitable parameters in DSSC fabrication.
In this study, the process parameters in fabricating high efficient TiO2 working electrodes for the photo-injected electron transport had been investigated.
Finely ground Sol-Gel TiO2 was evenly deposited on ITO by spin coating. Different ratio additives, such as PEG were tested. The as-deposited films were further annealed at different temperature with different thickness of the TiO2 films. Two Iodide/Iodine electrolytes was used to compare the influence of redox mediator in regenerative photo-electrochemical reaction in this system.
The addition of PEG was capable of manipulating the pore size of porous photo-anode by which the ions transferring rate at the counter-electrode interface was improved. Under higher annealing temperature, the sintering of TiO2 microstructures were more prominent while the crystalline phase might have transformed to the thermodynamically stable phase. The photocurrent conversion efficiency was closely related to the sintering crystalline phase of TiO2.
The result of the preliminary results in this study shows that the best cell performance was under theses given conditions:VOC=0.7 V，JSC=10 mA/cm2，FF=63%，η ?l 4.05%. In addition to the process parameters, the choice of chromopHore is still another vital factor for high efficient DSSC. Owing to the unstable character and relatively low spectrum response, the sensitized dye used here suffered from low photocurrent and FF which need endeavor to recognize more efficient ones.
Keywords : Dye-sensitized solar cells、Sol-Gel、TiO2、SnO2
Table of Contents
封面內頁 簽名頁
授權書...iii
中文摘要...iv
ABSTRACT...vi
誌謝...viii
目錄...ix
圖目錄...xiii
表目錄...xvii
第一章 緒論...1
1.1 前言...1
1.2 太陽能電池簡介...4
1.2.1無機太陽能電池簡介...7
1.2.2 有機太陽能電池...11
1.3 研究背景與目的...13
1.4 本文架構...14
第二章 色素增感型太陽能電池原理及文獻...15
2.1 色素增感型太陽能電池之結構與簡介說明...15
2.2 TiO2工作電極...19
2.3 染料...21
2.4 電解質...22
2.5 對電極...24
2.6 色素增感型太陽能電池之工作原理...25
2.6.1太陽光譜簡介...25
2.6.2 工作原理的起源:光合作用機制...27
2.6.3色素增感光技術之演化與應用...28
2.6.4光電化學太陽電池的氧化還原機制...31
2.6.5色素增感型太陽電池之供電原理...35
2.7 色素增感型太陽能電池之等效電路...38
2.8 色素增感型太陽能電池之光電轉換特性...40
2.8.1 短路電流( Isc，short circuit current )...40
2.8.2 開路電壓 ( Voc，open circuit voltage )...41
2.8.3 填充因子 ( FF，fill factor )...41
2.8.4 能量轉換效率 ( η，power conversion efficiency )...42
2.9 色素增感型太陽能電池之串聯電阻...44
第三章 實驗設備與方法...47
3.1實驗流程...47
3.2 實驗設備...48
3.3 藥品耗材...49
3.3.1 燒結系統...50
3.3.2 天秤...51
3.3.3 磁石共震機...52
3.3.4 烤箱...52
3.3.5 超音波震盪器...53
3.3.6 塗佈機(Spin-Coater)...53
3.3.7 濺鍍機(Sputter)...54
3.3.8濃縮系統(Enrichment system)...54
3.4 量測設備...55
3.4.1 掃描式電子顯微鏡(Scanning Electron Microscopy; SEM)...55
3.4.2 太陽光模擬器與IV量測儀器...56
3.4.3 紫外/可見光分光光譜儀(UV-VIS)...57
3.5 實驗內容...58
3.5.1氧化銦錫玻璃(ITO)基板之清洗...58
3.5.2 染料調製...59
3.5.3 工作電極製作...59
3.5.4 對電極製作...64
3.5.5 電解液調製...64
3.5.6 組裝及電解液注入...64
第四章 結果與討論...67
4.1 旋塗轉速比較...67
4.2 添加PEG於TiO2之影響...73
4.3 熱處理溫度...78
4.3.1 熱處理溫度IV量測...78
4.3.2 熱處理溫度XRD分析...82
4.4 修飾結構分析...83
4.4.1 修飾結構IV量測...84
4.4.2 修飾結構FE-SEM圖...87
4.4.3 修飾結構XRD圖...89
4.4.4 修飾結構之吸附染料反萃取探討...90
4.4.5 異質結構之原子?顯微鏡觀察...94
4.5 以PEG調整工作電極孔隙結構...98
第五章 結論與建議...102
5.1 結論...102
5.2 建議...103
參考文獻...105 REFERENCES
[1] http://www.funddj.com/KMDJ/Report/ReportViewer.aspx?a=98890fd3-76f9-4afa-9893-efea2ba1a06a(DJ財經知識庫)[2]莊嘉琛”太陽能 工程-太陽能電池篇”, 全華，台北市，第一章、第二章、第四章，民86.
[3]M.Gr?tzel,” Powering the planet”Nature,403,363(2000)[4]B. O’Regan , M.Gr?tzel,” A low-cost,high-efficiency solar cell based on dye-sensitized colloidal TiO2 films”Nature,353,737(1991)[5]大葉大學電機工程研究所碩士論文, “CuPc-C60有機光電元件之製作與特性研 究”, 沈師宇2006.
[6]南台科技大學機械工程研究所碩士論文, “應用於染料敏化太陽能電池之二氧化鈦薄膜與粉末製程及其特性研究”，郭正鏞，P7
，2004.
[7]R. Woodyard and G.A. Camdoes, Solar Cells, 31(1991),297.
[8]N.Chu and D.Honemam, Solar Cells, 31 (1991) 197.
[9]Ramanathan, K., et al., Properties of 19.2% efficiency ZnO/CdS/CuInGaSe2 Thin-film solar cell. Prog. photovolt: Res. Appl.,2003. 11: p.
225-230.
[10]V. Y. Merritt. and H. J. Hovel, “Organic solar cell of hydroxy squarylium” , Appl. phys. Lett., 29, 414, 1976.
[11]C. W. Tang, “Two-layer organic photovoltaic cell”, Appl. phys.Lett. 48, 183, 1986.
[12]P. Peumans, V. Bulovic, and S. R. Forrest, “Efficient photon harvesting at high oPtical intensities in ultrathin organic double-heterostructure photovoltaic diodes”, Appl. phys. Lett. 76, 2650, 2000.
[13]P. Peumans, and S. R. Forrest, “Very-high-efficiency double-heterostructure copper phthalocyanine/C60 photovoltaic cells ”, Appl. phys.
Lett., 79, 126, 2001.
[14]J. Xue, S. Uchida, B. P. Rand, and S. R. Forrest, “4.2% efficient organic photovoltaic cells with low series resistances”, Appl. phys. Lett., 84, 3013, 2004.
[15]F. Padinger, R. S. Rittberger, and N. S. Sariciftci, Adv. Funct. Mater. 13, 85, 2003.
[16]M. K. Nazeeruddin, A. Kay, I. Rodicio, R. HumpHry-Baker, E. Muller, P. Lisja, N.Vlachopoulos, M. Gr?tzel, “Conversion of Light to Electricity by cis-X2Bis(2,2 –bipyridy1-4,4 -dicarboxylate)ruthenium ( Charge-Transfer Sensitizers (X=Cl-,Br-,I-,CN-,and SCN-) on Nanocrystalline TiO2 Electrodes”, J. Am. Chem. Soc, 115, 6382, 1993.
[17]J.Ferber,M.Hilgendorff,A.P.Yartsev,V.Sundstrom,J.pHys.Chem. B2001,105,4895-4903.
[18]東華大學 羅幼旭，TiO2 奈米多孔性薄膜於染料敏化太陽能電池(dye-sensitized solar cell, DSSC) 之應用,
http://tns.ndhu.edu.tw/~nano/labtext/DSSC_lab.pdf[19]工業材料，奈米光電電池，劉茂煌, 203期, 91-97[20]C.J Barbe, F.Areddse,P.
Comte,M. Jirousek, F Lenzmann, V Shklover, M. Gr?tzel, ” Nanocrystalline Titanium Oxide Electrode for pHotovoltaic Application,”J.Am.
Cream. Soc.80,3157(1997).
[21]A.Kay,M. Gr?tzel, ” Artificial photosynthesis.1. photosensitization of TiO2 solar Cells With Chlorophyll Derivatives and Related Natural Porphyrins,”J.phys. Chem. 1993,97,6272-6277.
[22]T.Ma*,K. Inoue,H. Noma,K.Yao,E.Abe, ” Effect of functional group on photochemical properities and photosensitization of TiO2 electrode sensitized by porpHyrin derivatives,”J. of photochemistry and photobiology a:chemistry 152(2002).
[23]S.Cherian,C. Wamser,” AdsorPtion and photoactivity of Terta(4-carboxypHenyl)porphyrin(TCPP) on Nanoparticulate TiO2”J. phys.
Chem.B 2000,104,3624-3629.
[24]Suman Cherian and Carl C. Wamser ”AdsorPtion and photoactivity of Tetra(4-carboxyphenyl)porphyrin (TCPP) on Nanoparticulate TiO2
”, J. phys. Chem. B 2000, 104, 3624-3629[25]Y. Tachibana, S.A. Haque,I.P.Durrant D.R. Klug,” Electron Injection and Recombination in Dye Sensitized Nanocrystalline Titanium Dixoxide Films:A comparison of Ruthenium Bipyridyl sensitized Dyes,”J. phys. Chem.B
2000,104,1198-1205.
[26]朱奕融，奈米TiO2 粒子應用於染料敏化太陽能電池之研究，南台科技大學電機工程研究所碩士論文，2004[27]Y. Tachibana, J.E.
Moser, M. Gr?tzel, D.R. Klug and J.R. Durrant,” Subpicosencond Interfacial Charges Separation in Dye-Sensitized Nanocrystalline Titanium Dixoxide Films,”J. phys. Chem. 100,20056(1996).
[28]T. Hannapple, B. Burfeindt,W. Storck and Willig,” Measurement of Ultrafast photoinduced Electron Transfer From Chemically anchored Ru-dye Molecules into EmPty Electronic States in a Colloidal Anatase TiO2 Films,”J. phys. Chem.B,101,6799(1997).
[29]R. J. Ellingson, J. B. Asbury, S Ferrere.H. N. Ghosh,J. R. Sprague ,T. Lian and A. J. Nozik ,” Dynamics of Electron Injection in
Nanocrystalline Titanium Dioxide Filems Sensitized with 「Ru(4,4’dicarboxy2-2’-bipyridine)2(NCS)2」 by Infrared Transient AbsorPtion,”J.
phys. Chem.B,102,6455(1998).
[30]A. Hagfeldt and M. Gr?tzel,” Molecular photovoltaics,”Acc. Res.,33,269(2000).
[31]G. Schlichthorl,S. Y. Huang J. Sprague and A. J. Frank,”Band Edge Movement and Recombination Kinetics in Dye-Sensitized Nano crystalline TiO2 Solar Cells:A study by Intensity Modulated photovoltge Spectroscopy,”J. phys. Chem.B,101,8141(1997).
[32]K. Schwarzburg and F. J. Willig,”Origin of photo voltage and photocurrent in the Nanoporous Dye-Sensititized Electrochemical Solar Cell
”J. phys. Chem.B,103,5743(1999).
[33]S. Y. Huang,G. Schlichthorl,A.J. Nozik, M. Gr?tzel, and A.J. Frank ,”Charge Recombination in Dye-Sensitizied Nanocrystalline TiO2 Solar Cells,”J. phys. Chem. B,101, 2576 (1997).
[34]D. Cahen, G. Hodes, M. Gr?tzel, J. F. Guillemoles and I. Riess,”Nature of photovoltaic Action in Dye-sensitized Solar Cells,”J. phys. Chem.
B,104, 2053 (2000).
[35]J.photochem.,and photobio.A:Chemistry,164(2004)179-182[36]J.Am.Chem.SOC.,115(1993)6382-6390[37]J.photochem.,and photobio.A:Chemistry,145(2001)107-112[38]Electrochimica Actr.,51(2006)3814-3819[39]Synthetic
Metal.,77(1996)47-49182[40]J.Electrochem.Soc.,144(1997)876[41] http://yctrade.netfirms.com/page1.htm[42]國立交通大學電子物理系博士論 文, “GaNAs材料磊晶成長與AlAs濕氧化膜之研究”, 2001.
[43]Christophe J. Barbe’, Francine Arendse, Pascal Comte, Marie Jirousek, Frank Lenzmann, Valery Shklover, and Michael Gratzel
“Nanocrystalline Titanium Oxide Electrodes for Photovoltaic Applications” J. Am. Ceram. Soc., 80,3157–71.(1997)[44]Advanced Materials Research Center, Materials and Energy Research Center, Karaj, Iran“SnO2/ZnO double-layer thin films: A novel economical preparation andinvestigation of sensitivity and stability of double-layer gas sensors”Materials Chemistry and Physics 110 (2008) 89–94
