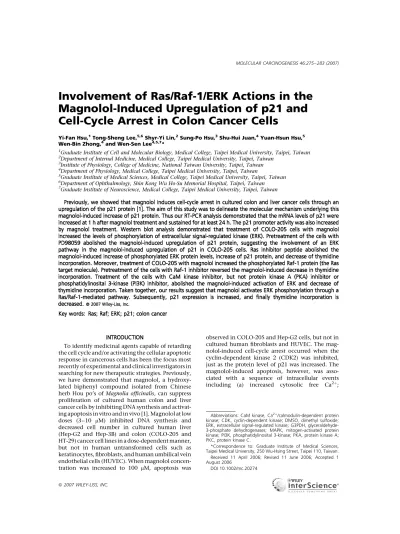

Involvement of Ras/Raf-1/ERK Actions in the Magnolol-Induced Upregulation of p21 and Cell-Cycle Arrest in Colon Cancer Cells
Yi-Fan Hsu,1Tong-Sheng Lee,5,6Shyr-Yi Lin,2Sung-Po Hsu,3Shu-Hui Juan,4Yuan-Hsun Hsu,5 Wen-Bin Zhong,4and Wen-Sen Lee4,5,7*
1Graduate Institute of Cell and Molecular Biology, Medical College, Taipei Medical University, Taipei, Taiwan
2Department of Internal Medicine, Medical College, Taipei Medical University, Taipei, Taiwan
3Institute of Physiology, College of Medicine, National Taiwan University, Taipei, Taiwan
4Department of Physiology, Medical College, Taipei Medical University, Taipei, Taiwan
5Graduate Institute of Medical Sciences, Medical College, Taipei Medical University, Taipei, Taiwan
6Department of Ophthalmology, Shin Kong Wu Ho-Su Memorial Hospital, Taipei, Taiwan
7Graduate Institute of Neuroscience, Medical College, Taipei Medical University, Taipei, Taiwan
Previously, we showed that magnolol induces cell-cycle arrest in cultured colon and liver cancer cells through an upregulation of the p21 protein [1]. The aim of this study was to delineate the molecular mechanism underlying this magnolol-induced increase of p21 protein. Thus our RT-PCR analysis demonstrated that the mRNA levels of p21 were increased at 1 h after magnolol treatment and sustained for at least 24 h. The p21 promoter activity was also increased by magnolol treatment. Western blot analysis demonstrated that treatment of COLO-205 cells with magnolol increased the levels of phosphorylation of extracellular signal-regulated kinase (ERK). Pretreatment of the cells with PD98059 abolished the magnolol-induced upregulation of p21 protein, suggesting the involvement of an ERK pathway in the magnolol-induced upregulation of p21 in COLO-205 cells. Ras inhibitor peptide abolished the magnolol-induced increase of phosphorylated ERK protein levels, increase of p21 protein, and decrease of thymidine incorporation. Moreover, treatment of COLO-205 with magnolol increased the phosphorylated Raf-1 protein (the Ras target molecule). Pretreatment of the cells with Raf-1 inhibitor reversed the magnolol-induced decrease in thymidine incorporation. Treatment of the cells with CaM kinase inhibitor, but not protein kinase A (PKA) inhibitor or phosphatidylinosital 3-kinase (PI3K) inhibitor, abolished the magnolol-induced activation of ERK and decrease of thymidine incorporation. Taken together, our results suggest that magnolol activates ERK phosphorylation through a Ras/Raf-1-mediated pathway. Subsequently, p21 expression is increased, and finally thymidine incorporation is decreased. ß2007 Wiley-Liss, Inc.
Key words: Ras; Raf; ERK; p21; colon cancer
INTRODUCTION
To identify medicinal agents capable of retarding the cell cycle and/or activating the cellular apoptotic response in cancerous cells has been the focus most recently of experimental and clinical investigators in searching for new therapeutic strategies. Previously, we have demonstrated that magnolol, a hydroxy- lated biphenyl compound isolated from Chinese herb Hou po’s of Magnolia officinalis, can suppress proliferation of cultured human colon and liver cancer cells by inhibiting DNA synthesis and activat- ing apoptosis in vitro and in vivo [1]. Magnolol at low doses (3–10 mM) inhibited DNA synthesis and decreased cell number in cultured human liver (Hep-G2 and Hep-3B) and colon (COLO-205 and HT-29) cancer cell lines in a dose-dependent manner, but not in human untransformed cells such as keratinocytes, fibroblasts, and human umbilical vein endothelial cells (HUVEC). When magnolol concen- tration was increased to 100 mM, apoptosis was
observed in COLO-205 and Hep-G2 cells, but not in cultured human fibroblasts and HUVEC. The mag- nolol-induced cell-cycle arrest occurred when the cyclin-dependent kinase 2 (CDK2) was inhibited, just as the protein level of p21 was increased. The magnolol-induced apoptosis, however, was asso- ciated with a sequence of intracellular events including (a) increased cytosolic free Ca2þ;
Abbreviations: CaM kinase, Ca2þ/calmodulin-dependent protein kinase; CDK, cyclin-dependent kinase; DMSO, dimethyl sulfoxide;
ERK, extracellular signal-regulated kinase; G3PDH, glyceraldehyde- 3-phosphate dehydrogenases; MAPK, mitogen-activated protein kinase; PI3K, phosphatidylinosital 3-kinase; PKA, protein kinase A;
PKC, protein kinase C.
*Correspondence to: Graduate Institute of Medical Sciences, Taipei Medical University, 250 Wu-Hsing Street, Taipei 110, Taiwan.
Received 11 April 2006; Revised 11 June 2006; Accepted 1 August 2006
DOI 10.1002/mc.20274
(b) increased translocation of cytochrome c from mitochondria to cytosol; (c) downregulation of bcl-2 protein; and (d) activation of caspases 3, 8, and 9 [2].
Although the elevation of p21 protein levels has been suggested to be responsible for magnolol- induced cell-cycle arrest, the molecular mechanism underlying the magnolol-induced increase of p21 expression is still unclear. The p21 gene is a target for diverse signals causing cell growth arrest and differ- entiation. Introduction of p21 protein to human un- transformed and cancer cells induces cell-cycle arrest [3–5]. P21 arrests the cell cycle through binding and inactivating the CDK system [4,5]. A p21 mutation, which specifically abrogates its binding to CDKs, was identified in a primary breast tumor [6], suggesting that p21 exerts tumor suppressor properties.
It has been proposed that a mitogen-activated protein kinase (MAPK)-mediated pathway might be a key regulator of cell proliferation and differentiation in some multicellular organisms [7,8]. Over-activity of the MAPK-mediated pathway is oncogenic in a variety of cell types [9,10]. Conversely, functional deficiency of the MAPK-mediated pathway has been associated with certain developmental abnormality [11]. However, a recent report also showed that activation of the MAPK pathway by Raf-1 family protein kinases could cause cell-cycle arrest by induction of p21 protein in mouse fibroblasts [12].
Furthermore, the MAPK pathway has been impli- cated in the p21 upregulation and cell-cycle arrest mediated by the transforming growth factor-b in human keratinocyte cells [13].
In the present study, we found that the Ras/Raf-1/
ERK pathway is involved in the magnolol-induced upregulation of p21 protein in the COLO-205 cells.
The details of these experiments are described below and shed new light on the molecular mechanisms involved in magnolol-induced inhibition of colon cancer growth.
MATERIALS AND METHODS Reagents
H89 and Kn62 were purchased from Biomal (Plymouth Meeting, PA). Magnolol was purchased from Pharmaceutical Industry, Technology and Development Center (Taipei Country, Taiwan).
Antisera against p21, extracellular signal-regulated kinase (ERK), Ras, Raf, PKCh and PKCy monoclonal antibodies were obtained from Transduction (San Diego, CA). Antisera against PKCa, b, g, e, d, and z polyclonal antibodies were purchased from Gibco BRL Life Technologies Inc. (Grand Island, NY).
Anti-glyceraldehyde-3-phosphate dehydrogenases (G3PDH) monoclonal antibodies were purchased from Biogenesis (Kingston, NH). Nitro-blue-tetrazo- lium chloride/bromo-chloro-3-indolyl-phosphate was obtained from Kirkegaard Perry Laboratory (Gaithersburg, MD). Ras inhibitor peptide,
(VPPPVPPRRR), and PD98959 were purchased from Sigma (St. Louis, MO). Staurosporine, RO32-0432, Raf inhibitor, and Wortmannin were purchased from Merck (Parmstadt, Germany). The concentration of PD 98059, staurosporine, RO32-0432, Raf inhibitor, Ras inhibitor, H89, Kn62, and Wormannin used in this study was 100 mM, 100 nM, 10 nM, 5 mM, 100 nM, 10 nM and 5 mM, respectively (around 5–
10 times of their IC50). The concentrations of these inhibitors used in this study did not cause any cytotoxicity as evidenced by no significant change in thymidine incorporation when the cells were treated with inhibitors alone.
Cell Culture
COLO-205 cell line (CCL-222; American Type Culture Collection) originating from a poorly differ- entiated human colon adenocarcinoma was used in this study. The cells were grown in RPMI 1640 supplemented with 10% fetal calf serum (FCS), penicillin (100 U/mL), streptomycin (100 mg/mL), and glutamine (0.3 mg/mL) in a humidified incu- bator (378C, 5% CO2). Magnolol in 0.1% dimethyl sulfoxide (DMSO) was added at the indicated doses.
For control specimens, the equivalent volume of the 0.1% DMSO without magnolol was added.
[3H]Thymidine Incorporation
As previously described [1], COLO-205 at a density of 1 104cells/cm3were applied to 24-well plates in growth medium (RPMI 1640 plus 10% FBS). After the cells had grown to 70%–80% confluence, they were rendered quiescent by incubation for 24 h in RPMI 1640 containing 0.04% FBS. Then RPMI 1640 supplemented with 10% FBS and 0.05% DMSO (control) or various concentrations of magnolol in 0.05% DMSO was added to the cells and the cultures were allowed to incubate for 18 h. During the last 3 h of the incubation with or without magnolol, [3H]thymidine was added at 1 mCi/mL (1 mCi ¼ 37 kBq). Incorporated [3H]thymidine was extracted in 0.2 N NaOH and measured in a liquid scintillation counter.
Protein Extraction and Western Blot Analysis
The cells were seeded onto 100-mm dishes and grown in RPMI 1640 supplemented with 10% FCS.
After the cells had grown to subconfluence, magno- lol in 0.05% DMSO or 0.05% DMSO with magnolol was added to the cells at various concentrations. The cells were washed with phosphate-buffered saline (PBS) and then lysed in lysis buffer (Tris HCl 0.5 M, pH 6.8; SDS 0.4%). Western blot analysis was performed as previously described [2,14]. The pro- tein samples (50 mg per lane) were loaded onto 10%
sodium dodecyl sulfate-polyacrylamide gel electro- phoresis (SDS-PAGE). The gel electrophoresis was performed at constant 120 V for 3–4 h at 16–188C.
After protein separation, each gel was transferred
onto an Immobilion-P membrane. Immunodetec- tion was carried out by probing with proper dilutions of specific antibodies at 48C for overnight. The primary antibodies were used at a concentration of 1:1,000 dilution. The secondary antibodies, alkaline phosphatase-coupled anti-mouse or anti-rabbit anti- bodies purchased from Jackson (Westgrove, PA), were incubated at room temperature for 1 h at a concentration of 1:5,000 or 1:1,000 dilutions, respectively. The specific protein complexes were identified with nitro-blue-tetrazolium chloride/
bromo-chloro-3-indolyl-phosphate. In each experi- ment, membranes were also probed with anti- G3PDH antibody to correct for difference in protein loading. To study whether protein kinase C (PKC) or MAPK pathways were involved in the magnolol- induced upregulation of p21, the COLO-205 cells were pretreated with staurosporine (100 nM) or PD98059 (50 and 100 mM) for 30 min and followed by treatment with 50 mM magnolol.
Subcellular Fractionation
The COLO-205 cells were collected by centrifuga- tion at 200 g for 5 min at 48C and washed once with ice-cold PBS. The cells were partitionated into the cytosolic and the particulate portion according to the previously described method [15]. Briefly, the cells were suspended in extraction buffer, containing 220 mM mannitol, 68 mM sucrose, 50 mM PIPES- KOH, pH 7.4, 50 mM KCl, 5 mM ethylene glycol- bis(b-aminoethyl ether) N,N,N0,N0-tetraacetic acid (EGTA), 2 mM MgCl2, 1 mM dithiothreitol (DTT), and protease inhibitors. After 30 min incubation on ice, the cells were homogenized with a glass Dounce and a B pestle. Cell homogenates were spun at 14,000g for 15 min and supernatants were removed as cytosolic portion. The pellets (particulate portion) were lysed for Western blot analysis. To confirm that the pellets were not contaminated with cytosolic proteins, Western blot analysis of a tubulin was conducted.
RT-PCR
Total RNAs were isolated from DMSO- or magno- lol-treated COLO-205 cells and the cDNAs were prepared with reverse transcription (RT)-polymerase chain reaction (PCR) technique as previously described [1]. The p21 cDNA amplication was performed by incubating 20 ng equivalents of cDNA in 100 mM Tris-HCl buffer, pH 8.3, containing 500 mM KCl, 15 mM MgCl2, 0.1% gelatin, 200 mM concentration of each dNTP, and 50 U/mL of Super Taq DNA polymerase with the following oligonu- cleotide primers: 50-AGGAGGCCCGTGAGCGAGC- GATGGAAC-30and 50-ACAAGTGGGGAGGAAGTA- GC-30. The cDNA sequence of b-actin was also amplified as a control in the same method with the following primers: 50-GATATCGCCGCGCTCGT-
CGTCGAC-30 and 50-CAGGAAGGAAGGCTGGAA- GAGTGC-30. Thermal cycle conditions were as follows: 1 cycle at 948C for 5 min, 30 cycles at 948C for 1 min, 598C for 1 min, 728C for 1 min, and 1 cycle at 728C for 10 min (for p21); 1 cycle at 948C for 5 min, 30 cycles at 948C for 45 s, 658C for 45 s, 728C for 2 min, and 1 cycle at 728C for 10 min (for GAPDH).
PCR products were analyzed on 1.8% agarose gels.
Plasmid Transfection and Reporter Assays
Plasmid pWWP-luc containing the promoter of human p21 between positions 2,300 and þ8 was a gift from Vogelstein (Johns Hopkins University, Baltimore, MD) [3]. The p21 promoter region was removed with HindIII and subcloned into the unique HindIII site present within the pGL3 plasmid (Promega, Madison, WI). The identity of the sequences was confirmed with an ABI PRISM 377 DNA Analysis System (Perkin-Elmer, North Point, Hong Kong).
For the p21 reporter activity assay, COLO-205 cells were seeded in 6-well plates at a density of 5 105 cells/well. In brief, cells were transiently transfected with 1.1 mg of plasmid DNA containing 0.1 mg of the Renilla luciferase construct, phRL-TK (Promega), to control transfection efficiency and 1 mg of the appropriate p21 promoter firefly luciferase (FL) construct. The next day, cells were transfected with pGL3/hp21 and phRL-TK (internal control plasmid) using the TransfastTM(Promega). After transfection (1 h), the medium was replaced with complete medium, and incubation continued for another 42 h. Transfected cells were then treated with magnolol at a concentration of 50 mM for 6 h, and cell lysates were collected. Luciferase activities were recorded in a TD-20/20 luminometer (Turner Designs, Sunnyvale, CA) with the dual luciferase assay kit (Promega) according to the manufacturer’s instructions. Luciferase activities of reported plas- mids were normalized to luciferase activities of the internal control plasmid.
RESULTS
Magnolol Upregulates p21 mRNA Expression and Increases p21 Promoter Activity in COLO-205 Cells
Previously, we have demonstrated that magnolol induces cell growth inhibition in colon cancer cells through an upregulation of the p21 protein. To determine whether transcriptional regulation was involved in the magnolol-induced increase in p21 protein, RT-PCR analysis was conducted. As illu- strated in Figure 1a, the magnolol (50 mM)-induced upregulation of p21 mRNA levels was observed at 1 h after treatment and lasted for more than 24 h, suggesting that magnolol treatment caused eleva- tion of p21 protein levels by increased transcription.
Figure 1b shows that magnolol (50 mM) treatment resulted in the upregulation of the p21 promoter
activity by 3.5-fold. Pretreatment of the cells with PD98059 (an ERK inhibitor) at a dose of 100 mM abolished the magnolol-induced upregulation of p21 promoter activity.
Involvement of ERK Activation in the Magnolol-Mediated Increase of p21 Upregulation in COLO-205 Cells
Because activation of ERK has been implicated in the regulation of p21, we studied the molecular mechanism underlying magnolol-induced upregu- lation of p21 by examining the levels of phosphory- lated ERK (pERK) protein. As illustrated in Figure 2a, an increase of pERK protein was observed in COLO- 205 after 40-min treatment with magnolol (50 mM).
Pretreatment of the cells with 100 mM PD98059 abolished the magnolol-induced upregulation of p21 protein (Figure 2b) and inhibition of thymidine incorporation (Figure 2c). As shown in our previous studies [1], the concentration (50 mM) of magnolol used in this study did not cause any apoptotic response in COLO-205.
Involvement of Ras in the Magnolol-Induced ERK Activation in COLO-205 Cells
We further investigated the involvement of Ras molecule in the magnolol-induced activation of ERK
in COLO-205 cells. Treatment of COLO-205 cells with Ras inhibitor peptide abolished the magnolol- induced increases of the protein levels of phosphory- lated ERK (Figure 3a) and p21 (Figure 3b), and prevented the magnolol-induced decrease of thymi- dine incorporation (Figure 3c). The activation of Raf molecule, which is a downstream molecule of Ras, was also observed in the magnolol-treated COLO- 205 cells (Figure 4a). Moreover, pretreatment of COLO-205 cells with Raf inhibitor (10 nM) pre- vented the magnolol-induced decrease of thymidine (Figure 4b).
Involvement of CaM Kinase Activation on the Magnolol-Induced Increase of p-ERK
Previously, we have demonstrated that treatment of the COLO-205 with staurosporine for 18 h abolished the magnolol-mediated increase of p21 protein level [1], suggesting that PKC might be involved in the magnolol-induced cell-cycle arrest.
Because staurosporine is a broad-specificity kinase inhibitor, which may alter other kinases besides PKC, we further examined the involvement of PKC in the regulation of magnolol-induced cell-cycle arrest in COLO-205. Initially, we examined the translocation Figure 1. Magnolol increases p21 mRNA expression and p21 promoter activity in COLO-205. (a) The increased
p21 mRNA levels in COLO-205 were observed after 1 h treatment with magnolol (50 mM) and lasted for at least 24 h. (b) Treatment of COLO-205 with magnolol (50 mM) for 6 h resulted in an increase in p21 promoter activity, which could be prevented by pretreatment of the cells with an ERK inhibitor, PD98059 (100 mM). Values represent the mean SEM (n ¼ 4). Comparisons were subjected to ANOVA followed by Fisher’s least significant difference test.
Significance was accepted at P < 0.05. *Ma-treated group different from control. Ma, magnolol; PD, PD98059.
Figure 2. Involvement of ERK activation in the magnolol-induced increases of p21 protein and inhibition of thymindine incorporation in COLO-205. (a) The magnolol-induced increases of the phosphory- lated ERK protein were observed at as early as 40 min after magnolol (50 mM) treatment. Membrane was probed with anti-G3PDH antibody to verify equivalent loading. Pretreatment of the cells with PD98059 (100 mM), abolished the magnolol-induced increases of p21 protein (b), and decreases of thymidine incorporation (c). The
protein extraction for p21 and G3PDH detection was done at 24 h after drug treatment. Results from a representative experiment are shown. Values represent the mean SEM (n ¼ 3–4). Comparisons were subjected to ANOVA followed by Fisher’s least significant difference test. Significance was accepted at P < 0.05. *Ma-treated group different from control group and Ma þ PD-treated group. Ma, magnolol; PD, PD98059.
Figure 3. Involvement of Ras activation in the magnolol-induced ERK phosphorylation and inhibition of thymindine incorporation in COLO-205. Pretreatment of COLO-205 with Ras inhibitor abolished magnolol-induced increases of the phosphorylated ERK protein (a) and p21 protein (b), and decreases of thymidine incorporation (c).
The proteins were extracted from COLO-205 treated with magnolol or vehicle for 24 h. Membrane was probed with anti-total ERK or
G3PDH antibody to verify equivalent loading. Results from a representative experiment are shown. Values represent the mean SEM (n ¼ 3–4). Comparisons were subjected to ANOVA followed by Fisher’s least significant difference test. Significance was accepted at P < 0.05. *Ma-treated group different from control group and Ma þ RI-treated group. Ma, magnolol; RI, Ras inhibitor.
of PKC from cytosol to membrane and showed that treatment of COLO-205 with magnolol for 1 h did not cause any significant translocation of PKCg or PKCe (Figure 5a), the only two isoforms detected in the COLO-205 cells. Moreover, pretreatment of the cells with PKC-specific inhibitor (RO32-0432) could not prevent the magnolol-induced increase in the levels of pERK protein and decrease in thymidine incorporation (Figure 5b), suggesting that PKC activation might not be involved in the magnolol- induced inhibition of thymidine incorporation in COLO-205. We examined further the involvement of several other staurosporine-sensitive kinases in magnolol-induced cell-cycle arrest. As shown in Figure 6a and b, neither H89 (a protein kinase A (PKA) inhibitor) nor Wortmannin (a phosphatidyli- nosital 3-kinase (PI3K) inhibitor) could prevent the magnolol-induced increase in the levels of pERK protein and inhibition of thymidine incorporation.
On the other hand, pretreatment of COLO-205 with Kn62 (a Ca2þ/calmodulin-dependent protein kinase (CaM kinase) inhibitor) prevented the magnolol- induced increase of pERK protein levels (Figure 7a) and decrease of thymidine incorporation (Figure 7b).
DISCUSSION
Previously, we have shown that magnolol induces cell-cycle arrest at the G0/G1phase in colon cancer cells through an upregulation of the cyclin-depen- dent kinase inhibitor p21 protein. The present study was undertaken to further delineate the molecular mechanism of the magnolol-induced p21 upregula- tion in COLO-205 cells. It has been demonstrated that high-intensity ERK signaling leads to p21- mediated growth arrest in rodent fibroblasts [12,16]
and human tumor cells [17]. In the present study, our in vitro data show that administration of magnolol at a concentration of 50 mM induced an increase of the phosphorylated ERK protein level in COLO-205 cells, indicating an activation of ERK protein. Pretreat- ment of the cells with PD98059 prevented magnolol- induced increase of p21 protein level, activation of p21 promoter activity and decrease of thymidine Figure 4. Involvement of Raf activation in the magnolol-induced
inhibition of thymidine incorporation in COLO-205 cells. (a) The levels of phosphorylated Raf protein were increased in the COLO-205 after 10-min treatment with magnolol (50 mM). Membrane was probed with anti-G3PDH antibody to verify equivalent loading. (b) Pretreatment of the COLO-205 cells with a Raf-specific inhibitor prevented the magnolol-induced inhibition of thymidine incorpora- tion. Values represent the mean SEM (n ¼ 3–4). Comparisons were subjected to ANOVA followed by Fisher’s least significant difference test. Significance was accepted at P < 0.05. *Ma-treated group different from control and Ma þ RafI-treated group. Ma, magnolol; RafI, Raf inhibitor.
Figure 5. PKC is not involved in the magnolol-induced cell-cycle arrest in COLO-205 cells. (a) Treatment of the COLO-205 cells with magnolol (50 mM) for 1 h did not cause a significant translocation of PKCg or PKCe from the cytosolic fraction to membrane fraction.
(b) Pretreatment of the COLO-205 cells with a PKC-specific inhibitor, RO32-0432, could not prevent the magnolol-induced upregulation of pERK and inhibition of thymidine incorporation. Values represent the mean SEM. Comparisons were subjected to ANOVA followed by Fisher’s least significant difference test. Significance was accepted at P < 0.05. *Ma- and Ma þ RO-treated group different from control group. Ma, magnolol; RO, RO32-0432.
incorporation in COLO-205 cells (Figure 2), suggest- ing that the ERK-mediated signaling pathway is involved in the magnolol-induced p21 upregulation, which in turn caused cell-cycle arrest.
Activation of the Ras/Raf signal transduction pathway has been shown to contribute to oncogenic transformation by influencing the cell-cycle machi- nery in numerous types of cancer [12,18]. On the other hand, it seems that Ras signaling elevates p21 to levels that arrest cell progression by means of the Raf/MAPK pathway [18,19]. Introduction of acti- vated Ras into primary rodent and human cells induces increase of p21 protein levels, which in turn causes cell-cycle retardation at the G0/G1phase [20–
22]. Ras-induced elevation of p21 has been attributed to transcriptional activation [12,16,20,21] or post- translational regulation [23]. Accordingly, we exam- ined whether a Ras-mediated pathway is involved in the magnolol-induced cell-cycle arrest in COLO-205.
In the present study, we demonstrated that magnolol treatment resulted in an upregulation of p21 mRNA and an increase in p21 promoter activity (Figure 1), suggesting that transcription regulation is involved in the magnolol-induced increases of p21 protein level. Pretreatment of COLO-205 with Ras inhibitor abolished the magnolol-induced activation of ERK, together with the associated upregulation of p21 protein, and inhibition of thymidine incorporation (Figure 3). Moreover, magnolol increased activation of Raf-1, which has been indicated to be the target molecule of the activated Ras. Administration of Raf-1 inhibitor blocked the magnolol-induced inhi- bition of thymidine incorporation (Figure 4). Taken together, these results suggest that magnolol acti- vated the Ras/Raf-1/ERK pathway, which in turn upregulated p21 protein through transcriptional regulation, and ultimately caused cell-cycle arrest.
Figure 6. PKA and PI3K are not involved in the magnolol-induced cell-cycle arrest in COLO-205 cells.
Pretreatment of the COLO-205 cells with a PKA inhibitor, H89 (a), or a PI3K inhibitor, Wa (b), could not prevent the magnolol-induced upregulation of pERK and inhibition of thymidine incorporation. Values represent the mean SEM. Comparisons were subjected to ANOVA followed by Fisher’s least significant difference test.
Significance was accepted at P < 0.05. *Ma-, Ma þ H89- or Ma þ Wa-treated group different from control group.
Ma, magnolol; Wa, Wortmannin.
Figure 7. Involvement of CaM kinase activation on the magnolol- induced cell-cycle arrest in COLO-205 cells. Pretreatment of COLO- 205 cells with CaM kinase inhibitor (Kn62) at a concentration of 10 nM prevented magnolol-induced increases of the phosphorylated ERK protein (a) and p21 protein (b), and decreases of thymidine incorporation (c). Values represent the mean SEM. Comparisons were subjected to ANOVA followed by Fisher’s least significant difference test. Significance was accepted at P < 0.05. *Magnolol- treated group different from control group. Ma, magnolol.
Based on the finding that pretreatment of COLO- 205 with staurosporine blocked the magnolol- induced upregulation of p21 protein, we previously proposed that a PCK pathway might be involved in the magnolol-induced p21 induction in COLO-205 [1]. In the present studies, however, we showed that translocation of PKCg and PKCe (the only two PKC isoforms detected in COLO-205) from the cytosolic fraction to membrane fraction was not observed after 1 h magnolol treatment (Figure 5a), suggesting that PKC might be involved in some magnolol-mediated effects other than cell-cycle arrest. To confirm this hypothesis, we showed that pretreatment of COLO- 205 with a PKC-specific inhibitor, RO32-0432, could not prevent the magnolol-induced increase the levels of pERK protein and downregulation of thymidine incorporation (Figure 5b). Because staur- osporine is a broad-specificity kinase inhibitor, it is most likely that staurosporine may alter other kinases besides PKC. Indeed, we examined further the involvement of several other staurosporine- sensitive kinases in magnolol-induced cell-cycle arrest, and found that pretreatment of COLO-205 with Kn62 (a CaM kinase inhibitor), but not H89 (a PKA inhibitor) or Wortmannin (a PI3K inhibitor), prevented the magnolol-induced increase of pERK levels and decrease of thymidine incorporation (Figures 6 and 7). These data suggest that CaM kinase might be involved in the magnolol-induced cell- cycle arrest. CaM kinase is positively regulated by intracellular Ca2þconcentration [24], and activation of CaM kinase can activate the downstream signaling pathway including Ras family signal pathway [25].
Although our data strongly suggest that the ERK- mediated pathway is involved in the regulation of magnolol-induced increase in p21 protein in COLO- 205 cells, we do not rule out the possibility that other signaling pathways might also contribute to up- regulate p21 expression in the magnolol-treated COLO-205 cells. In fact, it has been indicated that the transcription of p21 gene is regulated by multiple proteins, many of which (such as p53, c-myc, and Rb) are involved in the pathogenesis of cancer. Our previous studies showed that magnolol decreases the DNA synthesis in both p53 wild-type cell lines (COLO-205 and Hep-3B) and p53 mutated type cell lines (HT-29 and Hep-3B) through an increase of p21 expression, suggesting that p53 might not be involved in the magnolol-induced upregulation of p21 expression [1]. To completely map the signaling pathways involved in the magnolol-induced upre- gulation of p21 expression, more experiments need to be done.
In summary, we demonstrate for the first time that magnolol might activate the CaM/Ras/Raf-1 path- way to induce ERK activation, which in turn increases p21 levels, and finally causes cell-cycle arrest at the G0/G1phase. Based on the results from the present study and our previous study, we propose
a model of the molecular mechanisms of magnolol- induced cell-cycle arrest in COLO-205 as shown in Figure 8. In the present study, we also demonstrated that transcriptional regulation is involved in the magnolol-increased the p21 protein levels (Figure 1).
Although further experiments need to be done in order to delineate the transcriptional factor(s) and signal transduction pathways involved in the ERK- mediated upregulation of p21 mRNA and protein, the findings from the present studies suggest that magnolol activates the CaM/Ras/Raf-1/ERK pathway to induce the inhibition of proliferation in the magnolol-sensitive cancer cells and thus might provide a novel strategy for cancer therapy.
ACKNOWLEDGMENTS
This work was supported by research grants from the National Science Council of the Republic of China (NSC 93-2320-B-038-018).
REFERENCES
1. Lin SY, Liu JD, Chang HC, Yeh SD, Lin CH, Lee WS. Magnolol suppresses proliferation of cultured human colon and liver cancer cells by inhibiting DNA synthesis and activating apoptosis. J Cell Biochem 2002;84:532–544.
2. Lin SY, Chang YT, Liu JD. Molecular mechanisms in apoptosis induced by magnolol in colon and liver cancer cells. Mol Carcinog 2001;32:73–83.
3. El-Deiry WS, Tokino T, Velculescu VE, et al. WAF1, a potential mediator of p53 tumor suppression. Cell 1993;75:817–825.
4. Harper JW, Adami GR, Wei N, Keyomarsi K, Elledge SJ. The p21 Cdk-interacting protein Cip1 is a potent inhibitor of G1 cyclin-dependent kinases. Cell 1993;75:805–816.
5. Harper JW, Elledge SJ, Keyomarsi K. Inhibition of cyclin- dependent kinases by p21. Mol Biol Cell 1995;6:387–400.
6. Morgan DO. Principles of CDK regulation. Nature 1995;374:
131–134.
7. Herskowitz I. MAP kinase pathways in yeast: For mating and more. Cell 1995;80:187–197.
Figure 8. Proposed signaling pathway leading to p21 upregula- tion by magnolol-induced ERK activation via Ras/Raf-mediated pathway.
8. Nishida E, Gotoh Y. The MAP kinase cascade is essential for diverse signal transduction pathways. Trends Biochem Sci 1993;18:128–131.
9. Han M, Golden A, Han Y, Sternberg PC. Elegans lin-45 raf gene participates in let-60 ras-stimulated vulval differentia- tion. Nature 1993;363:133–139.
10. Nishida Y, Hata M, Ayaki T. Proliferation of both somatic and germ cells is affected in the Drosophila mutants of raf proto- oncogene. EMBO J 1988;7:775–781.
11. Pritchard CA, Bolin L, Slattery R, Murry RL, McMahon M.
Post-natal lethality and neurological and gastrointestinal defects in mice with targeted disruption of the A-Raf protein kinase. Curr Biol 1996;6:614–617.
12. Woods D, Parry D, Cherwinski H, Bosch E, Lees E, McMahon M. Raf-induced proliferation or cell cycle arrest is determined by the level of raf activity with arrest mediated by p21. Mol Cell Biol 1997;17:5598–5611.
13. Hu PPC, Shen X, Huang D, Liu Y, Counter C, Wang XF. The MEK pathway is required for stimulation of p21WAF1/CIP1 by transforming growth factor-b. J Biol Chem 1999;274:
35381–35387.
14. Lee WS, Jain MK, Arkonac BM, et al. Thy-1, a novel marker for angiogenesis upregulated by inflammatory cytokines.
Circ Res 1998;82:845–851.
15. Bossy WE, Newmeyer DD, Green DR. Mitochondrial cyto- chrome c release in apoptosis occurs upstream of DEVD- specific caspase activation and independently of mitochon- drial transmembrane depolarization. EMBO J 1998;17:37–49.
16. Sewing A, Wiseman B, Lloyd A, Land H. High-intensity Raf signal causes cell cycle arrest mediated by p21. Mol Cell Biol 1997;17:5588–5597.
17. Ravi RK, McMahon M, Yangang Z, et al. Raf-1-induced cell cycle arrest in LNCaP human prostate cancer cells. J Cell Biochem 1999;72:458–469.
18. Maya D, Mirella L, Jennifer YZ, et al. NF-kB blockade and oncogenic Ras trigger invasive human epidermal neoplasia.
Nature 2003;421:639–643.
19. Wolfman JT, Coats SR, Wang YZ, Pledger WJ. Regulation of the cell cycle machinery by oncogenic ras. Oncogene 1996;
12:127–134.
20. Lloyd A, Obermuller F, Staddon S, Barth CF, McMahon M, Land H. Cooperating oncogenes converge to regulate cyclin/
cdk complexes. Genes Dev 1997;11:663–677.
21. Serrano M, Lin AW, McCurrach ME, Beach D, Lowe SW.
Oncogenic ras provokes premature cell senescence asso- ciated with accumulation of p53 and p16NK41. Cell 1997;
88:593–602.
22. Ninomiya Y, Kato K, Takahashi A, et al. K-Ras and H-Ras activation promote distinct consequences on endometrial cell survival. Cancer Res 2004;64:2759–2765.
23. Coleman ML, Marshall CJ, Olson MF. Ras promotes p21Waf/Cip1protein stability via a cyclin D1-imposed block in proteasome-mediated degradation. EMBO J 2003;22:
2036–2046.
24. Dolmetsch RE, Pajvani U, Fife K, Spotts JM, Greenberg ME.
Signaling to the nucleus by an L-type calcium channel- calmodulin complex through the MAP kinase pathway.
Science 2001;294:333–339.
25. Francesc T, Priam V, Tatiana S, Neus A, Alexander S, Carlos E.
Calmodulin regulates intracellular trafficking of epidermal growth factor receptor and the MAPK signaling pathway.
Mol Biol of the Cell 2002;13:2057–2068.
