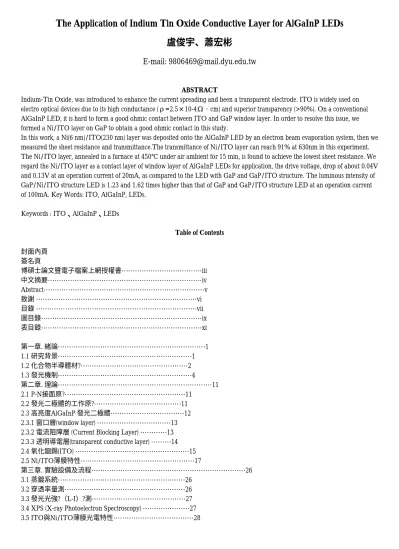

The Application of Indium Tin Oxide Conductive Layer for AlGaInP LEDs 盧俊宇、蕭宏彬
E-mail: [email protected]
ABSTRACT
Indium-Tin Oxide, was introduced to enhance the current spreading and been a transparent electrode. ITO is widely used on electro optical devices due to its high conductance (ρ=2.5×10-4Ω cm) and superior transparency (>90%). On a conventional AlGaInP LED, it is hard to form a good ohmic contact between ITO and GaP window layer. In order to resolve this issue, we formed a Ni/ITO layer on GaP to obtain a good ohmic contact in this study.
In this work, a Ni(6 nm)/ITO(230 nm) layer was deposited onto the AlGaInP LED by an electron beam evaporation system, then we measured the sheet resistance and transmittance.The transmittance of Ni/ITO layer can reach 91% at 630nm in this experiment.
The Ni/ITO layer, annealed in a furnace at 450℃ under air ambient for 15 min, is found to achieve the lowest sheet resistance. We regard the Ni/ITO layer as a contact layer of window layer of AlGaInP LEDs for application, the drive voltage, drop of about 0.04V and 0.13V at an operation current of 20mA, as compared to the LED with GaP and GaP/ITO structure. The luminous intensity of GaP/Ni/ITO structure LED is 1.23 and 1.62 times higher than that of GaP and GaP/ITO structure LED at an operation current of 100mA. Key Words: ITO, AlGaInP, LEDs.
Keywords : ITO、AlGaInP、LEDs
Table of Contents
封面內頁 簽名頁
博碩士論文暨電子檔案上網授權書………iii
中文摘要………iv
Abstract………v
致謝 ………vi
目錄 ………vii
圖目錄………ix
表目錄………xi
第一章. 緒論………1
1.1 研究背景………1
1.2 化合物半導體材?………2
1.3 發光機制………4
第二章. 理論………11
2.1 P-N接面原?………11
2.2 發光二極體的工作原?………11
2.3 高亮度AlGaInP 發光二極體………12
2.3.1 窗口層(window layer) ………13
2.3.2 電流阻障層 (Current Blocking Layer) …………13
2.3.3 透明導電層(transparent conductive layer) ………14
2.4 氧化銦錫(ITO) ………15
2.5 Ni/ITO薄膜特性………17
第三章. 實驗設備及流程………26
3.1 蒸鍍系統………26
3.2 穿透率量測………26
3.3 發光光強?（L-I）?測………27
3.4 XPS (X-ray Photoelectron Spectroscopy) ………27
3.5 ITO與Ni/ITO薄膜光電特性………28
3.6 LED元件製作………29
3.6.1 試片清潔………29
3.6.2 蒸鍍ITO及Ni/ITO………29
3.6.3 ITO、Ni/ITO退火………30
3.6.4 黃光微影定義P電極區域………30
3.6.5 蒸鍍P電極及N電極………31
3.6.6 PN電極退火………31
第四章. 實驗結果分析………38
4.1 Ni、ITO及Ni/ITO薄膜穿透率分析………38
4.2 Ni、ITO及Ni/ITO薄膜片電阻分析………39
4.3 電壓-電流(I-V) 特性分析………39
4.4 發光強度-電流(L-I)特性分析………41
4.5 XPS縱深成份分析………42
第五章. 結論………53
參考文獻………55 REFERENCES
[1]Th. Gessmann and E. F. Schubert, “High-efficiency AlGaInP light-emitting diodes for solid-state lighting applications,” J. Appl. Phys., Vol.
95, p. 2203, 2004.
[2]D. A. VANDERWATER, I. H. TAN, G. E. HO? FLER, D. C. DEFEVERE, and F. A. KISH, “High-brightness AlGaInP light-emitting diodes, ” IEEE, Vol. 85, p. 1740, 1999.
[3]W. Shockley, “Electrons and Holes in Semiconductors”, Van Nostrand, Princeton, 1950.
[4]C. T. Sah, R. N. Noyce, and W. Shockley, “Carrier generation and recombination in p-n-junctions and p-n-junction characteristics,” Proc.
IRE, Vol. 45, p. 1228, 1957.
[5]史光國, “現代半導體發光及雷射二極體材料技術, P.3-57”, 全華科技圖書股份有限公司.
[6]D. V. Morgan, I. M. Al-Ofi and Y. H. Aliyu, “Indium tin oxide spreading layers for AlGaInP visible LEDs”, Semicond. Sci. Yechnol. 15 (2000) 67-72. Printed in the UK.
[7]Kadoiwa K, Kato M, Motoda T, Ishida T, Fujii N, Hayafuji N, Tsugami M, Sonoda T, Takamiya S and Mitsui S 1994 J. Crystal Growth 145 147–52.
[8]Gaw CA, Ariz S, Rode DL, Louis St. Electrical Contact for an LED. U.S. Pat. No. 4 864 370, Sep. 5, 1989.
[9]Sugawara H, Ishikawa M, Yoshihiro N, Nishikawa Y, Naritsuka S. Semiconductor Light Emitting Device. U.S. Patent 5 048 035, Sep. 10, 1991.
[10]H. Sugawara, M. Ishikawa, and G. Hatakoshi, “High-efficiency InGaAlP/GaAs visible light-emitting diodes,” Appl. Phys. Lett., vol.58, p.
1010, 1991.
[11]R. M. Fletcher, K.-H. Huang, C. P. Kuo, J. Yu, and T. D. Osentowski, “Light-emitting diode with a thick transparent layer,” U.S. Patent 5 233 204, 1993.
[12]H. Sugawara, K. Itaya, H. Nozaki, and G. Hatakoshi, “High-brightness InGaAlP green light-emitting diodes,” Appl. Phys. Lett., vol. 61, p.
1775, 1992.
[13]M. C. Wu, J. F. Lin, M. J. Jou, C. M. Chang, B. J. Lee, “High reliability of AlGaInP LED's with efficient transparent contacts for spatially uniform light emission,” IEEE Electron Devices Letter, vol. 16, p. 482, 1995.
[14]Y. H. Aliyu, D.V. Morgan, H. Thomas, and S.W. Bland, “AlGaInP LEDs using reactive thermally evaporated transparent conducting Indium Tin Oxide(ITO),” Electron. Lett., vol. 31, pp. 2210–2212, 1995.
[15]J. F. Lin, M. C. Wu, M. J. Jou, C. M. Chang, B. J. Lee, and Y. T. Tsai, “Highly reliable operation of indium tin oxide AlGaInP orange lightemitting diodes,” Electron. Lett., vol. 30, pp. 1793–1794, 1994.
[16]H. C. Wang, Y. K. Su, C. L. Lin, W. B. Chen, and S. M. Chen, “Improvement of AlInP–AlGaInP MQW Light-Emitting Diode by Meshed Contact Layer”, IEEE PHOTONICS TECHNOLOGY LETTERS, VOL. 14, NO. 11, NOVEMBER 2002.
[17]Hsin-Chuan Wang, Yan-Kuin Su, Chun-Liang Lin, Wen-Ben Chen, Shi-Ming Chen and Wen-Liang Li, “Improvement of AlGaInP Multiple-Quantum-Well Light-Emitting Diodes by Modification of Ohmic Contact Layer”, Japanese Journal of Applied Physics Vol. 43, No. 4B, 2004, pp. 1934–1936.
[18]Chih-Hung Yen, Yi-Jung Liu, Nan-Yi Huang, Kuo-Hui Yu, Tzu-Pin Chen, Li-Yang Chen, Tsung-Han Tsai, Chong-Yi Lee, and Wen-Chau Liu, "A New AlGaInP Multiple-Quantum-Well Light-Emitting Diode With a Thin Carbon-Doped GaP Contact Layer Structure", IEEE PHOTONICS TECHNOLOGY LETTERS, VOL. 20, NO. 23, DECEMBER 1, 2008.
[19]Shun-Cheng HSU, Dong-Sing WUU, Xinhe ZHENG, Ray-Hua HORNG, and Juh-Yuh SU, “High-Performance AlGaInP/GaAs
Light-Emitting Diodes with a Carbon-Doped GaP/Indium–Tin Oxide Contact Layer”, Japanese Journal of Applied Physics Vol. 47, No. 9, 2008, pp. 7023–7025.
[20]Chih-Hung Yen, Yi-Jung Liu, Kuo-Hui Yu, Pei-Ling Lin, Tzu-Pin Chen, Li-Yang Chen, Tsung-Han Tsai, Nan-Yi Huang, Chong-Yi Lee, and Wen-Chau Liu, “On an AlGaInP-Based Light-Emitting Diode With an ITO Direct Ohmic Contact Structure”, IEEE ELECTRON DEVICE LETTERS, VOL. 30, NO. 4, APRIL 2009.
[21]M. Quaas, C. Eggs, H. Wulff, “Structural studies of ITO thin films with the Rietveld method”, Thin Solid Films, 332, pp277-281, 1998.
[22]D. H. Zhang and H.L. Ma,” Scattering mechanisms of charge carroers in transparent counding oxide film”, Applied Physics A: Materials Science & Processing, 62, pp. 487-492, 1996.
[23]Y.C. Lin, S.J. Chang, Y.K. Su, T.Y. Tsai, C.S. Chang, S.C. Shei, C.W. Kuo, S.C. Chen, “InGaN/GaN light emitting diodes with Ni/Au, Ni/ITO and ITO p-type contacts”, Solid-State Electronics 47 (2003) 849–853.
[24]Chia-Sheng CHANG, Shoou-Jinn CHANG, Yan-Kuin SU, Yu-Zung CHIOU, Yi-Chao LIN, Yu-Pin HSU, Shih-Chang SHEI, Hsin-Ming LO, Jung-Chin KE, Shih-Chih CHEN and Chun-Hsing LIU, “InGaN/GaN Light-Emitting Diodes with Rapidly Thermal-Annealed Ni/ITO p-Contacts”, Jpn. J. Appl. Phys. Vol. 42 (2003) pp. 3324–3327 Part 1, No. 6A, June 2003.
[25]Ray-Hua Hornga, Dong-Sing Wuu and Yi-Chung Lien, Wen-How Lan, “Low-resistance and high-transparency Ni/indium tin oxide ohmic contacts to p-type GaN”, APPLIED PHYSICS LETTERS VOLUME 79, NUMBER 18 29 OCTOBER 2001.
[26]Y. C. Lin, S. J. Chang, Y. K. Su, T. Y. Tsai, C. S. Chang, S. C. Shei, S. J. Hsu, C. H. Liu, U. H. Liaw, S. C. Chen, and B. R. Huang,
“Nitride-Based Light-Emitting Diodes With Ni/ITO p-Type Ohmic Contacts”, IEEE PHOTONICS TECHNOLOGY LETTERS, VOL. 14, NO. 12, DECEMBER 2002.
