Quiz

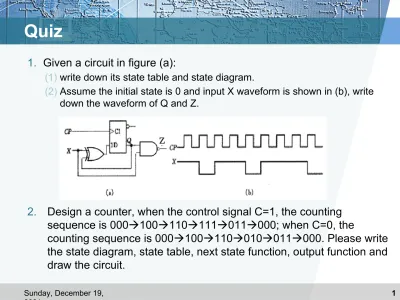

1. Given a circuit in figure (a):

(1) write down its state table and state diagram.

(2) Assume the initial state is 0 and input X waveform is shown in (b), write down the waveform of Q and Z.

2. Design a counter, when the control signal C=1, the counting sequence is 000100110111011000; when C=0, the

counting sequence is 000100110010011000. Please write the state diagram, state table, next state function, output function and draw the circuit.
