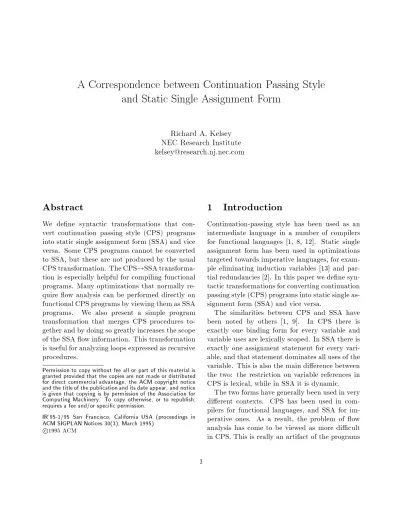

A Correspondence between Continuation Passing Style and Static Single Assignment Form

Richard A. Kelsey NEC Research Institute kelsey@research.nj.nec.com

Abstract

We dene syntactic transformations that con- vert continuation passing style (CPS) programs into static single assignment form (SSA) and vice versa. Some CPS programs cannot be converted to SSA, but these are not produced by the usual CPS transformation. The CPS^!SSA transforma- tion is especially helpful for compiling functional programs. Many optimizations that normally re- quire ow analysis can be performed directly on functional CPS programs by viewing them as SSA programs. We also present a simple program transformation that merges CPS procedures to- gether and by doing so greatly increases the scope of the SSA ow information. This transformation is useful for analyzing loops expressed as recursive procedures.

Permission to copy without fee all or part of this material is granted provided that the copies are not made or distributed for direct commercial advantage, the ACM copyright notice and the title of the publication and its date appear, and notice is given that copying is by permission of the Association for Computing Machinery. To copy otherwise, or to republish, requires a fee and/or specic permission.

IR'95-1/95 San Francisco, California USA (proceedings in ACM SIGPLAN Notices 30(3), March 1995)

c

1995ACM

1 Introduction

Continuation-passing style has been used as an intermediate language in a number of compilers for functional languages [1, 8, 12]. Static single assignment form has been used in optimizations targeted towards imperative languages, for exam- ple eliminating induction variables [13] and par- tial redundancies [2]. In this paper we dene syn- tactic transformations for converting continuation passing style (CPS) programs into static single as- signment form (SSA) and vice versa.

The similarities between CPS and SSA have been noted by others [1, 9]. In CPS there is exactly one binding form for every variable and variable uses are lexically scoped. In SSA there is exactly one assignment statement for every vari- able, and that statement dominates all uses of the variable. This is also the main dierence between the two: the restriction on variable references in CPS is lexical, while in SSA it is dynamic.

The two forms have generally been used in very dierent contexts. CPS has been used in com- pilers for functional languages, and SSA for im- perative ones. As a result, the problem of ow analysis has come to be viewed as more dicult in CPS. This is really an artifact of the programs

being compiled and not a problem with the CPS intermediate language. Functional programs ex- press control ow through the use of procedures, resulting in large collections of small procedures, as opposed to small collections of large procedures in imperative languages (by `large' procedure we mean one large enough to contain a loop). The writers of compilers for imperative languages have been quite successful with using SSA to express the results of intraprocedural ow-analysis and then analyzing the SSA program. CPS uses pro- cedures to express practically everything, so any- thing but the most local optimization appears to require interprocedural analysis, which is hard in any language.

In this paper we are not going to concern our- selves with interprocedural ow analysis. What we will do is restrict our notion of what consti- tutes a procedure in CPS. The ^ forms in CPS programs will be annotated to indicate which rep- resent full procedures and which are continua- tions. This reduces the number of full procedures and greatly simplies analyzing the program.

Throughout the paper we will assume that any use of lexical scoping in the source program has been implemented by the introducing explicit en- vironments, as described in [1, 7]. We further assume that in the CPS programs continuations are created and used in a last-in/rst-out man- ner (see section 6 for a discussion). The lat- ter restriction only aects the way in which non- local returns, such as longjumps in C or call-with- current-continuation in Scheme, are expressed in CPS.The paper proceeds as follows. Section 2 con- tains the denition of an SSA language. Section 3 denes a source language, an annotated CPS lan- guage, and an algorithm for converting source programs into CPS programs. The following two sections dene functions that convert CPS proce- dures into SSA procedures and vice versa. The remainder of the paper is a discussion of practical dierences between SSA and CPS, followed by a

comparison to previous work.

2 Static Single Assignment

SSA is an imperative form in which there is ex- actly one assignment for every variable and that assignment dominates all uses of the variable (see [4] for a good overview of SSA).

To make the control- ow graph explicit, control ow is expressed entirely in terms of^ifand^goto. We allow expressions in some nonstandard places, for example as the arguments to the -functions;

removing these only requires introducing a few additional assignment statements. The syntax of expressions does not matter and is left unspeci- ed, with the restriction that they may not con- tain procedure calls (and they typically don't in SSA languages).

The grammar for a procedure in our SSA lan- guage is:

P ::= ^proc(x*^)f B L* ^g L ::= l : I* B

I ::= x ⁽E*^);

B ::= x E^;B^jx E⁽E*^); B^j

gotol^{i; j}

returnE^;jreturnE⁽E*^{); j}

if E ^thenB^elseB E ::= x^jE+ E^j:::

where x² variables l ²labels

The semantics is the `obvious' one. is as- signment, E⁽E, ^:::) is a procedure call, and

return returns from the current procedure. The

-functions at the beginning of a block each take one argument for each of the^goto's that jump to that block. The i'th argument is returned when control reaches the block from^gotolⁱ.

Cytron et al. [4] describe a translation al- gorithm that eciently converts programs into SSA while introducing the minimum number of

-functions.

Because every variable has a unique assign- ment, denition^$use chains are trivial to com- pute. Many analyses and optimizations are sim- pler when applied to a program in SSA form than to the original source program.

Below is an example SSA procedure that counts the number of times zero appears in the sequence

f(0) ^:::f(limit-1) for some function ^fand in- teger ^limit. Note that some of the computation occurs in the -functions. In particular the sec- ond ^if makes sense only in the context of the

-function for^c0 at label^j. We will be using this example throughout the paper.

proc (f limit) ^f goto l⁰;

l:i (0, i+1);

c (0, c⁰);

if i = limit then return c;

else

x f(i);

if x = 0 then goto j⁰; else

goto j¹; ^g j:c⁰(c+1, c);

goto l¹; ^g

3 Annotated CPS

In continuation passing style procedures do not return. Instead they are passed an additional ar- gument, a continuation, which is applied to the procedure's return value (see chapter 8 of [5] for a full discussion).

The correspondence between CPS and SSA re- quires a slightly modied algorithm for converting programs into CPS. The modied algorithm an- notates the^forms in the CPS code to show how they are used. The annotations have no semantic content and, if not introduced by the CPS algo- rithm, could be added to the program via some

suitable analysis (assuming the CPS program is in a suitable form; see section 6 below).

Our source language is a subset of Scheme [3], with the subset chosen as a compromise between simplicity and realism. For simplicity we will as- sume that the source and CPS languages use the same expressions as in the SSA language of the previous section. In the context of Scheme pro- grams we will refer to the equivalents of the SSA expressions as trivial expressions, to keep from confusing them with other Scheme expressions.

As described above, the main restriction on (triv- ial) expressions is that they cannot contain pro- cedure calls.

To simplify the CPS algorithm the source lan- guage is restricted to allow non-trivial expressions only in tail position or as the bound value in a

let. In an actual compiler the source program could be put in this form either by a pre-pass or as part of a more complex CPS algorithm. We also assume that every identier is unique.

A ^loop expression is a version of Scheme's named-^let with the restriction that calls to the label may only occur in tail position. It is in- cluded to show how iterative constructs, such as

forand^whileloops, may be converted into CPS.

The grammar for this Scheme subset is:

M ::= E^j(E E*^{)j (if}E M M^)j

(let ((xM⁾⁾ M^)j

(loop l⁽⁽xE⁾*⁾ M^)j

(l E*⁾

E ::= x^j(+ E E)^{j :::} P ::= ^((x*⁾M⁾ where x² variables

l ²labels

The semantics of the source language is that of Scheme. This subset is sucient to implement most of Scheme, with explicit cells added for any variables that are the targets of ^set!expressions in the source program.

As was done in the Rabbit compiler [12] our

F : M^C ^!M⁰

F([[E, k]]) =⁽kE⁾

F([[E, ^(cont⁽x⁾M⁰⁾]]) =^{(let ((}xE⁾⁾ M⁰⁾

F([[⁽E^:::), C]]) =^{(let ((}v⁽E ^{:::))) (}j v⁾⁾if C = jand j is bound by^letrec

=⁽E ^::: C⁾ otherwise

F([[^{(let ((}xM¹⁾⁾ M²⁾, C]]) =^F([[M¹,^(cont⁽x^)F([[M², C]])⁾]])

F([[^(ifE M¹ M²⁾,k]]) =^(ifE ^F([[M¹,k]]) ^F([[M²,k]])⁾

F([[^(ifE M¹ M²⁾,^(cont⁽x⁾M⁰⁾]]) =

(letrec ((j ^(jump ⁽j⁾M^{0))) (if}E ^F([[M¹,j]])^F([[M², j]])⁾⁾ wherej is new

F([[^(loop l⁽⁽xE^initial):::)M⁾, C]]) =

(letrec ((l ^(jump ⁽x^:::)F([[M, C]])^{))) (}l E^{initial :::))}

F([[⁽lE ^:::), C]]) = ⁽l E^:::)

V : P^! P⁰

V([[^((x^:::)M⁾]]) = ^(proc ⁽x^:::k^)F([[M, k]])⁾ Figure 1: Conversion to CPS conversion to CPS will treat trivial expressions as

values and not introduce continuations for them.

In the CPS grammar all ^'s are annotated as being eitherproc,cont, orjump. The annotations indicate how the ^'s are used, and, equivalently, how they can be compiled.

Proc is used as the translation of the ^ forms in the source program. These are full procedures that eventually return a value and for this reason take a continuation as an argument. The cont and jump forms are continuations that are used in slightly dierent ways. The contcontinuations are return points for calls to proc's. Jump indi- cates that the continuation is called within the current procedure instead of being passed to an- other one. The CPS algorithm introduces ^jump

continuations when the two arms of a conditional have to rejoin at a common point and for the bod- ies of^loop's.

In terms of compilation strategy,cont^'s are re- turn points,jump's can be compiled as gotos, and proc's require a complete procedure-call mecha- nism.

The grammar for the CPS language is as fol- lows:

M⁰ ::=⁽E E* C^)j

(kE*^)j

(if E M⁰ M^0)j

(let ((xE⁾⁾M^0)j

(letrec ((xP⁰⁾*⁾M⁰⁾ C ::=k^j(cont⁽x⁾M⁰⁾ E ::=x ^j(+ E E) ^j::: P⁰ ::=^(proc ⁽x*k⁾M^0)j

(^jump ⁽x*⁾M⁰⁾ where x,k ²variables

The semantics is the obvious call-by-value se- mantics. The annotated ^'s are all just ^, ^letis syntactic sugar for^, and so on.

The identiers x and k used in the grammar are members of the same syntactic class. Mak- ing them syntactically distinct, as is sometimes done [8], restricts how continuations are used and makes CPS and SSA entirely equivalent (see Sec- tion 6).

The function dened in Figure 1 translates

(^proc (f limit k)

(letrec ((l (^jump ^{(i c)}

(if (= i limit) (k c)

(f i (^cont ^(x)

(letrec ((j (^jump ^(c0)

(l (+ i 1) c⁰)))) (if (= x 0)

(j (+ c 1)) (j c))))))))) (l 0 0)))

Figure 2: Example program in CPS source expressions M to CPS expressions M⁰. It

takes a continuation C, which is either an identi- er or a ^cont, as its second argument.

F has two rules for applications. The rst rule is used when the continuation argument is an identier bound by a ^letrec in the rule for ^if and ensures that all uses of such identiers are called directly. The second is used in all other cases. For ^let a new continuation is created for the value. Identier continuations are propagated through^if's; to avoid code expansion ^continu- ations (as opposed to continuations that are just an identier) are marked as jump and bound to an identier. ^Loop is translated into a recursive continuation. The loop begins by calling the con- tinuation on the initial values of the iterative vari- ables. Calls to the loop's label become calls to the recursive continuation, ignoring the current con- tinuation.

As we are not interested in interprocedural analysis we will treat each^proc as a separate pro- gram (here we depend on the assumption that ex- plicit environments have been introduced to take care of lexical scoping for any nested^proc's). Be- cause they are called at the point they are created,

cont's can be considered as inlined procedures.

The call sites of ^jump's are easily found: the

jump's only occur as the bound value in^letrec's.

Furthermore, all references to the variables to which the ^jump's are bound are calls to those variables.

The following is the sample SSA procedure from above written in the source language for the CPS transformation:

(^ (f limit)

(loop l ((i 0) (c 0)) (if (= i limit)

c

(let ((x (f i)))

(let ((c⁰ (if (= x 0) (+ c 1) c))) (l (+ i 1) c⁰))))))

Figure 2 presents the CPS version of the same procedure. A ^cont is introduced as the continu- ation for the call to ^fand^jump's are used as the join point for the^if and for the loop.

4 Converting CPS to SSA

In this section we dene a syntactic translation that converts CPS procedures into SSA proce- dures.

The function ^G in Figure 3 translates non- trivial CPS expressions to SSA statements. The

G : M^{0 !}B

G([[^{(let ((}xE⁾⁾M⁰⁾]]) =x E^{; G}([[M⁰]])

G([[⁽E ^:::(cont ⁽x⁾M⁰⁾⁾]]) =x E^{(:::); G}([[M⁰]])

G([[⁽E ^:::k⁾]]) =^returnE^(:::);

G([[⁽kE⁾]]) =^returnE^;

G([[⁽j E^0;i E^{1;i :::)}]]) =^gotoj^i;

G([[^(if E M⁰¹ M⁰²⁾]]) = ^if E^thenG([[M⁰¹]]) ^elseG([[M⁰²]])

G([[^{(letrec ( :::)}M⁰⁾]]) =^G([[M⁰]])

Gproc : P^{0 !} P

Gproc([[^(proc ⁽x^:::) M⁰⁾]]) = ^proc(x^::: k^{)f G}([[M⁰]])^Gjump([[^(jump ^{::: )}]])^:::g

Gjump : j ^(jump ⁽x ^:::)M^0)! L

Gjump([[j,^(jump ⁽x^:::)M⁰⁾]]) =j : x ⁽E^0;0, E^0;1,^{:::); ::: G}([[M⁰]])⁾

Figure 3: Translation of CPS to SSA. The E^i;j on the right-hand side of the denition of ^Gjump are those from the left-hand side of the denition of^G([[⁽j^:::)]]).

simple binding forms, ^let and ^cont, become as- signments. ^Ifis essentially the same in both syn- taxes. Uses of a ^proc's continuation variable be- come ^return's while calls to ^letrec-bound con- tinuation variables are translated as^gotos.

The ^jump's in the program are ignored when found by ^G. Each^jump is instead lifted up to be- come a labeled block in the SSA procedure. The arguments to the ^jump's, which are also ignored by ^G, become the arguments to the -function that denes the value of the corresponding vari- able in the SSA program. In the denition of

Gjump, E^0;1 is the rst argument to the second call (in some arbitrary ordering) to j, the vari- able bound to ^(jump ⁽x^{::: )} M⁰⁾. That call is translated as ^gotoj¹.

The translated program is syntactically correct, and it obeys the SSA restriction that there is exactly one assignment per variable (since each variable is bound exactly once in the CPS pro- gram). Variables in the translated program are assigned the values of the same expressions they were bound to in the CPS program, and evalua- tion order is preserved, so the two programs pro- duce identical results.

Applying ^Gproc to the CPS example produces

the original SSA example from above.

5 Converting SSA to CPS

We would like to produce an inverse of ^G to con- vert SSA programs to CPS. The function ^H in Figure 4, produced by a simple editing of the def- inition of ^G, is almost an inverse of ^G. The di- culty is the rule for the^letrec's that bind^jump's.

In translating ^jump's to labeled blocks^G ignores their position in the CPS program. Translating a labeled block back into a^jump is straightforward, but we need to bind the ^jump with a ^letrec somewhere in the newly created CPS program.

The ^jump's need to be placed such that no vari- able is referred to outside the form that binds it.

Our placement algorithm uses the dominator tree of the SSA program. Statement M⁰ is said to dominate M¹ if M⁰ appears in every execution path between the start of the program and M¹. If M² also dominates M¹ then either M² dominates M⁰ or vice versa. The dominator relation thus organizes a program's statements into a tree. The immediate dominator of M is M's parent in the dominator tree.

Given a labeled block, J : I* B, in the SSA

H: B ^! M⁰

H([[x E^;B]]) =^{(let ((}xE^{)) H}([[B]])⁾

H([[x E^(:::);B]]) =⁽E^:::(cont ⁽x^)H([[B]])⁾⁾

H([[^ifE ^thenB^{1 else}B²]]) = ^(ifE ^H([[B¹]])^H([[B²]])⁾

H([[^returnE^(:::);]]) = ⁽E ^:::k⁾

H([[^returnE^;]]) = ⁽kE⁾

H([[^gotoj^i;]]) = ⁽j E^0;i E^{1;i :::)}

Hproc : P^! P⁰

Hproc([[^proc(x^::: k^)fB L*^g]]) = ^(proc ⁽x^:::)G([[B]])⁾

Hjump : L^{! (}jump ⁽x^:::)M⁰⁾

Hjump([[j: x ⁽E^0;0, E^0;1,^{:::); :::} B]]) =^(jump ⁽x^:::)H([[B]])⁾

Figure 4: Translation of SSA to CPS. The E^i;j on the right-hand side of the denition of^H([[^gotoJ^i;]]) are those from the left-hand side of the denition of ^Hjump.

program, with M the immediate dominator of I*

B, we will replace^H([[M]]) with

(letrec ((j^Hjump([[I* B]])^{)) H}([[M]])⁾ in the CPS procedure. If two or more labels have the same immediate dominator their ^jump's are placed in a single^letrec.

Theorem:

all uses of variables in the CPS pro- gram produced by^H are properly in scope.

Proof:

We know that every use of a variable in the SSA program is dominated by the variable's assignment statement. Assignment statements in the SSA program correspond to binding forms in the CPS program. By inspection ^Hpreserves the dominator tree, so it is sucient to show that every statement in the CPS program is lexically inferior to its immediate dominator, and thus to all its dominators, including the binding forms for any referenced variables.

Again inspecting the denition of ^H, we can see that when the M⁰ produced by^H is the body of either a ^LET, a ^proc, or a ^cont, or if it is ei- ther arm of an ^if, then it is lexically inferior to its immediate dominator. The remaining possible location for an M⁰ is as the body of a ^jump, and each ^jump is by construction lexically inferior to the dominators of its immediate dominator. This would lead to a problem if the immediate domina-

tor were a binding form, but this cannot happen.

If ^{(let ((}x E⁾⁾ M⁰⁾ or ⁽E ^:::(cont ⁽x⁾ M⁰⁾⁾ dominates a ^jump, then M⁰ does as well.

The arguments to the -functions are also placed so as to be lexically inferior to their dom- inators. QED.

Using ^H to convert the original SSA example to CPS produces a program identical to the CPS program shown in Figure 2.

6 Why CPS and SSA Are Not Identical

The function^Gcannot be applied to all CPS pro- grams. It depends on the ^'s being correctly an- notated, which in turn depends on continuations being used in a somewhat restricted fashion. If non-local returns, such as longjumps in C or call- with-current-continuation in Scheme, are trans- lated into uses of continuations in the CPS pro- gram there is no way to label the continuations so used. They are neither simply passed as a proce- dure's continuation, nor are all of their calls tail- recursive calls within the procedure in which they were created, so neither ^cont or ^jump is appro- priate. A fourth annotation could be introduced

(^proc (f limit k)

(letrec ((l (^proc ^{(i c k0)}

(if (= i limit) (k⁰ c)

(f i (^cont ^(x)

(letrec ((j (^jump ^(c0)

(l (+ i 1) c⁰ k⁰)))) (if (= x 0)

(j (+ c 1)) (j c))))))))) (l 0 0 k)))

Figure 5: Example program using Scheme's named-^lettranslated into CPS.

for continuations that are created in one proce- dure and called in another. There would still be no direct way to represent the program in SSA.

7 Compiling Imperative Pro- grams

We have shown that programs can be translated into CPS and from there to SSA programs by a series of syntactic transformations. Producing an SSA program normally requires ow-analysis, as the program directly expresses use^$denition chaining. Where is the ow information in the CPS program coming from?

The source program for the CPS transforma- tion is a functional program, and as such con- tained the required ow information. If we had started with an imperative program, meaning one using ^set! to modify the values of variables, translation into our CPS source language would have required adding explicit cells to hold the val- ues of all variables that were the targets of ^set!

expressions. The^jump's in the resulting CPS pro- gram would take no arguments and there would be no -functions in the corresponding SSA pro- gram, only a lot of stores and fetches. Transform- ing such a program into a more useful form would require doing some ow-analysis, similar to that done in translating imperative programs to SSA.

8 Compiling (Mostly) Func- tional Programs

For programs that do not side-aect the values of variables, viewing CPS procedures as SSA pro- cedures shows that CPS nicely re ects intrapro- cedural denition^$use associations without any need for ow analysis. There is still a problem.

Programs written in languages such as ML and Scheme tend to have few side-aected variables, making data ow visible as discussed above. The diculty is that these same languages use recur- sion to express iteration. They do not use itera- tive constructs like ^loop in the CPS source lan- guage used above. So while we get intraprocedu- ral ow information more or less for free, what we really want is interprocedural information.

Interprocedural analysis is dicult, but we can instead take the approach of increasing the size of the procedures. The idea is to nd a set of proce- dures all of which are always called with the same continuation, and then to substitute that contin- uation for the procedures' continuation variables.

The procedures are then themselves continuations nested within a single large procedure, removing any need for interprocedural information.

More precisely, given a set procedures P^{0 :::}Pⁿ bound by one or more^letrecforms to identiers f^{0 :::}fⁿ and a continuation C such that every use off is either a tail-recursive call from within P or

a non-tail-recursive call being passed continuation C, we can perform the following transformation.

Let Pⁱ =^(proc ^(:::kⁱ⁾Mⁱ⁾. If C is^(cont ^:::), let jbe a new identier; if C is an identier, let j be that identier.

1. Replace all references to the kⁱ with j and remove them from the variable lists of the Pⁱ, changing the Pⁱ from^proc's to ^jump's.

2. Remove the continuation from all calls to the fⁱ.

3. Let M be the smallest form containing every non-tail-recursive call to the fⁱ. Replace M with^{(letrec (:::)}M⁾where ^(:::)bindsj to C if C = ^(cont ^:::) and also binds fⁱ to Pⁱ for every fⁱ whose original binding form is lexically apparent at M.

Because we restricted ourselves to having thefⁱ be bound by^letrecand being called directly (as opposed to being passed to another procedure and then being called, for example), this is a purely syntactic transformation. More sophisticated ver- sions are clearly possible. The simple syntactic version presented here applies to many common uses of recursive procedures.

If our CPS source program used Scheme's named-^let syntax instead of the restricted ^loop version used above, applying ^G to it would pro- duce the program shown in Figure 5. The recur- sive procedure is now a full procedure. Applying the above transformation to this program, with P⁰ = ^(proc ^{(i c k0) :::)} and C = j = ^l, pro- duces the procedure shown in Figure 2.

We need to show that the transformation is correct and preserves the map to SSA. Substitut- ing the value C (or an identier bound to C) for the variables kⁱ is safe, because thekⁱ are always bound to that value. Scoping is preserved, be- cause any free identiers in C are in scope at M, otherwise they would be out of scope at some oc- currence of C in the original program. Moving the Pⁱ to a lexically inferior form also preserves

scoping, and all uses of thefⁱ are at or below the inserted^letrecthat now binds them.

The function ^G can be applied to the trans- formed program to produce an equivalent SSA version. We have created more ^jump's, but they obey the same restrictions as the ones created by the CPS algorithm: the ^jump's are bound by

letrec, all uses of the variables to which they are bound are tail calls, and the bindings and uses all lie within a single ^proc (because any outlying Pⁱ were moved in step 3 of the transformation).

9 Related Work and Conclu- sion

The similarity between CPS and SSA has been noted by others. Appel [1] and O'Donnell [9]

both brie y describe the relationship between - functions and parameters to procedures whose call sites are known. Here we have shown that the correspondence is exact, and, more importantly, goes both ways. The main dierence between a CPS procedure and an SSA procedure is the syn- tax. Compiler writers can use a single represen- tation and take advantage of both the work on intraprocedural optimizations that has been done using SSA and the work on interprocedural opti- mizations done using CPS.

The other contribution of this paper is that the correspondence can be made to be useful. As long as procedures are too small to contain loops, con- sidering them as SSA procedures does not help much. We have shown how to merge looping pro- cedures together such that the result can treated as a single procedure (a restricted and somewhat more complex version of this transformation is mentioned in two of our earlier papers, [6, 7], but without any discussion of the implications for pro- gram analysis). Without this transformation ana- lyzing loops that are expressed as recursive proce- dures requires interprocedural analysis, as in [11], and in this case using CPS may be more dicult than necessary [10].

References

[1] Andrew W. Appel. Compiling with

Continuations. Cambridge University Press, Cambridge, 1992.

[2] Preston Briggs and Keith D. Cooper.

Eective partial redundancy elimination. In Proceedings ACM SIGPLAN '94 Conference on Programming Language Design and Implementation, pages 159{170, 1994.

[3] William Clinger and Jonathan Rees.

Revised⁴ report on the algorithmic language Scheme. ACM Lisp Pointers, 4(3):1{55, 1991.

[4] Ron Cytron, Jeanne Ferrante, Barry K.

Rosen, Mark N. Wegman, and F. Kenneth Zadeck. Eciently computing static single assignment form and the control

dependence graph. ACM Transactions on Programming Languages and Systems, 13(4):451{490, 1991.

[5] Daniel P. Friedman, Mitchell Wand, and Christopher T. Haynes. Essentials of Programming Languages. MIT Press, Cambridge, MA, 1992. Also McGraw-Hill, Chicago, 1992.

[6] Richard Kelsey. Compilation by program transformation. Technical Report

YALEU/DCS/TR-702, Department of Computer Science, Yale University, New Haven, CT, 1989.

[7] Richard Kelsey and Paul Hudak. Realistic compilation by program transformation. In Conf. Rec. 16 ACM Symposium on

Principles of Programming Languages, pages 281{292, 1989.

[8] David A. Kranz, Richard Kelsey, Jonathan A. Rees, Paul Hudak, James Philbin, and Norman I. Adams. Orbit: An

optimizing compiler for scheme. In Proceedings SIGPLAN '86 Symposium on Compiler Construction, 1986. SIGPLAN Notices 21(7), July, 1986, 219-223.

[9] Ciaran O'Donnell. High level compiling for low level machines. PhD thesis, Ecole Nationale Superieure des

Telecommunications, 1994.

[10] Amr Sabry and Matthias Felleisen. Is continutation-passing useful for data ow analysis? InProceedings of the ACM SIGPLAN '94 Conference on Programming Language Design and Implementation, pages 1{12, 1994.

[11] Olin Shivers. Control-Flow Analysis of Higher-Order Languages or Taming Lambda. PhD thesis, School of Computer Science, Carnegie-Mellon University, 1991.

[12] Guy L. Steele. Rabbit: A compiler for Scheme. Technical Report 474,

Massachusetts Institute of Technology, Cambridge, MA, May 1978.

[13] Michael Wolfe. Beyond induction variables.

InProceedings of the ACM SIGPLAN '92 Conference on Programming Language Design and Implementation, pages 162{174, 1992.
