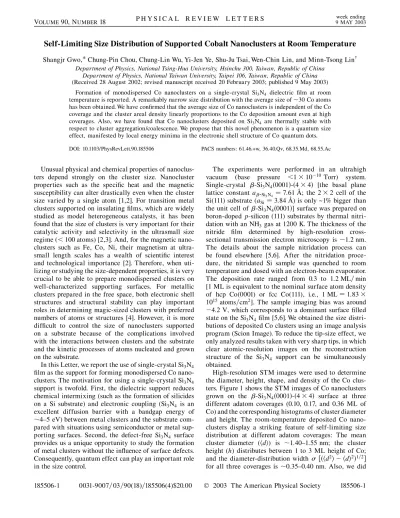

Self-Limiting Size Distribution of Supported Cobalt Nanoclusters at Room Temperature
Shangjr Gwo,* Chung-Pin Chou, Chung-Lin Wu, Yi-Jen Ye, Shu-Ju Tsai, Wen-Chin Lin, and Minn-Tsong Lin† Department of Physics, National Tsing-Hua University, Hsinchu 300, Taiwan, Republic of China
Department of Physics, National Taiwan University, Taipei 106, Taiwan, Republic of China (Received 28 August 2002; revised manuscript received 20 February 2003; published 9 May 2003)
Formation of monodispersed Co nanoclusters on a single-crystal Si3N4 dielectric film at room temperature is reported. A remarkably narrow size distribution with the average size of 30 Co atoms has been obtained. We have confirmed that the average size of Co nanoclusters is independent of the Co coverage and the cluster areal density linearly proportions to the Co deposition amount even at high coverages. Also, we have found that Co nanoclusters deposited on Si3N4 are thermally stable with respect to cluster aggregation/coalescence. We propose that this novel phenomenon is a quantum size effect, manifested by local energy minima in the electronic shell structure of Co quantum dots.
DOI: 10.1103/PhysRevLett.90.185506 PACS numbers: 61.46.+w, 36.40.Qv, 68.35.Md, 68.55.Ac
Unusual physical and chemical properties of nanoclus- ters depend strongly on the cluster size. Nanocluster properties such as the specific heat and the magnetic susceptibility can alter drastically even when the cluster size varied by a single atom [1,2]. For transition metal clusters supported on insulating films, which are widely studied as model heterogeneous catalysts, it has been found that the size of clusters is very important for their catalytic activity and selectivity in the ultrasmall size regime (< 100 atoms) [2,3]. And, for the magnetic nano- clusters such as Fe, Co, Ni, their magnetism at ultra- small length scales has a wealth of scientific interest and technological importance [2]. Therefore, when uti- lizing or studying the size-dependent properties, it is very crucial to be able to prepare monodispersed clusters on well-characterized supporting surfaces. For metallic clusters prepared in the free space, both electronic shell structures and structural stability can play important roles in determining magic-sized clusters with preferred numbers of atoms or structures [4]. However, it is more difficult to control the size of nanoclusters supported on a substrate because of the complications involved with the interactions between clusters and the substrate and the kinetic processes of atoms nucleated and grown on the substrate.
In this Letter, we report the use of single-crystal Si3N4 film as the support for forming monodispersed Co nano- clusters. The motivation for using a single-crystal Si3N4 support is twofold. First, the dielectric support reduces chemical intermixing (such as the formation of silicides on a Si substrate) and electronic coupling (Si3N4 is an excellent diffusion barrier with a bandgap energy of
4–5 eV) between metal clusters and the substrate com- pared with situations using semiconductor or metal sup- porting surfaces. Second, the defect-free Si3N4 surface provides us a unique opportunity to study the formation of metal clusters without the influence of surface defects.
Consequently, quantum effect can play an important role in the size control.
The experiments were performed in an ultrahigh vacuum (base pressure <1 1010 Torr) system.
Single-crystal -Si3N40001-4 4 [the basal plane lattice constant a-Si3N4 7:61 A; the 2 2 cell of the Si(111) substrate (aSi 3:84 A) is only ~1% bigger than the unit cell of -Si3N40001] surface was prepared on boron-doped p-silicon (111) substrates by thermal nitri- dation with an NH3 gas at 1200 K. The thickness of the nitride film determined by high-resolution cross- sectional transmission electron microscopy is 1:2 nm.
The details about the sample nitridation process can be found elsewhere [5,6]. After the nitridation proce- dure, the nitridated Si sample was quenched to room temperature and dosed with an electron-beam evaporator.
The deposition rate ranged from 0.3 to 1:2 ML= min [1 ML is equivalent to the nominal surface atom density of hcp Co(0001) or fcc Co(111), i.e., 1 ML 1:83 1015atoms=cm2]. The sample imaging bias was around
4:2 V, which corresponds to a dominant surface filled state on the Si3N4 film [5,6]. We obtained the size distri- butions of deposited Co clusters using an image analysis program (Scion Image). To reduce the tip-size effect, we only analyzed results taken with very sharp tips, in which clear atomic-resolution images on the reconstruction structure of the Si3N4 support can be simultaneously obtained.
High-resolution STM images were used to determine the diameter, height, shape, and density of the Co clus- ters. Figure 1 shows the STM images of Co nanoclusters grown on the -Si3N40001-4 4 surface at three different adatom coverages (0.10, 0.17, and 0.36 ML of Co) and the corresponding histograms of cluster diameter and height. The room-temperature deposited Co nano- clusters display a striking feature of self-limiting size distribution at different adatom coverages: The mean cluster diameter (hdi) is 1:40–1:55 nm; the cluster height (h) distributes between 1 to 3 ML height of Co;
and the diameter-distribution width hd2i hdi21=2 for all three coverages is 0:35–0:40 nm. Also, we did P H Y S I C A L R E V I E W L E T T E R S week ending 9 MAY 2003
VOLUME90, NUMBER18
185506-1 0031-9007=03=90(18)=185506(4)$20.00 2003 The American Physical Society 185506-1
not observe the occurrence of cluster coalescence even at the highest coverage (0.36 ML). As can be seen in the STM images, the mean nearest-neighbor distance be- tween clusters clearly decreases with increasing coverage while the mean cluster size remains the same. This is drastically different from the typical growth behavior of metallic clusters deposited on insulating substrates [7,8].
Figure 2 shows size scatter plots of supported Co (a) and (b), Fe (c), and Au (d) nanoclusters on the - Si3N40001 film at different coverages. Among them, Fig. 2(a) is for room-temperature deposited Co nanoclus- ters and Fig. 2(b) is for comparison between as-deposited and thermally annealed Co nanoclusters, both of them showing clear linear correlation between the cluster height and diameter. This can be interpreted as a uniform cluster shape with a fixed proportion. Thus, we can model Co clusters with a constant spherical-cap shape. From the atomically resolved image on the surface reconstruction of the exposed Si3N4 support, we also know that the growth is in the island growth mode (Volmer-Weber growth). Besides the Co deposition, we have also con- firmed the same self-limiting growth phenomenon for supported Fe nanoclusters. The mean cluster diameter of Fe is slightly larger (2:0 nm) and the cluster height still distributes between 0.2 to 0.6 nm. As shown in Fig. 2(c), nearly all the Fe nanoclusters (total number:
3264) deposited at four different coverages distribute in a strikingly narrow size window. In contrast to Co and Fe nanoclusters, Au nanoclusters do not exhibit the phe- nomenon of self-limiting size distribution and behave as predicted in the classical nucleation and growth model.
This indicates that surface energy might play a unique role in such phenomena. From the size distributions of h and d, we can determine the distribution of atom numbers in the Co clusters because of the following relationship:
V
8d2h
6h3; (1)
where V is the volume of the cluster. The number of atoms in each cluster can be determined from the cluster volume V and the atomic density of Co ( Co 9:10 1022atoms=cm3).
It is well known that cluster nucleation and diffusion often depends on the intrinsic or extrinsic surface defects.
For example, previous experimental studies have revealed that supported Co nanoclusters of biatomic-layer height
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 0.0
0.4 0.8 1.2 1.6
2.0 0.17 MLCobalt (as deposited) Anneal at 400 K for 10 min
(b)
Height(nm)
Diameter(nm)
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 0.0
0.4 0.8 1.2 1.6 2.0
Iron 0.17 ML 0.27 ML 0.37 ML
0.47 ML 00.0 0.1 0.2 0.3 0.4 0.5 4
8 12
(c)
Coverage(ML)
Density(10cm)122−
Height(nm)
Diameter(nm)
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 0.0
0.4 0.8 1.2 1.6 2.0 Gold
0.15 ML 0.55 ML
0.0 0.2 0.4 0.6 0.8 0
5 10 15 20 25
Coverage(ML)
Density(10cm)122−
Height(nm)
Diameter(nm) (d)
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 0.0
0.4 0.8 1.2 1.6 2.0
Cobalt 0.10 ML 0.17 ML 0.36 ML
0.0 0.1 0.2 0.3 0.4 0
5 10 15 20 25
(a)
Coverage(ML)
Density(10cm)122−
Diameter(nm)
Height(nm)
FIG. 2 (color). Scatter plots of the diameter and height of supported Co[(a),(b) 615 Co clusters in (a)] Fe [(c) 3264 Fe clusters], and Au [(d) 269 Au clusters] nanoclusters on -Si3N40001 at different coverages. Insets in (a) and (c) show the linear relationship between the areal densities of Co and Fe nanoclusters and the deposition coverage. For Au nanoclusters deposited at low coverage, 95% of clusters locate within the dotted circle (blue). At high coverage, the size distribution becomes significantly wider and cluster coalescence is evident. (For Co, Fe, and Au deposition, 1 ML 1:83 1015, 1:877 1015, and 1:38 1015atoms=cm2, respec- tively).
FIG. 1 (color). (a), (b), and (c) are STM images of Co nanoclus- ters grown on the -Si3N40001
ultrathin film [1:2 nm in thickness, p-Si111 substrate]
at room temperature with differ- ent Co coverages. The scanning area for each image is 30 nm by 30 nm. Images were obtained with the sample bias of 4:2 V (filled-state images) and tunnel- ing current of 1 nA. Below the STM images are the correspond- ing histograms of cluster diame- ter and height.
P H Y S I C A L R E V I E W L E T T E R S week ending 9 MAY 2003
VOLUME90, NUMBER18
185506-2 185506-2
are self-assembled on the (23
p3
) reconstructed (so- called herringbone structure) Au(111) surfaces [9,10]. In this case, ordered two-dimensional array of Co islands, deposited at submonolayer coverage, preferentially nucle- ates on the ‘‘elbows’’ of the long-range herringbone (an ordered zigzag pattern) reconstruction of Au(111).
Therefore, the dislocation density located at the ‘‘elbow’’
sites determines the areal density of the Co nanoclusters, which is independent of the Co deposition coverage.
With increasing coverage, the average Co cluster size would increase upon further aggregation and finally clus- ters coalesce. In our experiments, we can clearly rule out the possibility of defect-mediated nucleation since the nucleation island density linearly proportions to the Co deposition coverage [see the inset of Fig. 2(a)] and the average cluster size remains the same, completely inde- pendent of the Co coverage. These results also differen- tiate this case from the nucleation and growth behavior of common supported cluster systems, where a linear proportionality between the cluster density and adatom coverage only is valid in the beginning of nucleation stage (0:1 ML) and the variation of the mean cluster diameter with deposition coverage before the coalescence regime can be typically expressed by a power law rela- tionship [11]. Furthermore, we found no correlation be- tween the surface structures (reconstruction, step, kink, defect, etc.) and the formation of the clusters. This is very different from previous studies of forming monodis- persed and ordered metal nanoclusters utilizing various surface structures [12 –15].
We have also examined the thermal stability of the Co nanoclusters supported on the single-crystal Si3N4 film against cluster aggregation and/or coalescence. In Fig. 2(b), we show the result of the size distribution of Co nanoclusters after the sample was annealed in situ at 400 K for 10 min. Although the density of the Co nanoclusters decreases upon annealing (not shown), the cluster size and shape display a high degree of thermal stability. We have found that the decreasing density of Co clusters actually results from the thermal decomposi- tion of the Co clusters and the decomposed Co atoms decorates at the surface step edges or are incorporated into the partially nitridated regions of the Si substrate.
This result demonstrates that the observed phenome- non of self-limiting size distribution cannot be explained by the typically observed Ostwald coarsening [16] be- cause of the absence of ripening predicted in the classical nucleation and growth model. Furthermore, cluster- cluster dipole interactions do not appear to be important for this case because no correlation between the average cluster size and the mean intercluster (nearest neighbors) distance is observed.
We propose that this novel nucleation behavior is ac- tually an interplay between drastically increased surface- to-volume ratio and quantum size effect of supported nanoclusters in the ultrasmall size regime. For standard
classical nucleation, the effect of drastically increased surface-to-volume ratio is that nucleated clusters with sizes less than the critical atom number N (so-called embryo nuclei) tends to decay because their free ener- gies would increase during growth of these nuclei, while the nuclei with sizes larger than N are stable and could continue to grow since their total free energies would decrease [see the inset of Fig. 3(a)]. Here, both the nucleation barrier ( G) and N are functions of surface (and interface) free energies and supersaturation ratio of deposition flux [7]. For metals with relatively small surface energies, the nucleation behavior is pre- dominantly classical since the nucleation barrier is low and the size window (determined by N) for quantum nucleation is small. For Co or Fe deposition with a large cluster surface energy, the nucleation barrier is very high and the size window is also large under similar deposition conditions. Thus, nucleation can occur at certain magic sizes (less than N), resulting from the electronic shell effect of quantum confined electrons in the clusters.
This is similar to previous studies on two-dimensional and one-dimensional systems (films and wires) [17– 21].
To understand this phenomenon better, we use the
20 40 60 80 100 120 0
2 4 6
(a) 8
∆2(N)(eV) 6
11 18
27,28
73
Number of atoms
0 1 2 3 4
0 50 100 150
20 40 60 80 100 120 0
10 20 30 40 50
Count Diameter (nm)
Count
(b)
Number of atoms
FreeEnergyChange(G)
Number of Atoms
∆ G∗
N*
FIG. 3. (a) Calculated discrete second derivative of electronic energy [ 2N] vs the atomic number of Co cluster in a sequence using a hemispherical cluster geometry and infinite square-well potential. The inset in (a) shows the relation between the surface free energy G and the atomic number of Co cluster. Only the local energy minima at sizes N < Nare relevant. (b) Abundance spectrum of Co nanoclusters obtained from three STM images shown in Figs. 1(a) –1(c). Statistical error bars are included in the histogram. The inset in (b) shows the original histogram of cluster diameter.
P H Y S I C A L R E V I E W L E T T E R S week ending 9 MAY 2003
VOLUME90, NUMBER18
185506-3 185506-3
hemispheric quantum dot geometry to model the con- finement of valence electrons in a Co nanocluster, in which an infinite wall energy barrier confines the valence electrons of Co atoms (two 4s electrons per Co atom).
The reason for choosing the hemisphere shape instead of the more realistic cap shape is that the magic filling numbers of the electronic shell structure are identical for both kinds of confinement geometry [22]. And, the magic filling numbers are insensitive to the exact form of the barrier potential [4]. Therefore, the model we choose here is the simplest one to obtain the magic filling numbers because the energy eigenvalues and the corre- sponding degeneracies of the confined electrons in the hemisphere dot are exactly solvable. From the calculated energy spectrum, we can determine the total electronic energy EeN as a function of the atom number N in the dot. The stability of each N-atom cluster can then be predicted by the discrete second derivative of EeN, which is defined as
2N EeN 1 EeN 1 2EeN: (2) Here, a large positive 2N corresponds to a stable N-atom cluster. Figure 3(a) displays the calculated result of 2N versus N for the hemispheric Co quantum dot and Fig. 3(b) is the experimental abundance spec- trum of Co nanoclusters obtained from results for all three Co coverages shown in Fig. 1 [we use Eq. (1) and the known atomic density of Co to calculate total atom number in each cluster]. The experimental abundance spectrum agrees quite well (especially for N < 30) with the prediction of this simple model. This demonstrates that the local energy minima of the electronic shell structure can provide several metastable sizes (smaller than the critical cluster size) for Co nucleation under appropriate growth conditions. It is interesting to note that the surface free energy for Au is much lower than that of Co. Therefore, the phenomenon self-limiting size dis- tribution was not observed for the Au case. Although we believe that the quantum size effect plays an important role in the observed size-limiting nanocluster nucleation, further theoretical studies are necessary for a compre- hensive understanding of these phenomena.
In summary, we report a very unusual clustering phe- nomenon of Co adatoms nucleated on the -Si3N40001
ultrathin film. Besides the present examples, we propose that this method can become a general approach for preparing monodispersed (N < 100) metallic clusters on a supporting substrate, utilizing the following key concepts: (i) Deposited material has a large surface free energy (such as transition metals, Fe, Co, Ni, etc.).
(ii) An insulator buffer film is formed between the sub- strate and the deposited material with excellent barrier properties for chemical intermixing and electronic trans- fer. (iii) Growth conditions are chosen such that the
cluster formation barrier is high and the existence of local energy minima at certain magic sizes, which are smaller than the critical cluster size.
We acknowledge Dr. Cheng-Hung Chang and Profes- sor Chung-Yu Mou for helpful discussions. This work was supported by the National Science Council in Taiwan and the MOE Program for Promoting Academic Excellence of Universities.
*Email address: [email protected]
†Email address: [email protected]
[1] R. Kubo, J. Phys. Soc. Jpn. 17, 975 (1962); W. P. Halperin, Rev. Mod. Phys. 58, 533 (1986).
[2] Metal Clusters at Surfaces: Structure, Quantum Prop- erties, Physical Chemistry, edited by K.-H. Meiwes- Broer (Springer, Berlin, 2000).
[3] C. T. Campbell, Surf. Sci. Rep. 27, 1 (1997); M. Ba¨umer and H.-J. Freund, Prog. Surf. Sci. 61, 127 (1999).
[4] W. D. Knight et al., Phys. Rev. Lett. 52, 2141 (1984);
W. A. de Heer, Rev. Mod. Phys. 65, 611 (1993).
[5] H. Ahn, C.-L. Wu, S. Gwo, C. M. Wei, and Y. C. Chou, Phys. Rev. Lett. 86, 2818 (2001).
[6] C.-L. Wu, J.-L. Hsieh, H.-D. Hsueh, and S. Gwo, Phys.
Rev. B 65, 045309 (2001).
[7] B. Lewis and J. C. Anderson, Nucleation and Growth of Thin Films (Academic Press, London, 1978); J. A.
Veneable, G. D. T. Spiller, and M. Hanbu¨cker, Rep. Prog.
Phys. 47, 399 (1984).
[8] J. Carrey, J.-L. Maurice, F. Petroff, and A. Vaure`s, Phys.
Rev. Lett. 86, 4600 (2001); J.-L. Maurice et al., Philos.
Mag. A 79, 2921 (1999).
[9] B. Voigtla¨nder, G. Meyer, and N. M. Amer, Phys. Rev. B 44, 10 354 (1991).
[10] O. Fruchart, M. Klaua, J. Barthel, and J. Kirschner, Phys.
Rev. Lett. 83, 2769 (1999).
[11] C. R. Henry, Surf. Sci. Rep. 31, 235 (1998); C. R. Henry and M. Meunier, Vacuum 50, 157 (1998).
[12] H. Brune, M. Giovannini, K. Bromann, and K. Kern, Nature (London) 394, 451 (1998).
[13] M. Y. Lai and Y. L. Wang, Phys. Rev. Lett. 81, 164 (1998).
[14] M. Y. Lai and Y. L. Wang, Phys. Rev. B 64, 241404(R) (2001).
[15] J.-L. Li et al., Phys. Rev. Lett. 88, 066101 (2002).
[16] H. Ro¨der, E. Hahn, H. Brune, J.-P. Bucher, and K. Kern, Nature (London) 366, 141 (1993).
[17] A. R. Smith, K.-J. Chao, Q. Niu, and C. K. Shih, Science 273, 226 (1996).
[18] Z. Zhang, Q. Niu, and C. K. Shih, Phys. Rev. Lett.
80, 5381 (1998).
[19] W. B. Su et al., Phys. Rev. Lett. 86, 5116 (2001).
[20] D.-A. Luh, T. Miller, J. J. Paggel, M. Y. Chou, and T.-C.
Chiang, Science 292, 1131 (2001).
[21] A. I. Yanson, I. K. Yanson, and J. M. van Ruitenbeek, Nature (London) 400, 144 (1999).
[22] C.-H. Chang, Phys. Rev. E 67, 046201 (2003).
