N A N O E X P R E S S
Open Access
Spontaneous synthesis of gold nanoparticles on
gum arabic-modified iron oxide nanoparticles as a
magnetically recoverable nanocatalyst
Chien-Chen Wu and Dong-Hwang Chen
*Abstract
A novel magnetically recoverable Au nanocatalyst was fabricated by spontaneous green synthesis of Au
nanoparticles on the surface of gum arabic-modified Fe3O4nanoparticles. A layer of Au nanoparticles with thickness
of about 2 nm was deposited on the surface of gum arabic-modified Fe3O4nanoparticles, because gum arabic
acted as a reducing agent and a stabilizing agent simultaneously. The resultant magnetically recoverable Au nanocatalyst exhibited good catalytic activity for the reduction of 4-nitrophenol with sodium borohydride. The rate constants evaluated in terms of pseudo-first-order kinetic model increased with increase in the amount of Au nanocatalyst or decrease in the initial concentration of 4-nitrophenol. The kinetic data suggested that this catalytic reaction was diffusion-controlled, owing to the presence of gum arabic layer. In addition, this nanocatalyst exhibited good stability. Its activity had no significant decrease after five recycles. This work is useful for the development and application of magnetically recoverable Au nanocatalyst on the basis of green
chemistry principles.
Keywords: Gold nanoparticles, Spontaneous green synthesis, Magnetically recoverable catalyst, Nitrophenol, Catalytic reduction
Background
Nanoparticles have been widely investigated in the fields of chemistry, physics, electronics, biology, and medicine due to their unique physical and chemical characteristics which are different from bulk materials [1,2]. Among these researches, magnetic and noble metal nanoparticles (particularly Fe3O4and Au) attracted considerable
atten-tion in the past decades. Magnetic nanoparticles have been extensively utilized in the recovery of metal ions and dyes, magnetic bioseparation, targeted therapy, drug delivery, and biological detection and imaging because magnetic separation technique possesses the advantages of rapidity, high efficiency, and cost-effectiveness [3-7]. Also, they have been shown to be highly efficient as sup-ports in heterogeneous catalytic reactions owing to their high specific surface area and magnetically recoverability [8]. On the other hand, Au nanoparticles not only exhibit unique optical and catalytic properties but also have
excellent chemical stability and biocompatibility. These characteristics lead to many potential applications such as in optics, electrochemistry, catalysis, and biochemical sensing [9-12].
The composite nanoparticles of Fe3O4 and Au
com-bine the functions of these two components and can be applied in the waste water treatment. As has been reported, some noble metal nanoparticles stabilized with surfactant or dendrimer are capable for catalytic reduc-tion of aromatic nitro compounds or dyes [13-15] be-cause they have higher Fermi potential and can be used as catalyst for many electron-transfer reactions [16,17]. However, their recovery from such stabilizers-containing systems is not easy. To overcome this problem, using magnetic nanoparticles as their support is a superior strategy which makes them easy to recover. Thus, the composite nanoparticles of Fe3O4 and Au are expected
to have great potential as magnetically recoverable cata-lyst for the treatment of waste water.
Various approaches for the synthesis of Fe3O4-Au
composite nanoparticles have been reported, including * Correspondence:[email protected]
Department of Chemical Engineering, National Cheng Kung University, Tainan, Taiwan 701, Republic of China
© 2012 Wu and Chen; licensee Springer. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
the formation of Au shells on the polyelectrolyte modi-fied Fe3O4 nanoparticles [18], reduction of Au ions on
Fe3O4nanoparticles with sodium citrate [19], electrostatic
attraction of as-prepared Au nanoparticles onto Fe3O4/
polypyrrole nanocomposites [20], thermal decomposition of Au(OOCCH3)3 on poly(vinylpyrrolidone)-modified
Fe3O4particles [21], and others [22,23]. However, it is
in-evitable that most of these processes involved the use of surfactants and reducing agents which are usually harmful for the environment and ecosystem.
In the past decade, the green chemistry which aims to reduce or eliminate hazardous substances in the design, development, and implementation of chemical processes and products is becoming more and more important [24,25]. So a lot of routes obeying the green chemistry principles have been developed for the synthesis of Au nanostructures by replacing toxic chemicals with environment-friendly materials [26-30]. Gum arabic (GA) is a polysaccharide which consists plenty of amino acids and hydroxyl groups on the polymer chains. It is known that these functional groups could reduce metal ions to metal nanoparticles through the oxidation mech-anism [31,32]. Recently, we synthesized Au nanoparticles successfully by using GA as both reducing and stabilizing agent in the absence of other additives [33]. In our earl-ier work, we have also modified the surface of Fe3O4
nanoparticles with GA as a novel magnetic nano-adsorbent for the removal of heavy metal ions. Thus, it seems interesting and meaningful to fabricate the Au-Fe
3O4composite nanoparticles by thein situ green
synthe-sis of Au nanoparticles on the GA-modified Fe3O4
nano-particles. So, in this work, we proposed a new green route to fabricate Au-Fe3O4 composite nanoparticles by
in situ synthesis of Au nanoparticles on GA-modified Fe3O4nanoparticles. Furthermore, it is known that
nitro-phenols are the typical aromatic nitro pollutants in in-dustrial and agricultural wastewaters. A lot of methods have been developed for their removal, including adsorp-tion [34], microbial degradaadsorp-tion [35], photocatalytic deg-radation [36], microwave-assisted catalytic oxidation [37], electro-Fenton method [38], electrocoagulation [39], and electrochemical treatment [40]. Because Au nanoparticles can serve as the electron relay between 4-nitrophenolate ion (oxidant) and BH4− (reductant) for
the catalytic reduction of 4-nitrophenol (4-NP) with so-dium borohydride [41,42], the catalytic capability and performance of the resultant Au-Fe3O4 composite
nanoparticles were demonstrated by investigating the catalytic reduction of 4-NP with sodium borohydride.
Methods
Ferric chloride, 6-hydrate was purchased from J. T. Baker Chemical Company (Phillipsburg, NJ, USA). Ferrous chlo-ride tetrahydrate, gum arabic, and sodium borohydchlo-ride
were obtained from Fluka (Fluka Chemical Corporation, Buchs, Switzerland). Ammonium hydroxide (29.6%) was supplied by TEDIA Company (Fairfield, OH, USA). Hydrogen tetrachloroaurate and 4-nitrophenol were pur-chased from Alfa Aesar (Ward Hill, MA, USA). All chemicals were of guaranteed or analytical grade rea-gents, commercially available, and used without further purification. The water used throughout this work was the reagent-grade water produced by Milli-Q SP ultra-pure-water purification system of Nihon Millipore Ltd., Tokyo, Japan.
GA-modified magnetic nanoparticles (GA-MNP) were prepared according to our previous work [8]. Firstly, iron oxide magnetic nanoparticles (MNP) were prepared by coprecipitation of Fe2+ and Fe3+ions with ammonia so-lution and then followed by thermal treatment. The fer-ric and ferrous chlorides (with molar ratio of 2:1) were dissolved in water at a concentration of 0.3 M iron ions. Chemical precipitation was achieved by adding NH4OH
solution (29.6%) at 25°C under vigorous stirring. During the reaction process, the pH was maintained at about 10. The precipitates were heated at 80°C for 30 min, then washed several times with water and ethanol, and finally dried in a vacuum oven at 70°C. Secondly, for the surface modification with GA, 100 mL of GA solution (10 mg/ mL) was mixed with 1.0 g of MNP in a stoppered bottle. The reaction mixture was sonicated for 20 min, then mixed on a vortex mixer for 5 min, and was sonicated again for another 10 min. The product GA-MNP were recovered magnetically from the reaction mixture by using a permanent magnet with a surface magnetization of 6,000 G, then washed three times with 100 mL of dis-tilled water, and finally dried in an air oven at 50°C for 24 h and stored in a stoppered bottle for further use.
Forin situ green synthesis of Au nanoparticles on GA-MNP, hydrogen tetrachloroaurate (0.3 mM) was dis-solved in an aqueous solution of GA-MNP (1 mg/mL) at first. Then, the solution was stirred gently at 55°C for 8 h to yield Au nanoparticles. The Au nanoparticles-loaded GA-MNP (GAAu-MNP) were recovered magnetically by a permanent magnet, then washed three times with distilled water, and finally dried in a vacuum chamber at room temperature. Since it was found that all Au(III) ions were reduced completely, the loading of Au nanoparticles on GA-MNP could be calculated to be 0.059 mg/g. The ultraviolet–visible (UV–VIS) absorption spectra of the resultant colloid solutions were monitored by a JASCO model V-570 ultraviolet–visible near-infrared spectrophotometer (JASCO Inc., Easton, MD, USA). The particle size was determined by transmission electron microscopy (TEM) on a Hitachi model HF-2000 field emi-ssion transmiemi-ssion electron microscope with a reso-lution of 0.1 nm. The high-resolution TEM image
was observed by a JEOL model JEM-2100 F electron microscope (JEOL Ltd., Tokyo, Japan) operated at 200 kV. The samples for TEM analysis were obtained by depositing a drop of colloid solution onto a 200-mesh Formvar-covered copper grid and evaporating in a vac-uum chamber at room temperature. An X-ray diffraction (XRD) measurement was performed on a Shimadzu model RX-III X-ray diffractometer (Shimadzu Corpor-ation, Canby, OR, USA) at 40 kV and 30 mA with CuKα radiation (λ = 0.1542 nm). The samples for XRD analysis were washed twice with water, collected by centrifugation, and dried in a vacuum chamber overnight.
For the catalytic reduction of 4-NP with NaBH4,
typically, 95 mL of aqueous solution containing NaBH4
and 4-NP was prepared at first. Then, 5 mL of aqueous solution containing GAAu-MNP (5 mg of GA-MNP and 0.295 mg of Au) was added to start the reaction. The yel-low color of the solution gradually vanished, indicating the reduction of 4-NP. The variation of 4-NP concentra-tion with time was monitored spectrophotometrically at a wavelength of 400 nm. The reaction temperature was controlled at 30°C. Also, the initial concentration ratio of NaBH4 to 4-NP was fixed at 100 so that the
concentra-tion of NaBH4 could be considered as a constant during
the reaction. After the reaction, GAAu-MNP were col-lected by using a permanent magnet, washed two times with deionized water, and then reused for recycling in the experiment to examine the reusability.
Results and discussion
Figure 1 shows the UV–VIS absorption spectra of GA-MNP and GAAu-GA-MNP solutions. It was found that, as compared to GA-MNP, GAAu-MNP exhibited a charac-teristic absorption band of Au nanoparticles between 500 and 600 nm owing to the surface plasmon reson-ance. This demonstrated that Au nanoparticles could be successfully deposited on GA-MNP via the in situ
reduction of Au(III) ions with GA. The characteristic ab-sorption band of Au nanoparticles on GAAu-MNP was red-shifted and broader than that of GA-stabilized Au nanoparticles. This might be caused by the high sensitiv-ity of metal nanoparticles to the surrounding environ-ment [19].
Figure 2 shows the XRD patterns of GA-MNP and GAAu-MNP. For GA-MNP, six characteristic peaks cor-responding to the (220), (311), (400), (422), (511), and (440) planes of Fe3O4 were observed at 2θ = 30.1, 35.5,
43.1, 53.4, 57.0, and 62.6°, respectively. This confirmed that GA-MNP were composed of pure magnetite with a spinal crystal structure, [21] and the modification process did not result in the phase change of MNP. For GAAu-MNP, an additional characteristic peak at 38.1° and three weak peaks at 44.3, 64.5, and 77.4° were observed. They could be referred to the (111), (200), (220), and (311) planes of face centered cubic (fcc) Au, respectively, confirming the spontaneous formation of Au nanoparticles on GA-MNP.
Figure 3 shows the TEM images of MNP, GA-MNP, and GAAu-MNP. As indicated in Figure 3a, the MNP had a mean diameter of 17.4 ± 3.5 nm and were agglom-erated to larger clusters slightly due to the magnetic force among them. After modification with GA, the re-sultant GA-MNP became discrete with a multi-cored structure as shown in Figure 3b. The formation of multi-cored structure could be resulted by the absorbed GA molecules which could absorb several adjacent MNP [43,44]. For the TEM image of GAAu-MNP as shown in Figure 3c, it was found that GA-MNP seemed to be cov-ered by a layer of Au nanoparticles. To obtain a clearer image, its high-resolution TEM was shown in Figure 4. In the inner part of the composite particle, the crystalline nature of MNP with a clearly resolved lattice spacing of 4.85 and 2.97 Å could be observed. They are related to the (111) and (220) planes of spinel magnetite,
Figure 1 UV–VIS absorption spectra of GA-MNP and GAAu-MNP
respectively. Furthermore, the outer layer revealed that the Au shell had a thickness of about 2 nm and a lattice spacing of 2.35 Å, which was corresponding to the (111) plane of fcc Au.
The catalytic ability of GAAu-MNP was demon-strated by investigating the reduction of 4-NP with NaBH4. It is well known that 4-NP has a characteristic
absorption peak at 317 nm. The addition of NaBH4
would cause the formation of 4-nitrophenolate ions and lead to the shift of characteristic absorption peak from 317 to 400 nm [45]. Also, in the presence of Au catalyst, 4-nitrophenolate ions could be further reduced to 4-aminophenol (4-AP) which exhibited a characteristic absorption peak at 300 nm. In this work, the preliminary experiment revealed that the yellow color of 4-NP solution became deeper after the addition of NaBH4, and a red shift of characteristic
absorption peak from 317 to 400 nm occurred, con-firming the formation of 4-nitrophenolate ions in the alkaline solution [46]. The absorbance remained
unchanged at 400 nm even after several days, reveal-ing that no reduction of 4-NP had occurred. However, in the presence of GAAu-MNP, the yellow color of 4-NP solution became colorless, finally owing to the reduction of 4-NP to 4-AP with NaBH4. As indicated
in Figure 5, the time-dependent UV–VIS absorption spectra revealed that the addition of GAAu-MNP induced the fading of peak intensity at 400 nm and the appearance of a new absorption peak at 300 nm. This revealed the formation of 4-AP and demon-strated the catalytic ability of GAAu-MNP for the reduction of 4-NP with NaBH4. The decrease in the
absorbance at 400 nm with time was shown in Figure 6. For comparison, the catalytic abilities of MNP and GA-MNP were also tested as indicated in Figure 6. It was found that the absorbance of 4-NP solution with NaBH4 at 400 nm remained unaltered
after the addition of MNP or GA-MNP, revealing no significant reduction of 4-NP. This confirmed that the catalytic ability of GAAu-MNP for the reduction of 4-NP to 4-AP resulted from the Au nanoparticles deposited on GA-MNP.
Figure 3 Typical TEM images of MNP (a), GA-MNP (b), and GAAu-MNP (c). The left-top insets in (c) are zoom-in images marked by arrows.
Figure 4 A typical high-resolution TEM image of GAAu-MNP.
Figure 5 Time-dependent UV/VIS absorption spectra for NaBH4
-reduction of 4-NP catalyzed by GAAu-MNP.
[Au]0= 0.295 × 10−2mg/mL, [4-NP] = 1.5 × 10−4M, [NaBH4] =
Since 4-NP was present in the form of 4-nitrophenolate, the variation of the absorbance at 400 nm with time could be considered as the variation of 4-NP concentration with time. Therefore, the ratio of 4-NP concentration at timet to that at t = 0 could be dir-ectly given by their absorbance ratio At/A0 [30,33− 35].

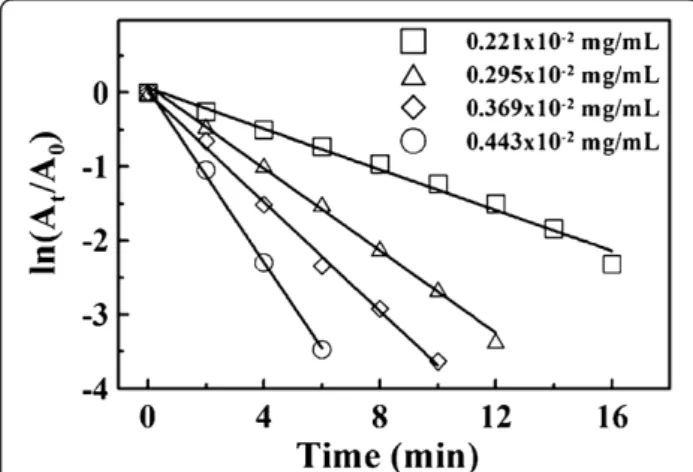

Figure 7 shows the plots of ln(At/A0) versus time at
dif-ferent amounts of GAAu-MNP. It was obvious that the reduction rate increased with the increase in the amount of GAAu-MNP. Also, the good linear correlations revealed that the NaBH4-reduction of 4-NP catalyzed by
GAAu-MNP followed the pseudo-first-order kinetics. The corresponding pseudo-first-order rate constants (k) and correlation coefficients were determined as listed in Table 1. It was obvious that the pseudo-first-order rate
constants increased with increasing the amount of GAAu-MNP.
The effect of initial 4-NP concentration on the reduc-tion of 4-NP with NaBH4 at a fixed amount of
GAAu-MNP was shown in Figure 8. It was obvious that all the ln(At/A0) values decreased linearly with time for different
initial 4-NP concentrations. The corresponding pseudo-first-order rate constants and correlation coefficients were also listed in Table 1. It was found that the pseudo-first-order rate constants decreased with the increase in the initial 4-NP concentration. The possible mechanism was further discussed as below.
It is known that the rate of electron transfer at the metal surface can be affected by the diffusion of 4-NP to the metal surface, interfacial electron transfer, and the diffusion of 4-AP away from the surface [15]. The observed rate constant can be expressed as follows: [15,47]
1=kobs¼ 1=4πR2½ð1=ketÞ þ R=Dð Þ; ð1Þ whereR is the radius of metal nanoparticles, D is the dif-fusion coefficient, andketis the rate constant for electron
transfer. Because smaller metal particles possess higher redox potential value which may accelerate the electron transfer [48], it was assumed that the heterogeneous charge transfer was faster than the diffusion for the Au nanoparticles-catalyzed reduction of 4-NP with NaBH4
due to the small diameter of Au nanoparticles (approxi-mately 2 nm). Thus, Equation 1 could be reduced to the Smoluchowski expression as follows:
kobs¼ 4πDR: ð2Þ
The rate constant was proportional to the diffusion co-efficient, but the diffusion coefficient was inversely pro-portional to the concentration of 4-NP [49]. So, the effect of initial 4-NP concentration could be explained by the Smoluchowski expression. Also, the NaBH4
-reduction of 4-NP by the GAAu-MNP developed in this
Figure 6 Absorbance variation with time at 400 nm for NaBH4-reduction of 4-NP with different nanoparticles.
[Au]0= 0.295 × 10−2mg/mL, [4-NP] = 1.5 × 10−4M, [NaBH4] =
1.5 × 10−2M, 30°C.
Figure 7 Plots of ln(At/A0) versus time for NaBH4-reduction of
4-NP at different GAAu-M4-NP amounts. [4-4-NP] = 1.5 × 10−4M, [NaBH4] = 1.5 × 10−2M, 30°C.
Table 1 Pseudo-first-order rate constants for the reduction of 4-NP with NaBH4in the presence
of GAAu-MNP 102× [Au] 0 104× [4-NP] 102×k (min-1) Correlation coefficient (mg/mL) (M) 0.221 1.5 13.79 0.9871 0.295 1.5 27.88 0.9966 0.369 1.5 36.9 0.9969 0.443 1.5 58.46 0.9987 0.295 0.5 73.87 0.9592 0.295 1.0 38.88 0.9840 0.295 2.0 22.78 0.9957
work could be recognized as diffusion-controlled. This was similar to those observed in the reduction of 4-NP by the dendrimer-encapsulated metal (Ah, Pt, and Pd) nanoparticles [15] and the chitosan-stabilized Au nano-particles [3]. As for the diffusion-controlled mechanism, it could be attributed to the GA layer on the surface of Fe3O4 nanoparticles where Au nanoparticles were in
situ synthesized and stabilized.
Figure 9 shows the reusability of the magnetically re-coverable GAAu-MNP for the reduction of 4-NP with NaBH4. It was observed that the catalytic activity of
GAAu-MNP for the NaBH4-reduction of 4-NP to 4-AP
had no significant decrease after five cycles, suggesting that the GAAu-MNP was not deactivated or poisoned significantly during the reaction and recovery process. As compared to other metal nanoparticles, which were generally oxidized on the surface in the alkali solution and led to activity loss [47], the GAAu-MNP developed
in this work was relatively stable and exhibited good catalytic ability.
According to the above findings, the green method for the synthesis of Au nanoparticles on the surface of mag-netic nanoparticles has been developed successfully. Also, the resultant magnetically recoverable Au nanoca-talyst was demonstrated to possess good catalytic property.
Conclusions
A novel magnetically recoverable Au nanocatalyst was fabricated by in situ formation of Au nanoparticles on the surface of GA-modified Fe3O4 nanoparticles with
GA as a reducing and stabilizing agent simultaneously. The resultant Au nanoparticles formed a 2 nm-thick layer on the surface of GA-modified Fe3O4nanoparticles.
Their catalytic ability was demonstrated by the study on the reduction of 4-NP to 4-AP with NaBH4. The
reduc-tion reacreduc-tion followed the pseudo-first-order kinetics. The corresponding rate constants increased with the in-creasing amount of Au nanocatalyst but decreased while the initial 4-NP concentration increased, suggesting that the reaction was diffusion-controlled, owing to the pres-ence of GA layer. Furthermore, the activity of magnetic-ally recoverable Au nanocatalyst had no significant decrease after five recycles, revealing its good stability. Such a product is expected to be useful in the waste water treatment.
