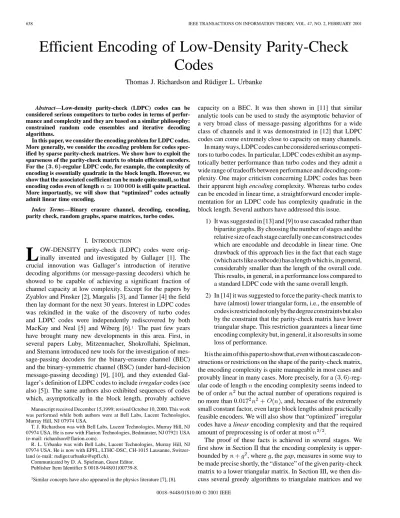

Efficient Encoding of Low-Density Parity-Check Codes
Thomas J. Richardson and Rüdiger L. Urbanke
Abstract—Low-density parity-check (LDPC) codes can be considered serious competitors to turbo codes in terms of perfor- mance and complexity and they are based on a similar philosophy:
constrained random code ensembles and iterative decoding algorithms.
In this paper, we consider the encoding problem for LDPC codes.
More generally, we consider the encoding problem for codes spec- ified by sparse parity-check matrices. We show how to exploit the sparseness of the parity-check matrix to obtain efficient encoders.
For the(3 6)-regular LDPC code, for example, the complexity of encoding is essentially quadratic in the block length. However, we show that the associated coefficient can be made quite small, so that encoding codes even of length 100 000 is still quite practical.
More importantly, we will show that “optimized” codes actually admit linear time encoding.
Index Terms—Binary erasure channel, decoding, encoding, parity check, random graphs, sparse matrices, turbo codes.
I. INTRODUCTION
L
OW-DENSITY parity-check (LDPC) codes were orig- inally invented and investigated by Gallager [1]. The crucial innovation was Gallager’s introduction of iterative decoding algorithms (or message-passing decoders) which he showed to be capable of achieving a significant fraction of channel capacity at low complexity. Except for the papers by Zyablov and Pinsker [2], Margulis [3], and Tanner [4] the field then lay dormant for the next 30 years. Interest in LDPC codes was rekindled in the wake of the discovery of turbo codes and LDPC codes were independently rediscovered by both MacKay and Neal [5] and Wiberg [6].1 The past few years have brought many new developments in this area. First, in several papers Luby, Mitzenmacher, Shokrollahi, Spielman, and Stemann introduced new tools for the investigation of mes- sage-passing decoders for the binary-erasure channel (BEC) and the binary-symmetric channel (BSC) (under hard-decision message-passing decoding) [9], [10], and they extended Gal- lager’s definition of LDPC codes to include irregular codes (see also [5]). The same authors also exhibited sequences of codes which, asymptotically in the block length, provably achieveManuscript received December 15,1999; revised October 10, 2000. This work was performed while both authors were at Bell Labs, Lucent Technologies, Murray Hill, NJ 07974 USA.
T. J. Richardson was with Bell Labs, Lucent Technologies, Murray Hill, NJ 07974 USA. He is now with Flarion Technologies, Bedminster, NJ 07921 USA (e-mail: [email protected]).
R. L. Urbanke was with Bell Labs, Lucent Technologies, Murray Hill, NJ 07974 USA. He is now with EPFL, LTHC-DSC, CH-1015 Lausanne, Switzer- land (e-mail: [email protected]).
Communicated by D. A. Spielman, Guest Editor.
Publisher Item Identifier S 0018-9448(01)00739-8.
1Similar concepts have also appeared in the physics literature [7], [8].
capacity on a BEC. It was then shown in [11] that similar analytic tools can be used to study the asymptotic behavior of a very broad class of message-passing algorithms for a wide class of channels and it was demonstrated in [12] that LDPC codes can come extremely close to capacity on many channels.
In many ways, LDPC codes can be considered serious competi- tors to turbo codes. In particular, LDPC codes exhibit an asymp- totically better performance than turbo codes and they admit a wide range of tradeoffs between performance and decoding com- plexity. One major criticism concerning LDPC codes has been their apparent high encoding complexity. Whereas turbo codes can be encoded in linear time, a straightforward encoder imple- mentation for an LDPC code has complexity quadratic in the block length. Several authors have addressed this issue.
1) It was suggested in [13] and [9] to use cascaded rather than bipartite graphs. By choosing the number of stages and the relative size of each stage carefully one can construct codes which are encodable and decodable in linear time. One drawback of this approach lies in the fact that each stage (which acts like a subcode) has a length which is, in general, considerably smaller than the length of the overall code.
This results, in general, in a performance loss compared to a standard LDPC code with the same overall length.
2) In [14] it was suggested to force the parity-check matrix to have (almost) lower triangular form, i.e., the ensemble of codesis restricted notonlybythe degree constraints but also by the constraint that the parity-check matrix have lower triangular shape. This restriction guarantees a linear time encoding complexity but, in general, it also results in some loss of performance.
It is the aim of this paper to show that, even without cascade con- structions or restrictions on the shape of the parity-check matrix, the encoding complexity is quite manageable in most cases and provably linear in many cases. More precisely, for a -reg- ular code of length the encoding complexity seems indeed to be of order but the actual number of operations required is no more than , and, because of the extremely small constant factor, even large block lengths admit practically feasible encoders. We will also show that “optimized” irregular codes have a linear encoding complexity and that the required amount of preprocessing is of order at most .
The proof of these facts is achieved in several stages. We first show in Section II that the encoding complexity is upper- bounded by , where , the gap, measures in some way to be made precise shortly, the “distance” of the given parity-check matrix to a lower triangular matrix. In Section III, we then dis- cuss several greedy algorithms to triangulate matrices and we
0018–9448/01$10.00 © 2001 IEEE
show that for these algorithms, when applied to elements of a given ensemble, the gap concentrates around its expected value with high probability. As mentioned above, for the -reg- ular code the best greedy algorithm which we discuss results in an expected gap of . Finally, in Section IV, we prove that for all known “optimized” codes the expected gap is actually of order less than , resulting in the promised linear encoding complexity. In practice, the gap is usually a small constant. The bound can be improved but it would require a significantly more complex presentation.
We finish this section with a brief review of some basic no- tation and properties concerning LDPC codes. For a more thor- ough discussion we refer the reader to [1], [11], [12].
LDPC codes are linear codes. Hence, they can be expressed as the null space of a parity-check matrix , i.e., is a codeword if and only if
The modifier “low-density” applies to ; the matrix should be sparse. For example, if has dimension , where is even, then we might require to have three ’s per column and six ’s per row. Conditioned on these constraints, we choose at random as discussed in more detail below. We refer to the as- sociated code as a -regular LDPC code. The sparseness of enables efficient (suboptimal) decoding, while the random- ness ensures (in the probabilistic sense) a good code [1].
Example 1. [Parity-Check Matrix of -Regular Code of Length ]: The following matrix will serve as an example.
(1)
In the theory of LDPC codes it is customary and useful not to focus on particular codes but to consider ensembles of codes.
These ensembles are usually defined in terms of ensembles of bipartite graphs [13], [15]. For example, the bipartite graph which represents the code defined in Example 1 is shown in Fig. 1. The left set of nodes represents the variables whereas the right set of nodes represents the constraints. An ensemble of bipartite graphs is defined in terms of a pair of degree distri- butions. A degree distribution is simply a polynomial with nonnegative real coefficients satisfying
. Typically, denotes the fraction of edges in a graph which are incident to a node (variable or constraint node as the case may be) of degree . In the sequel, we will use the shorthand
to denote
This quantity gives the inverse of the average node degree. As- sociated to a degree distribution pair is the rate
defined as
(2)
Fig. 1. Graphical representation of a(3; 6)-regular LDPC code of length 12.
The left nodes represent the variable nodes whereas the right nodes represent the check nodes.
For example, for the degree distribution pair , which corresponds to the -regular LDPC code, the rate is .
Given a pair of degree distributions and a natural number , we define an ensemble of bipartite graphs
in the following way. All graphs in the ensemble will have left nodes which are associated to and right nodes which are associated to . More precisely, assume that
and
We can convert these degree distributions into node perspective by defining
and
Each graph in has left nodes of degree and right nodes of degree . The order of these nodes is arbitrary but fixed. Here, to simplify notation, we assume that and are chosen in such a way that all these quantities are integer. A node of degree has sockets from which the edges emanate and these sockets are ordered. Thus, in total there are
ordered sockets on the left as well as on the right. Let be a permutation on . We can associate a graph to such a permutation by connecting the th socket on the left to the th socket on the right. Letting run over the set of permutations on generates a set of graphs. Endowed with the uniform probability distribution this is the ensemble . Therefore, if in the future we choose a graph at random from the ensemble then the underlying probability distribution is the uniform one.
It remains to associate a code to every element of . We will do so by associating a parity-check matrix to each graph. At first glance, it seems natural to define the parity- check matrix associated to a given element in as that -matrix which has a nonzero entry at row and column if and only if (iff) the th right node is connected to the th left node. Unfortunately, the possible presence of multiple edges between pairs of nodes requires a more careful definition. Since the encoding is done over the field GF , we define the parity-check matrix as the matrix which has a nonzero entry at row and column iff the th right node is connected to the th left node an odd number of times.
As we will see, the encoding is accomplished in two steps, a preprocessing step, which is an offline calculation performed once only for the given code, and the actual encoding step which is the only data-dependent part. For the preprocessing step it is more natural to work with matrices which contain the multiplicities of edges and, therefore, we define the extended parity-check matrix as that matrix which has an entry at row and column iff the th right node is connected to the th left node by edges. Clearly, is equal to modulo . In the sequel, we will also refer to these two matrices as the adjacency matrix and the extended adjacency matrix of the bipartite graph. Since for every graph there is an associated code, we will use these two terms interchangeably so we will, e.g., refer to codes as elements of .
Most often, LDPC codes are used in conjunction with mes- sage- passing decoders. Recall that there is a received mes- sage associated to each variable node which is the result of passing the corresponding bit of the codeword through the given channel. The decoding algorithm proceeds in rounds. At each round, a message is sent from each variable node to each neigh- boring check node, indicating some estimate of the associated bit’s value. In turn, each check node collects its incoming mes- sages and, based on this information, sends messages back to the incident variable nodes. Care must be taken to send out only extrinsic information, i.e., the outgoing message along a given edge must not depend on the incoming message along the same edge. As we will see, the preprocessing step for the encoding is closely related to the message-passing decoder for the BEC. We will therefore review this particular decoder in more detail.
Assume we are given a code in and assume that we use this code to transmit over a BEC with an erasure probability of . Therefore, an expected fraction of the variable nodes will be erasures and the remaining fraction will be known.
We first formulate the iterative decoder not as a message-passing decoder but in a language which is more suitable for our current purpose, see [9].
Decoder for the Binary Erasure Channel:
0 . [Intialization]
1 . [Stop or Extend] If there is no known variable node and no check node of degree one then output the (partial) code- word and stop. Otherwise, all known variable nodes and all their adjacent edges are deleted.
2 . [Declare Variables as Known] Any variable node which is connected to a degree one check node is declared to be known. Goto 1.
This decoder can equivalently be formulated as a message- passing decoder. Messages are from the set with a in- dicating that the corresponding bit has not been determined yet (along the given edge). We will call a message an erasure mes- sage. At a variable node, the outgoing message along an edge is the erasure message if the received message associated to this node is an erasure and if all incoming messages (excluding the incoming message along edge ) are erasure messages, other- wise, the outgoing message is a . At a check node, the outgoing message along an edge is the erasure message if at least one of the incoming messages (excluding the incoming message along edge ) is the erasure message, and a otherwise. If we declare that an originally erased variable node becomes known as soon as it has at least one incoming message which is not an erasure then one can check that at any time the set of known variable nodes is indeed identical under both descriptions.
It was shown in [16] that (asymptotically in ) the expected fraction of erasure messages after the th decoding round is given by
(3) where . Let , called the threshold of the degree distribution pair, be defined as
where
(4)
Note first that the function is in-
creasing in both its arguments for . It follows by
finite induction that if then for any
. If we choose , then the asymptotic ex- pected fraction of erasure messages converges to zero. Conse- quently, the decoder will be successful with high probability in this case. If, on the other hand, we choose then, with high probability, the decoding process will not succeed. We will see shortly that, correctly interpreted, this decoding proce- dure constitutes the basis for all preprocessing algorithms that we consider in this paper.
Example 2. [(3, 6)-Regular Code]: Let
Then . The exact threshold was de-
termined in [17] and can be expressed as follows. Let be given by
where
and
Then
Fig. 2. An equivalent parity-check matrix in lower triangular form.
II. EFFICIENTENCODERSBASED ONAPPROXIMATELOWER
TRIANGULATIONS
In this section, we shall develop an algorithm for con- structing efficient encoders for LDPC codes. The efficiency of the encoder arises from the sparseness of the parity-check matrix and the algorithm can be applied to any (sparse) . Although our example is binary, the algorithm applies generally to matrices whose entries belong to a field . We assume throughout that the rows of are linearly independent.
If the rows are linearly dependent, then the algorithm which constructs the encoder will detect the dependency and either one can choose a different matrix or one can eliminate the redundant rows from in the encoding process.
Assume we are given an parity-check matrix over . By definition, the associated code consists of the set of -tuples
over such that
Probably the most straightforward way of constructing an en- coder for such a code is the following. By means of Gaussian elimination bring into an equivalent lower triangular form as shown in Fig. 2. Split the vector into a systematic part , , and a parity part , , such that . Construct a systematic encoder as follows: i) Fill with the
desired information symbols. ii) Determine the parity-check symbols using back-substitution. More precisely, for calculate
What is the complexity of such an encoding scheme? Bringing the matrix into the desired form requires operations of preprocessing. The actual encoding then requires opera- tions since, in general, after the preprocessing the matrix will no longer be sparse. More precisely, we expect that we need about
XORoperations to accomplish this encoding, where is the rate of the code.
Given that the original parity-check matrix is sparse, one might wonder if encoding can be accomplished in . As we will show, typically for codes which allow transmission at rates close to capacity, linear time encoding is indeed possible. And for those codes for which our encoding scheme still leads to quadratic encoding complexity the constant factor in front of the
Fig. 3. The parity-check matrix in approximate lower triangular form.
term is typically very small so that the encoding complexity stays manageable up to very large block lengths.
Our proposed encoder is motivated by the above example.
Assume that by performing row and column permutations only we can bring the parity-check matrix into the form indicated in Fig. 3. We say that is in approximate lower triangular form.
Note that since this transformation was accomplished solely by permutations, the matrix is still sparse. More precisely, assume that we bring the matrix in the form
(5)
where is , is , is ,
is , is , and, finally, is . Further,
all these matrices are sparse2and is lower triangular with ones along the diagonal. Multiplying this matrix from the left by
(6) we get
(7)
Let where denotes the systematic part, and combined denote the parity part, has length , and has length . The defining equation splits naturally into two equations, namely
(8) and
(9)
Define and assume for the moment that
is nonsingular. We will discuss the general case shortly. Then from (9) we conclude that
Hence, once the matrix
has been precomputed, the determination of can be accom- plished in complexity simply by performing
2More precisely, each matrix contains at mostO(n) elements.
TABLE I
EFFICIENTCOMPUTATION OFp = 0 (0ET A + C)s
TABLE II
EFFICIENTCOMPUTATION OFp = 0T (As + Bp )
a multiplication with this (generically dense) matrix. This complexity can be further reduced as shown in Table I. Rather
than precomputing and then multiplying
with we can determine by breaking the computation into several smaller steps, each of which is efficiently computable.
To this end, we first determine , which has complexity since is sparse. Next, we multiply the result by .
Since is equivalent to the system
this can also be accomplished in by back-substitu- tion, since is lower triangular and also sparse. The remaining steps are fairly straightforward. It follows that the overall com- plexity of determining is . In a similar manner,
noting from (8) that , we can accom-
plish the determination of in complexity as shown step by step in Table II.
A summary of the proposed encoding procedure is given in Table III. It entails two steps. A preprocessing step and the ac- tual encoding step. In the preprocessing step, we first perform row and column permutations to bring the parity-check matrix into approximate lower triangular form with as small a gap as possible. We will see, in subsequent sections, how this can be accomplished efficiently. We also need to check whether is nonsingular. Rather than premultiplying by the matrix , this task can be accomplished effi- ciently by Gaussian elimination. If, after clearing the matrix the resulting matrix is seen to be singular we can simply per- form further column permutations to remove this singularity.
This is always possible when is not rank deficient, as as- sumed. The actual encoding then entails the steps listed in Ta- bles I and II.
We will now demonstrate this procedure by means of our run- ning example.
Example 3. [Parity Check Matrix of -Regular Code of Length ]: For this example if we simply reorder the columns such that, according to the original order, we have the ordering 1, 2, 3, 4, 5, 6, 7, 10, 11, 12, 8, 9, then we put the parity-check
matrix into an approximate lower triangular form with
(10) We now use Gaussian elimination to clear . This results in
We see that is singular. This
singularity can be removed if we exchange e.g., column 5 with column 8 which gives . In terms of the original order the final column order is then 1, 2, 3, 4, 10, 6, 7, 5, 11, 12, 8, 9, and the resulting equivalent parity-check matrix is
(11)
TABLE III
SUMMARY OF THEPROPOSEDENCODINGPROCEDURE. ITENTAILSTWOSTEPS: A PREPROCESSINGSTEP AND THEACTUALENCODINGSTEP
Assume now we choose . To determine
we follow the steps listed in Table I. We get
and
In a similar manner, we execute the steps listed in Table II to determine . We get
and
Therefore the codeword is equal to
A quick check verifies that , as required.
III. APPROXIMATEUPPERTRIANGULATION VIAGREEDY
ALGORITHMS
We saw in the previous section that the encoding complexity is of order , where is the gap of the approximate tri-
angulation. Hence, for a given parity-check matrix we are in- terested in finding an approximate lower triangulation with as small a gap as possible. Given that we are interested in large block lengths, there is little hope of finding the optimal row and column permutation which results in the minimum gap. So we will limit ourselves to greedy algorithms. As discussed in the previous section, the following greedy algorithms work on the extended adjacency matrices since these are, except for the or- dering of the sockets, in one-to-one correspondence with the un- derlying graphs.
To describe the algorithms we first need to extend some of our previous definitions. Recall that for a given pair of degree distributions we associate to it two important parameters.
The first parameter is the rate of the degree distribution pair and is defined in (2). Note that
(13) The second parameter is called the threshold of the degree distribution pair and is defined in (4). If , as we have tacitly assumed so far, then we can think of as the degree distribution pair of an ensemble of LDPC codes of rate . Further, as discussed in Section I, in this case it was shown in [9] that is the threshold of this ensemble when transmitting over the BEC assuming a belief propagation decoder. In general, may be negative and, hence, the degree distribution pair does not correspond to an ensemble of LDPC codes. Nevertheless, the definitions are still meaningful.
Example 4: Let . In this case, we have and, using the techniques described in [17], the threshold can be determined to be
In a similar way, the definition of the ensemble as well as the association of (extended) adjacency matrices to ele-
ments of carry over to the case . Assume
now that, for a given ensemble , we create a new en- semble by simply exchanging the roles of left and right nodes.
This new ensemble is equivalent to the ensemble
where we have used (13). For the associated (extended) adja- cency matrices this simply amounts to transposition.
Assume we are given a matrix of dimension
with elements in , where is some real-valued parameter with . We will say that a row and a column are connected if the corresponding entry in is nonzero. Furthermore, we will say that a row (column) has degree if its row (column) sum equals . Assume now that we want to bring into approximate lower triangular form. The class of greedy algorithms that we will consider is based on the following simple procedure. Given
the matrix and a fixed integer ,
, permute, if possible, the rows and columns in such a way that the first row has its last nonzero entry at position
. If this first step was successful then fix the first row and permute, if possible, the remaining rows and all columns in such a way that the second row has its last nonzero entry at position . In general, assuming that the first steps were successful, permute at the th step, if possible, the last
rows and all columns in such a way that the th row has its last nonzero entry at position . If this procedure does not terminate before the th step then we accomplished an approximate lower triangulation of the matrix . We will say that is in approximate lower triangular form with row gap
and column gap , as shown in Fig. 4.
A. Greedy Algorithm A
We will now give a precise description of the greedy algo- rithm A. The core of the algorithm is the diagonal extension step.
Diagonal Extension Step: Assume we are given a matrix and a subset of the columns which are classified as known. In all cases of interest to us, either none of these known columns are connected to rows of degree one or all of them are. As- sume the latter case. Let denote the known columns and let be degree-one rows such that is connected to .3 Reorder, if necessary, the rows and columns of such that form the leading rows of and such that form the leading columns of as shown in Fig. 5, where denotes the submatrix of which results from deleting
the rows and columns indexed by and .
Note that after this reordering the top-left submatrix of has diagonal form and that the top rows of have only this one nonzero entry.
3 may not be determined uniquely.
Fig. 4. Approximate lower triangulation of the matrix A with row gap (1 0 r)l 0 k and column gap l 0 k achieved by a greedy algorithm.
Fig. 5. Given the matrixA let ; . . . ; denote those columns which are connected to rows of degree one and let ; . . . ; be degree-one rows such that is connected to . Reorder the rows and columns in such a way that
; . . . ; form the firstk rows and such that ; . . . ; form the firstk columns. Note that the top-leftk 2 k submatrix has diagonal form and that the firstk rows have only this one nonzero entry.
By a diagonal extension step we will mean the following. As input, we are given the matrix and a set of known columns.
The algorithm performs some row and column permutations and specifies a residual matrix . More precisely, if none of the known columns are connected to rows of degree one then perform a column permutation so that all the known columns form the leading columns of the matrix . Furthermore, delete these known columns from the original matrix and declare the resulting matrix to be . If, on the other hand, all known columns are connected to rows of degree one then perform a row and column permutation to bring into the form depicted in Fig. 5. Furthermore, delete the known columns
and the rows from the original matrix and declare the resulting matrix to be .
In terms of this diagonal extension step, greedy algorithm A has a fairly succinct description.
Greedy Algorithm A:
0. [Initialization] Given a matrix declare each column inde- pendently to be known with probability or, otherwise, to be an erasure. Let .
1. [Stop or Extend] If contains neither a known column nor a row of degree one then output the present matrix. Otherwise, perform a diagonal extension step.
2. [Declare Variables as Known] Any column in which is connected to a degree one row is declared to be known.
Goto 1.
Fig. 6. (a) The given matrixA. (b) After the first application of step one, the (1 0 )l known columns are reordered to form the first (1 0 )l columns of the matrixA. (c) After the second application of step one, the k new known columns and their associated rows are reordered to form a diagonal of length k. (d) If the procedure does not terminate prematurely then the diagonal is extended to have length l and, therefore, the row gap is equal to (1 0 r 0 )l and the column gap is equal to(1 0 )l.
To see that greedy algorithm A indeed gives rise to an approx- imate triangulation assume that we start with the
matrix as shown in Fig. 6(a). In the initialization step, an ex- pected fraction of all columns are classified as known and the rest is classified as erasures. The first time the algorithm performs step one these known columns are reordered to form the leading columns of the matrix as shown in Fig. 6(b).
Assuming that the residual matrix has rows of degree one, the columns connected to these degree-one rows are identified in the second step. Let these columns be and let
be degree-one rows such that is connected to . During the second application of step one these new known columns and their associated rows are ordered along a diagonal as shown in Fig. 6(c). Furthermore, in each additional iteration this diagonal is extended further. If this procedure does not stop prematurely then the resulting diagonal has expected length and, there- fore, the row gap has expected size and the column gap has expected size as shown in Fig. 6(d). If, on the other hand, the procedure terminates before all columns are exhausted then we get an approximate triangulation by simply reordering the remaining columns to the left. Assuming that the remaining fraction of columns is equal to then the resulting expected row gap is equal to and the resulting expected column gap is equal to .
Lemma 1 [Performance of Greedy Algorithm A]: Let be a given degree pair and choose . Pick a graph at random from the ensemble and let be its extended adjacency matrix. Apply greedy algorithm A to the extended adjacency matrix . Then (asymptotically in ) the row gap is concentrated around the value and the column gap is concentrated around the value . Letting , we see that the minimum row gap achievable with greedy algorithm A is equal to and that the minimum column gap
is equal to .
Proof: Assume we are given a graph and an associated extended adjacency matrix from the ensemble .
Assume first that so that represents an en- semble of LDPC codes of rate . For the same code/graph consider the process of transmission over an erasure channel with erasure probability followed by decoding using the message-passing decoder described in Section I. Compare this procedure to the procedure of the greedy algorithm A. Assume that the bits erased by the channel correspond to exactly those columns which in the initial step are classified as erasures.
Under this assumption, one can see that those columns which are declared known in the th round of greedy algorithm A correspond exactly to those variable nodes which are declared known in the th round of the decoding algorithm. Hence, there is a one-to-one correspondence between these two algorithms.
As discussed in Section I, if then (asymptot- ically in ) with high probability the decoding process will be successful. Because of the one-to-one correspondence we con- clude that in this case (asymptotically in ) greedy algorithm A will extend the diagonal to (essentially) its full length with high probability so that the row and column gaps are as stated in the Lemma.
In the case that we cannot associate an ensemble of codes to the degree distribution pair . Nevertheless, recursion (3) still correctly describes the expected progress of greedy algorithm A. It is also easy to see that the concentration around this expected value still occurs. It follows that the same analysis is still valid in this case.
1) Greedy Algorithm AH: By greedy algorithm AH we mean the direct application of greedy algorithm A to the extended parity-check matrix of a given LDPC code. The gap we are interested in is then simply the resulting row gap.
Corollary 1 (Performance of Greedy Algorithm AH): Let be a given degree distribution pair with
and choose . Pick a code at random from the ensemble and let be the associated extended parity-check matrix. Apply greedy algorithm A to . Then (asymptotically in ) the gap is concentrated around the
value . Letting , we see that the minimum gap achievable with greedy algorithm A is equal to
.
Example 5 [Gap for the -Regular Code and Greedy Al- gorithm AH]: From Example 2, we know that
and that . It follows that the minimum
expected gap size for greedy algorithm AH is equal to .
Note that greedy algorithm A establishes a link between the error-correcting capability on a BEC using a message-passing decoder and the encoding complexity. In simplified terms: Good codes have low encoding complexity!
2) Greedy Algorithm AHT: Rather than applying greedy al- gorithm A directly to the extended parity-check matrix of an LDPC code we can apply it to the transpose of the extended parity-check matrix. In this case, the gap we are interested in is equal to the resulting column gap.
Corollary 2 (Performance of Greedy Algorithm AHT): Let be a given degree distribution pair with and choose . Pick a code at random from the ensemble and let be the associated extended parity-check ma- trix. Apply greedy algorithm A to . Recall that this is equiv- alent to applying greedy algorithm A to a randomly chosen ex- tended adjacency matrix from the ensemble . Therefore, (asymptotically in ) the gap is concentrated around the value . Letting , we see that the min- imum gap achievable with greedy algorithm AHT is equal to
.
Example 6 [Gap for the -Regular Code and Greedy Al- gorithm AHT]: From Example 4, we know that
and that . It follows that the minimum expected gap size for greedy algorithm AHT is equal to
Example 7 (Gap for an “Optimized” Code of Maximal De- gree and Greedy Algorithm AHT): Let us determine the threshold for one of the “optimized” codes listed in [12]. We pick the code with
and
Quite surprisingly we get ! This means that for any we can start the process by declaring only an fraction of all columns to be known and, with high probability, the process will continue until at most an fraction of all columns is left. Therefore, we can achieve a gap of for any . We will later prove a stronger result, namely, that in this case the gap is actually at most of order , but we will need more sophisticated techniques to prove this stronger result.
The above example shows that at least for some degree dis-
tribution pairs we have . When does this
happen? This is answered in the following lemma.
Lemma 2: Let be a degree distribution pair. Then if and only if for all
(14) Furthermore, if (14) holds and , then
(15) Proof: Clearly, if (14) holds then for any we have
By a compactness argument if follows that as defined in (3) converges to as tends to infinity. Hence, .
Assume now that . This means that for any we have that . We want to show that
(14) holds. Let and note that for
, is an increasing function in both its ar- guments. Note that because is increasing in it follows that a necessary condition for to converge to zero is that , i.e., that at least in the first iteration the erasure probability decreases. We will use contraposition to prove (14).
Hence, assume that there exist a strictly positive and an ,
, such that . Since and
since is continuous this implies that there exists a strictly pos-
itive and an , , such that . Then
It follows by finite induction that
and, therefore, does not converge to zero as tends to infinity, a contradiction.
Finally, for close to one we have
whereas for tending to zero we have
This yields the stability conditions stated in (15).
B. Greedy Algorithm B
For greedy algorithm A, the elements of the initial set of known columns are chosen independently from each other. We will now show that by allowing dependency in the initial choice, the resulting gap can sometimes be reduced. Of course, this de- pendency makes the analysis more difficult.
In order to describe and analyze greedy algorithm B we need to introduce some more notation. We call a polynomial
with real nonnegative coefficients in the range a weight distribution, and we denote the set of all such weight distribu- tions by . Let be a map which maps a pair
consisting of a degree distribution and a weight distribution into a new degree distribution . This map is defined as
We are now ready to state greedy algorithm B.
Greedy Algorithm B:
0. [Initialization] We are given a matrix and a weight dis- tribution . For each row in perform the following: if the row has weight then select this row with probability . For each selected row of weight declare a random subset of size of its connected columns to be known. All remaining columns which have not been classified as known are classified as erasures. Let .
1. [Stop or Extend] If neither contains a known column nor a row of degree one then output the present matrix. Otherwise, perform a diagonal extension step.
2. [Declare Variables as Known] Any column in which is connected to a degree one row is declared to be known.
Goto 1
Clearly, greedy algorithm B differs from greedy algorithm A only in the choice of the initial set of columns.
Lemma 3 (Analysis of Greedy Algorithm B): Let be a given degree distribution pair. Let be a weight distribution
such that . Define .
Pick a graph at random from the ensemble and let be its extended adjacency matrix. Apply greedy algorithm B to the extended adjacency matrix . Then (asymptotically in ) the row gap is concentrated around the value
and the column gap is concentrated around the value
Proof: The elements of the initial set of known columns are clearly dependent (since groups of those columns are con- nected to the same row) and therefore we cannot apply our pre- vious methods directly. But as we will show now there is a one-to-one correspondence between applying greedy algorithm B to the ensemble with a weight distribution and applying greedy algorithm A to the transformed ensemble
.
Assume we are given the ensemble and a weight dis- tribution . Assume further that we are given a fixed set of selected right nodes (rows) and that the fraction of selected right nodes of degree is equal to . Given a graph from transform it in the following way: replace each selected right node of degree by right nodes of degree . One can check that this transformation leaves the left degree distri- bution unchanged and that it transforms the right degree dis-
tribution to . Therefore, the new graph is an element of the ensemble . Further, one can check that this map is reversible and, therefore, one-to-one. A closer look re- veals now that applying greedy algorithm B to an extended ad- jacency matrix picked randomly from the ensemble
is equivalent to applying greedy algorithm A with to the transformed extended adjacency matrix, i.e., the resulting residual graphs (which could be empty) will be the same. Now, since it follows that the greedy algorithm B will
get started and since by assumption we
know from the analysis of greedy algorithm A that with high probability the diagonalization process will continue until the diagonal has been extended to (essentially) its full length. In this case, the resulting column gap is equal to the size of the set which was initially classified as known. To determine the size of this set we first determine the probability that a randomly chosen edge is one of those edges which connect a selected right node to one of its declared known neighbors. A quick calcula- tion shows that this probability is equal to . Therefore, the probability that a given left node of degree is connected to at least one of these edges is equal to . From this the stated row and column gaps follow easily.
1) Greedy Algorithm BH: Following our previous notation, by greedy algorithm BH we mean the direct application of greedy algorithm B to the extended parity-check matrix of a given LDPC code. The gap we are interested in is then simply the resulting row gap.
Corollary 3 (Performance of Greedy Algorithm BH): Let be a given degree distribution pair with . Let
be a weight distribution such that .
Define
Pick a code at random from the ensemble and let be its extended parity-check matrix. Apply greedy algorithm B to the extended parity-check matrix . Then (asymptotically in
) the gap is concentrated around the value
Let
Then we see that the minimum gap achievable with greedy al- gorithm BH is equal to
Example 8 [Gap for the -Regular Code and Greedy Al-
gorithm BH]: We have and and since
has only one nonzero term it follows that we can param-
eterize as . Therefore, we have
and since , it follows that we need to find the smallest value of , call it , such that
. From Lemma (14) we see that a necessary and sufficient condition is given by
Equivalently, we get
Differentiating shows that the right-hand side takes on its min- imum at the unique positive root of the polynomial
. If we call this root , with , then we conclude that
We then get and, therefore, the gap is
equal to
Note that in this case the gap is larger than the corresponding gap for greedy algorithm AH.
2) Greedy Algorithm BHT: Again as for greedy algorithm A, rather than applying greedy algorithm B directly to the ex- tended parity-check matrix of an LDPC code we can apply it to the transpose of the extended parity-check matrix. In this case, the gap we are interested in is equal to the resulting column gap.
Corollary 4 (Performance of Greedy Algorithm BHT): Let be a given degree distribution pair with . Let be a weight distribution such that
Define . Pick a code at random from the en- semble and let be its extended parity-check matrix.
Apply greedy algorithm B to . Recall that this is equivalent to applying greedy algorithm B to a randomly chosen extended adjacency matrix from the ensemble . There- fore, (asymptotically in ) the gap is concentrated around the value
Let
Then we see that the minimum gap achievable with greedy al- gorithm BHT is equal to
Example 9 [Gap for the -Regular Code and Greedy Al-
gorithm BHT]: We have and and since
has only one nonzero term we can parameterize as . Therefore, we have
and since it follows that we need to find the smallest
value of , call it , such that .
From Lemma 2 (14) we see that a necessary and sufficient con- dition is given by
which simplifies to
By differentiating we find that it takes its minimum at . Thus, the critical value of is given by
We then get . This corresponds to a gap of
This is significantly better than the corresponding gap for greedy algorithm AHT.
C. Greedy Algorithm C
Let be the given degree distribution pair. Recall that for greedy algorithm B we chose the weight distribution in such a way that . Hence, with high prob- ability, the greedy algorithm will extend the diagonal to (essen- tially) its full length.
Alternatively, we can try to achieve an approximate tri- angulation in several smaller steps. More precisely, assume that we pick the weight distribution in such a way that . Then with high probability the greedy algorithm will not complete the triangulation process. Note that, conditioned on the size and on the degree distribution pair of the resulting residual graph, the edges of this residual graph are still random, i.e., if the residual graph has length and a degree distribution pair then we can think of it as an element of . This is probably easiest seen by checking that if the destination of two edges which are contained in the residual graph are interchanged in the original graph and if the greedy algorithm B is applied to this new graph then the new residual graph will be equal to the old residual graph except for this interchange. Therefore, if we achieve a triangulation by applying several small steps, then we can still use the previous tools to analyze the expected gap.
There are obviously many degrees of freedom in the choice of step sizes and the choice of weight distribution. In our present discussion, we will focus on the limiting case of infinitesimal small step sizes and a constant weight distribution. Therefore, assume that we are given a fixed weight distribution and let , , be a small scaling parameter for the weights such
that . Assume that we apply greedy algo- rithm B to a randomly chosen element of the ensemble
where . We claim that the expected degree distribution pair of the residual graph, call it , is given by
To see this, first recall from the analysis of greedy algorithm B that the degree distribution pair of the equivalent trans- formed graph is equal to . Since by assumption , the recursion given in (3) (with ) will have a fixed point, i.e., there exists a real number , , such that
To determine this fixed point note that if we expand the above
in around we obtain
Therefore, letting denote , the fixed-point equation is
It follows that
In the language of message-passing algorithms, is the expected fraction of erasure messages passed from left to right at the time the algorithm stops. The fraction of erasure messages which are passed at that time from right to left is then
(16)
We start by determining the residual degree distribution of left nodes. Note that a left node will not appear in the residual graph
iff at least one of its incoming messages is not an erasure—oth- erwise, it stays and retains its degree. Using (16) we see that a node of degree has a probability of
of being expurgated. Since in the original graph the number of left degree nodes is proportional to it follows that in the residual graph the number of left degree nodes is proportional to
From an edge perspective the degree fraction of the residual graph is, therefore, proportional to
After normalization we find that the left degree distribution of the residual graph, call it , is given by
We next determine the right degree distribution of the residual graph. Recall that the equivalent transformed graph has a right degree distribution of . We are only interested in nodes of degree at least two. Hence we have
From a node perspective these fractions are proportional to
Define the erasure degree of a right node to be equal to the number of incoming edges which carry erasure messages. To first order in , a node of erasure degree can stem either from a node of regular degree all of whose incoming messages are erasures or it can stem from a node of regular degree which has one nonerasure message. Hence, at the fixed point the fraction of right nodes with an erasure degree of is proportional to
Converting back to an edge perspective we see that these frac- tions are proportional to
Summing the above over we obtain
Noting that and normalizing we see that the residual right degree distribution, call it , is given by
We are ultimately interested in the resulting row and column gaps. Since one can easily be determined from the other we will only write down an expression for the row gap. If we take the expression for the row gap, call it from greedy algorithm B, and keep only the terms which are linear in then we see that the row gap increased according to
The length of the code itself evolves as
Collecting all results we see that as a function of the indepen- dent variable all quantities evolve according to the system of differential equations
with the value of the initial quantities equal to , , , and , respectively.
As before, we can apply greedy algorithm C directly to the ex- tended parity-check matrix chosen randomly from an ensemble
in which case we are interested in the resulting column gap or we can apply it to the transpose of the extended parity- check matrix in which case we are interested in the column gap.
We call these algorithms CH and CHT, respectively.
Example 10 [Gap for -Regular Code and Greedy Al- gorithm CHT]: We choose and let where is some very small quantity. Solving the system of differential equations reveals that the resulting gap is equal to . We see that this is the smallest expected gap for all the presented algorithms.
D. A Practical Greedy Algorithm
In practice, one implements a serial version of greedy algo- rithm CHT. At each stage, if the residual graph has a degree-one variable node then diagonal extension is applied. If no such de- gree-one variable node exists then one selects a variable node of lowest possible degree, say, from the residual graph, and declares (assuming no multiple edges) of its neighbors to be known. The residual graph now has at least one degree-one node and diagonal extension is applied.
There are many practical concerns. For example, variable nodes which are used in the diagonal extension step correspond to nonsystematic variables. Typically, degree-two nodes have the highest bit-error rates. Thus, it is preferable to use as many low-degree variables in the diagonalization step as possible, e.g., if the subgraph induced by only the degree-two variables has no loops then all degree-two variables can be made nonsys- tematic using the above algorithm.
IV. CODES WITHLINEARENCODINGCOMPLEXITY
We saw in the preceding section that degree distributions giving rise to codes that allow transmission close to capacity will have gaps that are smaller than an arbitrarily small linear fraction of the length of the code. To prove that these codes have linear encoding complexity more work is needed, namely, one has to show that the gap satisfies with high probability for large enough . More precisely, we will prove the following.
Theorem 1 (Codes with Linear Encoding Complexity): Let be a degree distribution pair satisfying , with minimum right degree , and satisfying the strict inequality . Let be chosen at random from the ensemble . Then is encodable in linear time with probability at least for some positive constants and
, where .
Discussion: We note that all optimized degree distribution pairs listed in [12] fulfill the conditions of Theorem 1. Further- more, in experiments when applying the practical greedy algo- rithm to graphs based on these degree distribution pairs, the resulting gap is typically in the range of one to three! This is true even for very large lengths like one million. By correctly choosing the first degree-two variable, the gap can nearly always be lowered to one. The primary reason for these very small gaps is the large number of degree-two variable nodes in these degree distributions. The number of degree-two variable nodes is suf-
ficiently large so that, with very high probability, the subgraph induced by these nodes has a large (linear size) connected com- ponent. Once a single check node belonging to this component is declared known then the remainder of the component will di- agonalize in the next diagonal extension step. The diagonaliza- tion process then typically completes without further increasing the gap.
Proof: In order to show that under the stated conditions elements of the ensembles are linear time encod- able (with high probability) it suffices to show that their corresponding can be brought into approximate lower triangular form with a gap of no more than (with high probability). Note that we are working on the transpose of the parity-check matrix. Although one can prove that such an approximate triangulation is achieved by the practical greedy algorithm it will be more convenient to consider a slightly different greedy algorithm.4 The algorithm we consider has three phases which we will have to investigate separately:
startup, main triangulation, and cleanup. In the startup phase, we will declare at most of the check nodes to be known.
Each time we declare one check node to be known we apply the diagonal extension step repeatedly until either there are no degree one variable nodes left or until (we hope) the number of degree-one variable nodes has grown to a linear-sized fraction.
Assuming the latter, we then enter the main triangulation process. With exponential probability, the process will continue until we are left with at most a small linear fraction of nodes.
Now we enter the cleanup phase. Here, we will show that with high probability at most check nodes will be left when the algorithm terminates. So overall, with high probability the gap will be no more than , which will prove the claim.
We will now discuss these three phases in detail.
Recall that our aim is to bring a given , where is a random element from , into approximate lower trian- gular form with gap at most by applying a greedy algo- rithm.
Startup: Let be a randomly chosen degree-two variable node and let and be its connected check nodes. Declare to be known. Now perform the diagonal extension step. After this step, the columns which correspond to and will form the first two columns of the matrix (assuming does not have a double edge) and the row corresponding to will form the first row of the matrix. Consider the residual matrix (with the first two columns and the first row deleted) and the corresponding residual graph. If this residual matrix contains a degree-one row then we can apply another diagonal extension step and so on. It will simplify our description if we perform the diagonal extension step to one de- gree-one variable node at a time, instead of to all degree-one vari- able nodes in parallel. More precisely, we start out with one de- gree-two variable node which we convert into a degree-one vari- able node by declaring one of its neighbors to be known. Then, at any stage of the procedure, choose one of the degree-one variable
4In Appendix C, we define the notion of a “stopping set.” Stopping sets de- termine the termination points of diagonal extension steps regardless of the im- plementation of the diagonal extension. Thus, the particular three-phase formu- lation used here is only for convenience of presentation.
nodes (assuming that at least one such node exists) and perform the diagonal extension step only on this variable.
Let denote the number of degree-one variable nodes after the th such step, where we have . If by , we denote the number of additional degree-one variable nodes which are generated in the th step then we get
(17) where the term stems from the fact that one degree-one vari- able node is used up during the diagonal extension step. Equa- tion (17) is an instance of a branching process. Note that the process continues until , i.e., until there are no more degree-one variable nodes available for the diagonal extension step. We would like the process to continue until has reached
“linear size,” i.e., until is a small fixed fraction of the number of variable nodes.
Assume that we have performed at most steps. Let denote the residual degree distribution pair. If is small, it is intuitively clear that is “close” to . Indeed, in Lemma 4 in Appendix A it is shown that, given a degree distribution pair such that , then there exists an and a such that
regardless which check nodes have been removed, as long as their total number is no more than .
So, assume that we have performed at most steps. What is the expected value of ? Consider an edge emanating from a degree-one variable node. With probability it is connected to a degree- check node, call this node . This check node has other edges, each of which has probability of being connected toa degree-two node. Therefore,if hasdegree then the expected number of new degree-one nodes that will be generated is equal to . Averaging over all degrees we get that has expected value . In other words, we have
for . Furthermore,
is upper-bounded by the maximum right degree .
Let us define to be the stopping time
of . We will say that the branching process stops prematurely if and we will say that it is successful if
and , where can be chosen freely in the range . Assume now that we employ the following strategy. Start a process, by choosing a degree-two variable node and declaring one of its neighbors to be known. If this process stops prematurely then start another process if the number of prematurely stopped processes so far is less than or de- clare a failure otherwise. If the current process has not stopped prematurely then declare a success if and
and stop the process at that time, and declare a failure otherwise.
Note that the total number of steps taken for this strategy is at
most . Although the branching process
which we consider always stops at a finite time and although we will only be interested in the process for at most steps it is convenient to think of an infinite process with the property that
This will allow us to write statements like
The probability of failure can be easily bounded in the fol- lowing way. From iv) Lemma 5 in Appendix B, the probability that a process has stopping time less than , i.e.,
, can be upper-bounded by
Therefore, the probability that processes have stopping time less than has an upper bound of the form , . Using i), ii), and iii) of Lemma 5, the probability that a process failed assuming that it did not stop prematurely can be upper- bounded as follows:
for some constants and for some ,
and a constant defined in Appendix B. Combining these two results, we conclude that the probability of failure is upper- bounded by for some constant and .
Main Upper Triangulation: With high probability we will have succeeded in the startup phase. Consider now the output of this startup phase assuming it was successful. From Lemma 4 in Appendix A we know that the residual degree distribution
pair fulfills and . Furthermore, it
is easy to see that conditioned, on and the length , the resulting residual graph can be thought of as an ele- ment of . This is most easily seen as follows:
Given the original graph, the residual graph is the result of re- moving a certain set of edges, where the choice of these edges is the result of certain random experiments. Consider another ele- ment of which agrees with the original graph in those edges but is arbitrary otherwise. Assume now that we run the startup phase on this new graph with the same random choices.
It is easy to see that the sequence of degree distribution pairs will be the same and that at each step the probability for the given choice of node which gets chosen is identical. So the re- sulting residual graphs will have identical degree distribution pairs, identical length, and the same probability of being gener- ated. Further, each element of is reachable and, by the above discussion, they have equal probability of being generated, which proves the claim. Since it follows that we can now simply use greedy algorithm AHT to continue the lower triangulation process. From the analysis of greedy al- gorithm AHT we know that, with exponential probability, the process will not stop until at most a small linear fraction of check nodes is left, where this fraction can be made as small as desired.
Cleanup Operation: So far we have increased the gap to at most and, with high probability, we have accomplished
a partial lower triangulation with at most a small fraction of check nodes left. In Lemma 6 in Appendix C it is now shown that the probability at actually fewer than check nodes will be left.
Combining all these statements we see that the probability that the gap exceeds is at most , where .
APPENDIX A
RESIDUALDEGREEDISTRIBUTIONPAIRS
Lemma 4: Let be a degree distribution pair satisfying
, the strict inequality and .
Let be the set of all residual degree distribution pairs ob- tainable from by removing at most an fraction of check nodes from a graph with degree distribution pair . Then, for sufficiently small, there exists a such that any will satisfy and the strict inequality . If, moreover, for some we have
then .
Proof: The conclusion is immediate since and since we either remove a check node completely or leave its degree unchanged. By continuity and since, for some
, , it is also clear that if is
sufficiently small.
It remains to show that if for
some . Let . Let be a positive number
such that . It follows by continuity that for small enough we have
Define and note that .
Since we have for
sufficiently small. Hence, for sufficiently small, we have
In a similar manner
In the compact range ,
is a continuous function in the perturbation and since the de- gree distribution pair fulfills the strict inequality (14) in this range, it follows that there exists an such that it
then in this range. Let us fur-
ther assume . Then it follows that on the interval we have
and hence . This shows that
.
APPENDIX B BRANCHINGPROCESSES
Let be a sequence of independent and identi- cally distributed (i.i.d.) random variables. Define the sequence
by the recursion and
and let be the least time such that . If no such time exists then we define . The process is usually referred to as a branching process and originated in the context of the study of population growths [18]. It is well known that
if then but that if
then . We will now show that under suitable conditions the same conclusions hold even if we allow (limited) dependency within the process .
Lemma 5 (Branching Processes): Let be a se- quence of random variables taking values in such that
for all . Define the branching process , by
and , . Let the stopping time
be defined by , where if
no such exists.
i) For any
ii) Define . Then
iii) For any
iv) Define
Then
Proof: We start with a proof of the tail inequality. For any we have
where the last step follows from the well-known Markov in-
equality. We proceed by bounding .
Recall the following basic fact from the theory of linear programming, [19]. A primal linear program in normal form, , has the associated dual linear
program . Further, if and are
feasible solutions for the primal and dual linear program such that their values are equal, i.e., , then and are optimal solutions.
Now note that
The last step warrants some remarks. First, we rewrote the max- imization as a minimization to bring the linear program into normal form. Second, a simple scaling argument shows that one can replace the equality condition with the inequality without changing the value of the linear program. The linear program in the last line is our primal problem. It is easy to check that this primal problem has the fea- sible solution
with value
(18) To see that this solution is optimal consider the associated dual program
The solution gives rise to the same
value as in (18). Hence, to prove optimality it suffices to prove that this solution is feasible. For this we need to show that
This is trivially true for and for this is equivalent to
The claim now follows since is a decreasing function in
for .
We get
It follows that
The desired inequality now follows by choosing . Next we show that
The proof will be very similar to the preceding one and we will be short.
Now for we have
But
so that
It follows that
To prove that for any , note that from
and we conclude
that . Therefore
It remains to prove that . Note that for any we have
APPENDIX C NOSMALLSTOPPINGSETS
Given a bipartite graph with constraint set we define a stopping set to be any subset of with the property that there does not exist a variable node in with exactly one edge into . The union of any two stopping sets is a stopping set. Hence, there exists a unique maximal stopping set. Thus, if the graph is operated on by the diagonal extension stage of an approxi- mate upper triangulation algorithm which looks for degree-one variable nodes, then it always terminates with the residual graph determined by the maximal stopping set. That is, after a diag- onal extension stage, the residual graph consists of the constraint nodes in , the maximal stopping set, the edges emanating from and the variable nodes incident to these edges. Thus, one can show that the diagonal extension step will not terminate prema- turely if one can show that there are no stopping sets.
Lemma 6 (No Small Stopping Sets): Let be an en- semble of LDPC codes with . Then there exist a positive number and a natural number such that for all , a randomly chosen element of has probability at most of containing a stopping set of size in the range . Proof: Recall the following simple estimates which we will use frequently in the sequel:
as well as the fact that , for .
Recall that the total number of edges is equal to . Con- sider edges. More precisely, fix check node sockets and for each such check node socket choose a variable node socket at random. Clearly, this can be done in
ways. We will say that the edges are doubly connected if each variable is either not connected at all or connected at least twice (with respect to these edges). We claim that there are at most
doubly connected constellations. To see this claim note that a doubly connected constellation with edges involves at most variable nodes. Therefore, we get an upper bound if we
count as follows: first choose out of the variable nodes.
These chosen variable nodes have at most sockets.
Choose of these sockets and connect to them the edges in any order. From this argument we see that the probability that the chosen set of edges is doubly connected is upper-bounded by
(19) Note that for sufficiently small , (19) is decreasing in .
Now consider a set of check nodes. There are
such sets. Each such set has at least edges and therefore, assuming that is sufficiently small, we see from (19) that the probability that one such set is a stopping set is at most
By the union bound it follows that the probability that a ran- domly chosen element of does have a stopping set of size is upper-bounded by
where we defined
It remains to show that there exist constants and such that for all and for all
we have . Recall that . Therefore, if
and then
where the second step is true if we choose small enough and the third step is true for sufficiently large .
REFERENCES
[1] R. G. Gallager, Low-Density Parity-Check Codes. Cambridge, MA: MIT Press, 1963. Available at http://justice.mit.edu/people/gal- lager.html.
[2] V. Zyablov and M. Pinsker, “Estimation of the error-correction com- plexity of Gallager low-density codes,” Probl. Pered. Inform., vol. 11, pp. 23–26, Jan. 1975.
[3] G. A. Margulis, “Explicit construction of graphs without short cycles and low density codes,” Combinatorica, vol. 2, no. 1, pp. 71–78, 1982.
[4] R. Tanner, “A recursive approach to low complexity codes,” IEEE Trans.
Inform. Theory, vol. IT-27, pp. 533–547, Sept. 1981.
[5] D. J. C. MacKay and R. M. Neal, “Near Shannon limit performance of low density parity check codes,” Electron. Lett., vol. 32, pp. 1645–1646, Aug. 1996.
[6] N. Wiberg, “Codes and decoding on general graphs,” Dissertation no.
440, Dept. Elect. Eng. Linköping Univ., Linköping , Sweden, 1996.
[7] N. Sourlas, “Spin-glass models as error-correcting codes,” Nature, no.
339, pp. 693–695, 1989.
[8] I. Kanter and D. Saad, “Error-correcting codes that nearly saturate shannon’s bound,” Phys. Rev. Lett., vol. 83, pp. 2660–2663, 1999.
[9] M. Luby, M. Mitzenmacher, A. Shokrollahi, D. Spielman, and V. Ste- mann, “Practical loss-resilient codes,” in Proc. 29th Annual ACM Symp.
Theory of Computing, 1997, pp. 150–159.
[10] M. Luby, M. Mitzenmacher, A. Shokrollahi, and D. Spielman, “Analysis of low density codes and improved designs using irregular graphs,” in Proc. 30th Annu. ACM Symp. Theory of Computing, 1998, pp. 249–258.
[11] T. Richardson and R. Urbanke, “The capacity of low-density parity- check codes under message-passing decoding,” IEEE Trans. Inform.
Theory, vol. 47, pp. 599–618, Feb. 2001.
[12] T. Richardson, A. Shokrollahi, and R. Urbanke, “Design of capacity-ap- proaching low-density parity check codes,” IEEE Trans. Inform. Theory, vol. 47, pp. 619–637, Feb. 2001.
[13] M. Sipser and D. Spielman, “Expander codes,” IEEE Trans. Inform.
Theory, vol. 42, pp. 1710–1722, Nov. 1996.
[14] D. J. C. MacKay, S. T. Wilson, and M. C. Davey, “Comparison of constructions of irregular Gallager codes,” in Proc. 36th Allerton Conf.
Communication, Control, and Computing, Sept. 1998.
[15] D. Spielman, “Linear-time encodeable and decodable error-correcting codes,” IEEE Trans. Inform. Theory, vol. 42, pp. 1723–1731, Nov. 1996.
[16] M. Luby, M. Mitzenmacher, and A. Shokrollahi, “Analysis of random processes via and-or tree evaluation,” in Proc. 9th Annu. ACM-SIAM Symp. Discrete Algorithms, 1998, pp. 364–373.
[17] L. Bazzi, T. Richardson, and R. Urbanke, “Exact thresholds and optimal codes for the binary symmetric channel and Gallager’s decoding algo- rithm A,” IEEE Trans. Inform. Theory, to be published.
[18] N. Alon, J. Spencer, and P. Erdös, The Probabilistic Method. New York: Wiley, 1992.
[19] A. Schrijver, Theory of Linear and Integer Programming. New York:
Wiley, 1986.
