New mesomorphic benzothiazol derivatives: Synthesis and characterization

(1)

Original

article

New

mesomorphic

benzothiazol

derivatives:

Synthesis

and

characterization

Teck-Ming

Koh

a

,

Sie-Tiong

Ha

b,c,

*

,

Guan-Yeow

Yeap

d

,

Hong-Cheu

Lin

e

a_Faculty_of_Engineering_&_Science,_Universiti_Tunku_Abdul_Rahman,_Jln_Genting_Klang,_Setapak,_Kuala_Lumpur_53300,_Malaysia b_Faculty_of_Science,_Universiti_Tunku_Abdul_Rahman,_Jln_Universiti,_Bandar_Barat,_Kampar_31900,_Malaysia

c

CentreforBiodiversityResearch,UniversitiTunkuAbdulRahman,JlnUniversiti,BandarBarat,Kampar31900,Malaysia

d

LiquidCrystalResearchLaboratory,SchoolofChemicalSciences,UniversitiSainsMalaysia,Minden11800,Malaysia

e

DepartmentofMaterialsScience&Engineering,NationalChiaoTungUniversity,Hsinchu300,Taiwan,China

1. Introduction

The electronicconductingbehavioursof liquid crystals(LCs) havereceivedtremendousattentionsincethediscoveryof high holemobilityinthehexagonalcolumnarphaseof hexapenthyloxy-triphenylene [1–5]. Recently, calamitic LCs became another potentialmaterial for applications in electronic devices due to thepresenceofsomeorderedmesophases,suchasSmA,SmC,SmB and SmE. The two-dimensional (2D) arrangement (layers) in smectics ismore tolerantwithregard todefectsthan the one-dimensional(1D)ordereddiscoticcolumns,thusresultinginan improvedperformance[6].Theelectronicconductingbehaviourof calamitic LCs was ﬁrst examined in the SmA phase of 2-phenylbenzothiazolederivatives.Existenceofalayer(ed)structure inallsmectic LCsinduces

p

–

p

stacking interactions whichcan facilitatethehoppingofchargecarriermobility[7–9].

In our previous studies, we successfully synthesized and isolated a series of homologues of smectic LCs containing the benzothiazolemoiety[10–13].Incorporationofbenzothiazolering intocalamiticLCs,asthemesogeniccore,enabledthemtoeasily exhibitmesophasetransitionsduetothemorepolarizablenature

of theheteroatoms, sulfurand nitrogen[14].In this paper, we report another new homologousseries of benzothiazole liquid crystals(Scheme1).Threecoreunits(onebenzothiazoleandtwo phenylrings)wereconnectedviaa Schiffbaseandesterlinkers whichcanincreasethemolecularbroadnessandanisotropy.

2. Experimental

Thesyntheticprotocoltowards(producing/creating) thetitle compounds, 6-ethoxy-2-[4-(4-alkyloxybenzoyloxy)benzylidena-mino]-benzothiazoles (C2H5O-nBSPEP, wheren=7,8, 9, 10,12,

14) is illustrated in Scheme 1. 2-Amino-6-ethoxybenzothiazole wascondensed with 4-hydroxybenzaldehyde upon refluxingin ethanolfor3htoyieldintermediateA[11].Etherificationof ethyl-4-hydroxybenzoateinacetonewiththeappropriate 1-bromoalk-aneandacidificationusingconcentratedHClproduced intermedi-ateB[15].IntermediatesAandBwerethensubjectedtoSteglich esterificationwiththeappropriatefattyacidinthepresenceofDCC and DMAPaccordingtopreviously reported procedures[16]to yieldtitlecompoundsC2H5O-nBSPEP.Allthecrudeproductswere

puriﬁedbyrepeatedrecrystallizationusingethanoluntilconstant meltingpointswereobtained.Theyieldsoftheﬁnalproductswere between29%and55%(Scheme1).Structuralelucidationofthetitle compoundswascarriedoutviaelementalanalysis,FT-IR,NMR, andEI-MSspectroscopictechniques[17].

ChineseChemicalLetters24(2013)926–928

ARTICLE INFO Articlehistory: Received12April2013

Receivedinrevisedform23May2013 Accepted29May2013

Availableonline2July2013 Keywords: Benzothiazole Nematic SmecticC Mesomorphic ABSTRACT

In this paper, the synthesis of new mesomorphic benzothiazolyl derivatives,

6-ethoxy-2-[4-(4-alkyloxybenzoyloxy)benzylidenamino]benzothiazoles, is presented. The structures of the title

compounds were elucidated using spectroscopic techniques, such as FT-IR, NMR (1_H _and 13_C),

elementalanalysisandEI-MS.Themesomorphicbehavioursofthesecompoundsweredeterminedby

differentialscanningcalorimetricandpolarizingopticalmicroscopictechniques.Compoundsexhibited

nematicandtiltedsmecticphasesuponheatingfromcrystalphase.Anobviousodd-eveneffectwas

observedinthishomologousseries.

ß2013Sie-TiongHa.PublishedbyElsevierB.V.onbehalfofChineseChemicalSociety.Allrights

reserved.

*Correspondingauthorat:FacultyofScience,UniversitiTunkuAbdulRahman, JlnUniversiti,BandarBarat,Kampar31900,Malaysia.

E-mailaddress:[email protected](S.-T.Ha).

ContentslistsavailableatSciVerseScienceDirect

Chinese

Chemical

Letters

j our na l ho me p a ge : w ww . e l se v i e r . com / l oc a te / c cl e t

1001-8417/$–seefrontmatterß2013Sie-TiongHa.PublishedbyElsevierB.V.onbehalfofChineseChemicalSociety.Allrightsreserved.

(2)

3. Resultsanddiscussion

The liquid crystalline textures of the title compounds were observedbypolarizingopticalmicroscopeandphaseidentiﬁcation wasmadebycomparingtheobservedtextureswiththosereported intheliterature[18,19].

Transitiontemperaturesandcorrespondingenthalpychanges weredeterminedusingadifferentialscanningcalorimeterandthe datatabulatedinTable1.

ReferringtoTable1,allsynthesizedcompoundsexhibitedboth liquid crystal phase and nematic phase. A higherordered SmC phase emerged from dodecyloxy derivatives, which contain a relatively longer ﬂexible chain. Due to the thermally unstable

propertiesofthesecompounds,allthetransitiontemperaturescan beonlyobtainedfromtheheatingcycleinDSCanalysis.Thisisdue tothepartialdecompositionofthecompoundsduringheating,a phenomenonalsoreportedintheworkofWeietal.[20].

Representative optical photomicrographs of C2H5O-12BSPEP

areshowninFig.1.ThepresenceofthenematicphasesinC2H5

O-12BSPEPisevidencedbyatypicalmarble-liketextureuponcooling the compound from the isotropic liquid phase. Upon further coolingthenematicphasetoalowertemperature,ahigherordered SmCphaseformedandexhibitedthetransitionbartextureswhich in turnconﬁrmedtheconversionfromthenematic totheSmC phase(Fig.1b)[21].

Aplotoftransitiontemperaturesagainstthenumberofcarbons in thealkoxychainduringtheheatingcycleisshownin Fig.2. Firstly,itisevidentthatbothmelting(Cr-SmC/N)andclearing(N-I) pointsweregreatlyinﬂuencedbythelengthofalkoxychaininthe compounds. The ﬂuctuation of melting and clearing points observed in C7 to C10 compounds was due to the odd–even

Scheme1.Syntheticrouteforthetargetcompounds.(i)EtOH,(ii)CnH2n+1Br,K2CO3,

CH3COCH3,(iii)H2O:EtOH(1:1),KOH,conc.HCl,(iv)DCC,DMAP,DCM,DMF.Yield

of C2H5O-7BSPEP (29%), C2H5O-8BSPEP (33%), C2H5O-9BSPEP (37%), C2H5

O-10BSPEP(41%),C2H5O-12BSPEP(48%),andC2H5O-14BSPEP(55%).

Table1

PhasetransitionandtransitionenthalpychangesforC2H5O-nBSPEPuponheating.

Compound Phasetransition,8C(corresponding enthalpychanges,kJ/mol)

C2H5O-7BSPEP Cr168.0(9.1)Cr2126.9(40.9)N256.2(2.1)I C2H5O-8BSPEP Cr137.8(38.8)N248.5(2.3)I C2H5O-9BSPEP Cr124.8(42.3)N250.6(1.5)I C2H5O-10BSPEP Cr138.3(44.4)N250.2(1.9)I C2H5O-12BSPEP Cr91.0(51.2)SmC158.5(0.5)N223.2(1.7)I C2H5O-14BSPEP Cr169.9(24.1)Cr296.9(26.3)SmC172.1 (0.4)N223.6(1.6)

Cr1,crystal1;Cr2,crystal2;N,nematic;SmC,smecticC;I,isotropic.

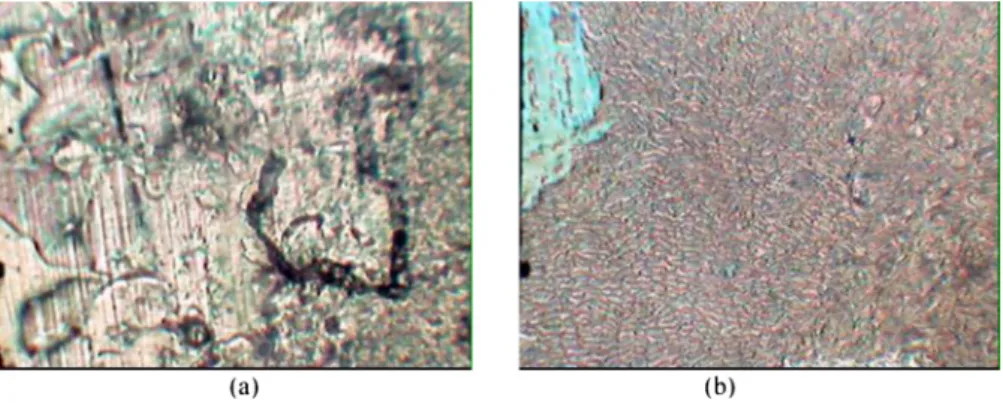

Fig.1.Opticalphotomicrographs(100)of(a)nematicphaseshowingmarble-liketextureand(b)SmCphaseexhibitingtypicaltransitionbartextureinC2H5O-12BSPEP.

Fig.2.PhasebehaviourofC2H5O-nBSPEP.

(3)

effect.Theodd–eveneffectcanbeexplainedbythefactthatthe extra carbon causes the chain to deviation from the linear structure,and this deviationfromthelinearityof thestructure causesareducedmeltingorclearingpoint.Thisﬂuctuationwas commonlyinvestigatedforshortchainderivativesina homolo-gousseries[22–25].Secondly,a higherorderedSmCphase was observed only in the homologues with relatively longer chain members,C12andC14inthiscase.Itcanbeunderstood thata longerterminalalkoxychainmayfavourthelamellararrangement in the smectic layer structure due to higher Van der Waals interactionsandthepossibilitiesofintertwiningbetweenalkoxy chains.Lastly,thenematicphaserange(

D

N)wasreducedandthe

SmC phase range (

D

SmA) was increased as the chain length

increased.TheincreasingVanderWaalsattractiveforcesprovide strongerlateralattractiveinteractions,whichinturn,resultedin formationoflayerpacking.

4. Conclusion

Conclusively,allthesynthesizedcompoundsexhibitedliquid crystal behaviour in which nematic and SmC phases were observed.Thelengthoftheterminalalkoxychaingreatlyaffects properties,suchasmeltingandclearingtemperatures,andliquid crystalphaseranges.Inourfuturework,molecularmodiﬁcations onthishomologousserieswillbeplannedinordertoyieldliquid crystalcompoundswithhighthermalstability.

Acknowledgment

The authors would like to thank Universiti Tunku Abdul Rahmanfortheﬁnancialsupportsandresearchfacilities. References

[1]D.Adam,F.Closs,T.Frey,etal.,Transientphotoconductivityinadiscoticliquid crystal,Phys.Rev.Lett.70(1993)457–460.

[2]M.R.Huang,X.G.Li,J.Wang,Liquidcrystallinepolyanilineanditsderivatives, TongjiDaxueXuebao31(2003)848–852(inChinese).

[3]X.G.Li,M.R.Huang,W.Duan,Y.L.Yang,Novelmultifunctionalpolymersfrom aromatic diamines by oxidative polymerizations, Chem. Rev. 102 (2002) 2925–3030.

[4]X.G.Li,Q.F.Lu,M.R.Huang,Self-stabilizednanoparticlesofintrinsically conduct-ingco-polymersfrom5-sulfonic-2-anisidine,Small4(2008)1201–1209.

[5]X.G.Li,M.R.Huang,Facileoptimalsynthesisofinherentlyelectroconductive polythiophenenanoparticles,Chem.Eur.J.15(2009)6446–6455.

[6]W.Pisula,M.Zorn,J.Y.Chang,K.Mullen,R.Zentel,Liquidcrystallineorderingand chargetransportinsemiconductingmaterials,Macromol.RapidCommun.30 (2009)1179–1202.

[7]B.P.Chandra,N.Periasamy,J.N.Das,Triboluminescence,anewtooltoinvestigate fracture-initiationtimeofcrystalsunderstress,Pramana8(1977)395–401.

[8]M.Funahashi,J.Hanna,Fastholetransportinanewcalamiticliquidcrystalof 2-(40_{-heptyloxyphenyl)-6-dodecylthiobenzothiazole,} _Phys. _Rev. _Lett. ₇₈ ₍₁₉₉₇₎

2184–2187.

[9]A.Ohno,A.Haruyama,K.Kurotaki,J.Hanna,Charge-carriertransportinsmectic mesophasesofbiphenyls,J.Appl.Phys.102(2007)083711.

[10]S.T.Ha,T.M.Koh,G.Y.Yeap,etal.,Synthesisandmesomorphicpropertiesof 2-(4-alkyloxyphenyl)benzothiazoles,Mol.Cryst.Liq.Cryst.506(2009)56–70.

[11]S.T.Ha,T.M.Koh,H.C.Lin,etal.,Heterocyclicbenzothiazole-basedliquidcrystals: synthesisandmesomorphic,Liq.Cryst.36(2009)917–925.

[12]S.T.Ha,T.M.Koh,S.T.Ong,Y.Sivasothy,Synthesisandmesomorphicbehaviorof benzothiazole-basedliquidcrystalshavingterminalmethoxylgroup,Chin.Chem. Lett.20(2009)1449–1452.

[13]S.T.Ha,T.M.Koh,G.Y.Yeap,etal.,MesogenicSchiffbaseesterswithbenzothiazole core: synthesis and phase transition studies, Phase Transitions 83 (2010) 195–204.

[14]L.L.Lai,C.H.Wang,W.P.Hsien,H.C.Lin,Synthesisandcharacterizationofliquid crystallinemoleculescontainingthequinolineunit,Mol.Cryst.Liq.Cryst.287 (1996)177–181.

[15]O.N.Kadkin,H.Han,Y.G.Galyametdinov,Synthesis,computationalmodellingand liquidcrystallinepropertiesofsome[3]ferrocenophane-containingSchiff’sbases andb-aminovinylketone:moleculargeometry-phasebehaviourrelationship,J. Organomet.Chem.692(2007)5571–5582.

[16]G.Y.Yeap,S.T.Ha,P.L.Boey,etal.,SynthesisandmesomorphicpropertiesofSchiff baseestersortho-hydroxy-para-alkyloxybenzylidene-para-substitutedanilines, Mol.Cryst.Liq.Cryst.452(2006)73–84.

[17]Analytical and spectroscopicdata for the representativecompound C2H5

O-9BSPEP:EI-MSm/z(rel.int.%):544(22)[M+

],247(100),IRnmax(KBr,cm1):

n3056(C–Haromatic);2922,2851(C–Haliphatic);1740(C55Oester);1609(C55N thiazole),1273(C–O,aromaticether)1

HNMR(400MHz,CDCl3):d0.9(t,3H,

J=6.6Hz,CH3–),1.3(m,10H,CH3–(CH2)5–(CH2)3–O–),1.4(t,3H,J=6.8Hz,CH3–

CH2–O–),1.5(p,2H,J=6.1Hz,–CH2–CH2–CH2–O–),1.8(p,2H,J=7.1Hz,–CH2–

CH2–O–),4.0(t,2H,J=6.6Hz,–CH2–O–),4.1(t,2H,J=7.1Hz,CH3–CH2–O–),7.0

(d,2H,J=8.8Hz,Ar–H),7.1(d,1H,J=9.0Hz,Ar–H),7.3(s,1H,Ar–H),7.4(d,2H, J=8.6Hz,Ar–H),7.9(d,1H,J=8.8Hz,Ar–H),8.1(d,2H,J=8.6Hz,Ar–H),8.2(d, 2H,J=8.8Hz,Ar–H),9.0(s,1H,–N55CH–);13_C_NMR₍₁₀₀_MHz,_CDCl

3):d14.23

(CH3–),14.94(CH3–CH2O–),15.01,22.77,26.07,29.17,29.35,29.46,29.61,31.97

for methylenecarbons (CH3–(CH2)8–), 64.18(–CH2O–), 68.47(CH3–CH2O–),

105.14,114.50,116.22,121.06,122.70,123.85,131.44,132.50,133.98,135.93, 146.06,154.91,156.04,157.18foraromaticcarbons,163.88(N55CH,Schiffbase), 164.47(N55C,thiazole),169.20(–COO–).Anal.calcd.forC32H36N2O4S:C,70.56,H,

6.66,N,5.14;Found:C,70.48,H,6.74,N,5.03.

[18]D.Demus,L.Richter,TexturesofLiquidCrystals,VerlagChemie,NewYork,1978.

[19]I.Dierking,TexturesofLiquidCrystals, Wiley-VCH,Weinheim,2003.

[20]Q.Wei,L.Shi,H.Cao,L.P.Wang,H.Yang,Synthesisandmesomorphicpropertiesof twoseriesofnewazine-typeliquidcrystals,Liq.Cryst.35(2008)581–585.

[21]M.A.Guillevic,M.E.Light,S.J.Coles,etal.,Synthesisofdinuclearcomplexesof rhenium(I)aspotentialmetallomesogens,J.Chem.Soc.DaltonTrans.9(2000) 1437–1445.

[22]P.A.Henderson,R.T.Inkster,J.M.Seddon,C.T.Imrie,Highlynon-linearliquid crystaltetramers,J.Mater.Chem.11(2001)2722–2731.

[23]G.Y.Yeap,T.C.Hng,D.Takeuchi,etal.,Non-symmetricliquidcrystaldimers:high thermalstabilityinnematicphasesenhancedbythiophene-2-carboxylate moie-ties,Mol.Cryst.Liq.Cryst.506(2009)134–149.

[24]A.K.Prajapati,N.L.Bonde,Mesogenicbenzothiazolederivativeswithmethoxy substituents,J.Chem.Sci.118(2006)203–210.

[25]A.K.Prajapati,N.L.Bonde,Mesogenicbenzothiazolederivativeswithapolarnitro substituent,Mol.Cryst.Liq.Cryst.501(2009)72–85.

T.-M.Kohetal./ChineseChemicalLetters24(2013)926–928 928
