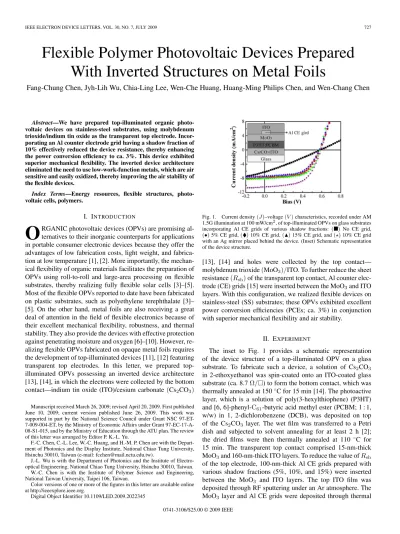

IEEE ELECTRON DEVICE LETTERS, VOL. 30, NO. 7, JULY 2009 727
Flexible Polymer Photovoltaic Devices Prepared
With Inverted Structures on Metal Foils
Fang-Chung Chen, Jyh-Lih Wu, Chia-Ling Lee, Wen-Che Huang, Huang-Ming Philips Chen, and Wen-Chang Chen
Abstract—We have prepared top-illuminated organic photo-voltaic devices on stainless-steel substrates, using molybdenum trioxide/indium tin oxide as the transparent top electrode. Incor-porating an Al counter electrode grid having a shadow fraction of 10% effectively reduced the device resistance, thereby enhancing the power conversion efficiency to ca. 3%. This device exhibited superior mechanical flexibility. The inverted device architecture eliminated the need to use low-work-function metals, which are air sensitive and easily oxidized, thereby improving the air stability of the flexible devices.
Index Terms—Energy resources, flexible structures, photo-voltaic cells, polymers.
I. INTRODUCTION
O
RGANIC photovoltaic devices (OPVs) are promising al-ternatives to their inorganic counterparts for applications in portable consumer electronic devices because they offer the advantages of low fabrication costs, light weight, and fabrica-tion at low temperature [1], [2]. More importantly, the mechan-ical flexibility of organic materials facilitates the preparation of OPVs using roll-to-roll and large-area processing on flexible substrates, thereby realizing fully flexible solar cells [3]–[5]. Most of the flexible OPVs reported to date have been fabricated on plastic substrates, such as polyethylene terephthalate [3]– [5]. On the other hand, metal foils are also receiving a great deal of attention in the field of flexible electronics because of their excellent mechanical flexibility, robustness, and thermal stability. They also provide the devices with effective protection against penetrating moisture and oxygen [6]–[10]. However, re-alizing flexible OPVs fabricated on opaque metal foils requires the development of top-illuminated devices [11], [12] featuring transparent top electrodes. In this letter, we prepared top-illuminated OPVs possessing an inverted device architecture [13], [14], in which the electrons were collected by the bottom contact—indium tin oxide (ITO)/cesium carbonate (Cs2CO3) Manuscript received March 26, 2009; revised April 20, 2009. First published June 10, 2009; current version published June 26, 2009. This work was supported in part by the National Science Council under Grant NSC 97-ET-7-009-004-ET, by the Ministry of Economic Affairs under Grant 97-EC-17-A-08-S1-015, and by the Ministry of Education through the ATU plan. The review of this letter was arranged by Editor P. K.-L. Yu.F.-C. Chen, C.-L. Lee, W.-C. Huang, and H.-M. P. Chen are with the Depart-ment of Photonics and the Display Institute, National Chiao Tung University, Hsinchu 30010, Taiwan (e-mail: [email protected]).
J.-L. Wu is with the Department of Photonics and the Institute of Electro-optical Engineering, National Chiao Tung University, Hsinchu 30010, Taiwan. W.-C. Chen is with the Institute of Polymer Science and Engineering, National Taiwan University, Taipei 106, Taiwan.
Color versions of one or more of the figures in this letter are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/LED.2009.2022345

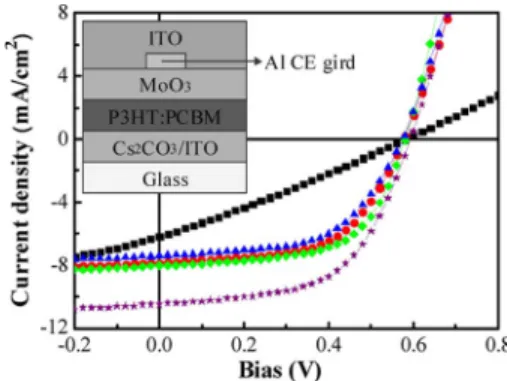

Fig. 1. Current density (J )–voltage (V ) characteristics, recorded under AM 1.5G illumination at 100 mW/cm2, of top-illuminated OPVs on glass substrates
incorporating Al CE grids of various shadow fractions: () No CE grid, (•) 5% CE grid, () 10% CE grid, () 15% CE grid, and () 10% CE grid with an Ag mirror placed behind the device. (Inset) Schematic representation of the device structure.
[13], [14] and holes were collected by the top contact— molybdenum trioxide (MoO3)/ITO. To further reduce the sheet resistance (Rsh) of the transparent top contact, Al counter elec-trode (CE) grids [15] were inserted between the MoO3and ITO layers. With this configuration, we realized flexible devices on stainless-steel (SS) substrates; these OPVs exhibited excellent power conversion efficiencies (PCEs; ca. 3%) in conjunction with superior mechanical flexibility and air stability.
II. EXPERIMENT
The inset to Fig. 1 provides a schematic representation of the device structure of a top-illuminated OPV on a glass substrate. To fabricate such a device, a solution of Cs2CO3 in 2-ethoxyethanol was spin-coated onto an ITO-coated glass substrate (ca. 8.7 Ω/) to form the bottom contact, which was thermally annealed at 150◦C for 15 min [14]. The photoactive layer, which is a solution of poly(3-hexylthiophene) (P3HT) and [6, 6]-phenyl-C61-butyric acid methyl ester (PCBM; 1 : 1, w/w) in 1, 2-dichlorobenzene (DCB), was deposited on top of the Cs2CO3 layer. The wet film was transferred to a Petri dish and subjected to solvent annealing for at least 2 h [2]; the dried films were then thermally annealed at 110 ◦C for 15 min. The transparent top contact comprised 15-nm-thick MoO3and 160-nm-thick ITO layers. To reduce the value of Rsh of the top electrode, 100-nm-thick Al CE grids prepared with various shadow fractions (5%, 10%, and 15%) were inserted between the MoO3 and ITO layers. The top ITO film was deposited through RF sputtering under an Ar atmosphere. The MoO3 layer and Al CE grids were deposited through thermal 0741-3106/$25.00 © 2009 IEEE
728 IEEE ELECTRON DEVICE LETTERS, VOL. 30, NO. 7, JULY 2009
Fig. 2. Transmittance spectrum of the transparent top contact (MoO3/ITO)
and reflectance spectra of the bottom contacts (with and without Ag) of flexible OPVs fabricated on SS substrates.
Fig. 3. J –V characteristics of flexible OPVs on metal foils, prepared with
and without a bottom Ag layer. (Inset) Schematic representation of the device structure of the flexible OPVs.
evaporation under a vacuum of ca. 3× 10−6 torr. The device area, defined through a shadow mask, was 0.12 cm2. Finally, the completed devices were postannealed at 140◦C for 5 min in a glove box. Fig. 2 shows the transmittance spectrum of the transparent top contact (MoO3/ITO). The average
trans-mittance from 400 to 800 nm was 86.2%, revealing that light was indeed transmitted efficiently through the top electrode. To fabricate flexible OPVs on SS substrates, a thick photoresist (PR) layer was first spin-coated to planarize the surface of the SS foils (inset of Fig. 3). After such treatment, the surface root-mean-square roughness decreased from 25.7 to 4.1 nm, as measured using atomic force microscopy. A 100-nm-thick SiOx
layer was then deposited through electron beam evaporation to minimize any washing effect occurring during the subsequent wet processing. On top of the SiOxlayer, 100-nm-thick Ag and
100-nm-thick ITO layers were thermally evaporated and RF sputtered, respectively. The remaining fabrication procedures were identical to those used to prepare the devices on the glass substrates. Note that the Ag layer not only functioned as an optical reflector but also effectively reduced the value of Rshof the bottom electrode. The current density–voltage (J –V ) char-acteristics of the OPVs were measured using a Keithley 2400 source measure unit. The photocurrent response was measured under the illumination provided by a 150-W Thermal Oriel solar simulator equipped with AM1.5G filters. The illumination intensity was calibrated using a Si photodiode equipped with a KG-5 filter (Hamamatsu, Inc.) [16]. The transmittance and reflectance spectra were recorded using a Perkin–Elmer Lamda
950 spectrometer. The sheet resistances were determined using the four-point probe method.
III. RESULTS ANDDISCUSSION
Fig. 1 shows the J –V characteristics, recorded under AM 1.5G illumination at 100 mW/cm2, of the top-illuminated OPVs on glass substrates, featuring Al CE grids with dif-ferent shadow fractions. For the device having the structure ITO/Cs2CO3/P3HT:PCBM/MoO3/ITO (i.e., the reference cell), the open circuit voltage (Voc), short circuit current (Jsc), and fill factor (FF) were 0.59 V, 6.04 mA/cm2, and 0.27, respectively; the calculated PCE was 0.96%. The series resis-tance (Rs) for the reference cell, extracted from the inverse
slope of the dark J –V curve at a voltage of 1.5 V [17], was 64.5 Ω· cm2. Apparently, the high Rsh of the MoO3/ITO top electrode (ca. 100 Ω/) led to a low photocurrent and poor FF. To reduce the device resistance, we embedded Al CE grids between the MoO3 and ITO layers (inset of Fig. 1). For the devices containing Al CE grids featuring 5%, 10%, and 15% shadow fractions, the values of Rs were 7.6, 5.2, and
4.9 Ω· cm2, respectively. Optimizing the shadow fraction of the CE grids is necessary for top-illuminated devices because the grids block part of the incoming light. For example, the compromised shadow fraction of the Al CE grid in Fig. 1 is 10%; this top-illuminated OPV exhibited a remarkable PCE of 2.8% (Voc= 0.59 V; Jsc= 8.06 mA/cm2; FF = 0.59), which is one of the best values for a semitransparent OPV measured under illumination from the top electrode. The PCE of the device was further improved to 3.51% after placing an Ag mirror behind the device (Fig. 1), indicating that optical loss through the semitransparent device could be minimized through light recycling. Because this high PCE is comparable with that of conventional bottom-illuminated devices (ca. 3.8%), we deduced that optical loss, rather than the electrical properties, was the major limitation of the semitransparent device.
Next, we applied the transparent top electrode in the fab-rication of flexible devices on SS substrates (inset of Fig. 3) having the following structure: SS foil/PR /SiOx/Ag/ITO/
Cs2CO3/P3HT:PCBM/MoO3/Al CE grid (10%)/ITO. Fig. 3 shows the corresponding J –V curves, recorded under AM 1.5G illumination at 100 mW/cm2, of the devices prepared with and without the Ag layer. We see that the bottom Ag layer played a crucial role in determining the device performance. The Ag layer reduced the value of Rsh of the bottom contact from 130 (without Ag) to 0.3 Ω/ (with Ag), thereby decreasing the value of Rs of the device from 9.1 to 3.3 Ω· cm2 and
increasing the FF from 0.55 to 0.59. The bottom Ag layer also acted as an efficient optical reflector, leading to a marked enhancement in reflectance at the bottom contact (up to ca. 90% in the visible region; Fig. 2). As a result, the value of Jsc increased notably from 6.48 to 8.51 mA/cm2, and the value of Voc increased slightly from 0.57 to 0.59 V. Overall, the calculated PCE of the flexible OPVs improved from 2.02% to 2.97% after incorporating the Ag layer.
To examine the mechanical stability of the flexible OPVs, we performed a cyclic bending test at a radius of 0.8 cm under
CHEN et al.: FLEXIBLE POLYMER PHOTOVOLTAIC DEVICES PREPARED WITH INVERTED STRUCTURES 729

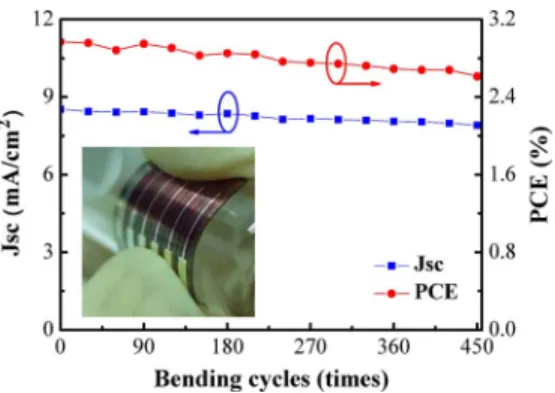

Fig. 4. Plots of Jscand PCE with respect to the number of bending cycles
(bending radius: ca. 0.8 cm). (Inset) Photograph of the flexible OPVs prepared on metal foil.
ambient conditions. All the tested devices were unencapsu-lated during the testing. Fig. 4 shows that the values of Jsc and PCE declined slightly—from 8.51 mA/cm2 and 2.97% to 7.91 mA/cm2 and 2.61%, respectively—after 450 bending cy-cles, whereas the value of Vocremained relatively unchanged (from 0.59 to 0.57 V). This trivial degradation in performance reveals that the device exhibited superior mechanical flexibil-ity. To determine the possible reasons for the failure of the mechanical flexibility, we measured the change in Rsh of the bottom contact (Ag/ITO). The fractional increase in the sheet resistance (ΔRsh/Rsh) after 450 bending cycles was only 3%, i.e., the value of Rsh remained relatively unchanged, resulting in superior mechanical flexibility. Therefore, the slight degra-dation in the device performance that we observed during the bending test may have been due to fatigue of the top electrode (the change in resistance of which we were unable to measure at present) and/or of the interfaces between the organic layer and the buffer layers.
As a measure of the air stability, we found that the PCE remained at ca. 60% of its initial value (i.e., decreasing from 2.97% to 1.83%) after storing the unencapsulated device, with-out bending, for 60 days. The inverted device architecture eliminated the need to use low-work-function metals, which are air sensitive and easily oxidized, thereby improving the air stability of the flexible OPVs [14], [18], [19].
IV. CONCLUSION
In this letter, we have prepared top-illuminated OPVs possessing inverted structures on metal foils. The flexible OPVs prepared on SS substrates exhibited excellent mechan-ical flexibility and high air stability. In addition, flexible OPVs fabricated on metal foils achieved excellent PCEs of ca. 3%.
REFERENCES
[1] C. J. Brabec, N. S. Sariciftci, and J. C. Hummelen, “Plastic solar cells,”
Adv. Funct. Mater., vol. 11, no. 1, pp. 15–26, Feb. 2001.
[2] G. Li, V. Shrotriya, J. S. Huang, Y. Yao, T. Moriarty, K. Emery, and Y. Yang, “High-efficiency solution processable polymer photovoltaic cells by self-organization of polymer blends,” Nat. Mater., vol. 4, no. 11, pp. 864–868, Nov. 2005.
[3] S. I. Na, S. S. Kim, J. Jo, and D. Y. Kim, “Efficient and flexible ITO-free organic solar cells using highly conductive polymer anodes,” Adv. Mater., vol. 20, no. 21, pp. 4061–4067, Nov. 2008.
[4] G. P. Kushto, W. H. Kim, and Z. H. Kafafi, “Flexible organic photovoltaics using conducting polymer electrodes,” Appl. Phys. Lett., vol. 86, no. 9, p. 093 502, Feb. 2005.
[5] Y. H. Zhou, F. L. Zhang, K. Tvingstedt, S. Barrau, F. H. Li, W. J. Tian, and O. Inganas, “Investigation on polymer anode design for flexible polymer solar cells,” Appl. Phys. Lett., vol. 92, no. 23, p. 233 308, Jun. 2008. [6] J. H. Cheon, J. H. Choi, J. H. Hur, J. Jang, H. S. Shin, J. K. Jeong,
Y. G. Mo, and H. K. Chung, “Active-matrix OLED on bendable metal foil,” IEEE Trans. Electron Devices, vol. 53, no. 5, pp. 1273–1276, May 2006.
[7] T. K. Chuang, M. Troccoli, P. C. Kuo, A. Jamshidi-Roudbari, M. K. Hatalis, I. Biaggio, and A. T. Voutsas, “Top-emitting 230 dots/in. active-matrix polymer light-emitting diode displays on flexible metal foil substrates,” Appl. Phys. Lett., vol. 90, no. 15, p. 151 114, Apr. 2007. [8] J. K. Jeong, D. U. Jin, H. S. Shin, H. J. Lee, M. Kim, T. K. Ahn, J. Lee,
Y. G. Mo, and H. K. Chung, “Flexible full-color AMOLED on ultrathin metal foil,” IEEE Electron Device Lett., vol. 28, no. 5, pp. 389–391, May 2007.
[9] C. C. Wu, S. D. Theiss, G. Gu, M. H. Lu, J. C. Sturm, S. Wagner, and S. R. Forrest, “Integration of organic LEDs and amorphous Si TFTs onto flexible and lightweight metal foil substrates,” IEEE Electron Device Lett., vol. 18, no. 12, pp. 609–612, Dec. 1997.
[10] Z. Y. Xie, L. S. Hung, and F. R. Zhu, “A flexible top-emitting organic light-emitting diode on steel foil,” Chem. Phys. Lett., vol. 381, no. 5/6, pp. 691–696, Nov. 2003.
[11] T. Oyamada, Y. Sugawara, Y. Terao, H. Sasabe, and C. Adachi, “Top light-harvesting organic solar cell using ultrathin Ag/MgAg layer as anode,”
Jpn. J. Appl. Phys., vol. 46, no. 4A, pp. 1734–1735, Apr. 2007.
[12] X. R. Tong, R. F. Bailey-Salzman, G. D. Wei, and S. R. Forrest, “Inverted small molecule organic photovoltaic cells on reflective substrates,” Appl.
Phys. Lett., vol. 93, no. 17, p. 173 304, Oct. 2008.
[13] L. M. Chen, Z. Hong, G. Li, and Y. Yang, “Recent progress in polymer solar cells: Manipulation of polymer:fullerene morphology and the for-mation of efficient inverted polymer solar cells,” Adv. Mater., vol. 21, no. 14/15, pp. 1434–1449, Apr. 2009.
[14] H. H. Liao, L. M. Chen, Z. Xu, G. Li, and Y. Yang, “Highly efficient inverted polymer solar cell by low temperature annealing of Cs2CO3
interlayer,” Appl. Phys. Lett., vol. 92, no. 17, p. 173 303, Apr. 2008. [15] F. C. Chen, J. L. Wu, K. H. Hsieh, W. C. Chen, and S. W. Lee, “Polymer
photovoltaic devices with highly transparent cathodes,” Org. Electron., vol. 9, no. 6, pp. 1132–1135, Dec. 2008.
[16] V. Shrotriya, G. Li, Y. Yao, T. Moriarty, K. Emery, and Y. Yang, “Accurate measurement and characterization of organic solar cells,” Adv. Funct.
Mater., vol. 16, no. 15, pp. 2016–2023, Oct. 2006.
[17] H. L. Yip, S. K. Hau, N. S. Baek, and A. K. Y. Jen, “Self-assembled mono-layer modified ZnO/metal bimono-layer cathodes for polymer/fullerene bulk-heterojunction solar cells,” Appl. Phys. Lett., vol. 92, no. 19, p. 193 313, May 2008.
[18] S. K. Hau, H. L. Yip, N. S. Baek, J. Y. Zou, K. O’Malley, and A. K. Y. Jen, “Air-stable inverted flexible polymer solar cells using zinc oxide nanoparticles as an electron selective layer,” Appl. Phys. Lett., vol. 92, no. 25, p. 253 301, Jun. 2008.
[19] M. S. White, D. C. Olson, S. E. Shaheen, N. Kopidakis, and D. S. Ginley, “Inverted bulk-heterojunction organic photovoltaic device using a solution-derived ZnO underlayer,” Appl. Phys. Lett., vol. 89, no. 14, p. 143 517, Oct. 2006.
