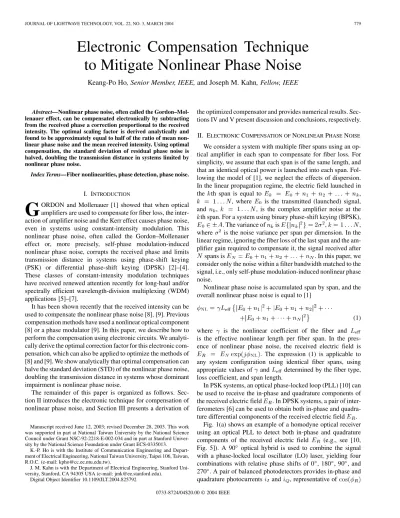

Electronic Compensation Technique
to Mitigate Nonlinear Phase Noise
Keang-Po Ho, Senior Member, IEEE, and Joseph M. Kahn, Fellow, IEEE
Abstract—Nonlinear phase noise, often called the Gordon–Mol-lenauer effect, can be compensated electronically by subtracting from the received phase a correction proportional to the received intensity. The optimal scaling factor is derived analytically and found to be approximately equal to half of the ratio of mean non-linear phase noise and the mean received intensity. Using optimal compensation, the standard deviation of residual phase noise is halved, doubling the transmission distance in systems limited by nonlinear phase noise.
Index Terms—Fiber nonlinearities, phase detection, phase noise.
I. INTRODUCTION
G
ORDON and Mollenauer [1] showed that when optical amplifiers are used to compensate for fiber loss, the inter-action of amplifier noise and the Kerr effect causes phase noise, even in systems using constant-intensity modulation. This nonlinear phase noise, often called the Gordon–Mollenauer effect or, more precisely, self-phase modulation-induced nonlinear phase noise, corrupts the received phase and limits transmission distance in systems using phase-shift keying (PSK) or differential phase-shift keying (DPSK) [2]–[4]. These classes of constant-intensity modulation techniques have received renewed attention recently for long-haul and/or spectrally efficient wavelength-division multiplexing (WDM) applications [5]–[7].It has been shown recently that the received intensity can be used to compensate the nonlinear phase noise [8], [9]. Previous compensation methods have used a nonlinear optical component [8] or a phase modulator [9]. In this paper, we describe how to perform the compensation using electronic circuits. We analyti-cally derive the optimal correction factor for this electronic com-pensation, which can also be applied to optimize the methods of [8] and [9]. We show analytically that optimal compensation can halve the standard deviation (STD) of the nonlinear phase noise, doubling the transmission distance in systems whose dominant impairment is nonlinear phase noise.
The remainder of this paper is organized as follows. Sec-tion II introduces the electronic technique for compensaSec-tion of nonlinear phase noise, and Section III presents a derivation of
Manuscript received June 12, 2003; revised December 28, 2003. This work was supported in part at National Taiwan University by the National Science Council under Grant NSC-92-2218-E-002-034 and in part at Stanford Univer-sity by the National Science Foundation under Grant ECS-0335013.
K.-P. Ho is with the Institute of Communication Engineering and Depart-ment of Electrical Engineering, National Taiwan University, Taipei 106, Taiwan, R.O.C. (e-mail: [email protected]).
J. M. Kahn is with the Department of Electrical Engineering, Stanford Uni-versity, Stanford, CA 94305 USA (e-mail: [email protected]).
Digital Object Identifier 10.1109/JLT.2004.825792
the optimized compensator and provides numerical results. Sec-tions IV and V present discussion and conclusions, respectively. II. ELECTRONICCOMPENSATION OFNONLINEARPHASENOISE
We consider a system with multiple fiber spans using an op-tical amplifier in each span to compensate for fiber loss. For simplicity, we assume that each span is of the same length, and that an identical optical power is launched into each span. Fol-lowing the model of [1], we neglect the effects of dispersion. In the linear propagation regime, the electric field launched in
the th span is equal to ,
, where is the transmitted (launched) signal, and , , is the complex amplifier noise at the th span. For a system using binary phase-shift keying (BPSK),
. The variance of is , ,
where is the noise variance per span per dimension. In the linear regime, ignoring the fiber loss of the last span and the am-plifier gain required to compensate it, the signal received after
spans is . In this paper, we
consider only the noise within a filter bandwidth matched to the signal, i.e., only self-phase modulation-induced nonlinear phase noise.
Nonlinear phase noise is accumulated span by span, and the overall nonlinear phase noise is equal to [1]
(1) where is the nonlinear coefficient of the fiber and is the effective nonlinear length per fiber span. In the pres-ence of nonlinear phase noise, the received electric field is . The expression (1) is applicable to any system configuration using identical fiber spans, using appropriate values of and determined by the fiber type, loss coefficient, and span length.
In PSK systems, an optical phase-locked loop (PLL) [10] can be used to receive the in-phase and quadrature components of the received electric field . In DPSK systems, a pair of inter-ferometers [6] can be used to obtain both in-phase and quadra-ture differential components of the received electric field .
Fig. 1(a) shows an example of a homodyne optical receiver using an optical PLL to detect both in-phase and quadrature components of the received electric field (e.g., see [10, Fig. 5]). A 90 optical hybrid is used to combine the signal with a phase-locked local oscillator (LO) laser, yielding four combinations with relative phase shifts of 0 , 180 , 90 , and 270 . A pair of balanced photodetectors provides in-phase and quadrature photocurrents and , representative of
(BER) of 10 in the linear regime without nonlinear phase noise.1In Fig. 2(a), the mean nonlinear phase is rad,
corresponding to the case when the variance of nonlinear phase noise approximately equals the variance of linear phase noise [1]. Fig. 2(b) illustrates the case rad. The helical-shaped distributions in Fig. 2 arise because the nonlinear phase rotation is correlated with the received intensity [8], [9]. Fig. 2 also shows spiral curves that separate the plane into two decision regions. These decision regions resemble the Yin-Yang logo of Chinese mysticism and are called the “Yin-Yang detector” below. The Yin-Yang detector uses strictly electronic techniques to compensate nonlinear phase noise, and hence, it differs signif-icantly from the optical [8] and electrooptical [9] compensation techniques considered previously. The optimal spiral curves are derived in the next section.
In this paper, we describe two methods to electronically compensate nonlinear phase noise in a coherent receiver such as in Fig. 1(a). The simplest method, shown in Fig. 1(b), is the Yin-Yang detector with decision regions separated by spiral curves, like those shown in Fig. 2. Once the mean nonlinear phase shift is known, one can implement the spiral-boundary decision device using a lookup table. An alternate method, shown in Fig. 1(c), employs a compensator that subtracts from the received phase a correction proportional to the received intensity. The compensator is followed by a straight-boundary decision device.
III. THEOPTIMALCOMPENSATOR
In this section, we derive the optimal compensator for the receiver of Fig. 1(c). We then determine the optimized spiral decision boundaries for the receiver of Fig. 1(b). The reduction in the STD of nonlinear phase noise is also presented in this section.
In an -span system, the optimal linear compensator can be derived by finding a scale factor to minimize the variance of the residual nonlinear phase shift . The corrected phase estimate is , where is the phase of the re-ceived electric field .
First, we consider a simple mathematical problem. For a real variable and two complex circular Gaussian random
1Throughout this paper, the SNR is defined over a filter bandwidth
matched to the signal bandwidth. Our reasons for this definition are discussed in Section IV.

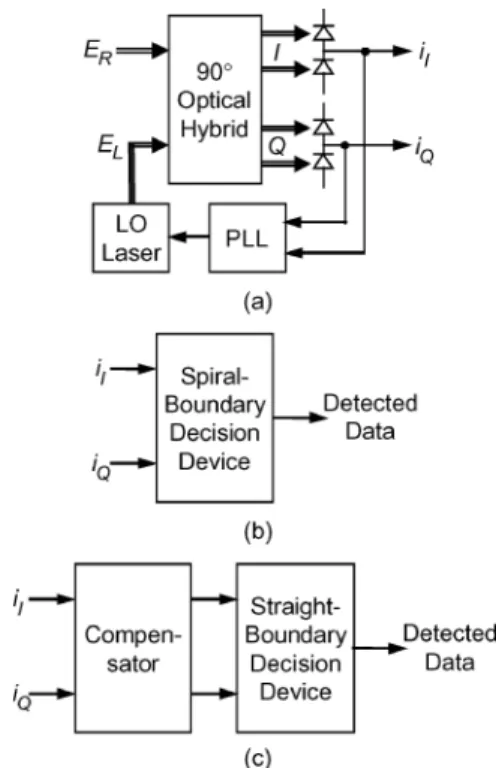

Fig. 1. (a) Typical coherent receiver detecting both in-phase and quadrature components of the received electric fieldE . (b) Nonlinear phase noise is compensated by using a spiral-boundary decision device. (c) Nonlinear phase noise is compensated by using a compensator, followed by a straight-boundary decision device.
variables and , both and are
noncen-tral -squared distributed random variables with two degrees of freedom. From [12], the mean and variance of are
(2) (3) where is the variance of . In (3), the variance of the random variable is defined as a function of
. After some algebra, the covariance between
and is found to be
(4) The covariance relationship (4) is obvious, because
does not depend on, and is not correlated with, the random vari-able .
Using (2)–(4), the variance of the nonlinear phase of (1) is found to be
(5) The first summation of (5) corresponds to all the terms
, the variances of .
The second summation of (5) corresponds to all the covariance
Fig. 2. Simulated distribution and decision regions of received signal with nonlinear phase noise for various mean nonlinear phase shifts: (a)h i = 1 rad and (b)h i = 2 rad.
Substituting (3) into (5), we obtain
(6) Similar to (5), the variance of the residual nonlinear phase shift is found using (3) and (5) to be
(7) The optimal scale factor can be found by solving
to obtain
(8) After some algebra, the optimal scale factor is found to be
(9) The approximate equality in (9) is valid at high SNR. The vari-ance of the residual nonlinear phase shift is reduced from (6) to
(10) For high SNR and large number of fiber spans, the variance of the residual nonlinear phase shift is
(11) and the variance of the nonlinear phase shift is
(12)
where the mean nonlinear phase shift is
(13) The approximation in (12) is the same as that in [1].
Note that the optimal scale factor (9) is approximately equal to one-half the ratio of the mean nonlinear phase shift (13) to the
mean received intensity . From (11) and
(12), the phase noise variance can be reduced by a factor of four by using optimal compensation of the nonlinear phase noise.
To our knowledge, the optimized scale factor (9) and variance of residual phase noise (10) have been derived here for the first time. While the theory of [4] is considered a more complicated system with a particular pulse shape, the simple approximation in (6) or (12) may yield more useful insight. We should note that in [9], simulation was used to optimize the scale factor, yielding a result corresponding to (9). Our analytical optimization of the scale factor serves as an independent verification of those sim-ulation results.
Fig. 3 shows the distribution of the corrected signal , assuming the same parameters as Fig. 2. The distributions shown in Fig. 3 have been rotated by the mean phase , so that the decision regions become the right and left half-planes. Comparing Fig. 2 to Fig. 3, we see that the phase correction has dramatically reduced the STD of the nonlinear phase shift. Note that, ignoring a rotation, the phase distribution in Fig. 3(b) is similar to that in Fig. 2(a).
The above derivation yielded the optimal value of the scale factor for the compensator of Fig. 1(c). In the receiver shown in Fig. 1(b), the optimized spiral decision boundaries are given by rotated versions of , where and are the radius and phase in polar coordinates. These optimized decision boundaries are shown in Fig. 2. Besides the number of fiber spans, the parameters that determine the decision boundaries are the mean nonlinear phase shift and the SNR .
Decoding the corrected electric field using the half-plane decision regions shown in Fig. 3 is equivalent to decoding the received electric field using the Yin-Yang decision regions shown in Fig. 2.
Fig. 4 shows the STDs and , given by (6) and (10), as functions of the mean nonlinear phase shift
Fig. 3. Simulated distribution of corrected signal using optimal correction factor for various mean nonlinear phase shifts: (a)h i = 1 rad and (b) h i = 2 rad.
of (13), for and spans. Fig. 4 assumes SNR , like Fig. 2 and 3. Fig. 4 also shows the approximations
(14) obtained from (12) and (11), as dotted lines. When the correc-tion factor (9) is employed, the STD of the residual nonlinear phase shift is nearly independent of the number of fiber spans, and is very close to the approximation in (14). For a given value of the mean nonlinear phase shift , the STD of the nonlinear phase shift decreases with increasing . For , is indistinguishable from the approximation given by (14). Fig. 4 demonstrates that for large , our phase correction scheme reduces the STD of nonlinear phase noise by a factor of two.
IV. DISCUSSION
Gordon and Mollenauer [1] estimated that the nonlinear phase noise-limited transmission distance is limited to a value such that the mean nonlinear phase shift is . From Fig. 4 and (14), this corresponds to an STD of . Because a mean phase contains neither information nor noise, while the STD of phase is an indicator of system impairment, we can restate the condition for maximum transmission distance in terms of the STD of phase
as rad. Using our phase correction scheme
(or the Yin-Yang detector) and allowing the STD of corrected phase to take on the same value, i.e., rad, corresponds to a mean nonlinear phase shift of . Because the mean nonlinear phase shift is proportional to the number of fiber spans, as shown in (13), doubling the mean nonlinear phase shift doubles the number of fiber spans, and thus doubles the transmission distance, assuming that nonlinear phase noise is the primary limitation.
In (11) and (12), and also (6) and (10), the variances of both nonlinear phase noise and residual nonlinear phase noise are seen to depend fundamentally on only two parameters: the SNR and the mean nonlinear phase shift . The SNR is deter-mined by the data rate, launched power, span loss, and optical amplifier noise figure. The mean nonlinear phase shift (13) is determined by the number of fiber spans, launched power, span length, fiber loss coefficient, and nonlinear coefficient.
Fig. 4. The standard deviation of nonlinear phase noise (with and without optimal compensation) as a function of the absolute mean nonlinear phase shift jh ij for N = 8 and 32 spans.
While the foregoing discussion has focused on BPSK, the use of DPSK has generated much more interest recently [4]–[9]. In a DPSK system, information is encoded in phase differences between successive symbols, and is decoded using the differen-tial phase , where is the symbol interval. When the differential phase is corrupted by the nonlinear phase shift difference , the impact of nonlinear phase noise can be compensated by decoding
, where is
the power difference between successive symbols. The optimal scale factor for DPSK systems is precisely analogous to that for BPSK systems, and optimal compensation also approximately doubles the transmission distance. The nonlinear phase noise can also be compensated by either a spiral-boundary decision device [as in Fig. 1(b)] or a compensator followed by a straight-boundary decision device [as in Fig. 1(c)]. The optimal com-pensator can also reduce the STD of nonlinear phase noise by a factor of two.
A practical coherent receiver, such as the one shown in Fig. 1(a), may yield the in-phase and quadrature
components and [10]. In order to
cor-rect the received phase as in , the corrected quadrature components can be calculated using elec-tronic signal processing techniques, as
and .
Other types of nonlinear phenomena may also limit the trans-mission distance in WDM systems. The interaction of the Kerr effect and optical amplifier noise also induces intensity noise [13], which we have ignored in this paper. Like [1], [8], and [9], this paper ignores all dispersion and filtering effects.
The SNR defined in this paper is defined over a filter bandwidth matched to the signal. If the optical SNR (OSNR) is measured using an optical spectrum analyzer over an optical bandwidth BW , the SNR defined here is related to the
mea-sured OSNR as OSNR BW , where
is the signal symbol rate and the factor of two assumes a polar-ization-insensitive optical spectrum analyzer. By using this def-inition of SNR, instead of the conventional defdef-inition of OSNR, we can express the key results of this paper in a form that is in-dependent of the system date rate.
Following the model of [1], this paper assumes that dispersion does not cause significant distortion of signal pulses. By incor-porating a factor of 1/2, (1) can be made approximately appli-cable to soliton systems, which rely upon dispersion to support the waveform [4], [14].
This paper cannot resolve the question of whether nonlinear phase noise is the primary limitation for PSK and DPSK sys-tems. Nonetheless, as the electronic compensation technique de-scribed here can reduce the impact of nonlinear phase noise, this phase noise becomes less likely to be the dominant impairment.
V. CONCLUSION
In systems using BPSK or DPSK, the impact of nonlinear phase noise can be reduced by using electronic circuits to im-plement the Yin-Yang decision regions shown in Fig. 2. Equiv-alently, the received phase can be compensated as described above, in which case the receiver should employ the half-plane decision regions shown in Fig. 3. The optimal compensation factor has been derived analytically for the first time. This com-pensation halves the STD of the residual nonlinear phase shift, permitting a doubling of the number of fiber spans and of the transmission distance, assuming that nonlinear phase noise is the dominant system impairment.
ACKNOWLEDGMENT
We would like to thank the anonymous reviewers of an earlier version of this paper for making us aware of [4], [8], and [9].
