Novel balanced coupled-line bandpass filters with common-mode noise suppression

Novel Balanced Coupled-Line Bandpass Filters

With Common-Mode Noise Suppression

Chung-Hwa Wu, Student Member, IEEE, Chi-Hsueh Wang, Member, IEEE, and Chun Hsiung Chen, Fellow, IEEE

Abstract—Novel balanced coupled-line bandpass filters, using suitable balanced coupled-line sections and quarter-wavelength resonators, are proposed. For design purposes, the differential-and common-mode equivalent half-circuits are established. Based on these circuits, a better balanced filter structure is implemented so that the desired differential-mode response may be realized and the level of common-mode noise may be minimized simulta-neously. Besides, a suitable capacitive or inductive cross-coupled effect is introduced so as to create two transmission zeros for improving the filter selectivity; however, it also enhances the signal imbalance and degrades the common-mode rejection. In this study, various second- and fourth-order balanced filters are imple-mented to discuss the associated differential-mode responses and the signal-imbalance phenomena resulted from the cross-coupled effect. Specifically, the fourth-order filter with a common-mode rejection ratio of 40 dB within the passband is demonstrated and examined.

Index Terms—Balanced filter, common-mode noise suppression, coupled-line bandpass filter, quarter-wavelength resonator.

I. INTRODUCTION

B

ALANCED circuits are important in building a modern communication system. Analog signals processed by a communication system are degraded by two different types of noises, namely, the environmental noise and device electronic noise. The former refers to the random disturbances that a circuit experiences through the dc power supply, ground lines, or substrate coupling. The latter includes the thermal noise, shot noise, and flicker noise, which come from the internal active device [1]. A noise limits the minimum signal level that a circuit can process with acceptable quality. The most important advantage of the balanced circuits with differential operation is the higher immunity to the environmental noise when compared with the unbalanced circuits with single-ended signaling.

Over the past few years, several balanced circuit topologies have been developed to connect with the monopole antenna for which a balun is needed to convert a balanced signal into an unbalanced one. Typical balun configurations reported include those based on distributed [2], [3], lumped [4], or lumped-dis-tributed elements [5]–[7]. Some balun topologies offering band-pass-type transmission characteristics were also discussed in [8] and [9]. After that, several single-to-differential bandpass filters

Manuscript received October 12, 2006; revised October 26, 2006. This work was supported by the National Science Council of Taiwan, R.O.C., under Grant NSC 95-2752-E-002-001-PAE, Grant NSC 95-2219-E-002-008, and Grant NSC 95-2221-E-002-196.

The authors are with the Department of Electrical Engineering and Graduate Institute of Communication Engineering, National Taiwan University, Taipei 106, Taiwan, R.O.C. (e-mail: [email protected]).

Digital Object Identifier 10.1109/TMTT.2006.889147

were proposed to replace the conventional balun together with a bandpass filter. In [10], a second-order combline filter in se-ries with the conventional Marchand balun was realized in the low-temperature co-fired ceramic (LTCC) substrate. Based on the same concept, a modified version was presented in [11]. In [12], by introducing a capacitive loading, an additional trans-mission zero was created to optimize the filter response. Re-cently, an LTCC circuit architecture that combines the function-alities of balun and bandpass filter was proposed in [13]. Owing to the adoption of lumped elements, the realization of the bal-anced-to-unbalanced filter in [13] is not easy in a higher mi-crowave region.

Traditional off-chip radiating elements suffer from additional interconnect losses and cannot be duplicated like the on-chip an-tennas. The small wavelength at millimeter-wave frequency and the mature CMOS fabrication technology make it possible to use on-chip metal layers to fabricate small integrated antennas [14], [15]. Although still faced with a problem of improving the antenna efficiency, there will be more and more integrated cir-cuits implemented in the fully differential form under the trend of system-on-chip (SOC). The on-chip integrated antenna usu-ally takes the form of a dipole, which needs a balanced filter for differential operation. A well-designed differential-to-differen-tial balanced bandpass filter should exhibit the desired bandpass frequency response in differential operation and should be able to reduce the level of the common-mode signal so as to increase the signal-to-noise-ratio in the receiver and to improve the effi-ciency of the dipole antenna in the transmitter.

Pervious studies on differential-to-differential balanced filter designs are rather limited. In [16], a 40-GHz balanced filter was proposed based on a half-wavelength patch resonator and four quarter-wavelength transmission lines. That filter structure presents a good common-mode rejection ability, but it has the drawback of bulky size. Recently, a 2-GHz balanced filter [17] was realized based on conventional parallel-coupled-line structures [18]–[22]. Compared with [16], the coupled-parallel-coupled-line balanced filter in [17] exhibits the advantages of a compact size and simple synthesis procedure; however, it shows a poor common-mode rejection ability, which is crucial in the balanced filter design.

In this study, novel balanced coupled-line structures are pro-posed to implement the balanced filters so as to give an excellent common-mode rejection in addition to providing the desired mode bandpass response. The desired differential-and common-mode responses are realized by a suitable choice of balanced coupled-line sections. Specifically, by properly de-signing the circuits associated with the common-mode signal, a very low common-mode signal level around (the center fre-quency of the differential-mode response) is achieved without any degradation of insertion loss in differential-mode operation. 0018-9480/$25.00 © 2007 IEEE

288 IEEE TRANSACTIONS ON MICROWAVE THEORY AND TECHNIQUES, VOL. 55, NO. 2, FEBRUARY 2007

Fig. 1. Type-I balanced coupled-line section. (a) Circuit structure. (b) Differ-ential-mode equivalent circuit. (c) Common-mode equivalent circuit.

Fig. 2. Type-II balanced coupled-line section. (a) Circuit structure. (b) Differ-ential-mode equivalent circuit. (c) Common-mode equivalent circuit.

For design purposes, the equivalent half-circuits are also estab-lished so that both differential- and common-mode frequency responses may be discussed separately. In this study, two types of second-order balanced filters are realized using the microstrip structure. To further improve the filter response, two types of fourth-order balanced filters are realized based on the novel dual-metal-plane structure consisting of both a microstrip and a coplanar waveguide. The proposed balanced filter circuits are implemented, measured, and carefully examined.

II. BALANCEDCOUPLED-LINESECTIONS

A realization of the structure, which gives both desired differ-ential-mode bandpass response and minimum common-mode noise level, is essential in developing a balanced filter. Figs. 1(a) and 2(a) show two types (types I and II) of balanced coupled-line sections, which are capable of realizing such desired re-sponses. Among these two structures, the most noticeable dif-ference is in the positions of input/output ports and shorted ends. In Fig. 1(a), the differential input ports are through the elements and of the balanced coupled-line section, and the differ-ential output ports are through the elements and . Alterna-tively, in Fig. 2(a), the differential input ports are through the elements and , and the differential output ports are through the elements and . As to the locations of short ends, they are on the left-hand side of Fig. 1(a), whereas they are on the right-hand side of Fig. 2(a).

For balanced operation, the balanced coupled-line sections may be decomposed into two equivalent circuits under odd- and even-mode excitations. Under odd-mode excitation, although the structures in Figs. 1(a) and 2(a) are quite different in circuit layouts, they can both be represented by the same equivalent circuits, as shown in Figs. 1(b) and 2(b). However, under even-mode excitation, the structures in Figs. 1(a) and 2(a) should be represented by the two different equivalent circuits shown in Figs. 1(c) and 2(c), respectively.

Being composed of a quarter-wavelength coupled-line section with its two ends shorted, the odd-mode equivalent cir-cuit shown in Fig. 1(b) or 2(b) exhibits a bandpass frequency response with the center frequency at . On the other hand, the even-mode equivalent circuit shown in Fig. 1(c) or 2(c) would present the all-stop frequency response at because it consists of a coupled-line section with one end shorted and the other end opened.

Theoretically, Figs. 1(c) and (2c) with ideal ground both present the all-stop characteristics under common-mode opera-tion. However, in the practical case, the shorted-ends of coupled lines will be realized by the nonideal via-holes, which may result in different behaviors in the common-mode operation. To minimize the common-mode noise, the coupled-line sections should properly be chosen.

III. SECOND-ORDERFILTERS

A well-designed balanced bandpass filter should possess the capability of reducing the level of common-mode noise in addition to providing the desired bandpass frequency response in differential-mode operation. In [17], only the differential-mode operation was discussed without considering the common-mode response. Actually, both differential- and common-mode responses should be taken into consideration so as to give a good common-mode rejection. Based on the balanced coupled-line structures shown in Figs. 1(a) and 2(a), two types of second-order balanced filters may be developed to give a good common-mode rejection ability. Fig. 3 shows the layouts of proposed second-order balanced filters (types I and II), and their corresponding differential- and common-mode equivalent half-circuits are shown in Figs. 4 and 5. Specifically, by decomposing the balanced filter structures into two different equivalent half-circuits under odd- and even-mode excitations, one may discuss the differential- and common-mode responses accordingly.

The proposed balanced filters (Fig. 3) are simulated by the commercial software Sonnet and AWR Microwave Office (MWO). All the circuits are fabricated on the FR4 substrate

( , , and the thickness mm). The

bal-anced filter, as a four-port device, is first measured by Agilent’s E5071B network analyzer to give the standard four-port -pa-rameters . The two-port differential- and common-mode -parameters and may then be extracted from the four-port -parameters , as given by [23]

(1) (2)

Basically, the mixed-mode -parameters ( ) may be de-composed into

(3) in which

Fig. 3. Physical layouts of the proposed second-order balanced filters. (a) Type I (S = 20:1 mm, S = 17:5 mm, L = 4 mm, W = 1:9 mm, W = 1:9 mm, W = 1:7 mm, G = 0:5 mm, G = 0:3 mm, G = 0:3 mm, D = 1 mm). (b) Type II (S = 17:8 mm, S = 16:8 mm, S = 2:7 mm, W = 1:9 mm, W = 1:9 mm, W = 1:7 mm, G = 0:3 mm, G = 0:5 mm, G = 0:3 mm, D = 1 mm).

Fig. 4. Differential-mode equivalent half-circuit of the proposed second-order balanced filters in Fig. 3. (a)M 6= 0. (b) M = 0.

(5) represent the two-port differential- and common-mode -pa-rameters, respectively. Similar expressions may be used for the two-port cross-mode -parameters and . For an ideal balanced structure, the cross-mode -parameters and would be a two-by-two matrix of zero elements.

Fig. 5. Common-mode equivalent half-circuits of the proposed second-order balanced filters in Fig. 3. (a) Type I. (b) Type II.

A. Differential-Mode Response

For the balanced filters shown in Fig. 3, the corresponding differential-mode equivalent half-circuit [shown in Fig. 4(a)] is composed of two bandpass-response coupled-line sections [shown in Figs. 1(b) or (2b)], which are connected by a series capacitor . This capacitor is realized by the open-ended edge coupled structure associated with the gap in Fig. 3(a) or the gap in Fig. 3(b). In addition, a mutual inductance is introduced to provide a cross-coupled path for creating two transmission zeros. As shown in Fig. 3, the cross-coupled in-ductance for each type is achieved with different phys-ical structures. In the type-I filter, due to the virtual short in the center line, the inductive cross-coupling is realized along the coupled-line sections associated with the gap in Fig. 3(a). On the other hand, the inductive cross-coupling is formed be-tween two via-holes associated with the gap in Fig. 3(b). Physically, the location of the transmission zeros may simply be adjusted by controlling the mutual inductance through varying the gapwidth [of Fig. 3(a)] or [of Fig. 3(b)].

With the cross-coupled inductance neglected , the differential-mode equivalent half-circuit Fig. 4(a) for the second-order filters composed of resonators may further be represented by the one in Fig. 4(b). The design procedures for the filter in Fig. 4(b) are well documented in [21] and [22]. For the differential-mode operation, the second-order filter is designed with a center frequency GHz, a 3-dB bandwidth of 10%, and a characteristic impedance

based on the maximally flat response. The corresponding circuit parameters are obtained as follows:

at GHz pF

Based on these parameters, the type-I and type-II filters are fabricated on the FR4 substrate with the layouts shown in

290 IEEE TRANSACTIONS ON MICROWAVE THEORY AND TECHNIQUES, VOL. 55, NO. 2, FEBRUARY 2007

Fig. 6. Measured and simulated differential-mode responses of the proposed second-order filters in Fig. 3. (a) Type I. (b) Type II.

Fig. 3(a) and (b). These filters are simulated using the full-wave simulator Sonnet, and are measured using the four- to two-port conversion technique, as given by (1)–(5). The narrowband measured and simulated differential-mode responses are shown in Fig. 6. Good agreement between measured and simulated results is observed with only a slight deviation in bandwidth. For the type-I filter, the measured center frequency is at 2 GHz, with a minimum differential-mode insertion loss of 2.9 dB and a 3-dB bandwidth of 10.5%. For the type-II filter, the measured center frequency is at 2 GHz with a minimum differential-mode insertion loss of 2.3 dB and a 3-dB bandwidth of 12%. B. Common-Mode Response

For the second-order balanced filter structures shown in Fig. 3(a) and (b), the corresponding common-mode equivalent half-circuits are illustrated in Fig. 5(a) and (b), respectively. By neglecting the loaded inductances associated with the via-holes and the cross-coupled effect due to or , the two equivalent half-circuits would exhibit the all-stop frequency responses in common-mode operation since these circuits are mainly composed of the all-stop coupled-line sections, as shown in Figs. 1(c) and 2(c). The existence of via-hole inductances and cross-coupled effect destroys the all-stop characteristic and causes the unwanted

signal-imbal-ance ( and ) around (the

passband center frequency of differential-mode operation). To demonstrate the effects of the loaded inductors and the cross-coupled path (path 2), the common-mode insertion

Fig. 7. Simulated common-mode responses of the signals along paths 1 and 2 of the circuit models shown in Fig. 5 withL = 0:1 nH. (a) Type I. (b) Type II.

losses along two signal paths are simulated by the MWO cir-cuit simulator and are shown in Fig. 7(a) and (b). Here, path 1 represents the main signal path primarily composed of two all-stop coupled-line sections. Also included in path 1 is the se-ries capacitor alone, as in Fig. 5(b), or the capacitor plus the loaded inductors , as in Fig. 5(a). Path 2 denotes the cross-coupled path through the cross-coupled capacitance [see Fig. 5(a)] or the cross-coupled mutual inductance [see Fig. 5(b)]. Fig. 7 indicates that the common-mode response is mainly determined by the signal through path 2; however, its response around GHz is largely influenced by the signal through path 1.

For the type-I filter [see Fig. 3(a)], the resonator under the common-mode operation is composed of a transmission line section with one end shorted and another end opened; here,

is the guided wavelength corresponding to the frequency GHz. Therefore, the center frequency of the common-mode response of the type-I filter would be the same as that of the differential-mode response . Besides, the signal along path 1 presents two peaks around , which produce two spurs in the resultant common-mode response around , thereby degrading the common-mode rejection ability.

For the type-II filter, the resonator under common-mode oper-ation behaves as a open-end resonator, where is the guided wavelength corresponding to the frequency GHz. Therefore, the central frequency of the common-mode re-sponse would be twice the differential-mode rere-sponse

. Although the signal along path 2 also shows a peak around , its contribution to the resultant common-mode response is negligible, as depicted in Fig. 7(b).

Fig. 8. Measured differential- and common-mode frequency responses of the proposed second-order filters in Fig. 3. (a) Type I. (b) Type II.

The existence of loaded inductors is unavoidable in prac-tice realization. However, the type-II design may push the center frequency of the common-mode response to the higher fre-quency band , thereby improving the common-mode rejection ability.

The wideband differential- and common-mode measured responses are shown in Fig. 8(a) and (b) for comparison. In the type-I design, the minimum common-mode insertion loss is 16.8 dB around ; while in type-II design, it is 28 dB around , and all below 25 dB from 0.5 to 8.5 GHz. As a result, an improvement of 11.2 dB in common-mode noise rejection around could be achieved by using the type-II structure.

IV. FOURTH-ORDERFILTERS

Intuitively, the rejection level of the common-mode signal can further be suppressed by increasing the filter order. A fourth-order balanced filter may be achieved by introducing two addi-tional series capacitors at the input/output ends of the proposed filter structures in Fig. 3. Figs. 9 and 10 show the layouts of the proposed fourth-order filters. The corresponding differen-tial- and common-mode equivalent half-circuits are also shown in Figs. 11 and 12. Specially, the series input/output capacitors , to realize the -inverter, are implemented by the metal–in-sulator–metal (MIM) structure so as to achieve a higher capac-itance value.

As shown in Figs. 9 and 10, the proposed fourth-order balanced filters are constructed using the dual-metal-plane structures. Here, the microstrip coupled-line sections are

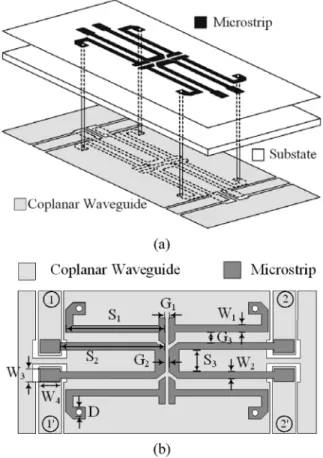

lo-Fig. 9. (a) 3-D physical layout and (b) top-/bottom-plane layout of the proposed fourth-order type-I balanced filter (S = 15:1 mm, S = 17:7 mm, S = 3 mm, W = 1:1 mm, W = 1:1 mm, W = 2:1 mm, W = 3:2 mm, G = 0:5 mm, G = 0:3 mm, G = 1:8 mm, D = 1 mm).

Fig. 10. Top-/bottom-plane layout of the proposed fourth-order type-II bal-anced filter (S = 15:7 mm, S = 16:6 mm, S = 3:5 mm, W = 1:1 mm, W = 1:1 mm, W = 2:1 mm, W = 3:2 mm, G = 0:3 mm, G = 0:3 mm, G = 1:7 mm, D = 1 mm).

cated on the top metal plane, and the coplanar waveguide (CPW) input/output transmission lines together with the ground plane of the microstrip are on the bottom metal plane. The MIM capacitor is achieved between the CPW input/output transmission line on the bottom metal plane and the microstrip coupled-line section on the top metal plane.

A. Differential-Mode Response

Fig. 11 demonstrates the odd-mode equivalent half-circuit of the fourth-order balanced filters. The design of the filter under odd-mode operation may follow the similar procedures, as men-tioned in Section III. These filters are designed with

292 IEEE TRANSACTIONS ON MICROWAVE THEORY AND TECHNIQUES, VOL. 55, NO. 2, FEBRUARY 2007

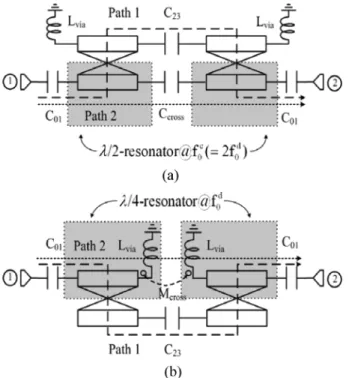

Fig. 11. Differential-mode equivalent half-circuit of fourth-order balanced fil-ters in Figs. 9 and 10.

Fig. 12. Common-mode equivalent half-circuits of fourth-order balanced fil-ters in Figs. 9 and 10. (a) Type-I. (b) Type-II.

GHz, dB bandwidth , and . The

corre-sponding circuit parameters are obtained based on the fourth-order maximally flat response as follows:

at GHz at GHz pF

pF

For the fourth-order filters shown in Figs. 9 and 10, the cross-coupled effect is also introduced between input/output resonators so as to enhance the filter selectivity. The wideband differential-mode measured responses are shown in Fig. 13. In the type-I design, the measured is at 1.99 GHz with a minimum differential-mode insertion loss of 3.73 dB and a 3-dB bandwidth of 11%. For the type-II filter, the measured is at 2.05 GHz with a minimum differential-mode insertion loss of 3.98- and a 3-dB bandwidth of 9.7%.

Fig. 13. Measured differential- and common-mode frequency responses of the proposed fourth-order filters. (a) Type I. (b) Type II.

B. Common-Mode Response

Shown in Fig. 12 are the corresponding even-mode equivalent half-circuits of the fourth-order balanced filters. Based on the same concept as mentioned in Section III, two signal paths are introduced to discuss the common-mode responses, which are shown in Fig. 14. Paying attention to the response for path 1 in Fig. 14, it is found that the frequency response of each type along path 1 is similar to that of the second-order one. However, having benefited from the higher order structure, the level of the common-mode signal along path 1 has been further suppressed below 50 dB so that its contribution to the resultant common-mode response is of minor significance.

The common-mode responses of fourth-order filters (Figs. 9 and 10) are mainly dominated by the signal along the cross-cou-pled path (path 2). The even-mode equivalent half-circuits in Fig. 12 are useful in discussing this signal along path 2. Note that the type-II filter is primarily composed of resonators with one end shorted and another end opened [see Fig. 12(b)], making its resonant frequency equal to ( 2 GHz). Thus, both differential- and common-mode responses would have the same passband around . This explains why the type-II filter has a poor common-mode rejection around . Alterna-tively, the type-I filter is based on the open-end transmission line resonator, which would push the passband center frequency up to ( 4 GHz), as shown in Fig. 14(a). Therefore, the type-I design (Fig. 9) would achieve better common-mode re-jection around .

Fig. 14. Frequency responses of the two signal paths withL = 0:1 nH for fourth-order design. (a) Type I. (b) Type II.

Fig. 15. Practical balanced circuit.

The wideband common-mode measured responses are also shown in Fig. 13. The minimum common-mode insertion loss is 42 dB at 1.97 GHz in the type-I design, and minimum common-mode insertion loss is 15 dB at 1.95 GHz in the type-II design.

V. COMMON-MODEREJECTIONRATIO(CMRR) To provide a simple figure-of-merit for characterizing the im-plement balanced filters, the CMRR defined by

dB (6)

is adopted in this study. Basically, the value of the CMRR may be used to quantitatively discuss the degree of resemblance be-tween the implemented balanced filter and the ideal balanced one.

For the well-designed balanced circuit (Fig. 15) to realize an ideal balanced one, the corresponding differential- and

Fig. 16. Measured CMRR for: (a) second- and (b) fourth-order balanced filters.

common-mode insertion losses and may be ex-pressed as

(7) (8) where

(9) If the balanced circuit were ideal so that

and (10)

its CMRR would approach infinity, implying that the common-mode signal would completely be suppressed. Thus, in imple-menting a balanced filter, it is better to nearly meet the balanced conditions (10) so that the undesired signal imbalance ( and ) may keep to a minimum.

The CMRR provides an important figure-of-merit for a mean-ingful characterization of balanced circuits. Fig. 16 shows the measured responses of the CMRR for the implemented second-and fourth-order filters. Specifically, the second-order type-II design has a maximum CMRR of 25.7 dB at 1.97 GHz with all

294 IEEE TRANSACTIONS ON MICROWAVE THEORY AND TECHNIQUES, VOL. 55, NO. 2, FEBRUARY 2007

TABLE I

PERFORMANCECOMPARISONWITHPREVIOUSSTUDIES

CMRR values above 22.5 dB from 1.88 to 2.12 GHz. As to the fourth-order type-I filter, it has a maximum CMRR of 52.2 dB at 2.03 GHz and all CMRR values are above 40 dB from 1.93 to 2.12 GHz, which is almost twice the second-order design.

Four filter circuits realized in this study are summarized and compared with the previous works in Table I. The corresponding

values for and around are also

illustrated in Table I to demonstrate the signal-imbalance phe-nomena. The CMRR of type-I and type-II second-order designs are roughly 10 and 17.5 dB higher than that in [17], respec-tively. This demonstrates that balanced filters with excellent CMRR may be achieved through proper arrangement of the cir-cuit configuration. In addition, the same technique is extended to realize the fourth-order filters for better CMRR. The well-de-signed fourth-order type-I filter shows an improvement of 35 dB in CMRR when compared with the one in [17].

VI. CONCLUSIONS

Four novel balanced filters based on balanced coupled-line sections have been proposed and carefully examined. The adop-tion of the symmetrical structure and balanced coupled-line sec-tions makes it possible to realize a balanced filter, which gives the desired differential-mode bandpass response, and also min-imize the common-mode signal level on the other hand. The cross-coupled effect is also introduced to improve the filter se-lectivity; however, it enhances the signal imbalance and de-grades the common-mode rejection. Specifically, by properly choosing the filter configuration, one may push the common-mode spurs to the higher frequency so that a filter with good se-lectivity and excellent CMRR may be achieved simultaneously. The CMRR of the well-designed fourth-order type-I balanced filter is above 40 dB around the differential-mode passband, which is very attractive for balanced topology applications.
