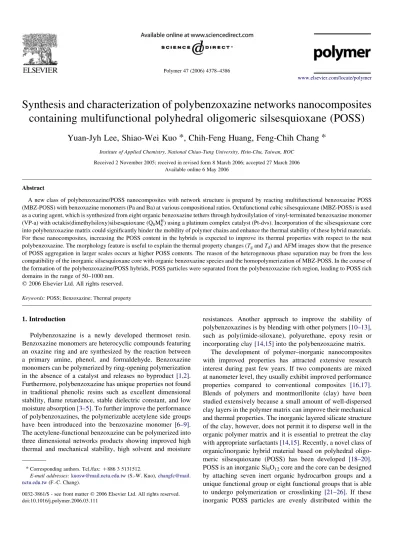

Synthesis and characterization of polybenzoxazine networks nanocomposites containing multifunctional polyhedral oligomeric silsesquioxane (POSS)

(1)

Synthesis and characterization of polybenzoxazine networks nanocomposites

containing multifunctional polyhedral oligomeric silsesquioxane (POSS)

Yuan-Jyh Lee, Shiao-Wei Kuo , Chih-Feng Huang, Feng-Chih Chang

Institute of Applied Chemistry, National Chiao-Tung University, Hsin-Chu, Taiwan, ROC

Received 2 November 2005; received in revised form 8 March 2006; accepted 27 March 2006 Available online 6 May 2006

Abstract

A new class of polybenzoxazine/POSS nanocomposites with network structure is prepared by reacting multifunctional benzoxazine POSS (MBZ-POSS) with benzoxazine monomers (Pa and Ba) at various compositional ratios. Octafunctional cubic silsesquioxane (MBZ-POSS) is used as a curing agent, which is synthesized from eight organic benzoxazine tethers through hydrosilylation of vinyl-terminated benzoxazine monomer (VP-a) with octakis(dimethylsiloxy)silsesquioxane (Q8MH8) using a platinum complex catalyst (Pt-dvs). Incorporation of the silsesquioxane core into polybenzoxazine matrix could significantly hinder the mobility of polymer chains and enhance the thermal stability of these hybrid materials. For these nanocomposites, increasing the POSS content in the hybrids is expected to improve its thermal properties with respect to the neat polybenzoxazine. The morphology feature is useful to explain the thermal property changes (Tgand Td) and AFM images show that the presence

of POSS aggregation in larger scales occurs at higher POSS contents. The reason of the heterogeneous phase separation may be from the less compatibility of the inorganic silsesquioxane core with organic benzoxazine species and the homopolymerization of MBZ-POSS. In the course of the formation of the polybenzoxazine/POSS hybrids, POSS particles were separated from the polybenzoxazine rich region, leading to POSS rich domains in the range of 50–1000 nm.

1. Introduction

Polybenzoxazine is a newly developed thermoset resin. Benzoxazine monomers are heterocyclic compounds featuring an oxazine ring and are synthesized by the reaction between a primary amine, phenol, and formaldehyde. Benzoxazine monomers can be polymerized by ring-opening polymerization in the absence of a catalyst and releases no byproduct [1,2]. Furthermore, polybenzoxazine has unique properties not found in traditional phenolic resins such as excellent dimensional stability, flame retardance, stable dielectric constant, and low moisture absorption[3–5]. To further improve the performance of polybenzoxazines, the polymerizable acetylene side groups have been introduced into the benzoxazine monomer [6–9]. The acetylene-functional benzoxazine can be polymerized into three dimensional networks products showing improved high thermal and mechanical stability, high solvent and moisture

resistances. Another approach to improve the stability of polybenzoxazines is by blending with other polymers[10–13], such as poly(imide-siloxane), polyurethane, epoxy resin or incorporating clay[14,15]into the polybenzoxazine matrix.

The development of polymer–inorganic nanocomposites with improved properties has attracted extensive research interest during past few years. If two components are mixed at nanometer level, they usually exhibit improved performance properties compared to conventional composites [16,17]. Blends of polymers and montmorillonite (clay) have been studied extensively because a small amount of well-dispersed clay layers in the polymer matrix can improve their mechanical and thermal properties. The inorganic layered silicate structure of the clay, however, does not permit it to disperse well in the organic polymer matrix and it is essential to pretreat the clay with appropriate surfactants[14,15]. Recently, a novel class of organic/inorganic hybrid material based on polyhedral oligo-meric silsesquioxane (POSS) has been developed [18–20]. POSS is an inorganic Si8O12core and the core can be designed

by attaching seven inert organic hydrocarbon groups and a unique functional group or eight functional groups that is able to undergo polymerization or crosslinking [21–26]. If these inorganic POSS particles are evenly distributed within the

www.elsevier.com/locate/polymer

* Corresponding authors. Tel./fax: C886 3 5131512.

E-mail addresses:[email protected](S.-W. Kuo),changfc@mail. nctu.edu.tw(F.-C. Chang).

(2)

organic matrix at the nanometer scale (1–100 nm), they usually can dramatically improve their thermal stability [27] and mechanical strength. In contrast to the clay or conventional fillers, POSS have the advantages of being monodisperse molecular weight with well-defined structure, lower density, high-temperature stability, and containing no trace metals, and sizable interfacial interaction between composite particles and polymer segments. Each POSS compound may contain one or more reactive sites; therefore, it can be easily incorporated into common polymers. To improve the property of the material, the POSS can be introduced into the matrix with polymerizable groups. In our previous study, we have synthesized monofunc-tional benzoxazine-substituted POSS (BZ-POSS) incorporated into polybenzoxazine matrix by ring-opening polymerization

[28]. The thermal properties of these hybrids are improved relative to those of the pure polybenzoxazine when analyzed by differential scanning calorimetry (DSC) and thermal gravi-metric analysis (TGA). In this work, a multifunctional POSS bearing with eight benzoxazine groups (MBZ-POSS) was synthesized and copolymerized with other commercial benzoxazine monomers (Pa and Ba) via ring opening polymerization. These polybenzoxazine–POSS hybrid materials with small POSS amount result in noticeable thermal stability improvement confirmed by the DSC and TGA. Microstructure analyses of resulted hybrids were characterized by atomic force microscopy (AFM). The goal of this study is to develop a network architecture of the polybenzoxazine/POSS nanocomposites and to analyze the morphology–thermal properties relationships of the resulting organic–inorganic materials.

2. Experimental 2.1. Materials

Paraformaldehyde, phenol, and allylamine were purchased from Tokyo Kasei Kogyo Co., Japan. Platinum complex (Pt-dvs, 2 wt% Pt in xylene) was purchased from Aldrich, USA. Before use, the solution of the platinum complex was diluted 100-fold with xylene. Toluene was dried by distillation before use in the hydrosilylation reaction. Octakis(dimethyl-siloxy)silsesquioxane (Q8MH8) containing eight hydro-silane

groups was purchased from the Hybrid Plastics Co., USA. The benzoxazine monomers, Pa and Ba, were purchased from Shikoku Chemicals Co., Japan.

2.2. Characterizations

1_{H and} 13_{C nuclear magnetic resonance (NMR) spectra}

were obtained at 300 MHz using a Bruker DPX-300 Spectrometer. Infrared spectroscopic measurements were performed using a Nicolet Avatar 320 FT-IR Spectropho-tometer in the range 4000–400 cmK1 at a resolution of 1.0 cmK1. All sample preparations were performed under a continuous flow of nitrogen to ensure minimal oxidation or degradation of these samples. Molecular weights were determined by the gel-permeation chromatography (GPC)

using a SUPER CO-150 apparatus equipped with an LC gel column and an RI detector. Polystyrene samples were used as standards and THF was used as the eluent at a flow rate of 1 ml/min.

Thermal properties of the benzoxazine copolymers were characterized by DSC and TGA. DSC measurements were carried out with a DSC-910s instrument from TA Co., USA, at a scanning rate at 10 8C/min. The sample was heated at 300 8C for 1 min and then cooled down to 30 8C for 3 min. The sample was then reheated immediately to measure the glass transition temperature (Tg) of the copolymer. TGA was carried out using

a TA Instruments TGA 2050 Thermal Gravimetric Analyzer at a heating rate of 10 8C from room temperature to 700 8C under a continuous flow of nitrogen. The surface morphology was recorded using the ‘easyscan’ contact mode of an atomic force microscopy (AFM) system (Nanosurf AG). The spring constant of the cantilever was 5 N/m and the feedback loop bandwidth was 12 kHz. All images were recorded at room temperature.

2.3. Syntheses

2.3.1. The vinyl-terminated benzoxazine (VP-a)

Allylamine (11.4 g, 0.2 mol) and phenol (18.8 g, 0.2 mol) were stirred for 10 min in an ice bath and then the paraformaldehyde (12 g, 0.4 mol) was added portion-wise over 10 min. After stirring for 30 min, the temperature was raised gradually up to 90 8C and maintained at that temperature under constant stirring for 3 h. The mixture was then cooled to room temperature and dissolved in ethyl ether (200 ml). The solution was washed several times with water and 3 N NaOH to remove any impurities and un-reacted monomers. The ethyl ether solution was then dried (sodium sulfate) and the product was recovered under vacuum at room temperature. The VP-a monomer can be further purified by distillation under reduced pressure. The product was obtained as a viscous light-yellow fluid (25.2 g, 68%). The structure of the VP-a was confirmed by 1H NMR,13C NMR, FT-IR, and elemental analysis. 1_{H NMR (300 MHz, CDCl} 3): 6.75–7.13 (4H, aromatic CH), 4.85 ppm (2H, –N–CH2–O–), 3.96 ppm (2H, –N–CH2–Ar), 5.90 ppm (1H, –CH2–CH–CH2), 5.24 ppm (2H, –CH–CH2), 3.4 ppm (2H, –N–CH2–CH). 13_{C NMR: 81.54 ppm (–O–CH} 2–N–), 54.10 (–N–CH2–Ar), 127.25 ppm (–CH2–CHaCH), 118.41 ppm (–CHaCH2).

FT-IR (KBr, cmK1): 1024 (C–O–C), 922, 1490 (tri-substituted benzene ring), 1604 (aromatic CaC), 1644 (allyl CaC), 910 (aC–H).

Elemental analysis (%, found): C11H13NO, C: 76.1, H: 7.41,

N: 7.89 Calcd C: 75.4, H: 7.48, N: 7.95.

2.3.2. The multifunctional POSS macromonomer (MBZ-POSS) Both of the VP-a and Q8MH8 monomers are soluble in most

common solvents, such as THF, toluene, chloroform, and acetone. The reaction was performed under N2 atmosphere

using a dry toluene. The Q8MH8 was used without further

(3)

reaction of VP-a with Q8MH8, as shown inScheme 1. To start

with, the platinum complex (Pt-dvs) was dissolved in xylene to form a 200 ppm solution before use. In a 100 ml flask, Q8MH8

(1.018 g, 1 mmol) and VP-a (1.75 g, 10 mmol) were dissolved in 50 ml dry toluene. 0.1 ml of Pt-dvs solution was then injected into the solution. The resultant solution was then heated at 70 8C with stirring for 24 h under nitrogen. After cooling the reaction mixture to room temperature, the triphenylphosphine (1 mg) was added. The solvent and the unreacted VP-a were evaporated under vacuum at 110 8C to give a pale yellow viscous liquid. The structure of the VP-a was confirmed by1H NMR,13C NMR, FT-IR, elemental analysis, and GPC. The molecular weight and their distribution of the MBZ-POSS is shown in Table 1. According to 1H NMR

analysis, the reaction generated product with 55% of the b adduct and 45% a adduct.

1_{H NMR (300 MHz, CDCl} 3): 6.8–7.2 (32H, aromatic CH), 4.98 ppm (16H, –N–CH2–O–), 3.72 ppm (16H, –N–CH2–Ar), 2.25 ppm (8.8H, –CH2–CH2–N–, b), 2.14 ppm (3.6H, –CH(CH3)–CH2–N–, a), 1.40 ppm (17.6H, Si–(CH2)2–CH2– ,b), 1.23 ppm (10.8H, Si–CHCH3–,a), 0.05 (26.4H, (CH3)2–

Si–CH2, b), 0.16 (21.6H, (CH3)2–Si–CH, a). 13_{C NMR: 82.33 ppm (–O–CH}

2–N–), 55.10 (–N–CH2–Ar),

48.92, 29.83, 21.87, 14.68 ppm, (–N–(CH2)x–Si, a and b

adducts), K0.5, 0.5 ppm (–O–Si–CH3, b, a).

FT-IR (KBr, cmK1): 1260 (Si–CH3), 790, 1089 (Si–O–Si),

1174 (Si–C), 1024 (C–O–C), 922, 1490 (trisubstituted benzene ring), 1604 (aromatic CaC).

Elemental analysis (%, found): C104H80O28N8, C: 52.3, H:

5.70, N: 5.10 Calcd C: 51.6, H: 6.0, N: 4.9.

2.3.3. Preparation of polybenzoxazine/POSS hybrids

Pa type benzoxazine monomer (0.95 g) and MBZ-POSS (0.05 g) were dissolved in THF (10 ml) and stirred for 30 min at room temperature. The solution was poured onto an aluminum plate and then left for 6 h in open air to evaporate most of the THF. The coated plate was then transferred to an oven and heated at 100 8C for 2 h. The cast film was then cured in a stepwise manner at 180 and 200 8C for 3 h each and then postcured at 220 and 240 8C for 1 h each. The cured sample was transparent in a red-wine color with a thickness of ca. 0.2 mm. The procedures were repeated to prepare other hybrid materials by varying the amount of POSS (0, 2, and 10 wt%). Finally, the hybrid material was extracted for 24 h with THF under reflux in a Soxhlet apparatus for 24 h to remove any unreacted monomers. The Ba type polybenzoxazine and its POSS hybrids were prepared and recovered under similar conditions (Scheme 2).

3. Results and discussion

3.1. NMR spectra of the vinyl-terminated benzoxazine (VP-a) The vinyl-terminated benzoxazine (VP-a) was synthesized and used to prepare the novel POSS bearing eight benzoxazine groups. The presence of the vinyl group of the VP-a allows the hydrosilylation reaction to proceed under moderate conditions.

Fig. 1(a) displays the 1H NMR spectrum of the vinyl-terminated benzoxazine (VP-a). The vinyl group is represented by two peaks at 5.2 and 5.9 ppm in a relative 2:1 ratio. We assign the peaks at 3.9 and 4.8 ppm to the protons of the methylene bridges of the benzoxazine ring. The protons between the vinyl group and the nitrogen atom appear as a signal at 3.4 ppm. The 13C NMR spectrum of the VP-a is presented inFig. 1(b). The carbon atoms of the terminal olefin

Table 1

Properties of MBZ-POSS

POSS (theory) Mn(g/mol) Mw(g/mol) Mw/Mn C (%) H (%) N (%)

MBZ-POSS 2465 (2418) 2514 (2418) 1.02 (1.00) 52.3 (51.6) 5.7 (6.0) 5.1 (4.9) I. C C C NH₂ + H C H O VP-a N O OH + 2 II. N O VP-a + Si Si Si Si Si Si Si Si O O O O O O O O O O O O R R R R R R R R H-POSS Pt-dvs Si Si Si Si Si Si Si Si O O O O O O O O O O O O R' R' R' R' R R' R' R' O Si N O R'= MBZ-POSS O Si H R=

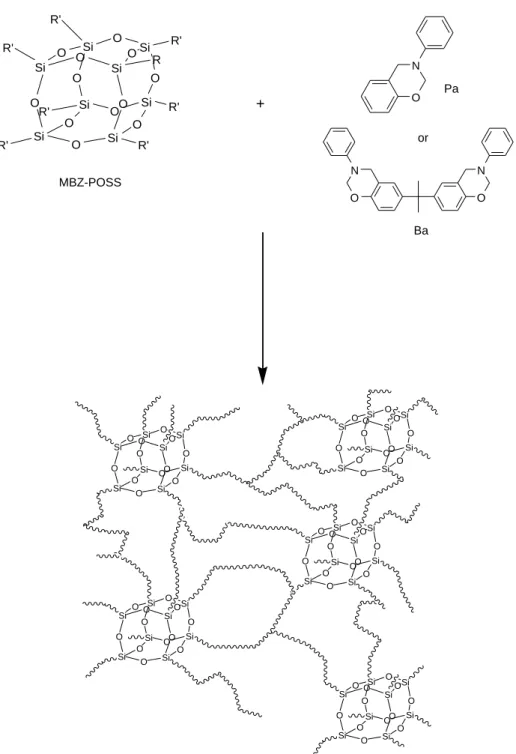

Scheme 1. Synthesis of the VP-a and preparation of the benzoxazine-functionalized-POSS (MBZ-POSS) via a hydrosilyation.

(4)

unit appear at 118 and 127 ppm. The characteristic carbon atoms of the benzoxazine ring are at 54 and 81 ppm. These1H NMR and13C NMR spectra confirm that the VP-a was indeed synthesized successfully.

3.2. FT-IR and NMR spectra of the multifunctional benzoxazine POSS (MBZ-POSS)

Fig. 2 shows the IR spectra of the MBZ-POSS samples measured during reaction. Aliphatic C–H stretching and bending peaks of the VP-a and the POSS are observed at below 3000 and 1450 cmK1. The IR spectrum of the POSS

clearly shows the symmetric stretching of Si–O–Si peak at 1089 cmK1. A peak for the spacer Si–CH3 group is also

observed at 1260 cmK1. There is an absence of Si–H peak at 2139 cmK1, which validates the structure of octafunctionalized POSS. The other characteristic absorption bands of the C–H bending from the vinyl group of the VP-a are assigned at 910 cmK1. By comparing inFig. 2, the absorption band of the Si–H of Q8MH8 at 2139 cm

K1

is the result of total consumption after 12 h. In Fig. 3, the intensity of the Si–C band of the MBZ-POSS was increased at 1174 cmK1 because of the increased new band of the synthetic benzoxazine-POSS spacer after the reaction. In addition, the stretching band of C–O–C at

Si Si Si Si Si Si Si Si O O O O O O O O O O OO R' R' R' R' R R' R' R' MBZ-POSS O N Pa O N N O Ba + or Si Si Si Si Si Si Si Si O O O O O O O O O O O O Si Si Si Si Si Si Si Si O O O O O O O O O O O O Si Si Si Si Si Si Si Si O O O O O O O O O O O O Si Si Si Si Si Si Si Si O O O O O O O O O O O O Si Si Si Si Si Si Si Si O O O O O O O O O O O O

(5)

1225 cmK1of the oxazine ring and the 1,2,4-substitution of the benzene ring at 922 and 1490 cmK1were not consumed after a hydrosilylation reaction. It is suggesting that the ring-opening and other coupling reaction of the VP-a did not occur during this reaction. Moreover, the addition of the silane across the alkene can occur in both a and b modes. The formation of a and b adductions of MBZ-POSS was observed in both the

1_{H and}13_{C NMR spectra, as shown in} _{Fig. 4}_{(a) and (b). The}

proportion of the b-adduct (55%) of MBZ-POSS was higher than that of the a-adduct (45%) due to the reaction mechanism and steric hindrance, which was similar to other silsesquioxane

derivatives reported in the literature[29–31]. Both the NMR and FT-IR results suggest that Q8MH8 was fully functionalized

by VP-a through a hydrosilylation reaction. It is important for Q8MH8 to be fully functionalized because any remaining Si–H

would be unstable and chemically reactive to undesired reaction.

Table 1 summarized results from elemental analysis (EA) and GPC. The element contents of MBZ-POSS from the EA are in a good agreement with the theoretical values. GPC was used in conjunction with molecular weight sensitive detection systems to determine absolute molecular weights and the molecular weight distribution. The number average molecular

200 180 160 140 120 100 80 60 40 20 0 k h i g a 121 120 119 118 117 116 115 c d e j f f Chemical Shift (ppm) 9 8 7 6 5 4 3 2 1 0 i j g h 7.3 7.2 7.1 7.0 6.9 6.8 6.7 6.6 6.5 d c a b k f j i h g c _d e b a N O (a) (b) e

Fig. 1. (a)1H, and (b)13C NMR spectra of VP-a.

3500 3000 2500 2000 1500 1000 2139 cm–1 1089 cm–1_* * * (e) (d) (c) (b) (a) Absorbance (a.u.) Wavenumber (cm–1)

Fig. 2. IR spectra of MBZ-POSS recorded at different reaction time (a) VP-a monomer (b) pure Q8MH8 POSS (c) unreacted POSS with 10 equiv. VP-a

monomers (d) reacted for 8 h and (e) reacted for 12 h.

2000 1800 1600 1400 1200 1000 800 600 Si-CH₃ POSS cage Absorbance (a.u.) (b) (a) Wavenumber (cm–1)

Fig. 3. IR spectra recorded in the 600–2000 cmK1_{region at (a) unreacted POSS} with 10 equiv. VP-a monomers (b) reacted for 12 h.

(6)

weight (Mn) and polydispersity indices (PDI) can be used to

evaluate the molecular weight distributions. The Mnand PDI

estimated from GPC are 2250 and 1.02, respectively. The pure MBZ-POSS gave very narrow PDI, which would normally suggest a very uniform molecular weight distribution for GPC calibration standards. The lower PDI indicates such spherical molecular probably has similar hydrodynamic radii due to their rigid structure.

3.3. Preparation of the polybenzoxazine/POSS hybrids and their thermal properties

Polybenzoxazine/POSS nanocomposite materials possess many desirable properties such as low moisture absorption, high solvent resistance, and improved thermal stability, and certain low dielectric properties[32,33]. We have prepared the polybenzoxazine/POSS composites as indicated inScheme 2. Both the benzoxazine monomers (Pa and Ba) and MBZ-POSS are soluble in THF or acetone. These readily processible monomers can be polymerized at 180 8C, which are used to synthesize hybrid polymers containing different POSS contents

via a ring-opening polymerization.Tables 2 and 3summarize components of these hybrids. The mixture were processed onto an aluminum plate to evaporate the solvent and then cured at 180 and 200 8C for 3 h each in an air oven. The samples were then postcured at 220 8C for 1 h and all the cured samples were transparent with dark red color (ca. 0.2 mm). At higher POSS contents (15 and 20 wt%), the prepared materials were cloudy and friable through the similar condition. This result indicates that the MBZ-POSS has an inorganic silsesquioxane core that may aggregate seriously during the polymerization. Tables 2 and 3 summarize the thermal characterizations of the

200 180 160 140 120 100 80 60 40 20 0 Si a POSS N O _b d e f g c Si N O e f g POSS a' b' c' d and c' b' a' g f d c _b a e Chemical Shift (ppm) 9 8 7 6 5 4 3 2 1 0 a i c' b-c d' d f _e i e f d' c' a f e d c b a N O Si O N O and R= O Si Si O R R R Si O O Si O Si O Si O O O Si O Si O Si O R R R O R R (a) (b)

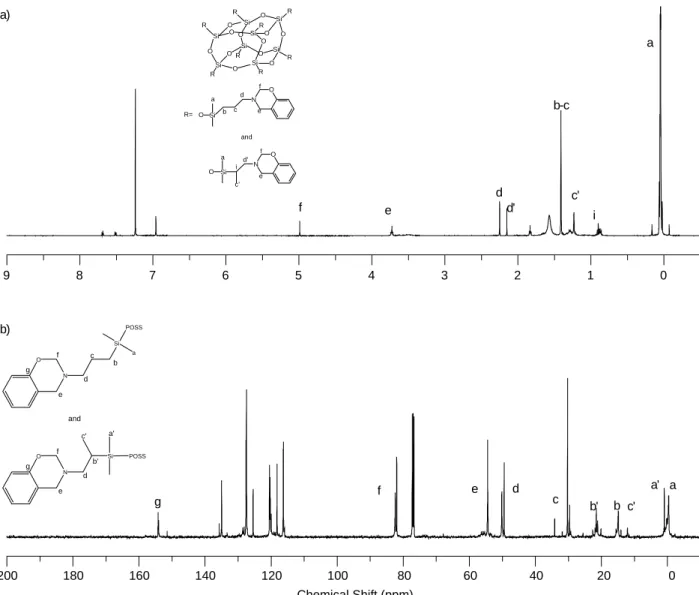

Fig. 4. (a)1H, and (b)13C NMR spectra of the MBZ-POSS.

Table 2

Summary of the thermal properties of Pa-POSS nanocomposites Sample MBZ-POSS in feed Tg(8C) 5 wt% Loss

temperature (8C in N2) Char yield in N2(wt%, 700 8C) wt% mol Pa-0P 0 0 138 308 44 Pa-2P 2 0.0008 181 322 62 Pa-5P 5 0.0020 208 358 68 Pa-10P 10 0.0041 185 360 71

(7)

polybenzoxazine/POSS hybrids. In these organic–inorganic hybrid materials, the cubic silsesquioxane core is rigid and the eight curable benzoxazine groups are appended to the silsesquioxane core via –Si–O– linkages. In a network structure, the Tg relates directly to the cross-linking density

[34]. The Tgs increased upon increasing the MBZ-POSS

content from 0 to 5 wt%, as indicated inFig. 5(a) and (b). It is also confirms that the MBZ-POSS acts as a multifunctional curing agent and the MBZ-POSS at lower content is expected to be distributed on a nanometer scale within the polymer matrix. Strong interfacial interaction like the ones leading to Tg

changes close to hard surfaces and rigid POSS particles hinder the mobility of the polymer chains and result in higher Tgas

would be expected[35,36]. When the MBZ-POSS content is increased to 10 wt%, the resulted Tgdoes not increase further

and it actually decreases comparing to the 5 wt%. As a result, the cross-linking density of the hybrid tends to be reduced. It is well-known that Tgof a crosslinked network structure would

decrease with decreasing of its cross-linking density. Below 5 wt%, the MBZ-POSS is expected to be distributed within the polymer matrix on a nanometer scale. When increasing the MBZ-POSS content to 10 wt%, in both the Pa and Ba types of hybrid polymers, the glass transition temperature were not

increased substantially and the blend films were become cloudy, which suggests that the MBZ-POSS units probably aggregate at higher content. When the MBZ-POSS content up to 10 wt%, however, the aggregated MBZ-POSS units cause macro-phase separation, which reduces its overall effectiveness in hindering polymer movement[35,36].

The thermal stabilities under nitrogen of the polybenzox-azine/POSS composites are given in Fig. 6(a) and (b). In a comparison of the thermal stabilities, 5 wt% weight loss temperature is used as a standard. A gradual increase in the decomposition temperature (Td) of the Ba-POSS or Pa-POSS

composite was observed upon increasing POSS content from 0 to 10 wt%. The difference in thermal stability of the decomposition temperature may be construed as an effect of creating nanocomposite. In nanocomposite material, tether thermal motion is restricted thereby reducing the organic decomposition pathways accessible to the tether. The inorganic component (POSS) provides additional heat capacity thereby stabilizing the materials against thermal decomposition

[37,38]. Char yielding, another indicator of thermal stability also increases upon the increasing (POSS) content of these hybrid materials in both monomers. For these hybrids, increasing the POSS content in the composite is expected to improve its thermal properties. The results indicate that the thermal stability of polybenzoxazines is improved through network structures and the inorganic silsesquioxane. In addition, the microstructure feature are useful to explain the thermal property changes (Tg and Td) detected by DSC and

TGA[39]. For these polybenzoxazine/POSS hybrids, increas-ing the MBZ-POSS content leads to various morphological, and hence, microstructural analysis is useful to explain this phenomena.

Table 3

Summary of the thermal properties of Ba-POSS nanocomposites Sample MBZ-POSS in feed Tg(8C) 5 wt% Loss

temperature (8C, in N2) Char yield in N2(wt%, 700 8C) wt% mol Ba-0P 0 0 162 350 38 Ba-2P 2 0.0008 174 354 43 Ba-5P 5 0.0020 192 362 51 Ba-10P 10 0.0041 177 370 65 100 120 140 160 180 200 220 240 260 10 wt% MBZ-POSS 5 wt% MBZ-POSS Temperatuer (°C) (a)

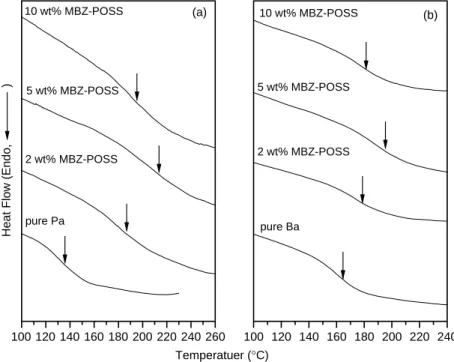

Heat Flow (Endo, )

2 wt% MBZ-POSS 100 120 140 160 180 200 220 240 10 wt% MBZ-POSS 5 wt% MBZ-POSS 2 wt% MBZ-POSS pure Ba (b) pure Pa

(8)

3.4. Microstructural analysis

Surface analysis of polybenzoxazine/POSS composites were characterized by AFM.Fig. 7(a)–(f) displays the AFM images of hybrids having various polybenzoxazine/POSS ratios. The heterogeneous material showed the presence of different domains. Rough areas are POSS rich domains and smooth

areas are polybenzoxazine rich regions. In Fig. 7(a)–(d), we observe that the degree of roughness of the Pa type polybenzoxazine/POSS hybrid films increases upon increasing the POSS content. These POSS aggregation in larger scales occur at higher POSS contents. The reason of the heterogeneous phase separation may be the less dispersive of the POSS with benzoxazine species and the homopolymerization of MBZ-POSS, which tends to aggregate. This phase separation occurred when adding POSS to the benzoxazine monomers and was fixed by the polymerization reaction. By comparingFig. 7(c) and (e), the domain size of the POSS/Ba blend is significantly greater than that of the POSS/Pa blend. At the same level of MBZ-POSS content (5 wt%), the POSS/Ba blend exhibits much more major aggregation than does the POSS/Pa blend. Serious aggregation of POSS occurs in the Ba type polybenzoxazine matrix because of the incompatibility of the inorganic POSS units. When the polymerization begins, these monomer units tend to react with other monomers in their vicinity, implying that those clustered MBZ-POSS monomers have a greater opportunity to react with each other formed MBZ-POSS aggregates that are separated from the polybenzoxazine matrix. In the course of the formation of the polybenzoxazine/POSS network, POSS was separated from the polybenzoxazine rich region, leading to POSS rich domains in the range of 50–1000 nm.

4. Conclusions

We have successfully synthesized a novel octafunctionalized POSS (MBZ-POSS) from VP-a and Q8MH8 by a platinum

complex catalyzed hydrosilylation. The MBZ-POSS possesses a cross-linking unit that is able to undergo polymerization with other benzoxazine monomers, which allowed a new type of polybenzoxazine–POSS composite to be prepared. We prepared

100 200 300 400 500 600 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.1 10 wt% 5 wt% 0 wt%

Weight Residue Fraction

Temperature (°C) 100 200 300 400 500 600 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 (b) 10 wt% 5 wt% 0 wt% (a) 1.0

Fig. 6. TGA thermograms of (a) Pa, and (b) Ba type polybenzoxazine hybrids having varying MBZ-POSS contents.

Fig. 7. AFM analysis of polybenzoxazine/POSS hybrid materials (a) pure Pa type polybenzoxazine, and (b) 2 wt% MBZ-POSS content, and (c) 5 wt% MBZ-POSS content, and (d) 10 wt% MBZ-POSS content. (e) Ba type polybenzoxazine having 5 wt% MBZ-POSS, and (f) 10 wt% MBZ-POSS content.

(9)

polybenzoxazine/POSS composites having various POSS contents and examined their thermal properties by DSC and TGA. Incorporation of MBZ-POSS into the polybenzoxazine could significantly enhance the thermal stability. Some of this can be explained by higher cross-linking densities resulting from the presence of the POSS-modified polybenzoxazine network. The dispersion between the MBZ-POSS and polybenzoxazine on a nanometer scale is only at low POSS content. Higher MBZ-POSS content resulted in the hybrids displaying apparently higher glass transition and thermal decomposition temperatures than that of the neat polybenzoxazine. The glass transition and decomposition temperatures of these nanocomposites are improved by incorporating the MBZ-POSS either the Ba or Pa type polybenzoxazine. However, the Tgvalues of

POSS/poly-benzoxazine hybrids with 10 wt% POSS content is lower than that of 5 wt% POSS inside probably due to hindrance of benzoxazines cross-link caused by hard POSS-rich particles resulting from phase separation. The concept arising from these results is that a phase separation process may take place when employing a POSS that are not compatible with the polybenzoxazine. This led to a macrophase separation (in a micrometer scale) into benzoxazine-rich and POSS-rich regions at a higher POSS content (10 wt%), due to the lack of compatibility between the organic resin and inorganic silses-quioxane and the homopolymerization of MBZ-POSS. This is an agreement of nanocomposites with results reported in this work for these polybenzoxazine modified with a small amount of multifunctional POSS. The in situ generation of a reinforced polymer might have practical application.

Acknowledgements

This work was supported financially by the National Science Council, Taiwan, under contract No. NCS-94-2216-E-009-002.
