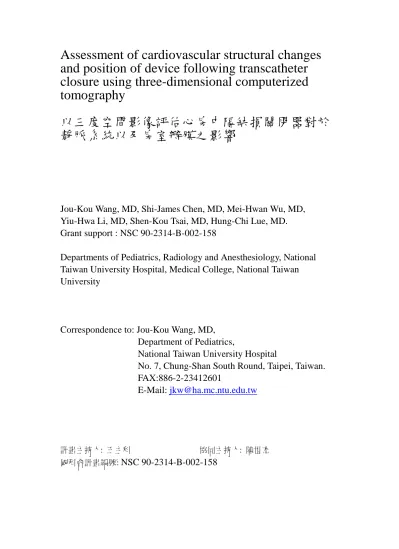

Assessment of cardiovascular structural changes
and position of device following transcatheter
closure using three-dimensional computerized
tomography
以三度空間影像評估心房中隔缺損關閉器對於
靜脈系統以及房室瓣膜之影響
Jou-Kou Wang, MD, Shi-James Chen, MD, Mei-Hwan Wu, MD,
Yiu-Hwa Li, MD, Shen-Kou Tsai, MD, Hung-Chi Lue, MD.
Grant support : NSC 90-2314-B-002-158
Departments of Pediatrics, Radiology and Anesthesiology, National
Taiwan University Hospital, Medical College, National Taiwan
University
Correspondence to: Jou-Kou Wang, MD,
Department of Pediatrics,
National Taiwan University Hospital
No. 7, Chung-Shan South Round, Taipei, Taiwan.
FAX:886-2-23412601
E-Mail:
[email protected]
計畫主持人: 王主科 協同主持人: 陳世杰
中 文 摘 要
本研究目的在於評估以關閉器關閉心房中隔缺損後, 關閉器之位置, 心臟血 管之結構是否受影響。我們使用電腦斷層, 研究卅一例在本院接受以關閉器關閉 心房中隔缺損之病人, 在手術後 6 個月至 3.3 年後做電腦斷層檢查。 這卅一例當 中在 7 例接受 Sideris 關閉器, 10 例以 Starflex 關閉器及 14 例 Amplatzer 關閉器並 在電腦工作站重組三度空間的影像, 觀察關閉器位置肺靜脈及體靜脈系統是否 通暢, 二尖瓣及三尖瓣是否受影響。 結果: 四例有部份肺靜脈迴流阻塞, ( 2 例為 Sideris 關閉器, 1 例 Starflex, 另一例使用 Amplatzer 關閉器 ), 其中有一例使用 Sideris 關閉器者, 發生一個金屬框架 (Arm) 滑入肺靜脈。 另一例也是 Sideris 關閉器使用者, 框架移入下腔靜脈, 另一例 Starflex 之框架穿過心房室中隔膜。 無任何一例有上腔靜脈及矢狀竇之壓迫以及無一例關閉器會阻礙二尖瓣及三尖 瓣之功能。 並以心臟超音波作為比較, 並無一例有肺靜脈或上腔靜脈迴流處阻 塞的情形, 但有四例可看到殘留的缺損及分流。 結論: 電腦斷層影像可用於評估 以關閉器關閉心房中隔缺損後, 關閉器之形狀及位置以及肺靜脈及上下腔靜脈 是否有阻塞, 比超音波還要精確。 關鍵字: 心房中隔缺損, 經心導管關閉心房中隔缺損, 電腦斷層影像
Abstr act
We conduct the study to assess device position, cardiovascular structure and morphology in patients who underwent transcatheter closure of atrial septal defect (ASD).
METHODS:
Electron-bean computerized tomography (CT) was performed in 31 patients who had undergone transcatheter ASD closure in this institution. The interval between ASD closure and CT imaging study ranged from 6 months to 3.3 years. Of the the 31 patients, Sideris device was deployed in 7, Starflex device in 10 and Amplatzer device in 14 patients. Three-dimensional reconstruction of the CT images was performed to evaluate the device position, patency of systemic and pulmonary venous pathway and morphology atrioventricular valves.
RESULTS:
Partial obstruction of a pulmonary vein was observed in 4 patients (2 with
Sideris device, 1 with Starflex device and 1 with Amplatzer device). Migration of one arm to a pulmonary vein was observed in 1 with Sideris device. Migration of one arm to inferior vena cava was found in one with Sideris device. Impingement on atrioventricular septum by one arm of Starflex device was found in 1. One had one arm of Starflex device penetrating atrioventricular septum. One had residual shunt. None had systemic vena cavae or coronary sinus obstruction. None had impingement of device on mitral or tricuspid valve leaflets. Cross-sectional and Doppler echocardiographic studies in the 31 patients showed none had significant pulmonary or systemic venous pathway obstruction. A small left ventricle to right atrial shunt was found in the patient who had impingement on the atrioventricular septum. Trivial-to-mind residual shunt was found on the echocardiogram in 4 with Sideris device.
CONCLUSION:
CT images can be useful in the assessment of device position and systemic and pulmonary venous pathway in ASD patients following transcatheter closure.
INTRODUCTION:
Since the report of successful transcatheter closure of atrial septal defect (ASD) by King & Mills, a varieties of device have been evolved for transcatheter closure included were Rashkind device, sideris device, Angel wing, Amplatzer septal occluder, of which and CardioSeal have been widely used. With the advent of device and improvement in deployment technique, transcatheter closure of atrial septal defect (ASD) has been increasingly performed with a high success rate and low complication rate. Transthoracic echocardiography is the most common imaging tool used to evaluate the morphologic changes following of cardiovascular structure ASD closure. Changes in cardiovascular structures could be readily assessed with echocardiography. However, the effect of device closure on the systemic and pulmonary venous pathways was sometimes difficult to be evaluated with transcatheter echocardiograply. The position of the device particularly the arms and skirts was also difficult to be assessed. In the current study, we investigate the effects of ASD septal occluder on the morphology of systemic and pulmonary venous pathways using computerized tomography.
METHODS:
During a 3.5-year period, 65 patients underwent transcatheter closure of ASD in this institution. All the patients underwent a diagnostic catheterization and angiography. The stretched diameter of the atrial septal defect was measured with balloon catheter. Before May 1999, a Meditech sizing balloon was used and after that an AGA sizing balloon was used to measure the stretched diameter. The diameter of the device closer equaled to the stretched diameter in Amplatzer device, 1.5~2 times of stretched diameter for sideris and CardioSeal device. The technique of transcatheter closure of the 3 devices was similar to those reported in the literature. All patients received aspirin 3-5mg/kg/day for 3-6 months following deployment of device. All patients underwent echocardiographic follow-up at 3 months, 6 months, 12 months and annually afterward. Electron-bean ultrafast computerized tomography (CT) was performed in 31 patients who agree to participate the study. The CT images were enhanced by injection of contrast media. The study protocol was approved by ethical committee in this hospital. The interval between ASD closure and CT imaging study ranged from 6 months to 3.3 years. Of the the 31 patients, Sideris device was deployed in 7, Starflex device in 10 and Amplatzer device in 14 patients. CT images were performed to evaluate the device position, patency of systemic and pulmonary venous pathway.
Three-dimensional reconstruction of CT images was performed in selected cases where device impingement on cardiac structures, pulmonary or systemic venous
system was suspected on cross-section images. The CT images were analyzed independently by one radiologist and two pediatric cardiologists.
RESULTS:
Of the 31 patients, 5 patients who underwent ASD closure with 3 sideris device 1 CardioSeal and 1 Amplatzer device had frequent migraine. No one had cardiomegaly on CT images. Partial obstruction of a pulmonary vein was observed in 4 patients (2 with Sideris device, 1 with Starflex device and 1 with Amplatzer device). Migration of one arm to a pulmonary vein was observed in with Sideris device in which pulmonary venous obstruction was en sued 1. Migration of one arm of a counter occluder of a sideris device to inferior vena cava was found in 1. Impingement of atrioventricular septum by one arm of Starflex device was found in 1. One had residual shunt. None had systemic vena cavae or coronary sinus obstruction. No one had compression of aortic root by the device. None had impingement of device on mitral or tricuspid valve leaflets. Cross-sectional and Doppler echocardiographic studies in the 31 patients showed none had significant pulmonary or systemic venous pathway obstruction. No one had impairment of mitral or tricuspid valve function as evaluated on echocardiography. A small left ventricle to right atrial shunt was found in the patient who had impingement on the atrioventricular septum. Arivial-to-mild residual shunt was found on the echocardiogram in 4 with Sideris device.
DISCUSSION:
Since the first report by Kings & Mill, transcatheter closure has become an alternative to surgery in the treatment of ASD. A variety of devices were evolved for transcatheter closure, including Rashkind device, Sideris device, CardioSeal device, Amplatzer device and Helex device. Among them, CardioSeal and Amplatzer device are the currently most common device used. The attempt success rate and complete closure rate were high with the Amplatzer device. Immediate complications of device deployment have been reported of which arrhythmia, device embolization or malposition, thrombus formation and vascular injury were most commonly seen. There were late complications of device closure of ASD reported including pericardial effusion and sudden death. Since the cardiac chambers dimension deceased in most patients during follow-up, the edge or sharp end of the device could have impinged on cardiac structures. In this study, mild degree of pulmonary venous obstruction was seen in 4 patients: 2 with button device and one with CardioSeal device and one with Amplatzer device. Late migration of one arm to pulmonary vein and inferior vena cava was observed in one with Sideris device each. For those with
deficient superior-anterior rim, two disk of device splayed on aortic root. Compression of aortic root by the device was a major concern but, in the current study, no patient had evidence of compression to the aortic root. One had complicated with left-ventricule-to-right-atrial shunt because one arm of a CardioSeal Device impinged on the septum. Therefore, Amplatzer septal occluder seems to be safe in those with deficient superior-anterior rim. No patient had pericardial effusion during follow-up. Three-dimension CT is more sensitive than echocardiography in the detection of pulmonary and systemic venous obstruction. Although, late migration of impingement or Cardiovascular structure was not uncommon following transcatheter closure of ASD, no one developed related symptoms. We should keep observation on the potential damage to cardiovasalar structure from device closure.
CONCLUSION:
CT images can be useful in the assessment of device position and systemic and pulmonary venous pathway in ASD patients following transcatheter closure.
Figur e Legends
Figure 1. A 3-dimensional CT image showed the Amplatzer device sitting on the atrial septum with out impingement on cardiovascular srutures.
Figure 2. A 3-dimensional CT image showed late migration of one arm of a counter occluder of a sideris device to inferior vena cava.
Figure 3. A cross-section of CT image showing one arm of a sideris device migrated to right upper pulmonary vein causing obstruction.
Refer ences
1. King TD, Mills NL. Nonoperative Closure of atrial septal defects. Surgery 1974;75:328-388.
2. Rome JJ, Keane JF, Perry SB, Spevak PJ, Lock JE. Double-umbrella closure of atrial septal defects: initial chinical applications. Circulation 1990;82:751-758.
3. Roa PS, Berger F, Rey C, Haddad J, Meier B, Walsh KP, Chandar JS, Lloyd TR, de Lezo JS, Zamora R, Sideris EB. Results of transvenous occlusion of secundum atrial septal defects with fourth generation buttoned device: comparison with first, second and third generation devices. International Buttoned Device Trial Group. J Am Coll Cardiol 2000;36:583-592.
4. Pedra CAC, Pihkala J, Lee K-J, Boutin C, Nykanen DG, McLaughlin PR, Harrison DA, Freedom RM, Benson L. Transcatheter closure of atrial septal defect using the Cardio-Seal implant. Heart 2000;84:320-326.
5. Hausdorf G, Kulitz R, Paul T, Carminati M, Lock J. Transcatheter closure of atrial septal defect with a new flexible, self-centering device (The STARFlex Occluder). Am J Cardiol 1999;84:1113-6.
6. Thanopoulos BD, Laskari CV, Tsaousis GS, Zarayelyan A, Vekiuu A, Papadopoulos GS. Closure of atrial septal defects with the Amplatzer occlusion device preliminary results. J Am Coll Cardiol 1998;31: 1110-16.
7. Chan KC, Godman MJ, Walsh K, Wilson N, Redington A, Gibbs JL. Transcatheter closure of atrial septal defect and interatrial communications with a new self expanding nitinol double disc device (Amplatzer septal occluder): multicentre UK experience. Heart 1999; 82:300-306.
8. Berger F, Ewert P, Bjornstad PG, Dahnert I, Krings G, Austenat IB, Vogel M, Lange PE. Transcatheter closure as standard treatment for most interatrial defects: experience in 200 patients treated with the Amplatzer septal occluder. Cardio Young 1999; 9: 468-473.
9. Prieto LR, Foreman CK, Cheathan JP, Latson LA. Intermediate term outcome of transcatheter secundum atrial septal defect closure using the Bard clamshell
Septal Umbrella. Am J Cardiol 1996;78:1310-1312.
10. Schench MH, Sterba R, Foreman CK, Latson LA. Improvement in noninvasive electrophysiologic findings in children after transatheter atrial septal defect closure. Am J Cardiol 1995;76:695-698.
11. Berdat PA, Chatterjee T, Pfammatter JP, Windecker S, Meier B, Carrel T. Surgical management of complications after transcatheter closure of an atrial septal defect or patent foramen ovale. J Thorac Cardiovasc Surg 2000;120:1034-9.
12. Chessa M, Carminati M, Butera G, Bini RM, Drago M, Rosti L, Giamberti A, Pome G, Bossone E, Frigiola A. Early and late complications associated with transcatheter occlusion of secundum atrial septal defect. J Am Coll Cardiol 2002;39:1061-5.
13. Lezo JS, Medina A, Pan M, Romero M, Segura J, Pavlovic D, Hernandez E, Delgado A, Caballero E, Siles JR, Franco M, Mesa D, Lafuente M. Transcatheter occlusion of complex atrial septal defects. Cathet Cardiovase Intervent 2000;51:33-41.
14. Kaulitz R, Paul T, Hausdorf G. Extending the limits of transcatheter closure of atrial septal defects with the double umbrella device (CardioSEAL). Heart 1998;80:54-59.
15. Aeschbacher BC, Chatterjee T, Meier B. Transesophageal echocardiography to evaluate success of transcatheter closure of large secundum atrial septal defects in adults using the buttoned divice. Mayo Clinic Proc 2000;75:913-20.
16. Hijazi ZM, Cao QL, Patel HT, Rhodes J, Hanlon KM. Transesophageal echocardiographic results of catheter closure of atrial septal defect in children and adults using the Amplatzer device. Am J Cardiol 2000;85:1387-90.
17. Elzenga NJ. The role of echocardiography in transcatheter closure of atrial septal defects. Cardiol Young 2000;10:473-483.
18. Thomson JDR, Aburaw EH, Watterson KG, Doon CV, Gibbs JL. Surgical and transcatheter(Amplatzer) closure of atrial septal defect: a prospective comparison
of results and cost. Heart 2002;87:466-469.
19. Galal MO, Wobst A, Halees Z. Perioperative complications following surgical closure of atrial septal defect type II in 232 patients: a baseline study. Eur Heart J 1994;15:1381-4.
20. Formigari R, Di Donato RM, Mazzera E, Carotti A, Rinelli G, Parisi F, Pasquini L, Ballerini L. Minimally invasive or interventional repair of atrial septal defect in children: experience in 171 cases and comparison with conventional strategies. J Am Coll Cardiol 2001;37:1707-12.
21. Sub C, Jajik AJ, Seward JB, Hagler DJ, Danielson GK, surgical repair of uncomplicated atrial septal defect routine preoperative cardiac catheterization. J Am Coll Cardiol 1985;6:49-54.
22.Cowley CG, Lloyd TR, Bove EL, Gaffney D, Dietrich M, Rocchini AP. Comparison of results of closure of secundum atrial septal defect by surgery versus Amplatzer septal occluder. Am J Cardiol 2001;88:589-591
23. Visconti KJ, Bichell DP, Jonas RA, Newburger JW, Bellinger DC. Developmental outcome after surgical versus interventional closure of secundum atrial septal defect in children. Circulation 1999;100 Suppl Ⅱ:Ⅱ-145-Ⅱ-150.
24. Dhillon R, Josen M, Henein M, Redington A. Transcatheter closure of atrial septal defect preserves right ventricular function. Heart 2002;87:461-5
25. Carminati M, Giusti S, Hausdorf G, Qureshi S, Tynan M, Witsenburg M, Hess J, Piechaud JF, Bonhoeffer P, Donti A, Ovaert C, Sievert H, Elzenga N, Talsma M, Oort AV, Ernst J, Gewillig M, Geeter BD. A European multicentric experience using the CardioSEAL and Starflex double umbrella devices to close interatrial communications holes within the oval fossa. Cardiol Young 2000;10:519-526.
26. Perry YY, Triedman JK, Gauvreau K, Lock JE, Jenkins KJ. Sudden death in patients after transcatheter device implantation for congenital heart disease. Am J Cardiol 2000;85:992-995.
27. Fischer G, Kramer HH, Stieh J, Harding P, Jung O. Transcatheter closure of secundum atrial septal defects with the new self-centering Amplatzer Septal Occluder. Eur Heart J 1999;20:541-549.
28. Walsh KP, Tofeig M, Kitchiner DJ, Peart I, Arnold R. Comparison of the sideris and Amplatzer septal occlusion devices. Am J Cardiol 1999;83:933-936.
29. Du ZD, Hijazi ZM, Kleinman CS, Silverman NH, Larntz K. Comparison between transcatheter and surgical closure of secundum atrial septal defect in children and adults. J Am Coll Cardiol 2002;39:1936-1834.
30. Ewert P, Berger F, Kretschman O, Abdul-khaliglt, Stiller B, Lange P. Feasibility of transcatheter closure of multiple defeets within the oval fossa. Candiol Young 2001:11:314-9.
31. Gatzoulis MA, Freeman MA, Siu S, Webb GD, Harris L. Atrial arrhythmia after surgical closure of atrial septal defects in adults. N Engl J Med 1999;340:839-46.
32. Jemielity M, Dysszkiewicz W, Paluszkiewicz L, Perek B, Buczkowski P. Do patients over 40 years of age benefit from surgical closure of atrial septal defects? Heart 2001;85:300-303.
33. Banerjee A, Bengur AR, Li JS, Homans DC, Toher C, Bank AJ, Marx GR, Rhodes J, Das GS. Echocardiographic characteristics of successful deployment of the das AngelWings atrial septal defect closure device: initial multicenter experience in the United States. Am J Cardiol 1999;83:1236-41.
34. Atlie F, Rosas M, Granados N, Zabal C, Buendia A, Calderon J. Surgical treatment for secundum atrial septal defects in patients >40 years old, a randomized clinical trial. J Am Coll Cardiol 2001;38:2035-42.
35. Berger F. Vogel M. Alexi-Meskishvil: V, Lange P. Comparision of results and complications of surgical and Amplatzer device closure of atrial septal defects. J Thorac Cardiovasc surg 1999;118:674-80.
