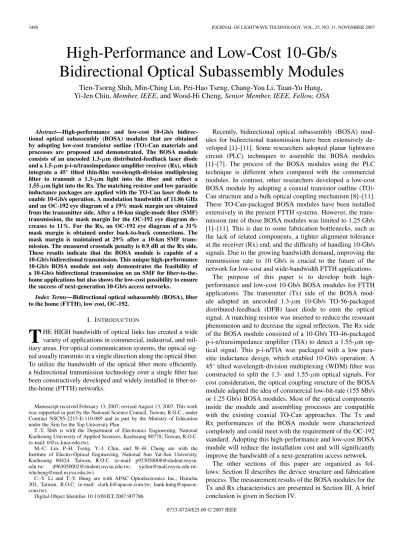

High-Performance and Low-Cost 10-Gb/s Bidirectional Optical Subassembly Modules

3488 JOURNAL OF LIGHTWAVE TECHNOLOGY, VOL. 25, NO. 11, NOVEMBER 2007

High-Performance and Low-Cost 10-Gb/s

Bidirectional Optical Subassembly Modules

Tien-Tsorng Shih, Min-Ching Lin, Pei-Hao Tseng, Chang-You Li, Tuan-Yu Hung,

Yi-Jen Chiu, Member, IEEE, and Wood-Hi Cheng, Senior Member, IEEE, Fellow, OSA

Abstract—High-performance and low-cost 10-Gb/s

bidirec-tional optical subassembly (BOSA) modules that are obtained

by adopting low-cost transistor outline (TO)-Can materials and

processes are proposed and demonstrated. The BOSA module

consists of an uncooled 1.3-µm distributed-feedback laser diode

and a 1.5-µm p-i-n/transimpedance amplifier receiver (Rx), which

integrate a 45

tilted thin-film wavelength-division multiplexing

filter to transmit a 1.3-µm light into the fiber and reflect a

1.55-µm light into the Rx. The matching resistor and low parasitic

inductance packages are applied with the TO-Can laser diode to

enable 10-Gb/s operation. A modulation bandwidth of 11.86 GHz

and an OC-192 eye diagram of a 19% mask margin are obtained

from the transmitter side. After a 10-km single-mode fiber (SMF)

transmission, the mask margin for the OC-192 eye diagram

de-creases to 11%. For the Rx, an OC-192 eye diagram of a 31%

mask margin is obtained under back-to-back connections. The

mask margin is maintained at 29% after a 10-km SMF

trans-mission. The measured crosstalk penalty is 0.9 dB at the Rx side.

These results indicate that the BOSA module is capable of a

10-Gb/s bidirectional transmission. This unique high-performance

10-Gb/s BOSA module not only demonstrates the feasibility of

a 10-Gb/s bidirectional transmission on an SMF for

fiber-to-the-home applications but also shows the low-cost possibility to ensure

the success of next-generation 10-Gb/s access networks.

Index Terms—Bidirectional optical subassembly (BOSA), fiber

to the home (FTTH), low cost, OC-192.

I. I

T

HE HIGH bandwidth of optical links has created a wide

variety of applications in commercial, industrial, and

mil-itary areas. For optical communication systems, the optical

sig-nal usually transmits in a single direction along the optical fiber.

To utilize the bandwidth of the optical fiber more efficiently,

a bidirectional transmission technology over a single fiber has

been constructively developed and widely installed in

fiber-to-the-home (FTTH) networks.

Manuscript received February 13, 2007; revised August 13, 2007. This work was supported in part by the National Science Council, Taiwan, R.O.C., under Contract NSC95-2215-E-110-089 and in part by the Ministry of Education under the Aim for the Top University Plan.

T.-T. Shih is with the Department of Electronics Engineering, National Kaohsiung University of Applied Sciences, Kaohsiung 80778, Taiwan, R.O.C. (e-mail: [email protected]).

M.-C. Lin, P.-H. Tseng, Y.-J. Chiu, and W.-H. Cheng are with the Institute of Electro-Optical Engineering, National Sun Yat-Sen University, Kaohsiung 80424, Taiwan, R.O.C. (e-mail: [email protected]. edu.tw; [email protected]; [email protected]; [email protected]).

C.-Y. Li and T.-Y. Hung are with APAC Optoelectronics Inc., Hsinchu 303, Taiwan, R.O.C. (e-mail: [email protected]; hank.hung@apacoe. com.tw).

Digital Object Identifier 10.1109/JLT.2007.907786

Recently, bidirectional optical subassembly (BOSA)

mod-ules for bidirectional transmission have been extensively

de-veloped [1]–[11]. Some researchers adopted planar lightwave

circuit (PLC) techniques to assemble the BOSA modules

[1]–[7]. The process of the BOSA modules using the PLC

technique is different when compared with the commercial

modules. In contrast, other researchers developed a low-cost

BOSA module by adopting a coaxial transistor outline

(TO)-Can structure and a bulk optical coupling mechanism [8]–[11].

These TO-Can-packaged BOSA modules have been installed

extensively in the present FTTH systems. However, the

trans-mission rate of those BOSA modules was limited to 1.25 Gb/s

[1]–[11]. This is due to some fabrication bottlenecks, such as

the lack of related components, a tighter alignment tolerance

at the receiver (Rx) end, and the difficulty of handling 10-Gb/s

signals. Due to the growing bandwidth demand, improving the

transmission rate to 10 Gb/s is crucial to the future of the

network for low-cost and wide-bandwidth FTTH applications.

The purpose of this paper is to develop both

high-performance and low-cost 10-Gb/s BOSA modules for FTTH

applications. The transmitter (Tx) side of the BOSA

mod-ule adopted an uncooled 1.3-µm 10-Gb/s TO-56-packaged

distributed-feedback (DFB) laser diode to emit the optical

signal. A matching resistor was inserted to reduce the resonant

phenomenon and to decrease the signal reflection. The Rx side

of the BOSA module consisted of a 10-Gb/s TO-46-packaged

p-i-n/transimpedance amplifier (TIA) to detect a 1.55-µm

op-tical signal. This p-i-n/TIA was packaged with a low

para-sitic inductance design, which enabled 10-Gb/s operation. A

45

tilted wavelength-division multiplexing (WDM) filter was

constructed to split the 1.3- and 1.55-µm optical signals. For

cost consideration, the optical coupling structure of the BOSA

module adapted the idea of commercial low-bit-rate (155 Mb/s

or 1.25 Gb/s) BOSA modules. Most of the optical components

inside the module and assembling processes are compatible

with the existing coaxial TO-Can approaches. The Tx and

Rx performances of the BOSA module were characterized

completely and could meet with the requirement of the OC-192

standard. Adopting this high-performance and low-cost BOSA

module will reduce the installation cost and will significantly

improve the bandwidth of a next-generation access network.

The other sections of this paper are organized as

fol-lows: Section II describes the device structure and fabrication

process. The measurement results of the BOSA modules for the

Tx and Rx characteristics are presented in Section III. A brief

conclusion is given in Section IV.

SHIH et al.: HIGH-PERFORMANCE AND LOW-COST 10-Gb/s BOSA MODULES 3493

the feasibility of 10-Gb/s transmissions at the bidirectional

architecture for use in next-generation high-bandwidth FTTH

or passive optical network applications. The proposed 10-Gb/s

BOSA modules adopted commercialized TO-Can materials,

which were about five to ten times less costly than butterfly

or dual inline package materials; therefore, the fabrication cost

of the proposed BOSA could be significantly reduced. To the

best of knowledge of the authors, such a high-performance

and low-cost 10-Gb/s BOSA module that is achieved by using

standard TO-Can materials and processes has hitherto not been

reported.

A

The authors would like to thank T.-S. Horng, National Sun

Yat-Sen University, for technical support.

R

[1] J. Yoshida, “Low-cost optical modules for fiber-to-the-home,” in Proc.

Opt. Fiber Commun. Conf., Feb. 1997, pp. 275–276.

[2] G. C. Joo, S. H. Lee, K. S. Park, J. S. Choi, N. Hwang, and M. K. Song, “A novel bidirectional optical coupling module for subscribers,” IEEE Trans.

Adv. Packag., vol. 23, no. 7, pp. 681–685, Nov. 2000.

[3] S. Kaneko, T. Saito, A. Sawai, T. Hatta, and K. Kasahara, “Low-crosstalk hybrid-integrated optical transceiver module using a polymer PLC chip and a MMF stub,” IEEE Photon. Technol. Lett., vol. 13, no. 8, pp. 866– 868, Aug. 2001.

[4] H. Blauvelt, A. Benzoni, J. Byrd, M. Downie, C. Grosjean, S. Hutchinson, R. Lee, F. Monzon, M. Newkirk, J. Paslaski, P. Sercel, D. Vernooy, and R. Wyss, “High performance planar lightwave circuit triplexer with pas-sive optical assembly,” in Proc. Opt. Fiber Commun. Conf., Mar. 2005, vol. 4. Paper OThU7.

[5] K. Y. Kim, S. Y. Kim, M. W. Kim, and S. Jung, “Development of compact and low-crosstalk PLC-WDM filters for hybrid-integrated bidirectional optical transceivers,” J. Lightw. Technol., vol. 23, no. 5, pp. 1913–1917, May 2005.

[6] T. Hashimoto, A. Kanda, R. Kasahara, I. Ogawa, Y. Shuto, M. Yanagisawa, A. Ohki, S. Mino, M. Ishii, Y. Suzuki, R. Nagase, and T. Kitagawa, “A bidirectional single fiber 1.25 Gb/s optical transceiver module with SFP package using PLC,” in Proc. ECTC, May 2006, vol. 1, pp. 279–283.

[7] H. Kimura, T. Yoshida, and K. Kumozaki, “Compact PLC-based optical transceiver with automatic tunable filter for multi-rate applications,”

Elec-tron. Lett., vol. 39, no. 18, pp. 1319–1321, Sep. 2003.

[8] Y. T. Han, Y. J. Park, S. H. Park, J. U. Shin, D. J. Kim, S. W. Park, S. H. Song, K. Y. Jung, D. J. Lee, W. Y. Hwang, and J. K. Sung, “1.25-Gb/s bidirectional transceiver module using 1.5%-∆ silica directional coupler-type WDM,” IEEE Photon. Technol. Lett., vol. 17, no. 11, pp. 2442–2444, Nov. 2005.

[9] M. Tsumori, S. H. Pyo, D. S. Shin, Y. K. Yoon, J. H. Lee, and T. Kim, “Unique 1 to structure low-cost optical subassembly,” in Proc. ECTC, May 2004, vol. 1, pp. 208–211.

[10] H. J. Yoon and K. N. Jun, “Compact bidirectional optical module using ceramic blocks,” IEEE Photon. Technol. Lett., vol. 16, no. 8, pp. 1954– 1956, Aug. 2004.

[11] D. J. Shih, Y. C. Keh, J. W. Kwon, E. H. Lee, J. K. Lee, M. K. Park, J. W. Park, Y. K. Oh, S. W. Kim, I. K. Yun, H. C. Shin, D. Heo, J. S. Lee, H. S. Lee, H. S. Shin, H. S. Kim, S. B. Park, D. K. Jung, S. Hwang, Y. J. Oh, D. H. Jang, and C. S. Shim, “Low-cost WDM–PON with colorless bidirectional transceivers,” J. Lightw. Technol., vol. 24, no. 1, pp. 158–165, Jan. 2006.

[12] T. T. Shih, M. C. Lin, and W. H. Cheng, “High-performance low-cost 10 Gb/s coaxial DFB laser module packaging by conventional TO-can materials and processes,” IEEE J. Sel. Topics Quantum Electron., vol. 12, no. 5, pp. 1009–1016, Sep./Oct. 2006.

[13] Microwave Thin Film Chip Resistor, US Microw. Corp., Santa Clara, CA, 2007. User Guide.

[14] 10 Gbps Transimpedance Amplifier, Euvis Corp., Simi Valley, CA, 2007. User Guide.
