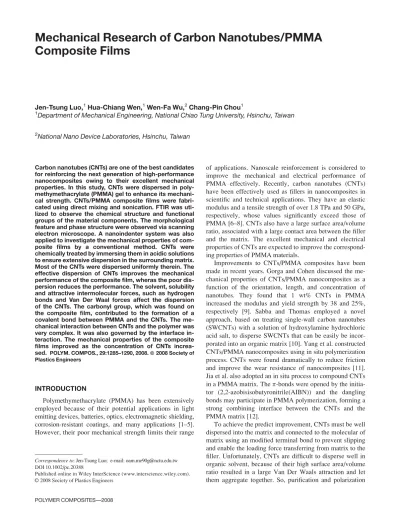

Mechanical Research of Carbon Nanotubes/PMMA
Composite Films
Jen-Tsung Luo,1Hua-Chiang Wen,1Wen-Fa Wu,2Chang-Pin Chou1 1
Department of Mechanical Engineering, National Chiao Tung University, Hsinchu, Taiwan 2
National Nano Device Laboratories, Hsinchu, Taiwan
Carbon nanotubes (CNTs) are one of the best candidates for reinforcing the next generation of high-performance nanocomposites owing to their excellent mechanical properties. In this study, CNTs were dispersed in poly-methymethacrylate (PMMA) gel to enhance its mechani-cal strength. CNTs/PMMA composite films were fabri-cated using direct mixing and sonication. FTIR was uti-lized to observe the chemical structure and functional groups of the material components. The morphological feature and phase structure were observed via scanning electron microscope. A nanoindenter system was also applied to investigate the mechanical properties of com-posite films by a conventional method. CNTs were chemically treated by immersing them in acidic solutions to ensure extensive dispersion in the surrounding matrix. Most of the CNTs were dispersed uniformly therein. The effective dispersion of CNTs improves the mechanical performance of the composite film, wheras the poor dis-persion reduces the performance. The solvent, solubility and attractive intermolecular forces, such as hydrogen bonds and Van Der Waal forces affect the dispersion of the CNTs. The carbonyl group, which was found on the composite film, contributed to the formation of a covalent bond between PMMA and the CNTs. The me-chanical interaction between CNTs and the polymer was very complex. It was also governed by the interface in-teraction. The mechanical properties of the composite films improved as the concentration of CNTs increa-sed. POLYM. COMPOS., 29:1285–1290, 2008.ª2008 Society of Plastics Engineers
INTRODUCTION
Polymethymethacrylate (PMMA) has been extensively employed because of their potential applications in light emitting devices, batteries, optics, electromagnetic shielding, corrosion-resistant coatings, and many applications [1–5]. However, their poor mechanical strength limits their range
of applications. Nanoscale reinforcement is considered to improve the mechanical and electrical performance of PMMA effectively. Recently, carbon nanotubes (CNTs) have been effectively used as fillers in nanocomposites in scientific and technical applications. They have an elastic modulus and a tensile strength of over 1.8 TPa and 50 GPa, respectively, whose values significantly exceed those of PMMA [6–8]. CNTs also have a large surface area/volume ratio, associated with a large contact area between the filler and the matrix. The excellent mechanical and electrical properties of CNTs are expected to improve the correspond-ing properties of PMMA materials.
Improvements to CNTs/PMMA composites have been made in recent years. Gorga and Cohen discussed the me-chanical properties of CNTs/PMMA nanocomposites as a function of the orientation, length, and concentration of nanotubes. They found that 1 wt% CNTs in PMMA increased the modulus and yield strength by 38 and 25%, respectively [9]. Sabba and Thomas employed a novel approach, based on treating single-wall carbon nanotubes (SWCNTs) with a solution of hydroxylamine hydrochloric acid salt, to disperse SWCNTs that can be easily be incor-porated into an organic matrix [10]. Yang et al. constructed CNTs/PMMA nanocomposites using in situ polymerization process. CNTs were found dramatically to reduce friction and improve the wear resistance of nanocomposites [11]. Jia et al. also adopted an in situ process to compound CNTs in a PMMA matrix. The p-bonds were opened by the initia-tor (2,2-azobisisobutyronitrile(AIBN)) and the dangling bonds may participate in PMMA polymerization, forming a strong combining interface between the CNTs and the PMMA matrix [12].
To achieve the predict improvement, CNTs must be well dispersed into the matrix and connected to the molecular of matrix using an modified terminal bond to prevent slipping and enable the loading force transferring from matrix to the filler. Unfortunately, CNTs are difficult to disperse well in organic solvent, because of their high surface area/volume ratio resulted in a large Van Der Waals attraction and let them aggregate together. So, purification and polarization
Correspondence to: Jen-Tsung Luo; e-mail: [email protected] DOI 10.1002/pc.20388
Published online in Wiley InterScience (www.interscience.wiley.com). V
treatments were needed to make CNTs perform well and disperse uniformly. For optimal performance in reinforcing application, CNTs should be separated into individual or bundles of only a few tubes. There are several methods to have CNTs be functionalized, such as covalence or nonco-valence method, sonication technology, surfactant addition, and chemical modification [13–18]. Acid solutions are com-mon reagents for surface purification and terminal oxidation of CNTs. They also have the ability to remove metal cata-lysts and together with some of the amorphous carbon [19, 20]. Acid solution with reflux or sonication can also open the ends of the CNTs and introduced carboxylic acid group [21–26]. The carboxyl group played an important role for CNTs reacting with organic matrix and making them bound tightly [27].
In this study, acid treatment methods were adopted to identify factors that can affect the dispersal of nanotubes in a PMMA matrix. The physical and chemical characteristics of CNTs /PMMA composite films were examined using FTIR, thermal desorption spectrometer (TDS), scanning electron microscope (SEM) and a nanoindenter system.
EXPERIMENT
Multi-walled carbon nanotubes (MWCNTs) were grown on a cobalt catalyst by thermal chemical vapor deposition at 6008C in a quartz tube furnace. The as-deposited carbon nanotubes were attached to acid solutions to be polarized by the following procedure. 500 mg of CNTs were im-mersed in various acidic solutions, including HCl (2 M), HNO3(4 M), and H2SO4/HNO3(3/1 by volume). The mix-tures were placed in a reflux system for 24 h and then soni-cated in a bath for 3 h at room temperature. Then, they were diluted by adding deionized water until the pH value was neu-tral, before being filtered through a membrane with 0.2 mm pores. A suspension of oxidized CNTs in ethanol was soni-cated for 30 min; slowly dispersed in methyl methacrylate resin, and manually stirred until the solvent evaporated. A CNTs/methyl methacrylate mixture was then mixed with 2% of initiator (AIBN). Then, the precursor was placed on a hotplate at a temperature of 608C to synthesize the polymer. A Teflon rod was used to stir the solution manually. Then, the solution was spin-coated on silicon or glass substrates. Following baking at 508C for 24 h, composite films with fil-ler concentrations from 0 to 5 wt% were prepared.
The thickness and morphology of the films was observed using a HITACHI S-4000 SEM. Fourier transform infrared spectroscopy (FTIR, ASTeX PDS-17 System) was con-ducted using a CsI laser source with a resolution of 4 cm1, scanning from 400 to 4000 cm1. The spectrum was obtained with an average of 32 scans. A TDS was utilized to monitor the desorption amount of methyl, carbon diox-ide, and oxygen. The nanoindentation test was conducted with a commercially available machine, Nano Indenter XP System, supplied by MTS Company. The force and dis-placement resolutions of the nanoindenter are 500 nN and 0.1 nm, respectively. The indenter was a triangular
pyra-mid-shaped diamond with an edge angle of about 1158 (Berkovich indnter). The nanoindentation test was repeated 10 times under each condition. Then, the load-penetration depth curve was recorded.
RESULTS AND DISCUSSION
Figure 1 presents the FTIR spectra of acid-treated CNTs. The peak at 1700–1750 cm1corresponds to the carboxyl group (COO). The peak at 1580 cm1 is the carbonyl (C¼¼O) group. The carboxyl group is suggested to have been introduced on the surface of CNTs after acid treat-ment, grafting mainly onto the area of defects and the open end of the tube. The spectra of samples that were immersed in H2O or ethanol solution suffered from noise, suggesting that such impurities as metal catalyst, amorphous carbon and residual alkane or alkyne, remained on the surface of the CNTs. Acid treatment makes the surface of the nano-tubes more hydrophilic. The intensity of the Van der Waals force was reduced and the self-aggregation of CNTs also reduced. Acid treatment also helped to separate and cut tubes, helping to disperse them more uniformly [28].
Polyaniline was obtained via interfacial polymerization [29]. Figure 2 displays SEM images. Fig. 2a depicts the cross-sectional morphology of pure PMMA. The thickness of the film was about 3 mm. The PMMA resin was uniformly coated on the silicon wafer. Some interfacial voids were pres-ent on the interface. Figure 2b is the surface image of a CNTs/PMMA composite film that had not been mechanically polished. The surface was smooth and CNTs were embedded in the matrix. Figure 2c and d show high-magnification images of mechanically polished composite films, obtained after the CNTs were treated using H2SO4/HNO3 solution. CNTs were dispersed uniformly in the surrounding matrix. The carboxyl acid groups on the CNTs promote the interac-tion and increase the compatibility of the polymer with the CNTs. The CNTs were curved and interwoven because of
FIG. 1. FTIR spectras of CNTs immersed in different solutions. [Color figure can be viewed in the online issue, which is available at www. interscience.wiley.com.]
their extreme flexibility [30]. Composite films were prepared by direct solution mixing. Sonicaiton at room temperature improved the dispersion properties. The interaction of the modified CNTs/PMMA nanocomposite is related to the car-boxylate of the PMMA and the CNTs. The effective disper-sion of fillers markedly increased the contact area, promoting the load transfer between the two components.
The mechanical properties, such as Young’s modulus and hardness, were tested by the nanoindenter system. The elastic constant of sample was decided with non-axisym-metric indenters. The contact stiffness is obtained from the slope of the loading curve. An effective Young’ modulus (E) is obtained by using the following equation [31–33].
S¼dP dh¼ CAEA 1=2 where 1 E¼ 1 v2 I EI þ1 v 2 S ES
where S is the contact stiffness, and it has the dimensions of force per unit distance.CAis equal to 2= ffiffiffip
p
, and A is the
projected real contact area between the indenter and the sur-face.EIandvIare Young’s modulus and poisson’s ratio of the indenter, respectively.ESandvSare the same parame-ters of the test sample. The hardness of the surface (H) is determined by the equationH¼ P/A, where P is the loading force.
The load-displacement curve in Fig. 3 was utilized to determine the Young’s modulus and hardness. During the experiment, the effect of the substrate must be determined. The mechanical scattering response depended on the filler of the matrix and increased on the CNTs content. A very homogeneous hybrid is obtained if both components are sufficient to create a good interpenetration of the two net-works on the molecular scale. Hydrogen bonds are impor-tant interfacial forces, and are of two types in the composite system: intramolecular and intermolecular (such as OHOH and OHCOOH). Carbonyl groups on the poly-mer macromolecules are strong acceptors of acidic hydro-gen to form hydrohydro-gen bonds [34, 35].
Figure 4 plots the reduced modulus as a function tip displacement. The elastic modulus increased with CNT

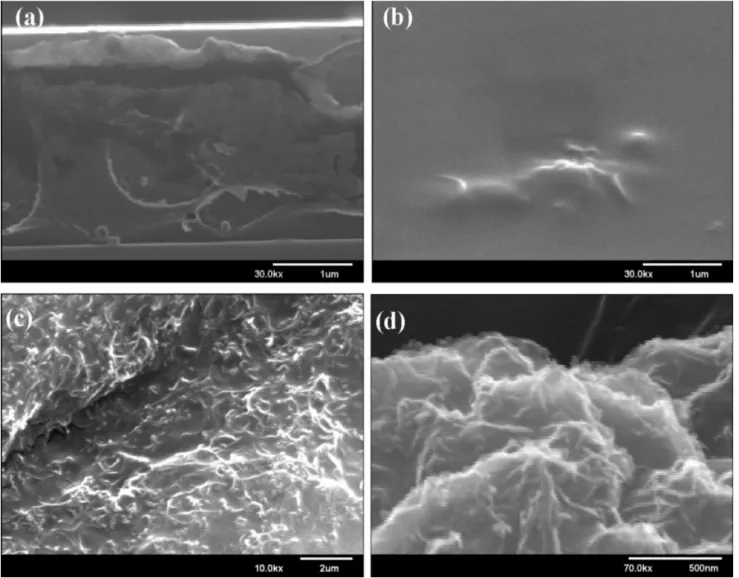

FIG. 2. SEM images of (a) pure PMMA matrix, (b) surface image of MWCNT/PMMA composite, (c) fracture surface image of composite film, (d) large magnitude image of composite film.
contents. CNTs effectively strengthen the composite film. Figure 5 plots the Young’s modulus and hardness of compo-sites films with various carbon nanotube contents. The Young’s modulus increased with the CNT content. How-ever, the hardness increased to a maximum as the content of the CNTs increased to 2%, beyond which the hardness decreased. The stiffness associated with the treated CNTs that were dispersed effectively within the PMMA matrix caused the Young’s modulus and hardness to increase with carbon nanotube content. The results indicated that the CNTs reinforced the mechanical strength of PMMA. Since CNTs have high aspect, high modulus, and high strength, the loading force can be transferred to the nanotubes. The load transfer also depends on the interfacial shear stress between the fiber and the matrix [36]. The main mechanisms of load transfer from matrix to filler are micromechanical interlock-ing, chemical bondinterlock-ing, and the Van Der Waals force [37].
Figure 6 presents the FTIR spectra of surface functional groups of nanocomposite films with various CNT contents. During polymerization, the functional group (OCH3) in the methyl methacrylate monomer was unchanged, but the ¼¼CH2functional group in the monomer was transformed toCH2 [38, 39]. The CO stretching vibration, which might be associated with an ester bond, ranged from 1100 to 1200 cm1. The CH stretching vibration, which might be associated with the carbon of ethylene, is at 2850 to 3000 cm1. The peak at 1728 cm1 is assigned to COO [40]. The size of the phase separation between the filler and the matrix was varied from microns to the nanometers. A covalent interaction and the hydrogen bonds between PMMA and CNTs were desired to inhibit phase separation. The relative intensity of the hydrogen-bonded carbonyl group at 1715 cm1 increased with the CNT content. The molecular structure did not obviously change after CNTs
FIG. 3. Typical loading force versus displacement curves obtained from the nanoindenter system.

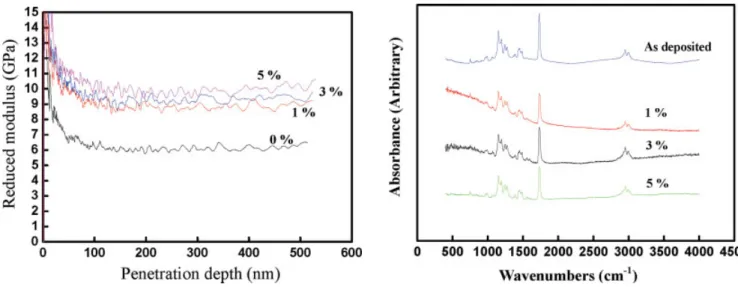

FIG. 4. Reduced modulus versus displacement curves of different CNTs contents on the CNTs/PMMA composite films. [Color figure can be viewed in the online issue, which is available at www.interscience.wiley.com.]
FIG. 5. Effect of CNTs contents on the hardness and Young’s modulus of composite films. [Color figure can be viewed in the online issue, which is available at www.interscience.wiley.com.]
FIG. 6. FTIR spectrums of composite films with different contents of CNTs. [Color figure can be viewed in the online issue, which is available at www.interscience.wiley.com.]
were added to the PMMA matrix. The number of hydrogen atoms in the OCH3 groups of the composite film remained constant. The intensity of the carbonyl molecular group peaks increased when CNTs were added to the
matrix, suggesting that the carbonyl groups in CNTs were covalently bonded to the PMMA matrix.
Figure 7a presents the outgassing behavior of CH3, desorbing from the surface of the composite film. The main desorption peaks were at 160 and 4008C. The desorption temperature of 1608C indicated that the thermal stability of PMMA is not high and composite films are destructive at this temperature. The intensity of desorption peak is reduced by adding CNTs. The carbon atoms at the surface are desorbed from the chain of s bonds. The structure of PMMA comprises mainly carbon atoms. The addition of CNTs may cause the re-bonding of the dangling bonds. However, the exact configuration of the dangling bonds is not yet known.
Figure 7b shows the thermal desorption peaks of CO2. CO2is formed at around 1608C. The sequence of the disper-sion can be explained reasonably by the superposition of one-directional and normal-directional desorption. A CO2 formation peak was observed because CO and oxygen reacted in the co-layer, as follows. CO molecules, which are produced by the desorption of methyl methacrylate on the surface of the film. The film was then further exposed to ambient oxygen. Following annealing, a CO2 formation peak was formed because of the oxidation of CO. The amount of desorbed CO2 depended on the CO coverage. The formation of CO2was suppressed as the CO coverage increased [41]. Figure 7c presents the thermal desorption properties of oxygen molecules. All curves exhibited a low-temperature peak at 100 to 2508C, and another peak at 3808C. At over 4008C, no desorption intensity was observed. The desorption spectra of pure PMMA and com-posite films varied significantly and extensively. The de-sorption peak at low temperature was observed because of physical desorption of gas from the surface. Consequently, the sites of adsorption depended on the chemisorbed oxy-gen, which diffused into the inner layer and saturated two neighboring dangling bonds with s or p bonds. At high tem-perature, oxygen desorbs from the PMMA surface as COx, because of the thermal diffusion of recombined chemi-sorbed species, which results in second-order desorption and the formation of CO or CO2molecules.
CONCLUSION
In this study, direct mixing and sonication were adopted to prepare CNTs/PMMA composite films. CNTs were dis-persed into the PMMA solution by acid treatment. The FTIR image revealed that carboxyl acid was bonded to the surfaces of CNTs and had a strong effect on dispersion per-formance. The nanoindenter test indicated that the Young’s modulus and hardness increased as CNTs were added to the PMMA matrix.
REFERENCES
1. Y. Ishigure, S. Iijima, H. Ito, T. Ota, H. Unuma, M. Takahashi, Y. Hikichi, and H.J. Suzuki,Mater. Sci., 34, 2979 (1999).

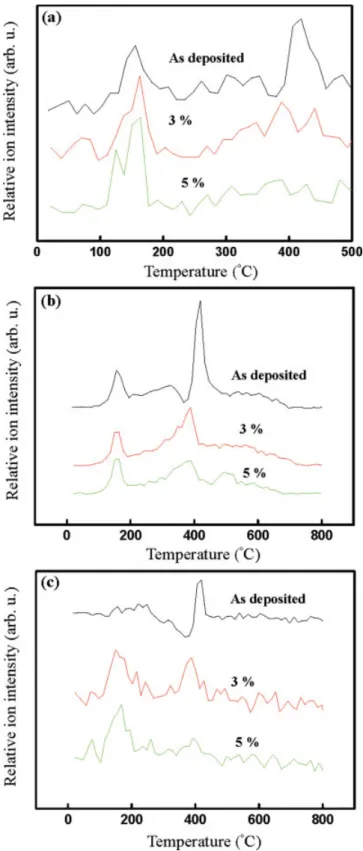

FIG. 7. Production of thermal desorption elements as a function of tem-perature with different contents of CNTs. (a) CH3 (m/e¼ 15), (b) CO2
(m/e¼ 44), and (c) O2(m/e¼ 32). [Color figure can be viewed in the
2. M. Sumita, T. Shizuma, K. Miyasaka, and K. Ishikawa, J. Macromol. Sci. Phys. B, 22, 601 (1983).
3. M. Sumita, T. Tsukurmo, K. Miyasaka, and K. Ishikawa, J. Mater. Sci., 18, 1758 (1983).
4. S.S. Ray and M. Biswas,Synth. Met., 108, 231 (2000). 5. A. Quivy, R. Deltour, A.G.M. Jansen, and P. Wyder,Phys.
Rev. B: Condens Matter, 39, 1025 (1989).
6. M.M.J. Treacy, T.W. Ebbesen, and J.M. Gibbson, Nature, 381, 678 (1996).
7. Z. Yao, C.C Zhu, M. Cheng, and J. Liu,Comput. Mater. Sci., 22, 180 (2001).
8. M.F. Yu, B.S. Files, S. Arepalli, and R.S. Ruoff,Phys. Rev. Lett., 84, 5552 (2000).
9. R.E. Gorga and R.E. Cohen,J. Polym. Sci. Part B: Polym. Phys., 42, 2690 (2004).
10. Y. Sabba and E.L. Thomas, Macromolecules, 37, 4815 (2004)
11. Z. Yang, B. Dong, Y. Huang, L. Liu, F.Y. Yan, and H.L. Li, Mater. Lett., 59, 2128 (2005).
12. Z. Jia, Z. Wang, C. Xu, J. Liang, B. Wei, D. Wu, and S. Zhu, Mater. Sci. Eng. A, 271, 395 (1999).
13. H. Hu, B. Zho, K. Kamaras, and M.E. Itkis, J. Am. Chem. Soc., 125, 14893 (2003).
14. J. Chen, H. Liu, W.A. Weimer, M.D. Halls, D.H. Waldeck, and G.C. Walter,J. Am. Chem. Soc., 124, 9034 (2002). 15. H. Kuzmany, A. Kukovecz, F. Simon, and T. Pichler,Synth.
Met., 141, 113 (2004).
16. E.T. Thostenson and T.W. Chou,Compos. Sci. Technol., 61, 1899 (2002).
17. M.J. O’Connell, P. Boul, L.M. Ericson, C. Huffman, Y.H. Wang, E. Haroz, C. Kuper, J. Tour, K.D. Ausman, and R.E. Smalley,Chem. Phys. Lett., 342, 265 (2001).
18. V.C. Moore, M.S. Strano, E.H. Haroz, R.H. Hauge, R.E. Smalley, J. Schmidt, and Y. Talmon, Nano. Lett., 3, 1379 (2003).
19. M. Monthioux, B.W. Smith, B. Burteaux, A. Claye, J.E. Fi-scher, and D.E. Luzzi,Carbon, 39, 1251 (2001).
20. L. Vaccarini, C. Goze, R. Aznar, V. Micholet, C. Journet, and P. Bernier,Synth. Met., 103, 2492 (1999).
21. S.C. Tsang, P.J.F. Harris, and M.L.H. Green,Nature, 362, 520 (1993).
22. E. Dujardin, T.W. Ebbesen, A. Krishnan, and M.M.J. Treacy, Adv. Mater., 10, 611 (1998).
23. P.M. Ajayan, T.W. Ebbesen, T. Ichihashi, S. Iijima, K. Tani-gaki, and H. Hiura,Nature, 362, 522 (1993).
24. M.A. Hamon, J. Chen, H. Hu, Y. Chen, A.M. Rao, and P. Eklund,Adv. Mater., 11, 834 (1999).
25. H. Hiura, T.W. Ebbesen, and K. Tanigaki,Adv. Mater., 7, 275 (1995).
26. J. Chen, M.A. Hamon, H. Hu, Y. Chen, A.M. Rao, P.C. Eklund, and R.C. Haddon,Science, 282, 95 (1998).
27. S. Niyogi, M.A. Hamon, H. Hu, B. Zhao, P. Bhowmik, R. Sen, M.E. Itkis, and R.C. Haddon,Acc. Chem. Res., 35, 1105 (2002). 28. J. Liu, A.G. Rinzler, H. Dai, J.H. Hafner, R.K. Bradley, and
R.E. Smalley,Science, 280, 1253 (1998).
29. J. Huang and R.B. Kaner,J. Am. Chem. Soc., 126, 851 (2004). 30. L.S. Schadler, S.C. Giannaris, and P.M. Ajayan,Appl. Phys.
Lett., 73, 3842 (1998).
31. J. Mencik, D. Munz, E. Quandt, E.R. Weppelmann, and M.V. Swain,J. Mater. Res., 12, 2475 (1997).
32. A.K. Bhattacharya and W. Nix,Int. J. Solids Struct., 24, 1287 (1988).
33. M. Fukuhara and I. Yamauchi,J. Mater. Sci., 28, 4681 (1993). 34. C.J. Brinker and G.W. Scherrer,Sol-Gel Science, the Physics and Chemistry of Sol-Gel Processing, Academic Press, Boston (1990).
35. C.J.T. Landry, K.C. Bradley, J.A. Wesson, and J.L. Lippert, Polymer, 33, 1496 (1992).
36. G. Tsagaropoulos and A. Eisenberg, Macromolecules, 28, 6067 (1995).
37. K. Liao and S. Li,Appl. Phys. Lett., 79, 4225 (2001).
38. C.C.C Ma and C.H Chen,J. Appl. Polym. Sci., 44, 807 (1992). 39. C.C.C Ma and C.H Chen, J. Appl. Polym. Sci., 44, 819
(1992).
40. S.W. Wee and S.M. Park,Bull. Korean Chem. Soc., 22, 914 (2001).
