Synthesis of hyperbranched polythiophenes containing

tetrachloroperylene bisimide as bridging moiety for polymer solar

cells

Sheng-Hsiung Yang

a,*

, Tz-Shiuan Lin

a

, Yu-Zhang Huang

b

, Husan-De Li

b

,

Yu-Chiang Chao

b,**

a_{Institute of Lighting and Energy Photonics, National Chiao Tung University, No. 301, Gaofa 3rd Road, Guiren Dist., Tainan 71150, Taiwan ROC} b_{Department of Physics, Chung-Yuan Christian University, No. 200, Chung-Pei Road, Chung-Li 32023, Taiwan ROC}

a r t i c l e i n f o

Article history:

Received 7 April 2014 Received in revised form 6 August 2014

Accepted 17 September 2014 Available online 26 September 2014 Keywords:

Hyperbranched Polythiophene

Tetrachloroperylene bisimide

a b s t r a c t

The goal of this research is to synthesize the hyperbranched polythiophene derivatives (P1 and P4) containing tetrachloroperylene bisimide as bridging moiety for investigation of thermal, electrochemical, and opto-electrical properties of these derivatives. The polymers (P2 and P3) containing soft alkyl spacer as bridging moiety and linear poly(3-hexylthiophene) (P3HT) were also synthesized for comparison in this study. Polymers with high regioregularity were synthesized via the Universal Grignard metathesis polymerization. The GPC results showed that molecular weights of hyperbranched polythiophenes are higher than that of P3HT. The TGA experiments revealed afirst-stage weight loss at about 300
_{C for all}

polymers; besides, polymers containing rigid tetrachloroperylene bisimide groups possess less weight loss than P3HT after heating, indicative of enhanced thermal stabilities. The UVevis absorption maxima of hyperbranched polymers are similar to that of P3HT infilm state, while their absorption shoulder bands are stronger than that of P3HT, indicating stronger interchain interaction and shorter distance between backbones by the introduction of bridge architecture. Moreover, an attenuation offluorescent intensity was found for those hyperbranched polymers, implying reduced recombination of excitons to emit light and more opportunity for carriers to migrate to both electrodes. Electrochemical analysis showed that introducing hyperbranched structure resulted in decreasing both LUMO and HOMO levels of polymers. All polymers were used for fabrication of polymer solar cells with the configuration of ITO/ PEDOT/polymer:PC60BM (1:2 w/w)/LiF/Al to evaluate their performance. The power conversion efficiency

(PCE) of the P3HT:PC60BM-based device is 0.54%, while devices based on hyperbranched polymers

showed PCE values in the range of 0.45e0.84%. The morphological study of polymer:PC60BM blendfilms

was performed by AFM for interpretation of efficiency trend of devices.

© 2014 Elsevier Ltd. All rights reserved.

1. Introduction

Polythiophene (PT) and its derivatives, especially poly(3-hexylthiophene) (P3HT), have been used for fabrication of organic optoelectronics because of good thermal and chemical stability, and excellent opto-electrical properties. McCullough et al.firstly pro-posed P3HT with>95% regioregularity by metathesis polymeriza-tion[1,2]. The highly ordered head-to-tail structure makes close packing between P3HT main chains and increased absorption in the

red-light region. A thinfilm made of a PT derivative with thioalkyl side groups was also found to enhance its electrical conductivity by exposure to laser radiation[3]. Polymer solar cells based on P3HT achieved power conversion efficiency (PCE) of 4.3% with suitable thermal annealing technique[4]. The polymer microstructure and polymer:fullerene blend morphology were recognized and dis-cussed for production of high photovoltaic performance[5]. Main-chain type PTs have widely been developed in the literature[6], while side-chain PTs are less reported. Wei et al. reported an intramolecular donoreacceptor regioregular side-chain PT deriva-tive (PHPIP) by incorporating electron-deficient phenanthrenyl-imidazole group as side pendant[7,8]. They proposed that charge dissociation may occur on the interface between PT main chain and side pendants, allowing electrons to transport from phenanthrenyl-* Corresponding author. Tel.: þ886 6 3032121; fax: þ886 6 3032535.

** Corresponding author. Tel.: þ886 3 2653208; fax: þ886 3 2653299. E-mail addresses:[email protected](S.-H. Yang),[email protected]

(Y.-C. Chao).

Contents lists available atScienceDirect

Polymer

j o u r n a l h o m e p a g e :w w w . e l s e v ie r . c o m / l o c a t e / p o l y m e r

http://dx.doi.org/10.1016/j.polymer.2014.09.046

imidazole group to [6,6]phenyl-C61-butyric acid methyl ester (PC60BM), while holes migrate along PT main chains. The solar device based on PHPIP:PC60BM led to a short-circuit current den-sity (JSC) of 11.3 mA/cm2and a PCE value of 4.1%. Li et al. reported a side-chain PT copolymer (PT-VTVTC12) containing bi(thienylene-vinylene) side chains to increase light absorption in the ultraviolet region[9]. The solar device based on PT-VTVTC12:PC60BM reached a PCE value of 3.18%. Lanzi et al. reported a new PT-based double-cable polymer with pendent C60-fullerene group [10]. The solar device based on this C60-fullerene-containing copolymer showed a PCE value of 1.55%. An even higher PCE value of 2.24% was obtained by using the fullerene-functionalized monomer in blend with P3HT instead of the usually employed PC60BM. Emrick et al. reported a P3HT derivative containing perylene bisimide (PBI) as side pendent

[11]. The photoluminescence intensity of the side-chain type P3HT was decreased compared to linear P3HT, indicating increased ag-gregation of polymer chains. However, the PCE value of solar device was low (0.49%).

Apart from main-chain and side-chain type P3HTs,

p

-bridged P3HTs have also been studied to investigate the effect of bridging moieties on the performance offinal polymers. Li et al. designed a terthiophene-bridged P3HT derivative (PT-VTThV) by incorporating divinyl-terthiophene moiety between P3HT main chains to elon-gate conjugation length[12]. They proposed that charge carriers could migrate in two ways: along one single chain and through bridging moiety to another polymer chain. The hole mobility of the polymer was increased by experimental measurement. The per-formance of solar device based on PT-VTThV:PC60BM was less promoted (PCE¼ 1.72%). Tu et al. reported another bridged P3HT (B-P3HT) by using 3,30-dithiophene as bridging moiety[13]. The distance between two bridged P3HT chains was reduced compared to previous example PT-VTThV; however, the hole mobility of polymer was decreased. The PCE values of solar devices based on B-P3HT:PC60BM were 0.13e2%. Mangold et al. reported two hyper-branched PTs using 2,3-dithienylthiophene or 2,3,5-trithienylthiophene as bridging cores [14]. The optimized solar cell based on the hyperbranched PT material in combination with PC60BM showed an open-circuit voltage (VOC) 30% higher (up to 714 mV) than normally found with P3HT. The PCE values of solar devices were measured to be 0.58_e0.61%.

In this study, we propose a new approach to synthesize the hyperbranched PT derivatives by introducing perylene bisimide (PBI) or soft alkyl spacer as bridging moieties. PBI is a well-known electron-withdrawing material, which may contribute to charge dissociation in a donoreacceptor polymer. Four chlorine atoms are designed to introduce on bay positions of perylene core to improve solubility of intermediates and final polymers [15]. To obtain hyperbranched polymers, four different two-headed monomers containing tetrachloroperylene bisimide or alkyl spacer were syn-thesized and added during polymerization of P3HT. The synthe-sized polymers are expected to form hyperbranched structure, accompanying with increased molecular weights and improved thermal properties. Linear P3HT was also prepared according to the same polymerization condition for comparison. The electrical and spectroscopic properties of theses polymers were systematically investigated. In addition, polymer solar devices were also fabri-cated to evaluate performance of the polymers.

2. Experimental

2.1. Characterization methods

The synthesized materials were characterized by the following techniques.1H and13C NMR spectra were recorded on a Bruker Avance 600 MHz NMR spectrometer. Mass spectra were recorded

on a Micromass TRIO-2000 GC_{eMS instrument, using electron} impact (EI) or fast atom bombardment (FAB) as ionization source. Gel permeation chromatography (GPC) data assembled from Vis-cotek with a VE3850 RI detector and three columns in series were used to measure molecular weights relative to polystyrene stan-dards at 32
C. Differential scanning calorimetry (DSC) was per-formed on a Seiko DSC 6200 unit at a heating rate of 10
C/min. Thermogravimetric analysis (TGA) was undertaken on a Seiko TG/ DTA 7200 instrument at a heating rate of 10
C/min. UVevis ab-sorption and photoluminescence (PL) spectra were obtained with a Princeton Instruments Acton 2150 spectrophotometer. Cyclic vol-tammetric measurements of materials were made in acetonitrile with 0.1 M tetrabutylammonium tetrafluoroborate (TBABF4) as the supporting electrolyte at a scan rate of 50 mV/s. Indium_{etin oxide} (ITO) electrodes were used as both the working and counter elec-trodes, and silver/silver ions (Ag in 0.1 M AgNO3 solution, from Bioanalytical Systems, Inc.) was used as the reference electrode. Ferrocene was used as an internal standard, and the potential values were obtained and converted to vs SCE (saturated calomel electrode). The corresponding highest-occupied molecular orbital (HOMO) was estimated from the onset of oxidation potential. Atomic force microscopy (AFM) experiments were performed on a Bruker Innova AFM for detecting surfaces morphologies of polymer blendfilms.

2.2. Synthesis of monomers

The synthetic routes to intermediates and two-headed mono-mers M1eM4 are shown inSchemes 1 and 2. The monomer 2,5-Dibromo-3-hexylthiophene (M5) was prepared according to the previous literature [16]. Detailed synthetic procedures are described as follows.

2.2.1. 1,6,7,12-tetrachloro-3,4,9,10-perylenetetracarboxylic dianhydride(1)

A mixture of 3,4,9,10-perylenetetracarboxylic dianhydride (3.30 g, 8.41 mmol), chlorosulfonic acid (20 mL, 300 mmol) and iodine (0.56 g, 2.20 mmol) was stirred at 65
C for 30 h. After cooling to room temperature, the solution was added dropwise to an ice-water mixture. The precipitate was collected by_{filtration to} give a red solid (4.14 g, 92%).1H NMR (d-DMSO, ppm): 8.75 (s, 4H, aromatic protons).13C NMR (d-DMSO, ppm): 119.75, 125.29, 129.5, 134.88, 136.22, 158.16, 168.53. Mass (EI): m/z 532.

2.2.2. 1-(60-bromohexyloxy)-4-methoxybenzene(2)

A solution of 4-methoxyphenol (10.0 g, 80.58 mmol), 1,6-dibromohexane (60.0 g, 245.90 mmol), and potassium hydroxide (6.0 g, 106.95 mmol) in 100 mL of dimethyl sulfoxide (DMSO) was stirred at room temperature for 6 h. The solution was extracted with dichloromethane (DCM) and water, and the organic phase was dried with anhydrous MgSO4. The crude product was concentrated in vacuo and purified by gel chromatography (silica gel, DCM/ hexane¼ 2/1 in volume ratio as the eluant) to give a white solid (15.0 g, 65%). 1H NMR (CDCl3, ppm): 1.46e1.51 (m, 4H, eOCH2CH2(CH2)2eCH2CH2Br), 1.76e1.81 (m, 2H, eCH2CH2Br), 1.87_{e1.91 (m, 2H, eOCH}2CH2e), 3.40e3.44 (m, 2H, eCH2Br), 3.77 (s, 3H,eOCH3), 3.90e3.93 (t, J ¼ 6.0 Hz, 2H, eOCH2e), 6.83 (s, 4H, aromatic protons).13C NMR (CDCl3, ppm): 25.32, 27.94, 29.21, 32.70, 33.78, 55.75, 68.41, 114.65, 115.46, 153.22, 153.75. MASS (EI): m/z 287.

2.2.3. 1-(60-bromohexyloxy)-2,5-dibromo-4-methoxybenzene(3) A solution of liquid bromine (8.0 g, 50.0 mmol) in 30 mL of CHCl3 was added dropwise to a mixture of (2) (5.0 g, 17.41 mmol), a cat-alytic amount of iron powder, and 240 mL of CHCl3 at 0
C. The

solution was then stirred at room temperature for 12 h. After extracting with water twice, the organic phase was collected and dried with anhydrous MgSO4. The crude product was concentrated in vacuo and purified by gel chromatography (silica gel, ethyl ace-tate/hexane¼ 1/14 in volume ratio as the eluant) to give a white solid (5.0 g, 65%).1H NMR (CDCl3, ppm): 1.52e1.54 (t, J ¼ 3.5 Hz, 4H, eOCH2e CH2(CH2)2CH2CH2Br), 1.79e1.85 (m, 2H, eCH2CH2Br), 1.88e1.93 (m, 2H, eOCH2CH2e), 3.41e3.44 (t, J ¼ 6.7 Hz, 2H, eCH2Br), 3.84 (s, 3H, eOCH3), 3.94e3.97 (t, J ¼ 6.3 Hz, 2H, eOCH2e), 7.09 (s, 2H, aromatic protons).13C NMR (CDCl3, ppm): 25.19, 27.81, 28.92, 32.64, 33.74, 56.99, 70.06, 110.41, 111.27, 117.01, 118.65, 150.04, 150.55. MASS (EI): m/z 445.

2.2.4. N-[6-(2,5-dibromo-4-methoxyphenyl)hexyl]phthalimide(4) A solution of (3) (2.0 g, 4.49 mmol), and potassium phthalimide (1.10 g, 5.94 mmol) in 30 mL of DMSO was stirred at 70
C for 16 h. The solution was extracted with ethyl acetate and water, and the organic phase was collected and dried with anhydrous MgSO4. The crude product was concentrated in vacuo and purified by gel chromatography (silica gel, DCM as the eluant) to give a white solid

(1.50 g, 65%). 1H NMR (CDCl3, ppm): 1.40e1.46 (m, 2H, eOCH2CH2eCH2CH2CH2CH2Ne), 1.51e1.57 (m, 2H, eOCH2CH2CH2CH2CH2CH2Ne), 1.69e1.75 (m, 2H, eCH2CH2Ne), 1.77e1.83 (m, 2H, eOCH2CH2e), 3.68e3.71 (t, J ¼ 7.2 Hz, 2H, eCH2Ne), 3.83 (s, 3H, eOCH3), 3.92e3.95 (t, J ¼ 6.4 Hz, 2H, eOCH2e), 7.07 (s, 2H, aromatic protons), 7.69e7.71 (dd, J1¼ 5.3 Hz, J2 ¼ 3.0 Hz, 2H, aromatic protons), 7.82e7.84 (dd, J1 ¼ 5.3 Hz, J2¼ 3.0 Hz, 2H, aromatic protons).13C NMR (CDCl3, ppm): 25.58, 26.51, 28.50, 28.94, 37.88, 56.98, 70.10, 110.36, 111.24, 117.01, 118.57, 123.15, 132.14, 133.83, 150.07, 150.47, 168.44. MASS (EI): m/z 511.

2.2.5. N-(6-aminohexyl)-2,5-dibromo-4-methoxybenzene(5) A solution of (4) (2.0 g, 3.91 mmol) and hydrazine (2.40 g, 31.30 mmol) in a solvent mixture of ethanol (20 mL) and tetrahy-drofuran (THF, 20 mL) was refluxed at 70
_{C for 4 h. The solution} was then extracted with ethyl acetate and water, and the organic phase was dried with anhydrous MgSO4. The crude product was concentrated in vacuo and purified by gel chromatography (silica gel, methanol as the eluant) to give a yellowish viscous liquid (1.10 g, 74%). 1H NMR (CDCl3, ppm): 1.39e1.44 (m, 2H, OCH3 OH 1,6-dibromohexane KOH / DMSO OCH3 O(CH2)6Br Fe / CHCl3 Br2 OCH3 O(CH2)6Br Br Br N O O K DMSO OCH3 O(CH2)6 Br Br N O O THF / EtOH hydrazine OCH3 O(CH2)6NH2 Br Br O O O O O O HSO3Cl I2 O O O O O O Cl Cl Cl Cl (1) (2) (3) (4) (5) AcOH / DMF (1) N N O O O O Cl Cl Cl Cl (CH2)6O OCH3 Br Br O(CH2)6 H3CO Br Br (M1) 1,6-dibromohexane KOH / TBABr THF O(CH2)6O H3CO OCH3 Fe / CHCl3 Br2 (6) O(CH2)6O H3CO OCH3 Br Br Br Br (M2) OH H3CO

eOCH2CH2CH2CH2CH2CH2NH2), 1.48e1.55 (m, 4H, eOCH2CH2CH2CH2e CH2CH2NH2), 1.76 (s, 2H,eNH2), 1.79e1.84 (m, 2H,eOCH2CH2e), 2.71e2.74 (t, J ¼ 7.0 Hz, 2H, eCH2NH2), 3.84 (s, 3H,eOCH3), 3.94e3.97 (t, J ¼ 6.4 Hz, 2H, eOCH2e), 7.09 (s, 2H, aromatic protons). 13C NMR (CDCl3, ppm): 25.82, 26.53, 29.08, 33.34, 41.99, 57.00, 70.23, 110.43, 111.28, 117.06, 118.68, 150.13, 150.54. MASS (EI): m/z 381.

2.2.6. N,N0 -bis[6-(2,5-dibromo-4-methoxyphenyl)hexyl]-1,6,7,12-tetrachloro-3,4,9,10-perylenetetracarboxylic bisimide(M1)

A solution of (1) (0.39 g, 7.33 mmol), (5) (1.1 g, 29.32 mmol), and glacial acetic acid (11 mL) in 55 mL of N,N-dimethylformamide (DMF) was stirred at 80
C for 18 h. The reaction mixture was cooled to room temperature and poured into an ice-water mixture. The precipitate was collected, washed with excess of water, and sepa-rated by gel chromatography (silica gel, DCM as the eluant). The concentrated product was further re-precipitated twice in DCM (20 mL)/hexane (50 mL) solvent mixture to yield a red solid (0.59 g, 65%). 1H NMR (CDCl3, ppm): 1.50e1.63 (m, 8H, eOCH2CH2e CH2CH2CH2CH2eperylene), 1.77e1.87 (m, 8H, eOCH2CH2CH2CH2e CH2CH2eperylene), 3.83 (s, 6H, eOCH3), 3.95e3.98 (t, J ¼ 6.3 Hz, 4H,_eOCH2e), 4.22e4.25 (t, J ¼ 7.4 Hz, 4H, eCH2eperylene), 7.07 (s, 2H, aromatic protons), 7.09 (s, 2H, aromatic protons), 8.68 (s, 4H, aromatic protons).13C NMR (CDCl3, ppm): 25.71, 26.71, 27.98, 28.96, 29.68, 40.78, 56.98, 70.13, 110.39, 111.24, 117.00, 118.58, 123.21, 123.26, 128.59, 131.94, 132.94, 135.36, 150.07, 150.48, 162.24. MASS (FAB): m/z 1258.

2.2.7. 1-[6-(4-methoxyphenoxy)hexyloxy]-4-methoxybenzene(6) A solution of 4-methoxyphenol (9.0 g, 72.5 mmol), 1,6-dibromohexane (8.1 g, 33.2 mmol), potassium hydroxide (5.4 g,

96.3 mmol), and a catalytic amount of tetrabutylammonium bro-mide in 150 mL of THF was refluxed at 70
_{C for 12 h. After cooling} to room temperature, the solution was poured into water. The precipitate was collected byfiltration and washed with ethyl ace-tate and hexane to give a white solid (6.0 g, 84%).1H NMR (CDCl3, ppm): 1.59e1.58 (m, 4H, eOCH2CH2e CH2CH2CH2CH2Oe), 1.88e1.84 (m, 4H, eOCH2CH2CH2CH2CH2CH2Oe), 3.77 (s, 6H, eOCH3), 3.93e3.91 (t, J ¼ 6.0 Hz, 4H, eOCH2(CH2)4CH2Oe), 6.83 (s, 8H, aromatic protons).13C NMR (CDCl3, ppm): 25.88, 29.33, 55.74, 68.51, 114.63, 115.45, 153.27, 153.71. Mass (EI): m/z 330.

2.2.8. 1-[6-(2,5-dibromo-4-methoxyphenyl)hexyloxy]-2,5-dibromo-4-methoxybenzene(M2)

A solution of liquid bromine (9.0 g, 56.25 mmol) in 10 mL of CHCl3 was added dropwise to a mixture of (6) (4.0 g, 12.11 mmol) and a catalytic amount of iron powder in 240 mL of CHCl3at 0
C. The solution was stirred at room temperature for 12 h. The solution was then extracted with water twice, and the organic phase was dried with anhydrous MgSO4. The crude product was concentrated in vacuo and purified by gel chromatography (silica gel, DCM/ hexane¼ 3/2 in volume ratio as the eluant) to give a white solid (0.8 g, 10%). 1H NMR (CDCl3, ppm): 1.57e1.60 (m, 4H, eOCH2CH2eCH2CH2CH2CH2Oe), 1.82e1.86 (m, 4H, eOCH2CH2CH2e CH2CH2CH2Oe), 3.84 (s, 6H, eOCH3), 3.96e3.99 (t, 4H, J ¼ 6.0 Hz, eOCH2(CH2)4CH2Oe), 7.08 (s, 2H, aromatic protons), 7.09 (s, 2H, ar-omatic protons).13C NMR (CDCl3, ppm): 25.43, 28.94, 55.96, 69.97, 110.37, 111.23, 116.96, 118.56, 150.06, 150.47. Mass (EI): m/z 646. 2.2.9. 4,40-dibromo-2-nitrobiphenyl(7)

A solution of 4,40-dibromobiphenyl (5.0 g, 16.03 mmol) in 75 mL of glacial acetic acid was heated to 100
C, and then 60 mL of nitric Scheme 2. Synthesis of monomers M3 and M4.

acid was added dropwise. The solution was stirred at 100
C for 12 h. After cooling to room temperature, the reaction mixture was poured into an ice-water mixture. The precipitate was collected by filtration, washed with excess of water, and purified by gel chro-matography (silica gel, ethyl acetate/hexane¼ 1/10 in volume ratio as the eluant) to give a yellow solid (5.03 g, 88%).1H NMR (CDCl3, ppm): 7.14 (d, J¼ 8.0 Hz, 1H, aromatic proton), 7.27 (d, J ¼ 8.0 Hz, 1H, aromatic proton), 7.55 (d, J¼ 8.0 Hz, 1H, aromatic proton), 7.74 (dd, J1¼ 8.0 Hz, J2¼ 2.0 Hz, 1H, aromatic proton), 8.02 (d, J ¼ 2.0 Hz, 1H, aromatic proton).13C NMR (CDCl3, ppm): 121.78, 123.01, 127.21, 128.43, 128.46, 129.37, 131.97, 132.98, 134.08, 135.25, 135.52, 149.20. MASS (EI): m/z 357.

2.2.10. 2,7-dibromocarbazole₍₈₎

A solution of (7) (4.0 g, 11.21 mmol) and triphenylphosphine (7.20 g, 27.45 mmol) in 45 mL of chlorobenzene was stirred at 120
C for 16 h. The solution was extracted with ethyl acetate and water, and the organic phase was dried with anhydrous MgSO4. The crude product was concentrated in vacuo and purified by gel chromatography (silica gel, DCM/hexane¼ 1/2 in volume ratio as the eluant) to give a white solid (1.86 g, 51%).1H NMR (CDCl3, ppm): 7.35e7.36 (d, J ¼ 8.0 Hz, 2H, aromatic protons), 7.58 (s, 2H, aromatic protons), 7.86e7.88 (d, J ¼ 8.0 Hz, 2H, aromatic protons), 8.10 (s, 1H, eNH).13_{C NMR (CDCl}

3, ppm): 113.83, 119.73, 121.45, 121.79, 132.29, 140.29. MASS (EI): m/z 325.

2.2.11. N-[10-(2,7-dibromocarbazolyl)decyl]-2,7-dibromocarbazole (M3)

A mixture of (8) (1.0 g, 72.5 mmol), 1,10-dibromodecane (0.46 g, 1.53 mmol), potassium hydroxide (0.8 g, 14.29 mmol), and a cata-lytic amount of tetrabutylammonium bromide in 20 mL of DMF was stirred at room temperature for 24 h. The reaction mixture was then poured into water, and the precipitate was collected by filtration and washed with ethyl acetate and hexane to give a white solid (0.62 g, 52%). 1H NMR (CDCl3, ppm): 1.22e1.35 (m, 12H, eNCH2CH2e(CH2)6CH2CH2Ne), 1.78e1.84 (m, 4H, eNCH2CH2e), 4.15e4.18 (t, J ¼ 7.0 Hz, 4H, eNCH2e), 7.31e7.33 (d, J ¼ 8.0 Hz, 4H, aromatic protons), 7.48 (s, 4H, aromatic protons), 7.86e7.88 (d, J¼ 8.0 Hz, 4H, aromatic protons).13_{C NMR (CDCl}

3, ppm): 27.04, 28.68, 29.18, 29.23, 43.16, 112.00, 119.68, 121.27, 121.47, 122.52, 141.35. MASS (EI): m/z 788.

2.2.12. N-(6-bromohexyl)-2,7-dibromocarbazole₍₉₎

A mixture of (8) (2.0 g, 6.16 mmol), 1,6-dibromohexane (3.0 g, 12.3 mmol), and potassium hydroxide (0.4 g, 7.13 mmol) in 40 mL of DMF was stirred at room temperature for 24 h. The solution was then extracted with ethyl acetate and water, and the organic phase was dried with anhydrous MgSO4. The crude product was concentrated in vacuo and purified by gel chromatography (silica gel, DCM/hexane¼ 1/5 in volume ratio as the eluant) to give a white solid (0.93 g, 30%). 1H NMR (CDCl3, ppm): 1.36e1.41 (m, 2H, eNCH2CH2CH2eCH2CH2CH2Br), 1.47e1.52 (m, 2H, eNCH2CH2CH2CH2e CH2CH2Br), 1.81e1.88 (m, 4H, eNCH2CH2CH2CH2CH2CH2Br), 3.36e3.39 (t, J ¼ 7.0 Hz, 2H, eCH2Br), 4.16e4.19 (t, J ¼ 7.0 Hz, 2H, eNCH2e), 7.33e7.35 (d, J ¼ 8.0 Hz, 2H, aromatic protons), 7.51 (s, 2H, aromatic protons), 7.86_{e7.88 (t, 2H,} J¼ 8.0 Hz, aromatic protons).13_{C NMR (CDCl}

3, ppm): 26.34, 27.84, 28.61, 32.50, 33.56, 43.12, 111.92, 119.72, 121.28, 121.49, 122.60, 141.29. MASS (EI): m/z 486.

2.2.13. N-[6-(2,7-dibromocarbazolyl)hexyl]phthalimide(10) A mixture of (9) (0.1 g, 0.21 mmol) and potassium phthalimide (0.042 g, 0.23 mmol) in 5 mL of DMF was stirred at 70
C for 16 h. The mixture was then extracted with ethyl acetate and water, and the organic phase was dried with anhydrous MgSO4. The crude

product was concentrated in vacuo and puri_{fied by gel} chroma-tography (silica gel, DCM as the eluant) to give a white solid (0.08 g, 71%). 1H NMR (CDCl3, ppm): 1.37e1.45 (m, 4H, carbazoleeCH2CH2eCH2CH2CH2CH2Ne), 1.65e1.70 (m, 2H, carbazoleeCH2CH2e), 1.82e1.87 (m, 2H, eCH2CH2Ne), 3.66e3.69 (t, J¼ 7.0 Hz, 2H, carbazoleeCH2e), 4.18e4.21 (t, J ¼ 7.0 Hz, 2H, eCH2Ne), 7.32e7.34 (dd, J1 ¼ 8.0 Hz, J2 ¼ 1.0 Hz, 2H, aromatic protons), 7.51 (d, J¼ 1.0 Hz, 2H, aromatic protons), 7.69e7.71 (dd, J1 ¼ 6.0 Hz, J2 ¼ 3.0 Hz, 2H, aromatic protons), 7.82e7.84 (dd, J1 ¼ 6.0 Hz, J2 ¼ 3.0 Hz, 2H, aromatic protons), 7.87e7.89 (d, J¼ 8.0 Hz, 2H, aromatic protons).13_{C NMR (CDCl}

3, ppm): 26.75, 28.43, 28.70, 29.69, 37.75, 43.26, 111.97, 119.72, 121.30, 121.48, 122.58, 123.19, 132.13, 133.87, 141.32, 168.41. MASS (EI): m/z 553. 2.2.14. N-(6-aminohexyl)-2,7-dibromocarbazole(11)

A solution of (10) (0.1 g, 0.18 mmol) and hydrazine (0.01 g, 0.56 mmol) in a solvent mixture of ethanol (5 mL) and THF (55 mL) was refluxed at 70
_{C for 4 h. The solution was then extracted with} ethyl acetate and water, and the organic phase was dried with anhydrous MgSO4. The crude product was concentrated in vacuo and purified by gel chromatography (silica gel, methanol as the eluant) to give a yellowish viscous liquid (0.02 g, 27%).1H NMR (CDCl3, ppm): 1.37 (m, 6H,eNCH2CH2CH2CH2CH2CH2NH2), 1.84 (m, 2H, eNCH2CH2e), 1.95 (m, 2H, eCH2NH2), 2.71 (s, 2H, eNH2), 4.16e4.19 (t, J ¼ 7.0 Hz, 2H, eNCH2e), 7.32e7.34 (d, J ¼ 8.0 Hz, 2H, aromatic protons), 7.51 (s, 2H, aromatic protons), 7.87e7.88 (d, 2H, J_{¼ 8.0 Hz, aromatic protons).}13_{C NMR (CDCl}

3, ppm): 26.55, 26.96, 28.73, 29.67, 43.22, 111.95, 119.68, 121.26, 121.48, 122.54, 141.32. MASS (EI): m/z 424.

2.2.15. N,N0 -bis[6-(2,7-dibromocarbazolyl)hexyl]-1,6,7,12-tetrachloro-3,4,9,10-perylene tetracarboxylic bisimide(M4)

A mixture of (1) (0.1 g, 0.19 mmol), (11) (0.32 g, 0.75 mmol), and glacial acetic acid (1 mL) in 10 mL of DMF was stirred at 80
C for 18 h. The reaction mixture was cooled to room temperature and poured into an ice-water mixture. The precipitate was collected, washed with excess of water, and separated by gel chromatography (silica gel, DCM/hexane¼ 1/2 in volume ratio as the eluant). The concentrated product was further re-precipitated twice in DCM (20 mL)/hexane (50 mL) solvent mixture to yield a mauve solid (0.015 g, 6%). 1H NMR (CDCl3, ppm): 1.48 (m, 8H, eNCH2CH2e(CH2)2CH2CH2eperylene), 1.73 (m, 4H, eNCH2CH2e), 1.87 (m, 4H, _eCH2CH2eperylene), 4.15e4.22 (m, 8H, eNCH2(CH2)4CH2eperylene), 7.28e7.31 (m, 4H, aromatic protons), 7.51 (s, 4H, aromatic protons), 7.83e7.85 (d, J ¼ 8.0 Hz, 4H, aromatic protons), 8.65 (s, 4H, aromatic protons).13C NMR (CDCl3, ppm): 26.61, 26.79, 27.80, 28.57, 29.70, 43.42, 112.00, 114.23, 119.72, 121.31, 121.49, 122.58, 123.18, 123.28, 128.62, 132.99, 135.39, 141.34, 162.23. MASS (FAB): m/z 1344.

2.3. Synthesis of polymers

The synthesis of P3HT and hyperbranched polymers P1eP4 is depicted in Scheme 3. All polymers were polymerized via the Universal Grignard metathesis polymerization[17]. The molar ratio of isopropylmagnesium chloride_{e lithium chloride (i-PrMgCl$LiCl)} complex to monomer was controlled to 1.4:1. For polymers P1eP4, the molar ratio of two-headed monomers M1eM4 to M5 was controlled to 0.025:1. The detailed synthetic procedure of polymer P1 was listed below as example.

To a mixture of M1 (0.096 g, 0.076 mmol) and M5 (1.0 g, 3.07 mmol) in 35 mL of anhydrous THF was added 1 M i-PrMgCl$LiCl (3.4 mL, 4.3 mmol) using syringe under nitrogen at-mosphere. The reaction mixture was heated to 80
C and stirred for 2 h. A dispersion of 1,2-bis(diphenylphosphinoethane)nickel(II)

chloride (Ni(dppp)Cl2) (9.0 mg, 1.66  102 mmol) in anhydrous THF (25 mL) was injected into the reaction mixture and stirred at 80
C for 3 h. The resulting solution was then poured into 150 mL of MeOH and stirred for 1 h. The crude product was collected and re-precipitated in hexane several times to give a purple-black solid (0.206 g, 40%).

P3HT: by following the synthetic procedure of P1 and using M5 (1.0 g, 3.07 mmol), i-PrMgCl$LiCl (3.4 mL, 4.3 mmol), and Ni(dppp) Cl2(9.0 mg, 1.66  102mmol) as starting materials, P3HT was obtained as a purple black solid (0.21 g, 41%).

P2: by following the synthetic procedure of P1 and using M2 (0.05 g, 0.076 mmol), M5 (1.0 g, 3.07 mmol), i-PrMgCl$LiCl (3.4 mL, 4.3 mmol), and Ni(dppp)Cl2(9.0 mg, 1.66 102mmol) as starting materials, P2 was obtained as a purple-black solid (0.205 g, 40%).

P3: by following the synthetic procedure of P1 and using M3 (0.06 g, 0.076 mmol), M5 (1.0 g, 3.68 mmol), i-PrMgCl$LiCl (3.4 mL, 4.3 mmol), and Ni(dppp)Cl2(9.0 mg, 1.66 102mmol) as starting materials, P3 was obtained as a purple-black solid (0.213 g, 41%).

P4: by following the synthetic procedure of P1 and using M4 (0.10 g, 0.076 mmol), M5 (1.0 g, 3.68 mmol), i-PrMgCl$LiCl (3.4 mL, 4.3 mmol), and Ni(dppp)Cl2(9.0 mg, 1.66 102mmol) as starting materials, P4 was obtained as a purple-black solid (0.215 g, 41%). 2.4. Device fabrication and measurement

The P3HT and polymers P1eP4 were firstly dissolved in dichlorobenzene (20 mg/mL). The solutions were then treated with ultrasonic treatment and heated at 70
C for 30 min for better dissolution. The solutions were_{filtered and evacuated to extract the} soluble part of the polymers. As for the fabrication of polymer solar cells, the polymer was blend with PC60BM in dichlorobenzene (1:2 in w/w) at a total concentration of 22.5 mg/mL, and the blend so-lution was stirred at 40
C overnight. The blend solution was then spin-coated on a poly(3,4-ethylenedioxythiophene):poly(styrene sulfonate) (PEDOT:PSS, Clevios P VP AI4083)-coated ITO substrate to form a photoactive layer. The thickness of the photoactive layer was controlled to be 90e100 nm by adjusting the spin coating speed. The active layers were then treated with thermal annealing

at 110
C for 10 min, which is close to the glass transition temper-ature (Tg) of polymers. Finally, LiF (1.2 nm) and Al (70 nm) were deposited as cathode. Electrical characteristics were measured us-ing a Keithley 2400 supplier. An AM 1.5 solar simulator (Oriel 96000 150 W) at 100 mW/cm2intensity was used for illumination measurements.

3. Results and discussion 3.1. Characterization of polymers

The goal of this research is to synthesize hyperbranched poly-thiophenes by incorporating two-headed monomers M1eM4 during polymerization of P3HT. Both heads in M1eM4 function as polymerizable monomers to extend polymer chains. Hyper-branched architectures offinal polymers are expected to form with increased molecular weights and modified optoelectrical proper-ties compared to the corresponding linear P3HT. The feed ratio of two-headed monomers should be low and well controlled to pre-vent gelation. In this study, the molar ratio of two-headed mono-mers to 2,5-dibromo-3-hexylthiophene (M1eM4:M5) is controlled to be 0.025:1 to ensure increased molecular weights and good solubility of final polymers in organic solvents, such as CHCl3, chlorobenzene, or o-dichlorobenzene. The molecular weights of the synthesized polymers were determined by GPC, using linear poly-styrenes as standards. It should be noted that the measured mo-lecular weights of those hyperbranched polymers could be overestimated, since they are partially corsslinked and not linear polymers. Table 1 summarizes the number-average molecular Scheme 3. Synthesis of P3HT and polymers P1eP4.

Table 1

Polymerization results of P3HT and polymers P1eP4.

Polymer Mn(104) Mw(104) PDI P3HT 1.69 3.16 1.87 P1 3.41 6.31 1.85 P2 2.92 5.42 1.86 P3 3.24 5.32 1.64 P4 2.82 5.62 1.99

weight (Mn), weight-average molecular weight (Mw), and poly-dipersity index (PDI) of synthesized polymers P3HT and P1eP4 in this research. It is clearly seen that both Mn and Mw of hyper-branched polymers P1eP4 are higher than those of P3HT, while PDI values are still less than 2. On the other hand, the structures of bridging moieties show insignificant effect on molecular weights of polymers (tetrachloroperylene bisimide v.s. alkyl spacer). As a result, the introduction of two-headed monomers brings increased molecular weights during polymerization of P3HT.

To examine the existence of bridging moieties in polymers, the 1_{H NMR spectroscopy was performed and shown in Fig. 1. The} proton signal on C-4 position of thiophene rings is observed at

d

¼ 6.97 ppm for P3HT, P1, and P2. InFig. 1(a), a clear singlet at

d

¼ 8.67 ppm assigning to protons on perylene ring is found in M1 and P1. Two specific signals at

d

¼ 7.05 and 3.81 ppm were assigned to protons on benzene ring and methoxy group for two-headed monomer M1, and those two signals are also found in corre-sponding hyperbranched polymer P1. Besides, the signals ofeOCH2 and imideeCH2 from alkyl spacer between perylene and poly-merizable head are also observed in M1 and P1. Turning toFig. 2(b), the proton signal from methoxy group at

d

¼ 3.72 ppm is clearly seen in M2 and P2. Similar phenomena are found in polymers P3 and P4, demonstrating that bridging moieties is successfully

incorporated in polymers. The increased molecular weights of polymers are also supportive of this observation, as shown in

Table 1.

3.2. Thermal properties of polymers

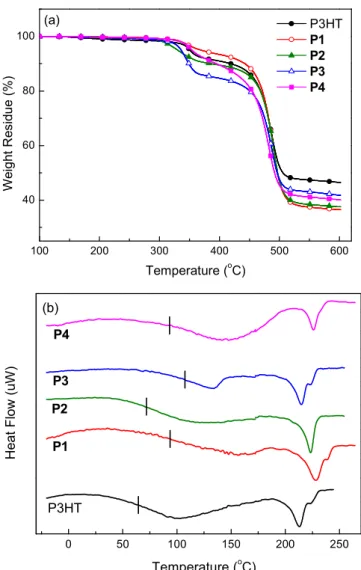

The TGA thermgrams of all polymers, including linear and hyperbranched ones, are shown inFig. 2(a). All polymers show a first-stage weight loss above 300
_{C, possibly due to the break of} alkyl side chains or spacers. The main decomposition temperature (Td) is observed above 450
C, owing to thermal degradation of polymer main chains, which is consistent with the result of previ-ous research[18]. It is noted that the weight loss of polymer P1 is even smaller than that of P3HT and other polymers. The reason to this phenomenon can be explained by introduction of rigid per-ylene bisimide moieties and the highest molecular weights of P1 among polymers. P2 shows a similar TGA thermogram to that of P3HT. P3 and P4 owns lower Tdvalues and larger weight loss at same temperature.

The thermal transition behaviors, including Tgand melting point (Tm), are investigated by DSC in this study. The Tgof P3HT has been reported to be14, 12, and 110
_{C by different research groups} [19e22], and Tmof P3HT was observed around 200e230
C[22,23]. Since Tg is affected by molecular weights and structural regior-egularity of polymers, the measurement of Tgof a certain P3HT can

Fig. 1.1_{H NMR spectra of (a) M1, P3HT, and P1; (b) M2, P3HT, and P2.}

100 200 300 400 500 600 40 60 80 100 W e ig ht R e s idu e (% ) Temperature (oC) P3HT P1 P2 P3 P4 (a) 0 50 100 150 200 250

Heat

F

low

(

u

W

)

Temperature (

o

C)

P3HT

P1

P2

P3

P4

(b)

be varied with different material sources and characterization techniques. In this study, we strictly controlled polymerization condition of all polymers to evaluate the effect of two-headed monomers. The DSC thermgrams of P3HT and polymers P1eP4 are shown inFig. 2(b). The Tg and Tmof synthesized P3HT are observed at 67 and 213
C, respectively. Furthermore, the Tgvalues of hyperbranched polymers P1eP4 are found to be higher than that of P3HT (80e114
_{C). This can be attributed to the hyperbranched} architecture that prohibits segmental motions of polymer chains. The Tmvalues of polymers P1eP4 are also higher than that of P3HT, as shown inFig. 2(b). The above results reveal that better thermal stabilities of hyperbranched polythiophenes are achieved by introducing bridging moieties between polymer chains.

3.3. Optical properties of polymers

The UV_{evis absorption spectra of all polymers are shown in}

Fig. 3. The solvent o-dichlorobenzene (o-DCB) is selected since it is often used for preparation of polymer solutions in solar cell ap-plications. InFig. 3(a), all polymers show a maximum absorption band centered at 465 nm in o-DCB, which is related to

p

e

p

* transition along polymer main chains. Besides, we notice a slight absorption shoulder around 520 nm for polymers P1 and P4 due to the presence of PBI moieties. In solid state, all polymers show a wide absorption band from 400 to 650 nm, with two characteristic

absorption wavelengths located at 552 and 603 nm, as shown in

Fig. 3(b). The former comes from

p

e

p

* transition along single polymer chain in solid state, and the latter is interpreted as ag-gregates of polymer chains. The spectral shapes and wavelengths of the synthesized polymers are both in accordance with those of regioregular P3HT reported in the literature[19,24]. Moreover, a stronger shoulder at 603 nm is found for those hyperbranched polymers compared to P3HT, implying reinforced interaction and closer aggregation between polymer chains brought by bridging moieties. The optical bandgap (Eg) of polymers can also be deter-mined from the edge of UVevis absorption in solid state inFig. 3(b), giving Egvalues of about 1.89e1.91 eV.

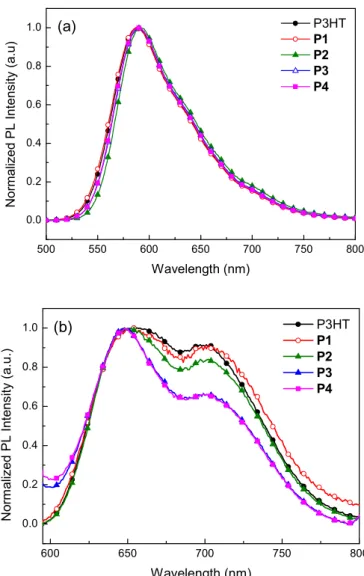

The normalized PL emission spectra of polymers were obtained by excitation at max absorption wavelength in different states, as shown in Fig. 4. The emission band centered at 589 nm for all polymers in o-DCB. An insignificant shoulder band can still be found around 640 nm, which is resulted from interchain interac-tion. On the other hand, polymers in thin film state show two emission maxima at 650 and 700 nm, referring to emissions from intra- and inter-chain behaviors, respectively [24]. Besides, the attenuated intensity of PL emission from P3HT to hyperbranced polymers, especially P1, is observed based on the samefilm prep-aration. The decreased emission infilm state implies less possibility of carrier recombination and more opportunity for carriers to

300 400 500 600 0.0 0.2 0.4 0.6 0.8 1.0 P3HT P1 P2 P3 P4 Absorbance (a. u .) Wavelength (nm)

(a)

300 400 500 600 700 0.0 0.2 0.4 0.6 0.8 1.0 Absorbance (a. u .) Wavelength (nm) P3HT P1 P2 P3 P4

(b)

Fig. 3. UVevis absorption spectra of P3HT and polymers P1eP4 in (a) o-DCB and (b) thinfilm state. 500 550 600 650 700 750 800 0.0 0.2 0.4 0.6 0.8 1.0 Normal

ized PL Intensity (a.u)

Wavelength (nm) P3HT P1 P2 P3 P4

(a)

600 650 700 750 800 0.0 0.2 0.4 0.6 0.8 1.0

P3HT

P1

P2

P3

P4

No

rm

a

liz

e

d

PL

In

te

n

s

it

y (

a

.u

.)

Wavelength (nm)

(b)

Fig. 4. Photoluminescent spectra P3HT and polymers P1eP4 in (a) o-DCB and (b) thin film state.

migrate to both electrodes, which is a benefit for solar cell application.

3.4. Electrochemical properties of polymers

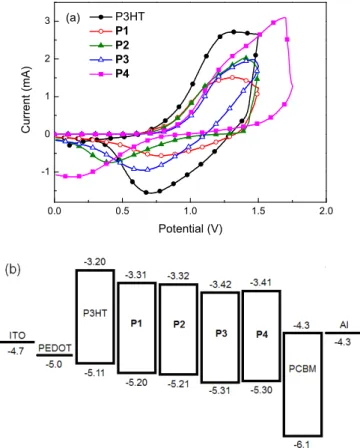

The CV voltammograms of all polymers in the oxidation scan are shown inFig. 5(a). The onsets of oxidation potential (Eox) of P3HT is found at 0.71 V, while P1eP4 show higher oxidation onsets around 0.80e091 V. Besides, the energy bandgap (Eg) of polymer can be estimated from its absorption edge (

l

edge) in thinfilm state. The HOMO, Eg, and LUMO values are calculated from the following equations: HOMO¼ jEoxþ 4:4j Eg¼ 1240 . ledge LUMO¼ HOMOþ Eg

After calculation, the HOMO and Egvalues of our synthesized P3HT are5.11 and 1.91 eV, respectively, which are close to previous results in the literature[25]. For those hyperbranched polymers, the HOMO levels of P1eP4 are in the range between 5.20 and5.31 eV. The Egvalues of P1eP4 are 1.89 eV that are somewhat smaller than P3HT, since they possess longer absorption edges, as shown inFig. 3(b). Combining HOMO levels and Egvalues, the LUMO levels of polymers can be determined; the energy level diagram is then constructed and depicted inFig. 5(b). The Eox, HOMO, LUMO, and Egvalues of all polymers are summarized inTable 2.

3.5. Device fabrication and evaluation of polymers

Solar cell devices with bulk heterojunction architecture were fabricated in the configuration ITO/PEDOT/donor:PC60BM/LiF/Al.

Hyperbranched PT derivatives and P3HT without bridging moiety were utilized as electron donor, and PC60BM was utilized as elec-tron acceptor. The energy level diagram is shown inFig. 5(b). The current densityevoltage curves of these devices are shown inFig. 6, and the summary of device performance is shown inTable 3. The devices utilizing hyperbranched PT derivatives as electron donor show larger VOCthan the one of P3HT reference cell. The VOCis related to the difference between HOMO energy level of donor and LUMO energy level of acceptor [26]. The VOC of P3HT device is 0.62 V which is consistent with previous reports[27]. It was re-ported that solar devices based on hyperbranched PTs showed higher VOCvalues compared with normal P3HT[11]. In this study similar results are also found for polymers P1, P2, and P4 which possess high VOCvalues of 0.70e0.72
V. Larger VOCof devices uti-lizing hyperbranched polythiophene derivatives can be attributed to the lower HOMO energy levels of hyperbranched polythiophene derivatives than the one of P3HT, resulting in larger difference

0.0 0.5 1.0 1.5 2.0 -1 0 1 2 3 Curr ent (mA) Potential (V) P3HT P1 P2 P3 P4 (a)

Fig. 5. (a) Cyclic voltammograms in the oxidation scan and (b) energy level diagram of P3HT and polymers P1eP4.

Table 2

Electrochemical properties of P3HT and polymers P1eP4.

Polymer Eox(V)a HOMO (eV)b LUMO (eV)c Eg(eV)d

P3HT 0.71 5.11 3.20 1.91

P1 0.80 5.20 3.31 1.89

P2 0.81 5.21 3.32 1.89

P3 0.91 5.31 3.42 1.89

P4 0.90 5.30 3.41 1.89

a_{Data from CV in the oxidation scan.} b _{HOMO¼ e j E}

oxþ 4.4 j. c _{LUMO¼ e j HOMO þ E} gj.

d _{Data from the edge of the absorption spectrum infilm state.}

0.0

0.2

0.4

0.6

0.8

-4

-3

-2

-1

0

C

urren

t Den

si

ty

(mA/

cm

2

)

Voltage (V)

P3HT

P1

P2

P3

P4

Fig. 6. Current densityevoltage curves of the polymer solar cells based on P3HT and polymers P1eP4 under AM 1.5 illumination, 100 mW/cm2_.

Table 3

Summary of cell characteristics based on P3HT and polymers P1eP4 under one-sun illumination intensity.

Polymer JSC(mA/cm2) VOC(V) FF (%) PCE (%)

P3HT 2.54 0.62 33.80 0.54

P1 2.03 0.70 32.04 0.45

P2 3.17 0.72 37.12 0.84

P3 2.57 0.64 32.02 0.52

between HOMO energy level of the hyperbranched polythiophene derivatives and the LUMO energy level of PC60BM.

Among devices utilizing hyperbranched polythiophene de-rivatives, both P2 and P4 devices perform better than P3HT device. P2 device shows best performance and P4 device is second best. The best performance of P2 device is attributed to the larger VOC,fill factor (FF), and JSCvalues. Since the absorption spectra of all donor polymers are similar, such superior characteristics of P2 device are believed to be related to its high carrier mobility and better mo-lecular packing. Although the hole mobility of P4 is larger than the one of P2, the rigid PBI moiety might hinder the packing of P4 and the phase separation between P4 and PC60BM. Largest FF in P2 device indicates a proper phase separation and a lowest carrier recombination among various devices. The hole mobilities of the synthesized P3HT and P1eP4 in this study were determined by

space-charge-limited current (SCLC) method (seeSupplementary data). Hole-only devices with configuration of ITO/PEDOT:PSS/ polymer/Au were fabricated and measured. The polymer P2 pos-sesses the highest hole mobility of 3.79 105cm2/V among all polymers, which is beneficial for carrier transport; meanwhile, other polymers own lower hole mobilities in the range of 1.02e1.88  105cm2/VFig. 7shows AFM topographic images of polymer nanocomposite films blended with PC60BM. The prepa-ration offilms for AFM analysis was identical to those used in de-vice fabrication. It is seen that P2:PC60BM film shows the best distribution of aggregations among those films, revealing better charge dissociation between electron donors and acceptors. The root-mean-square roughness (Ra) of P3HT and P1eP4 in blend with PC60BM was measured to be 16.7, 11.9, 8.29, 35.1, and 9.48 nm, respectively. The smallest roughness of P2:PC60BM blend

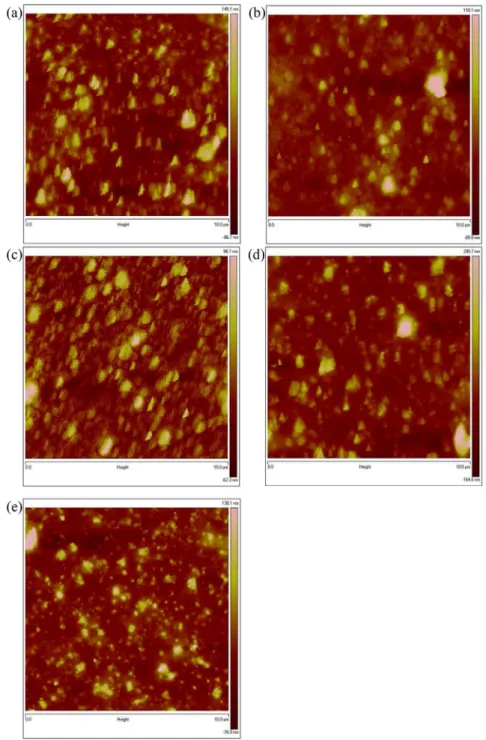

represents goodfilm quality that is also responsible for better de-vice performance among those dede-vices.

4. Conclusions

Hyperbranched PT derivatives containing tetrachloroperylene bisimide or alkyl spacer as bridging moiety were synthesized and characterized. The molecular weights and thermal stabilities of final polymers were increased by introducing hyperbranched ar-chitecture compared with normal P3HT. The intensity of shoulder band around 600 nm was increased for hyperbranched polymers, while their PL emissions were attenuated in thinfilm state. Solar devices based on those hyperbranched polymers blended with PC60BM showed PCE values of 0.45e0.84% and higher VOCvalues up to 0.70e0.72 V than P3HT:PC60BM as active materials.

Acknowledgments

The authors thank the Ministry of Science and Technology (MoST) of the Republic of China (NSC 100-2113-M-009-012-MY2) forfinancial support of this research.

Appendix A. Supplementary data

Supplementary data related to this article can be found athttp:// dx.doi.org/10.1016/j.polymer.2014.09.046.

References

[1] Loewe RS, Khersonsky SM, McCullough RD. Adv Mater 1999;11:250e3.

[2] Loewe RS, Ewbank PC, Liu J, Zhai L, McCullough RD. Macromolecules 2001;34: 4324e33.

[3] Lanzi M, Di-Nicola FP, Livi M, Paganin L, Cappelli F, Pierini F. J Mater Sci 2013;48:3877e93.

[4] Kim Y, Cook S, Tuladhar SM, Choulis SA, Nelson J, Durrant JR, et al. Nat Mater 2006;5:197e203.

[5] Vandewal K, Himmelberger S, Salleo A. Macromolecules 2013;46:6379e87. [6] Cheng YJ, Yang SH, Hsu CS. Chem Rev 2009;109:5868e923.

[7] Chang YT, Hsu SL, Chen GY, Su MH, Singh TA, Diau EWG, et al. Adv Funct Mater 2008;18:2356e65.

[8] Chang YT, Hsu SL, Su MH, Wei KH. Adv Mater 2009;21:2093e7. [9] Hou J, Tan Z, Yan Y, He Y, Yang C, Li Y. J Am Chem Soc 2006;128:4911e6. [10] Lanzi M, Paganin L, Errani F. Polymer 2012;53:2134e45.

[11] Zhang Q, Cirpan A, Russell TP, Emrick T. Macromolecules 2009;42:1079e82. [12] Zhou E, Tan Z, Yang Y, Huo L, Zou Y, Yang C, et al. Macromolecules 2007;40:

1831e7.

[13] Tu G, Bilge A, Adamczyk S, Forster M, Heiderhoff R, Balk LJ, et al. Macromol Rapid Commun 2007;28:1781e5.

[14] Mangold HS, Richter TV, Link S, Würfel U, Ludwigs S. J Phys Chem B 2012;116: 154e9.

[15] Schmidt R, Oh JH, Sun YS, Deppisch M, Krause AM, Radacki K, et al. J Am Chem Soc 2009;131:6215e28.

[16] Roncali J. Chem Rev 1997;97:173e205.

[17] Stefan MC, Javier AE, Osaka I, McCullough RD. Macromolecules 2009;42:30e2. [18] Lee JU, Jung JW, Emrick T, Russell TP, Jo WH. J Mater Chem 2010;20:3287e94. [19] Stevens DM, Qin Y, Hillmyer MA, Frisbie CD. J Phys Chem C 2009;113:

11408e15.

[20] Zhao Y, Yuan G, Roche P. Polymer 1995;36:2211e4.

[21] Zhao J, Swinnen A, Assche GV, Manca J, Vanderzande D, Mele BV. J Phys Chem B 2009;113:1587e91.

[22] Kim Y, Choulis SA, Nelson J, Bradley DDC. Appl Phys Lett 2005;86:063502. [23] Liao HC, Chantarat N, Chen SY, Peng CH. J Electrochem Soc 2011;158:E67e72. [24] Brown PJ, Thomas DS, K€ohler A, Wilson JS, Kim JS, Ramsdale CM, et al. Phys

Rev B 2003;67:064203.

[25] Kim JY, Lee K, Coates NE, Moses D, Nguyen TQ, Dante M, et al. Science 2007;317:222e5.

[26] Nicholson PG, Castro FA. Nanotechnology 2010;21:492001. [27] Zhao G, He Y, Li Y. Adv Mater 2010;22:4355e8.
