國立交通大學
電子工程學系 電子研究所
碩士論文
藉由更改電路佈局來增加聚焦離子束對訊號的探測能
力與修正電路之能力
Design-for-Debug Layout Adjustment for FIB Probing
and Circuit Editing
學 生 ： 陳擴安
指導教授： 趙家佐 博士
藉由更改電路佈局來達到增加聚焦離子束對訊號的探
測能力與修正電路之能力
Design-for-Debug Layout Adjustment for FIB Probing
and Circuit Editing
學 生 ：陳擴安 Student：Kuo-An Chen
指導教授：趙家佐 Advisor：Chia-Tso Chao
國 立 交 通 大 學
電子工程學系 電子研究所
碩 士 論 文
A Thesis
Submitted to Department of Electronics Engineering and Institute of
Electronics
College of Electrical and Computer Engineering
National Chiao Tung University
in Partial Fulfillment of the Requirements
for the Degree of Master in Electronics Engineering
July 2011
Hsinchu, Taiwan, Republic of China
i
藉由更改電路佈局來達到增加聚焦離子束對訊號的探
測能力與修正電路之能力
學 生 ：陳擴安 指導教授：趙家佐
國 立 交 通 大 學
電子工程學系 電子研究所碩士班
摘 要
在製程技術快速的演進之下，聚焦離子束的解析度卻無法達到
相同速度的發展。因此，對於先進製程來說，當運行在除錯程序下可
藉由聚焦離子束來觀察到的訊號數量就大幅減少。這篇論文提出了一
個修正電路佈局的架構，經由一些更改電路佈局的動作來達到增加聚
焦離子束所能觀察的訊號數量，甚至更進一步能夠達到增加修正電路
的機會。所有更改電路的動作都有遵循設計法則，並且不需要重新對
整個電路核心進行重新繞線，也因此能夠輕易地與任何商用繞線軟體
進行整合。整體實驗是運行在 90 奈米製程技術下，實驗結果證明了
這篇論文所提出的方法能夠在維持原來電路的效能之下，有效地增加
聚焦離子束所能觀察到的訊號數量以及增加修正電路的可能性。
DESIGN-FOR-DEBUG LAYOUT ADJUSTMENT FOR
FIB PROBING AND CIRCUIT EDITING
Student: Kuo-An Chen Advisor: Dr. Chia-Tso Chao
Department of Electronics Engineering Istitute of Engineering
National Chiao Tung University
Abstract
While the technology node continually and aggressively scales, the resolution of FIB techniques does not scale as fast. Thus, the percentage of nets which can be observed or repaired through FIB probing or circuit editing is significantly decreased for advanced process technologies, which limits the candidates that can be physically examined through the FIB techniques during the debugging process. This thesis in-troduces a design-for-debug framework which can adjust the layout to increase the FIB observable rate and the FIB repairable rate for its signals. The layout adjust-ment is made through pre-defined simple operations subject to the design rules and the timing constraints. Hence, the proposed framework does not require a compli-cated router as its core and can be applied in conjunction with any commercial APR tool. The experimental result based on an 90nm technology has demonstrated that the proposed DFD framework can effectively increase the FIB observable and re-pairable rates under different parameter settings while the overall area and circuit performance remain the same.
iii
tools
Table of Contents
Abstract (Chinese) i
Abstract ii
Acknowledgements iii
List of Tables vi
List of Figures vii
Chapter 1. Introduction 1
Chapter 2. Background of FIB 4
2.1 The mechanism of FIB . . . 4
2.2 Definition of an FIB Observable Net . . . 6
2.3 Motivation of the Proposed Work . . . 7
Chapter 3. MFOB: Framework for Maximizing FIB Observable Rate 9 3.1 Basic Operations for Adjusting Layout . . . 9
3.2 Overall Flow of MFOB . . . 11
3.3 Ranking Method . . . 13
3.4 Line Searching and Data Structure . . . 15
3.5 Computing Moving Cost . . . 16
Chapter 4. Experimental Results for Maximizing FIB Observable Rate 19 4.1 Before and After Applying MFOB . . . 19
4.2 Different Ranking Criteria . . . 21
4.3 Dynamic Ranking vs. Static Ranking . . . 22
4.4 Different Cell-utilization Rate . . . 22
4.5 Impact on Circuit’s Timing . . . 24 Chapter 5. Future Work: Maximizing FIB Repairable Rate 27
Chapter 6. Conclusions 29
Bibliography 30
List of Tables
2.1 FIB observable rates for 0.18µm and 90nm technologies. . . 7 4.1 Result of applying MFOB. . . 20 4.2 FIB observable rates by using different ranking criteria. . . 21 4.3 Comparison between the dynamic ranking and static
rank-ing. . . 22 4.4 FIB observable rates based on the initial layout with
differ-ent cell-utilization rates . . . 23 4.5 The longest-path delay before and after applying MFOB. . . 24 4.6 Timing comparison between MFOB with and without
lock-ing the top 50 longest paths. . . 25
List of Figures
2.1 An example of FIB probing using (a) FIB surface mill and (b) FIB deposition. . . 5 2.2 Illustration of a FIB hole. . . 6 2.3 Illustration of a net with metal lines locating in different
layers. . . 7 3.1 Example of using a move-up operation. . . 9 3.2 Example of using a move-down operation. . . 10 3.3 Example of using both move-up and move-down operations. 11 3.4 The overall flow of the proposed framework. . . 12 3.5 Illustration of a moved-up line and the other lines that are
blocked by the moved-up line. . . 15 3.6 Example of using hM ap and vM ap to store the location of
each line. . . 16 3.7 Illustration of the procedure calculating the number of
block-ing lines for each interval. . . 17 5.1 An example of using FIB circuit editing to repair a signal. . 28
Chapter 1
Introduction
Due to the increasing complexity of modern designs and uncertainty of ad-vanced process technologies, some design errors are difficult to detect by pure simu-lation during the design phase and hence are more likely to escape from the current design verification flow, which leads to a low first-silicon success rate for today’s modern designs. As a result, post-silicon debug becomes a critical and necessary step in the current design flow to identify the root causes of the escaped errors based on the failed silicon chips and further fix them. Therefore, the effectiveness and efficiency of the post-silicon debug will significantly affect the time and cost for achieving the design closure [1][2].
Unlike pre-silicon debug where the value of internal signals can be obtained easily through simulation, post-silicon debug has no direct access to the internal signals of a failed chip and relies on specialized circuit features or physical probing techniques to observe those internal signals. The specialized circuit features include DFT (design for test) scan-based designs [3] and DFD (design for debug) trace-buffer-based designs [1][4][5][6], which can dump the value of pre-selected flip-flops or internal signals. However, those pre-selected signals may not be near the physical fault locations and the provided visibility is only for a one-cycle snapshot or a limited number of cycles. Therefore, physical probing techniques are still required to observe the value of certain critical signals for post-silicon debug.
2 Physical probing techniques include electron beam (E-beam) probe [7], laser voltage probe (LVP) [8], and focused ion beam (FIB) technique [9][10][11]. E-beam probe can observe a signal on the top two metal layers through capacitive coupled voltage contrast, and can further cooperate with FIB mill techniques to probe the signal on the bottom metal layers from backside [12]. However, advanced process technologies can easily contain more than 6 metal layers and hence the observable signals through E-beam probe are limited. LVP is a backside probe technique and measures a signal by transforming the amplitude of the reflected laser beam into a voltage. The bandwidth of LVP is about 10 GHz and hence is especially suitable for analyzing delay defect. However, for 65nm technologies, its transistor size is already smaller than the resolution of LVP [13]. As a result, in order to use LVP in advance technologies, additional type of cells need to be inserted into the circuit [13], or the cells to be observed need to be replaced with larger cells [14], which results in extra area overhead.
On the other hand, FIB technique utilizes ion beam to remove the covered inter-layer dielectric (ILD) above the target signal and then deposit metal into the hole to form a probe pad directly connecting the signal. This FIB probing requires no area overhead to the design, is not only limited to the top metal layers, and is relatively cost effective with shorter process time in current industry. In addition, the FIB technique can also be used for circuit editing, such as cutting existing metal and reconnecting it to a desired location (usually pre-placed spare cells). This circuit-editing technique can quickly implement a simple circuit modification to repair the failed chip without going through another tape-out and hence can significantly speed up the whole silicon debug process.
When using FIB probing (or circuit editing), we need to make sure that the metal of other signals above the observation location will not be touched or removed.
3 Otherwise, the probe pad may be connected to some unwanted signals or the original circuit functionality may be changed. Unfortunately, while the technology node continually scales, the resolution of FIB technologies does not scale accordingly. As a result, for advance process technologies, the circuit layout becomes denser and it is more difficult for FIB probing to pass through all the unwanted metals on top of the observation location without modifying them, which significantly reduce the percentage of signals that can be observed by FIB probing. [15] proposed an automatic tool to efficiently identify the locations which can be used to perform the desired FIB circuit editing. However, no current APR (automatic place and route) tool can create a layout which is friendly for applying FIB probing or circuit editing, if needed.
In this thesis, we propose a DFD framework name MFOB, which adjusts the circuit layout to maximize the probability that a signal can be observed by FIB probing. The layout adjustment is done through a few pre-defined actions, which moves a small portion of the existing metal lines to different metal layers with new vias, instead of performing a complete rerouting. Therefore, the proposed DFD framework can be applied in conjunction with any APR tool and its impact on the timing of critical paths is limited. Also, the proposed DFD framework can restrict the layout adjustment on only the non-timing-critical paths if modifying certain critical paths may violate their timing constraint. The experimental result based on an 90nm technology has demonstrated that the proposed DFD framework can effectively increase the number of signals being observable with FIB techniques while the overall area and circuit performance remain the same. We further discuss the necessary changes required in the framework when maximizing the number of the signals being repairable with the FIB circuit editing in our future-work.
Chapter 2
Background of FIB
2.1
The mechanism of FIB
An FIB system operates in a similar manner as a scanning electron micro-scope (SEM) or a transmission electron micromicro-scope (TEM) except that the FIB system utilizes a focused beam of ions (gallium most of the time) instead of a beam of electrons. When operating at a low beam current, a focused ion beam can be used for imaging the sample surface with high resolution. When operating at a high beam current, a focused ion beam can be used for milling the surface. Because the ions are larger, heavier, slower, and positive compared to electrons, the ion beam cannot easily penetrate within individual atoms of the sample and hence can more easily break the chemical bonds of the substrate atoms, which makes FIB suitable for surface milling [16].
Figure 2.1 illustrates an example of using FIB technique to observe a target signal inside a chip. In Figure 2.1(a), the surface milling is performed by applying a focused ion beam of Ga+ to hit the surface of inter-layer dielectric (ILD), break the bonds of a certain amount of surface material, sputter out ions (mostly positive ions), and gradually form a hole right above the target signal. Meanwhile, an electron beam is applied to the surface to neutralize the sputtered positive ions, and sometimes certain gas (such as XeF2) is also applied to assist the etching (mainly for preventing the re-deposition of the sputtered surface material). Next, in Figure 2.1(b), FIB is
5 used to deposit metal (Pt in this case) onto the dug hole. When the ion beam hits the gas of metal, the metal will chemisorb on the surface through FIB-assisted chemical vapor deposition [16]. The deposition of metal then forms a probe pad for the target signal.
,/' D 0LOOLQJSURFHVV ,/' E 'HSRVLWSURFHVV 3W 7DUJHWVLJQDO 7DUJHWVLJQDO 0 0 0 0 &KDUJH QHXWUDOL]DWLRQ *DVDVVLVWHG HWFKLQJ *DVQHHGOH ;H) *D ,RQEHDP )ORRGJXQ H &KDUJH QHXWUDOL]DWLRQ 'HSRVLWLRQ *DVQHHGOH 3W *D ,RQEHDP )ORRGJXQ H

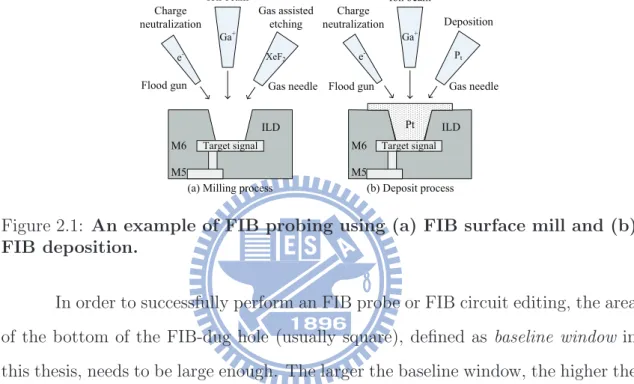

Figure 2.1: An example of FIB probing using (a) FIB surface mill and (b) FIB deposition.
In order to successfully perform an FIB probe or FIB circuit editing, the area of the bottom of the FIB-dug hole (usually square), defined as baseline window in this thesis, needs to be large enough. The larger the baseline window, the higher the probability of a successful FIB action. Since the focused ion beam or its reflection from the surface may also hit the edge of the dug hole during the surface milling, the edge of the dug hole is not directly orthogonal to the baseline window but a few angels outward from bottom to top, as illustrated in Figure 2.2. As a result, for each higher metal layer, the width of its transverse section with the dug hole is an offset larger. In other words, if we plan to dig a hole to a lower metal layer, the area saved for the top of the hole, defined as top window, needs to be larger even though the required size of the baseline window is the same for all metal layers.
For general FIB technologies used in current failure-analysis companies, the minimal sufficient width of the baseline window is around 1000nm. The edge’s slope
6
Figure 2.2: Illustration of a FIB hole.
for the dug hole is around 1-to-10 (x-direction versus y-direction). For the UMC 90nm technology used in our experiment, the height of a metal layer is around 250nm for metal 1 to metal 6, and so is the height of its inter-layer dielectric. Thus, the 1-to-10 slope will create a 50nm longer offset (250+250
10 ) for the transverse width of
the hole at each metal layer higher. Note that the above minimal sufficient width of the baseline window and the edge slope for FIB are independent of the technology node used for the chips. In other word, if the metal density becomes higher due to a smaller technology node in use, it become less likely to dig a hole to a desired location without touching the metals on top of it. As a result, the probability that a signal can be observed by FIB probing becomes lower when the technology node in use is smaller.
2.2
Definition of an FIB Observable Net
For FIB probing, the location to be probed corresponds to a net in the design netlist, which can be reported from a diagnosis tool and its observed value is used to confirm the assumption of an error candidate. A net in the design netlist corresponds to several metal lines across different metal layers as shown in Figure 2.3, where the metal lines of a net are distributed among layer M1-M3 and connected with vias. In
7 our framework, a net is FIB observable if any of its metal line can satisfy all of the following conditions: (1) an FIB hole can be dug with a given edge slope and reach the surface of the line, (2) no other metal lines originally locate in the dug hole, (3) the target line lays in the middle of the hole’s baseline window, and (4) the overlap between the target line and the hole’s baseline window exceeds the given minimal sufficient width. 0 0 0 0 D 7RSYLHZRIDQHW E 'YLHZRIDQHW 0 0 0 0 0 0

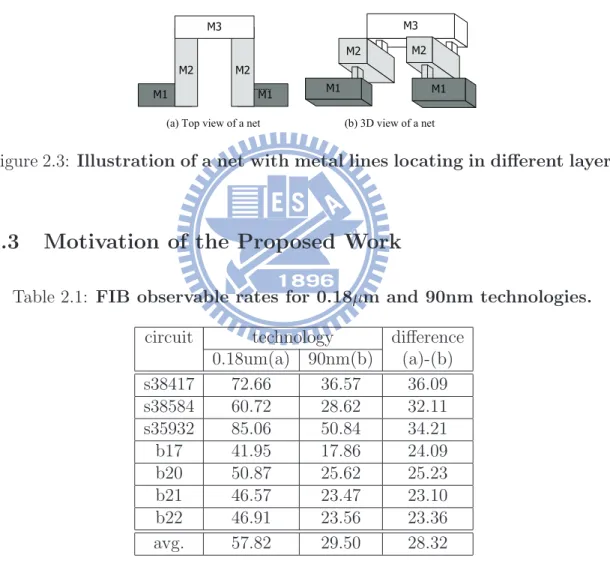

Figure 2.3: Illustration of a net with metal lines locating in different layers.
2.3
Motivation of the Proposed Work
Table 2.1: FIB observable rates for 0.18µm and 90nm technologies. circuit technology difference
0.18um(a) 90nm(b) (a)-(b) s38417 72.66 36.57 36.09 s38584 60.72 28.62 32.11 s35932 85.06 50.84 34.21 b17 41.95 17.86 24.09 b20 50.87 25.62 25.23 b21 46.57 23.47 23.10 b22 46.91 23.56 23.36 avg. 57.82 29.50 28.32
In Table 2.1, we report the FIB observable rate, i.e., the percentage of the total nets which can be successfully observed by FIB probing, for the benchmark circuits implemented by a UMC 0.18µm and a UMC 90nm process technology,
8 respectively. The layout of each circuit is generated by a commercial back-end tool, SoC Encounter [17], with a 80% cell-utilization rate. The minimal sufficient width of the baseline window is set to 1000nm. The benchmark circuits in use are the relatively large circuits selected from the ISCAS and ITC benchmarks. The same benchmark circuits will also be used in our later experiments.
As the result shows, the average FIB observable rate is 57.82% for the bench-mark circuits implemented by the 0.18µm technology, and drops to only 29.50% for that by the 90nm technology. This FIB observable rate will be even worse if a 65nm or 40nm technology is used. In other words, more than 70% of a circuit’s nets cannot be observed by FIB probing if a 90nm or smaller technology is used, which significantly limits the candidates that can be diagnosed through the FIB techniques and may delay the overall silicon-debug or failure-analysis process.
In this thesis, our objective is to build a framework, which can automatically adjust the circuit layout to increase the percentage of the nets that can be observed or even repaired by using FIB probing or FIB circuit editing. The layout adjustment made by this framework must be simple and good for timing, such that (1) the timing constraint of the circuit will not be violated, (2) no complicated router or placer is required to build the framework, and (3) the framework can be in conjunction with any back-end APR tool. Also, any made layout adjustment needs to follow the design rules. With the help of the proposed framework, we can extend the advantage of using FIB techniques for debugging to a more advanced process technology.
In the next chapter, we will first introduce our proposed framework, named MFOB, which focuses on maximizing the FIB observable rate.
Chapter 3
MFOB: Framework for Maximizing FIB
Observable Rate
3.1
Basic Operations for Adjusting Layout
D %HIRUHDPRYHXSRSHUDWLRQ 0 0 0 E 0 E $IWHUDPRYHXSRSHUDWLRQ 0 0 0 0 D E E YLD D

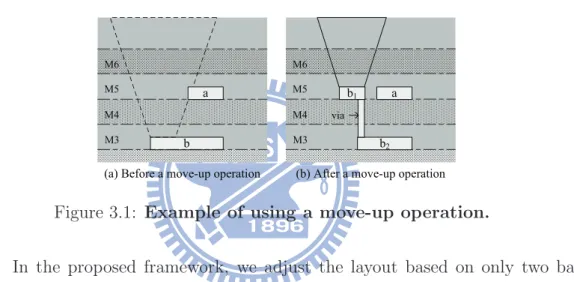

Figure 3.1: Example of using a move-up operation.
In the proposed framework, we adjust the layout based on only two basic operations, named move-up and move-down. Each operation is performed on a metal line of a net. As its name, a move-up operation will move a portion of the target metal line to a higher layer with extra vias. The function of this move-up operation is to create a long-enough metal line at a higher layer to successfully land an FIB hole on it when the original target line at a lower layer is blocked by other metal lines on top. As a result, the moved-up portion of a line must be longer than the minimal sufficient width of a baseline window. Figure 3.1 illustrates an example of using a move-up operation, where metal line b is originally unobservable in Figure 3.1(a) since metal line a blocks the space on top of b for digging an sufficient
10 FIB hole (as shown by the dashed shape). After applying a move-up operation to b in Figure 3.1(b), the moved-up portion of b can successfully land an sufficient FIB hole and hence b becomes observable.
On the other hand, a move-down operation will move the target metal line to the empty space on a lower layer with vias. The function of this move-down operation is to remove the target line which originally blocks the observation of other lines below it, such that certain lines below it may become observable after the move-down operation. Figure 3.2 illustrates an example of using a move-down operation, where line b is originally unobservable due to line a and c blocking the space above b as shown in Figure 3.2(a). After applying a move-down operation to a, line b becomes observable as shown in Figure 3.2(b).
D %HIRUHDPRYH
Figure 3.2: Example of using a move-down operation.
The move-up and move-down operations need not necessarily be applied individually. They can be applied together to make an unobservable line observable as illustrated in Figure 3.3, where line c is originally unobservable in Figure 3.3(a). After applying move-down operation to b and move-up operation to c, line c becomes observable in Figure 3.3(b).
Note that the move-up and move-down operations move the metal line only vertically, and hence the total metal length of the layout is almost the same, except that an extra length of a via needs to be added to connect the new via if only a
11 %HIRUHVZDSSLQJRSHUDWLRQ 0 0 0 0 E $IWHUVZDSSLQJRSHUDWLRQ 0 0 0 0 G F E G D F F YLD E D

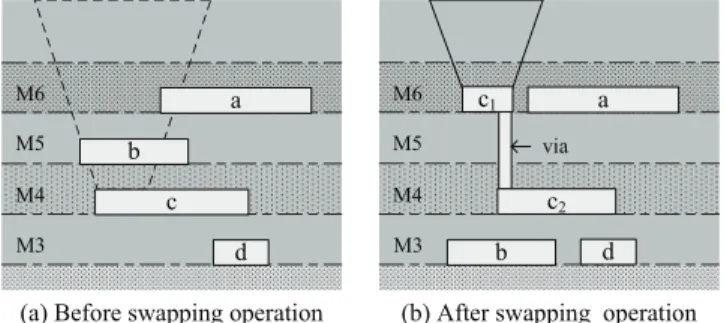

Figure 3.3: Example of using both move-up and move-down operations. portion of the line is moved. Also, all made move-up or move-down operations must be feasible, i.e., following the design rules, such as the spacing between the moved metal line and its new neighbors. In addition, some process technologies do not allow stacked vias, meaning that a via can pass through only a certain number of metal layers (3 in the UMC 90nm technology used in our experiments), which is another constraint of using a move-up or move-down operation.
3.2
Overall Flow of MFOB
Figure 3.4 shows the overall flow of the proposed framework MFOB, which requires the following input files.
• design.def: the file describing the layout of the design.
• FIB.para: the file describing the parameter for FIB, such as the minimal sufficient width of a baseline window and the edge slope of a dug FIB hole. • tech.lef: the file describing the physical-design information for the cell library,
such as pin location, layer, and via.
• netlist.v: the file describing gate-level netlist of the design.
12 2ULJLQDOOD\RXWILOH GHVLJQGHI ),%SDUDPHWHUVILOH ),%SDUD ,GHQWLI\DOO),%REVHUYDEOH XQREVHUYDEOHDQGSRWHQWLDOO\ REVHUYDEOHOLQHVDQGQHWV 5DQNWKHSRWHQWLDOO\ REVHUYDEOHQHWV EDVHGRQPRYLQJFRVW PRYLQJFDQGLGDWH <(6 $GMXVWOD\RXWWRPDNHWKH KLJKHVWUDQNHGQHWREVHUYDEOH LIIHDVLEOH 5HFRPSXWHWKHUDQNLQJ '\QDPLFUDQNLQJPHWKRGRORJ\ 12 7HFKQRORJ\ILOH WHFKOHI 3HUIRUPFRQQHFWLRQ FKHFNGHVLJQUXOH FKHFNDQGHTXLYDOHQFH FKHFN ([WUDFW5& DQGJHQHUDWHVSHIILOH DGMXVWHGOD\RXW ILOH GHVLJQBQHZGHI ),%REVHUYDEOH QHWV 2EVOLVW 2ULJLQDO QHWOLVWILOH QHWOLVWY $Q\XQWULHGSRWHQWLDOO\ REVHUYDEOHQHW" IDLO SDVV 7HFKQRORJ\ ILOHV WHFKOHI WHFKOLE 7LPLQJDQDO\VLV LIDYLRODWLRQH[LVWV UHUXQ0)2%DQGORFN WKHWLPLQJYLRODWHGQHWV
Figure 3.4: The overall flow of the proposed framework.
The outputs of the framework include an adjusted layout, design new.def, and the list of the FIB observable nets, obs.list. The objective is to maximize the FIB observable rate without violating any design rule or timing constraint. After parsing in the input files, the first step of the framework is to examine whether each metal line in the layout is FIB observable or unobservable. Among the unobservable lines, we further determine whether an unobservable line can become observable by using the basic operations, assuming all other layout remains the same. If yes, how many operations are required. Those unobservable lines which can potentially turn into an observable one through basic operations are defined as the potentially observable lines. Based on the classification of all metal lines, we can determine whether a net is observable, potentially observable, or unobservable. Note that a net is (potentially) observable if any of its lines is (potentially) observable.
Next, our framework will iteratively select an untried potentially observable net and adjust the layout to turn it into an observable one until no untired potential
13 exists. In fact, adjusting the layout for a potentially observable net may eliminate the chance of other potentially observable nets becoming an observable one. Therefore, in order to maximize the FIB observable rate, we need to find a proper order for the potentially observable nets being processed. In our framework, this process order of the potentially observable nets is determined by a proposed ranking method, which will be introduced in detail in Chapter 3.3. Note that the layout adjustment here is performed based on a greedy-based principle. In other words, if an adjustment for a potentially observable net may turn an originally observable net into an unobservable or potentially observable one, the adjustment will not be performed. Any made layout adjustment must increase the overall FIB observable rate.
After the layout adjustment stops, we will perform connection check, design-rule check, and equivalence check to guarantee the correctness of the adjusted layout. Then we perform the RC extraction for the layout and store the RC information in the .spef file. Last, a timing analysis is applied based on the RC information, design netlist, and technology files. If any timing violation occurs, we will rerun the whole framework without adjusting the timing-violated nets and the critical paths (if setup-time violated). In practice, timing violations rarely occur after our layout adjustment. Its reasons will be discussed in Chapter 4.5.
3.3
Ranking Method
We rank the potentially observable nets based on two criteria, the number of moving candidates of a net as the primary criterion and the moving cost of a net as the secondary one. First, the number of moving candidates of a net is the number of potentially observable lines contained by the net. If a net has only one moving candidate, then we should better adjust the layout to save this net as early as possible before its only left candidate become unobservable due to the layout
14 adjustment for the other nets. Thus, a net with less moving candidate will be selected earlier by our ranking method.
Secondly, the moving cost of a line is the number of basic operations required to turn the line into an observable one. The moving cost of a net is the smallest moving cost among all its composed lines. In our ranking method, we prefer to first select the net with the smallest moving cost, i.e., the easiest net to become observ-able. This is because our objective is to maximize the total number of observable nets with the limited routing resource. The less routing resource is spent for one net, the more routing resource can be left for the other nets. In summary, our ranking method will first select the net with the least moving candidates. If multiple nets have the same moving candidates, the ranking method will select the net with the smallest moving cost.
Once the layout adjustment is made for a net, the number of moving candi-dates and the moving cost for the other nets may also change accordingly, meaning that the ranking of nets changes as well. One way to handle this dynamic change is to recompute the moving candidates and moving cost for the affected nets immedi-ately after each layout adjustment, which is called the dynamic ranking. However, this dynamic ranking method requires extra runtime to iteratively search the nets affected by the layout adjustment and recompute their ranking. A more efficient way is to rank the nets based on initial layout and use this initial ranking through-out the entire laythrough-out-adjustment process, which is called the static ranking. We will compare the effectiveness and efficiency between the dynamic ranking and static ranking in Chapter 4.3.
15
3.4
Line Searching and Data Structure
In the proposed framework, we often need to search all the lines within a designated area, such as when computing the initial ranking for each net or updating the new ranking after each layout adjustment. Figure 3.5 shows an example of moving line b from metal 3 (M3) to metal 5 (M5). After moving line b, we need to project the moved line b to all layers below it with an offset wider on each lower layer, and all the lines within the projection area are the ones which may be affected by moving b to M3. Figure 3.5(a) and Figure 3.5(b) shows the cross-section view and top view of the projection area, which is highlighted by the dashed lines.
G D &URVVVHFWLRQYLHZ ,/' 0 0 0 D F E E 0 0 G E 7RSYLHZ RIIVHW E F 0 0 0 D SURMHFWHGDUHD SURMHFWHGDUHD

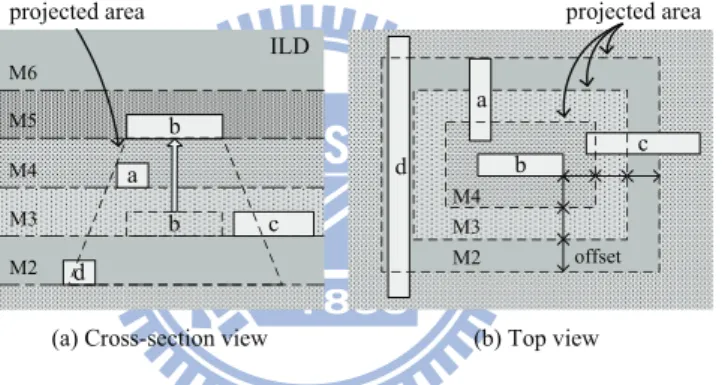

Figure 3.5: Illustration of a moved-up line and the other lines that are blocked by the moved-up line.
To speed up the search within a designated area, we utilize two STL map containers, named hM ap and vM ap, for each metal layer to store the summary information of the lines and sort them with the defined key value. The map con-tainer hM ap stores the information for horizontal lines, whose key is defined as the y-coordinate of the line. The map container vM ap stores the information for vertical lines, whose key is defined as the x-coordinate of the line. Note that the complete layout database is stored in another container of a net’s data structure, which describes the lines, vias, connections, locations, dimensions, and metal lay-ers, after parsing in the .def file. The above two map containers only store simple
16 summary information of a line, such as the location of its end points, the line id, its metal layer, and net id, to assist the search and the link to the complete layout database when needed. Figure 3.6 shows the layout of an exemplary layer and its corresponding hM ap and vM ap.
Figure 3.6: Example of using hM ap and vM ap to store the location of each line.
Since all lines are sorted by its coordinate in hM ap or vM ap, we can effi-ciently list the vertical or horizontal lines within a region by calling the build-in function ”lower bound” of a map container. As shown in Figure 3.6, if we try to search the vertical lines within the rectangle formed by (xi, yi) and (xj, yj), vM ap
can list all the vertical lines between xi and xj, i.e., line D, E, F , and G. Then we
compare the y-coordinate of each line’s end points to screen out the lines outside the boundary, i.e., E. The final searched lines are D, F , and G. Similar operations can be applied to the horizontal lines.
3.5
Computing Moving Cost
Another heavily operated task in the proposed framework is to compute the moving cost of a metal line, i.e., the number of operations which can make the line observable. To compute the moving cost, we first need to project the target line to each of its upper layers by using a similar way as shown in Figure 3.5, and
17 then search the lines within the projected area on each layer. Those searched lines are the ones which may block the observation of the target line. Next, for each searched blocking line, we project it back to the target line and mark the ends of the projection on the target. Figure 3.7 illustrates this projection process for a case where line a is the target line and line b, c, and d are the blocking lines above a.
F G D D D E D D E E E E G G F F F

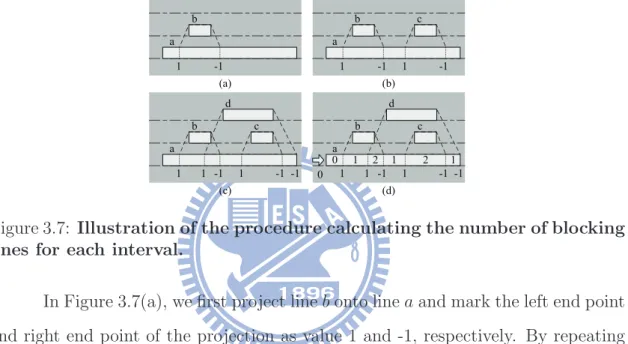

Figure 3.7: Illustration of the procedure calculating the number of blocking lines for each interval.
In Figure 3.7(a), we first project line b onto line a and mark the left end point and right end point of the projection as value 1 and -1, respectively. By repeating the same action, we then mark the end points for the projection of line c and d as shown in Figure 3.7(b) and Figure 3.7(c). Up to now, line a is divided into several intervals as shown in Figure 3.7(c). Next, we can calculate the number of lines blocking each intervals by summing the marked value from the left to the right. The summed values are listed on the intervals of line a.
After obtaining the number of lines blocking each intervals, we start to check whether the interval of 0 blocking line can be observable by directly observing it or moving the interval (or part of the interval) to a higher layer right above it. If the interval is already observable, the moving cost of the target line is 0. If the interval can be observable by moving it up, the moving cost is 1. If both cases
18 fail, we need to merge the interval of 0 blocking line with the interval of 1 blocking line, and then check whether the merged interval can be observable by moving all the blocking lines down or plus moving the interval up. If the merged interval can be observable by moving all the blocking lines down and those blocking lines can indeed be feasibly moved down, the moving cost is equal to the number of blocking lines in the merged interval. If the merged interval can be observable by moving all the blocking lines down plus moving itself up, the moving cost is equal to the number of blocking lines plus 1. If both cases fail, we need to merging the interval into the interval with one more blocking line. We repeat the above process until the interval with the most blocking lines is tried. If all above actions fail, the target line is defined as unobservable.
With the help of obtaining the number of blocking lines for each interval, we can systematically find a minimal number of move-up and/or move-down operations to make a target line observable. Such a moving-cost computation avoids the enu-meration and examination of all possible operation combinations, which significantly improves the efficiency of the proposed framework.
Chapter 4
Experimental Results for Maximizing FIB
Observable Rate
The experiments in this chapter are conducted based on the same UMC 90nm 9-metal process technology and the same benchmark circuits as used in Table 2.1. The initial layout of each circuit is generated by a commercial APR tool, SoC Encounter [17]. Also, we ignore the observation for clock, reset, or scan enable when applying the framework.
4.1
Before and After Applying MFOB
Table 4.1 reports the FIB observable rate based on a 1000nm minimum suf-ficient width of the baseline window and a 1-to-10 edge slope of an FIB hole. The cell-utilization rate is set to 80% to generate the initial layout with SoC Encounter. Also, dynamic ranking is used in MFOB to determine the order of nets for layout adjustment. In Table 4.1, Column 1 and 2 list the circuit name and its total number of nets, respectively. Column 3 and 4 list the FIB observable rate before and after applying our proposed framework MFOB, respectively. Their difference is listed on Column 5. As the result shows, our proposed framework MFOB can successfully increase the FIB observable rate from 29.50% to 61.67% in average by properly adjusting the initial layout. The improvement in FIB observable rate ranges from 28.85% to 36.34% for different circuits. Note that this average 61.67% of the FIB
20 observable rate already exceeds the average FIB observable rate of the benchmark circuits implemented by a 0.18µm process (57.82%) with the same cell utilization rate and FIB technology as shown in Table 2.1.

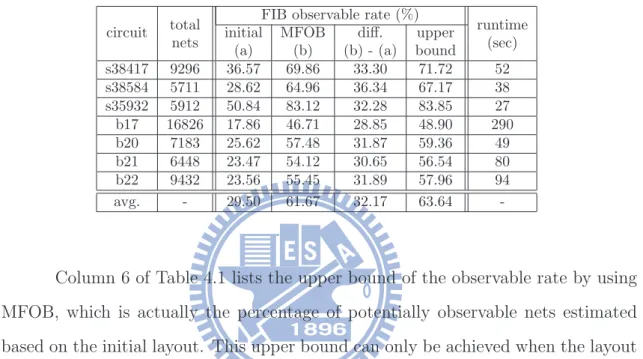

Table 4.1: Result of applying MFOB.
FIB observable rate (%)
circuit total initial MFOB diff. upper runtime
nets (a) (b) (b) - (a) bound (sec)
s38417 9296 36.57 69.86 33.30 71.72 52 s38584 5711 28.62 64.96 36.34 67.17 38 s35932 5912 50.84 83.12 32.28 83.85 27 b17 16826 17.86 46.71 28.85 48.90 290 b20 7183 25.62 57.48 31.87 59.36 49 b21 6448 23.47 54.12 30.65 56.54 80 b22 9432 23.56 55.45 31.89 57.96 94 avg. - 29.50 61.67 32.17 63.64
-Column 6 of Table 4.1 lists the upper bound of the observable rate by using MFOB, which is actually the percentage of potentially observable nets estimated based on the initial layout. This upper bound can only be achieved when the layout adjustment for all the potentially observable nets will not interfere with one another, which is not the case in practice. Hence, the true maximum observable rate that can be achieved is limited by the listed upper bound. As Table 4.1 reports, the difference between the observable rate of MFOB and the corresponding upper bound is 1.97% in average, showing that the observable rate achieved by MFOB is already not far away from the true maximum value. Column 7 of Table 4.1 lists the runtime of MFOB in seconds. The longest runtime is 290 seconds for a circuit with more than 16K nets.
21
4.2
Different Ranking Criteria
In the proposed ranking method for determining the order of nets to be processed, we use the less moving candidates first as the primary criterion and the lower moving cost first as the secondary criterion. Table 4.2 compares the proposed ranking scheme with three different ranking scheme, named as R1, R2, and R3. R1 uses the more moving candidates first as the primary criterion and the lower moving cost first as the secondary one. R2 uses the less moving candidates first as the primary criterion and the higher moving cost first as the second. R3 uses the more moving candidates first as the primary criterion and the higher moving cost first as the second one, which is completely opposite to the proposed ranking scheme. The FIB observable rates achieved by using the proposed ranking scheme, R1, R2, and R3 are reported on Column 2, 3, 4, and 5 of Table 4.2, respectively. The other experiment settings are the same as Table 4.1.
Table 4.2: FIB observable rates by using different ranking criteria.
FIB observable rate (%)
circuit proposed R1 R2 R3 s38417 69.86 69.34 69.74 69.24 s38584 64.96 64.48 64.96 64.48 s35932 83.12 82.83 83.11 82.82 b17 46.71 45.87 46.67 45.83 b20 57.48 57.06 57.48 57.03 b21 54.12 53.34 54.06 53.29 b22 55.45 54.65 55.38 54.62 avg. 61.67 61.08 61.63 61.04
As the result shows, the proposed ranking scheme can achieve higher observ-able rate than any of the other three ranking schemes for every benchmark circuit. On the other hand, the ranking scheme completely opposite to our proposed one (R3) achieves the lowest observable rate for every benchmark circuit as well. This
22 result demonstrates that the ranking criteria used in our proposed framework are indeed critical and helpful for maximizing the observable rate.
4.3
Dynamic Ranking vs. Static Ranking
In the above experiments, we utilize the dynamic ranking, which updates the newest ranking of the nets once after every layout adjustment and consumes more runtime. In Table 4.3, we compare the dynamic ranking with the static one, i.e., using only the net ranking obtained from the initial layout to determine the order of nets to be processed. As the result shows, the observable rate achieved by the dynamic ranking is indeed higher than that by the static ranking for each benchmark circuit, and their average difference is 0.21%. On the other hand, the runtime of using the dynamic ranking is in average 12% higher than that of the static ranking, which is affordable trade-off for using the dynamic ranking.
Table 4.3: Comparison between the dynamic ranking and static ranking.
FIB observable rate runtime
circuit dynamic static diff. dynamic static ratio
(a) (b) (a) - (b) (c) (d) (d) / (c) s38417 69.86 69.64 0.22 52 47 0.89 s38584 64.96 64.64 0.31 38 34 0.90 s35932 83.12 82.98 0.14 27 24 0.91 b17 46.71 46.55 0.16 290 242 0.83 b20 57.48 57.29 0.20 49 43 0.87 b21 54.12 53.86 0.27 50 44 0.88 b22 55.45 55.26 0.18 94 82 0.87 avg. 61.67 61.46 0.21 - - 0.88
4.4
Different Cell-utilization Rate
The observable rate of a design’s initial layout is affected by the cell-utilization rate set to the APR tool. A higher cell-utilization rate will result in smaller area
23 overhead and higher layout density, which in general leads to a lower FIB observable rate since denser metal lines may easily block the FIB observation of one another. In practice, a layout with 80% cell-utilization rate is already an acceptable one. A layout with 90% cell-utilization would be a really high quality one and is difficult to obtain for large industrial designs.
Table 4.4 reports the observable rate of the initial layout generated by setting the cell-utilization rate to 80%, 85%, and 90%, as well as its corresponding observable rate after applying MFOB. As the result shows, a higher cell-utilization rate always leads to a lower observable rate for the initial layout. Also, the observable-rate improvement achieved by MFOB is 32.17% (61.67-29.50), 31.53% (59.13-27.60), and 32.03% (57.75-25.72) for a 80%, 85%, and 90% cell-utilization rate, respectively. This result demonstrates that MFOB can still effectively improve the FIB observable rate for the layouts with different cell utilization rates.
Table 4.4: FIB observable rates based on the initial layout with different cell-utilization rates
cell-utilization rates
circuit 80 85 90
initial MFOB initial MFOB initial MFOB
s38417 36.57 69.86 34.04 67.76 32.95 67.55 s38584 28.62 64.96 27.20 64.90 25.12 62.82 s35932 50.84 83.12 47.42 80.13 43.15 77.87 b17 17.86 46.71 16.64 43.80 16.11 42.51 b20 25.62 57.48 23.49 53.00 22.67 50.54 b21 23.47 54.12 23.34 52.40 19.61 50.93 b22 23.56 55.45 21.03 51.91 20.45 52.05 avg. 29.50 61.67 27.60 59.13 25.72 57.75
24
4.5
Impact on Circuit’s Timing
Even though a move-up or move-down operation may add extra vias to a net, which increases its resistance, the circuit’s timing after applying our proposed framework usually becomes faster than its initial layout. Table 4.5 lists the longest path delay before and after applying MFOB, which is reported by a commercial timing analysis tool [18] with the result of layout RC extraction. As the result shows, the timing after applying MFOB can indeed become faster than the timing of its initial layout for every benchmark circuit. Also, every modified layout passes the connection checking and equivalence checking.

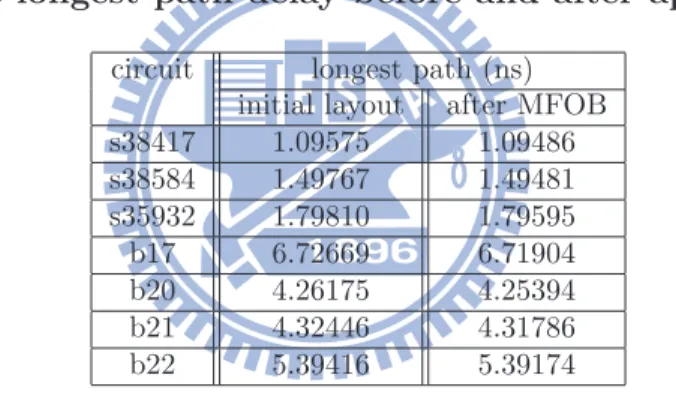

Table 4.5: The longest-path delay before and after applying MFOB.
circuit longest path (ns) initial layout after MFOB
s38417 1.09575 1.09486 s38584 1.49767 1.49481 s35932 1.79810 1.79595 b17 6.72669 6.71904 b20 4.26175 4.25394 b21 4.32446 4.31786 b22 5.39416 5.39174
This faster timing of the modified layout results from the following two rea-sons. First, the long delay of a critical path usually results from the large coupling capacitance affected by the long paralleled metal lines in its neighborhood. Fortu-nately, the operations used in our framework often move only a portion of a metal line to another layer, which can reduce the overlapping length of the paralleled lines and in turn reduce the coupling capacitance. Second, for most CMOS technolo-gies, the unit-length capacitance of the metal on a higher layer is smaller than that on a lower layer. In our framework, a move-up operation is performed more often than a move-down operation, meaning that the metal used on higher layers becomes
25 more after the layout adjustment. As a result, the overall metal capacitance usually decreases and so does the timing of the circuit.
Table 4.6: Timing comparison between MFOB with and without locking the top 50 longest paths.
critical path avg. timing diff. FIB observable
circuit (ns) for top 50 paths (%) rate (%)
no lock lock no lock lock no lock lock
s38417 1.09486 1.09485 -0.07770 -0.07887 69.86 67.22 s38584 1.49481 1.49698 -0.10887 -0.10907 64.96 6438 s35932 1.79595 1.79602 -0.07860 -0.07907 83.12 82.78 b17 6.71904 6.71894 -0.10497 -0.10731 46.71 45.97 b20 4.25394 4.25793 -0.12390 -0.10775 57.48 54.40 b21 4.31786 4.31997 -0.10199 -0.05618 54.12 51.74 b22 5.39174 5.39194 -0.12210 -0.13058 55.45 53.55 avg. - - -0.10259 -0.09555 61.67 60.01
MFOB has a feature which can maximize the observable rate while locking the layout of the given paths, meaning that MFOB can only perform move-up and move-down operations to the metal lines not on the given paths. Table 4.6 reports the result of applying MFOB with the top 50 longest paths locked. These top 50 longest paths are also reported from the timing analysis tool [18] based on the initial layout. In Table 4.6, Column 2 and 3 first shows that the delay of the most critical path without locking the 50 paths is always smaller than that with locking the 50 paths, but the difference is very limited. Column 4 and 5 calculates the average difference of the 50 paths’ delay between the modified layout and initial layout after applying MFOB without and with locking the 50 paths, respectively. The result shows that MFOB without locking the 50 paths can reduce the average path delay for the initial layout more than that with locking the paths. We also found that the above situation actually happens to each of the 50 longest path without exception. This result confirms that the coupling capacitance can be reduced by moving only a portion of a metal line to another layer and in turn reduce the delay of the 50
26 longest paths even though the layout of these 50 longest paths is not changed. In addition, Column 6 and 7 show that the FIB observable achieved by not locking the 50 paths is in average 1.66% higher than that locking the 50 paths.
Chapter 5
Future Work: Maximizing FIB Repairable Rate
The above chapters, we have introduced how to maximize the number of nets being observable by FIB probing for a given layout. In this chapter, we would like to further discuss the differences that the proposed framework may need to make for maximizing the number of nets being repairable by FIB circuit editing. To repair a signal, two actions need to be performed. The first action is to reconnect the cut signal to a new one, which is done by digging an FIB hole onto each of the target line and the line connecting to, filling metal into the two holes, and connecting them together. The second action is to cut the connection of the original signal source, which is done by digging an FIB hole, breaking through the target metal line and then filling the hole with insulator. Figure 5.1 illustrates an example of cutting the signal a and reconnect it to a new signal b. Thus, in order to successfully apply the FIB circuit editing to repair a signal, we need to dug two FIB holes to the metal lines of the signal, one for cutting the original connection and the other for reconnecting. Note that the cutting hole and the reconnecting hole can physically locate next to each other without interfering.
As a result, when building the framework for maximizing the FIB repairable rate, we need to check not only whether an FIB hole can successfully land onto a metal line (as in MFOB) but also how many FIB holes can successfully land onto the metal line. Also, when using the FIB circuit editing, cutting different locations
28 D ,QLWLDOOD\RXW ,/' 0 0 0 E $IWHUFXWWLQJDQGUHFRQQHFWLQJ 0 G F ,/' 0 0 0 0 F 3W ,QVXODWRU H D E G H D E I I 3W D E
Figure 5.1: An example of using FIB circuit editing to repair a signal. of a net will result in different repaired functions. For example, cutting the stem of a multiple fanout net will function different from cutting a branch of the same net. Thus, the unit of calculating the FIB repairable rate is different from the FIB observable rate as well.
Chapter 6
Conclusions
In this thesis, we have proposed a DFD framework, named MFOB, which can increase the FIB observable rate by using a greedy-based algorithm to iteratively adjust the layout for a selected signal. An effective ranking scheme has also been developed to generate a proper order of signals for layout adjustment and maximize the resulting observable rate. A series of experiments have demonstrated that the targeted observable rate of the initial layout can be significantly increased without violating any design rule. Meanwhile, the adjusted layout can remain the same size and its timing can even become slightly better. Its runtime is also within a reasonable range for a software dealing with the complete layout database. In addition, the proposed frameworks can be easily integrated into the current design flow and applied in conjunction with any commercial APR tool.
Bibliography
[1] M. Abramovici, P. Bradley, K. Dwarakanath, P. Levin, G. Memmi, and D. Miller, ”A Reconfigurable Design-for-Debug Infrastructure for SoCs”, Design Automation Conference, pp. 7-12, 2006.
[2] R. Goering, ”Post-Silicon Debugging Worth a Second Look”, EETimes, Feb. 05, 2007.
[3] M. L. Bushnell and V. D. Agrawal, Essentials of Electronic Testing, Kluwer, Boston, 2000.
[4] E. Anis and N. Nicolico, ”On Using Lossless Compression of Debug Data in Em-bedded Logic Analyis”, International Test Conference, pp. 1-10, 2007.
[5] E. Anis and N. Nicolico, ”Low Cost Debug Architecture using Lossy Compression for Silicon Debug”, Design Automation, and Test in Europe, pp. 1-6, 2007.
[6] J.-S. Yang and Nur A. Touba, ”Expanding Trace Buffer Observation Window for In-System Silicon Debug through Selective Capture”, VLSI Tset Symposium, pp. 345-351, 2008.
[7] C. Shawn, C. C. Tsao, and T. R. Lundquist, ”Measuring back-side voltage of an integrated circuit”, U.S. Patent 6,872,581 B2, 2005.
[8] W.-M. Yee, M. Paniicia, T. Eiles, and V. Rao, ”Laser Voltage Probe (LVP): a Novel Optical Probing Technology for Flip-Chip Package Microprocessors”, Internation Symposium on the Physical and Failure Analysis of Integrated Circuits, pp. 15-20, 1999.
[9] M. T. Abramo and L. L. Hahn, ”The Application of Advanced Techniques for Complex Focused-Ion-Beam Device Modification”, Microelectronics Reliability, Vol. 36, Issues 11-12, pp. 1775-1778, 1996.
[10] C. G. Talbot, M. Park, N. Richardson, P. Alto, and D. Masnaghetti, ”IC Modifica-tion with Foucused Ion Beam System”, U.S. patent 5,140,164, 1992.
[11] D. C. Shaver and B. W. Ward, ”Integrated Circuit Diagnosis Using Foucused Ion Beams”, Journal of Vacuum Science & Technology B; Microelectronics and Nanometer Structures, Vol. 4, Issuse 1, pp. 185-188, 1986.
31
[12] R. Schlangen, R. Leihkauf, U. Kerst, C. Boit, and B. Kruger, ”Functional IC Anal-ysis Through Chip Backside With Nano Scale Resolution - E-Beam Probing in FIB Trenches to STI Level”, International Symposium on the Physical and Failure Analysis of Integrated Circuits, pp. 35-38, 2007.
[13] J. Nonaka, ”Design for Failure Analysis by using LVP Measurement Elements”, Semi Technology Symposium, pp45-48, 2003.
[14] J. Nonaka, T. Ishiyama, and K. Shigeta, ”Design for Failure Analysis inserting Replacement-type Observation Points for LVP”, International Testing Conference, pp. 1-10, 2009.
[15] Y.-R. Wu, S.-Y. Kao, and S.-A. Hwang, ”Minimizing ECO routing for FIB”, VLSI Design Automation and Test, pp. 351-354, 2010.
[16] FEI Company, ”Focused Ion Beam Technology, Capabilites and Applications”, http://www.fei.com.
[17] Cadence, ”Encounder User Guide,” version 8.1.2, 2009.R
