Molecular Dynamics Analysis of Effects of Velocity and Loading on the Nanoindentation
Te-Hua FANG∗, Sheng-Rui JIAN1and Der-San CHUU1
Department of Mechanical Engineering, Southern Taiwan University of Technology, Tainan 710, Taiwan, R.O.C. 1Institute and Department of Electrophysics, National Chiao Tung University, Hsinchu 300, Taiwan, R.O.C.
(Received September 26, 2002; accepted for publication October 21, 2002)
Three-dimensional molecular dynamics (MD) simulation is used to investigate the atomistic mechanism of nanoindentation process under various indentation loads and velocities that occur when a diamond tip interacts with the copper thin film. In this study, the model utilizes the Morse potential function to simulate interatomic forces between the specimen and tip. The results show that both Young’s modulus and hardness increase up to a critical value and decrease there after for the indentation velocities, but decrease as the indentation loads increase. In additional, the contact stress-strain relationship is shown to be important. [DOI: 10.1143/JJAP.41.L1328]
KEYWORDS: molecular dynamics, nanoindentation, Young’s modulus, hardness, contact stress strain
Due to the improvements in manufacturing technology, the thickness of films in semiconductors or MEMS devices has broken the sub-micrometer barrier and now has reached the nanometer level. However, there is a marked difference between the physical characteristics of films with thickness on the micrometer scale, and those with thickness on the nanometer scale. In order to clearly understand these dif-ferences, it is essential to investigate the physical properties of thin films. Nanoindentation is the most frequently used technique for measuring thin film properties such as Young’s modulus and hardness. Research in this area is partially sum-marized in reference.1) However, in order to obtain precise
measure film properties, especially for very thin films of the order of less than 1-nm thick, significant redesign and im-provement of nanoindentation measurement systems, with special emphasis on tips, is required.2, 3)Current systems have difficulty maintaining controlled and reliable small depth pen-etration, which is required for minimizing substrate influences during thin film measurements.
Various aspects of the interaction between tool tip and specimen during the nanoindentation process have been in-vestigated. This in previous studies has included the phenom-ena of tip-specimen adhesion and specimen fracture of the specimen,4, 5)nanoscale etching and indentation using carbon
nanotube,6)phase transformations,7, 8)elastic and plastic
con-tact behavior,9)and the influence of different tool materials
on the indentation mechanism.10)These previous studies
pro-vide significant insight into tip-specimen interaction phenom-ena.11)However, the effect of indentation velocities and
con-tact stress and strain are also important in the nanoindentation process. Thus based on these viewpoints, the main object of this study is to evaluate these effects on the nanoindentation processes by using the molecular dynamics (MD) simulation. In most previous studies the MD simulation method has been used to investigate phenomena occurring during the nanoindentation process. It is proposed to use the same method for this study. MD simulation of nanoindentation is used to investigate various aspects of the interaction between a rigid diamond tip and a monocrystalline copper film. Pe-riodic boundary conditions12) are used in the transverse (x
-and y-directions), -and the bottom three layers of atoms of the copper are fixed in space.13)The force acting on an individual
∗Author to whom all the correspondence should be addressed. E-mail
ad-dress: [email protected]
atom is obtained by summing the forces contributed by the surrounding atoms. The Morse potential is written as
φ(rij) = D{e−2α(rij−r0)− 2e−α(rij−r0)} (1)
whereφ(rij) is a pair potential energy function, D, α, and r0
correspond to the cohesion energy, the elastic modulus and the atomic distance at equilibrium, respectively. Their related parameters are shown in Table I.14) The Morse potential has
been selected for these simulations because it is simple and computationally inexpensive, and it has been used previously in several similar studies.15)
The force on atom i resulting from the interaction of all the other atoms can be derived from the above potential function, eq. (1) such that
Fi = − N j=1 ( j=i) ∇iφ(rij) = mi d2ri(t) dt2 (2)
where Fi is the resultant force on atom i , mi is the mass of atom i , ri is the position of atom i , and N is the total num-ber of atoms. The data (tip velocity, integration time, etc.) are input, the initial configuration of the sample material is a face-centered cubic (FCC) copper lattice. Initial velocities are as-signed from the Maxwell distribution, and the magnitudes are adjusted so as to keep the temperature in the system constant according to Vinew= NfN kBT0 2 N i=1 mi(Viold)2 2 −1 1 2 · Vold i (3)
where Vi is the velocity of atom i , T0 is a specified
tempera-ture, kBis Boltzmann’s constant (= 1.381 × 10−23JK−1), and
Nfis the freedom of the system. The initial displacement and
velocity are values determined independently, and the time integration of motion is performed by Gear’s fifth
predictor-Table I. Parameters in the Morse potential.
Parameter Cu–Cu Cu–C C–C
D (eV) 0.3429 0.100 2.423
α (1010m−1) 1.3558 1.700 2.555
r0(10−10m) 2.6260 0.220 2.522
Jpn. J. Appl. Phys. Vol. 41 (2002) Pt. 2, No. 11B T.-H. FANGet al. L1329

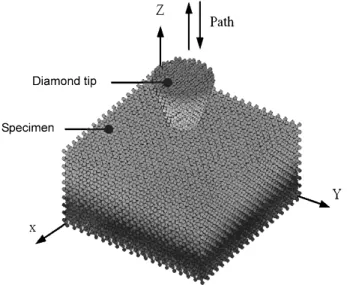

Fig. 1. Molecular dynamic simulation model.
corrector method.12)The copper thin film and a diamond tip
tool are used in these simulations. The direction of indenta-tion vertical to the specimen surface is taken as the negative z-axis, as seen in Fig. 1. In preparation for this study, films with different numbers of atoms per layer and different num-bers of layers were tested, with the intention of only select-ing films that were thin enough to prevent the film thickness affecting the simulation results. Thus, in this study films with 16,000 atoms (800 atoms/layer, 20 layers) are used. This is not claimed to be a truly minimum array, but is rather an empir-ically derived practical array. It was found that thickness ef-fects are quite acceptable with a 20-layer film. For the simula-tion, the specimen is initially assumed to have a well-defined atomic surface and the time step is set to 1 fs. The atomic array model of the surface is constructed for a specific temperature at equilibrium and the velocities of atoms of the specimen at this state are satisfied with a Maxwell velocity distribution. The Morse potential proposed by Maekawa and Itoh15) was
adopted in this work.
Young’s modulus is first calculated using the composition response modulus, Er, which takes into account the combined
elastic effects of indention tip and film: Er= 1 2 π Ac d P dh (4) whered P
dh is the slope of the beginning of the unloading curve,
and Acis the projected contact area at the maximum load. The
final Young’s modulus of the specimen, Es, is obtained from
the expression 1 Er = 1− vs2 Es +1− v2i Ei (5) where Ei is the elastic modulus of the indenter, andvs and
viare the Poisson’s ratios of specimen and indenter,
respec-tively. A key point when determining an elastic modulus from an indention experiment is how to ascertain the projected con-tact area, Ac. Oliver and Pharr1)developed an improved
tech-nique for the measurement of indentation impressions. They used data directly drawn from the indentation curve and
cor-related the projected contact area to the contact depth, hc, as
Ac= F(hc) (6)
where hcmay be expressed as
hc= hmax− 0.72
Pmax
Smax
(7) where hmaxis the maximum depth, Pmaxis the maximum load,
and Smaxis the slope of the unloading curve at the maximum
load. The material properties used in this study’s calculations are Ei = 1140 GPa and vi = 0.07 for an ideally conical
di-amond indenter with R = 2 nm tip radius and 60◦ included angle, andvs= 0.3 for the copper thin film.
The hardness of a material is defined as its resistance to lo-cal plastic deformation. Thus, the hardness, H , is determined from the maximum indentation load Pmaxdivided by the
pro-jected contact area i.e.,
H= Pmax Ac
. (8)
To better understand the deformation mechanisms of nanometer-scale, the stress-strain relationship are calculated using the radius a of the contact area to determine the stress using the Hertzian equation,16)
a= 3 P R 4Er 1/3 . (9)
In order to investigate the affect of loading and velocity on the nanoindentation process, the process was simulated using various loads and indentation velocities. Figures 2(a) and 2(b) show load-displacement curves for copper thin film under dif-ferent indentation loads and at difdif-ferent velocities, respec-tively. With the diamond tip draws back, the plastic deformed region undergoes a partial elastic recovery indicating the ir-reversibility of the plastic behavior during nanoindentation that manifests in the load-displacement curves as a hysteresis form. As the indentation depth of the diamond tip continues to increase, the load curve starts to go up until it reaches a maxi-mum depth. After reaching the maximaxi-mum depth, the tip begins to unload and return to its original position. The intersection of the tangent to the topmost third of the unloading curve with the x -axis gives the plastic indentation depth, hp.1)The area
contained by loading-unloading curves represents the plastic energy. The plastic energy increases with increasing indenta-tion loads as shown in Fig. 2(a). In addiindenta-tion, Fig. 2(b) also indicates that for a given indentation depth, the plastic energy increases as indentation velocities increase. The penetration depth of less than 2 nm is in the plastic zone.
The Young’s modulus and hardness of the copper thin film under different loads and at different velocities are evalu-ated from the indentation curves, as shown in Figs. 3(a) and 3(b), respectively. Young’s modulus decreases with increas-ing load, but the hardness slowly decreases in Fig. 3(a). Both Young’s modulus and hardness of different indentation loads are approximately 364.03 GPa–675.30 GPa and 88.38 GPa– 110.63 GPa, respectively. On the other hand, the effect of in-dentation velocities on the Young’s modulus and hardness is shown in Fig. 3(b). The Young’s modulus and hardness of dif-ferent indentation velocities are approximately 249.69 GPa– 466.04 GPa and 53.05 GPa–101.01 GPa, respectively. The en-ergy of the impact of the indenter on film surface is greater
Fig. 2. (a) Load-displacement curves of the different indentation loads, and (b) is shown the curves for the different indentation velocities.
at the higher velocities, which causes the Young’s modulus and hardness to increase up to a critical level. The critical velocity occurs at the indentation velocity of 80 m/s, shown in Fig. 3(b). Above this velocity, the impact causes the cop-per thin film to yield, and the Young’s modulus and hardness are trended to decrease. Therefore, it is important that the in-dentation velocity can sometimes cause the different surface effects during nanoindentation.
Based on a local strain diagnostic, to identify the plas-tic behavior during nanoindentation processes. The results of the simulation show, the strain rate increases with increasing loads in Fig. 4(a), which creates an increasing number of dis-locations, which in turn causes material deformation. Accord-ing to the indentation velocities simulation, which is shown in Fig. 4(b), the maximum yielding point of the material is 312.25 GPa at a strain rate of 0.67, the strain rate decreasing there after. This explains why a greater indentation velocity causes a larger kinetic energy to deform the material, but the
Fig. 3. (a) Young’s modulus and Hardness vs. Penetration depth in the dif-ferent indentation loads, and (b) which is shown in the difdif-ferent indentation velocities.
film can only bear up to a critical value.
In summary, in order to better understand the plastic de-formation processes, we have performed the MD simulation of different indentation loads and velocities for copper thin film during nanoindentation. Even for an ultrasmall penetra-tion depth (< 2 nm), the simulation results show copper thin film deform plastically and give a good description. Both Young’s modulus and hardness decrease as the indentation loads increase. But, for the indentation velocities simulation part, Young’s modulus and hardness decrease at a critical ve-locity of 80 m/s. In addition, the results also indicate that the indentation velocity which is the main reason to domain the deformation mechanism; the yielding point which occurs at indentation critical velocity 80 m/s is 312.25 GPa. Hence with the aid of MD simulations, the nanoindentation processes of copper thin film and a diamond tip during indentation and the mechanism are clearing shown.
The authors gratefully acknowledge the support to this research by the National Science Council, Republic of China, under Grant Nos. NSC90-2218-E218-011 and
NSC91-2218-Jpn. J. Appl. Phys. Vol. 41 (2002) Pt. 2, No. 11B T.-H. FANGet al. L1331

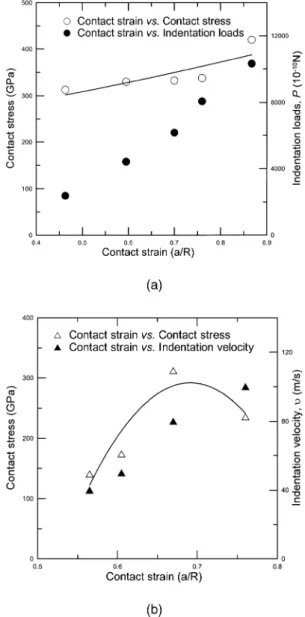

Fig. 4. (a) Schematic diagram showing the contact stress-strain relation-ship of the different indentation loads, and (b) is shown this relationrelation-ship for the different indentation velocities.
