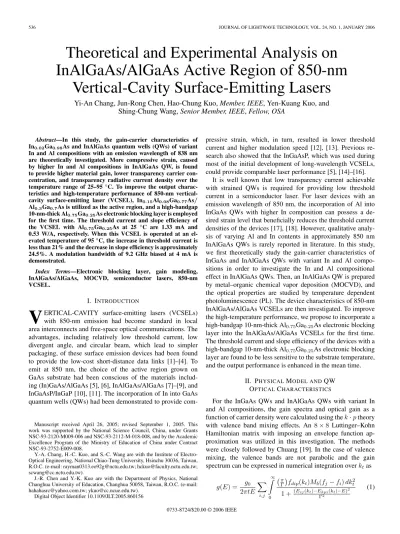

Theoretical and Experimental Analysis on
InAlGaAs/AlGaAs Active Region of 850-nm
Vertical-Cavity Surface-Emitting Lasers
Yi-An Chang, Jun-Rong Chen, Hao-Chung Kuo, Member, IEEE, Yen-Kuang Kuo, and
Shing-Chung Wang, Senior Member, IEEE, Fellow, OSA
Abstract—In this study, the gain-carrier characteristics of
In0.02Ga0.98As and InAlGaAs quantum wells (QWs) of variant
In and Al compositions with an emission wavelength of 838 nm are theoretically investigated. More compressive strain, caused by higher In and Al compositions in InAlGaAs QW, is found to provide higher material gain, lower transparency carrier con-centration, and transparency radiative current density over the temperature range of 25–95◦C. To improve the output charac-teristics and high-temperature performance of 850-nm vertical-cavity surface-emitting laser (VCSEL), In0.15Al0.08Ga0.77As/
Al0.3Ga0.7As is utilized as the active region, and a high-bandgap
10-nm-thick Al0.75Ga0.25As electronic blocking layer is employed
for the first time. The threshold current and slope efficiency of the VCSEL with Al0.75Ga0.25As at 25 ◦C are 1.33 mA and
0.53 W/A, respectively. When this VCSEL is operated at an el-evated temperature of 95◦C, the increase in threshold current is less than 21% and the decrease in slope efficiency is approximately 24.5%. A modulation bandwidth of 9.2 GHz biased at 4 mA is demonstrated.
Index Terms—Electronic blocking layer, gain modeling,
InAlGaAs/AlGaAs, MOCVD, semiconductor lasers, 850-nm VCSEL.
I. INTRODUCTION
V
ERTICAL-CAVITY surface-emitting lasers (VCSELs) with 850-nm emission had become standard in local area interconnects and free-space optical communications. The advantages, including relatively low threshold current, low divergent angle, and circular beam, which lead to simpler packaging, of these surface emission devices had been found to provide the low-cost short-distance data links [1]–[4]. To emit at 850 nm, the choice of the active region grown on GaAs substrate had been conscious of the materials includ-ing (In)GaAs/AlGaAs [5], [6], InAlGaAs/AlGaAs [7]–[9], and InGaAsP/InGaP [10], [11]. The incorporation of In into GaAs quantum wells (QWs) had been demonstrated to providecom-Manuscript received April 26, 2005; revised September 1, 2005. This work was supported by the National Science Council, China, under Grants NSC-93-2120-M009-006 and NSC-93-2112-M-018-008, and by the Academic Excellence Program of the Ministry of Education of China under Contract NSC-93-2752-E009-008.
Y.-A. Chang, H.-C. Kuo, and S.-C. Wang are with the Institute of Electro-Optical Engineering, National Chiao-Tung University, Hsinchu 30036, Taiwan, R.O.C. (e-mail: [email protected]; [email protected]; [email protected]).
J.-R. Chen and Y.-K. Kuo are with the Department of Physics, National Changhua University of Education, Changhua 50058, Taiwan, R.O.C. (e-mail: [email protected]; [email protected]).
Digital Object Identifier 10.1109/JLT.2005.860156
pressive strain, which, in turn, resulted in lower threshold current and higher modulation speed [12], [13]. Previous re-search also showed that the InGaAsP, which was used during most of the initial development of long-wavelength VCSELs, could provide comparable laser performance [5], [14]–[16].
It is well known that low transparency current achievable with strained QWs is required for providing low threshold current in a semiconductor laser. For laser devices with an emission wavelength of 850 nm, the incorporation of Al into InGaAs QWs with higher In composition can possess a de-sired strain level that beneficially reduces the threshold current densities of the devices [17], [18]. However, qualitative analy-sis of varying Al and In contents in approximately 850 nm InAlGaAs QWs is rarely reported in literature. In this study, we first theoretically study the gain-carrier characteristics of InGaAs and InAlGaAs QWs with variant In and Al compo-sitions in order to investigate the In and Al compositional effect in InAlGaAs QWs. Then, an InAlGaAs QW is prepared by metal–organic chemical vapor deposition (MOCVD), and the optical properties are studied by temperature dependent photoluminescence (PL). The device characteristics of 850-nm InAlGaAs/AlGaAs VCSELs are then investigated. To improve the high-temperature performance, we propose to incorporate a high-bandgap 10-nm-thick Al0.75Ga0.25As electronic blocking layer into the InAlGaAs/AlGaAs VCSELs for the first time. The threshold current and slope efficiency of the devices with a high-bandgap 10-nm-thick Al0.75Ga0.25As electronic blocking layer are found to be less sensitive to the substrate temperature, and the output performance is enhanced in the mean time.
II. PHYSICALMODEL ANDQW OPTICALCHARACTERISTICS
For the InGaAs QWs and InAlGaAs QWs with variant In and Al compositions, the gain spectra and optical gain as a function of carrier density were calculated using the k· p theory with valence band mixing effects. An 8× 8 Luttinger–Kohn Hamiltonian matrix with imposing an envelope function ap-proximation was utilized in this investigation. The methods were closely followed by Chuang [19]. In the case of valence mixing, the valence bands are not parabolic and the gain spectrum can be expressed in numerical integration over ktas
g(E) = g0 2πtE i,j ∞ 0 π Γ fdip(kt)Mb(fj− fi) dk2t
1 + (Ecj(kt)−Ekpi(kt)−E)2
Γ2
(1)
where t is the thickness of QW, Γ =/τscatis the broadening due to intraband scattering relaxation time τscat, Ecjis the jth
conduction subband, and Ekpiis the ith valence subband from
the k· p calculation. The sum is over all possible conduction and valence subbands. g0= πq2/ε0cm20n is constant, with all symbols having their usual meanings. Mbis the dipole moment
given by Mb= 1 6 · m0q mc ·Eg0(Eg0+ ∆so) Eg0+2∆3so (2)
where Eg0is the unstrained energy bandgap, mcis the effective
mass of the conduction band, and ∆sois the spin–orbit coupling energy. The error in the calculation of the Fermi functions, which are approximated with linear combinations of four expo-nential terms, is less than 0.04%, and that in the determination of the eigenvalues in the QW is less than 2× 10−6.
All the well widths of InGaAs and InAlGaAs QWs are designed to be 7 nm. Numerical parameters, required for the
k· p theory, used in this calculation, are taken from [20].
The energy bandgaps of binary InAs, AlAs, and GaAs alloys at 25 ◦C are 0.354, 3.004, 1.423 eV, respectively, and the temperature-dependent energy bandgaps are governed by the Varshini equation. Specifically, the temperature-dependent energy bandgaps of the binary alloys are calculated by
Eg(InAs) = 0.417− 0.276× 10−3· T2 T + 93 (3) Eg(AlAs) = 3.099− 0.885× 10−3· T2 T + 530 (4) Eg(GaAs) = 1.519− 0.5405× 10−3· T2 T + 204 . (5)
For the energy bandgaps of ternary GaInAs, AlInAs, and GaAlAs, and quaternary InAlGaAs alloys, the interpolation formulas are adapted from the composition-dependent prop-erties [21]
Egα(AlGaAs) = α· Eg(AlAs) + (1− α) · Eg(GaAs)
− α(1 − α) · b_GaAlAs (6)
Egβ(AlInAs) = β· Eg(InAs) + (1− β) · Eg(AlAs)
− β · (1 − β) · b_AlInAs (7)
Egγ(GaInAs) =γ· Eg(InAs) + (1− γ) · Eg(GaAs)
− γ · (1 − γ) · b_GaInAs (8) Eg(GaAlInAs) = xw· yw · Eα g(AlGaAs) xw· yw + yw · zw + zw · xw + yw· zw · E β g(AlInAs) xw· yw + yw · zw + zw · xw + xw· zw · E γ g(GaInAs) xw· yw + yw · zw + zw · xw (9) α =1− xw + yw 2 β =1− yw + zw 2 γ =1− xw + zw 2 (10)
where xw, yw, and zw represent the Ga, Al, and In composi-tions in InAlGaAsQW, respectively, and
b_GaAlAs =−0.127 + 1.310 · yw (11)
b_AlInAs = 0.7 (12)
b_GaInAs = 0.477. (13)
The spontaneous emission rate is calculated by
γspqw(E) = ij 2π |Hij|2fj(1− fi)D(E)ρij (14) where |Hij|2= q m0 2 2w 4ε1ε0ω2 Mij2 (15) ρij = ρ0ij· h ω − E0 ij (16) and fiand fjrepresent the Fermi functions for the ith and jth
levels, respectively. D(E) is the optical mode density.
For a fixed QW emission wavelength of 838 nm, the In composition in InGaAs QW is theoretically determined to be 2%, and a series design of InAlGaAs QWs with various In and Al compositions of (In, Al) = (8.5%, 4%), (15%, 8%), (21%, 12%), and (27%, 16%) is performed with unchanged Al0.3Ga0.7As barriers. The induced compressive strains in In0.02Ga0.98As, In0.085Al0.04Ga0.875As, In0.15Al0.08Ga0.77As, In0.21Al0.12Ga0.67As, and In0.27Al0.16Ga0.57As QWs are 0.143%, 0.611%, 1.053%, 1.498%, and 1.918%, respectively.
The material gain available from a QW can be affected by a number of factors that need to be taken into account. It is well known that the QWs have to be designed with a low density of states and a closely matched density of states in the valence and conduction bands [22]–[24]. However, a low density of states will cause the rapid rising of Fermi level with increased temperature; that is, more carriers may escape from the QW at elevated temperatures. Therefore, a large conduction band offset is required to secure the carrier confinement. Fig. 1 shows the calculated material gains of the In0.02Ga0.98As and InAlGaAs QWs with Al0.3Ga0.7As barrier at 25◦C when the input carrier concentration is 6× 1018 cm−3. The InAlGaAs QWs with variant Al compositions of 4%, 8%, 12%, and 16% are calculated and compared with the In0.02Ga0.98As QW. In the calculation of the radiative currents, the thickness of the AlGaAs barriers is assumed to be three times that of the QWs. Moreover, the material of the barriers is Al0.3Ga0.7As through-out the numerical analysis. It is found that the InAlGaAs QWs can provide higher material gain than the In0.02Ga0.98As QW. It is also noteworthy that the material gain of the InAlGaAs QWs can be enhanced when the Al composition in InAlGaAs
Fig. 1. Calculated material gains of the In0.02Ga0.98As and InAlGaAs QWs
with Al0.3Ga0.7As barrier at 25◦C when the input carrier concentration is
6× 1018cm−3. The material gain tends to saturate when the Al composition
in InAlGaAs QW is higher than 8%.
Fig. 2. Peak material gain as a function of (a) carrier concentration and (b) radiative current density of the In0.02Ga0.98As and InAlGaAs QWs with
Al0.3Ga0.7As barrier at 25◦C.
QW is increased. The material gain tends to saturate when the Al composition in InAlGaAs QW is higher than 8%.
Fig. 2 shows the peak material gain as a function of (a) carrier concentration and (b) radiative current density of the In0.02Ga0.98As and InAlGaAs QWs with Al0.3Ga0.7As barrier at 25 ◦C. The radiative current density is obtained from the integral of spontaneous emission spectrum and the thickness of QW [25], [26]. Both the transparencies of carrier concentration and radiative current density of the InAlGaAs QWs are lower than those of the In0.02Ga0.98As QW. The transparency carrier concentration depends primarily on the band curvatures, which is sensitive to the effective masses and the amount of strain. When the Al composition in InAlGaAs QW increases with in-creased In composition, the transparency carrier concentration decreases. Numerical results indicate that the density of states and the effective mass decrease with increased Al composition in InAlGaAs QW. The decrement in transparency carrier con-centration is less apparent when the Al composition is higher than 8%.
Fig. 3 shows the curves of valence band for the In0.02Ga0.98As and InAlGaAs QWs with variant In and Al
compositions at 25◦C. The y axis of the figures represents the valence band QW potential. It is found that there are four con-fined hole levels in the InAlGaAs QWs, and the In0.02Ga0.98As QW has another confined hole level (LH2) in addition to the four HH1, HH2, LH1, and HH3 confined levels. The number of confined hole levels may be influenced by the amount of strain in QWs and the effective masses of electrons and holes. With the increase of In and Al compositions in InAlGaAs QW, the amount of strain in QWs increases, and the effective mass of holes decreases. The reduction of the density of states in the valence band is desirous, because low transparency carrier concentration can be achieved.
When the QW is at a temperature of 95 ◦C, the spectra of material gain and the peak material gain as a function of carrier concentration and radiative current density of the In0.02Ga0.98As and InAlGaAs QWs with Al0.3Ga0.7As barrier are shown in Figs. 4, and 5, respectively. The InAlGaAs QW with more In and Al compositions is also found to provide higher material gain, and the gain tends to saturate when the Al composition is higher than 12%. The red shift of the peak emission wavelength is 0.25 nm/K, which is approximately the same for all In0.02Ga0.98As and InAlGaAs QWs. The decrement of the peak material gain with increased temperature from 25 to 95 ◦C in In0.02Ga0.98As and InAlGaAs QWs is also approximately the same when the input carrier concen-tration remains unchanged at 6× 1018cm−3. As indicated in Fig. 5, lower transparency carrier concentration and radiative current density are observed when the In and Al compositions in InAlGaAs QW increase. Due to the relatively incremental compressive strain, higher differential gain is also obtained over the temperature range under study. In this study, it is prognosticated that the transparency carrier concentration of the In0.02Ga0.98As QW is increased by approximately 26.8% as temperature increases from 25 to 95◦C. For InAlGaAs QWs, the transparency carrier concentrations are increased by 26.3% (Al = 4%), 25.2% (Al = 8%), 23.8% (Al = 12%) and 21.7% (Al = 16%) as temperature increases from 25 to 95◦C, which are smaller than those of the In0.02Ga0.98As QWs, because more compressive strain in QW can reduce the transparency carrier concentration and the relatively large conduction band offset, which is increased with the increase of In and Al com-positions in InAlGaAs QW, can prevent carriers from escaping from the QW. In addition, the increase of transparency carrier concentration with increased temperature is attributed to the increment of nonradiative recombination and the poor electron confinement; namely, large amount of electrons can pile up from the QW and overflow without attributing to the radiative recombination, when the temperature is high.
III. OPTICALPROPERTY OFQWAND
DEVICEFABRICATION
After investigating the numerical gain-carrier characteristics of the In0.02Ga0.98As and InAlGaAs QWs, the next step is to fabricate the 850-nm VCSELs. The numerical results suggest that the InAlGaAs QWs with Al composition higher than 8% can provide better gain–carrier characteristics. However, although crystal quality concerns cannot be taken into account
Fig. 3. Curves of valence band for the In0.02Ga0.98As and InAlGaAs QWs with variant In and Al compositions at 25◦C. The y-axis of the figures represents
the valence band QW potential.
Fig. 4. Calculated spectra of material gains of the In0.02Ga0.98As and
InAlGaAs QWs with Al0.3Ga0.7As barrier at 95◦C when the input carrier
concentration is 6× 1018cm−3.
in numerical calculations, it is noteworthy that increase of In and Al concentrations will result in a larger amount of strain in InAlGaAs QW and a higher strain level in QW may have crystal quality concerns. Thus, the In and Al concentrations in InAlGaAs QWs cannot be too high. In fact, degradation in higher Al content QW PL has been experimentally observed. Therefore, the In0.15Al0.08Ga0.77As/Al0.3Ga0.7As with a com-pressive strain of 1.053% is chosen and grown to form the QW active region of the 850-nm VCSEL. The temperature-dependent PL of the In0.15Al0.08Ga0.77As triple-QW structure is shown in Fig. 6. The QW was grown by low pressure MOCVD on GaAs (100) substrate with group-V precursors of arsine (AsH3). Trimethyl (TM-) sources of aluminum (Al), gallium (Ga), and indium (In) were used for group-III precur-sors. The thickness of QW is 7 nm, which is identical to that used in numerical calculation. The thickness and Al composi-tion of barriers are 8 nm and 0.3, respectively. The growth rate is about 0.75 nm/s, and the growth temperature is 720◦C. The

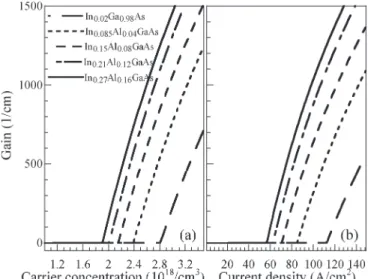

Fig. 5. Peak material gain as a function of (a) carrier concentration and (b) radiative current density of the In0.02Ga0.98As and InAlGaAs QWs with
Al0.3Ga0.7As barrier at 95◦C.
composition in QW is characterized by the rocking curve of high-resolution X-ray diffraction. Temperature-dependent PL measurement is performed by a 325-nm He–Cd laser with a 20-mW output over the temperature range of 17–300 K. The laser power is 20 mW, and the spot size is about 100 µm in diameter. Luminescence is analyzed by a 320-mm grating monochromator and detected by a charge couple detector.
In Fig. 6, the dots represent the peak emission wave-length obtained from PL measurement, and the curve rep-resents the numerical spontaneous emission rate of the In0.15Al0.08Ga0.77As/Al0.3Ga0.7As QW, which is obtained when the input carrier concentration is 5× 1015 cm−3, which is calculated based on the excited power density and laser spot size. The peak emission wavelength at 300 K is 838 nm,
Fig. 6. Temperature-dependent PL peak emission wavelength of the In0.15Al0.08Ga0.77As triple-QW structure. The inset is the optical spectrum
obtained at 300 K.
Fig. 7. Normalized integrated PL intensity plotted as a function of reciprocal temperature for the In0.15Al0.08Ga0.77As triple-QW structure.
and the full-width at half-maximum (FWHM) is 13.5 nm, which is comparable to the (In)GaAs/AlGaAs material systems. When the temperature decreases to 20 K, the peak emission wavelength shifts to 793 nm with an FWHM of 6.6 nm. Fig. 7 shows the normalized integrated PL intensity plotted as a function of reciprocal temperature for the In0.15Al0.08Ga0.77As triple-QW structure. Fitting our data to the classical Arrhenius law, I = I0/1 + c exp(−Ea/KT ), according to the thermal carrier transfer mechanism, the activation energy (Ea) of the In0.15Al0.08Ga0.77As QW is determined to be 39.8 meV.
As investigated in the numerical discussion, it is observed that the InAlGaAs QWs can provide a lower transparency carrier concentration and a higher differential gain. The trans-parency carrier concentration of the InAlGaAs QWs increased with elevated temperature up to 95◦C is also less sensitive than the In0.02Ga0.98As QW. However, more than 20% increment of the transparency carrier concentration is too high to be ignored for the InAlGaAs QWs. Therefore, methods for reduc-tion of temperature sensitivity need to be sought. To reduce the electronic leakage current and the temperature sensitivity of semiconductor lasers, a high-bandgap layer is regularly em-bedded into the active region before the growth of p-type layers [27]–[29]. In this paper, we propose to employ an AlGaAs electronic blocking layer to improve the high-temperature performance for the 850-nm VCSELs under study.
The schematic diagrams of the VCSEL with a high-bandgap 10-nm-thick Al0.75Ga0.25As electronic blocking layer
Fig. 8. Schematic diagrams of the VCSEL with employing a high-bandgap Al0.75Ga0.25As electronic blocking layer. (a) Sketch of the fabricated
VCSEL structure. (b) Schematic plot of the energy band diagram near the In0.15Al0.08Ga0.77As/Al0.3Ga0.7As active region.
are shown in Fig. 8. In this discussion, the active region of the VCSEL, which was surrounded by Al0.6Ga0.4As spacers to form a one-wavelength cavity, consisted of three 7-nm-thick In0.15Al0.08Ga0.77As QWs and four 8-nm-thick Al0.3Ga0.7As barriers. The n-type and p-type distributed Bragg reflectors (DBRs) consisted of 39 and 21 pairs of Al0.15Ga0.85As/Al0.9Ga0.1As, respectively. The dopant sources were SiH4 and CBr4. A 30-nm-thick Al0.97Ga0.03As was introduced in the upper cavity spacer layer to form the oxide confinement. Finally, a one-wavelength-thick current-spreading layer and a heavily doped GaAs (p = 2× 1019cm−3) contact layer were grown to complete the structure. The growth temperature of the n-type DBR and the active region were 720◦C, and that of the p-type DBR was 670◦C.
The fabrication process began from depositing a 1.3-µm-thick SiNxlayer, which acted as a hard mask in the following
process, onto the wafer by plasma-enhanced chemical vapor deposition (PECVD) at 300◦C. Standard photolithography and reactive ion etching (RIE) using SF6with a flow rate of 20 sccm as etching gas were then performed to define the etching pattern on the hard mask. Trench mesa etching by Cl2 with a flow rate of 2 sccm and Ar plasma were performed to transfer the mask pattern onto the wafer. The etching depth was cautiously controlled to penetrate the active region, and the 30-nm-thick Al0.97Ga0.03As aperture layer was exposed for selective oxi-dation in 400◦C stream environment. The mesa diameter was 22 µm and the oxide aperture was 7 µm. After oxidation, the residual dielectric was removed, and a second 150-nm-thick SiO2 by PECVD was deposited for passivation, followed by a partially etched process for contact window. Ti (30 nm)/ Pt (50 nm)/Au (200 nm) were deposited onto the heavily p-doped GaAs contact layer for p-contact, and AuGe (50 nm)/ Ni (20 nm)/Au (350 nm) were deposited for n-contact.

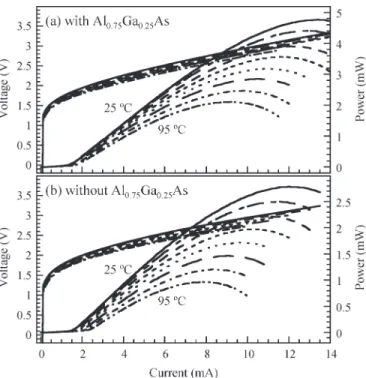

Fig. 9. Temperature-dependent light output and voltage versus current (L−I−V ) characteristics of the fabricated VCSELs (a) with and (b) without the high-bandgap Al0.75Ga0.25As electronic blocking layer when the substrate
temperature is in the range of 25–95◦C. The step of the temperature increment is 10◦C.
Fig. 10. Threshold current and slope efficiency reduction of the VCSELs with and without the high-bandgap Al0.75Ga0.25As electronic blocking layer
as a function of the substrate temperature. Solid and open symbols represent the characteristics of the VCSELs with and without the Al0.75Ga0.25As,
respectively. The circle and square symbols are for the threshold current and slope efficiency reduction, respectively.
IV. DEVICESCHARACTERISTICS
Fig. 9 shows the temperature-dependent light output and voltage versus current (L−I−V ) characteristics of the fab-ricated VCSELs (a) with and (b) without the high-bandgap Al0.75Ga0.25As electronic blocking layer when the substrate temperature is in the range of 25–95◦C. Fig. 10 summarizes the threshold current and slope efficiency reduction of the VCSELs with and without the Al0.75Ga0.25As as a function of the substrate temperature. Solid and open symbols repre-sent the characteristics of the VCSELs with and without the Al0.75Ga0.25As, respectively. The circle and square symbols are for the threshold current and slope efficiency reduction, re-spectively. It is noteworthy that both the gain–cavity detunings
Fig. 11. Small-signal frequency response of the 7-µm-wide VCSEL with Al0.75Ga0.25As layer biased at 4 mA.
of the VCSELs with and without the Al0.75Ga0.25As layer are designed to be 12 nm. The dip of Fabry–Pérot is at 850 nm, which is determined by the reflection measurement. For the VCSEL with Al0.75Ga0.25As, the threshold current and slope efficiency at 25 ◦C are 1.33 mA and 0.53 W/A, respectively. The maximum output power with a 7-µm-wide oxide aperture is 4.8 mW. The amount of increase in threshold current at an elevated temperature of 95◦C is only 0.27 mA, and the slope efficiency drops by only 24.5%. The threshold current and slope efficiency of the VCSEL without Al0.75Ga0.25As at 25◦C are 1.47 mA and 0.37 W/A, respectively, and the threshold current increases to 2.17 mA with a slope efficiency reduction of 32% when the substrate temperature is raised to 95◦C.
The differential resistances of the VCSELs with and with-out Al0.75Ga0.25As are 102 and 95 Ω, respectively. The small differential resistance may be attributed to the rea-son that it is more difficult for the carriers to transport in the vertical direction of the VCSEL when the high-bandgap Al0.75Ga0.25As is present. However, it is evident that the temperature sensitivity of the VCSEL with a high-bandgap Al0.75Ga0.25As layer is apparently reduced. Because the ef-fective mass of electrons is smaller than that of holes, the use of a high-bandgap Al0.75Ga0.25As layer can block elec-trons from overflowing to the p-type layers, and, therefore, the high-temperature characteristics and the output performance of 850-nm In0.15Al0.08Ga0.77As/Al0.3Ga0.7As VCSELs are improved.
Fig. 11 shows the small-signal frequency response of the 7-µm-wide VCSEL with Al0.75Ga0.25As layer biased at 4 mA. The small-signal response of the VCSEL is measured using a calibrated vector network analyzer (Agilent 8720ES) with on-wafer probing and 50-µm multimode optical fiber connected to a New Focus 25-GHz photodetector. The 3-dB modulation frequency response is measured to be ∼ 9.2 GHz when the bias current is 4 mA. It is found that the modulation fre-quency response remains unchanged when the high-bandgap Al0.75Ga0.25As layer is employed in the VCSEL.
V. CONCLUSION
In summary, the gain-carrier characteristics of the In0.02Ga0.98As and InAlGaAs QWs with 838 nm emission are theoretically investigated. The numerical results suggest that
the incorporation of Al into InGaAs QW is found to provide higher material gain, lower transparency carrier concentration, and radiative current density due to the increment of the amount of strain and the reduced density of states. The optical properties of In0.15Al0.08Ga0.77As QW are also investigated by temperature-dependent PL. With the use of a high-bandgap 10-nm-thick Al0.75Ga0.25As layer in the In0.15Al0.08Ga0.77As/Al0.3Ga0.7As QW active region, the high-temperature characteristics and the output performance are beneficially improved. Small-signal frequency response shows that these VCSELs can provide a modulation bandwidth of approximately 9.2 GHz.
