Influence of Energy-Transfer Upconversion
Volume 8, Number 3, June 2016
H. H. Cho
Y. J. Huang
W. D. Chen
G. Zhang
Y. F. Chen
DOI: 10.1109/JPHOT.2016.2553846
1943-0655
Ó 2016 IEEE
Diode-Pumped Nd:YAP Intracavity Optical
Parametric Oscillator Emitting at 1603 nm:
Influence of Energy-Transfer Upconversion
H. H. Cho,1Y. J. Huang,1W. D. Chen,2G. Zhang,2and Y. F. Chen1,3
1
Department of Electrophysics, National Chiao Tung University, Hsinchu 30010, Taiwan 2Key Laboratory of Optoelectronic Materials Chemistry and Physics, Fujian Institute of Research
on the Structure of Matter, Chinese Academy of Sciences, Fuzhou 350002, China 3Department of Electronics Engineering, National Chiao Tung University, Hsinchu 30010, Taiwan
DOI: 10.1109/JPHOT.2016.2553846
1943-0655Ó 2016 IEEE. Translations and content mining are permitted for academic research only. Personal use is also permitted, but republication/redistribution requires IEEE permission. See http://www.ieee.org/publications_standards/publications/rights/index.html for more information.
Manuscript received February 25, 2016; revised April 8, 2016; accepted April 11, 2016. Date of publi-cation April 13, 2016; date of current version April 28, 2016. This work was supported in part by the Ministry of Science and Technology under Contract MOST 103-2112-M-009-016-MY3 and in part by the National Natural Science Foundation of China under Grant 11404332. Corresponding author: Y. F. Chen (e-mail: [email protected]).
Abstract:A diode-end-pumped actively Q-switched Nd:YAP laser at 1080 nm is originally designed to intracavity pump a Potassium Titanyl Phosphate KTiOPO4 (KTP)-based opti-cal parametric oscillator for obtaining the signal wavelength at 1603 nm. Under an ab-sorbed pump power value of 11 W, the maximum average output power at the eye-safe radiation is efficiently generated to be 1.11 W at a pulse repetition rate of 10 kHz. At a pulse repetition rate of 5 kHz, the shortest pulse duration, the largest pulse energy, and the highest peak power are found to be 2.4 ns, 190
J, and 67.3 kW, respectively. In ad-dition, the influence of energy-transfer upconversion effect on the capability of power scaling of the developed Nd:YAP fundamental laser is experimentally investigated and theoretically analyzed.Index Terms:Infrared lasers, diode-pumped lasers, Q-switched lasers, solid-state lasers, coherent sources modeling and theory.
1. Introduction
The eye-safe coherent radiation emitting in the range of 1.4–1.7
m can be used for a large number of scientific and industrial fields, including active imaging, medical surgery, photo-chemistry, range-finding, environmental sensing, and so on. The spectral emission at 1603 nm is one of the suitable wavelengths for detecting the traces of CO2 in the atmosphere [1]–[3].Although the 1.6-
m pulsed laser can be achieved by directly exploiting the Er-doped crystal as the gain medium, the wider pulse duration is the main hindrance for such a light source to be used in the practical applications [4]–[6]. Alternatively, constructing an optical parametric oscillator (OPO) pumped by a well-developed Nd-doped crystal laser offers a promising ap-proach to generate the light radiation near 1.6m. In comparison with the extracavity configu-ration, the intracavity OPO attracts much attention thanks to the more compact architecture of laser cavity as well as the lower pump threshold and higher conversion efficiency benefitted from the multi-pass of highly intense fundamental beam through the nonlinear crystal.Moreover, the intracavity OPOs based on the non-critically phase-matched KTP and Potas-sium Titanyle Arsenate KTiOAsO4 (KTA) crystals, due to the advantages of maximizing the ef-fective nonlinear coefficient and eliminating the walk-off effect among the pump, signal, and idler beams, have been widely developed over the past few years [7]–[14]. Nevertheless, to the best of our knowledge, the longest signal wavelength obtained from the non-critically phase-matched KTP- and KTA-based intracavity OPOs pumped by the Nd-doped crystal lasers operating on the
4F
3=2!4I11=2transition band only reached 1573 nm [10]. Although it is a relatively new RTP
non-linear material, as well as an isomorph of the KTP crystal, was recently developed to produce the signal emission longer than 1.6
m [15], [16], at least one shared optical components usually make their laser output rather sensitive when one attempts to individually align the fundamental and OPO cavities for optimizing the conversion efficiency with high stability.The Nd:YAP material, also known as Nd:YAlO or Nd:YAlO3, has been identified as a
favor-able active element for constructing a high-power solid-state laser owing to the similar physi-cal, optiphysi-cal, and mechanical properties to the Nd:YAG crystal [17]–[19]. Moreover, the linearly polarized emission resulted from the orthorhombic lattice structure of the crystalline host makes the Nd:YAP laser essentially suitable for realizing efficient nonlinear wavelength con-version [20]–[22]. In this work, the high-gain emission line at 1080 nm of the b-cut Nd:YAP crystal is exploited to develop a compact KTP-based intracavity OPO for generating the eye-safe signal wavelength longer than 1.6
m for the first time. We first systematically explore the acousto-optically Q-switched performance of the diode-end-pumped Nd:YAP laser, and the pulse-repetition-rate dependent fractional thermal loading is experimentally observed and theo-retically analyzed with considering the effect of energy-transfer upconversion (ETU). We then design a monolithic KTP crystal to construct an efficient reliable intracavity OPO for extending the spectral emission from 1080 to 1603 nm. Under an absorbed pump power of 11 W, the maximum average output power of 1.11 W is efficiently generated at a pulse repetition rate of 10 kHz, corresponding to the diode-to-signal optical conversion efficiency of up to 10%. The shortest pulse duration of 2.4 ns, largest pulse energy of 190 J, and highest peak power of 67.3 kW are respectively achieved at a pulse repetition rate of 5 kHz. As far as we know, the spectral emission at 1603 nm is the longest signal wavelength ever reported among the diode-end-pumped Nd-doped crystal/KTP intracavity OPO eye-safe lasers. Moreover, the developed laser here can be expected to be practically useful for detecting the traces of greenhouse gases (CO2) in the atmosphere.2. Experimental Setup
The experimental arrangement of the diode-end-pumped actively Q-switched Nd:YAP/KTP eye-safe laser is schematically depicted in Fig. 1. A fiber-coupled laser diode with a core

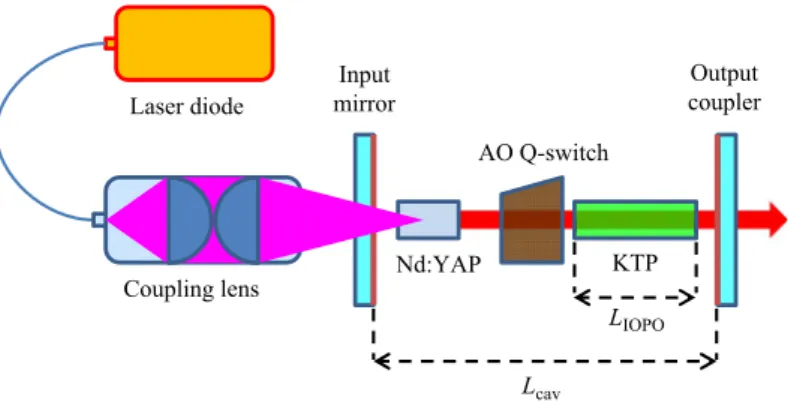

Fig. 1. Experimental setup of the diode-end-pumped actively Q-switched Nd:YAP/KTP eye-safe laser.
diameter of 600
m and a numerical aperture of 0.16 was employed as the pump source. Its emission wavelength was temperature-tuned to the strongest absorption around 803 nm of the Nd:YAP material. A pair of plano-convex lenses was used to reimage the fiber end into the la-ser crystal with the pump radius of 240m. The fundamental resonator was composed of the input mirror and the output coupler. The flat input mirror was coated for antireflection (AR) at 803 nm on the entrance side, and coated for high reflection (HR) at 1080 nm as well as high transmission (HT) at 803 nm on the other side. The flat output coupler was HR coated at 1080 nm and HT coated at 1603 nm. The gain medium was a 1% b-cut Nd:YAP crystal with the dimension of 3.7 mm in diameter and 5.85 mm in length. Both facets of the active element were AR coated at the pump and lasing wavelengths. We utilized a 20-mm-long acousto-optical (AO) Q-switch (Gooch & Housego) to realize the pulsed operation in the range of 5–20 kHz, and it was driven at a center frequency of 41 MHz with a RF power of 25 W. The AO Q-switch was AR coated at the lasing wavelength on both faces. The KTP crystal with the dimension of 3 mm 3 mm 20 mm was x-cut along ¼ 90, ¼ 0 for the type-II non-critically phase-matched OPO operation. The cavity mirrors for the OPO resonator were directly deposited on both sides of the KTP crystal to form a so-called monolithic cavity, which has proven its useful-ness in improving the stability and efficiency of the eye-safe laser [23]. Referring to Fig. 1, the left face of the KTP crystal was HT coated at 1080 nm as well as HR coated at 1603 nm, and the right side was AR coated at 1080 nm, as well as coated to have the reflectivity of 50% at 1603 nm. Both laser and nonlinear crystals were wrapped with indium foil and mounted in water-cooled copper holders at the temperature of 16 °C to ensure stable laser output. The cavity lengths Lcav and LIOPO for the fundamental and intracavity OPO resonators were 100 and 20 mm,respectively.
The spectral information at the laser output was analyzed by an optical spectrum ana-lyzer (Advantest, Q8381A) that employs a diffraction grating monochromator for high-speed measurement of pulsed light with the resolution of 0.1 nm. A digital oscilloscope (LeCroy, WavePro 7100, 10 G samples/s, 1 GHz bandwidth) together with a fast InGaAs photodiode, were employed to record the pulse temporal behaviors.
3. Experimental Results and Discussion
First of all, we studied the output characteristic of the AO Q-switched Nd:YAP fundamental la-ser, where a flat output coupler with the reflectivity of 90% at 1080 nm was adopted instead of the aforementioned one. As shown in Fig. 2(a), the oscillating wavelength is found to locate at 1080.25 nm, corresponding to the highest gain of the Nd:YAP crystal operating on the
4F
3=2!4I11=2 transition band. The dependence of the average output power on the absorbed
pump power is illustrated in Fig. 2(b) for the pulse repetition rate of 5, 10, 15, and 20 kHz. It can be seen clearly that there exists a critical pump power beyond which the thermal-lensing effect would lead the laser cavity to be unstable, thus causing the roll-over phenom-enon of the average output power with increasing the absorbed pump power. Moreover, the critical pump power is found to increase with increasing the pulse repetition rate. For the
Fig. 2. (a) Optical spectrum and (b) average output power versus absorbed pump power for the fun-damental operation at 1080 nm. (c) Theoretical calculation and experimental data for the critical pump power as a function of the pulse repetition rate.
stability criterion. Meanwhile, the effective focal length of the thermal lens can be evaluated by [24], [25] 1 fth¼ Pabs Kc Zlcry 0 ez 1 elcry 1 !2 pðzÞ 1 2 dno dT þ ðno 1ÞT !pðzÞ lcry dz (1) !pðzÞ ¼ !p0 ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi 1þ M 2 p no!2p0ðz z0Þ " #2 v u u t (2)
where is the fractional thermal loading, which is normally given by ð1 p=lÞ under the lasing
condition, l is the lasing wavelength, Pabs is the absorbed pump power, Kc and lcry are the
thermal conductivity and the length of the laser crystal, is the absorption coefficient at the pump wavelength p, dno=dT is the temperature dependence of the refractive index no; T is
the coefficient of the thermal expansion, M2 is the pump beam quality factor, and !
pðzÞ is the
variation of the pump radius, where the pump beam waist !p0 is assumed a distance z0 from
the entrance of the laser crystal. For our 1080-nm Nd:YAP laser pumped by the 803-nm laser diode, the thermal focal length can be evaluated to decrease from 470 to 100 mm when the absorbed pump power increases from 3 to 15 W under the continuous-wave operation. On the other hand, combining (1) with the cavity stability criterion, the critical pump power Pabs;cri can be expressed as Pabs;cri¼KL c cav Zlcry 0 ez 1 elcry 1 !2 pðzÞ 1 2 dno dT þ ðno 1ÞT !pðzÞ lcry dz 8 > < > : 9 > = > ; 1 (3)
Since the right-hand side of (3) is nearly invariable, it can be concluded that the increase of the critical pump power with increasing the pulse repetition rate means that the fractional ther-mal loading is a decreasing function with the pulse repetition rate. Previously, many studies have demonstrated that the ETU process has a considerable influence on the population mechanism of the Nd-doped crystals at high excitation densities [26]–[28]. Generally speaking, the ETU effect would cause the reductions of the effective lifetime as well as the available population inversion of the 4F3/2 level and, thus, increase the fractional thermal loading in the
laser material. Considering the ETU effect and following the same analyses presented in [29], the fractional thermal loading can be expressed as a function of the pulse repetition rate and the absorbed pump power. Therefore, the critical pump power with respect to the pulse rep-etition rate can be theoretically determined by solving the following equation:
Pabs;cry¼ðf ; P1 abs;criÞ Kc Lcav Zlcry 0 ez 1 elcry 1 !2 pðzÞ 1 2 dno dT þ ðno 1ÞT !pðzÞ lcry dz 8 > < > : 9 > = > ; 1 : (4)
With the parameters [30] Kc¼ 11 W=ðm KÞ, lcry¼ 5:85 mm, ¼ 0:48 mm1, p¼ 803 nm,
dno=dT ¼ 14:5 106 K1, no¼ 1:95, T ¼ 4:3 106 K1, M2¼ 190, !p0¼ 240
m, z0¼1 mm, Lcav¼ 100 mm, ¼ 2:4 1019 cm2 (the stimulated emission cross section of the Nd:
YAP material), ROC¼ 0:9 (the reflectivity of the output coupler), L ¼ 0:01 (roundtrip dissipative
loss of the resonator), ¼ 180
s (the upper-state lifetime of the Nd:YAP material), and f ¼1061 nm (the average fluorescence wavelength), the calculated results are plotted in Fig. 2(c) together with the experimentally measured data deduced from Fig. 2(b). Since the upconversion rate for the Nd:YAP crystal has never been reported, three values are used for the calculation,
i.e., ¼ 2 1016cm3=s, ¼ 3 1016cm3=s, and ¼ 4 1016 cm3=s. The theoretical analy-sis with taking the ETU effect into account can be found to show similar trend with the experi-mental measurement. It, thus, can be concluded that the ETU effect has to be carefully considered in scaling the output power of the Q-switched Nd:YAP laser, especially at the low pulse repetition rate.
Then, the absorbed pump power is fixed as 11.9 W to systematically investigate the dependence of the average output power, pulse width, pulse energy, and peak power on the pulse repetition rate for the actively Q-switched Nd:YAP laser at 1080 nm. As shown in Fig. 3(a), by increasing the pulse repetition rate from 5 to 20 kHz, the average output power changes from 2 to 3.35 W and the pulse width monotonically raises from 20 to 38 ns. Consequently, the pulse energy and the peak power can be evaluated to decrease from 400 to 168
J and from 20 to 4.4 kW when the pulse repetition rate is varied in the range of 5–20 kHz, as illustrated in Fig. 3(b).Next, we perform the wavelength extension to the eye-safe region via the intracavity OPO based on a monolithic KTP crystal. Fig. 4(a) depicts the optical spectrum, showing the signal wavelength to be 1603.17 nm. To the best of our knowledge, this is the longest signal wave-length obtained with the non-critically phase-matched KTP- or KTA-based intracavity OPO driven by the Nd-doped crystal lasers. The dependence of the average output power at 1603 nm on the absorbed pump power at 803 nm is illustrated in Fig. 4(b) for the pulse repetition rate of 5, 10, 15, and 20 kHz. The critical pump powers for the intracavity OPO operation are lower than those for the fundamental operation, implying that the fractional thermal loading is more significant during the generation of 1603-nm line, as compared with the production of 1080-nm emission. Functionally, the KTP crystal serves as a nonlinear output coupler in a manner analo-gous to the transmitting mirror of the fundamental Nd:YAP laser. Its effective output coupling is not a fixed value but shows a strong dependence for different pulse repetition rate. Maybe this is the reason why the critical pump power does not display an observable relationship with the pulse repetition rate during the intracavity OPO process. The theoretical model with considering this effect along with the ETU effect is under development.
Fig. 5(a) and (b) describe the average output power, pulse duration, pulse energy, and peak power at the signal wavelength versus the pulse repetition rate under an absorbed pump power
Fig. 4. (a) Optical spectrum and (b) average output power versus absorbed pump power for the in-tracavity OPO operation at 1603 nm.
Fig. 3. Dependence of (a) average output power, pulse duration, (b) pulse energy, and peak power at 1080 nm on the pulse repetition rate.
of 11 W. Although the average output power at 1080 nm rises with the increase of the pulse repetition rate, the conversion efficiency of the intracavity OPO with respect to the fundamental power, which is proportional to the peak power at 1080 nm, decreases with the pulse repetition rate. As a consequence, the maximum average output power at 1603 nm is achieved at a pulse repetition rate of 10 kHz with the value to be 1.11 W, corresponding to the signal-to-diode and signal-to-fundamental optical conversion efficiencies of 10% and 38%, respectively. The nonlin-ear frequency conversion of the intracavity OPO process results in the pulse shortening at 1603 nm. When the pulse repetition rate is increased from 5 to 20 kHz, the duration of the ma-jor signal pulse slightly changes from 2.4 to 3.6 ns, while the pulse energy is estimated to vary from 190 to 41
J. Typical temporal behaviors of the residual fundamental and OPO output pulses at a pulse repetition rate of 10 kHz are recorded. The pulse-to-pulse amplitude stability at 1603 nm is experimentally found to be within ±5%, as shown in Fig. 5(c). Fig. 5(d) and (e) depict the detailed dynamical interaction between 1080 and 1603 nm with the time span of 200 and 40 ns. The satellite pulse after the main temporal peak at 1603 nm is due to the fact that the OPO threshold is reached again, and it may be avoided by increasing the output cou-pling for the signal wave. The ratio of the energy of the main to entire pulses is calculated to be around 85%. Therefore, the peak power is evaluated to decrease from 67.3 to 9.6 kW as the pulse repetition rate is increased from 5 to 20 kHz. The beam quality factors for both orthogonal directions are found to be generally better than 1.8. The obtained optical conversion efficiency as well as the laser performance at 1603 nm are comparable with the previously developed Nd-doped crystal/KTP intracavity OPOs operating around 1.57m.4. Conclusion
In summary, we have successfully developed a compact reliable diode-end-pumped actively Q-switched Nd:YAP/KTP laser at 1603 nm based on a monolithic intracavity OPO cavity. The ETU effect has been theoretically analyzed and experimentally verified to be the main limiting factor for power scaling of the fundamental as well as intracavity OPO operations. Under an absorbed pump power of 11 W, the maximum average output power of up to 1.11 W at the eye-safe radiation was efficiently generated at a pulse repetition rate of 10 kHz. At a pulse repetition rate of 5 kHz, the shortest pulse duration, largest pulse energy, and highest peak power were achieved to be 2.4 ns, 190
J, and 67.3 kW, respectively.Fig. 5. Dependence of (a) average output power, pulse duration, (b) pulse energy, and peak power at 1603 nm on the pulse repetition rate. Oscilloscope traces at 10 kHz with the time spans of (c) 500s, (d) 200 ns, and (e) 40 ns.
References
[1] V. Wulfmeyer, H.-D. Wizemann, M. Schiller, M. Fechner, and G. Huber, “Er-doped laser transmitter for 1.6-m CO2-differential absorption lidar,” presented at the 24th Int. Laser Radar Conf., Boulder, CO, USA, Paper S01P-22, 2008.
[2] C. Brandt, V. Matrosov, K. Petermann, and G. Huber, “In-band fiber-laser-pumped Er:YVO4 laser emitting around 1.6m,” Opt. Lett., vol. 36, no. 7, pp. 1188–1190, Apr. 2011.
[3] K. N. Gorbachenya et al.,“CW YVO4:Er laser with resonant pumping,” J. Appl. Spectrosc., vol. 82, no. 2, pp. 208–212, May 2015.
[4] H. Y. Zhu et al.,“Actively Q-switch operation of diode-pumped Er,Yb:YAl3(BO3)4laser at 1.5–1.6m,” Laser Phys. Lett., vol. 8, no. 2, pp. 111–115, Feb. 2011.
[5] M. Wang, L. Zhu, W. Chen, and D. Fan,“High-energy directly diode-pumped Q-switched 1617 nm Er:YAG laser at room temperature,” Opt. Lett., vol. 37, no. 17, pp. 3732–3734, Sep. 2012.
[6] M. Wang, L. Zhu, J. Zhou, W. Chen, and D. Fan,“Performance of an actively Q-switched Er3+:Yb3+:YVO4laser,” Laser Phys. Lett., vol. 10, no. 8, Aug. 2013, Art. no. 085806.
[7] Z. Liu et al., “Efficient acousto-optically Q-switched intracavity Nd:YAG/KTiOAsO4 optical parametric oscillator,” Appl. Phys. B, vol. 92, no. 1, pp. 37–41, Jul. 2008.
[8] H. Y. Zhu et al.,“High-power LD end-pumped intra-cavity Nd:YAlO3/KTiOAsO4optical parametric oscillator emitting at 1562 nm,” Laser Phys. Lett., vol. 7, no. 10, pp. 703–706, Oct. 2010.
[9] K. Zhong, J. Q. Yao, Y. Y. Wang, D. G. Xu, and P. Wang,“Comparison of eye-safe KTA OPOs pumped by Nd: YVO4and Nd:YLF lasers,” Opt. Commun., vol. 43, no. 3, pp. 636–641, Apr. 2011.
[10] Y. F. Chen, S. W. Chen, S. W. Tsai, and Y. P. Lan,“High-repetition-rate eye-safe optical parametric oscillator intracav-ity pumped by a diode-pumped Q-switched Nd:YVO4laser,” Appl. Phys. B, vol. 76, no. 3, pp. 263–266, Mar. 2003. [11] Y. F. Chen and L. Y. Tsai, “Comparison between shared and coupled resonators for passively Q-switched Nd:
GdVO4intracavity optical parametric oscillators,” Appl. Phys. B, vol. 82, no. 3, pp. 403–406, Mar. 2006.
[12] F. Q. Liu et al.,“Intracavity optical parametric oscillator at 1.57m by a diode-pumped Q-switched Nd:LuVO4laser,” Laser Phys. Lett., vol. 5, no. 8, pp. 585–588, Aug. 2008.
[13] Z. J. Liu et al.,“Intracavity optical parametric oscillator pumped by an actively Q-switched Nd:YAG laser,” Appl. Phys. B, vol. 90, no. 3, pp. 439–443, Mar. 2008.
[14] Y. J. Huang et al.,“Efficient high-pulse-energy eye-safe laser generated by an intracavity Nd:YLF/KTP optical para-metric oscillator: Role of thermally induced polarization switching,” Laser Phys. Lett., vol. 9, no. 10, pp. 709–715, Oct. 2012.
[15] Y. Duan et al.,“Efficient RTP-based OPO intracavity pumped by an acousto-optic Q-switched Nd:YVO4laser,” Opt. Lett., vol. 39, no. 5, pp. 1314–1317, Mar. 2014.
[16] H. Y. Zhu et al., “Compact Nd:YAlO3/RbTiOPO4based intra-cavity optical parametric oscillator emit at 1.65 and 3.13m,” IEEE J. Sel. Topics Quantum Electron., vol. 21, no. 1, Jan. 2015, Art. no. 1600105.
[17] M. J. Weber, M. Bass, K. Andringa, R. R. Monchamp, and E. Comperchio,“Czochralski growth and properties of YAlO3laser crystals,” Appl. Phys. Lett., vol. 15, no. 10, pp. 342–345, Nov. 1969.
[18] M. J. Weber and T. E. Varitimos,“Optical spectra and intensities of Nd3+in YAlO3,” J. Appl. Phys., vol. 42, no. 12, pp. 4996–5005, Nov. 1971.
[19] A. A. Kaminskii, S. E. Sarkisov, I. V. Mochalov, L. K. Aminov, and A. O. Ivanov,“Anisotropy of spectroscopic char-acteristics in the biaxial YAlO3-Nd3+laser crystals,
” Phys. Status Sol. A, vol. 51, no. 2, pp. 509–520, Feb. 1979. [20] F. Hanson and P. Poirier,“Multiple-wavelength operation of a diode-pumped Nd:YAlO3laser,” J. Opt. Soc. Amer. B,
vol. 12, no. 7, pp. 1311–1315, Jul. 1995.
[21] R. Wu, P. B. Phua, and K. S. Lai, “Linearly polarized 100-W output from a diode-pumped Nd:YAlO laser,” Appl. Opt., vol. 39, no. 3, pp. 431–434, Jan. 2000.
[22] Y. Lü, P. Zhai, J. Xia, X. Fu, and S. Li,“Simultaneous orthogonal polarized dual-wavelength continuous-wave laser operation at 1079.5 nm and 1064.5 nm in Nd:YAlO3and their sum-frequency mixing,” J. Opt. Soc. Amer. B, vol. 29, no. 9, pp. 2352–2356, Sep. 2012.
[23] J. Y. Huang et al.,“Improvement of stability and efficiency in diode-pumped passively Q-switched intracavity optical parametric oscillator with a monolithic cavity,” Laser Phys. Lett., vol. 9, no. 7, pp. 485–490, Jul. 2012.
[24] Y. J. Huang, P. Y. Chiang, H. C. Liang, K. W. Su, and Y. F. Chen,“Efficient high-power UV laser generated by an optimized flat-flat actively Q-switched laser with extra-cavity harmonic generations,” Opt. Commun., vol. 85, no. 1, pp. 59–63, Jan. 2012.
[25] Y. J. Huang et al.,“Power scale-up of high-pulse-energy passively Q-switched Nd:YLF laser: Influence of negative thermal lens enhanced by upconversion,” Laser Phys. Lett., vol. 9, no. 9, pp. 625–630, Sep. 2012.
[26] S. Guy et al.,“High-inversion densities in Nd:YAG: Upconversion and bleaching,” IEEE J. Quantum Electron., vol. 34, no. 5, pp. 900–909, May 1998.
[27] J. D. Zuegel and W. Seka,“Upconversion and reduced4F3/2upper-state lifetime in intensely pumped Nd:YLF,” Appl. Opt., vol. 38, no. 12, pp. 2714–2723, Apr. 1999.
[28] P. J. Hardman, W. A. Clarkson, G. J. Friel, M. Pollnau, and D. C. Hanna,“Energy-transfer upconversion and thermal lensing in high-power end-pumped Nd:YLF laser crystals,” IEEE J. Quantum Electron., vol. 35, no. 4, pp. 647–655, Apr. 1999.
[29] Y. P. Lan, Y. F. Chen, and S. C. Wang, “Repetition-rate dependence of thermal loading in diode-end-pumped Q-switched lasers: Influence of energy-transfer upconversion,” Appl. Phys. B, vol. 71, no. 1, pp. 27–31, Jul. 2000. [30] M. Boucher, O. Musset, J. P. Boquillon, and E. Georgiou,“Multiwatt CW diode end-pumped Nd:YAP laser at 1.08 and
