Effect of graded-temperature arsenic prelayer on quality of GaAs on Ge/Si

substrates by metalorganic vapor phase epitaxy

H. W. Yu,1E. Y. Chang,1,2,a)Y. Yamamoto,3B. Tillack,3,4W. C. Wang,1C. I. Kuo,1 Y. Y. Wong,1and H. Q. Nguyen1

1

Department of Materials Science and Engineering, National Chiao Tung University, 1001 University Road, Hsinchu 300, Taiwan

2

Department of Electronics Engineering, National Chiao Tung University, 1001 University Road, Hsinchu 300, Taiwan

3

IHP, Im Technologiepark 25, 15236 Frankfurt (Oder), Germany 4

Technische Universita¨t Berlin, HFT4, Einsteinufer 25, 10587 Berlin, Germany

(Received 4 August 2011; accepted 10 October 2011; published online 26 October 2011)

The growth of GaAs epitaxy on Ge/Si substrates with an arsenic prelayer grown with graded temperature ramped from 300 to 420C is investigated. It is demonstrated that the graded-temperature arsenic prelayer grown on a Ge/Si substrate annealed at 650C not only improves the surface morphology (roughness: 1.1 nm) but also reduces the anti-phase domains’ (APDs) density in GaAs epitaxy (dislocation density: 2 107cm2). Moreover, the unwanted interdiffusion between Ge and GaAs epitaxy is suppressed by using the graded-temperature arsenic prelayer due to the low energy of the Ge-As bond and the use of a low V/III ratio of 20.VC ₂₀₁₁

American Institute of Physics. [doi:10.1063/1.3656737] Currently, the installation of InGaP/InGaAs/Ge multi-junction solar cells is limited by the relatively high cost of III-V solar cells as compared to silicon-based solar cells.1 Therefore, the integration of the GaAs/Ge/SiGe heterostruc-ture on Si substrates as an alternative template for low cost and high conversion efficiency III-V based solar cells has attracted much attention.2,3However, many growth challenges exist in the GaAs/Ge heterostructure, including anti-phase domains (APDs), misfit dislocations, and the interdiffusion of the Ga, As, and Ge atoms. APD formation in the GaAs/Ge heterostructure can be suppressed by adjusting growth condi-tions such as the growth temperature, the substrate misorienta-tion angles, and the Ge film annealing process.4–6In general, the abovementioned methods induce atomic surface steps on the Ge layer. The formation of surface steps can boost the single-domain GaAs-A growth, in which the first atomic layer on the surface of Ge layer is arsenic (As) atoms, and promote the self-annihilation of APDs during GaAs/Ge heterostructure growth. Besides, Luoet al.6also pointed out that anti-phase boundaries (APBs) in the GaAs/Ge heterostructure were the routes for Ge diffusion into the GaAs layer. They demon-strated that termination of APD formation led to reduction in the interdiffusion in the GaAs/Ge heterostructure.

In order to decrease the interdiffusion probability of As and Ge atoms, a low-temperature epitaxial technique and vari-ous interfacial layers such as AlAs, Ga, and As (Refs.7and8) were used for the GaAs/Ge heterostructure growth. However, the low-temperature growth of GaAs on the Ge layer led to the formation of GaAs-B domain, which generated APDs in the GaAs layer, and As-antisite defects on the terraces.5,9 Although a thin AlAs prelayer grown between GaAs and Ge epitaxy suppressed the interdiffusion of Ge atoms, diffusion of Al atoms into the GaAs epitaxy was observed at higher growth temperatures (>540C).7 In contrast, the growth of

the Ga prelayer between Ge and GaAs epitaxy decreased the As and Ge interdiffusion as compared to the growth of As prelayer,8but the APD formation in GaAs/Ge system was dif-ficult to avoid. Therefore, the development of an advanced technique that can suppress the unwanted interdiffusion while maintaining the lower APD formation in the GaAs/Ge system is necessary for the development of low-cost and high-efficiency III-V optoelectronic devices on Si substrate.

In this paper, we present the use of an As prelayer grown using graded-temperature technique for the suppression of APD formation. This layer is also found to improve the sur-face morphology and reduce the interdiffusion during the GaAs/Ge/Si heterostructure growth. All samples in this study were grown by a low-pressure metal organic chemical vapor deposition (MOCVD, EMCORE D180) using trimethylgal-lium (TMG) and arsine (AsH3) as the source materials. The

substrates used were the Ge epitaxy on Si (001) substrate with 4 off misorientation toward the [110] direction. A detailed description of the growth of Ge epitaxy on Si substrate can be found elsewhere.10 The As prelayer was deposited onto the Ge epitaxy while the substrate temperature was ramped from 300 to 420C. Then, GaAs layers with different V/III ratios (11–75) were grown on the As/Ge/Si heterostructure by a low-temperature epitaxial technique (450C). The Ge/Si sub-strate was annealed at 650C to generate atomic surface steps before the GaAs/As epitaxial growth.4The surface morphol-ogy of the GaAs/Ge/Si heterostructure with graded-temperature As prelayer was examined using atomic force microscopy (AFM). The threading dislocation density and crystalline quality of the grown sample were estimated using transmission electron microscopy (TEM) and high resolution x-ray diffraction (HRXRD), respectively. Finally, the interdif-fusion of Ga, Ge, and As atoms in the samples was deter-mined by secondary ion mass spectrometry (SIMS).

Figure1illustrates the AFM images of the GaAs/As epi-taxy grown on the Ge/Si heterostructure. The root mean square (RMS) roughness of the samples was about 7.0, 2.3,

a)_{Author to whom correspondence should be addressed. Electronic mail:}

[email protected].

0003-6951/2011/99(17)/171908/3/$30.00 99, 171908-1 VC2011 American Institute of Physics

APPLIED PHYSICS LETTERS 99, 171908 (2011)

(3)

12.1, 15.6, and 21.7 nm for the GaAs layers grown with V/III ratios of 11, 20, 30, 50, and 75, respectively. A large varia-tion in the surface roughness with hill-and-valley structures was observed for the samples grown with inappropriate V/III ratios. At the low V/III ratio of 11 (i.e., lower As flow), the possibility of Ga atoms being incorporated into GaAs epi-taxy exceeds that of As atoms, leading to poor surface mor-phology and APD formation.11,12For V/III ratios larger than 30, the surface morphology becomes rougher because of the different growth rates at different growth orientations.13The growth rate of GaAs epitaxy in the [110] direction is faster than that in the [110] direction for higher V/III ratios and at lower growth temperature.13,14 It is known that a high V/III ratio is required for the growth of the GaAs/Ge/(Si) heterostructure without any interfacial layer.11,15The results shown in Figs. 1(a)–1(e) indicate that the graded-temperature As prelayer sufficiently improves the surface morphology of GaAs epitaxy grown on Ge/Si substrate at a low V/III ratio of 20, even at a growth temperature of 450C. Controlling the surface structure is another efficient way to suppress APD formation prior to the GaAs/As growth.4It is demonstrated that the smallest RMS roughness of 1.1 nm was achieved for the samples grown using the graded-temperature As prelayer with substrate annealing process at 650C, as shown in Fig.1(f).

Figure 2illustrates the cross-sectional TEM images of the GaAs epitaxy (V/III: 20) grown on the Ge/Si heterostruc-ture using a graded-temperaheterostruc-ture As prelayer. It can be seen that many APDs were formed in the GaAs layer on the unan-nealed Ge/Si substrate (threading dislocation density: 1 108cm2), as shown in Fig. 2(a). For the substrate annealed at 650C, an APD-free GaAs epitaxy with lower dislocation density (2 107cm2) was obtained (Fig. 2(b)). These results suggest that, following the short anneal-ing process at high temperature, surface transition may occur on the Ge surface that generates many extra atomic surface steps4 to provide better As coverage. In the selective-area diffraction pattern diffracted from the GaAs/As interface area, only the GaAs diffraction spots exist along [110] zone axis as shown in Fig.2(b). This observation suggests that the

graded-temperature arsenic prelayer enhances the As con-centration on the Ge surface, which can be verified by Figs. 4(a) and4(e), and does not generate different crystal struc-ture in the GaAs/As epitaxy. This implies that As coverage formed on the Ge/Si substrate did not change the structural configuration of GaAs/Ge epitaxy. The As prelayer grown on the Ge/Si substrate annealed at 650C modifies the sur-face morphology of the GaAs epitaxy and reduces the APD formation.

Figure3illustrates the HRXRD results of the GaAs/As epitaxy on both the unannealed Ge/Si substrate and the Ge/Si substrate annealed at 650C. In regard to the change of GaAs Bragg angle (45 arc sec) for these two samples, we specu-lated that carbon incorporation may have played a role in the GaAs epitaxy with low V/III ratios. The lattice contraction is attributed to the incorporation of substitutional carbon during the growth of the III-V materials, as discussed in a recent

study.16 The HRXRD and SIMS results show that the

sub-strate annealing process effectively reduced carbon incorpora-tion into the GaAs epitaxy, as shown in Figs. 3 and 4(f). Furthermore, full width at half maximum (FWHM) value of the GaAs peak decreased from 402 to 250 arc sec, which con-firms that annealing step improves the GaAs crystal quality.

Figure4 illustrates the SIMS depth profiles of Ge, As, and Ga atoms in the GaAs epitaxy grown on the Ge/Si heter-ostructure using the graded-temperature As prelayer. It is found that the interdiffusion of Ge into GaAs was suppressed for all the samples. Because the energy of the As-Ge bond (35.8 kcal/mol) is much lower than that of the Ga-Ge bond (46.7 kcal/mol),17the Ge atoms segregate at the As prelayer before the deposition of the GaAs layer at low growth tem-perature. On the other hand, this implies that the As atoms can diffuse into the Ge layer easily and react with the Ge atoms. The incorporation probability of As atoms in the GaAs/Ge system could be described by Barnett et al.18 and shown in Eq.(1).

Jnet¼ aIn_{þ dh}

s=dt; (1)

The incorporation rate aIn¼ N GT, where N and GT are the As concentration and growth rate in the film, respectively. The net flux Jnet¼ Jsup Jdes, where Jsuprepresents the sup-plying flux of AsH3and J

des

is the total desorption flux. The As surface coverage, dhs/dt, is zero at steady state. For V/III

ratios larger than 20 (i.e., larger As flux), the larger Jnet

FIG. 1. (Color online) AFM images (5 lm 5 lm) of GaAs layer with dif-ferent V/III ratios grown on a Ge/Si substrate using a graded-temperature As prelayer: (a) V/III: 11, (b) V/III: 20, (c) V/III: 30, (d) V/III: 50, (e) V/III: 75, and (f) V/III: 20 and annealed at 650_C.

FIG. 2. (Color online) TEM cross-sectional micrograph of GaAs/As/Ge/Si heterostructure grown at a V/III ratio of 20. (a) Unannealed Ge/Si substrate and (b) Ge/Si substrate annealed at 650C.

171908-2 Yu et al. Appl. Phys. Lett. 99, 171908 (2011)

(4)

resulted in significant As interdiffusion as shown in Figs. 4(a)–4(d). For GaAs epitaxy with a V/III ratio of 20 and the graded-temperature As prelayer on the Ge/Si heterostructure

annealed at 650C, virtually no As interdiffusion was

observed as shown in Fig. 4(e). As judged from the SIMS and TEM results, the As prelayer grown using

graded-temperature technique is also an excellent candidate for sup-pressing interdiffusion of the Ga, As, and Ge atoms.

In summary, we have demonstrated that the As prelayer grown using graded-temperature technique on the Ge/Si sub-strate annealed at 650C effectively improves the surface morphology of GaAs epitaxy (roughness: 1.1 nm) and avoids the need for high V/III ratios, unlike in traditional growth techniques.11,15 The thin GaAs epitaxy grown on the Ge/Si substrate also contains lower APD density (2 107cm2)

and lower carbon incorporation when the

graded-temperature As prelayer and substrate annealing process were adopted. These results suggest that the generation of atomic steps on the Ge surface promotes As deposition at lower growth temperature and boosts single-domain GaAs-A growth during the heterostructure growth of GaAs/As/Ge/Si. Furthermore, we also demonstrate that the interdiffusion of Ge and As atoms in the GaAs/Ge/Si heterostructure can be effectively suppressed by the graded-temperature As prel-ayer because of the difference in energies between As-Ge and Ga-Ge bonds and low As flux. These excellent results suggest that the graded-temperature As prelayer grown on Ge/Si substrate has great potential for use in the growth of III-V nanoelectronic devices and optoelectronic devices on the Si substrate.

The authors thank the assistance and support of the National Science Council, Taiwan under the Contract Nos. NSC. 99-2221-E-009-170-MY3 and NSC. 99-2811-E-009-062.

1

M. Yamaguchi, T. Takamoto, and K. Araki,Sol. Energy Mater. Sol. Cells

90, 3068 (2006).

2_{C. L. Andre, J. A. Carlin, J. J. Boeckl, D. M. Wilt, M. A. Smith, A. J.}

Pitera, M. L. Lee, E. A. Fitzgerald, and S. A. Ringel,IEEE Trans. Electron Devices52, 1055 (2005).

3_{M. R. Lueck, C. L. Andre, A. J. Pitera, M. L. Lee, E. A. Fitzgerald, and S.}

A. Ringel,IEEE Trans. Electron Devices27, 142 (2006).

4

D. Lubyshev, J. M. Fastenau, Y. Wu, W. K. Liu, M. T. Bulsara, E. A. Fitzgerald, and W. E. Hoke,J. Vac. Sci. Technol. B26, 1115 (2008).

5

Y. Li, L. Lazzarini, L. J. Giling, and G. Salviati,J. Appl. Phys.76, 5748 (1994).

6

G.-L. Luo, Y.-C. Hsieh, E. Y. Chang, M. H. Pilkuhn, C.-H. Chien, T.-H. Yang, C.-C. Cheng, and C.-Y. Chang,J. Appl. Phys.101, 084501 (2007).

7_{T. Kawai, H. Yonezu, H. Yoshida, and K. Pak,}_{Appl. Phys. Lett.}_{61, 1216}

(1992).

8

B. Galiana, K. Volz, I. Rey-Stolle, W. Stolz, and C. Algora, inConference Record of the 2006 IEEE 4th World Conference on Photovoltaic Energy Conversion (PVEC) (IEEE, New York, 2006), Vol. 1, p. 807.

9_{R. M. Feenstra, J. M. Woodall, and G. D. Pettit,}_{Phys. Rev. Lett.}_{71, 1176}

(1993).

10

Y. Yamamoto, P. Zaumseil, T. Arguirov, M. Kittler, and B. Tillack, Solid-State Electron.60, 2 (2011).

11_{Y. Li, G. Salviati, M. M. G. Bongers, L. Lazzarini, L. Nasi, and L. J.}

Giling,J. Cryst. Growth163, 195 (1996).

12

M. Kushibe, K. Eguchi, M. Funamizu, and Y. Ohba,Appl. Phys. Lett.56, 1248 (1990).

13_{H. Asai,}_{J. Cryst. Growth}

80, 425 (1987).

14

G. B. Stringfellow,J. Cryst. Growth128, 503 (1993).

15

R. Tyagi, M. Sihgh, M. Thirumavalavan, T. Srinivasan, and S. K. Agar-wal,J. Electron. Mater.31, 234 (2002).

16_{H. W. Yu, E. Y. Chang, H. Q. Nguyen, J. T. Chang, C. C. Chung, C. I.}

Kuo, Y. Y. Wong, and W. C. Wang,Appl. Phys. Lett.97, 231903 (2010).

17

Y. Seki, H. Watanabe, and J. Matsui,J. Appl. Phys.49, 822 (1978).

18_{S. A. Barnett and J. E. Greene,}_{Surf. Sci.}_{151, 57 (1985).}

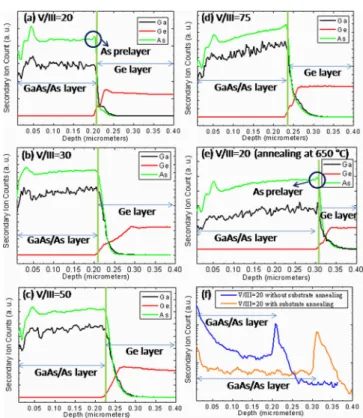

FIG. 4. (Color online) SIMS profiles for GaAs epitaxy grown at different V/ III ratios on a Ge/Si substrate with a graded-temperature As prelayer (a) V/III: 20, (b) V/III: 30, (c) V/III: 50, (d) V/III: 75, (e) V/III: 20 and annealed at 650C, and (f) SIMS profile of carbon for the GaAs/As epitaxy grown on both the unannealed Ge/Si substrate and the Ge/Si substrate annealed at 650_C.

FIG. 3. (Color online) HRXRD rocking curves of the GaAs/As/Ge/Si heter-ostructure grown at a V/III ratio of 20. (a) Unannealed Ge/Si substrate and (b) Ge/Si substrate annealed at 650_C.

171908-3 Yu et al. Appl. Phys. Lett. 99, 171908 (2011)
