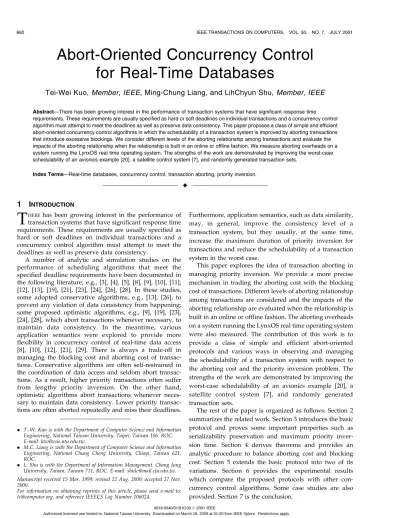

Abort-Oriented Concurrency Control
for Real-Time Databases
Tei-Wei Kuo, Member, IEEE, Ming-Chung Liang, and LihChyun Shu, Member, IEEE
AbstractÐThere has been growing interest in the performance of transaction systems that have significant response time requirements. These requirements are usually specified as hard or soft deadlines on individual transactions and a concurrency control algorithm must attempt to meet the deadlines as well as preserve data consistency. This paper proposes a class of simple and efficient abort-oriented concurrency control algorithms in which the schedulability of a transaction system is improved by aborting transactions that introduce excessive blockings. We consider different levels of the aborting relationship among transactions and evaluate the impacts of the aborting relationship when the relationship is built in an online or offline fashion. We measure aborting overheads on a system running the LynxOS real time operating system. The strengths of the work are demonstrated by improving the worst-case schedulability of an avionics example [20], a satellite control system [7], and randomly generated transaction sets.Index TermsÐReal-time databases, concurrency control, transaction aborting, priority inversion.
æ
1 I
NTRODUCTIONT
HEREhas been growing interest in the performance oftransaction systems that have significant response time requirements. These requirements are usually specified as hard or soft deadlines on individual transactions and a concurrency control algorithm must attempt to meet the deadlines as well as preserve data consistency.
A number of analytic and simulation studies on the performance of scheduling algorithms that meet the specified deadline requirements have been documented in the following literature, e.g., [3], [4], [5], [8], [9], [10], [11], [12], [13], [19], [21], [23], [24], [26], [28]. In these studies, some adopted conservative algorithms, e.g., [13], [26], to prevent any violation of data consistency from happening; some proposed optimistic algorithms, e.g., [9], [19], [23], [24], [28], which abort transactions whenever necessary, to maintain data consistency. In the meantime, various application semantics were explored to provide more flexibility in concurrency control of real-time data access [8], [10], [12], [21], [29]. There is always a trade-off in managing the blocking cost and aborting cost of transac-tions. Conservative algorithms are often self-restrained in the coordination of data access and seldom abort transac-tions. As a result, higher priority transactions often suffer from lengthy priority inversion. On the other hand, optimistic algorithms abort transactions whenever neces-sary to maintain data consistency. Lower priority transac-tions are often aborted repeatedly and miss their deadlines.
Furthermore, application semantics, such as data similarity, may, in general, improve the consistency level of a transaction system, but they usually, at the same time, increase the maximum duration of priority inversion for transactions and reduce the schedulability of a transaction system in the worst case.
This paper explores the idea of transaction aborting in managing priority inversion. We provide a more precise mechanism in trading the aborting cost with the blocking cost of transactions. Different levels of aborting relationship among transactions are considered and the impacts of the aborting relationship are evaluated when the relationship is built in an online or offline fashion. The aborting overheads on a system running the LynxOS real time operating system were also measured. The contribution of this work is to provide a class of simple and efficient abort-oriented protocols and various ways in observing and managing the schedulability of a transaction system with respect to the aborting cost and the priority inversion problem. The strengths of the work are demonstrated by improving the worst-case schedulability of an avionics example [20], a satellite control system [7], and randomly generated transaction sets.
The rest of the paper is organized as follows: Section 2 summarizes the related work. Section 3 introduces the basic protocol and proves some important properties such as serializability preservation and maximum priority inver-sion time. Section 4 derives theorems and provides an analytic procedure to balance aborting cost and blocking cost. Section 5 extends the basic protocol into two of its variations. Section 6 provides the experimental results which compare the proposed protocols with other con-currency control algorithms. Some case studies are also provided. Section 7 is the conclusion.
. T.-W. Kuo is with the Department of Computer Science and Information Engineering, National Taiwan University, Taipei, Taiwan 106, ROC. E-mail: [email protected].
. M.C. Liang is with the Department of Computer Science and Information Engineering, National Chung Cheng University, Chiayi, Taiwan 621, ROC.
. L. Shu is with the Department of Information Management, Chang Jung University, Tainan, Taiwan 711, ROC. E-mail: [email protected]. Manuscript received 15 Mar. 1999; revised 22 Aug. 2000; accepted 27 Nov. 2000.
For information on obtaining reprints of this article, please send e-mail to: [email protected], and reference IEEECS Log Number 106024.
2 R
ELATEDW
ORKIn the past decades, there has been increasing demand for database systems with stringent response-time require-ments. These requirements are usually specified as hard, soft, or firm deadlines on individual transactions. Missing the deadlines of hard real-time transactions may cause a catastrophe; missing the deadlines of soft or firm real-time transactions may only reduce system efficiency. Firm real-time transactions are aborted when they miss their deadlines, while a soft real-time transaction which misses its deadline may continue its execution if its execution still contributes value to the system.
A number of researchers have looked at the issues in both ensuring data consistency and guaranteeing timeliness of data accesses, e.g., [3], [9], [12], [13], [14], [19], [23], [24], [26], [27], [28]. The proposed algorithms, in general, can be classified as either conservative or optimisitic. Conservative algorithms [12], [26] prevent any violation of data consis-tency from happening. As a result, these algorithms are often self-restrained in the coordination of data access and seldom abort transactions. In particular, Sha, et al. [27] proposed the Read/Write Priority Ceiling Protocol by extending the well-known Priority Ceiling Protocol (PCP) [25] in incorporating the semantics of read and write locks. Lam et al. [13], [14] later revised the Read/Write Priority Ceiling Protocol by adopting the idea of dynamic adjust-ment of serializability order proposed by Lin and Son [19]. The schedulability of hard real-time read-only transactions is greatly improved.
On the other hand, optimistic algorithms [9], [19], [23], [24], [28] abort transactions whenever necessary to maintain data consistency. Haritsa et al. [9] and Abbott and Garcia-Molina [3] showed the superiority of the optimistic concurrency control protocol. Their performance metrics were based on the number of transactions that miss their deadlnes or were restarted. Nevertheless, their results did not quantify the abortion cost in calculating the schedul-ability of critical transactions. It should be noted that aborted transactions are often restarted and an abundance of system resources are wasted in servicing aborted transactions. Shu et al. [23], [24] proposed a series of abort-oriented protocols and demonstrated the strengths of transaction abortings in reducing priority inversion and in the improvement of the schedulability of critical transac-tions. The Abort Ceiling Protocol (ACP) [24] is the best among the protocols proposed in [23], [24] and is derived from PCP [25], [27]. In addition to the priority ceilings defined for data objects [25], [27], an abort ceiling is defined for each transaction to allow a higher-priority transaction to abort a lower-priority transaction which blocks the higher-priority transactions if the abort ceiling of the lower-higher-priority transaction is smaller than the priority of the higher-priority transaction. A nontrivial mechanism is proposed to deter-mine when and how to set the abort ceiling of each transaction. Takada and Sakamura [28] also proposed a concurrency control protocol which allows the switchings of the aborting status of transactions to better manage the blocking and aborting costs of transactions.
3 B
ASICA
BORTINGP
ROTOCOL(BAP)
3.1 Overview
The basic idea of the basic aborting protocol is that, when a higher priority transaction is blocked by a lower priority transaction due to resource competition, the higher priority transaction aborts the lower priority transaction if the lower priority transaction is abortable. If not, the higher priority transaction is blocked by the lower priority transaction. Whether a transaction is abortable is determined by an offline schedulability analysis described in Section 4.4. The underlying idea of the analysis is that, when a lower priority transaction introduces excessive blocking to a higher priority transaction such that the higher priority transaction may miss its deadline in the worst case, the lower priority transaction is abortable.
We assume that a transaction system consists of a fixed set of firm real-time transactions and every transaction has a fixed priority. A transaction is the template of its instances; a transaction instance is a sequence of read and write operations on data objects. An instance of a transaction is scheduled for every request of the transaction. There is no constraint in determining the priority of a transaction for the protocols proposed in this paper. However, for the schedulability analysis in Section 4.4, the rate monotonic priority assignment [16] is assumed. Transactions are classified as abortable or nonabortable in an offline fashion. (Please see Section 4.4.) Before a transaction can access a data object, the transaction must first obtain a lock on the semaphore that guards the data object. When a transaction terminates (commits or is aborted), it must release all of its locks. In other words, no transaction may hold a lock on any data object when it is initiated for a request. A main-memory-resident database is assumed. We are interested in the context of uniprocessor priority-driven preemptive scheduling. The collection of data objects which may be read or written by each transaction is known. We consider critical real-time systems with a well-defined workload, such as an avionics example [20] and a satellite control system [7], in which less than hundreds of data objects exist. Transactions are required to adopt a delayed write procedure. For each data object updated by a transaction, the update is done in the local area of the transaction and the actual write of the data object is delayed until the commit time of the transaction. As a result, transactions do not release locks of semaphores until they commit or are aborted. The delay write procedure eases the aborting process and avoids cascading aborting.
Now, we will state our notation. Notation:
. i;jdenotes the jth instance of transaction i. piand ci
are the period and worst-case computation time of transaction i, respectively. If transaction i is
aperiodic, pi is the minimal separation time between
its consecutive requests. When there is no ambiguity, we use the terms ªtransactionº and ªtransaction instanceº interchangeably.
. Ri;j denotes the jth request of transaction i. A
transaction instance is initiated for each request of transaction i. We say that a request is aborted if its
corresponding transaction instance is aborted. Once a transaction instance is aborted, it may be restarted or terminated as required by the selected scheduling algorithm. When there is no ambiguity, i;j denotes
the transaction instance of request Ri;j, regardless of
whether it is restarted.
. There is a unique semaphore Si that guards every
data object Oi. Before a transaction accesses a data
object, the transaction must lock the guarding semaphore of the data object.
. The kth critical section of a transaction instance i;jis
denoted as zi;j;k and corresponds to the code
segment between the kth locking operation and its corresponding unlocking operation. We assume in this paper that critical sections are properly nested.1
For the purposes of this paper, we will use the terms ªresourceº and ªdata objectº interchangeably. (A data object is one kind of resource.) We will also use the terms ªprocessº and ªtransactionº synonymously.
3.2 Definition
The Basic Aborting Protocol (BAP) is an integration of the two-phase locking (2PL) protocol, Priority Ceiling Protocol (PCP) [25], and a simple aborting algorithm.2As assumed in
[25], we are interested in the context of uniprocessor priority-driven preemptive scheduling and every transac-tion has a fixed priority. The priority ceiling PLi of each
semaphore Siis equal to the highest priority of transactions
which may use Si. We now present the definitions of BAP:
1. A transaction instance, which has the highest priority among all ready transaction instances, is assigned the processor. The transaction instance can preempt the execution of any transaction instance with a lower priority, whether or not the priorities are assigned or inherited. (Priority inheritance will be defined later.)
2. When a transaction instance i;j attempts to lock a
semaphore Skthat guards the data object Ok, the lock
request will be granted if the priority of i;jis higher
than the priority ceilings of all semaphores currently locked by transaction instances other than i;j;
otherwise, a rechecking procedure for the lock request is done as follows: If all of the transaction instancesÐother than i;j that locked semaphores
with priority ceilings higher than the priority of i;j
Ðare abortable, then i;j may abort all of the
transaction instances that lock such semaphores and obtain the new lock. (When a transaction instance is aborted, it releases all of the locks it has.) Otherwise, i;j will be blocked. Aborted
transaction instances are assumed to restart imme-diately after their abortings. Note that such aborted transaction instances have lower priorities than i;j
does.3 Let S be the semaphore with the highest
priority ceiling of all semaphores currently locked by transaction instances other than i;j. If i;jis blocked
because of S,
i;j is said to be blocked by the
transaction instance that locked S.
3. A transaction instance i;j uses its assigned priority
unless it locks some semaphores and blocks higher priority transaction instances. If a transaction in-stance blocks a higher priority transaction inin-stance, it inherits the highest priority of the transaction instances blocked by i;j. When a transaction
instance releases a semaphore, it resumes the priority it had at the point of obtaining the lock on the semaphore. When a transaction instance is aborted, all transaction instances which inherit its priority must reset their priorities according to the definition of priority inheritance. The priority inheritance is transitive.4
4. No transaction instance is allowed to obtain any new lock after it releases any locks.5
Apparently, BAP is exactly the same as PCP except that BAP offers higher priority transaction instances a chance to abort lower priority transaction instances and BAP requires transaction instances to lock semaphores in 2PL fashion. We refer readers to [25] for detailed definitions of PCP. Example 1: A BAP Schedule. We illustrate BAP by an
example. Suppose there are three transactions H, M,
and Lin a single processor environment. Let H, M, and
L have computation requirements 5, 5, and 7,
respec-tively, and periods 11, 19, and 22, respectively. Suppose H is the only transaction using semaphore S1 and
transactions M and Lshare semaphore S2. Let H, M,
and L have priorities 3, 2, and 1, respectively (3 is the
highest priority level). Suppose transaction L is
abor-table and transactions H and M are nonabortable.
According to the Basic Aborting Protocol (BAP), sema-phores S1 and S2 have priority ceilings as high as the
priority levels of transactions H and M, respectively.
For comparison, let us first schedule these transac-tions according to BAP. As shown in Fig. 1, transaction L
locks semaphore S2and runs at its assigned priority level
at time 1. When Marrives at time 2, M preempts L. At
time 3, Mtries to lock semaphore S2and the lock request
results in the aborting and restarting of transaction L
because Lholds a semaphore (S2) with a priority ceiling
no less than the priority of M and Lis abortable. Since
the lock request of semaphore S2is granted, Mproceeds
with its execution, but it is later preempted by transac-tion H at time 5. At time 6, the lock request of
semaphore S1 issued by H is granted because the
priority of H is higher than the priority ceiling of
semaphore S2, which is owned by transaction M at that
time. At time 10, H commits and releases its lock on
semaphore S1 and M resumes its execution. At time 12, 1. It is one of the assumptions of PCP to handle the priority inversion
problem.
2. BAP is composed of ªcompatibleº real-time scheduling algorithms, conventional concurrency control algorithms, and simple aborting algo-rithms. The definition of compatibility is removed here because of the purpose of this paper. We refer interested readers to [17] for details.
3. We will show later that i;jwill not abort more than one transaction
instance and the rechecking procedure can be done extremely efficiently. 4. We shall show in Theorem 3 that no transaction instance scheduled by BAP directly inherits a priority from a transaction instance which is aborted before commits or is aborted.
Mcommits and Lregains CPU and reexecutes as a new
transaction. However, transactions H and M arrive
again at times 16 and 21, respectively; L receives only
four units of computation time before its deadline at time 22, but L needs seven units of computation time. L
misses its deadline at time 22.
For comparison, Fig. 2 shows a schedule of these transactions scheduled by the Priority Ceiling Protocol (PCP) [25] and transactions are required to access semaphores in a 2PL fashion. Clearly, the blocking of Mat time 3 (because the priority ceiling of semaphore S2
is no less than the priority of M) results in the deadline
violation of M at time 21.
This example demonstrates one of the goals in designing BAP, that a higher priority transaction may abort lower priority transactions to meet its timing constraints, and the schedulability improvement of a higher priority transaction is at the cost of the possible schedulability degradation of lower priority transactions. We show in the next section that the Basic Aborting Protocol (BAP), which consists of 2PL, PCP, and a simple aborting algorithm, does preserve many important proper-ties of 2PL and PCP.
3.3 Properties
The purpose of this section is to show important properties of BAP. We shall first show that BAP schedules are deadlock-free and serializable. We will then show that BAP prevents transitive blocking, which is important for system implementation because priority inheritance can be done with low run-time overheads [25]. In order to guarantee the schedulability of important firm real-time transactions, we will show that the worst-case number of priority inversions for each transaction is one and that a higher priority transaction instance can abort at most one lower priority transaction instance. Theorems of PCP in [25] are used to simplify the proofs of certain properties of BAP and to help in explaining the relationship between BAP and PCP. Note that BAP is a simple extension of PCP in allowing transaction aborting.
Lemma 1. BAP prevents deadlocks.
Proof. Without the aborting mechanism, BAP is simply a restricted PCP which requires transaction instances to lock semaphores in a 2PL fashion. Since the aborting mechanism of BAP does not introduce any new
semaphore locks and PCP is deadlock-free, BAP is also deadlock-free. tu Theorem 1. Schedules generated by BAP are logically correct
(based on serializability).
Proof. Because of the delayed write procedure, aborted transaction instances have no impact on the database. The data operations of aborted transaction instances such as reads and writes can be ignored when the logical correctness of BAP schedules are considered. Further-more, transaction instances scheduled by BAP, regard-less of whether they commit or are aborted, acquire locks in a 2PL fashion (and only access data objects after they lock their corresponding semaphores). All BAP schedules must be serializable. tu Note that BAP adopts a delayed write procedure in which the actual write of the data object is delayed until the commit time of the transaction instance. An aborting process of a transaction instance merely discards the results done by the aborted transaction instance and no cascading aborting is needed. The atomicity of transaction executions and the consistency of the database can be maintained at a very low cost. The delayed write procedure and the adopted 2PL scheme also help in maintaining the isolation property of the system. Since a memory-resident database is assumed and no failure is considered in this paper, the durability property of the system is not an issue here. Lemma 2 [25]. Suppose that the critical section zj;n of
transaction instance Jj is preempted by transaction instance
Jiwhich enters its critical section zi;m. Under PCP, Jjcannot
inherit a priority level which is higher than or equal to that of Jiuntil Ji completes its execution.
Lemma 3. Suppose that the critical section of transaction instance is preempted by transaction instance 0which enters
its critical section. Under BAP, transaction instance cannot inherit a priority level which is higher than or equal to that of 0until 0commits or is aborted.
Proof. The correctness of the lemma follows from two things: Lemma 2 and the fact that no aborting of transaction instances will raise the priority level of any other transaction instances through priority inheritance and, without the aborting mechanism, BAP is simply a restricted PCP which requires transaction instances to lock semaphores in a 2PL fashion. tu
Definition 1 [25]. Transitive blocking is said to occur if a transaction instance is blocked by another transaction instance which, in turn, is blocked by the other transaction instance. Theorem 2. BAP prevents transitive blocking.
Proof. Suppose that there exists a transitive blocking in which transaction instance 1blocks transaction instance
2and transaction instance 2blocks transaction instance
3. Due to the transitivity of priority inheritance, 1
inherits the priority of 3, which is assumed to be higher
than that of 2. It contradicts Lemma 3, which shows that
1 cannot inherit a priority level higher than or equal to
that of 2. tu
Lemma 4 [25]. A transaction instance JH can be blocked by a
lower priority transaction instance JLunder PCP only if JLis
executing within a critical section, when JH is ready.
Lemma 5. If a lower priority transaction instance blocks or is aborted by a higher priority transaction instance under BAP, the lower priority transaction instance must receive at least one lock on a semaphore before the higher priority transaction instance is ready.
Proof. A similar proof of Lemma 4 [25] is shown as follows: According to the definitions of BAP, a lower priority transaction instance L can block or be aborted by a
higher priority transaction instance H if Lmay directly
or indirectly block H. In either case, L must own a
semaphore lock. If L does not own a semaphore lock
when His ready, then Lcan be preempted by Hand L
cannot block or be aborted by H. tu
Theorem 3. No transaction instance scheduled by BAP directly or indirectly inherits a priority level from a transaction instance which is aborted before commits or is aborted. Proof. Suppose that a transaction instance directly inherits
a higher priority from a transaction instance 0which is
later aborted. Because of Lemma 5, must have a lock on a semaphore Si before 0 is ready and the lock later
causes the direct priority inheritance of from 0. Since 0
is later aborted, it must also have a lock on a semaphore Sj that later results in its aborting. Apparently, the
priority ceiling of semaphore Si must be less than the
priority of 0; otherwise, 0 cannot obtain a lock on
semaphore Sjlater. It contradicts the observation that the
lock on semaphore Sicauses the priority inheritance of
from 0. Note that the priority ceiling of semaphore Si
must be no less than the priority of 0 to cause the
priority inheritance. tu Theorem 4 [25]. A transaction instance can be blocked for at most one critical section of at most one lower priority transaction instance under PCP.
Theorem 5. A transaction instance can experience at most one time of priority inversion under BAP.
Proof. Because of Theorem 4 and the fact that PCP allows transaction instances to acquire semaphore locks in a 2PL fashion, transaction instances scheduled by PCP and acquiring semaphore locks in a 2PL fashion can be blocked for at most one critical section of at most one lower priority transaction instance. In the following, we
shall show that the aborting mechanism of BAP does not falsify this proof.
The aborting mechanism of BAP simply offers a higher priority transaction instance a chance to abort a lower priority transaction instance. Lower priority transaction instances can never block a higher priority transaction instance after they leave their critical sections and no new blocking of any higher priority transaction instance is introduced because of abortings. Thus, the aborting mechanism should not increase the number of priority inversions of higher priority transaction instances. Based on these observations, a transaction instance can be blocked for at most one critical section of at most one lower priority transaction instance under BAP. tu Corollary 1. Let a lower priority transaction instance Lblock or
be aborted by a higher priority transaction instance H under
BAP. Lmust receive at least one lock on a semaphore that has
a priority ceiling no less than the priority of H before H is
ready.
Proof. If L can block or be aborted by H, then L must
directly or indirectly block H. Since Theorem 2 shows
that BAP prevents transitive blocking, L must own a
semaphore lock with a priority ceiling no less than the priority of H and directly block H. tu
Theorem 6. A higher priority transaction instance can abort at most one lower priority transaction instance under BAP. Proof. Under BAP, a higher priority transaction instance
aborts a lower priority transaction instance only when it tries to acquire a lock. Suppose transaction instance H
does abort more than one transaction instance and f L
1; 2L; ; nLg is the set of lower priority transaction
instances aborted by H for n > 1. According to
Corollary 1, each transaction instance L
i must have a
lock on a semaphore Si before H is ready, and the
priority ceiling of semaphore Si must be no less than the
priority of H. Suppose that semaphore Si is the first
semaphore locked by L
i , which has a priority ceiling no
less than the priority of H. (Note that transaction
instances under BAP access semaphores in a 2PL fashion, semaphore Sishall not be released until iLis aborted by
H.) Apparently, transaction instance iL is ready before
H is ready and does not terminate until H aborts it.
Suppose that L
1 locks semaphore S1 before 2L locks
semaphore S2. Since the original priority of 2L is lower
than the priority of H, the lock request of semaphore S2
by L
2 must be rejected unless the priority of 2Lis raised
to be higher than the priority ceiling of S1 because of
priority inheritance. However, the priority of L 2 cannot
be raised so high unless it already locks a semaphore which blocks a transaction instance with a priority higher than the priority ceiling of S1. It contradicts the
assumption that semaphore Si is the first semaphore
locked by L
i , which has a priority ceiling no less than the
priority of H. A contradiction can also be found in the
same way if L
1 locks semaphore S1 after 2L locks
semaphore S2. The same arguments can be applied to
any two transactions in f L
1; 2L; ; nLg and a
transaction instance can abort at most one lower priority transaction instance under BAP. tu
4 S
CHEDULABILITYA
NALYSIS4.1 Overview
Under BAP, transactions are classified as abortable or nonabortable in an offline fashion. The underlying idea of BAP is that, when a lower priority transaction may introduce excessive blocking to a higher priority transaction such that the higher priority transaction may miss its deadline in the worst case, the lower priority transaction is abortable. The purpose of this section is to provide a schedulability analysis procedure for a transaction system. The amount of tolerable blocking time of a transaction depends on three factors: 1) the worst-case amount of computation times consumed by higher-priority transac-tions, 2) the aborting cost experienced by the transaction, and 3) the worst-case number of priority inversions for a transaction request when transaction aborting is possible. The worst-case amount of computation time consumed by higher-priority transactions is known because the system consists of a fixed set of transactions. The only two missing parts are the aborting cost experienced by a transaction and the worst-case number of priority inversions for a transac-tion request when transactransac-tion aborting is possible.
In the following sections, we shall first derive a formula to quantify the aborting cost for a transaction and then show the worst-case number of priority inversions for a transaction request when transaction aborting is possible. Note that more than one transaction, i.e., transaction instances, may be executed for a transaction request because of repeated transaction abortings. We need to know the worst-case number of priority inversions for all transaction instances executed for a single request. Finally, we shall propose a schedulability analysis procedure based on the idea of the Rate Monotonic Analysis theories [18], [22] to determine which transaction is abortable in an offline fashion.
4.2 Aborting Cost of BAP
Definition 2. The direct aborting cost charged to a lower priority transaction instance by a higher priority transaction instance 0 is the CPU time that has been consumed by
when is aborted by 0.
Definition 3. A-costi;j denotes the maximum direct aborting
cost possibly charged to an instance of transaction j by an
instance of transaction i.
Definition 4. Given a set of transactions 1; 2; ; nlisted in
the nondecreasing order of their priorities, the maximum aborting cost charged to an instance of transaction j by an
instance of transaction iis -costi;j max A-costi;k, where
i < k j.
Theorem 7. A request of a lower priority transaction can be aborted at most once by a higher priority transaction within a period of the higher priority transaction.
Proof. Let H f 1H; 2H; ; mHg and L f 1L; 2L; ; nLg
be the sets of transaction instances instantiated for a request of a higher priority transaction H and a request
of a lower priority transaction L, respectively. (Note that
transaction instances H
1 and 1L are the first instances
instantiated for the requests of H and L, respectively.
H
i and jLfor i; j > 1 are transaction instances restarted
for the aborted transaction instances H
iÿ1 and jÿ1L ,
respectively. There is only one request for a transaction per period.) Suppose that transaction instances H
i and
L
j are listed in the increasing order of their ready/
restarting times. Let H
i abort jL for some index i > 1. As shown in
Corollary 1, L
j must have a lock on a semaphore S
before H
i is ready and the priority ceiling of semaphore
S must be no less than the priority of H
i . Since BAP
restarts any aborted transaction instance immediately, L j
must be in a critical section with a semaphore lock (not necessary on S) which has a priority ceiling no less than
the priority of H
k before kH is ready for 1 k i;
otherwise, L
j can be preempted (and/or has no chance
to lock S). By the definitions of BAP, L
j would have
been aborted by H
1 instead of iH. It contradicts the
assumption that H
i aborts jL for some index i > 1. We
conclude that if L
j is aborted by any transaction instance
in H, jLis only aborted by 1H.
Furthermore, once a lower priority transaction in-stance is aborted, any of its corresponding restarted transaction instances would have no chance to gain CPU and lock semaphores unless higher priority transaction instances cease their existence. As shown in Lemma 5, a lower priority transaction instance must receive at least one lock on a semaphore before a higher priority transaction instance is ready if the lower priority transaction instance is aborted by the higher priority transaction instance. As a result, H
1 can only abort one
transaction instance in L. tu
Let f 1; 2; ; ng be a set of periodic transactions
listed in the nonincreasing order of their priorities and HPCi f 1; 2; ; iÿ1g be the set of transactions with a
priority no less than that of i.
Lemma 6. The worst-case aborting cost for a request of transaction j between time 0 and time t pj is at most
P
i2HPCj dptie -costi;j.
Proof. Follows directly from the definition of -costi;j and
Theorem 7. tu 4.3 Blocking Cost of BAP
Theorem 8. A request of a transaction can be blocked for at most one critical section of at most one lower priority transaction instance under BAP. In other words, the maximum number of priority inversion per transaction request is one.
Proof. Suppose that transaction instance i;jis initiated for a
request Ri;j of a transaction i. Let i;j be aborted and
restarted for n 0 times. For convenience, the transaction instances are renamed. Let a
1 be the transaction instance
first initiated for request Ri;jand f 2a; 3a; ; n1a g be the
set of transaction instances restarted for request Ri;j. kas
are listed in the order of their restarting times.
We shall show as follows that the total duration of priority inversion experienced by a
at most one critical section of at most one lower priority transaction instance. Note that a
1 is ready when request
Ri;j occurs. Since BAP restarts an aborted transaction
instance immediately after the aborting of the instance, a
i1 is ready immediately after iais aborted for i n.
Let a
i be the transaction instance blocked by a lower
priority transaction instance with the largest index i.
(Note that Theorem 5 shows that a
i can be blocked for at
most one critical section of at most one lower priority transaction instance.) Because of Corollary 1, must
receive at least one lock on a semaphore that has a priority ceiling no less than the priority of a
i before iais
ready. If has such a lock before a
iÿ1 is ready, iÿ1a is
also blocked by the same semaphore lock. If receives
this semaphore lock after a
iÿ1 is ready but before ia is
ready, then must be in another critical section that
locks another semaphore with a priority ceiling no less than the priority of a
iÿ1; otherwise, iÿ1a can preempt .
Thus, a
iÿ1 and ia can be considered as blocked by the
larger critical section which properly contains the critical section blocking a
i. (Note that BAP prevents transitive
blocking and has all critical sections properly nested.) In either case, the total duration of priority inversion experienced by a
iÿ1 and ia is one critical section of one
lower priority transaction instance. By repeating the same argument, we can show that the total duration of priority inversion experienced by a
1; 2a; ; and ia is
one critical section of one lower priority transaction instance. Since a
i is the transaction instance blocked by a
lower priority transaction instance with the largest index i, a request of a transaction can be blocked for at most one critical section of at most one lower priority transaction instance. tu 4.4 Schedulability Analysis Procedure
The purpose of this section is to provide a schedulability analysis procedure for a transaction system. The underlying idea is that if a lower priority transaction may introduce excessive blocking to a higher priority transaction such that the higher priority transaction may miss its deadline in the worst case, the lower priority transaction is made abortable by the higher priority transaction. Note that the proposed scheme depends on knowledge of the lengths of the execution time and critical sections of every transaction. If the lengths of the execution time and critical sections of any transaction is unknown, as in many traditional database systems, then the schedulability analysis in this paper cannot be done. However, we must emphasize that the schedulability guarantee of firm real-time transactions must rely on the above knowledge.
Let f 1; 2; ; ng be a set of periodic transactions
listed in the nondecreasing order of their priorities. HPCi
f 1; 2; ; iÿ1g is a set of transactions with a priority no
less than that of i. Let bi, di, pi, and ci be the worst case
blocking time (from lower priority transactions), deadline, period, and worst case computation requirement of a transaction i, respectively.
Lemma 7 [18], [22]. Process i in a set of periodic processes
scheduled by a fixed priority-driven preemptive scheduling
algorithm will always meet its deadline for all process phases if there exists a pair k; m 2 SPisuch that
X j2HPCi cj mppk j ci bi mpk;
where bi is the blocking time of i and
SPi k; mj1 k i; m 1; 2; ; ppi k
: The phase of a process is the ready time of the first request of the process. SPi is named the collection of
schedulability points mpk for i, where mpkis a time point
when a new request of process execution, i.e., the m 1th request of process k, occurs [18], [22] (Please see Fig. 3).
Lemma 7 explores all time points no later than the deadline of process i to see if all the computation requirements of
existing process requests are satisfied. In other words, if there exists a time point no later than the deadline of i, i.e.,
a schedulability point mpk, such that all the computation
requirements of existing process requests (including the request of i) are satisfied, then process i is schedulable.
Lemma 8. A transaction i scheduled by BAP will always meet
its deadline for all process phases if there exists a pair k; m 2 SPi such that X j2HPCi cj mpp k j ci bi abi mpk;
where biand abiare the worst case blocking cost and aborting
cost of transaction i, respectively, and
SPi k; mj1 k i; m 1; 2; ; ppi k
: Each pair k; m represents a scheduling time point mpk to
test the schedulability of process i.
Proof. The worst case aborting cost of transaction i is
modeled as an extra computation time of i. (Note that
the Rate Monotonic Analysis theories [18], [22] also model the worst case blocking time of transaction ias an
extra computation time of i.) The correctness of the
proof follows Lemma 7. tu Note that, when transactions are assigned priorities out of the rate monotonic order, the Rate Monotonic Analysis theories [22] model the execution times of higher priority but larger period transactions as the blocking times of lower priority but smaller period transactions. We refer interested readers to [18], [22] for details.
Schedulability Analysis Procedure: Let f 1; 2; ; ng
be a set of periodic transactions listed in the nondecreasing
order of their priorities. In the following procedure, we shall determine the maximum blocking time that transac-tion i can tolerate (in an offline fashion).
L e t SPi f k; mj1 k i; m 1; 2; ; bppkicg a n d
MPKi fmpkj k; m 2 SPig.
Lemma 8 shows that the maximum blocking time that transaction i can tolerate is
MBi maxt2MPKi t ÿ X j2HPCi cj pt j ÿ ciÿ abi " # : Based on Lemma 6, the maximum tolerable blocking time of transaction i is MBi maxt2MPKi t ÿ X j2HPCi cj pt j ÿ ci " ÿ X j2HPCi t Pj -costj;i # :
Initially, all transactions are nonabortable. The maximum tolerable blocking time MBiof transaction iis calculated as
defined. 1. i = 1.
2. If i > n, then stop.
3. If a transaction j (j > i) has a critical section that
may lock a semaphore with a priority ceiling no less than transaction i and the length of the critical
section is larger than MBi, then transaction j
becomes abortable. (See Theorem 8.) Repeat Step 3 until no such j exists.
4. i = i + 1; go to Step 2.
When a lower priority transaction is abortable by a higher priority transaction, the worst-case blocking cost of the higher priority transaction may decrease, but at the cost of increasing the worst-case aborting cost of the lower priority transaction. Lower priority transactions may become unschedulable because of excessive aborting costs. On the other hand, higher priority transactions become schedulable because of lower blocking costs. Lemma 8 provides the best interpretation of the idea to trade the aborting costs of some transactions with the blocking costs of some other transactions.
5 E
XTENSIONS OFBAP
5.1 Motivation
Under the Basic Aborting Protocol (BAP), transactions are classified as abortable or nonabortable. A transaction is abortable if it potentially introduces excessive block-ing to some higher priority transactions. Nevertheless, the excessive blocking that a lower priority transaction L may introduce to a higher priority transaction H
may be tolerable to another higher priority transaction 0
H. Under BAP, L, which is abortable because of its
potential excessive blocking to H, may be unnecessarily
aborted by 0
H.
In this section, we will generalize the Basic Aborting Protocol in two ways: 1) Transaction abortings are managed in a more fine-grained fashion (see the Table-Driven
Aborting Protocol). 2) Transaction abortings are determined in a totally online fashion (see the Dynamic Aborting Protocol).
5.2 Table-Driven Aborting Protocol (TAP)
The Table-Driven Aborting Protocol (TAP) is a general-ization of the Basic Aborting Protocol (BAP) in the following way: Transactions are not simply abortable or nonabortable. Instead, every transaction i has a set of
transactions which it can abort. An instance of a lower priority transaction j can be aborted by an instance of a
higher priority transaction i only if j is in the set of
transactions abortable by i.
The aborting relationship can be realized as a table ABi; j: If ABi; j Y es, an instance of a higher priority transaction i can abort an instance of a lower priority
transaction j. If ABi; j No, no instance of a higher
priority transaction i can abort an instance of a lower
priority transaction j. Whether an instance of a lower
priority transaction jis abortable by an instance of a higher
priority transaction i is determined by the maximum
tolerable blocking time MBi of i and the maximum length
CSj of the critical section of j which locks a semaphore
with a priority ceiling no less than transaction i. If
MBi< CSj, ABi; j Y es; otherwise, ABi; j No. (See
the schedulability analysis procedure in Section 4.4.) The rest of the Table-Driven Aborting Protocol (TAP) is exactly the same as the Basic Aborting Protocol (BAP). Note that a data structure other than table/array can be used to implement the aborting relation ABi; j. The same proper-ties and schedulability analysis procedure of BAP in Sections 3.3 and 4 also hold for TAP.
5.3 Dynamic Aborting Protocol (DAP)
The schedulability analysis procedure of the Basic Aborting Protocol (BAP) in Section 4.4 partitions transactions into two exclusive sets, either abortable or nonabortable, in an offline fashion. A lower priority transaction is abortable if it potentially introduces excessive blocking to a higher priority transaction and the blocking causes the deadline violation of the higher priority transaction. However, the schedulability analysis procedure based on Lemma 8 considers the worst case blocking time and the aborting cost of a transaction is also analyzed in the worst case situation, although the cost can change dynamically per period. (Note that the aborting cost of each transaction is tightly bounded.)
The technical question is how to relax the restrictions imposed by Lemma 8 on the estimations of blocking times and aborting costs. If the (maximum) blocking time that an instance of a transaction can tolerate is estimated dynami-cally and more precisely based on the current time and the current workload of the system, many unnecessary abort-ings of lower priority transaction instances can be avoided. However, Lemma 8 only offers a pseudopolynomial algorithm to estimate the maximum blocking time that any instance of a transaction can tolerate. We will use the following theorem to approximate Lemma 8 efficiently and closely. Based on our intensive simulation experiments, we observed that the Theorem 9 can approximate Lemma 8 quite efficiently and closely.
Note that every transaction in the system has a fixed priority and there is no constraint in determining the priority of a transaction for DAP and Theorem 9. However, if transactions are assigned priorities out of the rate monotonic order, Theorem 9 must model the execution times of higher priority but larger period transactions as the blocking times of lower priority but smaller period transactions, as done by the Rate Monotonic Analysis theories [22]. We refer interested readers to [18], [22] for details.
Theorem 9. A transaction ischeduled by BAP will always meet
its deadline for all process phases if X j2HPCi di pj cj ci bi abi di;
where di, bi, and abiare the deadline, worst case blocking cost,
and worst case aborting cost of transaction i, respectively.
Proof. The worst case aborting cost of transaction i is
modeled as an extra computation time of i. (Note that
the Rate Monotonic Analysis theories [18], [22] also models the worst case blocking time of transaction i as
an extra computation time of i.) The correctness of the
proof follows Lemma 7. tu The Dynamic Aborting Protocol (DAP) is an extension of the Basic Aborting Protocol (BAP) in the following way: At any time t, whether an instance of a higher priority transaction can abort an instance of a lower priority transaction depends on three conditions checked in an online fashion: 1) The lower priority transaction instance blocks the higher priority transaction instance on a semaphore lock at time t, 2) the lower priority transaction instance is abortable by the higher priority transaction, and 3) the maximum tolerable blocking time (see Theorem 9) of the higher priority transaction instance is less than the possible blocking time of the lower priority transaction instance at time t. (As in BAP, transaction abortings only happen when semaphore locks are requested.) The possible blocking time of the lower priority transaction instance can be estimated efficiently as the remaining computation time of the lower priority transaction instance or, more precisely, the remaining length of the critical section of the lower priority transaction instance that blocks the higher priority transaction instance at time t.
The rest of the Dynamic Aborting Protocol (DAP) is exactly the same as the Basic Aborting Protocol (BAP). The same properties of BAP in Sections 3.3 and 4 also hold for DAP. Because every transaction except the one with the highest priority is abortable in DAP, the maximum direct aborting cost A-costi;jcharged to an instance of transaction
jby an instance of transaction iis usually not zero and the
offline (worst case) schedulability analysis of a transaction system scheduled by DAP might be worse than that of the transaction system scheduled by BAP. However, we expect that DAP performs better than BAP does, on average. 5.4 Remark
The Basic Aborting Protocol (BAP) is a very simple protocol extended from PCP. Transactions are classified as abortable
or nonabortable in an offline fashion, as described in Section 4.4. A transaction is abortable if it potentially introduces excessive blocking to some higher priority transactions. TAP is a generalization of BAP in maintaining the aborting relationship between any two transactions. DAP is another generalization of BAP in determining the aborting relationship between any two transactions in an online fashion. This paper considers different levels of the aborting relationship among transactions and evaluates the impacts of the aborting relationship when the relationship is built in an online or offline fashion. A more precise mechanism in trading blocking cost and aborting cost of transactions is also proposed.
BAP, TAP, and DAP all adopt a delayed write procedure in which the actual write of the data object is delayed until the commit time of the transaction. The delay write procedure eases the aborting process and avoids cascading aborting. DAP has a higher complexity than BAP and TAP because DAP must determine the aborting relationship of two conflicting transactions in an online fashion. However, we surmise that the complexity of DAP is very limited because the aborting relationship of conflicting transactions depends on the maximum tolerable blocking time of transactions and the maximum tolerable blocking time can be derived in a liner time (see Theorem 9).
Compared to the Abort Ceiling Protocol (ACP) [24], one of the best abort-oriented protocols, BAP and its variations are simpler in their protocol complexity and implementa-tion. ACP and BAP both adopt the same delayed write procedure to ease the aborting process. The aborting overheads are the same. In addition to the priority ceilings defined for data objects in PCP and its variation [25], [27], ACP defines an abort ceiling for each transaction to allow a higher-priority transaction to abort a lower-priority transac-tion which blocks the higher-priority transactransac-tions if the abort ceiling of the lower-priority transaction is smaller than the priority of the higher-priority transaction. The abort ceiling of a transaction may be dynamically raised up with respective to the amount of time which the transaction has consumed. The abort ceilings of transactions are precalculated and stored in a table according to a nontrivial mechanism similar to the calculation of tolerable blocking time for BAP. BAP and its variation are simpler in the protocol design and implementation. Only a priority ceiling is needed for each data object (no abort ceiling and any other ceiling definition). When an access conflict occurs, only the aborting relationship of two conflicting transac-tions are checked, where the aborting relatransac-tionship for BAP and TAP is even constructed in an offline fashion. No online determination of when to raise up the abort ceiling of a transaction is needed for BAP and its variations.
In summary, BAP represents a much simpler implemen-tation of abort-oriented protocols, compared to ACP and other related protocols. We shall demonstrate the strengths of the work by improving the worst-case schedulability of an avionics example [20], a satellite control system [7], and randomly generated transaction sets in the next section.
6 P
ERFORMANCEE
VALUATIONThe strengths of the work are demonstrated by improving the worst-case schedulability of an avionics example [20], a satellite control system [7], and randomly generated transaction sets. We also provide the measurement of aborting overheads on a system running the LynxOS real time operating system.
6.1 Case Study
Two transaction systems based on an avionics example [20] and a satellite control system [7] were studied to demon-strate the strengths of the work by improving the worst-case schedulability of the transaction systems. The purpose of this section is to not only demonstrate the idea of transaction aborting in managing priority inversion for realistic workloads, but also to provide examples to illustrate the calculation of tolerable blocking time for each transaction and the idea of the schedulability analysis procedure proposed in Section 4.4. However, we shall emphasize that the realistic systems adopt various different mechanisms, such as the shrinking of critical sections and the adjustment of priority order to guarantee the schedul-ability of the systems. The adopted mechanisms are not related to the concurrency control issues addressed in this paper.
The avionics example has 18 periodic transactions, which define the software requirements for a Generic Avionics Platform similar to existing U.S. Navy/Marine Corps aircraft [20]. They belong to eight major subsystems: display, contact management, radar, navigation, tracking, weapon, built-in-test, and communication. Weapon_Release and Weapon_Aim in Table 2 are for the weapon system. Poll_Bus_Device and Radar_Tracking_Filter belong to the communication and radar systems, respectively. RWR_Tracking_Filter is for the contact management sys-tem. Table 2 shows the analysis results of the transaction system scheduled by the Basic Aborting Protocol (BAP). The schedulability analysis procedure (in Section 4.4) demonstrates in Table 2 that BAP can successfully schedule the first six most critical transactions, compared with the observation that only the most critical transaction, i.e., Timer_Interrupt, can be scheduled by the above pure locking PCP. Transactions in Table 2 are listed in the decreasing order of their priorities. Transaction Weapon_Release is listed second (not in a pure rate-monotonic order) to meet a 5ms jitter requirement. The jitter requirement is for ballistics computation to ensure target accuracy, based on vehicle trajectory, altitude, and attitude. Let the blocking time caused by any transaction be the execution time of the whole transaction. Unless stated, the deadline of a request is at the end of its period. Note that the cumulative processor utilization of transactions with priorities no less than that of transaction Weapon_Release is 6:605 percent. The improvement of the schedulability of critical transactions is achieved at the cost of aborting less critical transactions. Less critical transactions are more likely to miss their deadlines because of higher aborting costs. The tolerable blocking time and the aborting status of transactions were determined based on the procedure proposed in Section 4.4.
The second schedulability analysis is based on an abstraction of a sanitized version of the Olympus Attitude and Orbital Control Systems (AOCS) example, which is a satellite control system from [7]. The Olympus AOCS example [7] has 10 periodic transactions and four sporadic transactions, where Olympus is a three-axis-stabilized satellite launched in 1989 for TV-broadcasting and distance learning. The AOCS software operates/communicates with a telemetry & telecommand subsystem, an infrared earth sensor (IRES), a digital sun sensor, a rate gyro sensor, four reaction wheels, and thrusters during the normal operation mode. Transactions are assigned priorities according to the deadline monotonic priority assignment that assigns transaction priorities inversely proportional to their deadlines. In Table 3, transactions Bus_Interrupt and Telemetry_Response are modeled as periodic transac-tions. Even if transactions Bus_Interrupt and Read_Bus_IP (which share item Bus_IP_FIFO) can, indeed, execute concurrently without any interference from each other, all of the transactions except Bus_Interrupt remain unschedulable by the PCP protocol due to excessive blocking from transactions Process_IRES_data and Control_Law, where Control_Law implements the basic control laws and is responsible for maintaining the satellite Earth point, and Process_IRES_data is related to the processing of IRES data. Note that data received from the bus are encapsulated in a protected object. BAP makes transactions Process_IRES_data and Control_Law aborta-ble and the schedulability of the Olympus AOCS is substantially improved. Table 3 shows that the first eight most critical transactions are schedulable by BAP.
The maximum blocking times of transactions in the avionics example [20] and the satellite control system [7] were recalculated based on Theorem 9 (for DAP), and they were almost the same as their correspondences in Tables 2 and 3.
6.2 Simulation Experiments 6.2.1 Measures and Methodologies
The experiments described in this section are meant to assess the capabilities of BAP, TAP, and DAP in reducing the number of deadline violations of critical transactions. We compared BAP, TAP, and DAP with the well-known PCP, Rate Monotonic Scheduling algorithm (RMS) [16], and Abort Ceiling Protocol (ACP) [24], where ACP is an abort-oriented protocol derived from PCP. Note that RMS represents an ideal situation where no data conflicting and priority inversion occurs.
The average number of data objects accessed by a transaction was five and the average number of transactions per transaction set ranged from four to 50. The periods of transactions were randomly chosen from 1 to 1; 000 time units and the CPU granularity was 0.01 time units. The same experiments were repeated on a database with 50, 100, 150, 200, and 1,000 data objects, respectively. Note that the proposed protocols aim at critical real-time systems with a well-defined workload, such as an avionics example [20] and a satellite control system [7], in which less than hundreds of data objects exist.
The primary performance metric used is the ratio of requests that miss deadlines, referred to as Miss Ratio. Let numi and missi be the total number of transaction requests
and deadline violations during an experiment, respectively. Miss Ratio is calculated asmissi
numi.
6.2.2 Experimental Results
Figs. 4, 5, 6, 7, and 8 summarize the miss ratio of the transactions which have the top 1=4 highest priorities in their respective transaction sets. In general, abort-oriented protocols, especially TAP and DAP, resulted in a much lower number of deadline violations of critical or higher priority transactions than PCP did. As the size of the database decreased, more data conflicts were likely to occur. Figs. 4, 5, 6, 7, and 8 show the favoring of abort-oriented protocols when more data conflicts were possible. Fig. 9 summarizes the miss ratio of all of the transactions when the database had 150 data objects and the experi-mental results on a database of different sizes were very similar. The experimental results demonstrate the capability
of abort-oriented protocols in reducing the number of deadline violations of critical transactions, though at the cost of increasing the number of deadline violations of less critical transactions. Note that the performance of BAP was about the same as that of the more complicated ACP in the experiments, and DAP and TAP greatly outperformed BAP. 6.3 Measurement of Aborting Overheads
The purpose of this section is to measure the major overheads in restarting a transaction. The measurement was done on a Pentium 133MHZ personal computer with 16MB of memory and LynxOS, where LynxOS is a Unix-like real-time operating system that provides deterministic, high performance real-time responsiveness for real-time applica-tions [1]. The worst-case interrupt response time of LynxOS is 35s on our experimental platform [2].
LynxOS library functions mutex_enter and mutex_exit were used to perform lock and unlock operations. The Unix library functions setjmp and longjmp [15] were used to
Fig. 4. Top 1/4 transactions, DB Size = 50.
Fig. 5. Top 1/4 transactions, DB Size = 100.
Fig. 6. Top 1/4 transactions, DB Size = 150.
implement restart operations after transaction aborting. The setjmp operation, when invoked, saved the status of the execution stack and the return address in an environment variable. The longjmp operation restored the environment saved by setjmp and resumed the execution of a transaction at the place following the setjmp operation.
In the experiments, the setjmp and longjmp operations each took only 20s and 13s, respectively. Since aborted transactions must release existing locks, the aborting cost should include the releasing of existing locks. As shown in Table 1, the time in releasing a lock is no more than 1s. The time needed to release locks was linearly proportional to the number of locks released. Note that this assumption was based on the duration of simple memory accesses for most operations where no context switch or operating system
service was involved. Since this paper focuses on critical real-time systems with a well-defined workload, such as an avionics example [20] and a satellite control system [7], in which a transaction often accesses few data objects, we surmise that the restarting cost is very limited. The results further support the idea of having transaction aborting in a critical real-time database system.
7 C
ONCLUSIONThis paper proposes a class of abort-oriented concurrency control protocols in which the schedulability of a transac-tion system is improved by aborting transactransac-tions that introduce excessive blockings. We consider different levels of the aborting relationship among transactions and
Fig. 8. Top 1/4 transactions, DB Size = 1,000. Fig. 9. The whole transaction set, DB Size = 150.
TABLE 2
Schedulability Analysis of BAP for the Generic Avionics Example (Unit: ms) TABLE 1
evaluate the impacts of the aborting relationship when the relationship is built in an online or offline fashion. A more precise mechanism in trading blocking cost and aborting cost of transactions is proposed. We demonstrate the strengths of the work by improving the worst-case schedulability of an avionics example [20], a satellite control system [7], and randomly generated transaction sets. We also measure aborting overheads on a system running the LynxOS real time operating system. We found that the schedulability of critical transactions can be greatly im-proved at the cost of slightly increasing the number of deadline violations of less critical transactions. When the database size is less than 1; 000 data objects, abort-oriented protocols have a great advantage over other concurrency control protocols, such as PCP. Abort-oriented protocols are thus very suitable to target system with a small or medium size of databases and a mixed collection of critical and noncritical transactions. When the maximum tolerable blocking time of a transaction can be estimated more precisely during run time (as the policy adopted by DAP), the schedulabulity of critical and less critical transactions can both be increased with only minor overheads in the determining of the aborting relationship among transactions.
We surmise that the implementation and run-time overhead of the Basic Aborting Protocol (BAP) is close to that of its component PCP. The priority inheritance of
transactions scheduled by BAP can be done as efficiently as that of transactions scheduled by PCP because transaction abortings only occur when semaphores are requested and no transaction directly or indirectly inherits a priority level from a higher priority transaction that is aborted before commits or is aborted (See Theorem 3). Note that the schedulability analysis procedure shown in Section 4.4 is done before run time. The Table-Driven Aborting Protocol (TAP) and the Dynamic Aborting Protocol (DAP), though slightly more expensive than BAP, do show their superiority in managing the schedulability and aborting cost of transactions in the case studies and simulation experiments.
Trading the priority inversion times of critical transac-tions with the aborting costs of less critical transactransac-tions is a promising approach to boost the performance and stability of a transaction system. One future research direction of this work is to investigate the application semantics of a transaction system and its implications on transaction abortings and restartings. We also want to compare the performance of locked-based abort-oriented protocols against that of optimistic concurrency control protocols [6]. We believe that more research in classifying and analyzing real-time concurrency control algorithms and transaction systems to derive proper benchmarks may prove to be very rewarding.
TABLE 3
A
CKNOWLEDGMENTSThis research was supported in part by research grants from the National Science Council under Grants NSC85-2213-E-194-008 and NSC85-2213-E-309-001. This paper is an extended version of the paper that appeared in the Proceedings of the Third International Workshop on Real-Time Computing Systems and Applications. Ming-Chung Liang graduated from the Department of Computer Science and Information Engineering, National Chung Cheng Univer-sity, under the supervision of Tei-Wei Kuo in 1996.
R
EFERENCES[1] ªLynxOS Frequently Asked Questions,ºhttp://www.lynx.com, year?
[2] ªLynxOS Real-Time Performance Analysis,ºhttp://www.lynx. com/products/perfanal.html, year?
[3] R. Abbott and H. Garcia-Molina, ªScheduling Real-Time Transac-tions: A Performance Evaluation,º Proc. 14th Very Large Data Bases Conf., pp. 1-12, 1988.
[4] A. Bestavros, ªTimeliness via Speculation for Real-Time Data-bases,º Proc. IEEE 15th Real-Time Systems Symp., 1994.
[5] A. Bestavros, ªAdvances in Real-Time Database Systems Re-search,º Special Section on RTDB of ACM SIGMOD Record, vol. 25, no. 1, Mar. 1996.
[6] P.A. Bernstein, V. Hadzilacos, and N. Goodman, Concurrency Control and Recovery in Database Systems. Reading, Mass.: Addison-Wesley, 1987.
[7] A. Burns, A.J. Wellings, C.M. Bailey, and E. Fyfe, ªA Case Study in Hard Real-Time System Design and Implementation,º YCS 190, Dept. of Computer Science, Univ. of York, 1993.
[8] L.B.C. Dipippo and V.F. Wolfe, ªObject-Based Semantic Real-Time Concurrency Control,º Proc. IEEE Real-Time Systems Symp., Dec. 1993.
[9] J.R. Haritsa, M.J. Carey, and M. Livny, ªOn Being Optimistic about Real-Time Constraints,º Proc. Ninth ACM SIGACT-SIG-MOD-SIGART Symp. Principles of Database Systems, pp. 331-343, Apr. 1990.
[10] M.U. Kamath and K. Ramamritham, ªPerformance Characteristics of Epsilon Serializability with Hierarchical Inconsistency Bounds,º Proc. Int'l Conf. Data Eng., pp. 587-594, Apr. 1993. [11] Y.-K. Kim and S.H. Son, ªSupporting Predictability in Real-Time
Database Systems,º Proc. IEEE 1996 Real-Time Technology and Applications Symp., 1996.
[12] T.-W. Kuo and A.K. Mok, ªSSP: A Semantics-Based Protocol for Real-Time Data Access,º Proc. IEEE 14th Real-Time Systems Symp., Dec. 1993.
[13] K.W. Lam and S.L. Hung, ªA Preemptive Transaction Scheduling Protocol for Controlling Priority Inversion,º Proc. Third Int'l Workshop Real-Time Computing Systems and Applications, pp. 144-151, 1996.
[14] K.W. Lam, S.H. Son, V.C.S. Lee, and S.L. Hung, ªUsing Separate Algorithms to Process Read-Only Transactions in Real-Time Systems,º Proc. IEEE 19th Real-Time Systems Symp., Dec. 1998. [15] S.J. Leffler, M.K. McKusick, M.J. Karels, and J.S. Quarterman, The
Design and Implementation of the 4.3BSD UNIX Operating System. Reading, Mass.: Addison-Wesley, 1989.
[16] C.L. Liu and J.W. Layland, ªScheduling Algorithms for Multi-programming in a Hard Real-Time Environment,º J. ACM, vol. 20, no. 1, pp. 46-61, Jan. 1973.
[17] M.-C. Liang, T.-W. Kuo, and L. Shu, ªA Quantification of Aborting Effect for Real-Time Data Accesses,º IEEE Trans. Computers, to appear.
[18] J.P. Lehoczky, L. Sha, and Y. Ding, ªThe Rate Monotonic Scheduling Algorithm: Exact Characterization and Average Case Behavior,º Proc. IEEE 10th Real-Time Systems Symp., Dec. 1989. [19] Y. Lin and S.H. Son, ªConcurrency Control in Real-Time
Databases by Dynamic Adjustment of Serialization Order,º Proc. IEEE 11th Real-Time Systems Symp., Dec. 1990.
[20] C.D. Locke, D.R. Vogel, and T.J. Mesler, ªBuilding a Predictable Avionics Platform in Ada: A Case Study,º Proc. IEEE 12th Real-Time Systems Symp., Dec. 1991.
[21] C.-S. Peng and K.-J. Lin, ªA Semantic-Based Concurrency Control Protocol for Real-Time Transactions,º Proc. IEEE 1996 Real-Time Technology and Applications Symp., 1996.
[22] L. Sha, ªDistributed Real-Time System Design Using Generalized Rate Monotonic Theory,º lecture note, Software Eng. Inst., Carnegie-Mellon Univ., 1992.
[23] L. Shu and M. Young, ªA Mixed Locking/Abort Protocol for Hard Real-Time Systems,º Proc. IEEE 11th Workshop Real-Time Operating Systems and Software, pp. 102-106, May 1994.
[24] L. Shu, M. Young, and R. Rajkumar, ªAn Abort Ceiling Protocol for Controling Priority Inversion,º Proc. First Int'l Workshop Real-Time Computing Systems and Applications, pp. 202-206, Dec. 1994. [25] L. Sha, R. Rajkumar, and J.P. Lehoczky, ªPriority Inheritance
Protocols: An Approach to Real-Time Synchronization,º Technical Report CMU-CS-87-181, Dept. of Computer Science, Carnegie-Mellon Univ., Nov. 1987, IEEE Trans. Computers, vol. 39, no. 9, Sept. 1990.
[26] L. Sha, R. Rajkumar, and J.P. Lehoczky, ªConcurrency Control for Distributed Real-Time Databases,º ACM SIGMOD Record, vol. 17, no. 1, pp. 82-98, Mar. 1988.
[27] L. Sha, R. Rajkumer, S.H. Son, and C.-H. Chang, ªA Real-Time Locking Protocol,º IEEE Trans. Computers, vol. 40, no. 7, pp. 793-800, July 1991.
[28] H. Takada and K. Sakamura, ªReal-Time Synchronization Proto-cols for Controlling Priority Inversion,º Proc. First Int'l Workshop Real-Time Computing Systems and Applications, pp. 202-206, Dec. 1994.
[29] M. Xiong, R. Sivasankaran, J. Stankovic, K. Ramamritham, and D. Towsley, ªScheduling Transactions with Temporal Constraints: Exploiting Data Semantics,º Proc. IEEE 17th Real-Time Systems Symp., pp. 240-249, 1996.
Tei-Wei Kuo received the BSE degree in computer science and information engineering from National Taiwan University in Taipei, Taiwan, in 1986. He received the MS and PhD degrees in computer sciences from the Univer-sity of Texas at Austin in 1990 and 1994, respectively. He is currently an associate pro-fessor in the Department of Computer Science and Information Engineering of the National Taiwan University, Taiwan, Republic of China (ROC). He was an associate professor in the Department of Computer Science and Information Engineering of the National Chung Cheng University, Taiwan, ROC, from August 1994 to July 2000. His research interests include real-time databases, real-time process scheduling, real-time operating systems, and control systems. He is the program chair of IEEE Seventh Real-Time Technology and Applications Symposium, 2001, and has consulted for government and industry on problems in various real-time systems design. Dr. Kuo is a member of the IEEE and the IEEE Computer Society.
Ming-Chung Liang received the BSE degree in computer science and information engineering from Tatung Insititute of Technology, Taiwan, in 1994. He received the MS degree in computer science and information engineering from Na-tional Chung Cheng University in Taiwan in 1996. He is currently an engineer in the Pou Chen Group in Taiwan. His research interests include real-time database and real-time operat-ing system.
LihChyun Shu received the PhD degree in computer sciences from Purdue University, West Lafayette, Indiana. He is an associate professor in the Department of Information Management at Chang Jung University in Tainan County, Taiwan, Republic of China. His research interests are real-time systems, databases, and data warehousing. He is a member of the IEEE and the IEEE Computer Society.
. For further information on this or any computing topic, please visit our Digital Libary at http://computer.org/publications/dlib.
