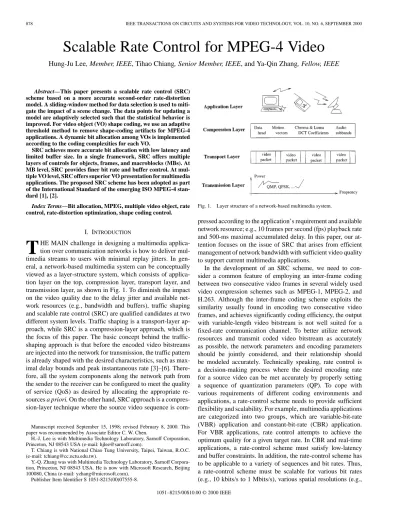

Scalable Rate Control for MPEG-4 Video
Hung-Ju Lee, Member, IEEE, Tihao Chiang, Senior Member, IEEE, and Ya-Qin Zhang, Fellow, IEEE
Abstract—This paper presents a scalable rate control (SRC)
scheme based on a more accurate second-order rate-distortion model. A sliding-window method for data selection is used to miti-gate the impact of a scene change. The data points for updating a model are adaptively selected such that the statistical behavior is improved. For video object (VO) shape coding, we use an adaptive threshold method to remove shape-coding artifacts for MPEG-4 applications. A dynamic bit allocation among VOs is implemented according to the coding complexities for each VO.
SRC achieves more accurate bit allocation with low latency and limited buffer size. In a single framework, SRC offers multiple layers of controls for objects, frames, and macroblocks (MBs). At MB level, SRC provides finer bit rate and buffer control. At mul-tiple VO level, SRC offers superior VO presentation for multimedia applications. The proposed SRC scheme has been adopted as part of the International Standard of the emerging ISO MPEG-4 stan-dard [1], [2].
Index Terms—Bit allocation, MPEG, multiple video object, rate
control, rate-distortion optimization, shape coding control.
I. INTRODUCTION
T
HE MAIN challenge in designing a multimedia applica-tion over communicaapplica-tion networks is how to deliver mul-timedia streams to users with minimal replay jitters. In gen-eral, a network-based multimedia system can be conceptually viewed as a layer-structure system, which consists of applica-tion layer on the top, compression layer, transport layer, and transmission layer, as shown in Fig. 1. To diminish the impact on the video quality due to the delay jitter and available net-work resources (e.g., bandwidth and buffers), traffic shaping and scalable rate control (SRC) are qualified candidates at two different system levels. Traffic shaping is a transport-layer ap-proach, while SRC is a compression-layer apap-proach, which is the focus of this paper. The basic concept behind the traffic-shaping approach is that before the encoded video bitstreams are injected into the network for transmission, the traffic pattern is already shaped with the desired characteristics, such as max-imal delay bounds and peak instantaneous rate [3]–[6]. There-fore, all the system components along the network path from the sender to the receiver can be configured to meet the quality of service (QoS) as desired by allocating the appropriate re-sources a priori. On the other hand, SRC approach is a compres-sion-layer technique where the source video sequence iscom-Manuscript received September 15, 1998; revised February 8, 2000. This paper was recommended by Associate Editor C. W. Chen.
H.-J. Lee is with Multimedia Technology Laboratory, Sarnoff Corporation, Princeton, NJ 08543 USA (e-mail: [email protected]).
T. Chiang is with National Chiao Tung University, Taipei, Taiwan, R.O.C. (e-mail: [email protected]).
Y.-Q. Zhang was with Multimedia Technology Laboratory, Sarnoff Corpora-tion, Princeton, NJ 08543 USA. He is now with Microsoft Research, Beijing 100080, China (e-mail: [email protected]).
Publisher Item Identifier S 1051-8215(00)07555-8.
Fig. 1. Layer structure of a network-based multimedia system.
pressed according to the application’s requirement and available network resource; e.g., 10 frames per second (fps) playback rate and 500-ms maximal accumulated delay. In this paper, our at-tention focuses on the issue of SRC that arises from efficient management of network bandwidth with sufficient video quality to support current multimedia applications.
In the development of an SRC scheme, we need to con-sider a common feature of employing an inter-frame coding between two consecutive video frames in several widely used video compression schemes such as MPEG-1, MPEG-2, and H.263. Although the inter-frame coding scheme exploits the similarity usually found in encoding two consecutive video frames, and achieves significantly coding efficiency, the output with variable-length video bitstream is not well suited for a fixed-rate communication channel. To better utilize network resources and transmit coded video bitstream as accurately as possible, the network parameters and encoding parameters should be jointly considered, and their relationship should be modeled accurately. Technically speaking, rate control is a decision-making process where the desired encoding rate for a source video can be met accurately by properly setting a sequence of quantization parameters (QP). To cope with various requirements of different coding environments and applications, a rate-control scheme needs to provide sufficient flexibility and scalability. For example, multimedia applications are categorized into two groups, which are variable-bit-rate (VBR) application and constant-bit-rate (CBR) application. For VBR applications, rate control attempts to achieve the optimum quality for a given target rate. In CBR and real-time applications, a rate-control scheme must satisfy low-latency and buffer constraints. In addition, the rate-control scheme has to be applicable to a variety of sequences and bit rates. Thus, a rate-control scheme must be scalable for various bit rates (e.g., 10 kbits/s to 1 Mbits/s), various spatial resolutions (e.g.,
QCIF to CCIR-601), various temporal resolutions (e.g., 7.5–30 fps), various coders (e.g., DCT and wavelet), and various granularities of video object (VO) (e.g., single VO to multiple VOs, frame-layer to macroblock (MB)-layer).
In developing a rate-control technique, there are two widely used approaches: 1) an analytical model-based approach and 2) an operational rate-distortion (R-D) based approach. In the model-based approach, various distribution and characteristics of signal source models with associated quantizers are consid-ered. Based on the selected model, a closed-form solution is de-rived using optimization theory. Such a theoretical optimization solution cannot be implemented easily because there is only a fi-nite discrete set of quantizers and the source signal model varies spatially. Alternatively, an operational R-D based approach is used in practical coding environment. For example, to minimize the overall coding distortion subject to a total bit budget con-straint, lots of techniques based on dynamic programming or Lagragian multiplier for optimization solutions have been de-veloped [7]–[12]. These methods share the similar concept of data pre-analysis. By analyzing the R-D characteristics of fu-ture frames, the bit-allocation strategy is determined afterwards. The Lagragian multiplier is a well-known technique for optimal bit allocation in image and video coding, but with an assump-tion that the source consists of statistically independent com-ponents. Thus, an inter-frame based coding may not find the Lagragian multiplier approach applicable because of the tem-poral dependency. Although Ramchandran [9] takes frame de-pendencies into account in bit-rate control, its potentially high complexity with increasing the operating R-D points make it unsuitable for the applications requiring interactivity or low en-coding delay. In [13], [14], Ding investigated a joint encoder and channel rate-control scheme for VBR video over ATM networks and claimed that the rate-control scheme has to balance both is-sues of consistent video quality in the encoder side and bitstream smoothness for statistical multiplexing gain in the network side. Tao et al. [15] proposed a parametric R-D model for MPEG en-coders, especially for the picture-level rate control. Based on the bit-rate mquant model, the desired mquant is calculated and used for encoding every MB by combining with appropriate quantization matrix entry in a picture. A normalized parametric R-D model based approach [16] has been also developed for H.263-compatible video codecs. By providing good approxima-tions of all 31 rate-distortion relaapproxima-tions, the authors claim that the proposed model offers an efficient and less memory requirement approach to approximate the rate and distortion characteristics for all QPs. Recently, Vetro and Sun [17], [18] and Ribas-Cor-bera and Lei [19], [20] also proposed rate-control techniques for MPEG-4 object-level and MB-level video coding, respectively. However, most of the aforementioned techniques only focus on a single coding environment, either frame level, object level, or macro level. None of these techniques demonstrates its applica-bility to MPEG-4 video coding including the above three coding granularities simultaneously.
In this paper, based on a newly revised quadratic R-D model, our SRC proposes a single framework which is designed to meet both VBR without delay constraints and CBR with low-latency and buffer constraints. With this scalable framework based on a new R-D model and several new concepts [21] in
our scheme, not only more accurate bit-rate control with buffer regulation is achieved, but scalability is also preserved for all test video sequences in various applications. For example, in the object-based video coding of the emerging ISO MPEG-4 inter-national standard, it is very important to appropriately allocate bits among different VOs. In allocating bits among VOs, video contents and coding complexity must be considered. Otherwise, over- and under-runing of the bit budget can occur. In general, a rate-control scheme should spend more bits in the VO of user interests (e.g., foreground VO) than in other areas (e.g., back-ground VO). Without employing proper bit allocation, for ex-ample, the background VO could have excellent quality, while the foreground VO could suffer from lots of annoying distortion, even though bits are evenly distributed. By considering video contents and coding complexity in our quadratic R-D model, our rate-control scheme with joint buffer control can dynami-cally and appropriately allocate the bits among VOs to meet the overall bit-rate requirement with uniform video quality.
Another unique merit of MPEG-4 VO-based coding from the other video coding standards like MPEG-1, MPEG-2, and H.263 is that an encoder can separately encode any VO from the rest and transmit these individual elementary bitstreams independently. In this category of applications, our proposed joint-buffer rate-control scheme seems imposing fairly restrictive conditions that each VO shares the same buffer management. As a matter of fact, the proposed rate-control scheme can quite easily handle this scenario. A simple way is to consider each individual VO as a “frame” so that each VO can operate on its own (i.e., separate buffer control and separate R-D model and so on). In this case, the frame-level rate control can be directly applied with minor modifications (e.g., initial setting of the buffer fullness). Note that since there is no joint buffer control in this case, before an encoder starts encoding each VO, the application needs to specify the buffer condition for each VO.
With its precision of the R-D model and ease of implemen-tation, our rate-control scheme with the following new con-cepts and techniques has been adopted as part of the rate-con-trol scheme in the International Standard of the emerging ISO MPEG-4 standard:
1) a more accurate second-order R-D model for the target bit-rate estimation;
2) a sliding-window method for smoothing the impact of scene change;
3) an adaptive selection criterion of data points for better model updating process;
4) an adaptive threshold shape control for better use of bit budget;
5) a dynamically bit-rate allocation among VOs with dif-ferent coding complexities.
The proposed rate-control scheme provides a scalable solution, meaning that our rate-control technique offers a general frame-work for multiple layers of controls for objects, frames, and MBs in various coding contexts.
The rest of the paper is organized as follows. Section II re-views the theoretical foundation of the proposed rate control, and characterizes new features for generalizing and improving

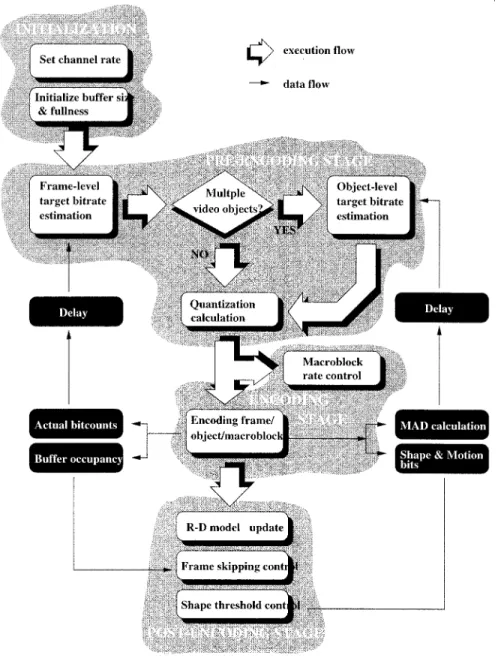

Fig. 2. Block diagram of the proposed SRC.
the R-D models. In Section III, detailed descriptions of our gen-eralized rate control are presented. Some fundamental research problems for rate-control scheme in various coding granular-ities are also addressed. In Section IV, extensive experiments are conducted to evaluate the performance of the scheme. This paper concludes with Section V.
II. FRAMEWORK OFSRC
In this section, we describe the framework of the proposed SRC scheme which provides an integrated approach with three different coding granularities, including frame level, object level, and MB level. The theoretical foundation behind the proposed rate-control scheme is based on the R-D model, where the distortion is measured in terms of quantization parameter. The block diagram of the proposed SRC is depicted in Fig. 2, where the proposed rate control consists of four stages: 1) initialization stage; 2) pre-encoding stage; 3) encoding stage; and 4) post-encoding stage.
A. Scalable Quadratic Rate Distortion Model
To illustrate the rationale of quadratic R-D function mod-eling, we summarize the result derived in [22], [23]. Assuming that the source statistics are Laplacian distributed
where
the distortion measure is defined as , then
there is a closed-form solution for the R-D functions as derived in [24]
The R-D function is expanded into a Taylor series
Based on the above observation, we present a new model to evaluate the target bit rate before performing the actual encoding process. The new model is formulated in the equation as follows:
Although the above R-D model provides the theoretical foun-dation of the rate-control scheme, the major drawback is its lack of considering the following two factors.
1) The R-D model is not scalable with video contents. The model was developed based on the assumption that each video frame has similar coding complexity, resulting in similar video quality for each frame by properly target bit-rate estimation. By introducing an index for video coding complexity such as mean absolute difference (MAD), the R-D model becomes scalable.
2) The R-D model does not exclude the bit counts used for coding the overhead including video/frame syntax, motion vectors and shape information. Although the bit count used for motion vectors, for example, is video content dependent, its variation in bit count is relatively smaller, compared to the texture information.
To enhance our R-D model with more accuracy, a simple pre-diction is used to predict those bit counts using the last coded frame as a reference. These bits used for nontexture information are considered as constant numbers irrespective of its distortion and excluded from the target bit-rate estimation. To accurately estimate the target bit rate with scalability, the original quadratic R-D formula is modified by introducing two new parameters: MAD and nontexture overhead ( ).
where
total number of bits used for encoding the current frame ;
denotes the bits used for header, motion vectors, and shape information,
MAD, computed using motion-compensated
residual for the luminance component (i.e., component);
quantization level used for the current frame ; , first- and the second-order coefficients.
To solve the target bit rate, we assume the video is encoded first as an I frame, and subsequently P frames. The scheme has been extended to variable GOP structure and B frames as well
where
total bit budget;
bits budget used for the first I frame; number of P frames;
the bit budget used for all P frames, and bit budget used for nontexture information.
Then the and can be obtained based on the technique [23].
Let and , where
, and is the number of selected data samples. Then
Based on these two model parameters and , the quanti-zation level and target bit rate can be computed before encoding the next frame.
B. Initialization Stage
In the initialization stage, the major tasks the encoder has to complete with respect to the rate control include:
1) initializing the buffer size based on latency requirement; 2) subtracting the bit counts of the first I-frame from total bit
counts;
3) initializing the buffer fullness in the middle level. Without loss of generality, we assume that the video sequence is encoded first as an I frame, and subsequently P frames. In this stage, the encoder encodes the first I-frame using an initial QP value specified as an input parameter. Then the remaining avail-able bits for encoding the subsequent P frames can be calculated as
(1) where
remaining available bits for encoding subsequent P frames at the coding time instant (e.g., initially
);
duration of the video sequence in the unit of seconds (e.g, 10 s);
itrate for the sequence in the unit of bits per second (e.g., 10 kbits/s);
number of bits used for the first I frame.
Thus, the channel output rate is , where is the number of P frames in the sequence or in a GOP. The buffer size is set based on the latency requirement specified by the user. The de-fault buffer size is (i.e., the maximum accumulated delay is 500 ms.). The target buffer fullness is set at the middle level of the buffer (i.e., ) is to have more rooms to effectively offset the potential buffer overflow or underflow caused by sud-denly increasing or decreasing bit count in a segment of video sequence. It is clear that higher target buffer level may cause the buffer overflow, while lower target buffer level may cause the buffer underflow. Although stuffing useless bits is a straight-forward way to handle it, the waste of network resource, e.g., bandwidth and network buffer is its major disadvantage.
C. Pre-Encoding Stage
In the pre-encoding stage, the tasks of the rate-control scheme include: 1) target bits estimation,; 2) further adjustment of the target bits based on the buffer status for each VO; and 3) quanti-zation parameter calculation. The target bit count is estimated in the following phases including: 1) frame-level bit rate; 2) object level if desired; and 3) MB-level bit-rate estimation if desired. At the frame level, the target bit count for a P frame at time
, , is estimated as
where
remaining bit counts at time ;
emaining number of P frames at time ;
actual bits used for the P frame at time (i.e., the pre-vious P frame).
Note that is the weighting factor to determine impact from the previous frame on the target bit estimation of the current frame. It can be determined adaptively or set as a constant number. The default value of is 0.05 in our experiments.
To get a better target bit-rate estimation, we need to consider buffer fullness. Hence, the target bit-rate estimation can be fur-ther adjusted with the following equation:
(2) where is the current buffer fullness at time and is the buffer size. The adjustment in the above equation aims to keep the buffer fullness in the middle level to reduce any chance of buffer overflow or underflow. To achieve constant video quality for each video frame or VO, the encoder must allocate a min-imum number of bits, which is denoted as , where and are application’s bit rate and frame rate of the source video, respectively. That is
(3) Then, the final adjustment is made to predict the impact of on the future buffer fullness. A safety margin, denoted as , of the buffer, which is pre-set before encoding, is enforced to avoid the potential buffer overflow and buffer underflow. To
avoid buffer overflow, if , then the
target bit rate is decreased and becomes
To avoid buffer underflow, on the other hand, if
, then the target bit rate is increased and becomes
where is the channel output rate.
D. Encoding Stage
In the encoding stage, the major tasks that the encoder has to complete include:
1) encoding the video frame (object) and recording all actual bit rate;
2) activating the MB-layer rate control if desired.
In the encoding stage, if either the frame- or object-level rate control is activated, the encoder compresses each video frame or VO using QP as computed in the pre-encoding stage. How-ever, some low-delay applications may require strict buffer reg-ulations, less accumulated delay, and better spatially percep-tual quality. An MB-level rate control is necessary. However, an MB-level rate control is costly at low rate since there is additional overhead if quantization parameter is changed fre-quently within a frame. For instance, in the MPEG-4, the MB type requires one to three more bits to indicate the existence of the differential quantization parameter (i.e., dquant). Further-more, two bits need to be sent for dquant. In the worse case, for the same prediction mode, additional 5 bits need to be trans-mitted in order to change QP. In the case of encoding at 10 kbits/s, 7.5 fps, QCIF resolution, the overhead can be as high
as kbits/s. If only 33 MBs are encoded, the
overhead kbits/s. Thus, there will be about
10% loss in compression efficiency at low bit-rate encoding. At high bit rate, the overhead bit count is less significant than the residual bit count. The details of the MB-level rate control will be presented in the next section.
E. Post-Encoding Stage
In the post-encoding stages, the encoder needs to complete the following tasks: 1) updating the correspondent quadratic R-D model for the entire frame or an individual VO; 2) per-forming the shape-threshold control to balance the bit usage between shape information and texture information; and 3) performing the frame-skipping control to prevent the potential buffer overflow and/or underflow.
1) R-D Model Update: After the encoding stage, the en-coder has to update each VO’s respective R-D model based on the following formula, for example, for VO :
(4)
where is the actual bit count used for object , and is the overhead bit count used for syntax, motion and shape coding. Note that in the case of MB rate control, the quantization pa-rameter is defined as the average of all encoded MBs. To make our R-D model more accurate to reflect the video contents, the R-D model update process is consisted of the following three steps. The motivation and technical details of these three steps will be described in the next section.
Step 1—Selection of Data Points: Those data points selected by the encoder are used to update the R-D model. The quality and quantity of the data set are critical to accuracy of the model. With respect to the quantity of the data set, generally speaking, more data points are likely to yield a more accurate model at the expense of higher complexity. With respect to the quality of the data set, some objective indices, such as MAD or SAD, of the current data point can be used. By considering these factors, a sliding-window based data selection mechanism is developed, and its details will be presented in the next section. Although inserting an I frame is an more effective way to handle scene change, its higher complexity, e.g., resuming the buffer control
Fig. 3. Distribution of the bit-count difference.
Fig. 4. Scenario of frame-skipping control.
to prevent buffer overflow, is its major drawback. Note that since our rate control is a GOP basis, the insertion of I-frame can be viewed as the resume of another GOP round, thus our rate control still applicable.
Step 2—Calculation of the Model Parameters and : Based on these two values, the theoretical target bit rate can be calculated for each data point within the sliding window ob-tained in step 1. For those selected data points, the encoder col-lects quantization levels and actual bit-rate statistics. Using a
linear regression technique, the two model parameters and can be obtained as
(6)
where is the number of selected past frames, and are the actual average quantization levels, and actual bit counts in the past, respectively.
Step 3—Removal of the Outliers from the Data Set: After the new model parameters and are derived, the encoder per-forms further refinement step to remove some bad data points. Then the actual bit rate for each past frame is known and the target bit rate is recalculated based on the new model parame-ters obtained in Step 2, the actual bit rate , and the average quantization level . By applying the refinement process, more representative data points are selected, and the final model pa-rameters can be derived based on these new data points. The detail of this process will be presented in the next section.
2) Shape-Threshold Control: Next, we discuss the issue of shape-threshold control. The issue arises from the fact that only a limited bit budget is available for object-based video coding. In the object-based video coding, the development of an effi-cient and effective way to allocate limited bit budget used for coding shape and texture information becomes a very important research problem. In MPEG-4, there are two ways to control the bit count used for the shape information: 1) size sion process and 2) shape-threshold setting. The size conver-sion process adopted by MPEG-4 is used to reduce the amount of shape information for rate control. The size conversion can be carried out on an MB basis [25], [26]. The shape-threshold setting, on the other hand, is a controllable parameter, and is car-ried out on an object basis. The threshold value could be either a constant or a variable. In this paper, an adaptive shape-threshold control is developed with its details presented in the next section. 3) Frame-Skipping Control: The objective of the frame-skipping control is to prevent buffer overflow. Once the encoder predicts that encoding the next frame would cause buffer overflow, the encoder skips the encoding of the next frame. The buffer occupancy will be decreased by the channel transmission rate at the expense of lower frame rate. Although the frame skipping is an effective way to prevent buffer overflow, the overall perceptual quality will be reduced significantly, especially in the case of continuous frame skip-ping. To fight the problem with continuous frame skipping, a frame-skipping mechanism is proposed and will be presented in details in the next section.
III. NEWFEATURES OF THEPROPOSEDSRC
In this section, we introduce several new concepts with its associated technical merits in our rate-control scheme and elab-orate those techniques leading to a more accurate and scalable target bit-rate estimation.
In our frame-level rate control, to make the quadratic R-D model more accurate and scalable for different coding require-ments, the following new concepts and mechanisms are intro-duced:
1) sliding-window data-point selection; 2) statistical removal of data outliers;
3) predictive frame-skipping control.
In object-based rate control, we would like to address the fol-lowing research problem: 1) calculating the target bit rate among the VOs; 2) balancing the bit budget between the shape infor-mation and the texture inforinfor-mation without introducing notice-able distortion; and 3) encoding the VOs with proper temporal resolution so that the quality of the composite video frame is sufficient.
To solve these problems, we propose the following solutions based on our experimental results and some theoretical implica-tions.
1) dynamic target bit-rate distribution among VOs; 2) adaptive shape-threshold control
A. Sliding-Window Data-Point Selection
The sliding-window mechanism is used to adaptively smooth the impact of a scene change for certain number of frames in updating the R-D model. If the complexity changes significantly (i.e., high motion scenes), a smaller window with more recent data points is used. By using such a mechanism, the encoder can intelligently select those representative data points for R-D model updates. The selection of data points is based on the ratio of “scene change” between the current frame (object) and the previous encoded frame (object). Note that the sliding-window mechanism with data-point selection is to diminish the effect of partially deals with scene change, not completely solve the abrupt scene change.
To quantify the amount of scene change, various indices, such as MAD or SAD, or their combinations can be used. A sophisticated weighting factor can be considered, too. To make our rate-control scheme easy to implement with lower complexity, only MAD is used as an index to quantify the amount of scene change. If a segment of video contains a trend of higher motion scene (i.e., increasing coding complexity), then a smaller number of data points with recent data are selected. On the other hand, a larger number of data points with historic data are selected for a lower motion scene of video
contents. Algorithmically, if MAD MAD , where is
the time instant of coding, the size of the sliding window is
MAD MAD MAX SLIDING WINDOW , otherwise
it is MAD MAD MAX SLIDING WINDOW , where
MAX_SLIDING_WINDOW is a preset constant (e.g., 20 in our experiments).
B. Statistical Removal of Data Outliers
The R-D model is further enhanced and calibrated by em-ploying a statistical method of rejecting some erroneous data points. Those erroneous data points are defined, in the statis-tical sense, as the data points whose prediction errors between the actual bit rate and the target bit rate is larger than standard deviations (e.g., as a rule of thumb, is set to one in our exper-iments). In updating the R-D model after encoding a frame, the removal of the outliers from the data set can diminish the impact of bad data points on the model update process. In other words, after new model parameters and are derived, the encoder performs this refinement step to remove some erroneous data points. Since the actual bit rate for each past frame is known,

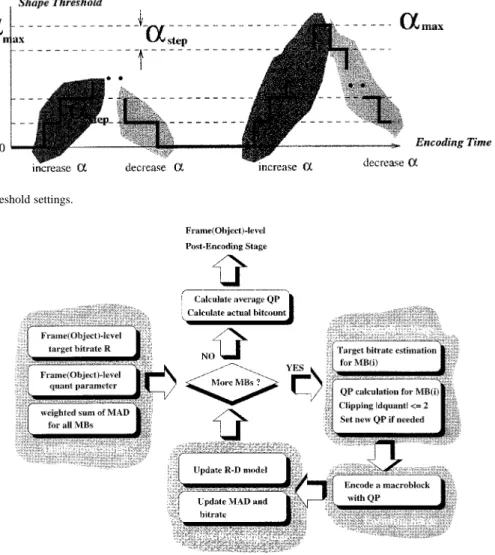

Fig. 5. Scenario of shape-threshold settings.
Fig. 6. Block diagram of the proposed MB-level rate control.
then the target bit rate is recalculated based on the new model parameters. By applying this statistical technique, more repre-sentative data are selected, and the final model parameters can be derived based on new data. Note that, to avoid the removal of all data points, the latest data point is always selected in the data set.
C. Predictive Frame-Skipping Control
Ideally, if the input bit rate to the buffer is equal to the channel output rate, then the buffer fullness will keep its middle level, which is the target buffer level. Otherwise, it changes its full-ness upwards or downwards which may potentially cause buffer overflow or underflow, respectively. To effectively prevent the buffer overflow without losing overall video quality due to con-tinuous frame skipping, we proposed a predictive frame-skip-ping control. By setting a safety threshold, if an encoder predicts to have a potential buffer overflow, then it skips next frame (ob-ject) and subtracts the buffer fullness from the channel output rate. The safety threshold is selected based on the distribution of bit-count difference of a predicted frame (object) from the average bit count of coded frame (object) in a video sequence or GOP. For example, a containership video sequence with 300 qcif frames is coded as the first I-frame and subsequent P-frame coding pattern at 10 fps and 24 kbits/s. Its distribution of the
bit-count difference is depicted in Fig. 3, where the -axis denotes the bit-count difference of a coded P frame from the average coding bit count in a sequence or GOP, while the -axis denotes the number of P frames. In this example, the average bit count for a P-frame is calculated as (24 kbits sec kbit)/100 frames kbits, given 1 kbit is used for coding the first I frame. If the target buffer level is in the middle level (i.e., 12 kbits), then the encoder has a upper or lower half of 6/2.39 frames for buffering any sudden bit count increasing, or de-creasing, respectively. Considering the buffer-overflow case, if a threshold value is properly set, then there is only a slight chance of overflowing the buffer. In this case, if the threshold is set as 80% of the buffer size (i.e., 4.8 kbits), the consecutive frame skipping occurs very rarely from the statstical viewpoint. This empirical assumption by setting a proper threshold demon-strates although our predictive frame-skipping scheme cannot guarantee no consecutive frame skipping occurring; however, there exist fairly high confidence that consecutive frame skip-ping rarely occurs.
The proposed frame-skipping mechanism is described as fol-lows. Before encoding the next frame, the encoder first exam-ines the current buffer occupancy and the estimated target bit rate for the next frame. If the current buffer fullness plus the es-timated frame bits for the next frame is larger than some
pre-de-(a) (b)
(c) (d)
(e) (f)

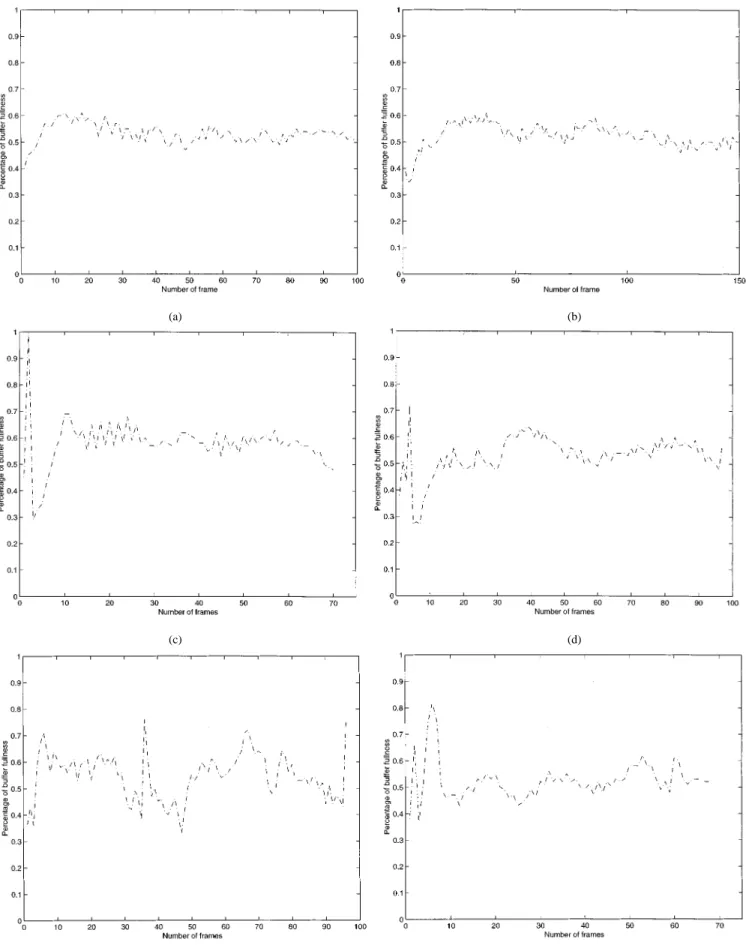

Fig. 7. Frame-level rate control: the buffer occupancy for various test conditions. SVORC: (a)silent qci f at 10 fps and 24 kbits/s; (b) hall qci f at 7.5 fps and 10 kbits/s; (c)mad qci f at 10 fps and 24 kbits/s; (d) madl qci f at 7.5 fps and 10 kbits/s; (e) news cif at 15 fps and 112 kbits/s. (f) news cif at 7.5 fps and 48 kbits/s.
TABLE I
VBR EXPERIMENTALRESULTS OF THEFRAME-LEVELRATECONTROL

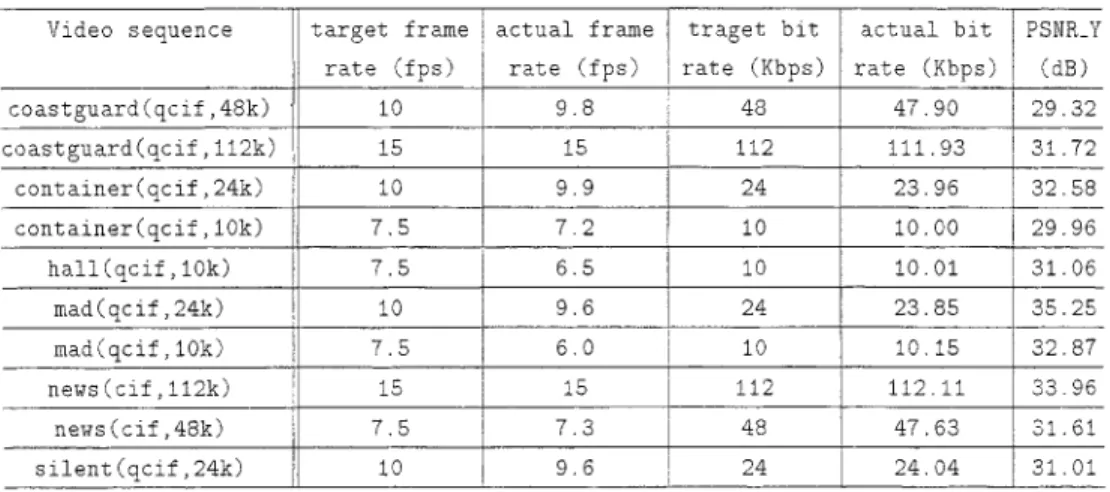

TABLE II
CBR EXPERIMENTALRESULTS OF THEFRAME-LEVELRATECONTROL
termined threshold, called the safety margin, for instance 80% of the buffer size, the next frame will be skipped. Note that the safety margin is used to reduce continuous frame skipping and can be adaptively changed based on the content, or a pre-deter-mined constant for simplicity. An example, as shown in Fig. 4, demonstrates our frame-skipping control. Before encoding the frame , the encoder uses the actual bit count used for the frame to predict the next frame . Then the buffer occupancy will exceed 80% of the buffer size, resulting in skip-ping the frame and decreasing the buffer occupancy by the channel output rate. The frame-skipping condition can be for-mulated as follows.
WHILE (buffer fullness +
actual bitcounts for last frame 0 channel output rate buffer size3 skip_margin) f
Skip the next frame;
buffer fullness = buffer fullness 0 channel output rate D. Dynamic Target Bit-Rate Distribution Among VOs
To estimate the target bit rate for each VO, a straightfor-ward way is to allocate an equal number of bits to each VO without considering its complexity and perceptual importance.
However, this simple scheme suffers several serious problems. For example, the background VO may have bits left unused, while the foreground VO requires more. Therefore, we propose a new bit-allocation method to adaptively adjust the bit budget for each VO. Based on the coding complexity and perceptual importance, the distribution of the bit budget is proportional to the square of MAD of a VO, which is obtained empirically [27]. As long as the target bit rate is known at the frame level, say , the target bit rate for VO at time , , is
(7)
where MAD MAD MAD MAD and
are the number of VOs in the coding frame at time .
In addition to the distribution of bits among VOs in the spatial domain, we also need consider the composition of VOs in the temporal domain. Since each VO has different coding complexity (e.g., low or high motion), to obtain better coding efficiency, it is fairly straightforward to encode the VOs at different frame rates, then the decoder can display the composite video. However, our experimental results show that the significant quality deterioration is experienced in the “gluing” boundary of VOs. Thus, encoding the VOs at the same frame rate is a better alternative to yield better video quality.
TABLE III

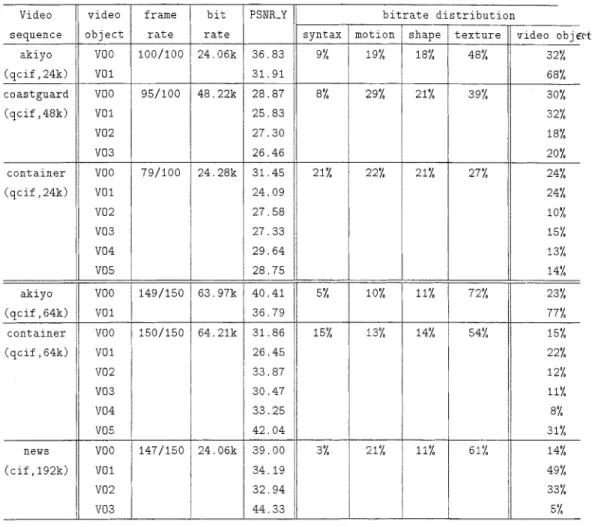

EXPERIMENTALRESULTS OFMULTIPLEVO’SRATECONTROL
E. Adaptive Shape-Threshold Control
To avoid using excessive bits for motion and shape infor-mation instead of texture and to balance the bit usage without introducing noticeable distortion, the threshold values can be set adaptively based on the previous coding information. The proposed adaptive threshold shape control is described as fol-lows.
For a VO, if the actual bit count used for nontexture in-formation (e.g., shape inin-formation) exceeds its estimated bit budget, the encoder will increase the threshold value to re-duce the bit count for nontexture coding at the expense of shape accuracy of a VO. On the other hand, if the above con-dition does not hold, then the encoder decreases the threshold value to get a better video shape accuracy. A scenario of the threshold setting by the proposed adaptive shape control mechanism is depicted in Fig. 5. Initially, the threshold, , for a VO is set to zero, then it is increased by if the target bit rate is larger than
bits used for object in the previous frame), other-wise it is decreased by . To maintain the accuracy of the video shape to a certain degree, (i.e, to avoid a negative threshold or a large ), the is bounded between 0 and . The shape-threshold control mechanism is described as follows:
IF ( ) THEN
)
ELSE
F. MB-Level Rate Control
The block diagram of the proposed MB rate control [28] is depicted in Fig. 6. Once the MB-level rate control is activated to provide more strict buffer regulations and higher bit-rate en-coding, the following steps are taken. Based on the target bit rate and the quantization level calculated in frame (object) level, the encoder starts to perform the encoding for every MB. The model is now updated on an MB basis, instead of frame (object) basis. Since our rate-control scheme is scalable with the MAD, the flow of the MB rate control is the same as the frame-level rate control with a smaller update step: 1) target bit-rate calcu-lation; 2) quantization parameter calcucalcu-lation; and 3) update the R-D model. Assuming that the following information are avail-able before encoding the first MB of a frame (object): weighting factor for MB and MAD for MB . The specific tech-nique in calculating the weighting factor can be selected at the designer’s choice [29]. Thus, the MB-level rate control consists of the following steps:
1) Target Bit-Rate Calculation for an MB : Given for the entire frame or for VO , then
or (8)
where is the number of MBs in a frame (object).
2) Quantization Parameter Calculation: Solve QP using and . Note that is not considered in the modeling.
3) Update R-D Model: In the first step, the formula can be derived from the case of equal weighting among MBs. Assuming that weighting is 1 for all MBs, then the problem is formulated as follows:
or
Since all MBs are equally important, every MB is quantized with the same QP. Thus
implies
Solving with a total target rate of , we have
The complete MB rate-control scheme is presented as follows:
/ starting encoding a frame (VO) /
calculate and , where is the
target bit count for this frame and is a threshold for eliminating in-significant MBs with low MADs.
IF ( ) THEN
compute the weighted sum of all existing MAD as
.
/ start encoding each MB /
FOR ( ) DO
quantization parameter calculation
IF ( ) THEN
ELSE
encode the MB
update the R-D model
IF ( MB is skipped) THEN
END
;
IV. EXPERIMENTALRESULTS
To evaluate the performance of the proposed rate-control scheme, extensive experiments for three different coding granularities with various test conditions are conducted. The performance results of the proposed SRC scheme for the frame level, object level, and MB level are reported in the following sections.
A. Frame-Level Rate Control
For the frame-level rate control, the experiments are conducted in two cases of VBR without any buffer restric-tion and contant bit-rate CBR with the limited buffer size , i.e., the maximum accumulated latency is set to be 500 ms, as required by MPEG-4. Tables I and II demonstrate that in VBR and CBR both cases, our frame-level rate control achieves its accuracy in target frame rate and target bit rate. In addition, in CBR case, on average, less than 1% variation of target bit rate and around 3% variation of the target frame rate are experienced. Fig. 7 illustrates that during the encoding process, the buffer occupancy is around 50% of the buffer size with a small variation, and it also shows that with our SRC algorithm, buffer overflow and/or underflow is improbable. The results demonstrate that our SRC scheme can achieve very accurate target bit-rate allocation, and satisfy the buffer with low latency (i.e., 500 ms) for all test sequences. In addition, there are only a few video frames which are skipped in order to meet the buffer constraints, implying that the target frame rate is also obtained.
B. Object-Level Rate Control
For multiple VO rate control, the performance results are re-ported in Table III. The top three rows report the experiment results obtained in lower bit-rate coding context (e.g., 24–48 kbits/s), comparing to the results reported in the bottom three rows with higher bit-rate coding context (e.g., 64–192 kbits/s.) By examining the results of the number of encoded frames and the target bit-rate allocation, only small variations with target frame rate and target bit rate are experienced. As aforemen-tioned, the allocation of target bit rate among VOs is an impor-tant research issue. As reported in the last column of Table III, with our target bit-rate allocation based on the MAD , our rate-control scheme demonstrates its capability of automatically and appropriately allocating the target bit rate among VOs. For ex-ample, in coding the video sequence at 10 fps and 25 kbits/s, most of the frame (object)-level bit budget (i.e., 68% of the texture bit budget) is used to encode the VO with the higher coding complexity (e.g., foreground VO), while only 32% of the bit budget is used to encode the VO with lesser coding complexity (e.g., background VO). With its appropriate target bit distribution, each VO has a very similar visual quality for both low bit rate and high bit-rate coding contexts, even
(a) (b)
(c) (d)
(e) (f)

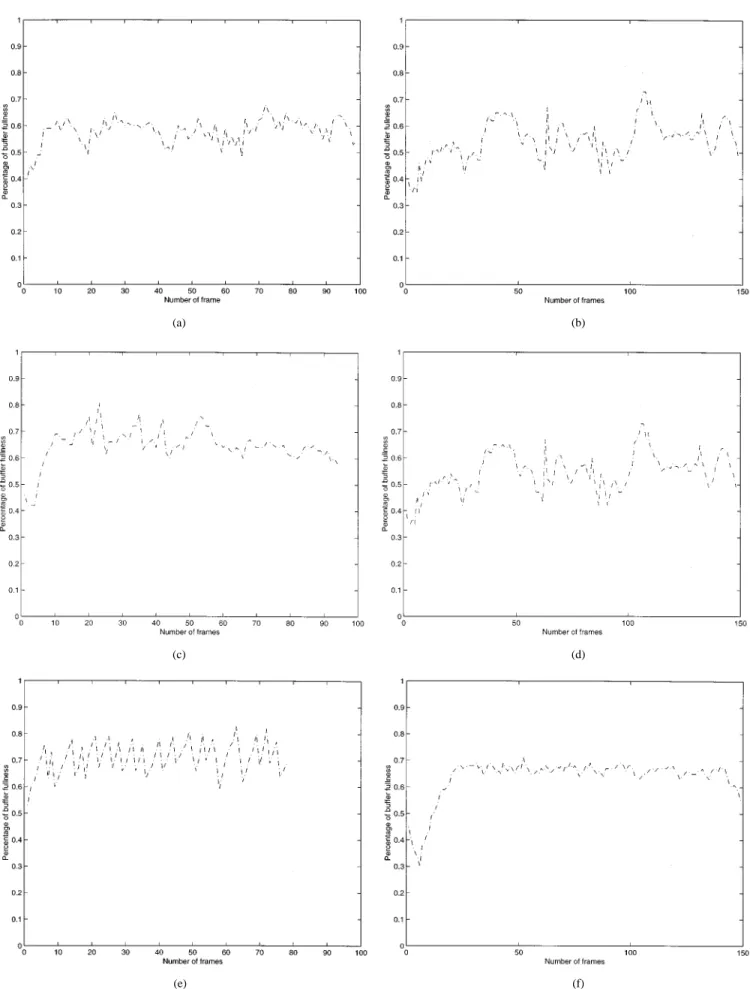

Fig. 8. Object-level rate control: the buffer occupancy for various test conditions. MVORC: (a)akiyoqci f at 10 fps and 24 kbits/s; (b) akiyo qci f at 15 fps and
64 kbits/s; (c)coastguardqci f at 10 fps and 48 kbits/s; (d) news ci f at 15 fps and 192 kbits/s. (e) containerqci f at 10 fps and 24 kbits/s. (f) container qci f
(a) (b)
(c) (d)
(e) (f)

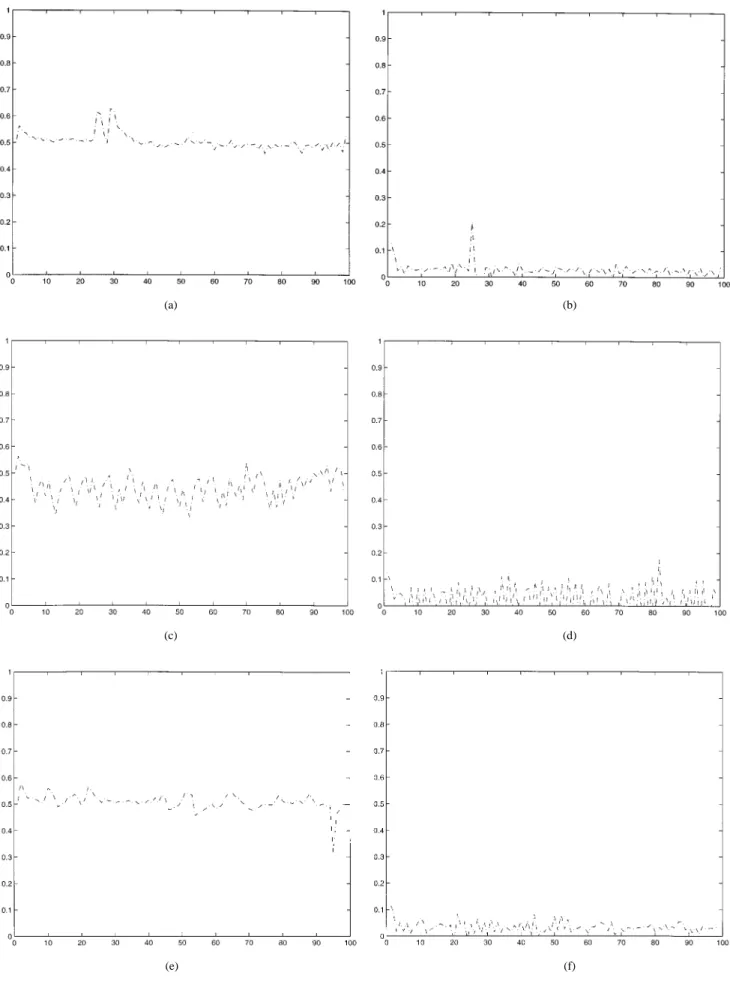

Fig. 9. MB-level rate control: the buffer occupancy for various test conditions under the maximum accumulated delays are 500 ms (left column) and 250 ms (right column). (a), (b): MBRCcoastguard qci f at 10 fps and 24 kbits/s. (c), (d): MBRC container qci f at 10 fps and 24 kbits/s. (e), (f): mad qci f at 10 fps and 24 kbits/s.
(g) (h)
(i) (j)
Fig. 9. (Continued). MB-level rate control: the buffer occupancy for various test conditions under the maximum accumulated delays are 500 ms (left column) and 250 ms (right column). (g), (h):news ci f at 7.5 fps and 192 kbits/s. (i), (j): silent qci f at 10 fps and 24 kbits/s. (i), (j): silent qci f at 10 fps and 24 kbits/s.

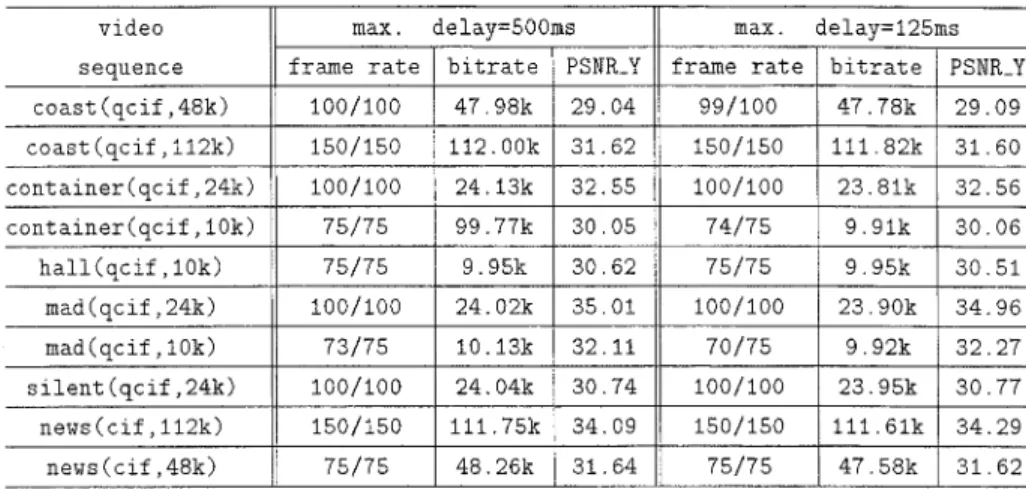

TABLE IV
though there exist fairly large dB differences up to 5, 3, 7, 3, 12, and 11 dB between objects in the respective tests. It is ob-vious that the background object has pretty much static with very little difference from its previous frame. In this case, the peak signal-to-noise-ratio (PSNR) value is not a sufficient in-dicator for visual quality. Our experimental results show that equal or similar PSNR values in this case create more coding artifacts in background objects and in a composite frame. So, even the PSNR values are fairly different among VOs; however, their composite video frame shows a better visual quality.
Next the buffer occupancy is examined, and plotted in Fig. 8. In our experiments, a single joint buffer control is used and the maximum accumulated delay is set to be 500 ms for the en-coding process. As shown in Fig. 8, the buffer occupancy is maintained at around 50%–60% of the buffer size with a small variation, as expected, even for the case that there are up to six VOs (e.g., container video sequence). It also demonstrates that with our rate-control scheme, the buffer overflow or underflow does not occur for all test conditions of high- and low-bit rate coding contexts.
C. MB-Level Rate Control
Table IV reports the results of MB layer rate control under two maximum accumulated latencies which are set to be 500 and 250 ms, respectively. Compared to the frame-level rate con-trol, the MB-level rate control generates more accurate target bit estimation, resulting in the higher frame rate, and lower la-tency delay at the expense of slightly quality loss. For the case of the maximum accumulated delay equal to 250 ms, a larger—but within the tolerance—fluctuation of buffer occupancy is experi-enced, as expected, since a smaller buffering is used to smooth out the bit rate fluctuation of encoding process (see Fig. 9). However, under this strict test condition, no buffer overflow oc-curs, proving the robustness and stability of our MB rate-control scheme. The results show that our MB-level rate control can be applied for the various applications with higher bit rate and strict buffer regulations.
V. SUMMARY ANDCONCLUSIONS
In this paper, we proposed a single, integrated and SRC scheme for different coding granularity including the frame level, the object level, and the MB level. Our scheme not only provides a framework for the very low bit-rate control, but also comes up with several new techniques to improve the accuracy of the R-D model. Those new methods or concepts are listed below:
1) a more accurate R-D model which is scalable with MAD; 2) a dynamically bit-rate allocation among VOs with various
coding complexities;
3) a sliding-window mechanism for smoothing the impact of scene change;
4) an adaptive selection criterion of data points for the R-D model update process;
5) an adaptive threshold setting for rate reduction in shape coding;
6) an effective frame-skipping control for the prevention of the potential buffer-overflow problem.
The proposed SRC has shown the following advantages: 1) low latency and the limited buffer constrains are satisfied for CBR applications; 2) the VBR quality is maintained; 3) both the target bit rate and the target frame rate are obtained within a negligible error; and 4) easy extension to the multiple VOs and MB layer. The proposed SRC has been adopted in the International Stan-dard of the emerging MPEG4 stanStan-dard.
REFERENCES
[1] Coding of Moving Pictures and Associated Audio ISO/IEC 14 496-2, MPEG-4 Committee Draft ISO/IEC JTC1/SC29/WG11, Oct. 1997. [2] Coding of Moving Pictures and Associated Audio ISO/IEC 14 496-2,
MPEG-4 Committee Draft ISO/IEC JTC1/SC29/WG11, Oct. 1998. [3] H. Zhang and D. Ferrari, “Rate-controlled static priority queueing,” in
Proc. IEEE INFOCOM’93, Apr. 1993, pp. 227–236.
[4] D. Ferrari and D. Verma, “A scheme for real-time channel establish-ment in wide-area networks,” IEEE J. Select. Areas Commun., vol. 8, pp. 368–379, Apr. 1990.
[5] L. Zhang, “Virtual clock: A new traffic control algorithm for packet switching networks,” in Proc. ACM SIGCOMM’90, Sept. 1990, pp. 19–29.
[6] S. J. Golestani, “A stop-and-go queueing framework for congestion management,” in Proc. ACM SIGCOMM’90, Sept. 1990, pp. 8–18. [7] Y. Shoham and A. Gersho, “Efficient bit allocation for an arbitrary set
of quantizers,” IEEE Trans. Acoust., Speech, Signal Processing, vol. 36, pp. 1445–1453, 1988.
[8] S. W. Wu and A. Gersho, “Rate-constrained optimal block-adaptive coding for digital tape recoding of HDTV,” IEEE Trans. Circuits Syst. Video Technol., vol. 1, Mar. 1991.
[9] K. Ramchandran, A. Ortega, and M. Vetterli, “Bit Allocation for depen-dent quantization with applications to multiresolution and MPEG video coders,” IEEE Trans. Image Processing, vol. 3, pp. 533–545, Sept. 1994. [10] A. Ortega, K. Ramchandran, and M. Vetterli, “Optimal trellis-based buffered compression and fast approximations,” IEEE Trans. Image Processing, vol. 3, pp. 26–40, Jan. 1994.
[11] J. Choi and D. Park, “A stable feedback control of the buffer state using the controlled Langrange multiplier method,” IEEE Trans. Image Pro-cessing, vol. 3, pp. 546–558, Sept. 1994.
[12] L. J. Lin and A. Ortega, “Bitrate control using Piecewise approximated rate-distortion characteristics,” IEEE Trans. Circuits Syst. Video Technol., vol. 8, pp. 446–459, Aug. 1998.
[13] W. Ding, “Rate control of MPEG video coding and recording by rate-quantization modeling,” IEEE Trans. Circuits Syst. Video Technol., vol. 6, pp. 12–20, Feb. 1996.
[14] , “Joint encoder and channel rate control of VBR video over ATM networks,” IEEE Trans. Circuits Syst. Video Technol., vol. 7, Aug. 1997. [15] B. Tao, H. A. Peterson, and B. W. Dickinson, “A Rate-Quantization model for MPEG Encoders,” in Proc. 1997 Int. Conf. Image Processing, Oct. 1997, pp. 338–341.
[16] K. H. Yang, A. Jacquin, and N. S. Jayant, “A normalized rate-distor-tion model for H.263-compatible codecs and its applicarate-distor-tion to quantizer selection,” in Proc. 1997 Int. Conf. Image Processing, Oct. 1997, pp. 41–44.
[17] Joint rate control for multiple-VO, MPEG96/M1890 ISO/IEC JTC/SC29/WG11, Apr. 1997.
[18] A. Vetro, H. F. Sun, and Y. Wang, “MPEG-4 rate control for multiple video objects,” IEEE Trans. Circuits Syst. Video Technol., vol. 9, pp. 186–199, Feb. 1999.
[19] J. Ribas-Corbera and S. M. Lei, “Contribution to rate control Q2 exper-iment: A quantizer control tool for achieving target bitrates accurately,” Coding of Moving Pictures and Associated Audio MPEG96/M1812 ISO/IEC JTC/SC29/WG11, Sevilla, Spain, Feb. 1997.
[20] , “Rate control in DCT video coding for low-delay communica-tions,” IEEE Trans. Circuits Syst. Video Technol., vol. 9, pp. 172–185, Feb. 1999.
[21] H.-J. Lee, T. Chiang, and Y.-Q. Zhang, “Scalable rate control for very low bitrate video,” in Proc. 1997 Int. Conf. Image Processing, vol. II, Oct. 1997, pp. 768–771.
[22] T. Chiang, “A rate control scheme using a new rate-distortion model,” JCoding of Moving Pictures and Associated Audio MPEG95/0436 TC1/SC29/WG11, Dallas, TX, Nov. 1995.
[23] T. Chiang and Y.-Q. Zhang, “A new rate control scheme using a new rate-distortion model,” IEEE Trans. Circuits Syst. Video Technol., pp. 246–250, Feb. 1997.
[24] A. Viteribi and J. Omura, “A new rate control scheme using a new rate-distortion model,” in Principle of Digital Communication and Coding. New York: McGraw-Hill, 1979.
[25] Coding of Moving Pictures and Associated Audio MPEG96, MPEG-4 video verification model V5.0 ISO/IEC JTC1/SC29/WG11, Nov. 1996. [26] Coding of Moving Pictures and Associated Audio MPEG96, MPEG-4 video verification model V8.0 ISO/IEC JTC1/SC29/WG11, July 1997. [27] H.-J. Lee, T. Chiang, and Y.-Q. Zhang, “Multiple-VO Rate Control,”
ISO/IEC JTC/SC29/WG11 MPEG97/M2554, July 1997.
[28] T. Chiang, H.-J. Lee, and Y.-Q. Zhang, “Macroblock Layer Rate Con-trol,” ISO/IEC JTC/SC29/WG11 MPEG97/M2555, July 1997. [29] S. Ryoo, J. Shin, and E. Jang, “Rate control tool: Based on human visual
sensitivity (HVS) for low bitrate coding,” ISO/IEC JTC/SC29/WG11 Coding of Moving Pictures and Associated Audio MPEG96/M0566, Munich, Germany, Jan. 1996.
Hung-Ju Lee (M’96) received the B.S. degree from
Tatung Institute of Technology, Taipei, Taiwan, in 1987, and the M.S. and Ph.D. degrees from Texas A&M University, College Station, TX, in 1993 and 1996, respectively, all in computer science.
In 1996, he joined Sarnoff Corporation, Princeton, NJ, as a Member of Technical Staff. He actively participates in ISO’s MPEG digital video stan-dardization process, focusing particularly on wavelet-based visual texture coding and scalable rate control for MPEG-4 video. He received Sarnoff Technical Achievement Award in 1998 for his contributions on the development of MPEG-4 rate control. His current research interests include image and video coding, and network resource management for multimedia applications.
Tihao Chiang (S’90–M’95–SM’99) was born
in Cha-Yi, Taiwan, R.O.C., in 1965. He received the B.S. degree from National Taiwan University, Taipei, Taiwan, in 1987, the M.S. degree from Columbia University in 1991, and the Ph.D. degree from Columbia University, New York, in 1995, all in electrical engineering.
In 1995, he joined David Sarnoff Research Center, Princeton, NJ, as a Member of Technical Staff. He was later promoted to Technology Leader and then Program Manager. While at Sarnoff, he led a team of world-class researchers and developed an optimized MPEG-2 software en-coder. For his work in the encoder and MPEG-4 areas, he received two Sarnoff Achievement Awards and three Sarnoff team awards. In September 1999, he joined the faculty at National Chiao-Tung University, Taiwan, R.O.C. Since 1992, he has actively participated in ISO’s MPEG digital video-coding stan-dardization process, with particular focus on the scalability/compatibility issue. He is currently the co-chair for encoder optimization on the MPEG-4 com-mittee, has made more than 40 contributions to the MPEG committee over the past eight years, and has co-authored the rate-control technology that was adopted as part of the MPEG-4 International Standards in 1998. He holds two U.S. patents and more than 10 pending patents. He published over 20 technical journal and conference papers in the field of video and signal processing. His main research interests include compatible/scalable video compression, stereo-scopic video coding, and motion estimation.
Ya-Qin Zhang (F’97) was born in Taiyuan, China,
in 1966. He received the B.S. and M.S. degrees from the University of Science and Technology of China (USTC) in 1983 and 1985, respectively, and the Ph.D. degree from George Washington University, Wash-ington, DC, in 1989, all in electrical engineering.
In 1999, he joined Microsoft Research, Beijing, China, as the Assistant Managing Director. Pre-viously, he was the Director of the Multimedia Technology Laboratory, Sarnoff Corporation, Princeton, NJ. During 1989–1994, he was with GTE Laboratories Inc., Waltham, MA, and Contel Technology Center, Washington, DC. He has authored and co-authored over 150 refereed papers and 30 U.S. patents in digital video, Internet, multimedia, wireless, and satellite communications. Many of the technologies he and his team developed have become the basis for start-up ventures, commercial products, and international standards. His recent focus has included MPEG2/DTV, MPEG4/VLBR, and the Internet. He has been an active contributor to the ISO/MPEG and ITU standardization efforts in digital video and multimedia.
Dr. Zhang served as the Editor-In-Chief for the IEEE TRANSACTIONS ON CIRCUITS ANDSYSTEMS FORVIDEOTECHNOLOGYfrom July 1997 to July 1999. He serves on the Editorial boards of seven other professional journals and over a dozen conference committees.
