行政院國家科學委員會專題研究計畫 成果報告
以多核心圖形處理器為基礎之並行化正規表示樣式比對演
算法與架構設計(I)
研究成果報告(精簡版)
計 畫 類 別 ： 個別型 計 畫 編 號 ： NSC 98-2221-E-003-016- 執 行 期 間 ： 98 年 08 月 01 日至 99 年 07 月 31 日 執 行 單 位 ： 國立臺灣師範大學工業科技教育學系（所） 計 畫 主 持 人 ： 林政宏 計畫參與人員： 碩士班研究生-兼任助理人員：林佩蓉 碩士班研究生-兼任助理人員：郭榮杰 大專生-兼任助理人員：黃俊程 大專生-兼任助理人員：蔡睿烝 大專生-兼任助理人員：吳鎬宇 大專生-兼任助理人員：洪嘉彣 大專生-兼任助理人員：張耀穗 大專生-兼任助理人員：粘懿瑩 大專生-兼任助理人員：林慧雯 報 告 附 件 ： 出席國際會議研究心得報告及發表論文 處 理 方 式 ： 本計畫可公開查詢中 華 民 國 99 年 08 月 18 日
行政院國家科學委員會補助專題研究計畫成果報告
行政院國家科學委員會補助專題研究計畫成果報告
行政院國家科學委員會補助專題研究計畫成果報告
行政院國家科學委員會補助專題研究計畫成果報告
以多核心圖形處理器為基礎之並行化正規表示樣式比對
以多核心圖形處理器為基礎之並行化正規表示樣式比對
以多核心圖形處理器為基礎之並行化正規表示樣式比對
以多核心圖形處理器為基礎之並行化正規表示樣式比對
演算法與架構設計
演算法與架構設計
演算法與架構設計
演算法與架構設計
(I)
計畫類別：
■
個別型計畫 □整合型計畫
計畫編號：NSC 98-2221-E-003-016-
執行期間：98 年 8 月 1 日至 99 年 7 月 31 日
執行機構及系所：國立台灣師範大學科技應用與人力資源發展學系
計畫主持人：林政宏
共同主持人：
計畫參與人員：
成果報告類型(依經費核定清單規定繳交)：■精簡報告 □完整報告
本計畫除繳交成果報告外，另須繳交以下出國心得報告：
□赴國外出差或研習心得報告
□赴大陸地區出差或研習心得報告
■出席國際學術會議心得報告
□國際合作研究計畫國外研究報告
處理方式：
除列管計畫及下列情形者外，得立即公開查詢
□涉及專利或其他智慧財產權，□一年□二年後可公開查詢
中 華 民 國 九十九 年 七 月 卅一 日
一
一
一
一、
、
、 中文
、
中文
中文摘要
中文
摘要
摘要
摘要
網絡入侵偵測系統已被廣泛用於保護計算機系統免受網路攻擊。由於越來越多的攻擊和網路的複 雜性，傳統的軟體方法對單一核心處理器已經不適用於當前的高速網路。本計畫的主要目的提出以 多核心圖形處理器(graphics processing unit , GPU)加速正規表示法比對之演算法與架構設計，本計畫 所提出之平行演算法利用GPU多核心架構有效加速字串比對，相較實現Aho-Corasick演算法於CPU的 方法，加速約4000倍，相較其他硬體架構，亦有2-3倍的效能改善。此外，我們所提出的演算法亦可 降低傳統Aho-Corasick演算法的記憶體需求。 研究成果將發表於2010 IEEE Globecom國際會議和第21超大型積體電路設計暨計算機輔助設計 研討會。 關鍵字 關鍵字關鍵字 關鍵字：：：字串比對、多核心圖形處理單元 ：
二
二
二
二、
、
、 英文摘要
、
英文摘要
英文摘要
英文摘要
Network Intrusion Detection System has been widely used to protect computer systems from network attacks. Due to the ever-increasing number of attacks and network complexity, traditional software approaches on uni-processors have become inadequate for the current high-speed network. In this project, we propose a novel parallel algorithm to speedup string matching performed on GPUs. We also innovate new state machine for string matching, the state machine of which is more suitable to be performed on GPU. We have also described several speedup techniques considering special architecture properties of GPU. The experimental results demonstrate the new algorithm on GPUs achieves up to 4,000 times speedup compared to the AC algorithm on CPU. Compared to other GPU approaches, the new algorithm achieves 3 times faster with significant improvement on memory efficiency. Furthermore, because the new Algorithm reduces the complexity of the Aho-Corasick algorithm, the new algorithm also improves on memory requirements.
The research results have been accepted by IEEE GLOBAL COMMUNICATIONS CONFERENCE (IEEE GLOBECOM 2010) and the 21st VLSI Design/CAD Symposium.
三
三
三
三、
、
、 計畫緣由與目的
、
計畫緣由與目的
計畫緣由與目的
計畫緣由與目的
Network Intrusion Detection Systems (NIDS) have been widely used to protect computer systems from network attacks such as denial of service attacks, port scans, or malware. The string matching engine used to identify network attacks by inspecting packet content against thousands of predefined patterns dominates the performance of an NIDS. Due to the ever-increasing number of attacks and network complexity, traditional string matching approaches on uni-processors have become inadequate for the high-speed network.
To accelerate string matching, many hardware approaches are being proposed that can be classified into logic-based [1][2][3][4] and memory-based approaches [5][6][7][8][9]. Recently, Graphic Processor Unit (GPU) has attracted a lot of attention due to their cost-effective parallel computing power. A modified Wu-Manber algorithm [10] and a modified suffix tree algorithm [11] are implemented on GPU to accelerate exact string matching while a traditional DFA approach [12] and a new state machine XFA [13] are proposed to accelerate regular expression matching on GPU.
In this project, we study the use of parallel computation on GPUs for accelerating string matching. A direct implementation of parallel computation on GPUs is to divide an input stream into multiple segments, each of which is processed by a parallel thread for string matching. For example in Fig. 1(a), using a single thread to find the pattern “AB” takes 24 cycles. If we divide an input stream into four segments and allocate each segment a thread to find the pattern “AB” simultaneously, the fourth thread only takes six cycles to find the same pattern as shown in Fig. 1(b).
Figure 1. Single vs. multiple thread approach
However, the direct implementation of dividing an input stream on GPUs cannot detect a pattern occurring in the boundary of adjacent segments. We call the new problem as the “boundary detection” problem. For example, in Fig. 2, the pattern “AB” occurs in the boundary of segments 3 and 4 and cannot be identified by threads 3 and 4. Despite the fact that boundary detection problems can be resolved by having threads to process overlapped computation on the boundaries (as shown in Fig. 3), the overhead of overlapped computation seriously degrades performance.
Figure 2. Boundary detection problem that the pattern “AB” cannot be identified by Thread 3 and 4.
Thread 1 Thread 2 Thread 3 Thread 4 AAAAAAAAAAAAAAAAAAAAAAAABBBBBBBB A A A A A A A A A A A A A A A A A A A A A A A B
(a): Single thread approach
(b): Multiple threads approach
1 thread 24 cycles 4 threads 6 cycles A A A A A A A A A A A A A A A A A A A A A A A B
Figure 3. Every thread scans across the boundary to resolve the boundary detection problem.
四
四
四
四、
、
、 研究方法
、
研究方法
研究方法
研究方法
This project addresses the algorithm and architecture design of string matching on GPUs. In this section, we first describe the problems of direct implementation of AC Algorithm on GPU and then propose our parallel algorithm and experimental results.
4.1
Problems of Direct Implementation of AC Algorithm on GPU
Among string matching algorithms, the AC algorithm [5][8][9][14][16][17] has been widely used for string matching due to its advantage of matching multiple patterns in a single pass. Using the AC Algorithm for string matching consists of two steps. The first step is to compile multiple patterns into a composite state machine. The second step is to use a single thread to recognize attack patterns by traversing the state machine. For example, Fig. 4 shows the state machine of the four patterns, “AB”, “ABG”, “BEDE”, and “EF”. In Fig. 4, the solid lines represent the valid transitions whereas the dotted lines represent the failure transitions.
The failure transitions are used to back-track the state machine to recognize patterns in different locations. Given a current state and an input character, the AC machine first checks whether there is a valid transition for the input character; otherwise, the machine jumps to the next state where the failure transition points. Then, the machine regards the same input character until the character causes a valid transition. For example, consider an input stream which contains a substring “ABEDE”. The AC state machine first traverses from state 0, state 1, to state 2 which is the final state of pattern “AB”. Because state 2 has no valid transition for the input “E,” the AC state machine first takes a failure transition to state 4 and then regards the same input “E” leading to state 5. Finally, the AC state machine reaches state 7 which is the final state of pattern “BEDE”.
Figure 4. AC state machine of the patterns “AB”, “ABG”, “BEDE”, and “EF”
One approach to increase the throughput of string matching is to increase the parallelism of the AC algorithm. A direct implementation to increase the parallelism is to divide an input stream into multiple segments and to allocate each segment a thread to process string matching. As Fig. 5 shows, all threads
B G 0 A 1 2 3 4 5 6 7 9 8 B E D E E F [^ABE]
Thread 1 Thread 2 Thread 3 Thread 4 AAAAAAAAAAAAAAAAAAAAAAAABBBBBBBB
process string matching on their own segments by traversing the same AC state machine simultaneously. As discussed in introduction, the direct implementation incurs the boundary detection problem. To resolve the boundary detection problem, each thread must scan across the boundary to recognize the pattern that occurs in the boundary. In other words, in order to resolve the boundary detection problem and identify all possible patterns, each thread must scan for a minimum length which is almost equal to the segment length plus the longest pattern length of an AC state machine. For example in Fig. 5, supposing each segment has eight characters and the longest pattern of the AC state machine has four characters, each thread must scan a minimum length of eleven (8+4-1) characters to identify all possible patterns. The minimum length is calculated by adding the segment length and the length of the longest pattern, and then subtracting one character. The overhead caused by scanning the additional length across the boundary is so-called overlapped computation.
On the other hand, the throughput of string matching on GPU can be improved by deeply partitioning an input stream and increasing threads. However, deeply partitioning will cause the probability of the boundary detection problem to increase. To resolve the boundary detection problem, the overlapped computation increases tremendously and leads to throughput bottleneck.
Figure 5. Direct implementation which divides an input stream into multiple segments and allocates each segment a thread to traverse the AC state machine.
4.2
Parallel Failureless-AC Algorithm
In order to increase the throughput of string matching on GPU and resolve the throughput bottleneck caused by the overlapped computation, we propose a new algorithm, called Parallel Failureless-AC Algorithm (PFAC). In PFAC, we allocate each byte of an input stream a GPU thread to identify any virus pattern starting at the thread starting location.
The idea of allocating each byte of an input stream a thread to identify any virus pattern starting at the thread starting location has an important implication on the efficiency. First, in the conventional AC state machine, the failure transitions are used to back-track the state machine to identify the virus patterns starting at any location of an input stream. Since in the PFAC algorithm, a GPU thread only concerns the virus pattern starting at a particular location, the GPU threads of PFAC need not back-track the state machine. Therefore, the failure transitions of the AC state machine can all be removed. An AC state machine with all its failure transitions removed is called Failureless-AC state machine. Fig. 6 shows the diagram of the PFAC which allocates each byte of an input stream a thread to traverse the new Failureless-AC state machine.
Figure 6. Parallel Failureless-AC algorithm which allocates each byte of an
A B E D E G A B B E E E E E B B B C C
. . .
. . .
input stream a thread to traverse the Failureless-AC state machine.
We now use an example to illustrate the PFAC algorithm. Fig. 7 shows the Failureless-AC state machine to identify the patterns “AB”, “ABG”, “BEDE”, and “EF” where all failure transitions are removed. Consider an input stream which contains a substring “ABEDE”. As shown in Fig. 8, the thread tn is allocated to input “A” to traverse the Failureless-AC state machine. After taking the input “AB”, thread tn reaches state 2, which indicates pattern “AB” is matched. Because there is no valid transition for “E” in state 2, thread tn terminates at state 2. Similarly, thread tn+1 is allocated to input “B”. After taking input “BEDE”, thread tn+1 reaches state 7 which indicates pattern “BEDE” is matched.
Figure 7. Failureless-AC state machine of the patterns “AB”, “ABG”, “BEDE”, and “EF”.
Figure 8: Example of PFAC
There are three reasons that the PFAC algorithm is superior to the straightforward implementation in Section II. They are described as follows. First, there is no boundary detection problem, as with the straightforward implementation. Second, both the worst-case and average life times of threads in the PFAC algorithm are much shorter than the time needed for the straightforward implementation. As shown in Fig. 9, threads tn to tn+3 terminate early at state 0 because there are no valid transitions for “X” in state 0. The threads tn+6 and tn+8 terminate early at state 8 because there are no valid transitions for “D” and “X” in state 8. Although the PFAC algorithm allocates a large number of threads, most threads have a high probability of terminating early, and both the worst-case and average life-time of threads in the PFAC algorithm are much shorter than the direct implementation. Third, the memory usage of the PFAC algorithm is smaller, due to the removal of failure transitions.
0 A 1 2 3 4 5 6 7 9 8 B G B E D E E F . . . X X X X A B E D E X X X X X . . . …… n n+1 …… Thread n Thread n+1 B G 0 A 1 2 3 4 5 6 7 9 8 B E D E E F B G 0 A 1 2 3 4 5 6 7 9 8 B E D E E F

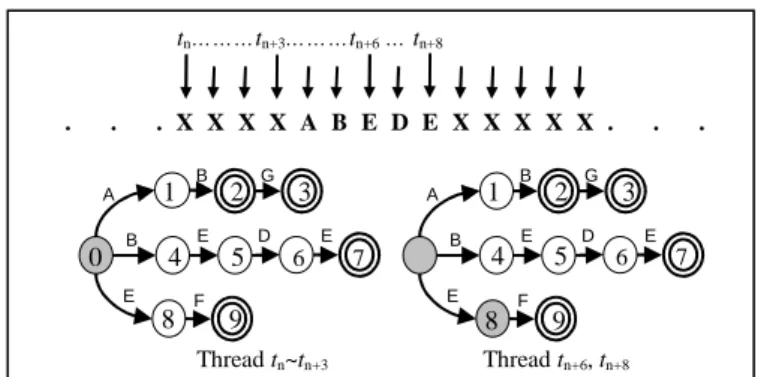

Figure 9. Most threads terminate early in PFAC
4.3
Experimental Results
We have implemented the proposed algorithm on a commodity GPU card and compare with the recent published GPU approaches. The experimental configurations are as follows:
CPU: Intel® Core™2 Duo CPU E7300 2.66GHz
System main memory: 4,096 DDR2 memory
GPU card: NVIDIA GeForce GTX 295 576MHz
480 cores with 1,792 MB GDDR3 memory
Patterns: string patterns of Snort V2.4
In order to evaluate the performance of our algorithm, we implement three approaches described in this project for comparisons. As shown in Table 1, the CPU_AC denotes the method of implementing the AC algorithm on CPU, which is the most popular approach adopted by NIDS systems, such as Snort. The Direct_AC approach denotes the direct implementation of the AC algorithm on GPU. The PFAC denotes the Parallel Failureless-AC approach on GPU. Table 1 shows the results of these three approaches for processing two different input streams. Column one lists two different input streams, the normal case denotes a randomly generated sequence of 219Kbytes comprising 19,103 virus patterns, whereas the virus case denotes a sequence of 219 Kbytes comprising 61,414 virus patterns.
Column 2, 3, 4, and 5 list the throughput of the three approaches, CPU_AC, Direct_AC, and PFAC, respectively. For processing the normal case of input streams, the throughput of CPU_AC, Direct_AC, and PFAC are 997, 6,428, and 3,963,966 KBps (Kilo Bytes per second), respectively. The experimental results show that the PFAC performs up to 4,000 times faster than the CPU_AC approach while the Direct_AC can only perform 6.4 times as fast. In other words, the PFAC also achieves up to 600 times faster than Direct_AC approach on GPU.
Furthermore, because the new algorithm removes the failure transitions of the AC state machine, the memory requirement can also be reduced. Table 2 shows that the new algorithm can reduce the number of transitions by 50%, and therefore achieve a memory reduction of 21% for Snort patterns. Table 3 compares with several recent published GPU approaches [10][11][12][13]. In Table 3, columns 2, 3, 4, and 5 shows the character number, memory size, the throughput, and the memory efficiency which is defined as the following equation.
Memory efficiency = Throughput / Memory (1)
As shown in Table 3, our results are faster than all [10][11][12][13] with efficient memory usage. We . . . X X X X A B E D E X X X X X . . . Thread tn~tn+3 Thread tn+6, tn+8 B G B G A B E D E E F tn………tn+3………tn+6 … tn+8 1 2 3 0 4 5 6 7 8 9 0 4 5 6 7 A B E D E E F 1 2 3 8 9
would like to mention that the memory-based approach requires the design and fabrication of a dedicated hardware whereas the GPU approach is more general in the sense that both software and the virus patterns can be easily updated.
TABLE 1:THROUGHPUT COMPARISON OF THREE APPROACHES
Input streams
CPU_AC Direct_AC PFAC
Throughput (KBps) Throughput (KBps) Throughput (KBps) Normal Case 997 6,428 3,963,966 Virus Case 657 4,691 3,656,217 Ratio 1 ~6.4 ~4000
TABLE 2:MEMORY COMPARISON
Conventional AC PFAC
states transitions memory (KB) states transitions memory (KB) Reduction
Snort rule* 8,285 16,568 143 8,285 8,284 114 21% Ratio 1 1 1 1 0.5 0.79
* The Snort rules contain 994 patterns and total 22,776 characters.
TABLE 3.COMPARISONS WITH PREVIOUS GPU APPROACHES
Approaches Character number of rule set Memory (KB) Throughput (GBps) Memory Efficiency (Throughput/memory) Notes
PFAC 22,776 114 3.9 34,210 NVIDIA GeForce GTX 295 Huang et al. [10] Modified WM 1,565 230 0.3 1,304 NVIDIA GeForce 7600 GT
Schatz et al. [11] Suffix Tree 200,000 14,125 ~0.25 17.7 NVIDIA GTX 8800 Vasiliadis et al. [12] DFA N.A. 200,000 0.8 4 NVIDIA GeForce 9800 GX2
Smith et al. [13] XFA N.A. 3,000 1.3 433 NVIDIA GeForce 8800 GTX
五
五
五
五、
、
、
、 重要執行成果和價值
重要執行成果和價值
重要執行成果和價值
重要執行成果和價值
In this project, we attempt to speedup string matching using GPU. Our major contributions are summarized as follows.
1. We propose a novel parallel algorithm to speedup string matching performed on GPUs. The new parallel algorithm is free from the boundary problem.
2. We also innovate new state machine for string matching, the state machine of which is more suitable to be performed in the parallel algorithm.
3. Considering special architecture properties of GPU, we have also described several speedup techniques.
4. Finally, we perform experiments on the Snort rules. The experimental results show that the new algorithm on GPU achieves up to 4,000 times speedup compared to the AC algorithm on CPU. Compared to other GPU [10][11][12][13] approaches, the new algorithm achieves 3 times faster with significant improvement on memory efficiency. In addition, because the new Algorithm reduces the complexity of the Aho-Corasick (AC) [14] algorithm, we achieve an average of 21% memory reduction for all string patterns of Snort V2.4 [15].
All techniques have been accepted and published in international conferences and journals. In the following, we list the related papers of above techniques.
[1] Cheng-Hung Lin, Sheng-Yu Tsai, Chen-Hsiung Liu, Shih-Chieh Chang, and Jyuo-Min Shyu,
10
Symposium, Kaohsiung, Taiwan, August 3-6, pp.163-166, 2010. (Best Paper Nominee)
[2] Cheng-Hung Lin, Sheng-Yu Tsai, Chen-Hsiung Liu, Shih-Chieh Chang, and Jyuo-Min Shyu,
"Accelerating String Matching Using Multi-threaded Algorithm on GPU," to appear in IEEE GLOBAL COMMUNICATIONS CONFERENCE (IEEE GLOBECOM 2010), Miami, Florida, USA, December 6-10, 2010.
六
六
六
六、
、
、
、 結論
結論
結論
結論
Graphics Processor Units (GPUs) have attracted a lot of attention due to their cost-effective and dramatic power of massive data parallel computing. In this project, we have proposed a novel parallel algorithm to accelerate string matching by GPU. The experimental results show that the new algorithm on GPU can achieve a significant speedup compared to the AC algorithm on CPU. Compared to other GPU approaches, the new algorithm achieves 3 times faster with significant improvement on memory efficiency. In addition, because the new algorithm reduces the complexity of the AC algorithm, the new algorithm also improves on memory requirements.
七
七
七
七、
、
、
、 參考文獻
參考文獻
參考文獻
參考文獻
[1] R. Sidhu and V. K. Prasanna, “Fast regular expression matching using FPGAs,” in Proc. 9th Ann. IEEE Symp. Field-Program. Custom Comput. Mach. (FCCM), 2001, pp. 227-238.
[2] B.L. Hutchings, R. Franklin, and D. Carver, “Assisting Network Intrusion Detection with
Reconfigurable Hardware,” in Proc.10th Ann. IEEE Symp. Field-Program. Custom Comput.
Mach. (FCCM), 2002, pp. 111-120.
[3] C. R. Clark and D. E. Schimmel, “Scalable Pattern Matching for High Speed Networks,” in Proc. 12th Ann. IEEE Symp. Field-Program. Custom Comput. Mach. (FCCM), 2004, pp.
249-257
[4] J. Moscola, J. Lockwood, R. P. Loui, and M. Pachos, “Implementation of a Content-Scanning
Module for an Internet Firewall,” in Proc. 11th Ann. IEEE Symp. Field-Program. Custom
Comput. Mach. (FCCM), 2003, pp. 31–38.
[5] M. Aldwairi*, T. Conte, and P. Franzon, “Configurable String Matching Hardware for
Speeding up Intrusion Detection,” in ACM SIGARCH Computer Architecture News, 2005, pp. 99–107
[6] S. Dharmapurikar and J. Lockwood, “Fast and Scalable Pattern Matching for Content
Filtering,” in Proc. of Symp. Architectures Netw. Commun. Syst. (ANCS), 2005, pp. 183-192
[7] Y. H. Cho and W. H. Mangione-Smith, “A Pattern Matching Co-processor for Network
Security,” in Proc. 42nd Des. Autom. Conf. (DAC), 2005, pp. 234-239
[8] L. Tan and T. Sherwood, “A high throughput string matching architecture for intrusion
detection and prevention,” in proc. 32nd Ann. Int. Symp. on Comp. Architecture, (ISCA), 2005, pp. 112-122
11
[9] H. J. Jung, Z. K. Baker, and V. K. Prasanna, “Performance of FPGA Implementation of
Bit-split Architecture for Intrusion Detection Systems,” in 20th Int. Parallel and Distributed
Processing Symp. (IPDPS), 2006.
[10] N. F. Huang, H. W. Hung, S. H. Lai, Y. M. Chu, and W. Y. Tsai, “A gpu-based multiple-pattern
matching algorithm for network intrusion detection systems,” in Proc. 22nd International
Conference on Advanced Information Networking and Applications (AINA), 2008, pp. 62–67. [11] M. C. Schatz and C. Trapnell, “Fast Exact String Matching on the GPU,” Technical report. [12] G. Vasiliadis , M. Polychronakis, S. Antonatos , E. P. Markatos and S. Ioannidis, “Regular
Expression Matching on Graphics Hardware for Intrusion Detection,” In Proc. 12th
International Symposium on Recent Advances in Intrusion Detection, 2009.
[13] R. Smith, N. Goyal, J. Ormont, K. Sankaralingam, C. Estan, “Evaluating GPUs for network
packet signature matching,” in Proc. of the International Symposium on Performance Analysis
of Systems and Software, ISPASS (2009).
[14] A. V. Aho and M. J. Corasick. Efficient String Matching: An Aid to Bibliographic Search. In Communications of the ACM, 18(6):333–340, 1975.
[15] M. Roesch. Snort- lightweight Intrusion Detection for networks. In Proceedings of LISA99,
the 15th Systems Administration Conference, 1999.
[16] N. Tuck, T. Sherwood, B. Calder, and G. Varghese. “Deterministic Memory-Efficient String
Matching Algorithms for Intrusion Detection,” in Proc. 23nd Conference of IEEE
Communication Society (INFOCOMM), Mar, 2004.
[17] S. Kumar, S.Dharmapurikar, F.Yu, P. Crowley, and J. Turner, “Algorithms to Accelerate
Multiple Regular Expressions Matching for Deep Packet Inspection,” in ACM SIGCOMM
Computer Communication Review, ACM Press, vol.36, Issue. 4, Oct. 2006, pp. 339-350. [18] F. Yu, R. H. Katz, and T. V. Lakshman, “Gigabit Rate Packet Pattern-Matching Using TCAM,”
in Proc. the 12th IEEE International Conference on Network Protocols (ICNP’04), 2004.
[19] http://www.nvidia.com.tw/object/cuda_home_tw.html [20] http://www.nvidia.com.tw/page/home.html
